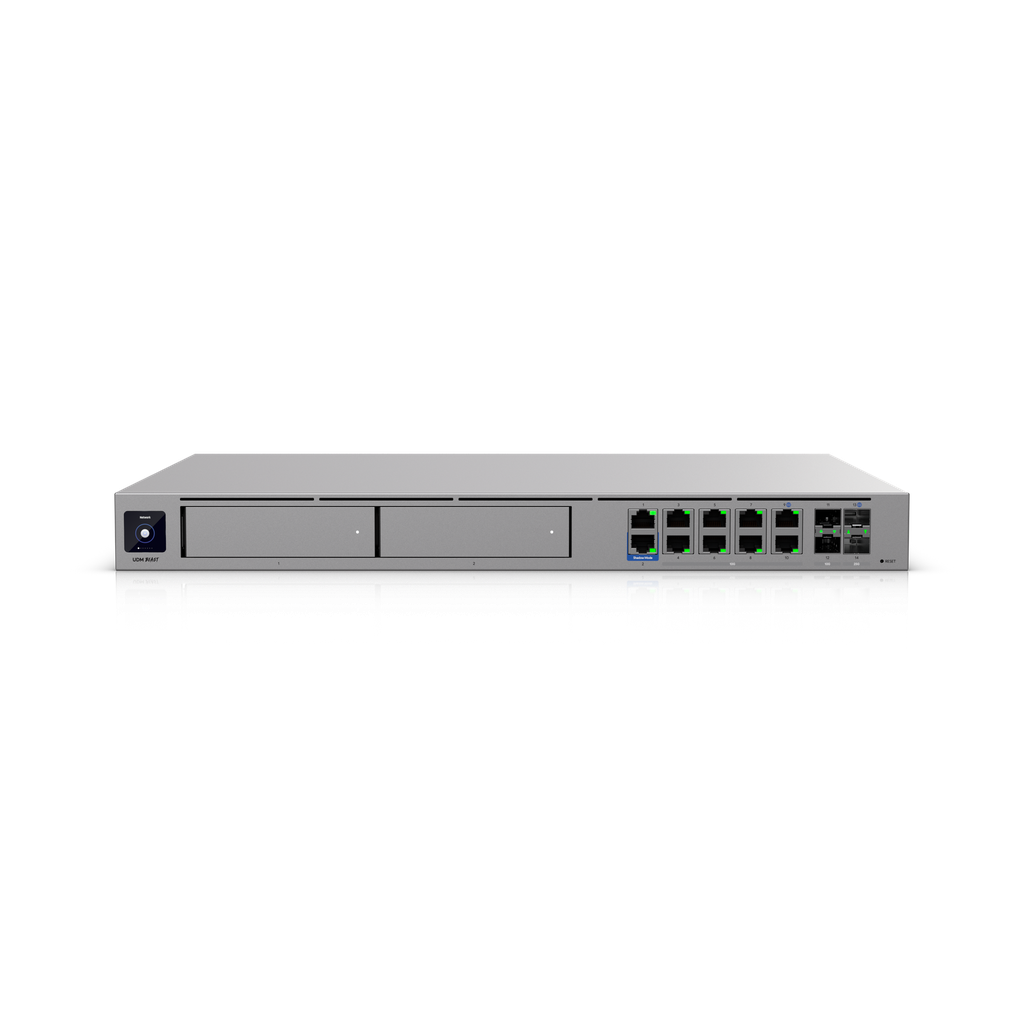

Ubiquiti UDM-Beast UniFi Dream Machine Beast — Hyperscale Cloud Gateway with 25 Gbps IDS/IPS, Dual 25G SFP28 WAN, 7,500+ Clients

https://arcip.com.au/web/image/product.template/9635/image_1920?unique=55857d7
Ubiquiti's UDM-Beast is a hyperscale UniFi Dream Machine designed for large enterprise deployments — 25 Gbps IDS/IPS throughput, 7,500+ simultaneous clients, 750+ managed UniFi devices, and 200 access hubs. Comes with (2) 25G SFP28, (2) 10G SFP+, (8) 10 GbE RJ45 and (2) 1 GbE RJ45 ports, an octa-core ARM v9 CPU at 2.1 GHz, 16 GB RAM, a 128 GB internal SSD, and (2) 3.5" HDD bays for built-in NVR storage. 1U rack mount with 1.3" touchscreen LCM, Shadow Mode (VRRP) failover, and DC power backup support. Australian stock from ARC IP Networks.

2,852.30 2852.3 AUD 2,852.30 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • IDS/IPS Throughput
  • Gateway Features
  • Built-in WiFi
  • WAN Ports
  • LAN Ports
  • Built-in Switch

This combination does not exist.

In stock online
10GbE UniFi Gateway Rackmount Ubiquiti UniFi Protect 25GbE IDS/IPS VPN Enterprise UniFi Dream Machine Cloud Gateway Built-in NVR 1U Hyperscale
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
UDM-Beast
Ubiquiti UniFi Dream Machine Beast — Hyperscale Cloud Gateway with 25 Gbps IDS/IPS, Dual 25G SFP28 WAN, and 7,500+ Client Capacity

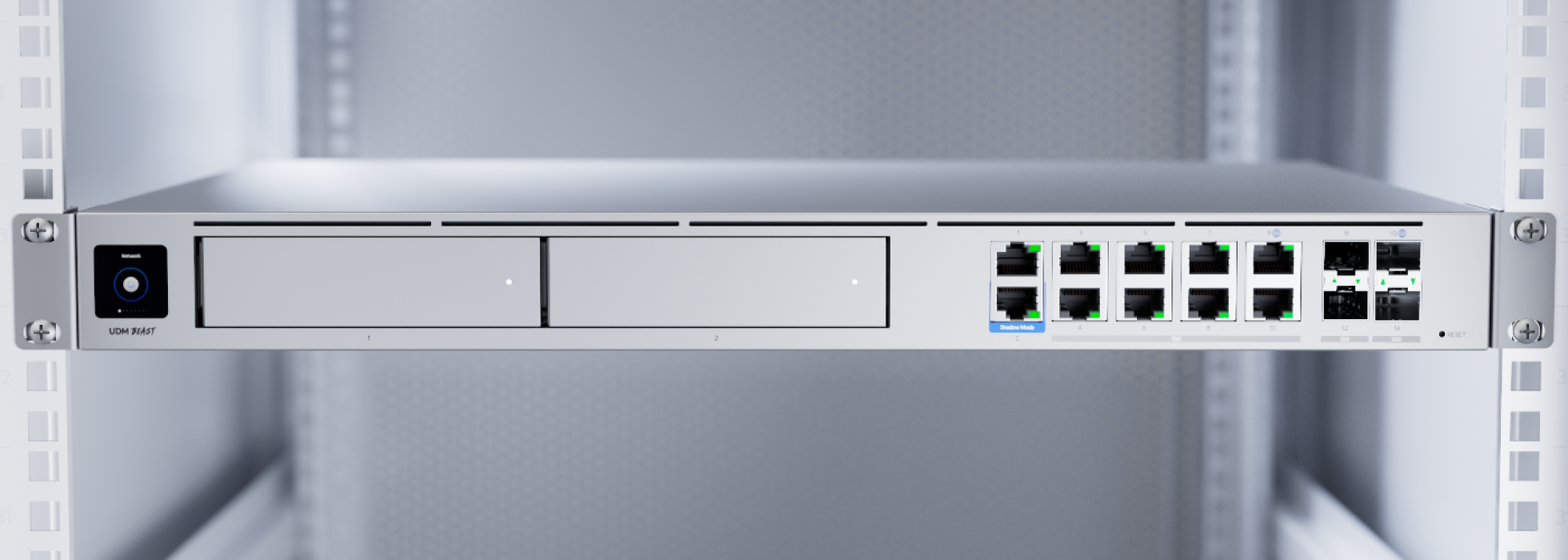

UDM-Beast Hyperscale Deployment

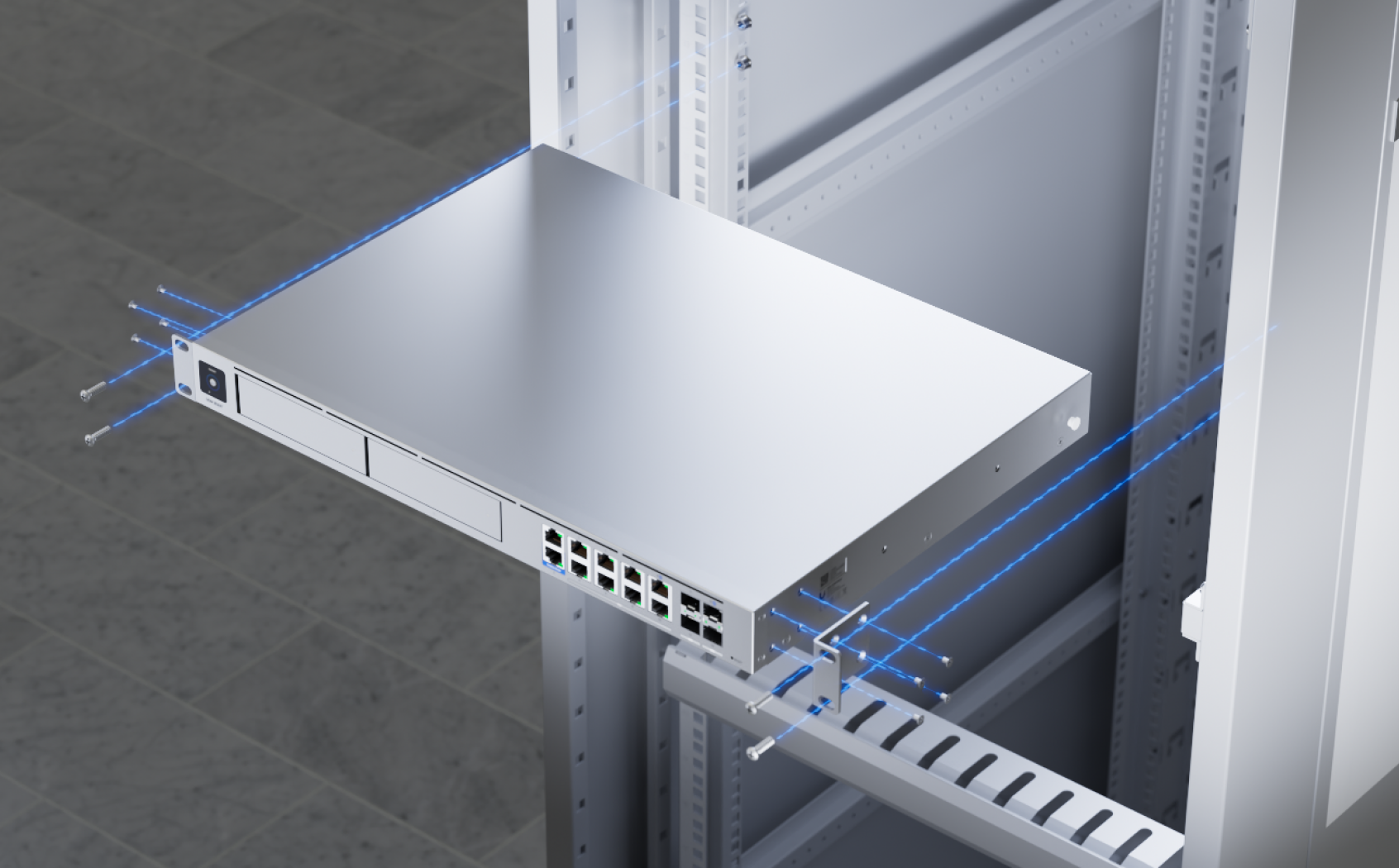

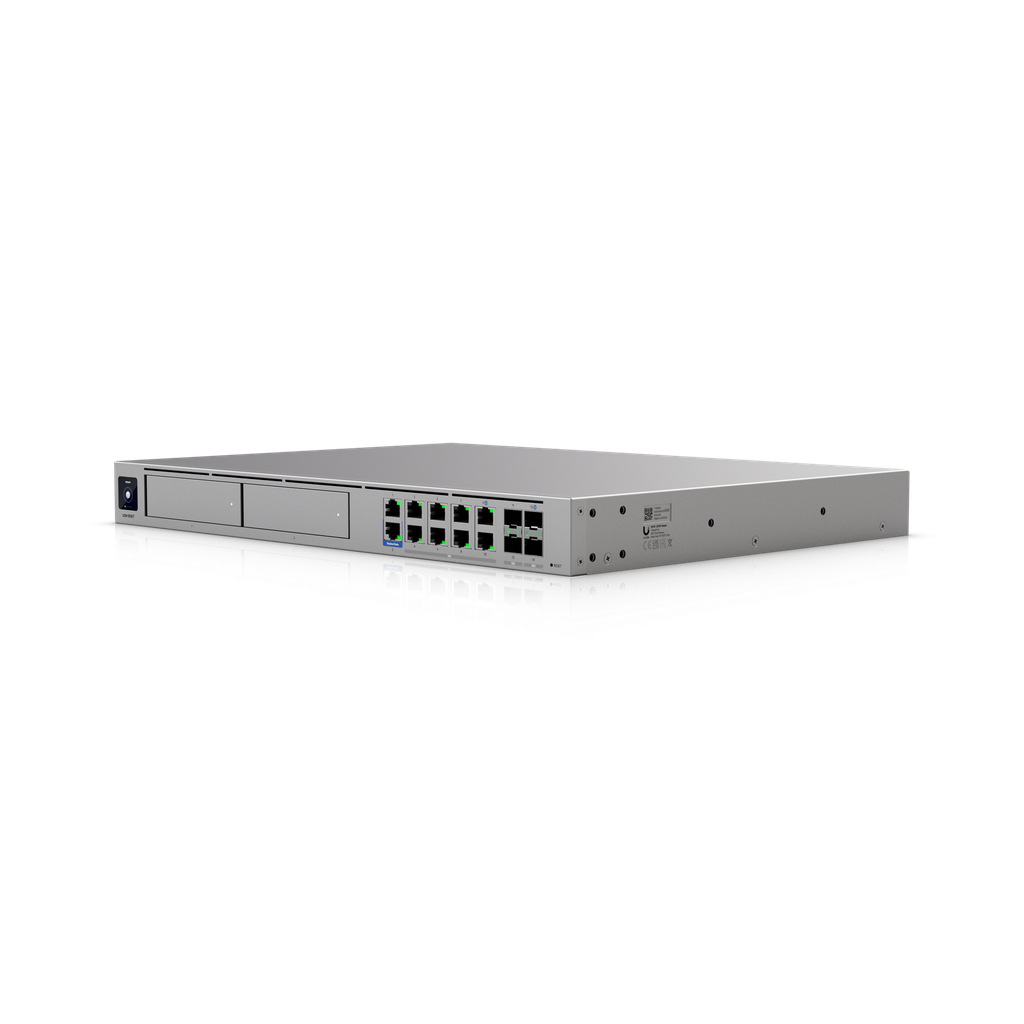

UDM-Beast Front

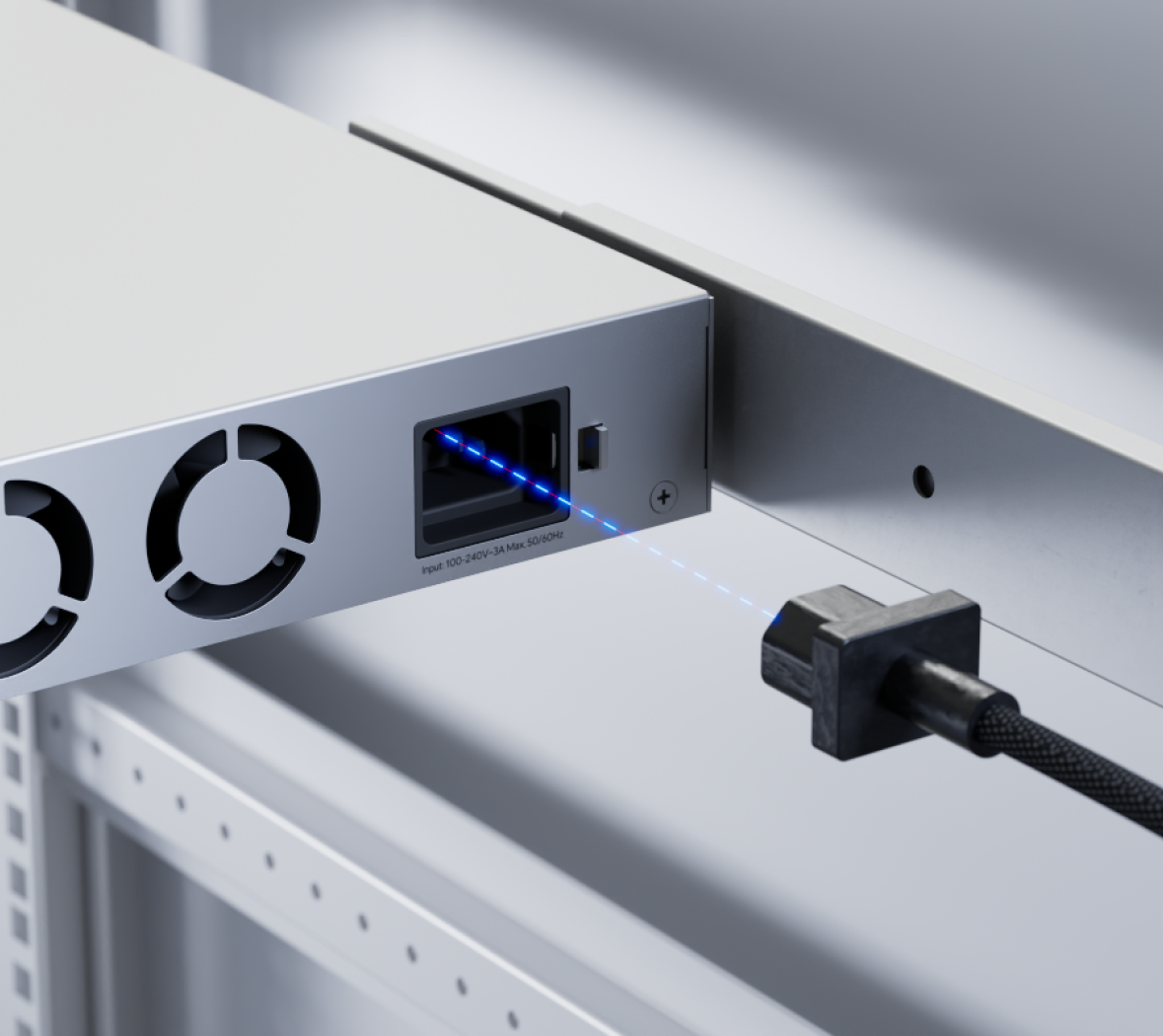

UDM-Beast Detail

Features

  • Hyperscale UniFi Cloud Gateway built for large enterprise deployments — manages 750+ UniFi devices, 7,500+ simultaneous users, and 200+ Access Hubs from one rack-mount appliance.
  • 25 Gbps IDS/IPS throughput with 55,000+ CyberSecure threat signatures for line-rate deep packet inspection.
  • Dual 25G SFP28 + dual 10G SFP+ + (8) 10 GbE RJ45 + (2) 1 GbE RJ45 + (1) console — supports up to 8 WAN ports.
  • Built-in NVR with (2) 3.5" HDD bays plus a 128 GB internal SSD — recordings up to (40) 4K, (60) 2K or (100) HD UniFi cameras.
  • Octa-core ARM v9 CPU at 2.1 GHz with 16 GB system memory for high-throughput routing, firewalling and analytics.
  • Shadow Mode (VRRP) gateway failover for sub-second redundancy plus USP-RPS DC power backup input.
  • 1.3" front touchscreen LCM display for at-a-glance health, throughput and network status.
  • 1U rack mount aluminium CNC + SGCC steel enclosure — 442.4 x 43.7 x 325 mm, 5.5 kg, 100 W max.
  • Complete UniFi application platform on-device: Network, Protect, Access, Talk and Identity controllers.
  • Bluetooth + Ethernet management and full UniFi mobile app support (iOS 10.34+, Android 10.37.1+).

Specifications

Grid Overview
IDS/IPS25 Gbps
Overview
Dimensions442.4 x 43.7 x 325 mm
Managed UniFi Devices750+
Managed Cameras(100) HD / (60) 2K / (40) 4K
Managed Access Hubs200
Simultaneous Users Connected7,500+
Max. WAN Port Count8
Default WAN Ports(1) 25G SFP28 / (1) 10 GbE RJ45
1 GbE RJ452 (1G/100M/10M)
10 GbE RJ458 (10G/5G/2.5G/1G/100M)
10G SFP+2 (10G/1G)
25G SFP282 (25G/10G/1G)
Console1
IDS/IPS Throughput25 Gbps
Form FactorRack mount (1U)
RedundancyShadow Mode (VRRP) Gateway Failover / DC Power Backup
Security
IDS/IPS Signatures55,000+ with CyberSecure
Hardware
NVR Storage(2) 3.5" NVR HDD bays / Built-in 128 GB SSD
Max. Power Consumption100 W
Power Method(1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz / (1) USP-RPS DC input, 11.5V DC, 13.05A
Power SupplyAC/DC, internal, 150 W
Supported Voltage Range100–240V AC
Heat Dissipation342 BTU/hr
ProcessorOcta-core ARM v9 at 2.1 GHz
System Memory16 GB
On-board StorageIntegrated 128 GB SSD
Weight5.5 kg
Enclosure MaterialAluminium CNC, SGCC steel
Mount MaterialSGCC steel
LCM Display1.3" touchscreen
ManagementEthernet / Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature0 to 40 °C
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Software
Mobile AppUniFi iOS: Version 10.34.0 and later / UniFi Android: Version 10.37.1 and later

Professional Overview

The Ubiquiti UDM-Beast is the hyperscale flagship of the UniFi Dream Machine line — a single-appliance Cloud Gateway, security platform and NVR purpose-built for large enterprise, campus, MDU and managed-service deployments. In a 1U rack form factor it consolidates routing, switching, IDS/IPS, VPN, NVR, Access, Talk and Identity for environments that need to manage 750+ UniFi devices and over 7,500 simultaneous clients without splitting workloads across multiple controllers.

Performance is the Beast's defining characteristic: 25 Gbps IDS/IPS throughput backed by 55,000+ CyberSecure threat signatures, an octa-core ARM v9 CPU running at 2.1 GHz, and 16 GB of system memory. The port complement is built for high-density edges — (2) 25G SFP28 ports, (2) 10G SFP+, (8) 10 GbE RJ45 (10G/5G/2.5G/1G/100M autosense), (2) 1 GbE RJ45, and a dedicated console — with up to 8 WAN ports configurable for redundancy and SD-WAN.

Built-in UniFi Protect storage and recording is delivered through (2) 3.5" HDD bays and a 128 GB internal SSD, supporting up to (100) HD, (60) 2K or (40) 4K managed cameras alongside 200 Access Hubs without external NVR hardware. A 1.3" touchscreen LCM provides front-panel telemetry, while Shadow Mode (VRRP) gateway failover and USP-RPS DC power backup deliver carrier-grade redundancy. Management is via Ethernet, Bluetooth, the UniFi web controller and the UniFi mobile app (iOS 10.34+, Android 10.37.1+).

The Beast is housed in an aluminium CNC + SGCC steel chassis (442.4 x 43.7 x 325 mm, 5.5 kg) drawing a maximum of 100 W with 342 BTU/hr heat dissipation, certified to CE, FCC and IC, and rated for 0 to 40 °C operating temperature with ESD/EMP air ± 8 kV and contact ± 4 kV protection. Australian stock from ARC IP Networks — pickup available from our 6 George Street warehouse or shipped Australia-wide.

Part of our Ubiquiti UniFi Routers range — browse and compare the full range of UniFi gateways, Dream Machines and routers.

Ubiquiti UDM-Beast vs UDM-Pro-Max vs EFG — Which High-End UniFi Gateway Do You Need?

The UDM-Beast is the hyperscale Dream Machine: 25 Gbps IDS/IPS throughput, 750+ managed UniFi devices, 7,500+ clients and dual 25G-class WAN, with built-in UniFi Protect NVR bays. It out-muscles the UDM-Pro-Max (5 Gbps IDS/IPS, 2,000 clients) on every performance metric, while the EFG Enterprise Fortress Gateway differentiates on enterprise resilience — 95,000+ threat signatures with CyberSecure Enterprise and dual hot-swappable power supplies — rather than raw throughput.

SpecificationUDM-Pro-MaxUDM-BeastEFG
IDS/IPS throughput5 Gbps25 Gbps12.5 Gbps
Managed UniFi devices200+750+500+
Max. clients2,0007,500+5,000
Threat signatures55,000+55,000+ (CyberSecure)95,000+ (CyberSecure Enterprise)
Default WAN(1) 10G SFP+ + (1) 2.5 GbE(1) 25G SFP28 + (1) 10 GbE RJ45(1) 25G SFP28 + (1) 2.5 GbE
Power redundancyInternal PSU + USP-RPS inputInternal PSU + USP-RPS input(2) hot-swappable 150W CRPS
Gateway failoverShadow Mode (VRRP)Shadow Mode (VRRP)Shadow Mode (VRRP)
Built-in NVR storage(2) 3.5" bays + 128 GB SSD(2) 3.5" bays + 128 GB SSD— (dedicated gateway)
Processor / memoryQuad-core A57, 8 GBOcta-core ARM v9 @ 2.1 GHz, 16 GB18-core ARM v8.2 @ 2 GHz

Choose the UDM-Beast when you want maximum routing and inspection performance with built-in UniFi Protect recording — hyperscale offices, MSP-managed sites, and high-throughput networks. Choose the EFG when redundant hot-swap power and the enterprise threat-signature tier matter more than peak throughput. Choose the UDM-Pro-Max for standard commercial sites under ~2,000 clients. All run the full UniFi suite with no licensing fees and are available with Australian stock from ARC IP Networks. Compare the complete range on our Ubiquiti UniFi Cloud Gateways guide.

UDM-Beast buying guides

Written by our team from Ubiquiti's published specifications:

Ubiquiti UDM-Beast: hyperscale UniFi in 1U

The UniFi Dream Machine Beast is the largest Dream Machine Ubiquiti makes. It delivers 25 Gbps of IDS/IPS throughput and supports 7,500+ clients and 750+ UniFi devices from a single rack mount (1u) appliance.

The step up is architectural, not incremental. Where the rest of the range uses a quad-core Cortex-A57, the Beast runs an Octa-core ARM® v9 at 2.1 GHz with 16 GB of memory — roughly seven times the inspection throughput of the UDM-Pro-Max and nearly four times its client capacity.

Port density and 25G uplinks

This is where the Beast separates itself from every other Dream Machine — it is the only one with 25 Gigabit uplinks and native 10 GbE copper.

InterfaceCount & speeds
25G SFP282 (25G/10G/1G)
10 GbE RJ458 (10G/5G/2.5G/1G/100M)
10G SFP+2 (10G/1G)
1 GbE RJ452 (1G/100M/10M)
Console1
Default WAN ports(1) 25G SFP28 (1) 10 GbE RJ45
Max. WAN ports8
MAC address table32,000

Eight 10 GbE copper ports is unusual at this price point and removes the need for SFP+ modules on most of the LAN side. The two 25G SFP28 ports give you an uplink that will not bottleneck a modern core switch. There is no PoE — at this scale devices are powered from dedicated PoE switches.

Capacity in context

UDM-BeastUDM-Pro-MaxUDM-SE
IDS/IPS throughput25 Gbps5 Gbps3.5 Gbps
Clients7,500+2,000+1,000+
Managed UniFi devices750+200+100+
Managed cameras(100) HD (60) 2K (40) 4K(50) HD (25) 2K (15) 4K(24) HD (14) 2K (8) 4K
Access hubs200150150
ProcessorOcta-core ARM® v9 at 2.1 GHzQuad-core ARM® Cortex®-A57 at 2.0 GHzQuad-core ARM® Cortex®-A57 at 1.7 GHz
Memory16 GB8 GB4 GB
PoENoneNone180W

All of them share the same 55,000+ with CyberSecure signature set and Shadow Mode (VRRP) Gateway Failover DC Power Backup. See the rack-mount gateway guide and the Dream Machine comparison for the full picture.

Video recording at scale

The Beast records (100) HD (60) 2K (40) 4K streams through UniFi Protect, using (2) 3.5" NVR HDD bays Built-in 128 GB SSD for Faster Experience.

Two bays means RAID protection is available, so a single drive failure does not cost you footage. Both bays ship empty — budget for surveillance-rated 3.5" drives. For camera counts beyond this, or for separating recording from routing, see our Protect NVR comparison and the camera range.

Physical and power

Form factorRack mount (1U)
Dimensions442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8")
Weight5.5 kg (12.13 lb)
EnclosureAluminium CNC, SGCC steel
Max. power consumption100W
Heat dissipation342 BTU/hr
Operating temperature0 to 40° C (32 to 104° F)
Display1.3" touchscreen

At 100W and 342 BTU/hr it draws noticeably more than the rest of the range, so check the rack's cooling and circuit headroom before installing.

Who the UDM-Beast is for

  • Large single sites — campuses, hotels, hospitals, large warehouses — running toward 7,500+ clients.
  • Multi-gig and 25G cores where a 5 Gbps gateway would be the bottleneck.
  • Large UniFi estates of 750+ devices managed from one console.
  • Substantial camera deployments needing RAID-protected recording on-box.
  • MSPs and integrators consolidating a rack of appliances into 1U.

Deploying at this scale? Our enterprise deal registration covers project pricing. If your site is smaller, the UDM-Pro-Max or UDM-SE will likely fit better — compare in the cloud gateway comparison.

Frequently Asked Questions — Ubiquiti UDM-Beast

What is the Ubiquiti UDM-Beast?

The UDM-Beast (UniFi Dream Machine Beast) is Ubiquiti's hyperscale all-in-one cloud gateway. It delivers 25 Gbps IDS/IPS deep-packet inspection, manages 750+ UniFi devices and 7,500+ clients, and includes dual 3.5-inch NVR drive bays plus a built-in 128 GB SSD for UniFi Protect, in a 1U rack-mount chassis.

How fast is the UDM-Beast firewall?

The UDM-Beast inspects traffic at up to 25 Gbps with IDS/IPS enabled — five times the UDM-Pro-Max (5 Gbps) and double the EFG (12.5 Gbps). It ships with 55,000+ threat signatures via CyberSecure.

What is the difference between the UDM-Beast, UDM-Pro-Max and EFG?

The UDM-Beast leads on raw performance: 25 Gbps IDS/IPS, 750+ managed devices, 7,500+ clients, 25G SFP28 WAN and built-in NVR bays. The EFG offers lower peak throughput (12.5 Gbps) but adds the enterprise threat tier (95,000+ signatures with CyberSecure Enterprise) and dual hot-swappable power supplies. The UDM-Pro-Max (5 Gbps, 2,000 clients) suits standard commercial sites.

What WAN and LAN ports does the UDM-Beast have?

Default WAN is (1) 25G SFP28 plus (1) 10 GbE RJ45, and up to 8 ports can be assigned as WAN for multi-WAN failover and load balancing.

Can the UDM-Beast record security cameras?

Yes. The UDM-Beast includes (2) 3.5-inch hot-swap NVR drive bays and an integrated 128 GB SSD, running UniFi Protect for UniFi cameras with no per-camera licensing fees.

Does the UDM-Beast support high availability and power backup?

The UDM-Beast supports Shadow Mode (VRRP) gateway failover for high availability, and accepts redundant DC power via a USP-RPS unit alongside its internal PSU. For dual hot-swappable AC power supplies, consider the EFG instead.

What processor and memory does the UDM-Beast use?

It runs an octa-core ARM v9 processor at 2.1 GHz with 16 GB of memory and a 128 GB onboard SSD — double the memory of the UDM-Pro-Max.

Where can I buy the Ubiquiti UDM-Beast in Australia?

The Ubiquiti UDM-Beast is available in Australia from ARC IP Networks, an Australian Ubiquiti reseller, with stock on hand. Order online on this page with a GST tax invoice, Australia-wide shipping, or free warehouse pickup from Melbourne. Trade and volume pricing for MSPs, integrators and enterprise deployments is available on request or via 1300 100 440.

How much does the Ubiquiti UDM-Beast cost in Australia?

Current Australian pricing for the UDM-Beast is shown live on this page in AUD including GST, and is kept competitive against other Australian retailers. Volume and project pricing is available for multi-site deployments - request a trade quote for the best rate.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti UDM-Beast in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the UDM-Beast from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive pricing, monitored against the Australian market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Project pricing and deal registration for enterprise rollouts

Compare with the UDM-Pro-Max and UDM-SE, or browse UniFi cloud gateways, routers, switches and the Protect camera range. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Form Factor Rack Mount (1U)
IDS/IPS Throughput 25 Gbps
Gateway Features IDS/IPS, VPN, Built-in NVR, Shadow Mode (VRRP) Failover, DC Power Backup, Touchscreen LCM, CyberSecure
Built-in WiFi None
WAN Ports (1) 25G SFP28 + (1) 10 GbE RJ45 default; up to 8 WAN ports
LAN Ports (8) 10 GbE RJ45 + (2) 1 GbE RJ45 + (2) 10G SFP+ + (2) 25G SFP28
Built-in Switch None
