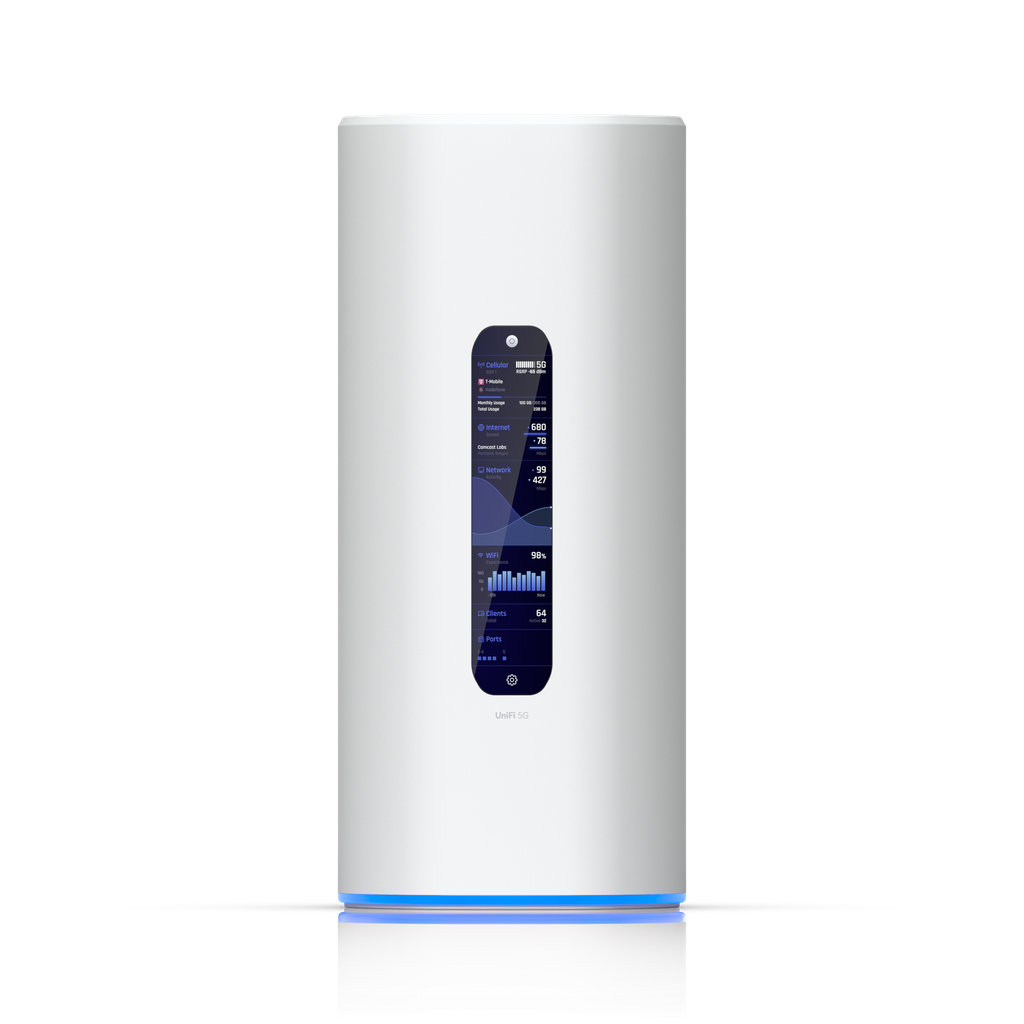

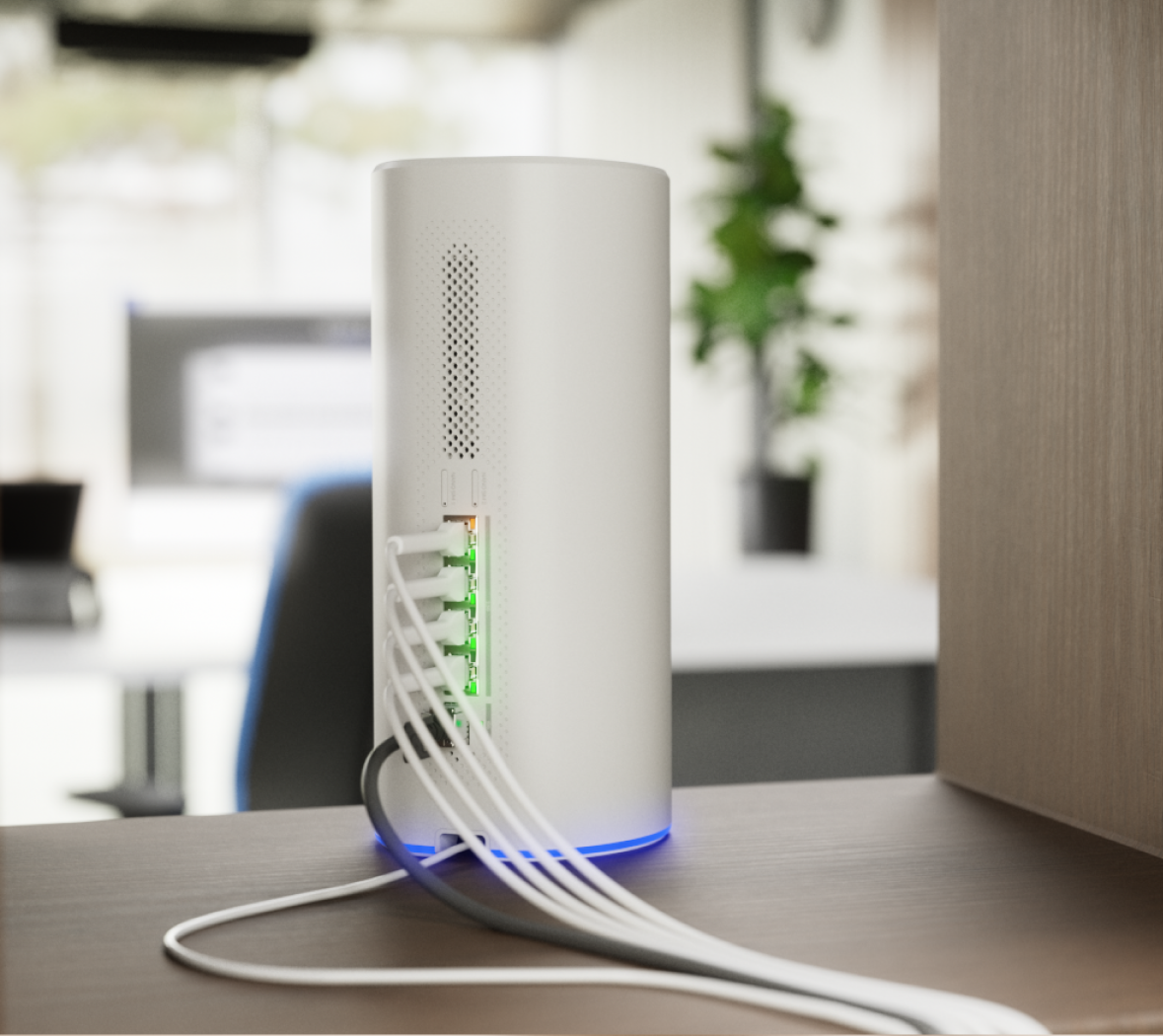

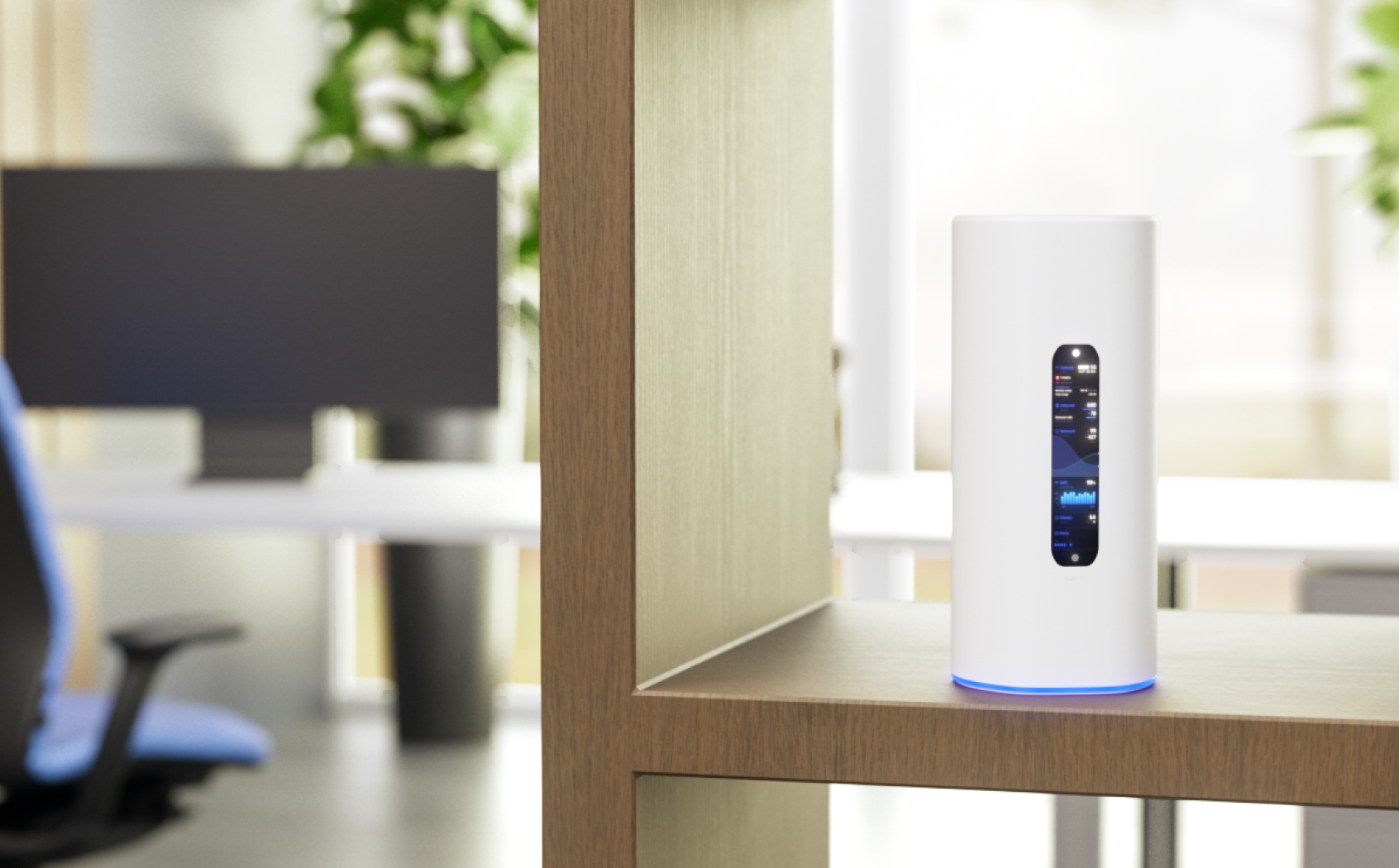

Ubiquiti UDR-5G-Max Dream Router 5G Max

https://arcip.com.au/web/image/product.template/7938/image_1920?unique=1a15e79
Dream Router 5G Max. Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage. Australian stock. Available for store pickup or shipping.

931.70 931.7 AUD 931.70 incl. GST

Not Available For Sale


  • Ports
  • IDS/IPS Throughput
  • Built-in WiFi
  • Brand
  • WAN Ports

This combination does not exist.

UniFi Gateway Ubiquiti
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UDR-5G-Max
Tags
UDR-5G-Max
Dream Router 5G Max

UDR-5G-Max

UDR-5G-Max

UDR-5G-Max

UDR-5G-Max

Specifications

Grid overview
IDS/IPS2.3 Gbps
Max. Client Count300
Overview
Dimensions110 x 110 x 250 mm / (4.3 x 4.3 x 9.8")
Managed UniFi Devices30+
Managed Cameras(5) HD / (2) 2K / (1) 4K
Simultaneous Users Connected300+
Max. WAN Port Count4

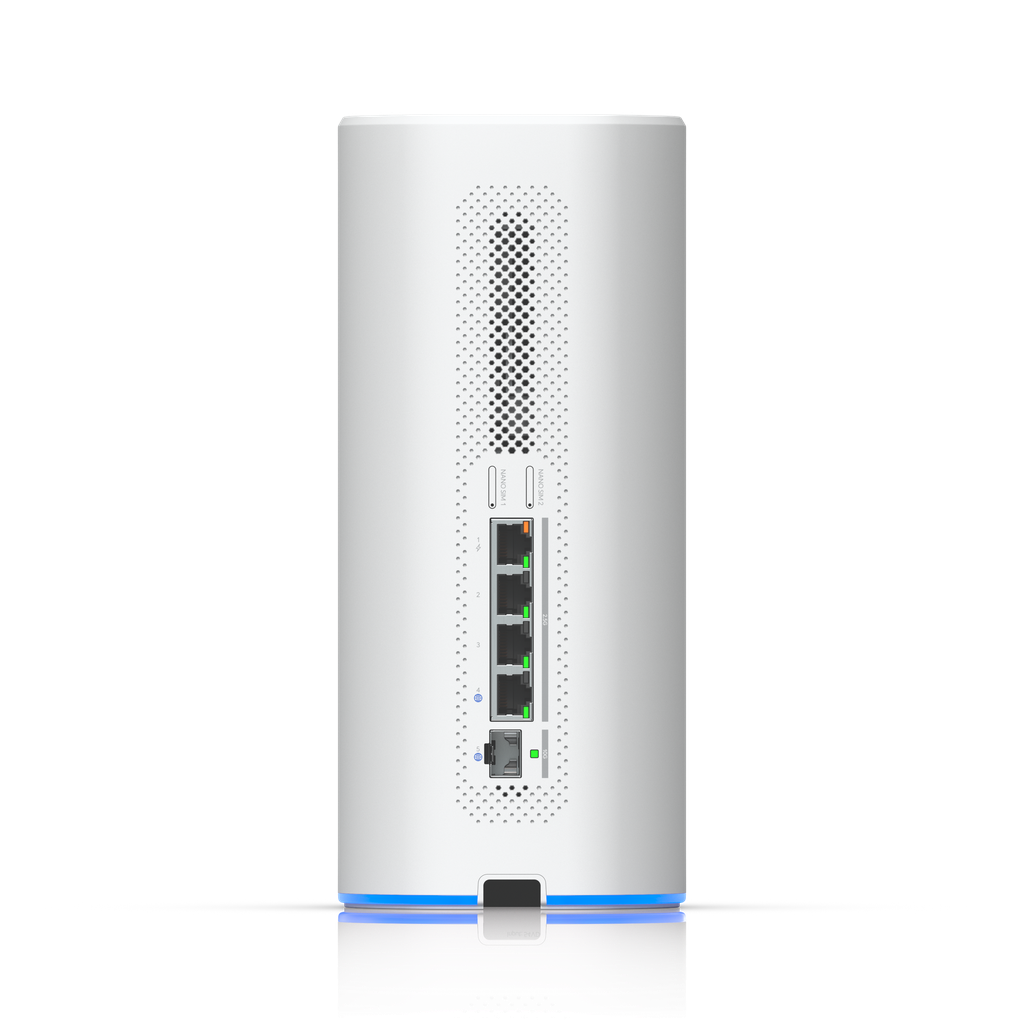

Default WAN Ports(1) 10G SFP+ / (1) 2.5 GbE RJ45
2.5 GbE RJ454 (1 PoE) / (2.5G/1G/100M)
10G SFP+1 / (10G/1G)
IDS/IPS Throughput2.3 Gbps
Form FactorDesktop
Coverage Area160 m² (1,750 ft²)
Security
IDS/IPS Signatures20,000+ with CyberSecure
VPN & SD-WAN
Site Magic20
WireGuard8
OpenVPN8
Networking
MAC Address Table Size2,000
Integrated WiFi
WiFi Standard802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
6 GHz5.7 Gbps
5 GHz4.3 Gbps
2.4 GHz688 Mbps
6 GHz2 x 2 (DL/UL MU-MIMO)
5 GHz2 x 2 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
6 GHz8 dBi
5 GHz5 dBi
2.4 GHz4 dBi
6 GHz22 dBm
5 GHz26 dBm
2.4 GHz23 dBm
Wireless SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs4 per Radio
802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Cellular
Category5G NR Sub-6
Frequency Bandsn1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX PowerHPUE power class 2: 26 dBm
Frequency BandsB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX PowerHPUE power class 2: 25 dBm
Frequency BandsB1, B2, B4, B5, B8, B19
5G NSADownlink 3.4 Gbps / Uplink 560 Mbps
5G SADownlink 1.8 Gbps / Uplink 650 Mbps
4G LTEDownlink 1.6 Gbps / Uplink 210 Mbps
Antenna Gain617-960 MHz: 3 dBi / 1710-2700 MHz: 7 dBi / 3300-5000 MHz: 8 dBi / 5150~5925 MHz: 8 dBi
SIM(2) Nano SIM / (1) Nano-SIM or eSIM
Hardware
NVR StoragePre-installed 64 GB microSD for NVR
Expansion SlotMicroSD Card
PoE Budget15.4W
PoE15.4W
Voltage Range PoE Mode44-57V
Max. Power Consumption34.5W (Excluding PoE output)
Power MethodDC jack (54V DC/1.1A)
Power Supply54V DC/1.1A / (Adapter included)
Supported Voltage Range100–240V AC
Heat Dissipation115 BTU/hr (Excluding PoE output)
ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory3 GB
Weight1.4 kg (3.1 lb)
Enclosure MaterialPolycarbonate
LCM Display4.7" touchscreen
ManagementEthernet / Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®
Software
Mobile AppUniFi iOS™: Version 10.33.0 and later / UniFi Android™: Version 10.36.1 and later

Professional Overview

The Ubiquiti UDR-5G-Max is Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage..

Performance specifications include IDS/IPS throughput of 2.3 Gbps, support for 300 concurrent clients, ids/ips throughput of 2.3 Gbps, coverage of 160 m² (1,750 ft²), IDS/IPS throughput of 20,000+ with CyberSecure.

The UDR-5G-Max integrates seamlessly with the Ubiquiti UniFi ecosystem, enabling centralized management through the UniFi Network application.

Built to Ubiquiti's commercial-grade standards with a weight of 1.4 kg (3.1 lb), featuring operating temperature range of 0 to 40° C (32 to 104° F), FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®. Australian stock from ARC IP Networks with fast nationwide shipping and local support.

Ports 4
IDS/IPS Throughput 2.3 Gbps
Built-in WiFi 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Brand Ubiquiti
WAN Ports 4
