Ubiquiti UniFi ECS-24-PoE — Enterprise Campus 1U Layer 3 Etherlighting™ Switch with 16 × 10 GbE + 8 × 2.5 GbE PoE+++ Ports and 2 × 25G SFP28 Uplinks (460 Gbps, 1,050W PoE Budget)

Price:

5,929.00


Ubiquiti UniFi EAV-Fiber — Enterprise Audio/Video 1U Aggregation Switch with 20 × 10G SFP+ and 2 × 100G QSFP28, 800 Gbps Switching, PTP / SMPTE ST 2110 / SDVoE / AES67 Timing Engine, OCXO Clock + GPS Grandmaster Input
Ubiquiti UniFi EAV-Fiber — Enterprise Audio/Video 1U Aggregation Switch with 20 × 10G SFP+ and 2 × 100G QSFP28, 800 Gbps Switching, PTP / SMPTE ST 2110 / SDVoE / AES67 Timing Engine, OCXO Clock + GPS Grandmaster Input
6,413.00
6,413.00
Mikrotik CRS112-8P-4S-IN Switch with POE-out RouterOS L5
Mikrotik CRS112-8P-4S-IN Switch with POE-out RouterOS L5
335.50
335.50

Ubiquiti UniFi ECS-24-PoE — Enterprise Campus 1U Layer 3 Etherlighting™ Switch with 16 × 10 GbE + 8 × 2.5 GbE PoE+++ Ports and 2 × 25G SFP28 Uplinks (460 Gbps, 1,050W PoE Budget)

https://arcip.com.au/web/image/product.template/9725/image_1920?unique=bf4e2a8
UniFi ECS-24-PoE is Ubiquiti's 1U Enterprise Campus switch delivering 90W PoE+++ on every port: 16 × 10 GbE RJ45 PoE+++ + 8 × 2.5 GbE RJ45 PoE+++ access ports plus 2 × 25G SFP28 uplinks. 460 Gbps switching capacity, 230 Gbps non-blocking, 342 Mpps forwarding, Layer 3 routing. Dual hot-swap 600W PSUs (1,050W shared / 450W redundant, upgradeable to 2,250W with 1,200W modules), four hot-swap fans, 1.3" touchscreen LCM, Etherlighting™ port feedback. Australian stock from ARC IP Networks.

5,929.00 5929.0 AUD 5,929.00 incl. GST

Not Available For Sale


  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

PoE++ 2.5GbE 10GbE UniFi Switch Layer 3 Rackmount Managed Switch Ubiquiti Etherlighting 24-Port Enterprise 25G SFP28 PoE+++ Campus Touchscreen Hot-Swap PSU 25G
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
ECS-24-PoE
Ubiquiti UniFi ECS-24-PoE — Enterprise Campus 1U Layer 3 Etherlighting™ Switch with 16 × 10 GbE + 8 × 2.5 GbE PoE+++ Ports and 2 × 25G SFP28 Uplinks (460 Gbps, 1,050W PoE Budget)

Features

  • Enterprise Campus 1U switch built for high-availability deployments — designed to anchor a building, campus or hospital floor where every port must carry both 10 GbE data and 90W PoE+++ simultaneously.
  • (16) 10 GbE RJ45 PoE+++ ports (auto-negotiate 10G / 5G / 2.5G / 1G / 100M / 10M) — every copper uplink to a downstream WiFi 7 AP, UVC camera or PoE phone runs at multi-gig wire speed.
  • (8) 2.5 GbE RJ45 PoE+++ ports (auto-negotiate 2.5G / 1G / 100M / 10M) — for end-points that don't need 10 GbE but still benefit from 90W power.
  • (2) 25G SFP28 uplinks (25G / 10G / 1G) — high-speed core or aggregation links without consuming an access port.
  • All 24 RJ45 ports support PoE+++ (90W per port, 802.3bt+ Type 4) for the latest PoE-powered devices: WiFi 7 APs, multi-radio cameras, digital signage, AV-over-IP endpoints.
  • PoE budget: 1,050W shared / 450W redundant with (2) hot-swap 600W PSUs at 100–240V AC; upgrades to 2,250W shared with (2) 1,200W modules at 200–240V AC.
  • 460 Gbps switching capacity, 230 Gbps non-blocking throughput, 342 Mpps forwarding rate.
  • Layer 3 capable: 512 IPv4 static routes, 1,000 VLANs, 32,000 MAC address table, 8 MB packet buffer.

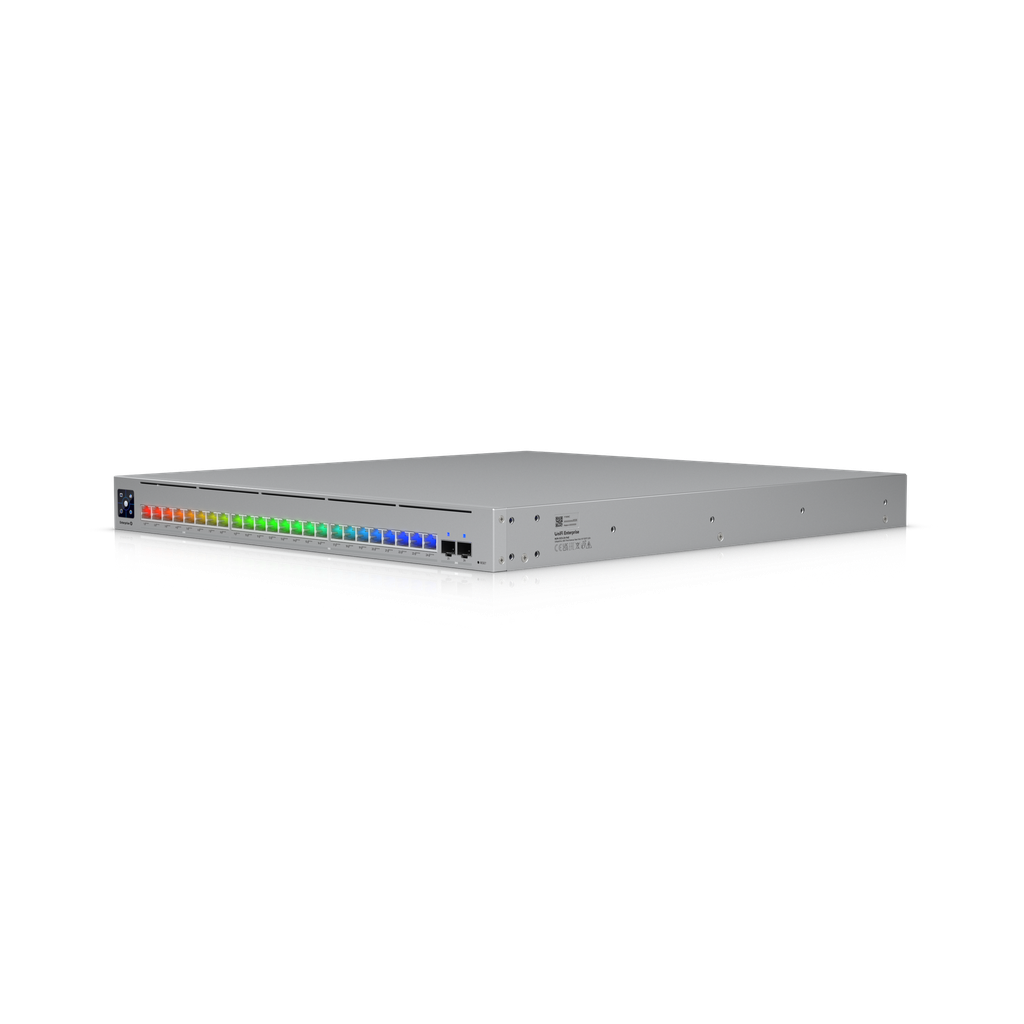

  • Etherlighting™ — per-port multi-colour LEDs surface link health, PoE state and fault conditions at a glance from across the rack.

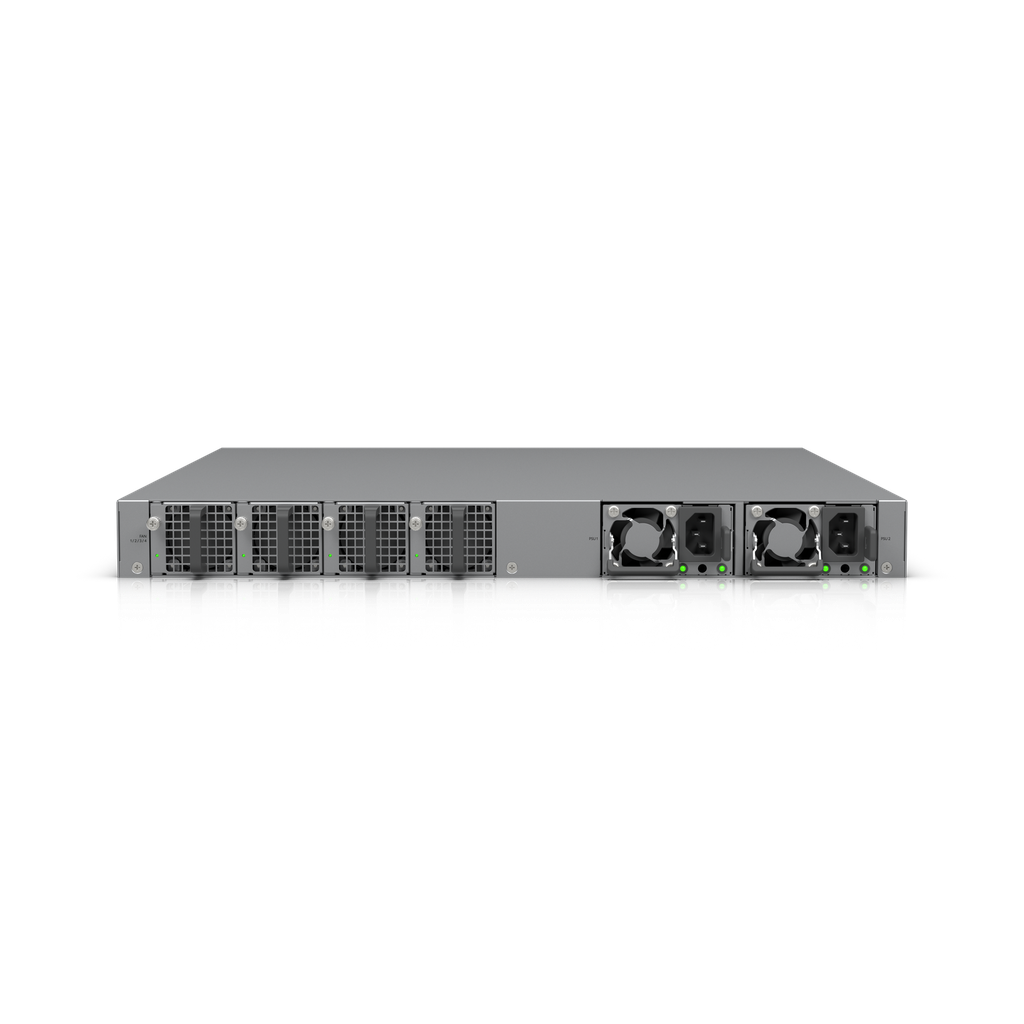

  • Carrier-grade redundancy: dual hot-swappable AC/DC power modules and (4) hot-swappable fan modules.
  • 1.3" front-panel touchscreen LCM for status, port telemetry, PoE consumption and diagnostics — no laptop at the rack required.
  • ESD protection ±30 kV (both air and contact) — designed to survive busy patch bays and frequent re-cabling.

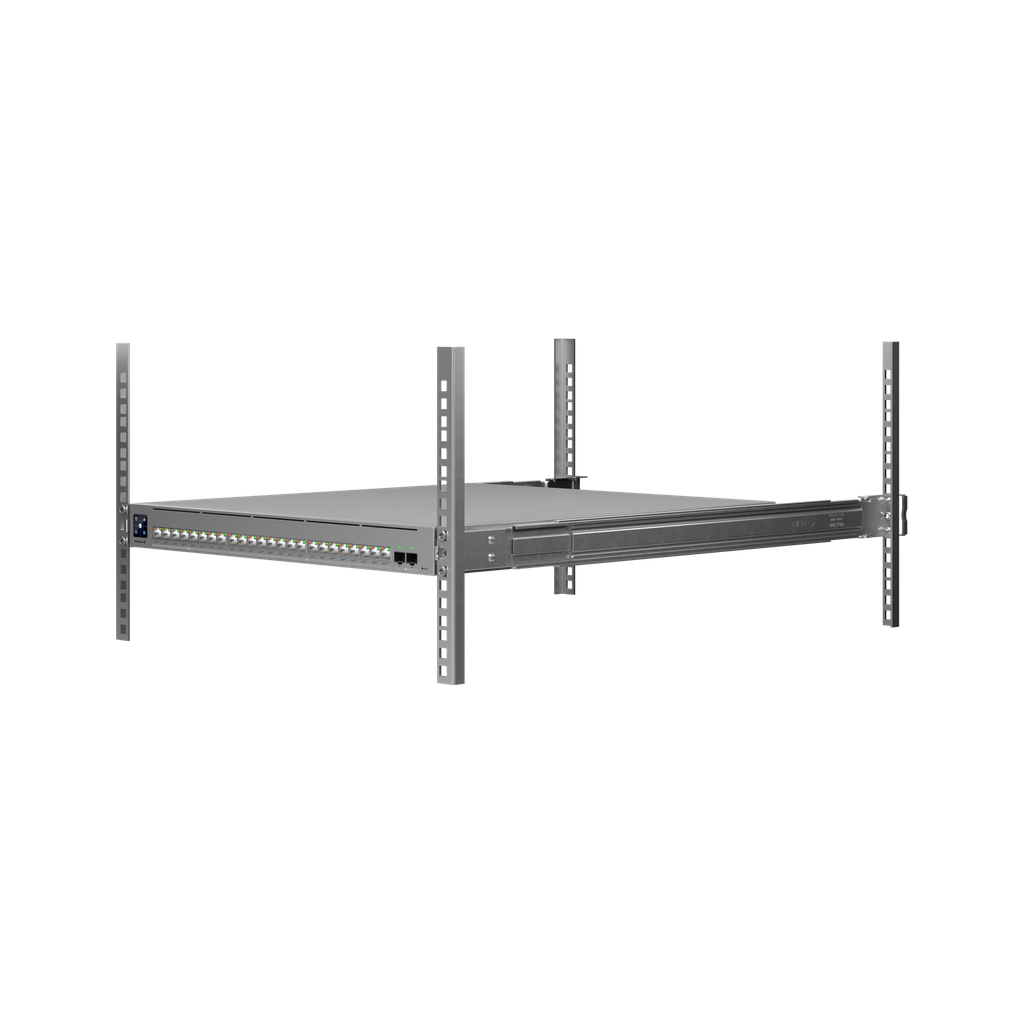

  • 1U full-depth SGCC steel chassis, supports four-post 19" racks with post depths 650–1,000 mm.
  • Managed entirely through UniFi Network 9.0.114+ — no per-port licensing, full Layer 3 routing, VLAN routing, Etherlighting visualisation.
  • Certifications: CE, FCC, IC, ANATEL (06181-25-08356).

Specifications

Overview
Dimensions442.4 × 43.7 × 496 mm
2.5 GbE RJ45 (PoE+++)8 (2.5G / 1G / 100M / 10M)
10 GbE RJ45 (PoE+++)16 (10G / 5G / 2.5G / 1G / 100M / 10M)
25G SFP282 (25G / 10G / 1G)
Max. PoE OutputPoE+++ (802.3bt+, 90W per port)
Total PoE Availability (100–240V AC, 600W PSUs)1,050W shared / 450W redundant
Total PoE Availability (200–240V AC, 1,200W PSUs)2,250W shared
Redundancy(2) Hot-Swap PSUs + (4) Hot-Swap Fans
Form FactorRack Mount (1U, Full-Depth)
Performance
Switching Capacity460 Gbps
Non-Blocking Throughput230 Gbps
Forwarding Rate342 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
IPv4 Static Routes512
Packet Buffer Size8 MB
IPv4 Interfaces256
MAC Interfaces256
PoE Capability per Port
PoE+++ ports24
PoE (802.3af)15.4W per port
PoE+ (802.3at)30W per port
PoE++ (802.3bt Type 3)60W per port
PoE+++ (802.3bt+ Type 4)90W per port
Hardware
Max. Power Consumption (Excl. PoE)150W
Max. Power Consumption (Incl. PoE)2,400W
Power Method(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method(2) AC input, hot-swappable power modules
Power Supply(2) Hot-swappable AC/DC 600W modules (1,200W modules optional)
Supported Voltage Range100–240V AC
ManagementEthernet, AR
Heat Dissipation (Excl. PoE)444 BTU/hr
Weight9.46 kg without brackets / 9.56 kg with brackets
Enclosure MaterialSGCC steel
Supported Rack Depth482.6 mm (19") four-post racks; post depths 650–1,000 mm
LCM Display1.3" touchscreen
Fan Method(4) Hot-swappable fan modules
ESD ProtectionAir ±30 kV / Contact ±30 kV
Ambient Operating Temperature-5 to 40 °C
Ambient Operating Humidity10 to 90% non-condensing
CertificationsCE, FCC, IC, ANATEL: 06181-25-08356
Software
UniFi Network9.0.114 and later

Professional Overview

The UniFi ECS-24-PoE is Ubiquiti's Enterprise Campus access switch — a 1U full-depth, dual-PSU Layer 3 switch designed for buildings, schools, hospitals, hotels and large commercial sites where every drop must deliver both 10-gigabit data and 90W PoE+++ to the wall plate. The port configuration is intentionally uniform: 16 × 10 GbE RJ45 PoE+++ + 8 × 2.5 GbE RJ45 PoE+++, with all 24 access ports rated for the full 802.3bt+ Type 4 (PoE+++, 90W) power class. Two 25G SFP28 uplinks (downward-compatible to 10G and 1G) handle aggregation back to the core without consuming an access port.

The dataplane delivers 460 Gbps switching capacity, 230 Gbps non-blocking throughput and 342 Mpps forwarding — enough headroom for a fully populated 10 GbE access tier even under heavy east-west traffic between WiFi 7 APs and cameras. The control plane is Layer 3 capable with 512 IPv4 static routes, 1,000 VLANs and a 32,000-entry MAC table, so the switch can route between segments at the access layer without sending all traffic upstream. Per-port Etherlighting™ surfaces link rate, PoE delivery and fault status visually from across a noisy MDF — a meaningful operations improvement when there's no time to interrogate the management UI mid-event.

Power is the differentiator. The switch ships with (2) hot-swap 600W AC/DC modules giving 1,050W of shared PoE budget (450W in redundant N+1 mode). If the deployment runs at 200–240V AC, the modules can be field-swapped for 1,200W units to deliver 2,250W of shared PoE budget — enough to feed every port at 90W simultaneously. (4) hot-swap fan modules complete the carrier-grade resilience story. Maximum power consumption is 150W excluding PoE output, 2,400W with PoE at full load, and the chassis dissipates 444 BTU/hr excluding the PoE current.

Build quality is uprated for permanent on-site deployment: SGCC steel chassis, four-post 19" rack support for 650–1,000 mm depths, and ESD immunity of ±30 kV on both air and contact — exceptional for a switch in this class. The 1.3" front-panel touchscreen LCM gives port-level status, PoE consumption and clock health without a laptop. The switch is managed through UniFi Network 9.0.114 or later alongside UDM Pro Max gateways, WiFi 7 APs, UNVRs and EAV-Bridge endpoints — no per-port licence. Certifications cover CE, FCC, IC and ANATEL (06181-25-08356). Australian stock from ARC IP Networks.

Switching Capacity 460 Gbps
Network Layer Layer 3
Form Factor Rack Mount (1U, Full-Depth)
Port Speed (8) 2.5 GbE + (16) 10 GbE + (2) 25G SFP28
Ports 26 Ports
Network Connectivity Wired
Uplink 2 × 25G SFP28
PoE Specification PoE+++ 802.3bt+ Type 4 / 90W per port / 1,050W Budget (up to 2,250W)
Switch Features Etherlighting, Hot-Swap PSU & Fans, Touchscreen LCM, Layer 3 Routing, ESD ±30 kV
