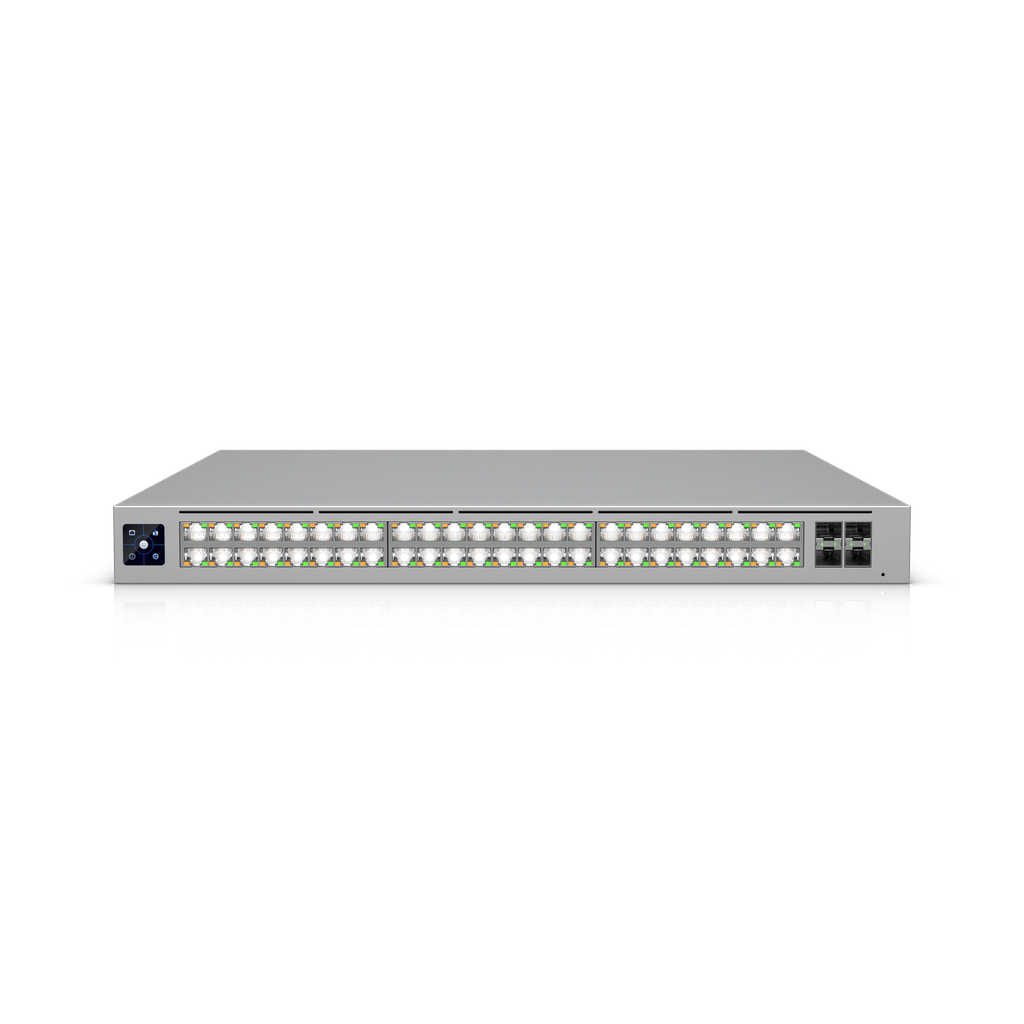

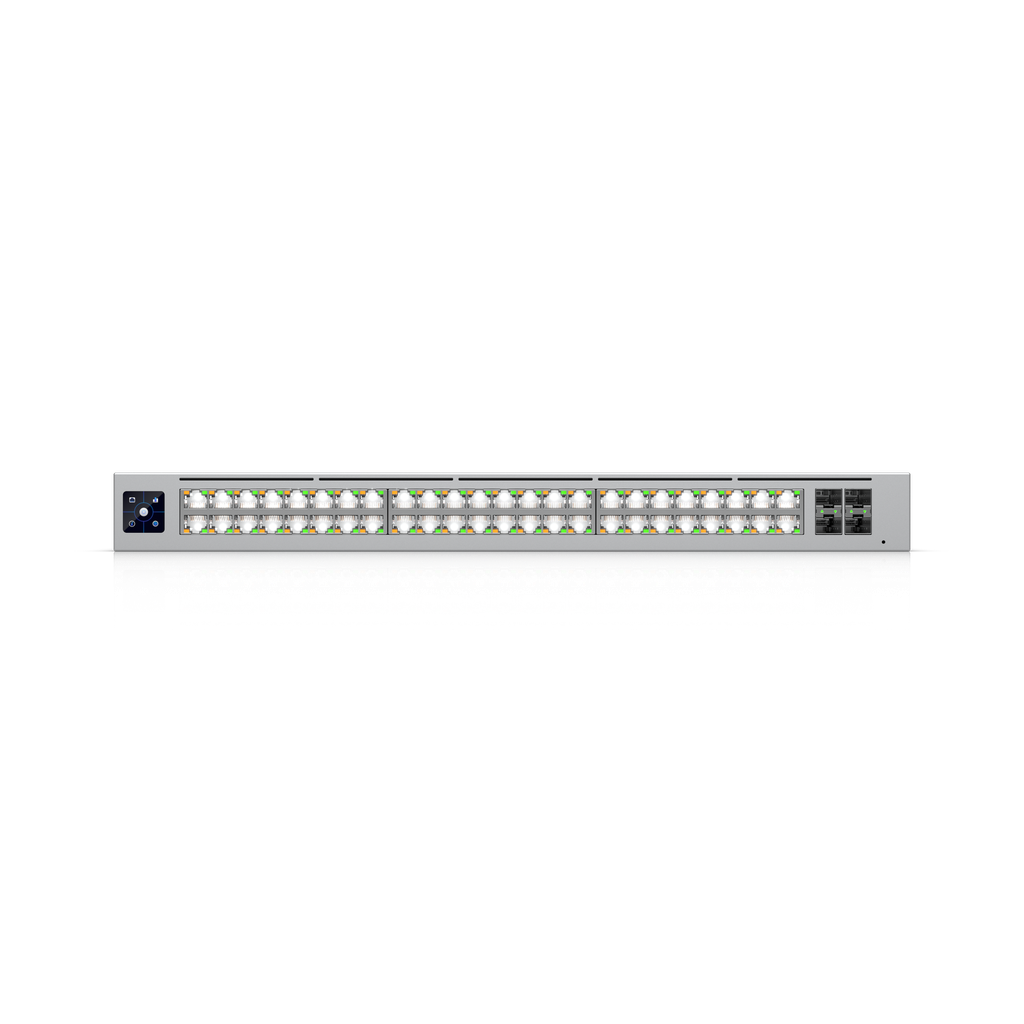

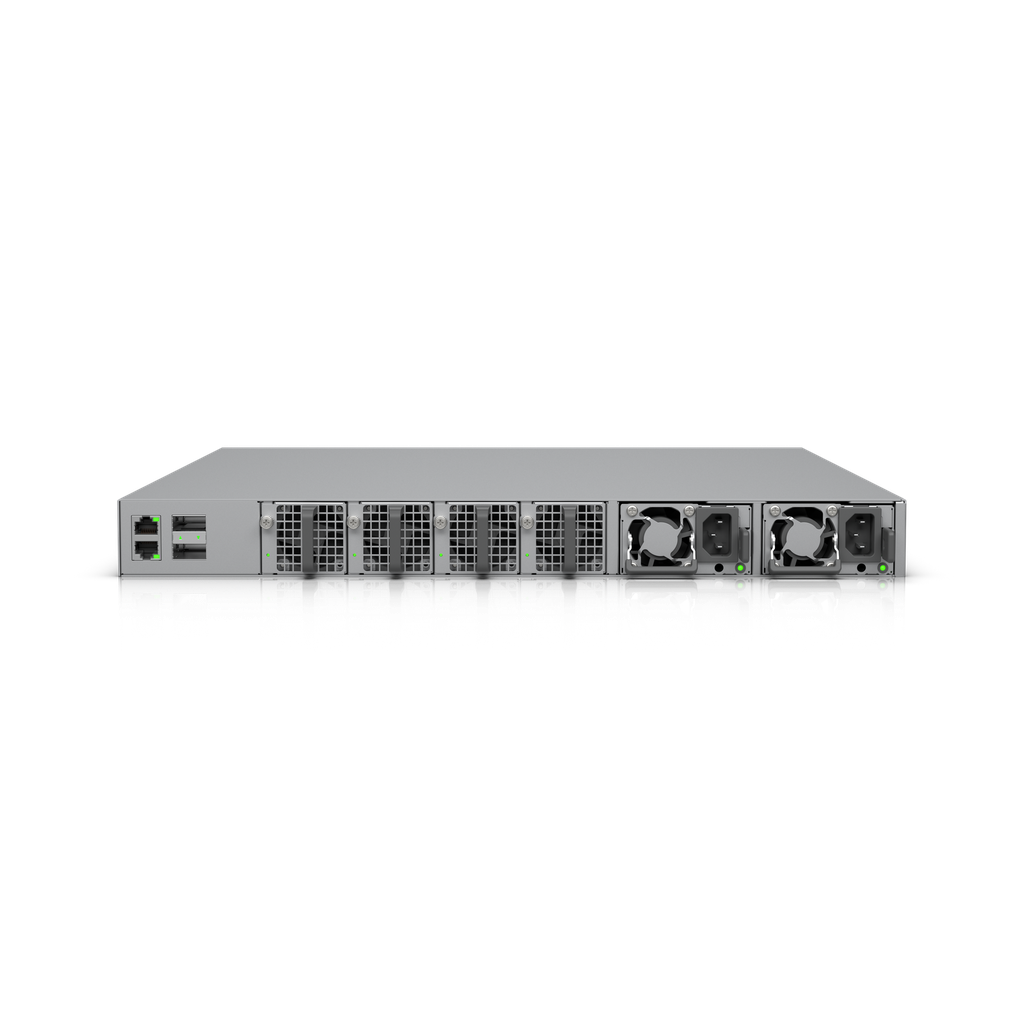

Ubiquiti ECS-48S-PoE Switch Enterprise Campus 48S PoE

https://arcip.com.au/web/image/product.template/9809/image_1920?unique=55857d7
The Ubiquiti ECS-48S-PoE (Switch Enterprise Campus 48S PoE) — Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design. Key specs: Dimensions 442.4 x 44 x 496 mm /; 1 GbE RJ45 1 / (1G/100M/10M); 2.5 GbE RJ45 32 (All PoE+++) / (2.5G/1G/100M/10M). Available for store pickup or shipping.

7,453.60 7453.6 AUD 7,453.60 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Ports
  • Network Connectivity

This combination does not exist.

UniFi Switch Layer 3 Rackmount PoE Managed Switch Ubiquiti Etherlighting
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
ECS-48S-PoE
Barcode
5715328289802
Tags
ECS-48S-PoE
Switch Enterprise Campus 48S PoE — Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and h

Features

  • (16) 10 GbE, (32) 2.5 GbE ports, all PoE+++ (90W capable)
  • (4) 25G SFP28 ports
  • (2) 100G QSFP28 ports for Stacking
  • Up to 2,150W PoE availability*
  • (2) included hot-swappable power modules
  • (4) included hot-swappable fan modules with one backup
  • (1) GbE management and (1) console port
  • Note. Recommend being paired with Enterprise Campus Aggregation.
  • *Requires shared mode.

Specifications

Overview
Dimensions442.4 x 44 x 496 mm /
1 GbE RJ451 / (1G/100M/10M)
2.5 GbE RJ4532 (All PoE+++) / (2.5G/1G/100M/10M)
10 GbE RJ4516 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M)
25G SFP284 / (25G/10G/1G)
100G QSFP282 / (100G)
Console1
Max. PoE OutputUp to PoE+++
Total PoE Availability200-240V AC Shared Mode: 2,150W / 100-120V AC Shared Mode: 1,750W / 200-240V AC Redundant Mode: 950W / 100-120V AC Redundant Mode: 750W
RedundancySwitch Stacking / (2) Hot-Swappable PSUs / (4) Hot-Swappable Fans
Form FactorRack Mount (1U, Full-Depth)
Performance
Switching Capacity680 Gbps
Total Non-Blocking Throughput340 Gbps
Forwarding Rate506 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
IPv4 Static Routes512
Packet Buffer Size8 MB
IPv4256
MAC256
Hardware
PoE+++48
PoE15.4W
PoE+30W
PoE++60W
PoE+++90W
Max. Power Consumption250W (Excluding PoE Output) / 2,400W (Including PoE Output)
Power Method(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method(2) AC input, Hot-swappable power modules
Power Supply(2) Hot-swappable AC/DC 1,200W power modules
Supported Voltage Range100–240V AC
ManagementEthernet / OOB Management port / Serial Console / AR
Heat Dissipation853 BTU/hr (Excluding PoE Output)
WeightWithout mounting brackets: 9.5 kg / With mounting brackets: 9.6 kg
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display1.3" touchscreen
Fan Method(4) Hot-swappable fan modules
ESD ProtectionAir: ± 30kV, contact: ± 19kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC

Professional Overview

The Ubiquiti ECS-48S-PoE is the Switch Enterprise Campus 48S PoE from Ubiquiti's UniFi range. Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

Key specifications: Dimensions — 442.4 x 44 x 496 mm /; 1 GbE RJ45 — 1 / (1G/100M/10M); 2.5 GbE RJ45 — 32 (All PoE+++) / (2.5G/1G/100M/10M); 10 GbE RJ45 — 16 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M); 25G SFP28 — 4 / (25G/10G/1G); 100G QSFP28 — 2 / (100G).

This product is part of the UniFi ecosystem and integrates with the UniFi platform for centralised management.

Currently listed by Ubiquiti as Coming Soon for the Australian market. Australian stock from ARC IP Networks once released.

Part of our Ubiquiti UniFi Switches range — browse and compare the full lineup of PoE, aggregation, compact and 10G switches.

ECS 48 PoE vs ECS 48S PoE vs ECS 24 PoE — Which Enterprise Campus Switch?

All three Enterprise Campus switches share the defining feature: every port is PoE+++ capable at 90 W, powered by two replaceable supply modules that can run in shared mode for maximum budget or redundant mode so a failed supply does not take the access layer down. All are 1U full-depth with four hot-swappable fan modules and Layer 3 routing across 1,000 VLANs.

The difference between the two 48-port models is the port mix and what sits above them:

SpecificationECS 24 PoEECS 48 PoEECS 48S PoE
10 GbE RJ45 (PoE+++)163216
2.5 GbE RJ45 (PoE+++)81632
25G SFP28 uplinks244
100G QSFP282
Stacking supportYes
Dedicated management port(1) 1 GbE
Switching capacity460 Gbps920 Gbps680 Gbps
Non-blocking throughput230 Gbps460 Gbps340 Gbps
Total PoE budget (shared, 200–240 V)1,050 W2,150 W2,150 W
Max PoE per portPoE+++ (90 W) on every port
Power supplies(2) replaceable modules — shared or redundant mode
Cooling(4) hot-swappable fan modules
Form factor1U full-depth rack (650–1,000 mm post depth)

Choose the ECS 48 PoE when most of your access layer wants 10 GbE copper — server rooms, editing floors, dense WiFi 7 deployments — because it doubles the 10 GbE port count and delivers the highest switching capacity of the three. Choose the ECS 48S PoE when 2.5 GbE is the right access speed and you want the extras that come with it: stacking, two 100G QSFP28 ports for a very high-capacity uplink or stack link, and a dedicated out-of-band management port. Choose the ECS 24 PoE where 24 ports is enough. Compare the wider range in our UniFi switch guide. Australian stock from ARC IP Networks.

Frequently Asked Questions — Ubiquiti ECS-48S-PoE

What is the Ubiquiti ECS-48S-PoE?

The ECS-48S-PoE is a 48-port Layer 3 Enterprise Campus switch where every port supports PoE+++ at 90 W. It provides 16 10 GbE and 32 2.5 GbE RJ45 ports, four 25G SFP28 uplinks, two 100G QSFP28 ports and stacking support, with 680 Gbps switching capacity (340 Gbps non-blocking). Power comes from two replaceable supply modules delivering up to 2,150 W of PoE in shared mode, and cooling from four hot-swappable fan modules.

What is the difference between the ECS 48 PoE and the ECS 48S PoE?

Both deliver 90 W PoE+++ on all 48 ports, up to 2,150 W total, dual replaceable power supplies and four hot-swappable fans. The ECS 48 PoE has 32 10 GbE and 16 2.5 GbE ports with 920 Gbps switching capacity, suiting access layers that need 10 GbE copper widely. The ECS 48S PoE reverses that to 16 10 GbE and 32 2.5 GbE ports at 680 Gbps, and adds stacking support, two 100G QSFP28 ports and a dedicated 1 GbE management port.

What does stacking do on the ECS 48S PoE?

Stacking lets multiple switches be managed and operated as a single logical unit, simplifying configuration and allowing links to be spread across physical switches for resilience. The ECS 48S PoE also provides two 100G QSFP28 ports, which give very high capacity for stack links or uplinks to a core switch.

How much PoE power does it provide?

Up to 2,150 W in shared mode on 200-240 V AC (about 1,750 W on 100-120 V), with PoE+++ at 90 W available on every one of the 48 ports. In redundant mode the available budget is lower, because either module alone must be able to carry the load - size against the redundant figure if uptime matters.

What is shared mode versus redundant mode?

The two power supply modules can run either way. Shared mode uses both together for the maximum PoE budget. Redundant mode means either module alone can carry the load, so a failed supply does not interrupt the switch, at the cost of roughly half the headline budget. Choose based on whether maximum power or continuous uptime matters more.

Does it support Layer 3 routing?

Yes. It is a Layer 3 switch with inter-VLAN routing and support for 1,000 VLANs, managed through the UniFi Network application with no licensing or per-port fees.

What rack space and depth does it need?

One rack unit, but it is a full-depth switch requiring four-post racks with post depths between roughly 650 and 1,000 mm. Check your cabinet depth before ordering - it will not fit a shallow wall-mount enclosure.

Which devices can it power?

Any current UniFi device and most third-party PoE hardware: WiFi 7 access points including the E7, AI and PTZ cameras, the UniFi AI Key, Access hubs needing PoE++, and 802.3af/at/bt devices generally - each at up to 90 W over a single cable.

Where can I buy the Ubiquiti ECS-48S-PoE in Australia?

The Ubiquiti ECS-48S-PoE is available in Australia from ARC IP Networks, an Australian Ubiquiti reseller. Order online on this page with a GST tax invoice, Australia-wide shipping, or free warehouse pickup from Melbourne. Project and volume pricing for campus, school and enterprise rollouts is available on request or via 1300 100 440.

How much does the ECS-48S-PoE cost in Australia?

Current Australian pricing is shown live on this page in AUD including GST, and is kept competitive against other Australian retailers. Project pricing for campus and multi-switch rollouts is available - request a trade quote.

Ubiquiti ECS-48S-PoE: 48 PoE+++ ports at 90W each

The Switch Enterprise Campus 48S PoE is an enterprise Layer 3 Etherlighting switch with 48 PoE+++ ports delivering up to 90W per port, and 340 Gbps of non-blocking throughput (680 Gbps switching capacity).

Port layout is 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 10 GbE RJ45, 32 (All PoE+++) (2.5G/1G/100M/10M) 2.5 GbE RJ45, 4 (25G/10G/1G) 25G SFP28. It is a Rack Mount (1U, Full-Depth) unit weighing Without mounting brackets: 9.5 kg (20.9 lb) With mounting brackets: 9.6 kg (21.1 lb).

PoE budget in Australia: shared vs redundant

This is the specification that decides your design, and it is easy to get wrong. The PoE budget depends on both your supply voltage and whether you run the two power modules in shared or redundant mode.

Australia runs at 230V, so the 200–240V figures apply:

ModePoE budget at 230VWhat it means
Shared mode2,150WBoth modules contribute. Maximum PoE, no PSU redundancy.
Redundant mode950WOne module can fail without dropping the switch — but budget falls sharply.

Plan for this before you order. If you need PSU redundancy, your usable PoE budget is 950W, not 2,150W. Loading the switch to shared-mode capacity and then enabling redundancy will leave ports unable to power up.

Per-port classes are 15.4W (PoE), 30W (PoE+), 60W (PoE++) and 90W (PoE+++). Our access point comparison lists the draw of each UniFi AP so you can total the load.

Full voltage and mode matrix: 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W

Specifications

Non-blocking throughput340 Gbps
Switching capacity680 Gbps
PoE+++ ports48 at up to 90W
10 GbE RJ4516 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
2.5 GbE RJ4532 (All PoE+++) (2.5G/1G/100M/10M)
1 GbE RJ451 (1G/100M/10M)
25G SFP284 (25G/10G/1G)
Power supplies(2) Hot-swappable AC/DC 1,200W power modules
Appliance draw250W (Excluding PoE Output) 2,400W (Including PoE Output)
Form factorRack Mount (1U, Full-Depth)
WeightWithout mounting brackets: 9.5 kg (20.9 lb) With mounting brackets: 9.6 kg (21.1 lb)
Operating temperature-5 to 40° C (23 to 104° F)
Display1.3" touchscreen

Note it is a full-depth 1U chassis — check your rack depth, and that both hot-swap power modules and the hot-swap fans are accessible.

The S variants (24S, 48S) add stacking support; the non-S models offer a different port mix. See the ECS-Aggregation for the 25G aggregation layer above them.
