Ubiquiti UniFi ECS-48-PoE — Enterprise Campus 1U Layer 3 Etherlighting™ Switch with 32 × 10 GbE + 16 × 2.5 GbE PoE+++ Ports and 4 × 25G SFP28 Uplinks (920 Gbps, 2,150W PoE Budget)

Price:

6,500.00


Ubiquiti UniFi Enterprise Audio/Video Bridge (EAV-Bridge) — PoE+ AV-over-IP Transceiver with HDMI 2.0 4K60, XLR Professional Audio I/O, 48V Phantom Power and 1.3" Touchscreen
Ubiquiti UniFi Enterprise Audio/Video Bridge (EAV-Bridge) — PoE+ AV-over-IP Transceiver with HDMI 2.0 4K60, XLR Professional Audio I/O, 48V Phantom Power and 1.3" Touchscreen
699.00
699.00
Ubiquiti UniFi ECS-Aggregation — Enterprise Campus 1U Layer 3 Etherlighting™ Aggregation Switch with 48 × 25G SFP28 + 6 × 100G QSFP28, 3.6 Tbps Switching, MC-LAG, Dual Hot-Swap PSU
Ubiquiti UniFi ECS-Aggregation — Enterprise Campus 1U Layer 3 Etherlighting™ Aggregation Switch with 48 × 25G SFP28 + 6 × 100G QSFP28, 3.6 Tbps Switching, MC-LAG, Dual Hot-Swap PSU
6,500.00
6,500.00

Ubiquiti UniFi ECS-48-PoE — Enterprise Campus 1U Layer 3 Etherlighting™ Switch with 32 × 10 GbE + 16 × 2.5 GbE PoE+++ Ports and 4 × 25G SFP28 Uplinks (920 Gbps, 2,150W PoE Budget)

https://arcip.com.au/web/image/product.template/9726/image_1920?unique=4829406
UniFi ECS-48-PoE is Ubiquiti's 1U Enterprise Campus switch delivering 90W PoE+++ on every port: 32 × 10 GbE RJ45 PoE+++ + 16 × 2.5 GbE RJ45 PoE+++ access ports plus 4 × 25G SFP28 uplinks. 920 Gbps switching, 460 Gbps non-blocking, 684 Mpps forwarding, Layer 3 routing. Dual hot-swap 1,200W PSUs (2,150W shared at 200–240V AC / 950W redundant), four hot-swap fans, 1.3" touchscreen LCM, Etherlighting™ port feedback. Australian stock from ARC IP Networks.

6,500.00 6500.0 AUD 6,500.00 incl. GST

Not Available For Sale


  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

PoE++ 2.5GbE 10GbE UniFi Switch Layer 3 Rackmount Managed Switch Ubiquiti Etherlighting Enterprise 48-Port 25G SFP28 PoE+++ Campus Touchscreen Hot-Swap PSU 25G
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
ECS-48-PoE
Ubiquiti UniFi ECS-48-PoE — Enterprise Campus 1U Layer 3 Etherlighting™ Switch with 32 × 10 GbE + 16 × 2.5 GbE PoE+++ Ports and 4 × 25G SFP28 Uplinks (920 Gbps, 2,150W PoE Budget)
💼

Deal Registration Required

The Ubiquiti Enterprise Campus 48-PoE Switch (ECS-48-PoE) ships under Ubiquiti’s deal-registration program for project pricing and deployment support. Please contact ARC IP Networks before ordering to register the deal, confirm lead time, and unlock project pricing.

Features

  • Enterprise Campus 1U switch built for high-density, high-availability deployments — anchors a building floor, hospital wing, school block or hotel where every port must carry both 10 GbE data and 90W PoE+++ simultaneously.
  • (32) 10 GbE RJ45 PoE+++ ports (auto-negotiate 10G / 5G / 2.5G / 1G / 100M / 10M) — every copper uplink to a WiFi 7 AP, UVC camera, EAV endpoint or AV-over-IP fixture runs at multi-gig wire speed.
  • (16) 2.5 GbE RJ45 PoE+++ ports (auto-negotiate 2.5G / 1G / 100M / 10M) — for end-points that don't need 10 GbE but still benefit from 90W power.
  • (4) 25G SFP28 uplinks (25G / 10G / 1G) — twice the upstream capacity of the ECS-24-PoE, enough to LAG to the core without bottlenecking 48 access ports.
  • All 48 RJ45 ports support PoE+++ (90W per port, 802.3bt+ Type 4) for WiFi 7 APs, multi-radio cameras, digital signage, AV-over-IP endpoints and PoE-powered displays.
  • PoE budget: 2,150W shared / 950W redundant at 200–240V AC, or 1,750W shared / 750W redundant at 100–120V AC — driven by (2) hot-swap 1,200W AC/DC PSU modules.
  • 920 Gbps switching capacity, 460 Gbps non-blocking throughput, 684 Mpps forwarding rate — double the dataplane of the ECS-24-PoE.
  • Layer 3 capable: 512 IPv4 static routes, 1,000 VLANs, 32,000 MAC address table, 8 MB packet buffer.
  • Etherlighting™ per-port multi-colour LEDs surface link health, PoE state and fault conditions from across the rack.

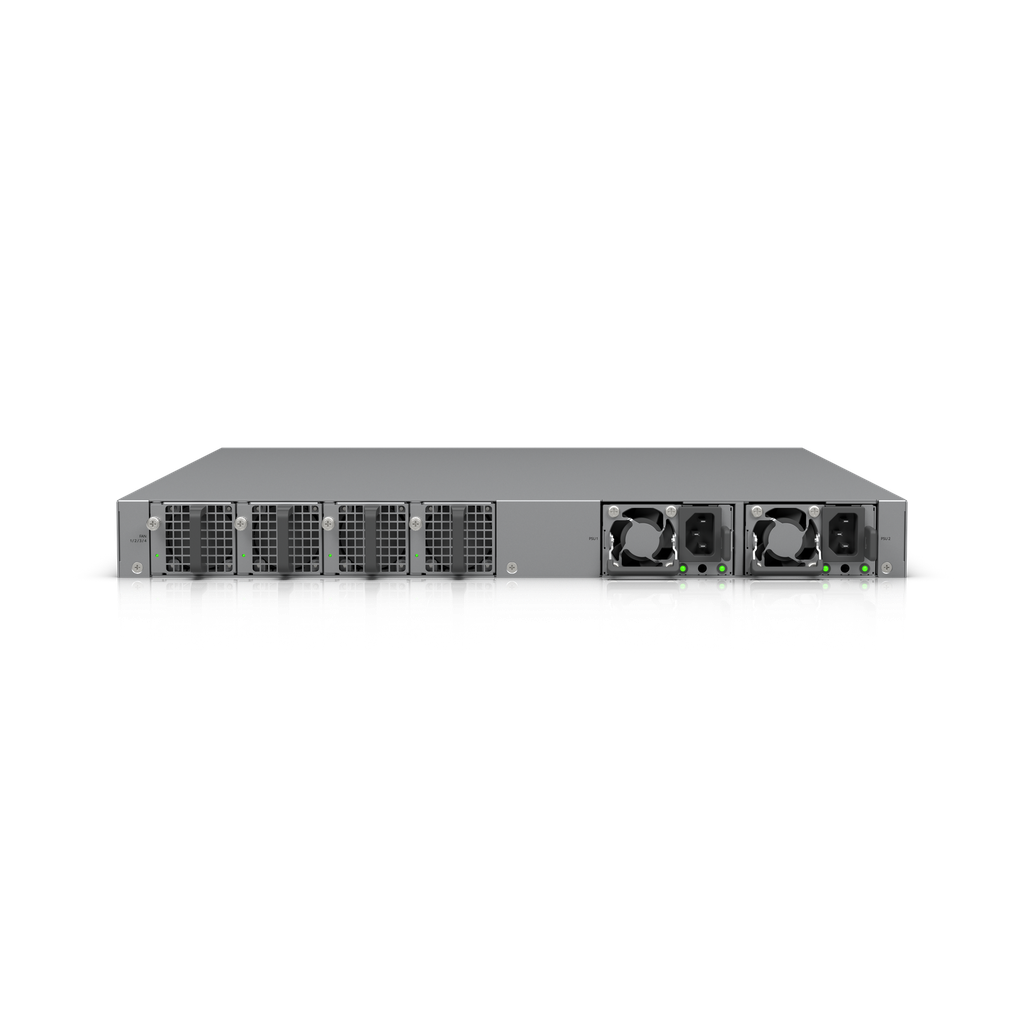

  • Carrier-grade redundancy: dual hot-swappable AC/DC 1,200W power modules and (4) hot-swappable fan modules.
  • 1.3" front-panel touchscreen LCM for status, port telemetry, PoE consumption and diagnostics — no laptop at the rack required.
  • ESD protection ±30 kV air / ±19 kV contact — designed to survive busy patch bays and frequent re-cabling.

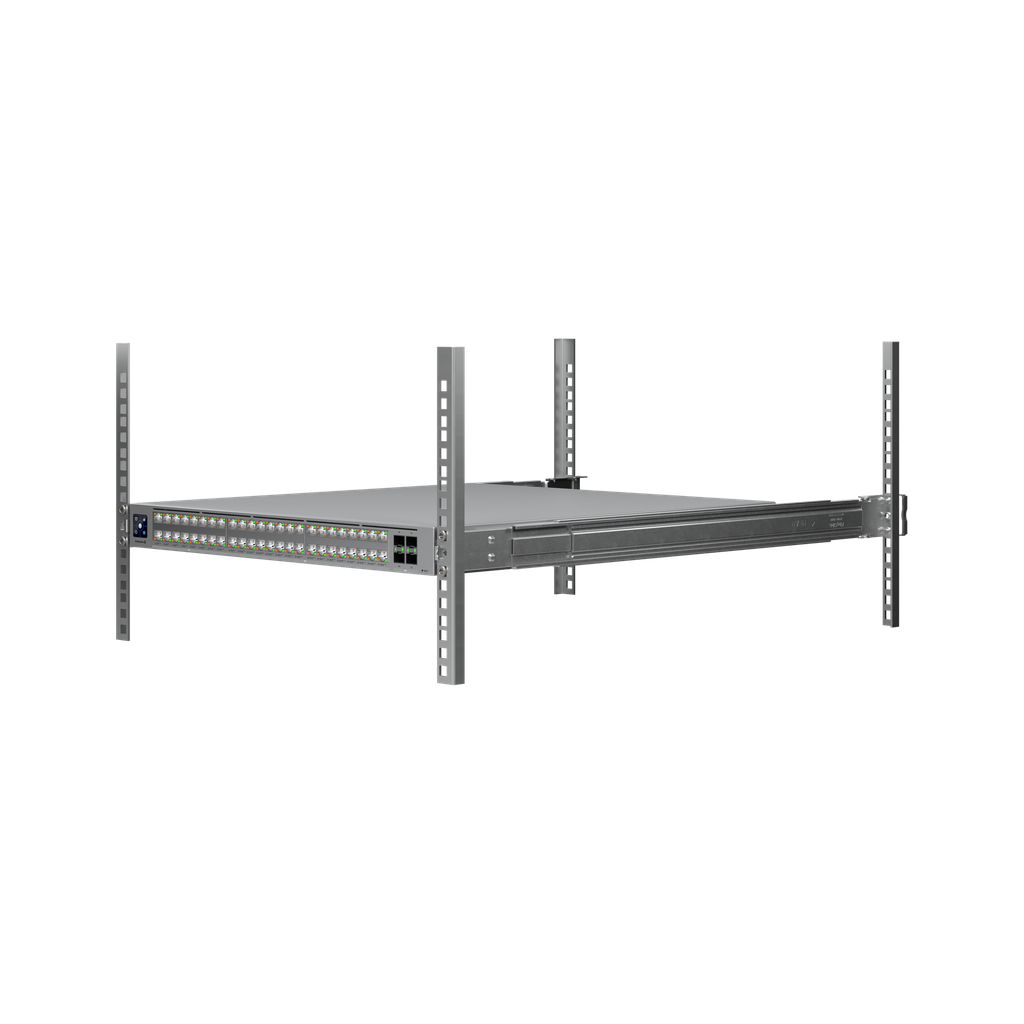

  • 1U full-depth SGCC steel chassis, supports four-post 19" racks with post depths 650–1,000 mm.
  • Managed entirely through UniFi Network 9.0.114+ — no per-port licensing.
  • Certifications: CE, FCC, IC, ANATEL (06181-25-08356).

Specifications

Overview
Dimensions442.4 × 43.7 × 496 mm
2.5 GbE RJ45 (PoE+++)16 (2.5G / 1G / 100M / 10M)
10 GbE RJ45 (PoE+++)32 (10G / 5G / 2.5G / 1G / 100M / 10M)
25G SFP284 (25G / 10G / 1G)
Max. PoE OutputPoE+++ (802.3bt+, 90W per port)
Total PoE Availability (200–240V AC)2,150W shared / 950W redundant
Total PoE Availability (100–120V AC)1,750W shared / 750W redundant
Redundancy(2) Hot-Swap PSUs + (4) Hot-Swap Fans
Form FactorRack Mount (1U, Full-Depth)
Performance
Switching Capacity920 Gbps
Non-Blocking Throughput460 Gbps
Forwarding Rate684 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
IPv4 Static Routes512
Packet Buffer Size8 MB
IPv4 Interfaces256
MAC Interfaces256
PoE Capability per Port
PoE+++ ports48
PoE (802.3af)15.4W per port
PoE+ (802.3at)30W per port
PoE++ (802.3bt Type 3)60W per port
PoE+++ (802.3bt+ Type 4)90W per port
Hardware
Max. Power Consumption (Excl. PoE)250W
Max. Power Consumption (Incl. PoE)2,400W
Power Method(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method(2) AC input, hot-swappable power modules
Power Supply(2) Hot-swappable AC/DC 1,200W modules
Supported Voltage Range100–240V AC
ManagementEthernet, AR
Heat Dissipation (Excl. PoE)785 BTU/hr
Weight9.46 kg without brackets / 9.56 kg with brackets
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm (19") four-post racks; post depths 650–1,000 mm
LCM Display1.3" touchscreen
Fan Method(4) Hot-swappable fan modules
ESD ProtectionAir ±30 kV / Contact ±19 kV
Ambient Operating Temperature-5 to 40 °C
Ambient Operating Humidity10 to 90% non-condensing
CertificationsCE, FCC, IC, ANATEL: 06181-25-08356
Software
UniFi Network9.0.114 and later

Professional Overview

The UniFi ECS-48-PoE is the 48-port sibling of the ECS-24-PoE in Ubiquiti's Enterprise Campus line — a 1U full-depth, dual-PSU Layer 3 switch built for buildings, hotels, hospitals, schools, conference centres and large commercial sites where every drop must deliver both 10-gigabit data and 90W PoE+++. The port configuration is uniform across all 48 access ports: 32 × 10 GbE RJ45 PoE+++ + 16 × 2.5 GbE RJ45 PoE+++, with all 48 access ports rated for the full 802.3bt+ Type 4 (PoE+++, 90W) power class. Four 25G SFP28 uplinks handle aggregation back to the core — twice the upstream capacity of the 24-port model, which is what you want when downlink count doubles.

The dataplane delivers 920 Gbps switching capacity, 460 Gbps non-blocking throughput and 684 Mpps forwarding — double the ECS-24-PoE, so a fully loaded 10 GbE access tier still has full line-rate headroom for east-west traffic between WiFi 7 APs, cameras and AV-over-IP endpoints. The control plane is Layer 3 capable with 512 IPv4 static routes, 1,000 VLANs and a 32,000-entry MAC table, so the switch can route between segments at the access layer without sending all traffic upstream. Per-port Etherlighting™ surfaces link rate, PoE delivery and fault status visually from across a noisy MDF — a real operational improvement when there is no time to interrogate the UI mid-event.

Power is the differentiator. The switch ships with (2) hot-swap 1,200W AC/DC modules giving 2,150W of shared PoE budget at 200–240V AC (or 1,750W at 100–120V AC), with 950W / 750W respectively in redundant N+1 mode. (4) hot-swap fan modules complete the carrier-grade resilience story. Maximum power consumption is 250W excluding PoE output, 2,400W with PoE at full load, and heat dissipation is 785 BTU/hr excluding PoE current.

Build quality is uprated for permanent on-site deployment: SGCC steel chassis and mount, four-post 19" rack support for 650–1,000 mm depths, ESD immunity of ±30 kV air / ±19 kV contact, and an operating envelope of -5 to 40 °C with 10–90% non-condensing humidity. The 1.3" front-panel touchscreen LCM gives port-level status, PoE consumption and clock health without a laptop. The switch is managed through UniFi Network 9.0.114 or later alongside UDM Pro Max gateways, WiFi 7 APs, UNVRs and EAV-Bridge endpoints — no per-port licence. Certifications cover CE, FCC, IC and ANATEL (06181-25-08356). Australian stock from ARC IP Networks.

Switching Capacity 920 Gbps
Network Layer Layer 3
Form Factor Rack Mount (1U, Full-Depth)
Port Speed (16) 2.5 GbE + (32) 10 GbE + (4) 25G SFP28
Ports 52 Ports
Network Connectivity Wired
Uplink 4 × 25G SFP28
PoE Specification PoE+++ 802.3bt+ Type 4 / 90W per port / 2,150W Budget (200-240V) / 1,750W (100-120V)
Switch Features Etherlighting, Hot-Swap 1,200W PSU & Fans, Touchscreen LCM, Layer 3 Routing, ESD ±30 kV
