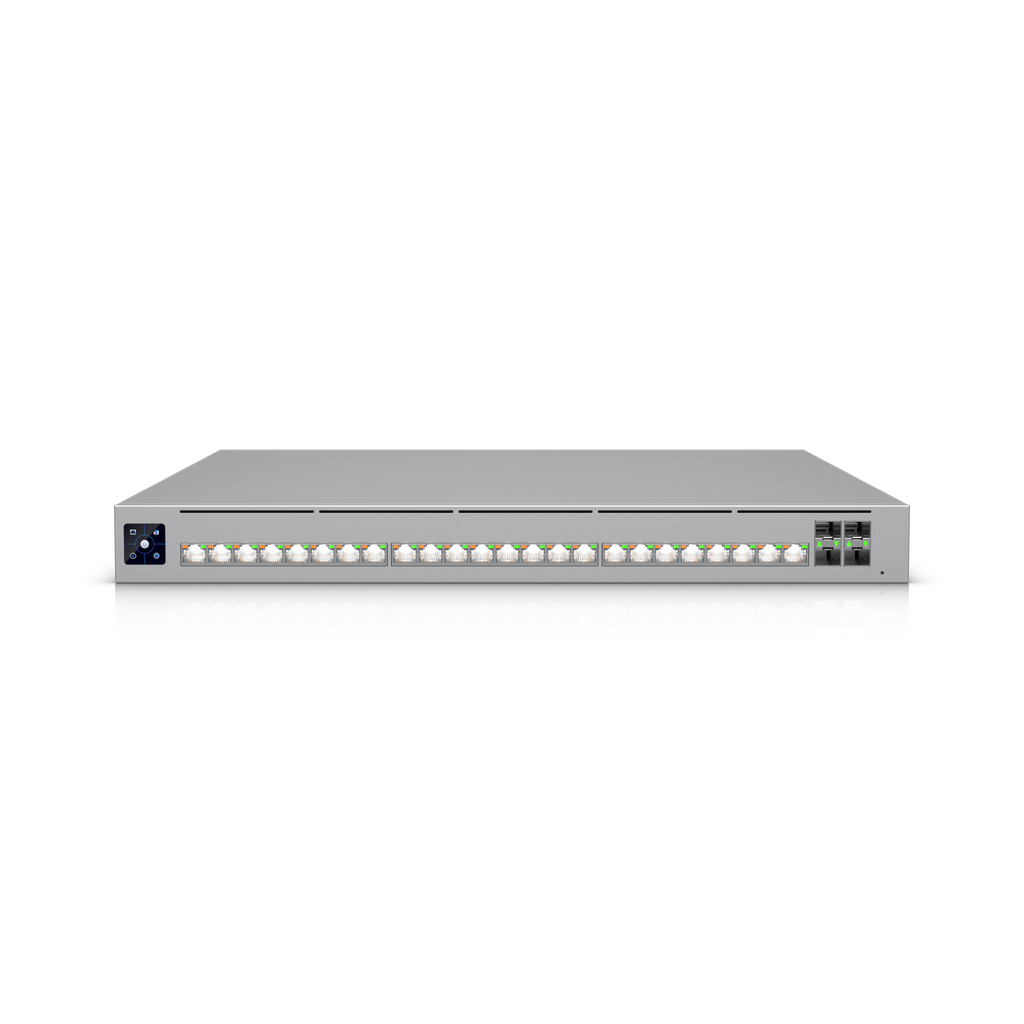

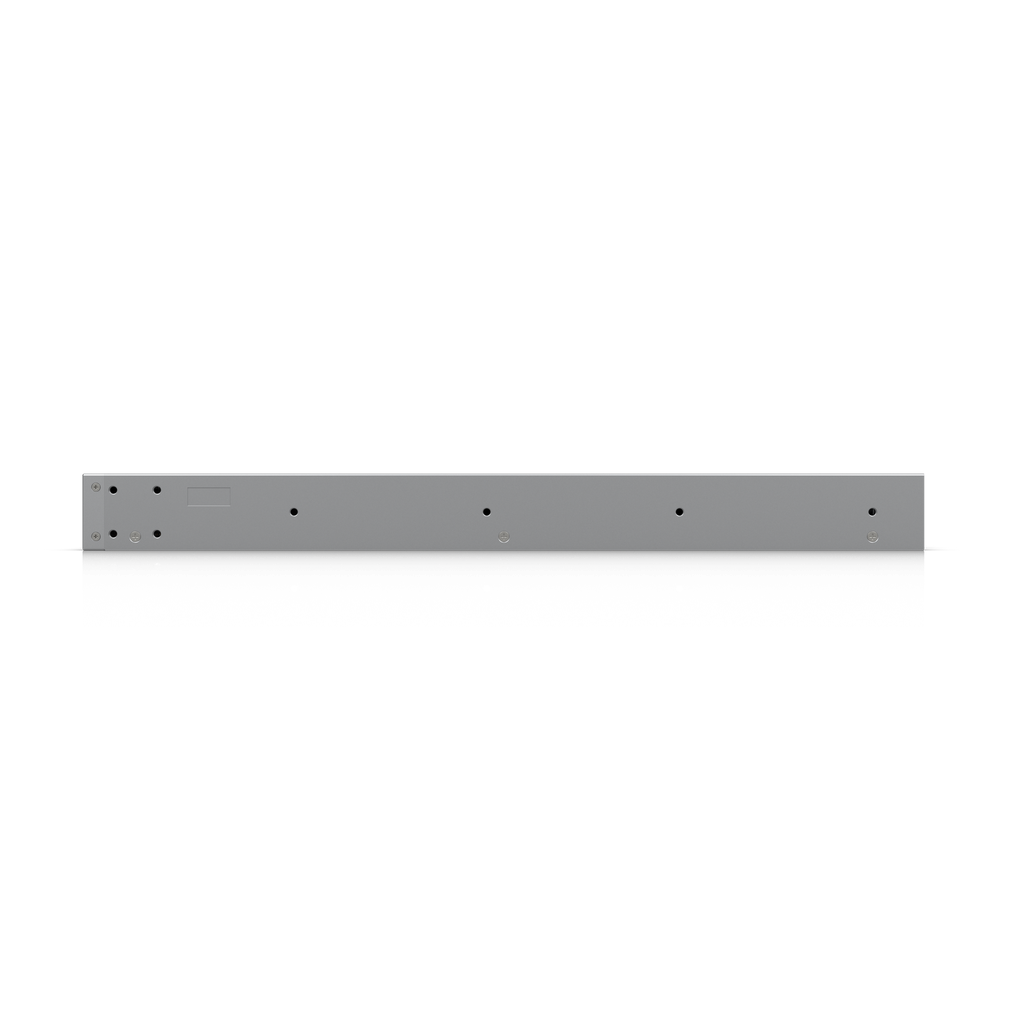

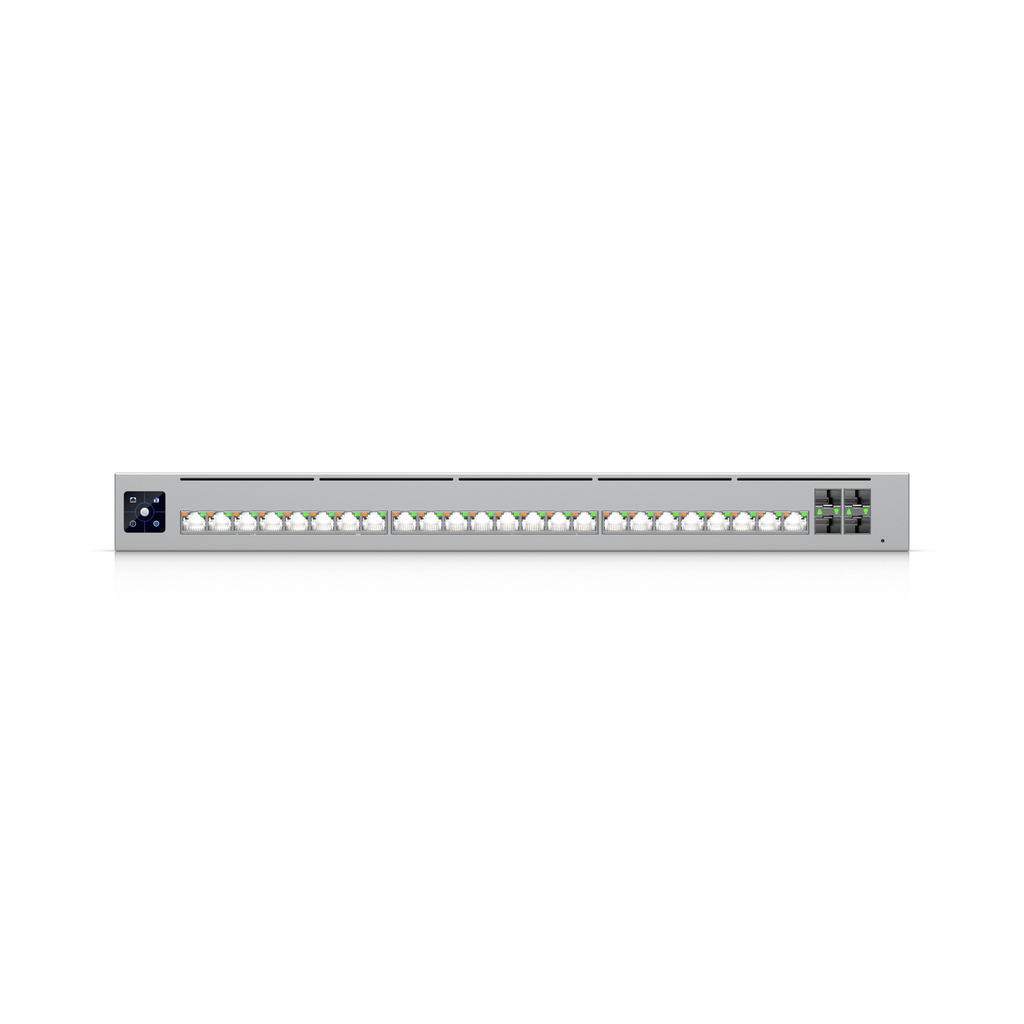

Ubiquiti ECS-24S-PoE Switch Enterprise Campus 24S PoE

https://arcip.com.au/web/image/product.template/9808/image_1920?unique=55857d7
The Ubiquiti ECS-24S-PoE (Switch Enterprise Campus 24S PoE) — Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design. Key specs: Dimensions 442.4 x 44 x 496 mm /; 1 GbE RJ45 1 / (1G/100M/10M); 2.5 GbE RJ45 8 (All PoE+++) / (2.5G/1G/100M/10M). Available for store pickup or shipping.

0.00 0.0 AUD 0.00 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Ports
  • Network Connectivity

This combination does not exist.

UniFi Switch Layer 3 Rackmount PoE Managed Switch Ubiquiti Etherlighting
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
ECS-24S-PoE
Tags
ECS-24S-PoE
Switch Enterprise Campus 24S PoE — Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and h

Features

  • (16) 10 GbE, (8) 2.5 GbE ports, all PoE+++ (90W capable)
  • (4) 25G SFP28 ports
  • (2) 100G QSFP28 ports for Stacking
  • Up to 1,050W PoE availability*

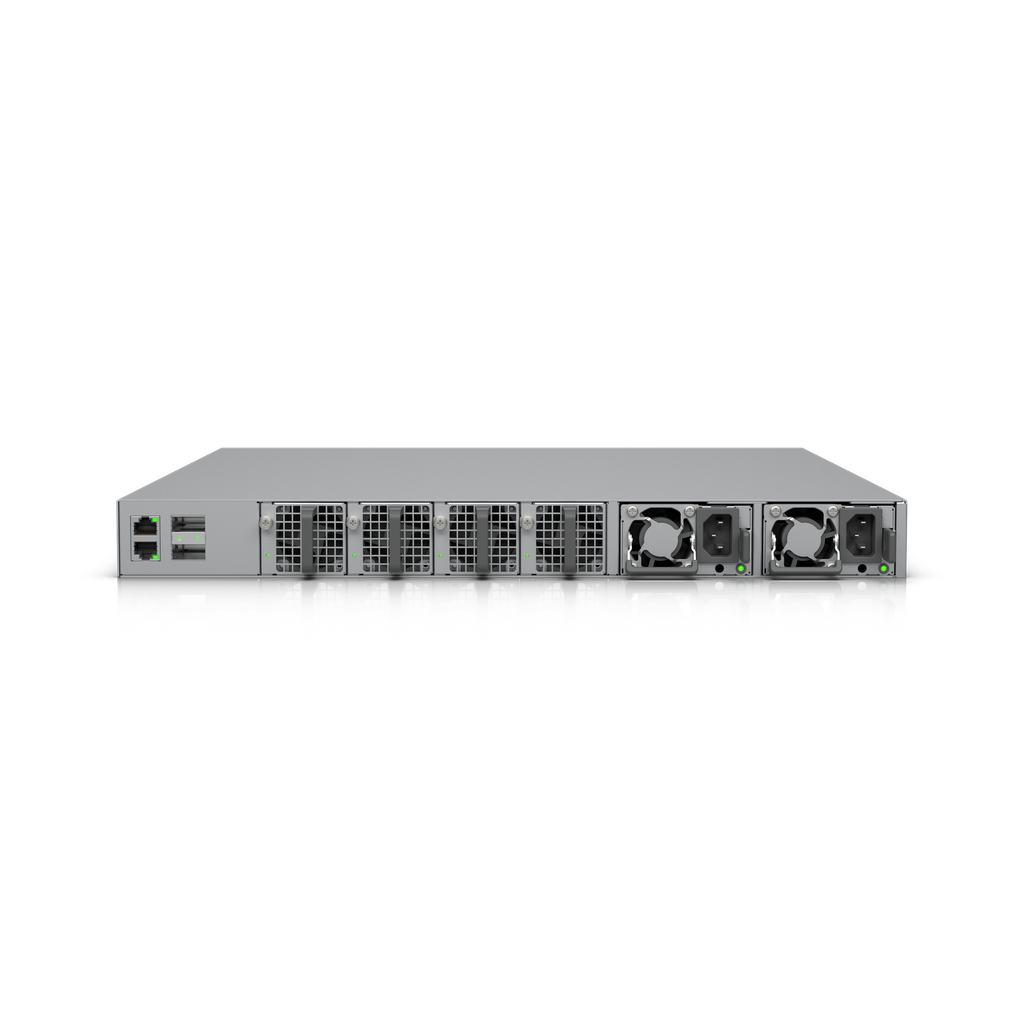

  • (2) included hot-swappable power modules
  • (4) included hot-swappable fan modules with one backup
  • (1) GbE management and (1) console port
  • Note. Recommend being paired with Enterprise Campus Aggregation.
  • *Requires shared mode.

Specifications

Overview
Dimensions442.4 x 44 x 496 mm /
1 GbE RJ451 / (1G/100M/10M)
2.5 GbE RJ458 (All PoE+++) / (2.5G/1G/100M/10M)
10 GbE RJ4516 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M)
25G SFP284 / (25G/10G/1G)
100G QSFP282 / (100G)
Console1
Max. PoE OutputUp to PoE+++
Total PoE Availability100-240V AC Shared Mode: 1,050W with (2) 600W modules / 100-240V AC Redundant Mode: 450W with (2) 600W modules / / 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules / 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules / 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules / 100-120V AC Redundant Mode: 850W with (2) 1,200W modules
RedundancySwitch Stacking / (2) Hot-Swappable PSUs / (4) Hot-Swappable Fans
Form FactorRack Mount (1U, Full-Depth)
Performance
Switching Capacity460 Gbps
Total Non-Blocking Throughput230 Gbps
Forwarding Rate342 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
IPv4 Static Routes512
Packet Buffer Size8 MB
IPv4256
MAC256
Hardware
PoE+++24
PoE15.4W
PoE+30W
PoE++60W
PoE+++90W
Max. Power Consumption150W (Excluding PoE Output) / 2,400W (Including PoE Output)
Power Method(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method(2) AC input, Hot-swappable power modules
Power Supply(2) Hot-swappable AC/DC 600W power modules
Supported Voltage Range100–240V AC
ManagementEthernet / OOB Management port / Serial Console / AR
Heat Dissipation512 BTU/hr (Excluding PoE Output)
WeightWithout mounting brackets: 9.2 kg / With mounting brackets: 9.3 kg
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm four-post racks / Posts depths ranging from 650 to 1,000 mm (25.6–39.4”)
LCM Display1.3" touchscreen
Fan Method(4) Hot-swappable fan modules
ESD ProtectionAir: ± 12kV, contact: ± 12kV
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC

Professional Overview

The Ubiquiti ECS-24S-PoE is the Switch Enterprise Campus 24S PoE from Ubiquiti's UniFi range. Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

Key specifications: Dimensions — 442.4 x 44 x 496 mm /; 1 GbE RJ45 — 1 / (1G/100M/10M); 2.5 GbE RJ45 — 8 (All PoE+++) / (2.5G/1G/100M/10M); 10 GbE RJ45 — 16 (All PoE+++) / (10G/5G/2.5G/1G/100M/10M); 25G SFP28 — 4 / (25G/10G/1G); 100G QSFP28 — 2 / (100G).

This product is part of the UniFi ecosystem and integrates with the UniFi platform for centralised management.

Currently listed by Ubiquiti as Coming Soon for the Australian market. Australian stock from ARC IP Networks once released.

Part of our Ubiquiti UniFi Switches range — browse and compare the full lineup of PoE, aggregation, compact and 10G switches.

Ubiquiti ECS-24S-PoE: 24 PoE+++ ports at 90W each

The Switch Enterprise Campus 24S PoE is an enterprise Layer 3 Etherlighting switch with 24 PoE+++ ports delivering up to 90W per port, and 230 Gbps of non-blocking throughput (460 Gbps switching capacity).

Port layout is 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) 10 GbE RJ45, 8 (All PoE+++) (2.5G/1G/100M/10M) 2.5 GbE RJ45, 4 (25G/10G/1G) 25G SFP28. It is a Rack Mount (1U, Full-Depth) unit weighing Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.3 kg (20.5 lb).

PoE budget in Australia: shared vs redundant

This is the specification that decides your design, and it is easy to get wrong. The PoE budget depends on both your supply voltage and whether you run the two power modules in shared or redundant mode.

The switch ships with (2) 600W power modules, which give the figures in the first row. Ubiquiti also publishes budgets for optional 1,200W modules — those are an upgrade, not what arrives in the box:

ConfigurationShared modeRedundant mode
Included (2) 600W modules
100–240V AC
1,050W450W
Optional (2) 1,200W modules
200–240V AC (Australian supply)
2,250W1,050W
Optional (2) 1,200W modules
100–120V AC
1,850W850W

Plan for this before you order. On the supplied 600W modules your usable budget is 1,050W shared or 450W in redundant mode. Redundancy costs you well over half the PoE budget, so if you need both high PoE load and PSU redundancy you will want the 1,200W modules.

Per-port classes are 15.4W (PoE), 30W (PoE+), 60W (PoE++) and 90W (PoE+++). Our access point comparison lists the draw of each UniFi AP so you can total the load.

Full voltage and mode matrix: 100-240V AC Shared Mode: 1,050W with (2) 600W modules 100-240V AC Redundant Mode: 450W with (2) 600W modules 200-240V AC Shared Mode: 2,250W with (2) 1,200W modules 100-120V AC Shared Mode: 1,850W with (2) 1,200W modules 200-240V AC Redundant Mode: 1,050W with (2) 1,200W modules 100-120V AC Redundant Mode: 850W with (2) 1,200W modules

Specifications

Non-blocking throughput230 Gbps
Switching capacity460 Gbps
PoE+++ ports24 at up to 90W
10 GbE RJ4516 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
2.5 GbE RJ458 (All PoE+++) (2.5G/1G/100M/10M)
1 GbE RJ451 (1G/100M/10M)
25G SFP284 (25G/10G/1G)
Power supplies(2) Hot-swappable AC/DC 600W power modules
Appliance draw150W (Excluding PoE Output) 2,400W (Including PoE Output)
Form factorRack Mount (1U, Full-Depth)
WeightWithout mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.3 kg (20.5 lb)
Operating temperature-5 to 40° C (23 to 104° F)
Display1.3" touchscreen

Note it is a full-depth 1U chassis — check your rack depth, and that both hot-swap power modules and the hot-swap fans are accessible.

The S variants (24S, 48S) add stacking support; the non-S models offer a different port mix. See the ECS-Aggregation for the 25G aggregation layer above them.

Frequently Asked Questions

How much PoE can the ECS-24S-PoE deliver in Australia?

With the supplied 600W modules, 1,050W in shared mode or 450W in redundant mode. Fitting the optional 1,200W modules raises this to 2,250W shared or 1,050W redundant on Australia's 230V supply. Redundant mode reserves capacity so one power module can fail without dropping the switch, which substantially reduces the usable PoE budget.

How many PoE+++ ports does the ECS-24S-PoE have?

24 ports, each capable of up to 90W. Lower classes are 15.4W for PoE, 30W for PoE+ and 60W for PoE++.

What is PoE+++?

Ubiquiti's designation for its highest-power PoE ports, delivering up to 90W per port — enough for PTZ cameras, high-power access points, heaters or downstream switches.

What throughput does the ECS-24S-PoE provide?

230 Gbps of non-blocking throughput and 460 Gbps of switching capacity.

Does it have redundant power supplies?

Yes — (2) Hot-swappable AC/DC 600W power modules. They can run in shared mode for maximum PoE or redundant mode for resilience.

Is it Layer 3?

Yes. The Enterprise Campus range are Layer 3 switches with Etherlighting, so they can route between VLANs rather than relying on a gateway.

How much rack space and depth does it need?

One rack unit, but it is a full-depth chassis — Rack Mount (1U, Full-Depth). Check your rack depth before ordering. It weighs Without mounting brackets: 9.2 kg (20.3 lb) With mounting brackets: 9.3 kg (20.5 lb).

What is the operating temperature range?

-5 to 40° C (23 to 104° F). Ensure the rack has adequate airflow, as PoE load generates significant heat.

Is the ECS-24S-PoE available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.
