Ubiquiti UniFi ECS-Aggregation — Enterprise Campus 1U Layer 3 Etherlighting™ Aggregation Switch with 48 × 25G SFP28 + 6 × 100G QSFP28, 3.6 Tbps Switching, MC-LAG, Dual Hot-Swap PSU

https://arcip.com.au/web/image/product.template/9727/image_1920?unique=4829406
UniFi ECS-Aggregation is Ubiquiti's 1U Enterprise Campus aggregation switch — (48) 25G SFP28 ports + (6) 100G QSFP28 uplinks delivering 3.6 Tbps switching capacity, 1.8 Tbps non-blocking throughput and 2.4 Bpps forwarding. Layer 3 with 128K MAC table; native Multi-Chassis Link Aggregation (MC-LAG) for active/active redundant designs. (2) hot-swap 550W AC/DC PSUs, (5) hot-swap fans, 1.3" touchscreen LCM, 340W max consumption. Full-depth 19" rack mount. Australian stock from ARC IP Networks.

6,500.00 6500.0 AUD 6,500.00 incl. GST

Not Available For Sale


  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

UniFi Switch Layer 3 Rackmount Managed Switch Ubiquiti Etherlighting Enterprise 48-Port 25G SFP28 Campus Touchscreen Aggregation 100G 100G QSFP28 Hot-Swap PSU 25G MC-LAG
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
ECS-Aggregation
Ubiquiti UniFi ECS-Aggregation — Enterprise Campus 1U Layer 3 Etherlighting™ Aggregation Switch with 48 × 25G SFP28 + 6 × 100G QSFP28, 3.6 Tbps Switching, MC-LAG, Dual Hot-Swap PSU
💼

Deal Registration Required

The Ubiquiti Enterprise Campus Aggregation Switch (ECS-Aggregation) ships under Ubiquiti’s deal-registration program for project pricing and deployment support. Please contact ARC IP Networks before ordering to register the deal, confirm lead time, and unlock project pricing.

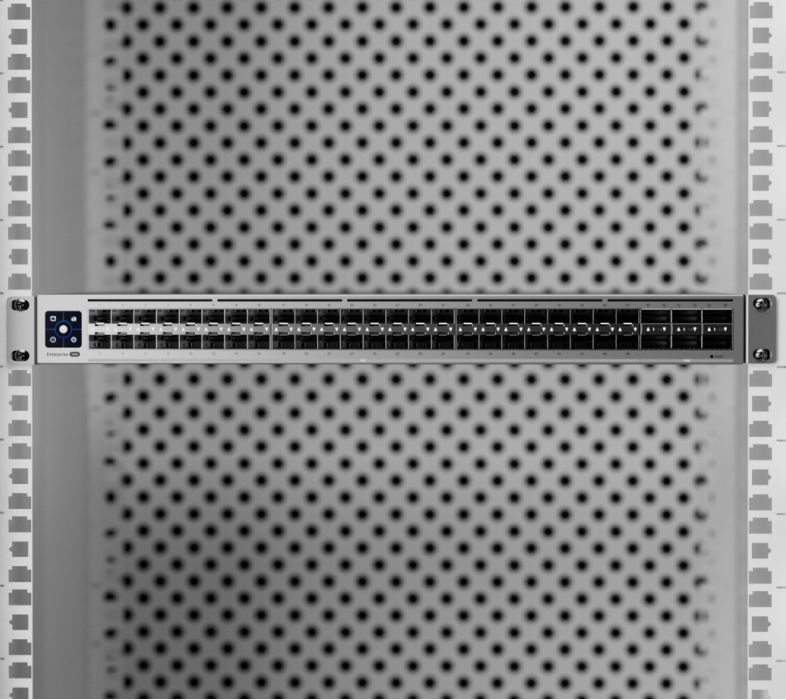

ECS-Aggregation Touchscreen + LED Detail

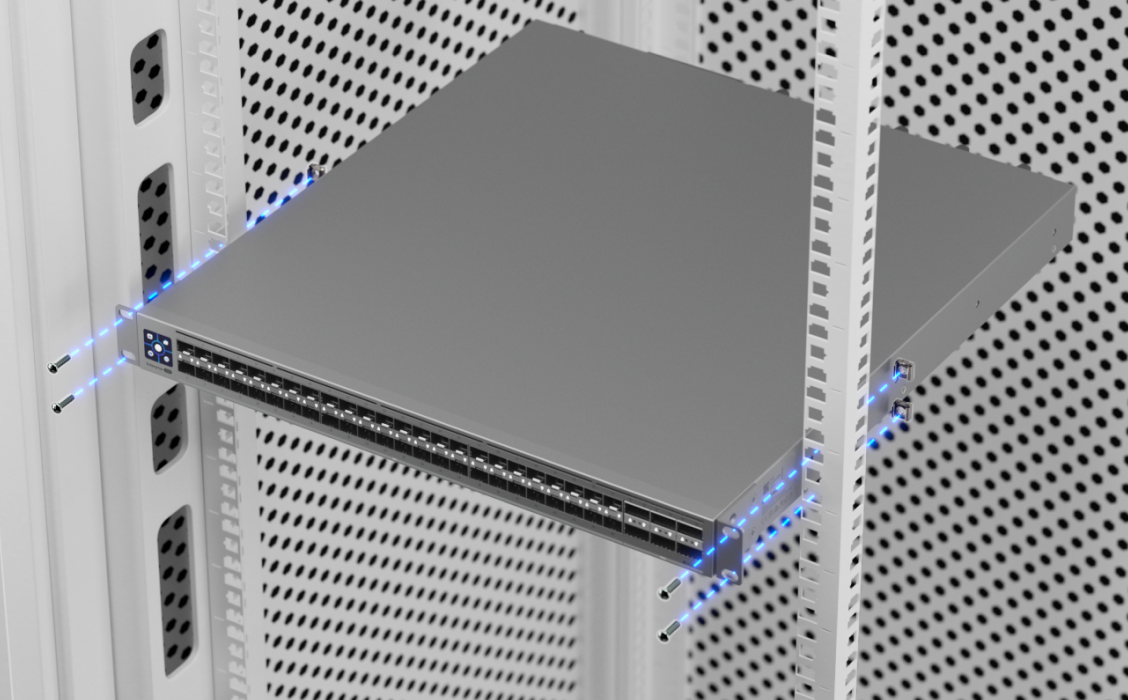

ECS-Aggregation Deployment

Features

  • Enterprise Campus aggregation switch — the spine partner for the ECS-24-PoE and ECS-48-PoE access switches and for any 25G/100G UniFi fabric.
  • (48) 25G SFP28 ports (25G / 10G auto-negotiate) — connect 48 access switches at full 25 Gbps, or fan out to 10G SFP+ access tiers without media converters.
  • (6) 100G QSFP28 uplinks (100G / 40G) — link to a higher-tier core or run parallel 100G spines for east-west datacentre-style fabrics.
  • 3.6 Tbps switching capacity, 1.8 Tbps non-blocking throughput, 2.4 Bpps forwarding rate — datacentre-class dataplane in a 1U Enterprise switch.
  • Native Multi-Chassis Link Aggregation (MC-LAG) — pair two ECS-Aggregation switches into a single logical LAG endpoint, so downstream access switches can dual-home for active/active failover without spanning-tree complexity.
  • Layer 3 capable: 256 IPv4 static routes, 1,000 VLANs, 128,000-entry MAC address table, 24 MB packet buffer, 512 IPv4 and 512 MAC interfaces.
  • Carrier-grade redundancy: (2) hot-swappable AC/DC 550W PSUs and (5) hot-swappable fan modules — one more fan than the access-tier ECS switches.
  • Etherlighting™ per-port multi-colour LEDs surface link state, speed and fault conditions at a glance.
  • 1.3" front-panel touchscreen LCM for status, port telemetry and diagnostics — no laptop at the rack required.
  • 1U full-depth SGCC steel chassis with stainless-steel mount hardware, supports four-post 19" racks 650–1,000 mm deep.
  • 340W max consumption, 1,160 BTU/hr heat dissipation — a single 1U slot in a standard rack.
  • ESD protection ±12 kV air / ±8 kV contact; -5 to 40 °C ambient operating range.
  • Managed end-to-end through UniFi Network 8.5.6+ alongside access switches, gateways and APs — no per-port licensing.
  • Certifications: CE, FCC, IC, ANATEL (01327-25-08356).

Specifications

Overview
Dimensions442.4 × 43.7 × 496 mm
25G SFP2848 (25G / 10G)
100G QSFP286 (100G / 40G)
RedundancyMulti-Chassis Link Aggregation (MC-LAG); (2) Hot-Swap PSUs; (5) Hot-Swap Fans
Form FactorRack Mount (1U, Full-Depth)
Performance
Switching Capacity3.6 Tbps
Non-Blocking Throughput1.8 Tbps
Forwarding Rate2.4 Bpps
Supported VLANs1,000
MAC Address Table Size128,000
IPv4 Static Routes256
Packet Buffer Size24 MB
IPv4 Interfaces512
MAC Interfaces512
Hardware
Max. Power Consumption340W
Power Method(2) Universal input, 100–240V AC, 50/60 Hz
Power Input Method(2) AC input, hot-swappable power modules
Power Supply(2) Hot-swappable AC/DC 550W modules
Supported Voltage Range100–240V AC
ManagementEthernet, AR
Heat Dissipation1,160 BTU/hr
Weight9.9 kg without brackets / 10 kg with brackets
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth482.6 mm (19") four-post racks; post depths 650–1,000 mm
LCM Display1.3" touchscreen
ESD ProtectionAir ±12 kV / Contact ±8 kV
Ambient Operating Temperature-5 to 40 °C
Ambient Operating Humidity10 to 95% non-condensing
CertificationsCE, FCC, IC, ANATEL: 01327-25-08356
Software
UniFi Network8.5.6 and later

Professional Overview

The UniFi ECS-Aggregation is Ubiquiti's high-density Layer 3 aggregation switch — the spine partner for the ECS-24-PoE and ECS-48-PoE Enterprise Campus access switches, and the natural backbone for any large UniFi deployment that needs to terminate dozens of 25G access trunks and connect to a 100G core. The port configuration is purpose-built for the role: (48) 25G SFP28 ports plus (6) 100G QSFP28 uplinks. The 25G ports auto-negotiate down to 10G, so a fleet of existing SFP+ access switches can be re-homed onto the new spine without breaking cabling, and the QSFP28 uplinks accept 100G or 40G optics for upstream flexibility.

The dataplane is genuinely datacentre-class: 3.6 Tbps switching capacity, 1.8 Tbps non-blocking throughput and a 2.4 Bpps (billion packets per second) forwarding rate. The control plane is sized to match — a 128,000-entry MAC address table, 24 MB packet buffer, 512 IPv4 and 512 MAC interfaces, 1,000 VLANs and 256 IPv4 static routes — comfortably enough to act as both the access aggregation switch and the inter-VLAN routing edge for a multi-tenant building or large campus.

The headline redundancy feature is Multi-Chassis Link Aggregation (MC-LAG). Two ECS-Aggregation switches can be paired into a single logical LAG endpoint, so downstream access switches dual-home with one LAG that spans both spines — active/active forwarding, no spanning-tree blocking, transparent failover if either spine goes down. For an environment that has historically required Cisco vPC or Arista MLAG to achieve this, MC-LAG on UniFi at this price point is a meaningful change. Chassis redundancy is carrier-grade in its own right: (2) hot-swappable AC/DC 550W PSUs and (5) hot-swappable fan modules (one more than the ECS-PoE access switches).

Build quality is broadcast-grade: SGCC steel enclosure and mount, four-post 19" rack support for 650–1,000 mm post depths, ESD immunity of ±12 kV air / ±8 kV contact, an operating envelope of -5 to 40 °C with 10–95% non-condensing humidity, and 340W maximum consumption with 1,160 BTU/hr heat dissipation. A 1.3" front-panel touchscreen LCM gives port-level status, telemetry and link health without a laptop, and Etherlighting™ surfaces per-port speed and fault state from across the rack. Managed end-to-end through UniFi Network 8.5.6 or later — no per-port licensing, no separate aggregation-tier controller. Certifications cover CE, FCC, IC and ANATEL (01327-25-08356). Australian stock from ARC IP Networks.

Switching Capacity 3.6 Tbps
Network Layer Layer 3
Form Factor Rack Mount (1U, Full-Depth)
Port Speed (48) 25G SFP28 + (6) 100G QSFP28
Ports 54 Ports
Network Connectivity Wired
Uplink 6 × 100G QSFP28
PoE Specification Non-PoE
Switch Features MC-LAG, Etherlighting, Hot-Swap PSU & Fans (5), Touchscreen LCM, Layer 3 Routing, 128K MAC Table
