Ruijie Reyee NBS managed switches are the step up from smart switches: Gigabit NBS3100 (Layer 2), NBS3200 (Layer 2+ with 10G SFP+ uplinks), NBS3300 (2.5G ports for Wi-Fi 6 and Wi-Fi 7 access points), and Layer 3 NBS5100 and NBS5200 with routing and a DHCP server. The NIS2100 industrial switches mount on a DIN rail and run from −40°C to +75°C. All carry a 5-year Ruijie warranty and free lifetime management on Ruijie Cloud.
Quick pick: 24-port office PoE → RG-NBS3100-24GT4SFP-P-V2; 10G to the server room → RG-NBS3200-24GT4XS-P-V2; Wi-Fi 7 access points → RG-NBS3300-8MG2XS-P; core with routing → RG-NBS5200-48GT4XS-UP; outdoor cabinet or plant room → RG-NIS2100-8GT2SFP-HP. ARC IP Networks is an authorised Ruijie reseller and supplies genuine Ruijie from Australian stock with a GST tax invoice.
Reyee NBS and NIS switch series at a glance
| Series | In one line | Best for |
|---|---|---|
| NBS3100 | Layer 2, Gigabit ports, 1G SFP uplinks, PoE+ up to 370 W | Office, school and CCTV access switches |
| NBS3200 | Layer 2+, Gigabit ports, 4 x 10G SFP+ uplinks | Floors and wings that uplink at 10G |
| NBS3300 | Layer 2+, 2.5G multi-gigabit PoE ports, 10G SFP+ | Wi-Fi 6 and Wi-Fi 7 access point networks |
| NBS5100 | Layer 3, Gigabit ports, 1G SFP uplinks | Small cores that route between VLANs |
| NBS5200 | Layer 3, 10G SFP+, OSPF, DHCP server, PoE++ on the UP model | Core and distribution for multi-building sites |
| NIS2100 | Industrial Layer 2, DIN rail, IP40, −40°C to +75°C, PoE++ port | Roadside, farm, factory and outdoor cabinets |
Summarised from Ruijie's datasheets.
Ruijie Reyee managed and industrial switch specifications
Every model in this table carries a 5-year Ruijie warranty, according to Ruijie's warranty summary.
Swipe the table sideways to compare all models →
| Model | Layer | Access ports | Uplinks | PoE ports | PoE budget | Switching capacity |
|---|---|---|---|---|---|---|

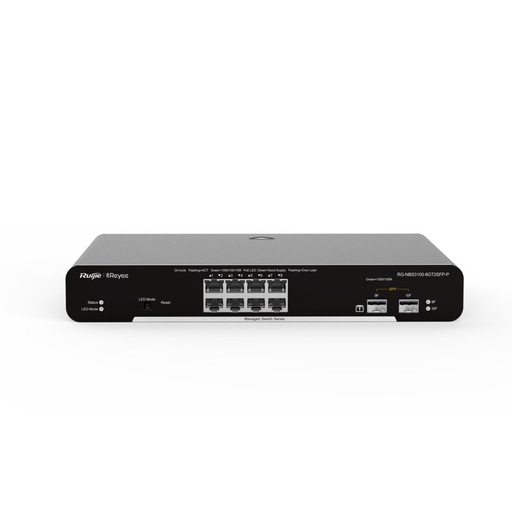

| RG-NBS3100-8GT2SFP-P-V2 | L2 | 8 x 1G | 2 x 1G SFP | 8 x PoE+ | 125 W | 20 Gbps |

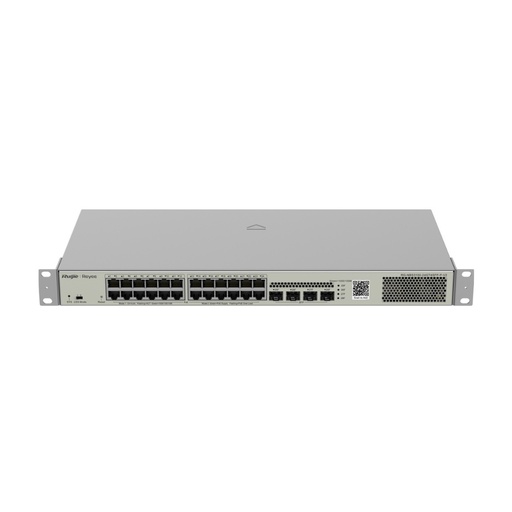

| RG-NBS3100-24GT4SFP-P-V2 | L2 | 24 x 1G | 4 x 1G SFP | 24 x PoE+ | 370 W | 56 Gbps |

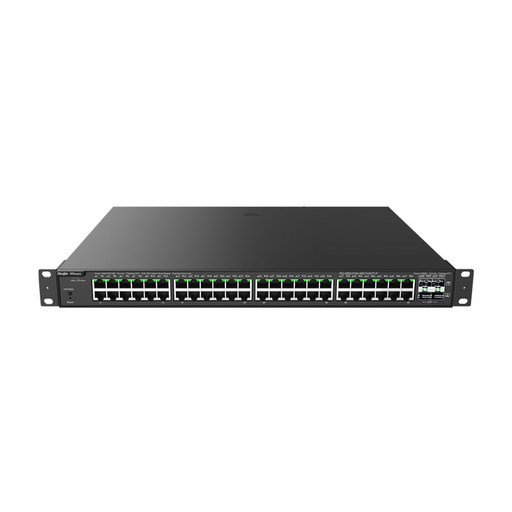

| RG-NBS3100-48GT4SFP-P-V2 | L2 | 48 x 1G | 4 x 1G SFP | 48 x PoE+ | 370 W | 104 Gbps |

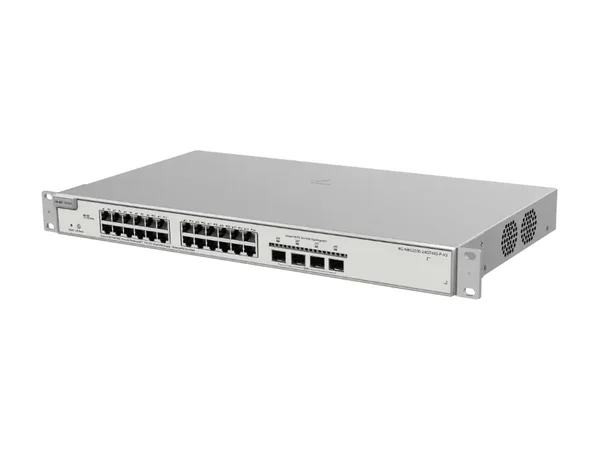

| RG-NBS3200-24GT4XS-P-V2 | L2+ | 24 x 1G | 4 x 10G SFP+ | 24 x PoE+ | 370 W | 128 Gbps |

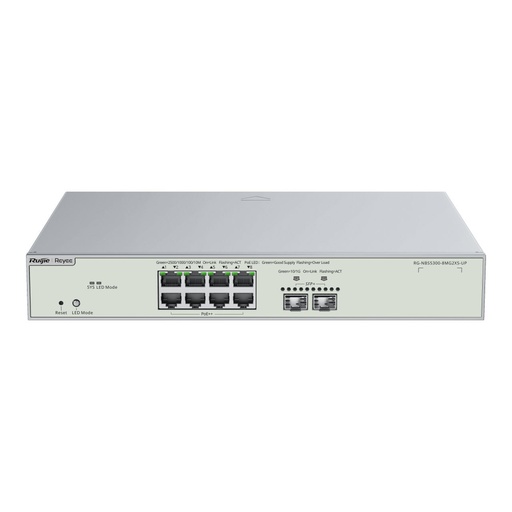

| RG-NBS3300-8MG2XS-P | L2+ | 8 x 2.5G | 2 x 10G SFP+ | 8 x PoE+ | 240 W | 80 Gbps |

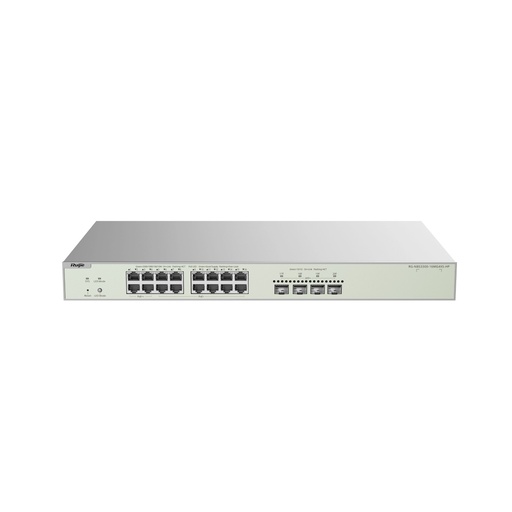

| RG-NBS3300-16MG4XS-HP | L2+ | 16 x 2.5G | 4 x 10G SFP+ | 12 x PoE+ 4 x PoE++ | 370 W | 160 Gbps |
| RG-NBS5100-24GT4SFP-P | L3 | 24 x 1G | 4 x 1G SFP | 24 x PoE+ | 370 W | 56 Gbps |
| RG-NBS5200-24GT4XS-P-V2 | L3 | 24 x 1G | 4 x 10G SFP+ | 24 x PoE+ | 370 W | 128 Gbps |
| RG-NBS5200-48GT4XS-UP | L3 | 48 x 1G | 4 x 10G SFP+ | 48 PoE ports, 8 of them PoE++ | 740 W | 176 Gbps |
| RG-NIS2100-8GT2SFP-HP | L2 industrial | 8 x 1G | 2 x 1G SFP | 8 PoE ports, 1 of them PoE++ | 228 W default, 300 W max | 20 Gbps |

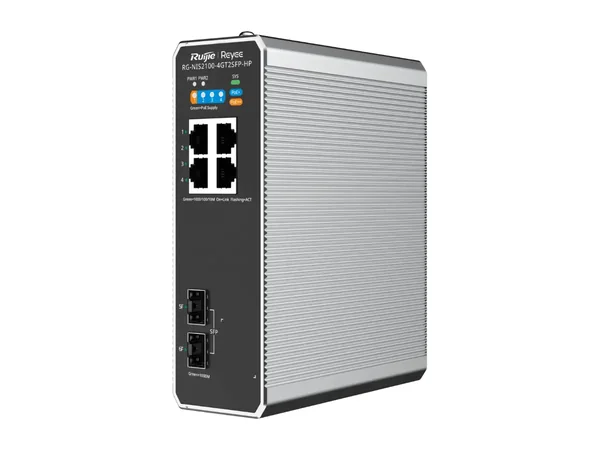

| RG-NIS2100-4GT2SFP-HP | L2 industrial | 4 x 1G | 2 x 1G SFP | 1 x PoE++ 3 x PoE+ | 108 W default, 180 W max | 12 Gbps |
Source: Ruijie datasheets and product pages for each model. The NIS2100 PoE budget is adjustable up to the maximum in the web interface.
Layer 2, Layer 2+ or Layer 3?
Layer 2 (NBS3100) switches move traffic within a network and handle VLANs, link aggregation and IGMP snooping: the right job for an access switch that connects desks, phones, cameras and access points. Layer 2+ (NBS3200 and NBS3300) adds faster 10G SFP+ uplinks and more advanced features, and Ruijie lists CPP on the NBS3300, which "protects the CPU from attacks".
Layer 3 (NBS5100 and NBS5200) switches route between VLANs themselves. Ruijie's datasheets list OSPFv2, OSPFv3 and a DHCP server on the NBS5100 and NBS5200, and not on the NBS3100, NBS3200 and NBS3300 datasheets. That suits a school, aged care home or multi-tenant office that splits staff, guests, CCTV and phones into separate VLANs and wants the switch, not the router, to route between them. The NBS5200 datasheets also list virtual switching (VCS) with 2 members, for two switches that act as one.
Uplinks: 1G SFP, 10G SFP+ and fibre between buildings
The uplink is the link from an access switch back to the core or server room. With 24 or 48 busy ports, a single Gigabit uplink can become the bottleneck. The NBS3200, NBS3300 and NBS5200 have 10G SFP+ uplinks; the NBS3100 and NBS5100 use 1G SFP. SFP ports also take fibre modules, so a switch in a second building, a shed or a demountable classroom can be linked by fibre rather than copper. See our Ruijie SFP modules, or Wi-Fi between buildings when trenching fibre is not practical. Ruijie's datasheets list ERPS for the NBS3100, NBS3200, NBS3300, NBS5100, NBS5200 and NIS2100 models we checked, so switches can be cabled in a ring that keeps working if one link is cut.

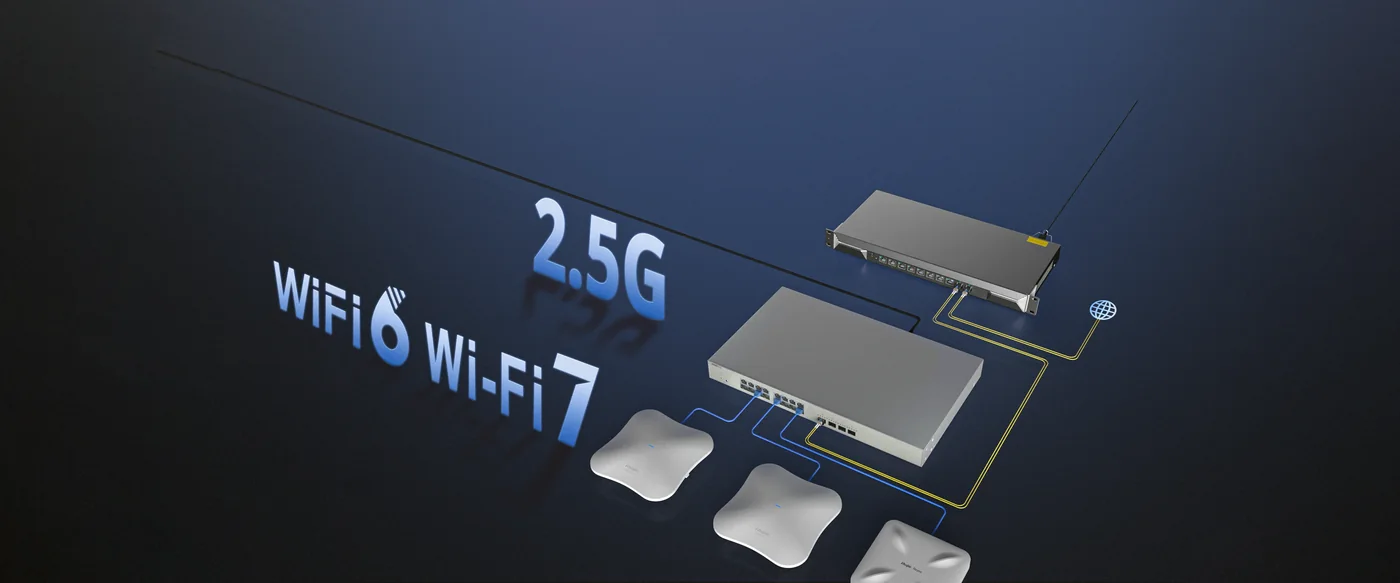

2.5G ports for Wi-Fi 6 and Wi-Fi 7 access points

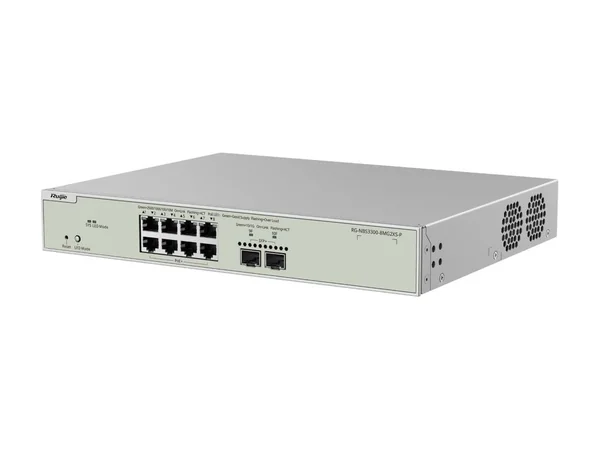

Ruijie's pitch for the NBS3300 is that "2.5 Gbps ports smash the gigabit barrier and unlock the full potential of Wi-Fi 6/7 APs". An access point with a 2.5G port runs at Gigabit speed when plugged into a Gigabit switch port, so the switch decides how much of the access point you can use. The RG-NBS3300-8MG2XS-P has 8 x 2.5G PoE+ ports, 2 x 10G SFP+ and a 240 W budget; the RG-NBS3300-16MG4XS-HP has 16 x 2.5G ports (4 of them PoE++), 4 x 10G SFP+ and 370 W. For a smaller office, the cloud-managed RG-ES209MG-P gives 8 x 2.5G PoE+ and a 10G SFP+ uplink. Pair them with the access points in Reyee access points compared.
PoE budgets and PoE++

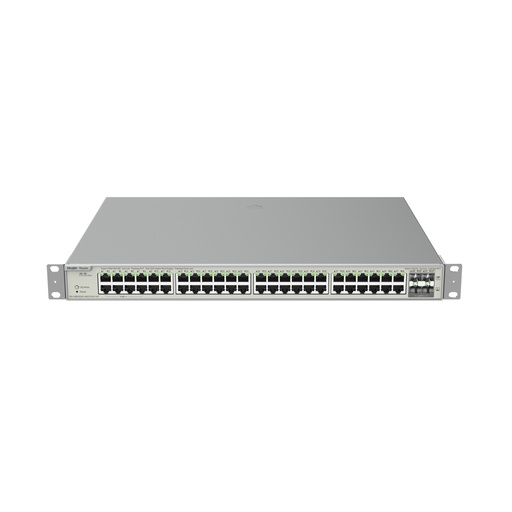

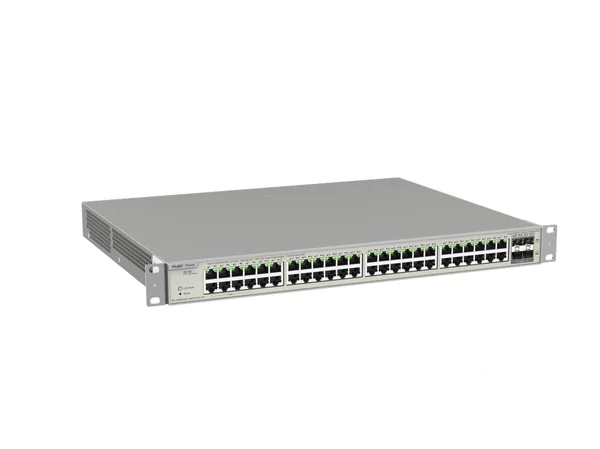

Most 24- and 48-port PoE models share 370 W across their ports; the NBS3100-48GT4SFP-P-V2 allows up to 30 W on each port. If you are powering many high-draw devices (PTZ cameras, Wi-Fi 7 access points, video phones), add up their maximum draw and compare it with the budget. The RG-NBS5200-48GT4XS-UP doubles the budget to 740 W and has 8 PoE++ (IEEE 802.3bt) ports. Our what PoE switch do I need guide explains PoE classes and how to size a budget.
NIS2100 industrial switches: built for the cabinet, not the comms room

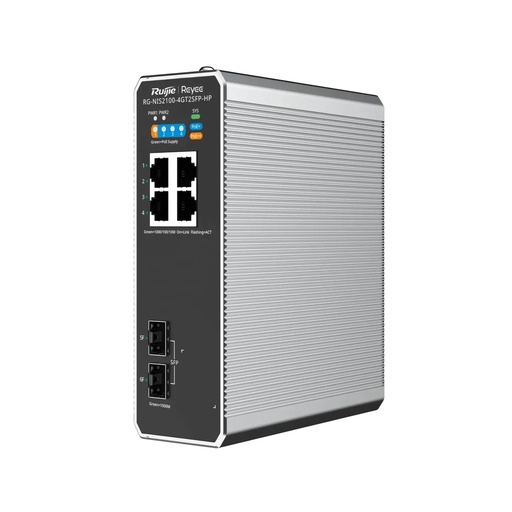

Australian sites put network gear in hot, dusty places: roadside and car park cabinets, pump sheds on a farm, factory floors and poles on a construction site. Ruijie's RG-NIS2100-8GT2SFP-HP and RG-NIS2100-4GT2SFP-HP are built for that:
- −40°C to +75°C operation, with a full aluminium casing and a fanless design.
- IP40 protection against 1 mm solid particles, 6 kV surge protection and EMC Level 4 against electromagnetic interference.
- DIN rail or wall mounting; Ruijie says the compact design fits into a waterproof outdoor box.
- 90 W PoE output on one PoE++ port for a high-power device such as a PTZ camera or outdoor access point.
- A DIP switch for instant ERPS configuration, so a ring of cabinets recovers if a link fails.
The NIS2100-8 takes 46 V to 57 V DC from a DIN-rail power supply, such as our RG-NIS-PA240-54 or RG-NIS-PA120-54 (54 V DC output). For outdoor CCTV on a pole, also see the IP65 switches in our Ruijie CCTV PoE switch guide.
Ruijie Cloud management and a 5-year warranty
Every NBS and NIS switch here can be managed for free on Ruijie Cloud: SON and zero-touch provisioning, VLANs configured from the Ruijie Reyee app, and switch statistics from anywhere, which Ruijie says simplifies maintenance and reduces onsite time and costs. The NBS3100 and NBS3200 also have IP camera recognition for CCTV networks. See Ruijie Cloud explained.
Ruijie's warranty summary lists 5 years for the NBS3100, NBS3200, NBS3300, NBS5100, NBS5200 and NIS2100 switches, and its datasheets quote an MTBF of 400,000 hours for the RG-NBS3100-48GT4SFP-P-V2 and RG-NBS3300-8MG2XS-P. Keep your tax invoice: Ruijie uses the invoice date as one of the documents that set the warranty start date. More in where to buy Ruijie in Australia.
Which Reyee switch for which Australian site
ARC IP Networks suggestions, based on Ruijie's specifications.
| Site | Choose | Why |
|---|---|---|
| Small office or medical practice (up to 8 PoE devices) | RG-NBS3100-8GT2SFP-P-V2 | 8 PoE+, 125 W, fanless, 2 SFP |
| Accounting or law office, 24 desks and phones | RG-NBS3100-24GT4SFP-P-V2 | 24 PoE+, 370 W, 4 SFP |
| School wing or call centre floor | RG-NBS3100-48GT4SFP-P-V2 | 48 PoE+, 370 W, PWM fan optimised for low noise |
| Floor that uplinks at 10G to a server room | RG-NBS3200-24GT4XS-P-V2 | 24 PoE+, 4 x 10G SFP+ |
| Hotel, motel or office with Wi-Fi 7 access points | RG-NBS3300-8MG2XS-P or RG-NBS3300-16MG4XS-HP | 2.5G PoE ports, 10G SFP+ |
| Aged care home or campus core with many VLANs | RG-NBS5200-48GT4XS-UP | Layer 3, OSPF, DHCP server, 740 W, 8 PoE++ |
| Farm, pump shed, roadside or factory cabinet | RG-NIS2100-8GT2SFP-HP or RG-NIS2100-4GT2SFP-HP | −40°C to +75°C, DIN rail, 90 W PoE++ port |
Why buy Ruijie from ARC IP Networks
- Authorised Ruijie reseller: genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
- Australian stock shipped Australia-wide.
- Manufacturer's warranty and local pre-sales help choosing the right switches, access points and accessories.
- Every product page backed by Ruijie's own specifications, with the exact warranty for each model.
- GST tax invoice on every order, with trade and project pricing for installers and integrators.
See the full range on our Ruijie Australia hub, or read where to buy Ruijie in Australia. Questions? Call 1300 100 440 or email info@arcip.com.au.
Shop Ruijie Reyee managed and industrial switches
Live Australian pricing (inc. GST) and availability are on each product page.
L2, 8 PoE+, 125 W, 2 SFP, fanless, 5-year warranty
L2+, 16 x 2.5G, 4 PoE++, 370 W, 4 x 10G SFP+
Industrial, 8 PoE ports, DIN rail, -40 to +75 C
Common questions
Straight answers from the ARC IP Networks team. Last reviewed October 2026.
The NBS3100 is a Layer 2 Gigabit switch with 1G SFP uplinks. The NBS3200 is Layer 2+ with 4 x 10G SFP+ uplinks. The NBS5200 is Layer 3 with 10G SFP+, OSPF and a DHCP server, so it can route between VLANs.
The NBS3300 series: the RG-NBS3300-8MG2XS-P has 8 x 2.5G PoE+ ports and the RG-NBS3300-16MG4XS-HP has 16 x 2.5G ports with 4 PoE++. For smaller sites, the cloud-managed RG-ES209MG-P has 8 x 2.5G PoE+ ports.
Yes. The NBS and NIS switches can be managed free on Ruijie Cloud, with SON, zero-touch provisioning and VLAN setup from the Ruijie Reyee app, as well as locally through the web interface.
The RG-NIS2100-8GT2SFP-HP (8 PoE ports, 1 PoE++, up to 300 W) or the smaller RG-NIS2100-4GT2SFP-HP (4 PoE ports, up to 180 W). Both run from -40 to +75 degrees C, are IP40 and mount on a DIN rail.
The RG-NIS2100-8GT2SFP-HP takes 46 V to 57 V DC. ARC IP Networks supplies Ruijie DIN-rail power supplies such as the RG-NIS-PA240-54 (240 W, 54 V DC output). Ask us to size the supply for your PoE load.
In our range, the RG-NBS5200-48GT4XS-UP, with 740 W across 48 PoE ports, 8 of them PoE++.
Ruijie's warranty summary lists 5 years for the NBS3100, NBS3200, NBS3300, NBS5100, NBS5200 and NIS2100 switches. The smart RG-ES switches carry 3 years.
ARC IP Networks is an authorised Ruijie reseller and supplies genuine Ruijie from Australian stock with a GST tax invoice. Order online at arcip.com.au, or call 1300 100 440 for project and trade pricing.
Designing a switched network?
Send us your floor plan or device list. ARC IP Networks will pick the right Ruijie access, core and industrial switches, SFP modules and power supplies, and quote them with trade pricing for installers and integrators. Call 1300 100 440 or email info@arcip.com.au.
