Ruijie Reyee smart CCTV PoE switches power and connect IP cameras and the NVR from one box, and add camera-focused tools in the Ruijie Cloud app: IP camera recognition, PoE watchdog and remote PoE reboot, loop prevention and Perpetual PoE (power stays on while the switch restarts). The current range runs from the 4-port RG-ES207GS-P (54 W) and 8-port RG-ES211GS-P (120 W) to the 16-port RG-ES220GS-P-V2 (250 W) and 24-port RG-ES228GS-P-V2 (370 W), plus the IP65 outdoor RG-ES207GS-PI-OD, the PoE++ RG-ES207GS-HP and the 2.5G RG-ES209MG-P.
Quick pick: 4 cameras → RG-ES207GS-P; 8 cameras → RG-ES211GS-P; 16 cameras → RG-ES220GS-P-V2; 24 cameras → RG-ES228GS-P-V2; a pole or fence line outdoors → RG-ES207GS-PI-OD. ARC IP Networks is an authorised Ruijie reseller and supplies genuine Ruijie from Australian stock with a GST tax invoice.
Ruijie CCTV PoE switches at a glance
Every model below is a Layer 2 smart switch managed from Ruijie Cloud, the Ruijie Reyee app or its web page, with a 3-year Ruijie warranty. Pick by the number of cameras first, then by PoE budget.
| Model | In one line | Best for |
|---|---|---|

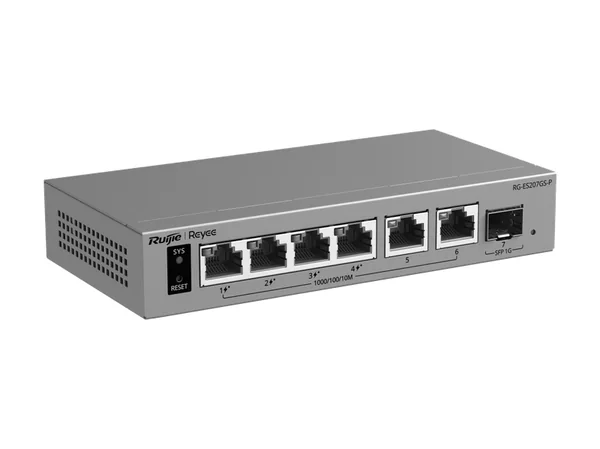

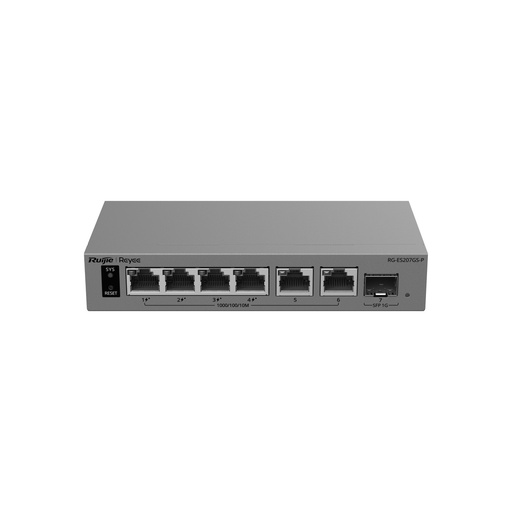

| RG-ES207GS-P | 4 PoE+ ports, 54 W, 1 SFP uplink, fanless | Shops, cafés and homes with up to 4 cameras |

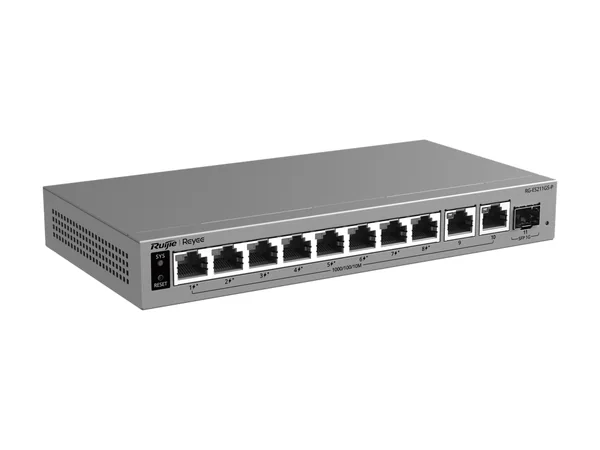

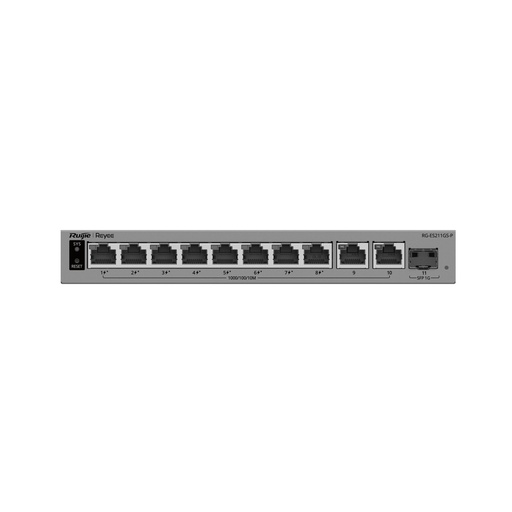

| RG-ES211GS-P | 8 PoE+ ports, 120 W, 1 SFP uplink, fanless | Clinics, offices and small sites with up to 8 cameras |

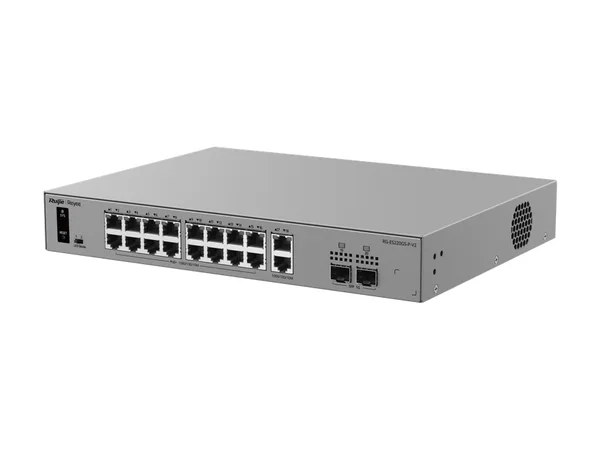

| RG-ES220GS-P-V2 | 16 PoE+ ports, 250 W, 2 SFP uplinks, ERPS | Warehouses, schools and car parks with up to 16 cameras |

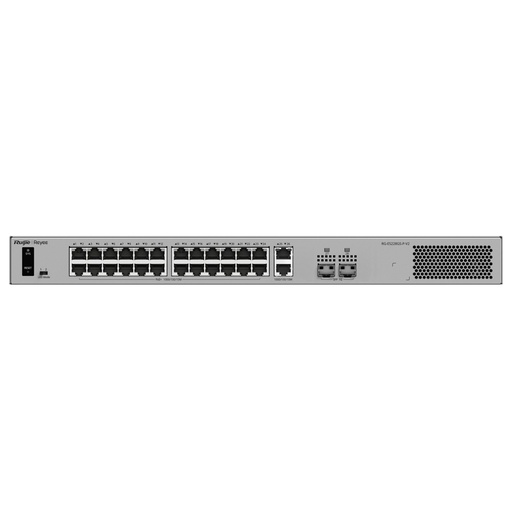

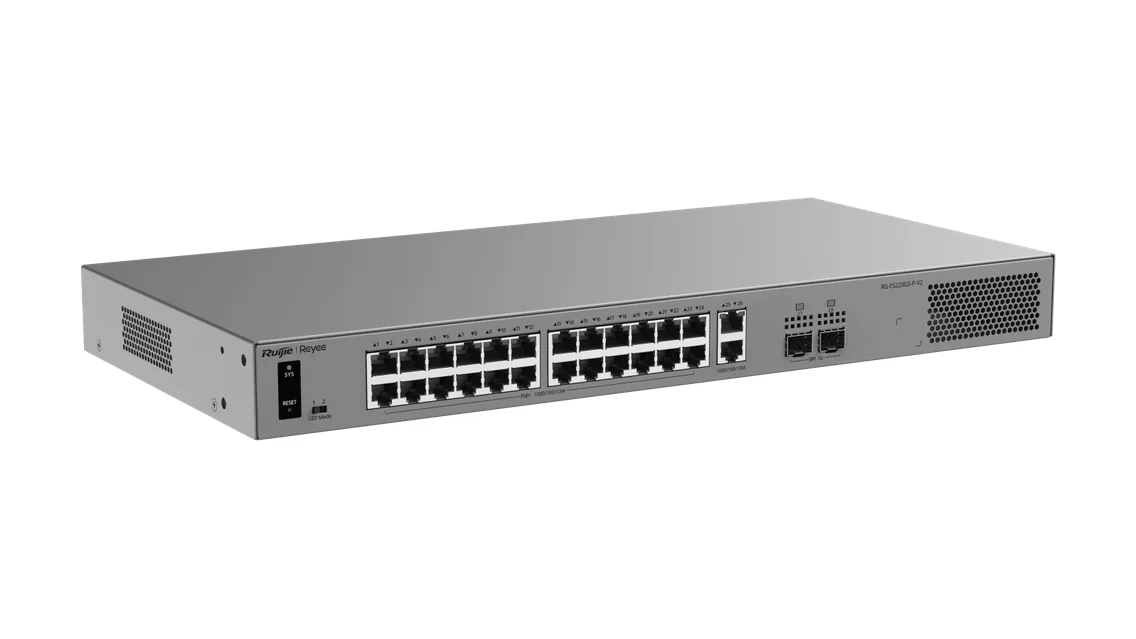

| RG-ES228GS-P-V2 | 24 PoE+ ports, 370 W, 2 SFP uplinks, ERPS | Larger sites with up to 24 cameras in a rack |
| RG-ES207GS-PI-OD | IP65 outdoor switch, PoE or 12 V DC input, 2 SFP | Poles, fence lines, gates and solar-powered sites |
| RG-ES207GS-HP | 2 PoE++ and 2 PoE+ ports, 120 W | High-power PTZ cameras |

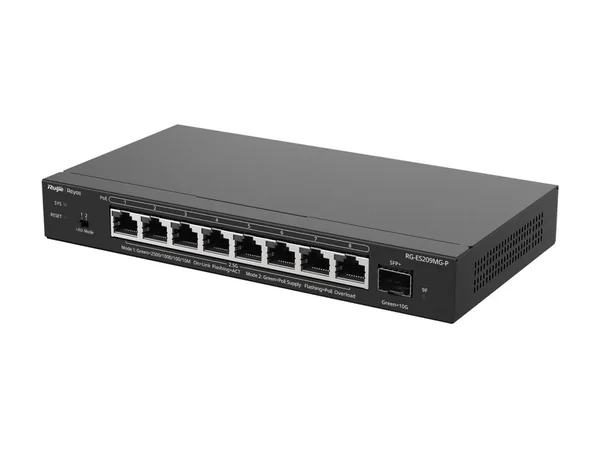

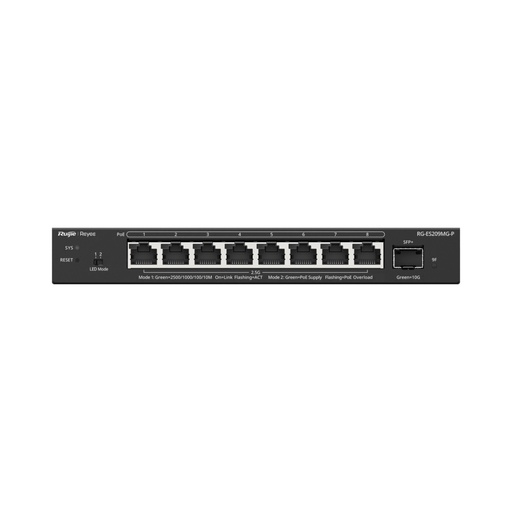

| RG-ES209MG-P | 8 x 2.5G PoE+ ports, 10G SFP+, 130 W | Mixed sites: Wi-Fi 7 access points plus cameras |
Summarised from Ruijie's product pages and datasheets.
Ruijie Reyee CCTV switch specifications
Swipe the table sideways to compare all models →
| Spec | RG-ES207GS-P | RG-ES211GS-P | RG-ES220GS-P-V2 | RG-ES228GS-P-V2 | RG-ES207GS-PI-OD | RG-ES207GS-HP |
|---|---|---|---|---|---|---|
| RJ45 ports (Gigabit) | 6 | 10 | 18 | 26 | 5 | 6 |
| SFP ports | 1 x 1GE | 1 x 1GE | 2 x 1GE | 2 x 1GE | 2 x 1GE | 1 x 1GE |
| PoE output ports | 4 x PoE+ | 8 x PoE+ | 16 x PoE+ | 24 x PoE+ | 4 x PoE+ | 2 x PoE++ 2 x PoE+ |
| PoE budget | 54 W | 120 W | 250 W | 370 W | Up to 60 W (from a 90 W PoE++ input) | 120 W |
| Switching capacity | 14 Gbps | 22 Gbps | 40 Gbps | 56 Gbps | 14 Gbps | 14 Gbps |
| Cooling | Fanless | Fanless | 1 fan, automatic speed | 1 fan, automatic speed | Fanless | Fanless |
| Mounting | Wall or desk | Wall or desk | Rack or desk | Rack or desk | Wall or pole | Wall or desk |
| Operating temperature | 0 to 40°C | 0 to 40°C | 0 to 40°C | 0 to 40°C | −30 to +65°C, IP65 | 0 to 40°C |
| PoE watchdog | Yes | Yes | Yes | Yes | Yes | Yes |
| Ruijie warranty | 3 years | 3 years | 3 years | 3 years | 3 years | 3 years |
Source: Ruijie's product pages and datasheets for each model. The RG-ES207GS-PI-OD PoE budget depends on its power input: 60 W from a 90 W PoE++ source, 40 W from 60 W, 19 W from a 30 W PoE+ source and 6 W from 15.4 W PoE.
Port planning for an NVR: count cameras, then add uplinks
A CCTV switch has two jobs: power each camera over PoE and carry its video to the NVR. Plan it in this order:
- One PoE port per camera. 4, 8, 16 or 24 cameras map neatly onto the RG-ES207GS-P, RG-ES211GS-P, RG-ES220GS-P-V2 and RG-ES228GS-P-V2.
- Uplinks for the NVR and the network. Each model has non-PoE Gigabit ports beside the PoE ports: 2 on the RG-ES207GS-P, RG-ES211GS-P, RG-ES220GS-P-V2 and RG-ES228GS-P-V2. Plug the NVR into one and your router or main switch into the other, so remote viewing works over the NBN.
- SFP for fibre. The SFP port takes a fibre module when the switch sits in another building or at the far end of a long run. See our Ruijie SFP modules.
- Leave spare ports. Sites grow: a 16-port switch for 12 cameras leaves room for the next four.
PoE budget: add up the cameras, not the ports
The PoE budget is the total power a switch can share across its ports. Add the maximum power draw from each camera's datasheet (heaters, IR and PTZ motors all raise it) and keep the total comfortably under the budget. The RG-ES207GS-P shares 54 W across 4 PoE+ ports, the RG-ES211GS-P 120 W across 8, the RG-ES220GS-P-V2 250 W across 16 and the RG-ES228GS-P-V2 370 W across 24.

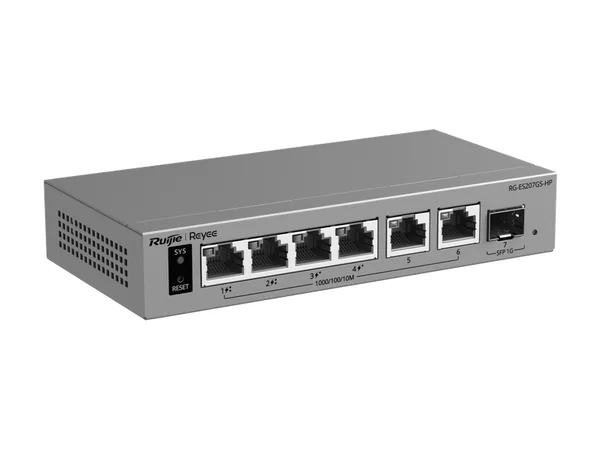

High-power PTZ cameras need PoE++ (IEEE 802.3bt). The RG-ES207GS-HP has PoE++ on ports 1 and 2 and PoE+ on ports 3 and 4, from a 120 W budget. For a deeper look at PoE classes and budgets, read what PoE switch do I need.
Long-distance PoE: up to 250 m
Cameras on a boundary fence, at a farm gate or across a car park are often further from the cabinet than a normal Ethernet run allows. Ruijie's CCTV solution supports PoE and data transmission of up to 250 m on supported switches, set from the Ruijie Reyee app. The trade-off, in Ruijie's words: "After long-distance data transmission is enabled, the transmission and speed of port will be changed to full-duplex/10Mbps." Fine for one camera, not for an uplink.

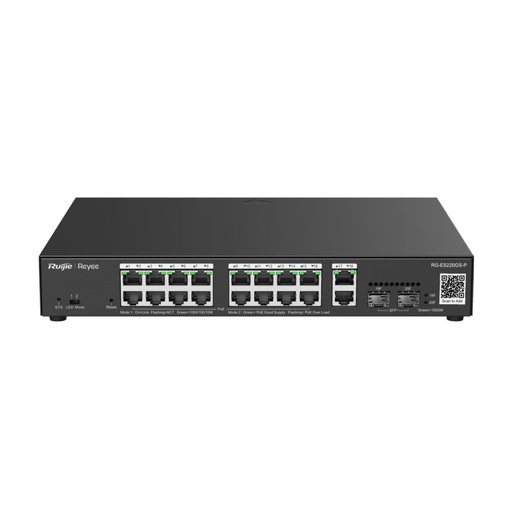

Ruijie lists the 250 m mode on the RG-ES220GS-P and the RG-ES210GS-P. If you need it on another model, check Ruijie's datasheet for that model or ask us before you design around it. For longer distances, use fibre on the SFP port or a Reyee wireless bridge.
The CCTV tools that save a site visit
These switches are "smart" because the Ruijie Cloud app can see and fix camera problems remotely:
- IP camera recognition. Ruijie's IPC auto detection identifies the models and brands of connected cameras, so you can see which port each one is on.
- PoE watchdog and remote PoE reboot. Ruijie says these two features "solve most of the CCTV issues": a frozen camera is power-cycled automatically, or by you from the app.
- Perpetual PoE. On the RG-ES207GS-P, RG-ES211GS-P, RG-ES220GS-P-V2, RG-ES228GS-P-V2 and RG-ES207GS-HP, "PoE ports provide uninterrupted power even during switch restarts", so a firmware update does not drop every camera.
- Smart Protection and AI Failover. One-click Smart Protection guards against loops and broadcast storms, and Ruijie's datasheets list AI Failover for service continuity.
- 6 kV surge protection on the RG-ES207GS-P, RG-ES211GS-P, RG-ES220GS-P-V2, RG-ES228GS-P-V2 and RG-ES207GS-HP, and ERPS ring support through the two SFP ports on the RG-ES220GS-P-V2 and RG-ES228GS-P-V2.

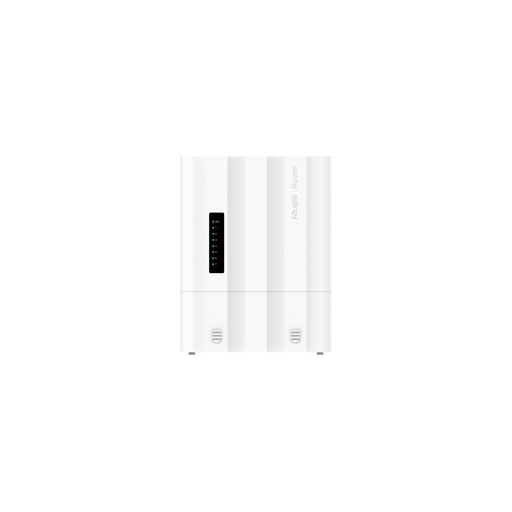

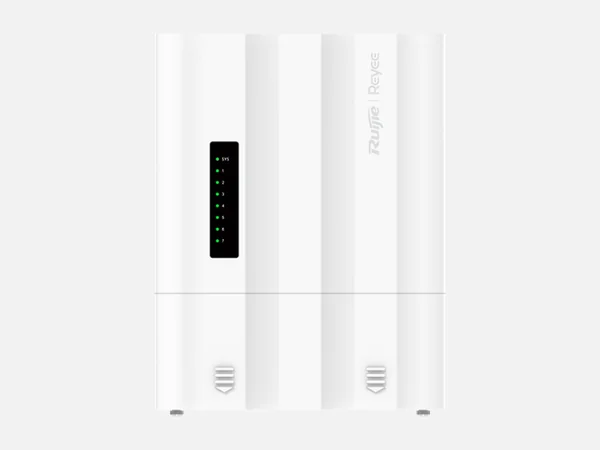

Outdoor CCTV: the RG-ES207GS-PI-OD
The RG-ES207GS-PI-OD is a 7-port outdoor switch (5 Gigabit RJ45 and 2 SFP) that Ruijie describes as "all-in-one", combining four devices into one enclosure. It is rated IP65 (fully dustproof and jet-water resistant), runs from −30°C to +65°C and has ±8 kV PoE surge protection. It mounts on a wall or pole and is powered by PoE in or 12 V DC, which Ruijie pitches for solar-powered outdoor sites: no dedicated power cabling to the pole. Its two SFP ports support ERPS rings, so a line of poles can be linked by fibre.
Its sibling, the RG-ES207GS-AC-OD, takes AC mains input and has a 60 W PoE budget.
Ruijie Cloud: no licence, no controller
Ruijie describes Ruijie Cloud as "a centralized, license-free platform", and lists lifetime free cloud management on these switches. For CCTV, Ruijie highlights SON to set up a whole network quickly (within 150 s), creating a CCTV VLAN in a few steps, and NAT traversal to maintain NVRs and cameras remotely. Putting cameras on their own VLAN, with port isolation, keeps camera traffic away from office PCs, a sensible step for sites that hold footage of staff and customers under the Privacy Act. See Ruijie Cloud explained.
When to step up to a managed switch
Above 24 cameras, or when the switch must also route between VLANs or carry 10G uplinks to a server room, move to the Reyee NBS managed range: our Reyee managed and industrial switches guide covers the NBS3100, NBS3200, NBS3300, NBS5100 and NBS5200, and the DIN-rail NIS industrial switches for roadside and plant-room cabinets. To size the recorder's storage, read how much storage you need for security cameras.
Which Ruijie CCTV switch for which Australian site
ARC IP Networks suggestions, based on Ruijie's specifications.
| Site | Choose | Why |
|---|---|---|
| Corner shop, café or home with 2 to 4 cameras | RG-ES207GS-P | 4 PoE+, 54 W, fanless and silent |
| Medical or dental clinic, real estate office (up to 8 cameras) | RG-ES211GS-P | 8 PoE+, 120 W, wall or desk mount |
| Warehouse, trade supplier or school wing (up to 16 cameras) | RG-ES220GS-P-V2 | 16 PoE+, 250 W, 2 SFP for ERPS |
| Shopping strip, aged care home or car park (up to 24 cameras) | RG-ES228GS-P-V2 | 24 PoE+, 370 W, rack mount |
| Farm gate, fence line or pole on a construction site | RG-ES207GS-PI-OD | IP65, −30 to +65°C, PoE or 12 V DC in |
| Long cable run to a single camera | RG-ES220GS-P or RG-ES210GS-P | 250 m mode at 10 Mbps |
| PTZ cameras with high power draw | RG-ES207GS-HP | 2 x PoE++ ports, 120 W |
| Office with Wi-Fi 7 access points and cameras | RG-ES209MG-P | 8 x 2.5G PoE+, 10G SFP+ |
Why buy Ruijie from ARC IP Networks
- Authorised Ruijie reseller: genuine Ruijie with the full manufacturer's warranty, supplied from Australian stock.
- Australian stock shipped Australia-wide.
- Manufacturer's warranty and local pre-sales help choosing the right switches, access points and accessories.
- Every product page backed by Ruijie's own specifications, with the exact warranty for each model.
- GST tax invoice on every order, with trade and project pricing for installers and integrators.
See the full range on our Ruijie Australia hub, or read where to buy Ruijie in Australia. Questions? Call 1300 100 440 or email info@arcip.com.au.
Shop Ruijie Reyee CCTV PoE switches
Live Australian pricing (inc. GST) and availability are on each product page.
Common questions
Straight answers from the ARC IP Networks team. Last reviewed October 2026.
Match the switch to your camera count: the RG-ES207GS-P for 4 cameras, the RG-ES211GS-P for 8, the RG-ES220GS-P-V2 for 16 and the RG-ES228GS-P-V2 for 24. Then check that the total camera power stays under the PoE budget (54 W, 120 W, 250 W and 370 W).
The RG-ES220GS-P-V2 has 16 PoE+ ports and a 250 W PoE budget, so it runs up to 16 cameras as long as their combined maximum draw stays under 250 W. It also has 2 Gigabit ports for the NVR and router and 2 SFP ports for fibre.
Ruijie's CCTV solution supports PoE and data up to 250 m on supported switches, such as the RG-ES220GS-P and RG-ES210GS-P. When long-distance mode is on, the port runs at 10 Mbps full duplex, which suits a single camera stream.
Ruijie says Perpetual PoE means the PoE ports provide uninterrupted power even during switch restarts, so cameras stay up while the switch reboots or updates its firmware.
Both have 16 PoE+ ports, 2 Gigabit uplinks, 2 SFP ports and a 250 W budget. The V2 adds ERPS through its SFP ports, Perpetual PoE, Smart Protection and 6 kV surge protection; Ruijie lists the 250 m long-distance mode on the original RG-ES220GS-P.
No. Ruijie lists lifetime free management on Ruijie Cloud for these switches, and describes Ruijie Cloud as a license-free platform. You manage them from the Ruijie Reyee app, Ruijie Cloud or the switch web page.
The RG-ES207GS-PI-OD and RG-ES207GS-AC-OD are IP65 outdoor switches rated from -30 to +65 degrees C with 8 kV PoE surge protection. The PI-OD runs from PoE in or 12 V DC; the AC-OD from mains power.
Ruijie lists a 3-year warranty for its RG-ES smart CCTV switches. Keep your tax invoice: Ruijie uses the invoice date as one of the documents that set the warranty start date.
ARC IP Networks is an authorised Ruijie reseller and supplies genuine Ruijie from Australian stock with a GST tax invoice. Order online at arcip.com.au, or call 1300 100 440 for a quote or trade pricing.
