Ruijie RG-NBS5200-48GT4XS-UP, 48-Port Gigabit Layer 3 Managed PoE++ Switch with 4 x 10G SFP+, 740W

Price:

2,301.42


Ruijie RG-ES211GS-P, 10-Port Gigabit Smart Cloud-Managed PoE Switch with 1 x SFP, 120W
Ruijie RG-ES211GS-P, 10-Port Gigabit Smart Cloud-Managed PoE Switch with 1 x SFP, 120W
208.12
208.12
Ruijie RG-RAP73Pro, Wi-Fi 7 BE14000 Tri-Band Ceiling Access Point with 2.5G and 10G SFP+ Uplinks
Ruijie RG-RAP73Pro, Wi-Fi 7 BE14000 Tri-Band Ceiling Access Point with 2.5G and 10G SFP+ Uplinks
572.33
572.33

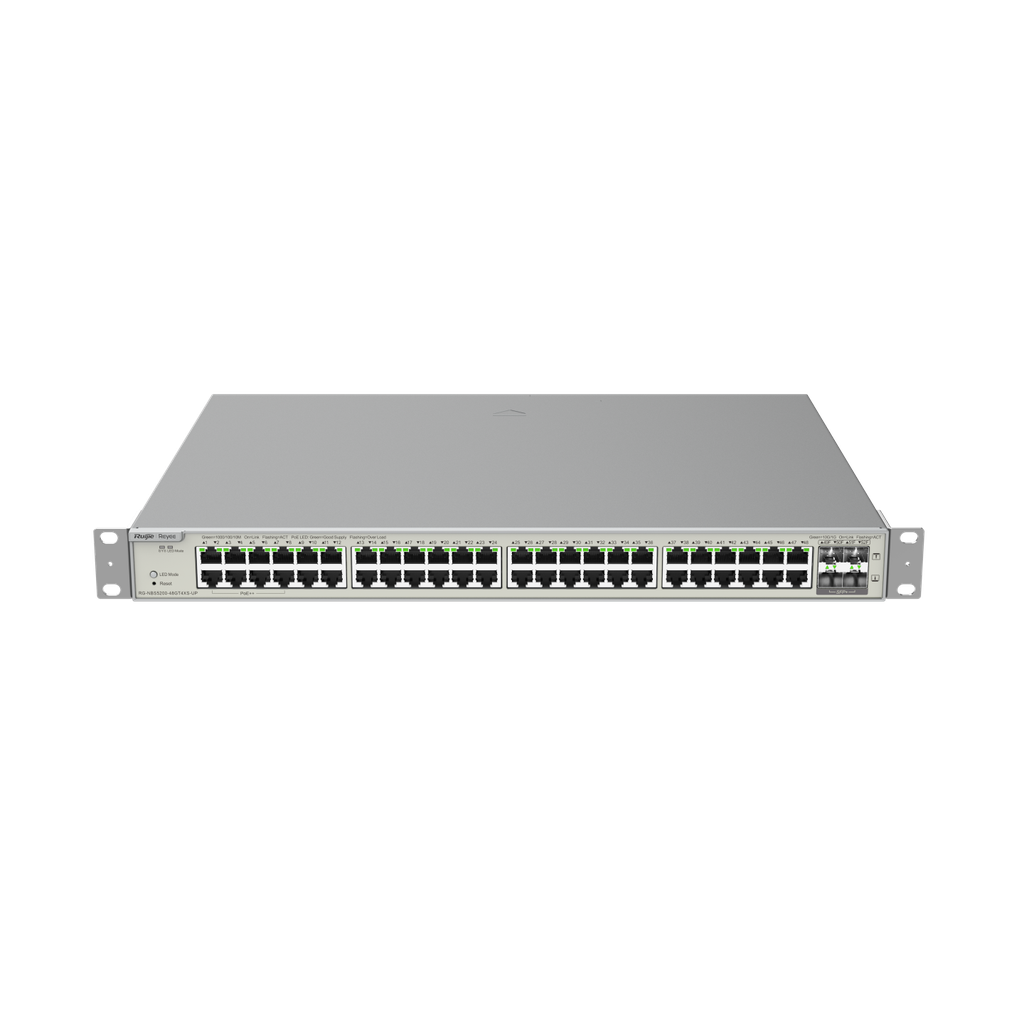

Ruijie RG-NBS5200-48GT4XS-UP, 48-Port Gigabit Layer 3 Managed PoE++ Switch with 4 x 10G SFP+, 740W

https://arcip.com.au/web/image/product.template/10368/image_1920?unique=ce7929f
Ruijie Reyee RG-NBS5200-48GT4XS-UP 48-port Gigabit Layer 3 managed PoE++ switch. 740W budget, 8 x 802.3bt ports, 4 x 10G SFP+, 176 Gbps, 132 Mpps, 5-year warranty. Australian stock from ARC IP Networks.

2,301.42 2301.42 AUD 2,301.42 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification

This combination does not exist.

In stock online
Rackmount PoE Ruijie Cloud Managed Reyee
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
RG-NBS5200-48GT4XS-UP
Tags
RG-NBS5200-48GT4XS-UP 48-Port Gigabit Layer 3 Managed PoE++ Switch with 4 x 10G SFP+ Uplinks
Ruijie Reyee

Features

  • 48-Port gigabit Layer 3 managed PoE switch, 4 SFP+ uplink
  • Enterprise-class Quality Ensures High Performance
  • 6KV surge protection reduces the possibility of port damage
  • Multiple Security Policies Protect Your Network
  • Lifetime management on Ruijie Cloud at anytime anywhere

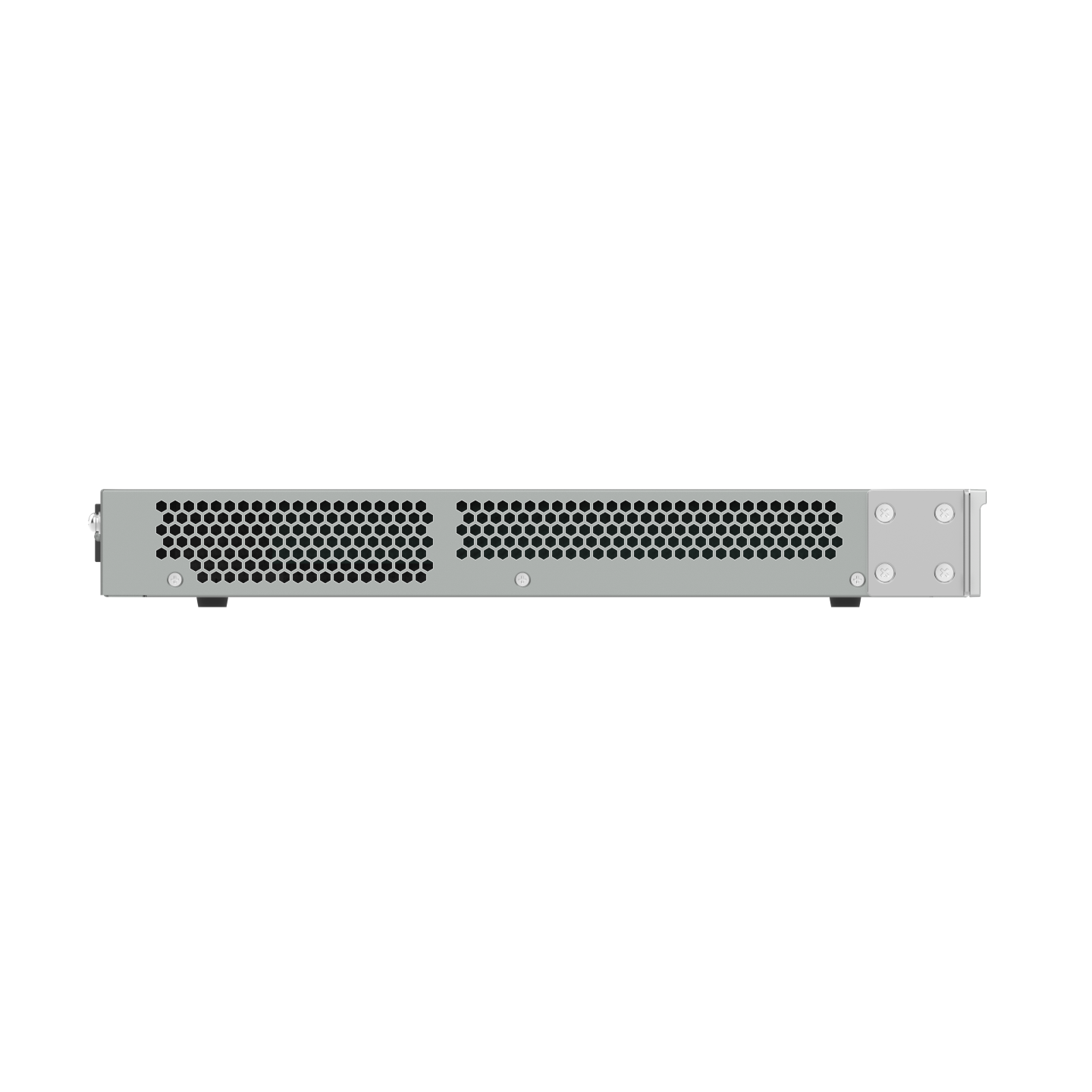

Ruijie RG-NBS5200-48GT4XS-UP product view 1

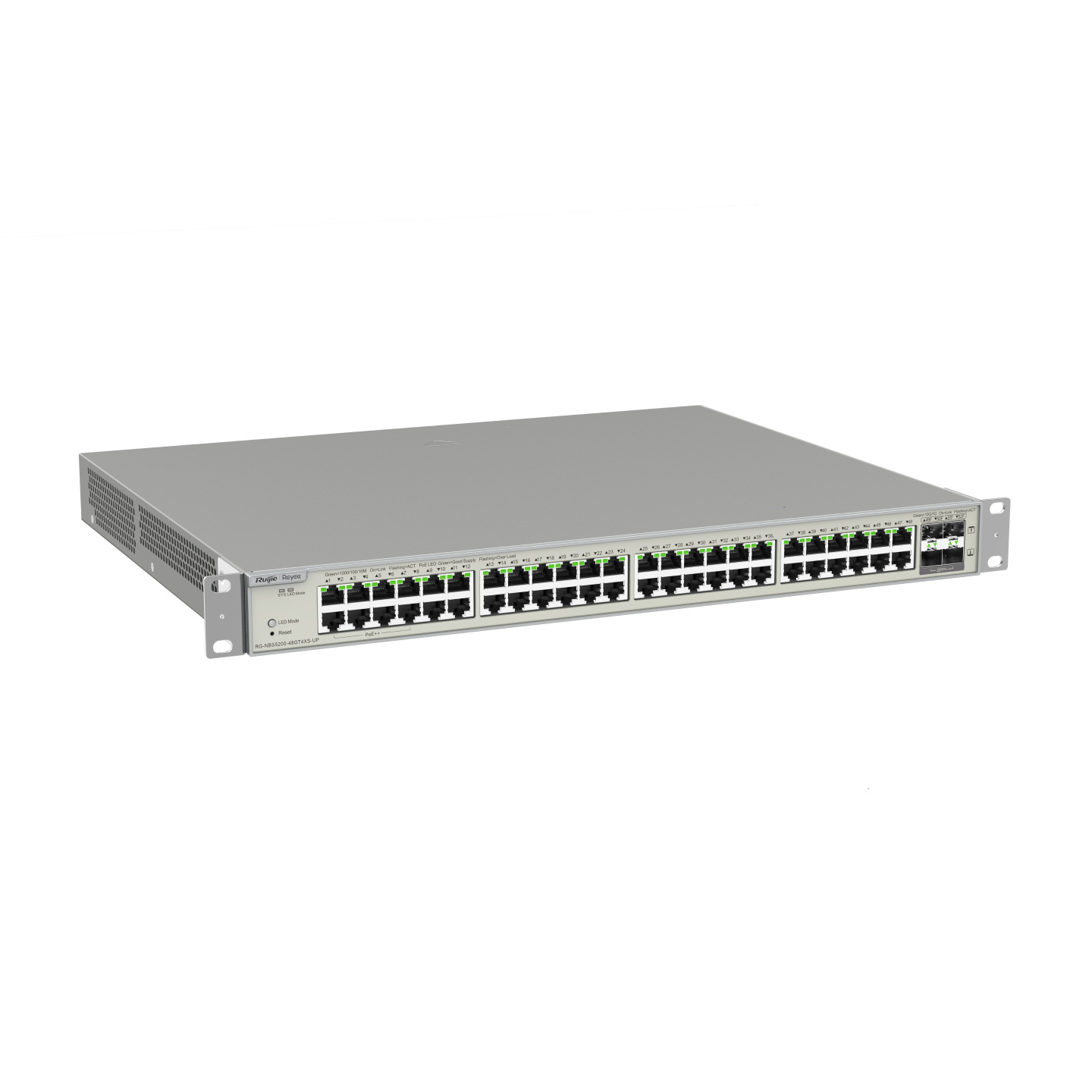

Ruijie RG-NBS5200-48GT4XS-UP product view 2

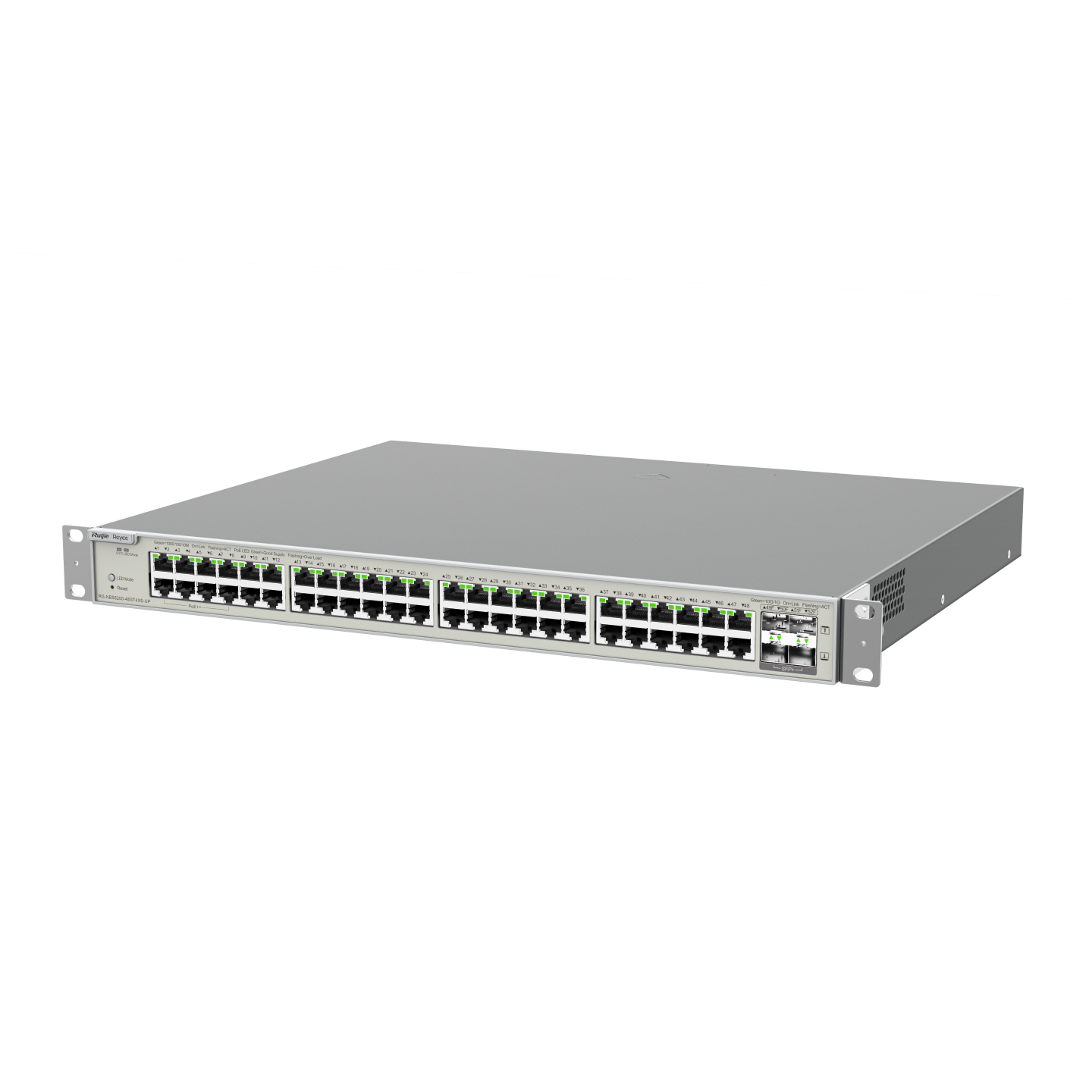

Ruijie RG-NBS5200-48GT4XS-UP product view 3

Specifications

Network
Gigabit Ports48 x 10/100/1000BASE-T RJ45
Uplinks4 x 10GE SFP+
Network LayerLayer 3 (static and dynamic routing)
ManagementRuijie Cloud, web GUI, CLI, SNMP
PoE
PoE Out Ports48
PoE/PoE+ Out Ports48
PoE++ (802.3bt) Out Ports8
PoE Budget740 W
PoE Power PinsPorts 1–8: 1–2 (-), 3–6 (+), 4–5 (+), 7–8 (-); ports 9–48: 1–2 (+), 3–6 (-)
PoE WatchdogYes
Performance
Switching Capacity176 Gbps
Forwarding Rate132 Mpps
Jumbo Frame9216 bytes
Reliability
MTBF400,000 hours
Operating Temperature0°C to +50°C
Surge ProtectionService port ±6 kV common mode; power connector ±6 kV common and differential mode
Security
Port IsolationYes
Broadcast Storm ControlYes
Security PoliciesACL, DHCP snooping, IP source guard
General
Warranty5 years

Professional Overview

The Ruijie RG-NBS5200-48GT4XS-UP is a 48-port Gigabit Layer 3 managed switch with a 740 W PoE budget and four 10G SFP+ uplinks. Eight of the 48 ports deliver 802.3bt PoE++ over all four pairs, with the remaining 40 running standard 802.3af/at PoE+ — a combination that lets one switch power a floor of ordinary access points and cameras while also feeding a handful of high-draw PTZ cameras, Wi-Fi 7 access points or PoE displays.

Performance is sized for a real distribution role: 176 Gbps of switching capacity and a 132 Mpps forwarding rate, which is full wire speed across all 52 ports simultaneously. The four 10G SFP+ uplinks provide 40 Gbps to the core, and full Layer 3 routing means inter-VLAN traffic is switched in hardware on the box rather than being sent up to a firewall and back.

At 740 W this is one of the higher PoE budgets available on a single-PSU 48-port switch, and it is the figure that decides whether a 48-port install needs one switch or two. PoE Watchdog automatically power-cycles any port whose device stops responding. Enterprise hardening includes ±6 kV surge protection on service ports and on both common and differential mode of the power connector, plus a 400,000-hour MTBF rating.

Security covers ACLs, DHCP snooping, IP source guard, broadcast storm control and port isolation, and jumbo frames up to 9216 bytes are supported. The switch runs 0°C to +50°C in a 1U chassis with a 5-year warranty. Ruijie Cloud management is included for the life of the product — zero-touch provisioning, remote monitoring, firmware management and configuration from the Ruijie Reyee app or a browser, at no subscription cost. Australian stock from ARC IP Networks.

Part of the Ruijie Reyee range at ARC IP Networks — an authorised Australian Ruijie reseller. Genuine Australian stock with the full manufacturer’s warranty, and free lifetime Ruijie Cloud management.
Ruijie Reyee Australia · Ruijie managed switches · Ruijie Cloud

Brand Ruijie
Switching Capacity 176 Gbps
Network Layer Layer 3
Form Factor Rack Mount (1U)
Port Speed 48 x GbE + 4 x 10G SFP+
Ports 52 Ports
Network Connectivity Wired
Uplink 4 x 10G SFP+
PoE Specification PoE++ 802.3bt on 8 ports, PoE+ on 48, 740W budget
