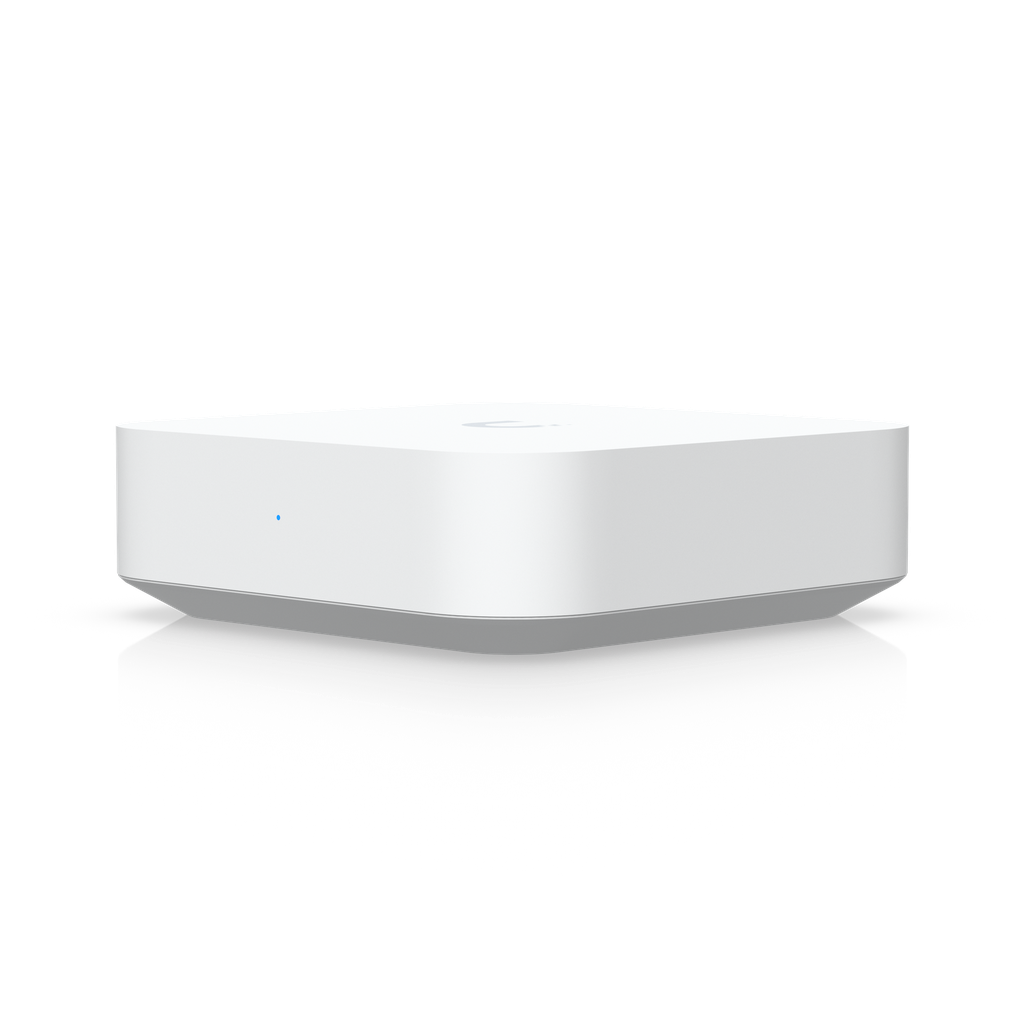

Ubiquiti UXG-Lite UniFi Gateway Lite Compact, 1 x GbE WAN, 1 x GbE LAN

https://arcip.com.au/web/image/product.template/4111/image_1920?unique=5178fcc
The UXG-Lite is a UniFi device. Compact independent gateway with a full suite of advanced routing and security features.

100.65 100.65 AUD 100.65 incl. GST

Not Available For Sale


  • Brand
  • Form Factor

This combination does not exist.

In stock online
UniFi Gateway Ubiquiti IDS/IPS VPN
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UXG-Lite
Barcode
810084692042
Tags
UXG-Lite
Ubiquiti UniFi Gateway Lite — 1 Gbps IDS/IPS
UXG-Lite
UXG-Lite

Features

  • Up to 10x routing performance increase over USG (tested with IPS/IDS, QoS, and Smart Queues)
  • Managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 and later
  • (1) GbE WAN port
  • (1) GbE LAN port
  • Compact footprint
  • USB-C powered (adapter included)
  • Note. EU Store version includes EU power plug only.

Specifications

Overview
Dimensions98 x 98 x 30 mm /
Max. WAN Port Count1
Default WAN Ports(1) GbE RJ45
1 GbE RJ452 / (1G/100M/10M)
IDS/IPS Throughput1 Gbps
Form FactorCompact desktop
Hardware
Max. Power Consumption3.83W
Power MethodUSB type C (5V DC/3A)
Power SupplyUSB type C (5V DC/3A) / (Adapter included)
Supported Voltage Range100–240V AC
Heat Dissipation13 BTU/hr
ProcessorDual-core ARM® Cortex®-A53 at 1 GHz
System Memory1 GB
Weight320 g (11.3 oz)
Enclosure MaterialPolycarbonate
ManagementEthernet / Bluetooth
Button(1) Factory reset
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Anatel: 01874-24-08356
Software
UniFi NetworkVersion 8.3.32 and later

Professional Overview

The Ubiquiti UXG-Lite is a UniFi network device. Compact independent gateway with a full suite of advanced routing and security features.

Weighing 320 g (11.3 oz), the UXG-Lite is built for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Part of our Ubiquiti UniFi Routers range — browse and compare the full range of UniFi gateways, Dream Machines and routers.

Ubiquiti UXG-Lite: the smallest UniFi gateway

The UniFi Gateway Lite is Ubiquiti's most compact and most affordable gateway — 98 x 98 x 30 mm (3.9 x 3.9 x 1.2") and 320 g (11.3 oz), drawing a maximum of 3.83W. It routes at 1 Gbps with IDS/IPS, which Ubiquiti describes as up to ten times the routing performance of the older USG when tested with IPS/IDS, QoS and Smart Queues.

Two things to plan for

It has only two ports. 2 (1G/100M/10M) — one WAN and one LAN. That single LAN port goes to a switch; the gateway itself connects nothing else. Budget for a UniFi switch in the same order.

It has no built-in controller. Ubiquiti describes it as an independent gateway "managed by a CloudKey, Official UniFi Hosting, or UniFi Network Server with UniFi Network 8.0.7 and later". Its specification lists no managed-device or client count. You cannot configure it without a controller somewhere.

If you want a single self-contained box, the UCG-Ultra includes the controller and has five ports for a modest step up. If you also want WiFi, the UDR7 adds WiFi 7 and a four-port switch.

Specifications at a glance

ItemSpecification
IDS/IPS throughput1 Gbps
Ports2 (1G/100M/10M)
Default WAN(1) GbE RJ45
Max. WAN ports1
Processor / memoryDual-core ARM® Cortex®-A53 at 1 GHz / 1 GB
PowerUSB type C (5V DC/3A), adapter included
Max. power consumption3.83W
Dimensions / weight98 x 98 x 30 mm (3.9 x 3.9 x 1.2") / 320 g (11.3 oz)
Operating temperature-10 to 40° C (14 to 104° F)

At 3.83W this is about as frugal as networking hardware gets, and with a single WAN port it is aimed squarely at simple single-service sites. Compare the range in our cloud gateway comparison.

Frequently Asked Questions

Does the UXG-Lite include the UniFi controller?

No. It is an independent gateway managed by a CloudKey, Official UniFi Hosting or a UniFi Network Server, and requires UniFi Network 8.0.7 or later. You cannot configure it without a controller.

How many ports does the UXG-Lite have?

2 (1G/100M/10M) — one WAN and one LAN. You will need a switch to connect anything beyond a single device.

How fast is the UXG-Lite?

1 Gbps of routing with IDS/IPS. Ubiquiti cites up to ten times the performance of the older USG when tested with IPS/IDS, QoS and Smart Queues.

Does the UXG-Lite support multi-WAN?

No. Maximum WAN port count is 1, so there is no second WAN for failover. Step up to the UXG-Max or a UCG model for multi-WAN.

Does the UXG-Lite have PoE or WiFi?

Neither. It is a gateway only — no PoE output and no wireless. Add a PoE switch and access points, or consider the UDR7 which includes WiFi 7.

Can it record cameras?

No. It has no NVR storage and does not run UniFi Protect.

How is it powered?

USB-C — USB type C (5V DC/3A) — with the adapter included. Maximum draw is only 3.83W.

Is the UXG-Lite worth it over the UCG-Ultra?

They serve different setups. The UCG-Ultra includes the UniFi controller and has five ports; the UXG-Lite is smaller, cheaper and needs an external controller. If you do not already run a controller, the UCG-Ultra is the simpler choice.

Is the UXG-Lite available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.
