UVC-G5-PRO-5
Ubiquiti UniFi Protect Camera G5 Pro — 4K (8MP) PoE Camera with 3x Optical Zoom, 25 m IR and IP65 Weatherproofing — 5-Pack (OEM)
What the UVC-G5-PRO-5 Is

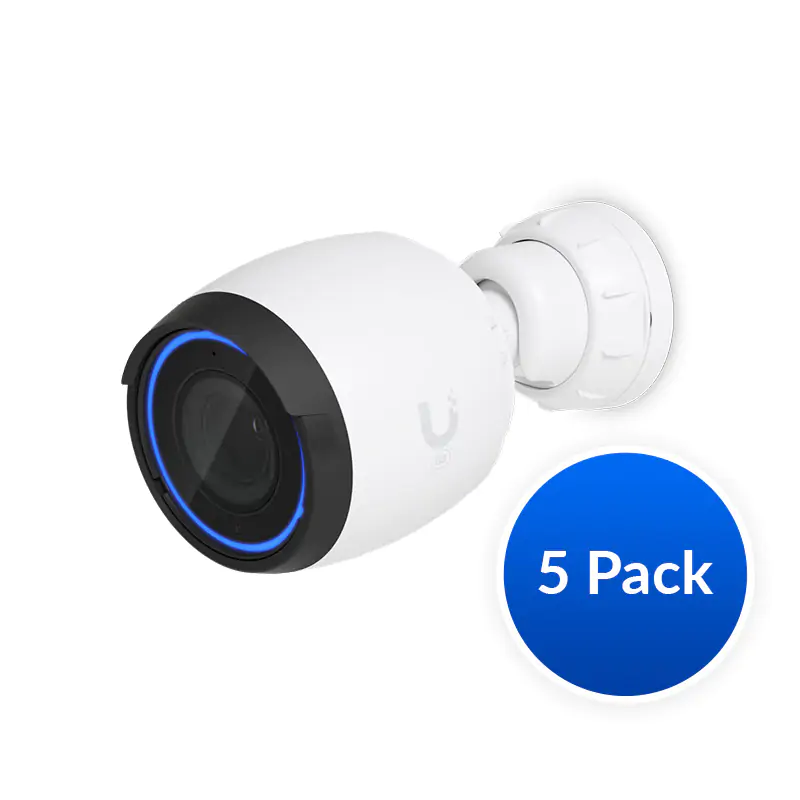

The Ubiquiti UVC-G5-PRO-5 is a five-pack of the UniFi Protect Camera G5 Pro. Each camera records 4K video at 8MP (3840 x 2160, 16:9) at up to 30 FPS from a 1/2" 8MP sensor through an F 4.1–12.3 mm ƒ/1.53–ƒ/3.3 lens with 3x optical zoom, giving a 109.9° horizontal field of view at wide and 35° at full zoom. Infrared night vision reaches 25 m, extending to 40 m with the optional Vision Enhancer. Each unit is a ⌀86 x 154.3 mm bullet weighing 650 g in UV-stabilised polycarbonate and aluminium alloy, rated IP65 for fully exposed outdoor mounting, drawing a maximum of 10W over PoE.
Key Features
- 4K (8MP) video resolution
- 3x optical zoom
- 25 m (82 ft) IR night vision
- AI event detections
- Record audio with an integrated microphone
- Connect and power using PoE
- Optional Enhancer for integrated floodlight and extended IR*
- Weatherproof (outdoor exposed)
Technical Specifications
Specifications below are for a single unit. This SKU is supplied as a 5-pack in OEM (bulk) packaging.
Overview
| Dimensions | ⌀86 x 154.3 mm |
| IR Night Vision | 25 m (82 ft) up to 40 m (131 ft) (With Vision Enhancer) |
| Zoom Mode | 3x Optical |
| Resolution | 4K |
| Field of View | Wide: H 109.9°, V 60°, D 127.7° / Zoom: H 35°, V 19.8°, D 40° |
| Audio | Microphone |
| Weatherproofing | IP65 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling, pole mount (Included) / Junction box, angled base (Optional) |
| UniFi Application Suite | Protect |
Performance
| Networking Interface | 10/100 MbE RJ45 port |
| Video — Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Video — Max. Frame Rate | 30 FPS |
| Video — Resolution | 8MP 3840 x 2160 (16:9) |
| Optics — Sensor | 1/2" 8MP |
| Optics — Lens | F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
| Optics — Night Mode | Built-in IR LED illumination and IR cut filter |
Hardware
| Max. Power Consumption | Device: 10W / Device with Enhancer: 12.95W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE |
| Processor | Dual-core Arm® Cortex®-A53 based chip |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | 650 g |
| Enclosure Material | UV stabilized polycarbonate, aluminum alloy |
| Mount Material | Aluminum alloy |
| Button | (1) Factory reset |
| Ambient Operating Temperature | -20 to 50° C |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
Professional Overview
The G5 Pro is the 4K workhorse of the UniFi Protect line, and this SKU supplies five of them. The five-pack is a site-scale quantity — a car park, a perimeter or a warehouse elevation typically needs cameras in this number, and the pack price per camera is lower than five singles.
The optics are what separate the Pro from the rest of the range. A 1/2" 8MP sensor feeds 4K video at 3840 x 2160, and the lens is a genuine 3x optical zoom at F 4.1–12.3 mm with an ƒ/1.53 maximum aperture. That means the field of view is adjustable at commissioning from 109.9° horizontal at wide to 35° at full telephoto, so the same camera can cover a broad forecourt or read detail at the far end of a yard without changing hardware. The fast ƒ/1.53 aperture is the reason its low-light performance holds up before the IR cuts in. IR night vision is rated 25 m, and up to 40 m with the optional Vision Enhancer accessory, which also adds a floodlight for colour night video.
Each camera is a ⌀86 x 154.3 mm bullet weighing 650 g, built in UV-stabilised polycarbonate on an aluminium alloy mount. IP65 means it is rated for fully exposed outdoor positions, unlike the covered-only IPX4 domes. Tamper resistance is IK04. Wall, ceiling and pole mounts are included, the pole mount taking 38–50 mm diameter, with a junction box and angled base available separately. Audio capture is via an integrated microphone; the G5 Pro records audio but is not a two-way intercom.
Each camera connects over a single PoE run to a 10/100 MbE RJ45 port at a maximum of 10W, or 12.95W with the Vision Enhancer fitted — so budget roughly 50W of PoE for the five, or 65W if every camera gets an Enhancer. Processing is a dual-core Arm Cortex-A53. Operating range is -20 to 50°C at 0 to 90% non-condensing humidity, with CE, FCC and IC certification. A UniFi Protect host is required. Australian stock from ARC IP Networks.
Frequently Asked Questions
How many cameras are in the UVC-G5-PRO-5?
Five. It is a five-pack of the UniFi Protect Camera G5 Pro.
What resolution and zoom does the G5 Pro have?
4K — 8MP video at 3840 x 2160 in 16:9, up to 30 FPS, with 3x optical zoom on an F 4.1–12.3 mm ƒ/1.53–ƒ/3.3 lens.
What is the field of view?
109.9° horizontal, 60° vertical and 127.7° diagonal at wide; 35° horizontal, 19.8° vertical and 40° diagonal at full zoom.
Can the G5 Pro be mounted fully outdoors?
Yes. It is rated IP65 for outdoor exposed mounting, with a UV-stabilised polycarbonate body. Tamper rating is IK04.
How far does the night vision reach?
25 m using built-in IR, extending to 40 m with the optional Vision Enhancer, which also adds a floodlight for colour night video.
How much PoE power does each camera need?
A maximum of 10W each, or 12.95W with a Vision Enhancer fitted. Five cameras total roughly 50W, or 65W with Enhancers.
Does the G5 Pro have two-way audio?
No. It records audio through an integrated microphone but does not provide two-way talk. For two-way audio choose the AI Pro.
Is the Vision Enhancer compatible with every G5 Pro?
Ubiquiti states the Enhancer is compatible with G5 Pro cameras purchased after 13 June 2023.
Ubiquiti UVC-G5-PRO-5: 4K UniFi Protect PoE camera
The Camera G5 Pro is a UniFi Protect PoE camera with a 1/2" 8MP sensor, a Wide: H 109.9°, V 60°, D 127.7° Zoom: H 35°, V 19.8°, D 40° field of view and 25 m (82 ft) up to 40 m (131 ft) (With Vision Enhancer) of infrared night vision.
Next-gen indoor/outdoor 4K PoE camera with exceptional image performance, long-range IR night vision, and 3x optical zoom.
It is rated IP65 and is designed for fully exposed outdoor mounting — no soffit or eave required.
Imaging and video
| Specification | Value |
|---|
| Resolution | 4K — 8MP 3840 x 2160 (16:9) |
| Image sensor | 1/2" 8MP |
| Lens | F 4.1–12.3 mm; ƒ/1.53–ƒ/3.3 |
| Lens resolution | 4K |
| Max. frame rate | 30 FPS |
| Field of view | Wide: H 109.9°, V 60°, D 127.7° Zoom: H 35°, V 19.8°, D 40° |
| Horizontal view angle | Wide: H 109.9°, V 60°, D 127.7° Zoom: H 35°, V 19.8°, D 40° |
| Zoom | 3x Optical |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
The zoom is optical, not digital — detail is preserved at the long end rather than upscaled.
Build, weatherproofing and mounting
| Weatherproofing | IP65 |
| Impact / tamper rating | IK04 |
| Rated placement | Outdoor Exposed |
| Mounting | Wall, ceiling, pole mount (Included) Junction box, angled base (Optional) |
| Pole mount diameter | 1.5–2" (38–50 mm) |
| Enclosure | UV stabilized polycarbonate, aluminum alloy |
| Mount material | Aluminum alloy |
| Dimensions | ⌀86 x 154.3 mm (⌀3.4 x 6.1") |
| Weight | 650 g (1.4 lb) |
| Operating temperature | -20 to 50° C (-4 to 122° F) |
| Operating humidity | 0 to 90% noncondensing |
Included in the box: Wall, ceiling, pole mount. Available separately: Junction box, angled base — order the accessory at the same time if the install needs it.
Rated for -20 to 50° C (-4 to 122° F), which covers Australian conditions in every state.
Power and network
| Power method | PoE |
| Max. power consumption | Device: 10W Device with Enhancer: 12.95W |
| Supported voltage range | 37—57V DC |
| Network interface | 10/100 MbE RJ45 port |
| Processor | Dual-core Arm® Cortex®-A53 based chip |
| Buttons | (1) Factory reset |
| Certifications | CE, FCC, IC |
The UVC-G5-PRO-5 is powered over Ethernet (PoE, up to Device: 10W Device with Enhancer: 12.95W), so a single cable carries both data and power. Budget that draw on the switch — PoE budget is shared across all powered ports. See the UniFi switch range for a switch with enough headroom.
This listing is the 5-pack. The specification below is for one G5 Pro camera; you receive five. Check your recorder has the channels and the storage for five 4K streams.
What the UVC-G5-PRO-5 needs to record
Every UniFi Protect camera records to a UniFi Protect console — a Network Video Recorder, or a Cloud Gateway or Dream Machine that runs Protect. The camera does not record to the cloud and there is no subscription: footage stays on the drive you supply.
If you are still choosing a recorder, our UniFi Protect NVR comparison covers the range, and the storage sizing guide works out how much disk you need for the number of cameras and retention you want. The full shopping list covers the drives, switch and cabling that go with it, and putting the feed on a TV covers live wall displays.
Browse the whole UniFi Protect camera range, or read the Australian camera range guide to compare models.
