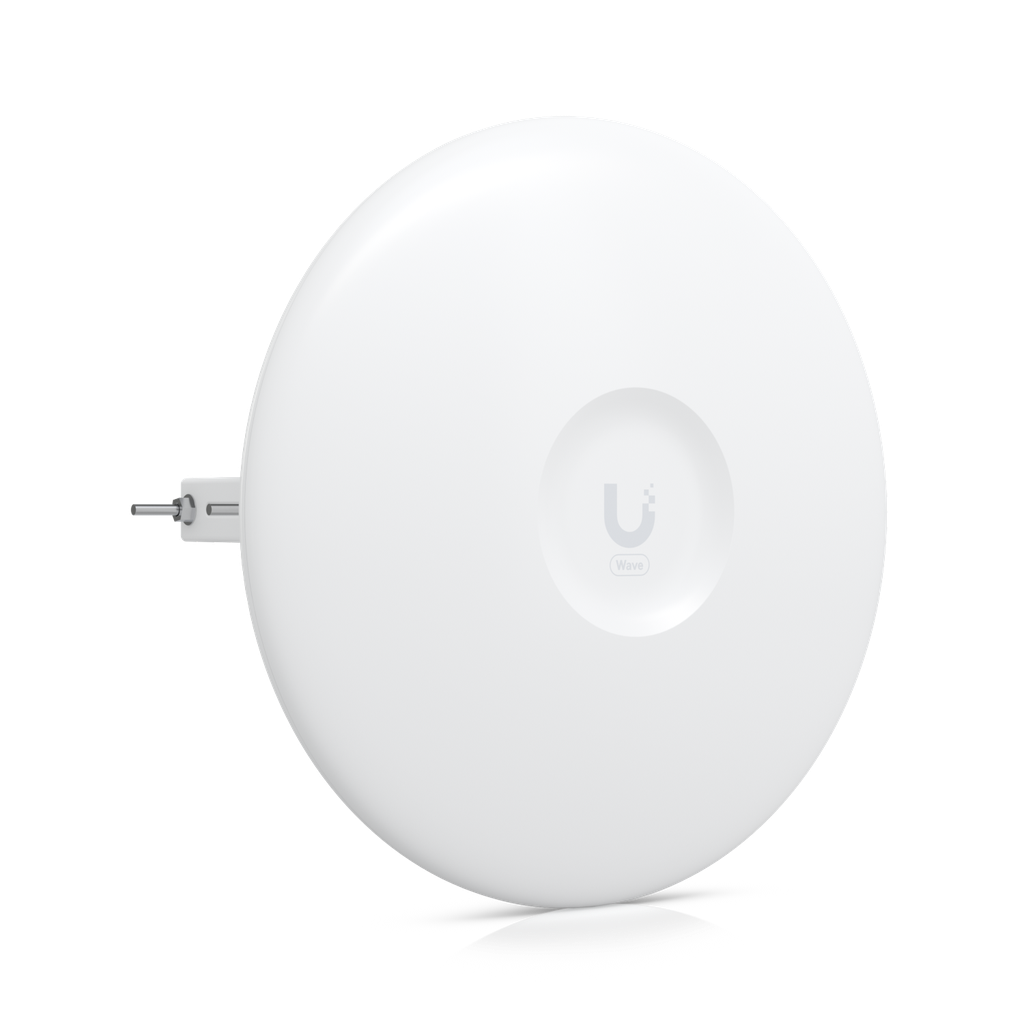

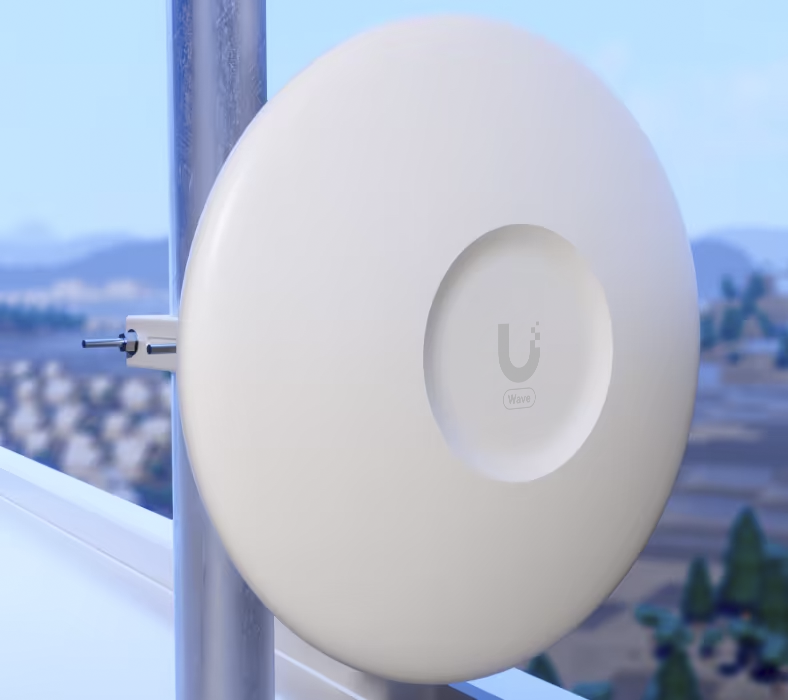

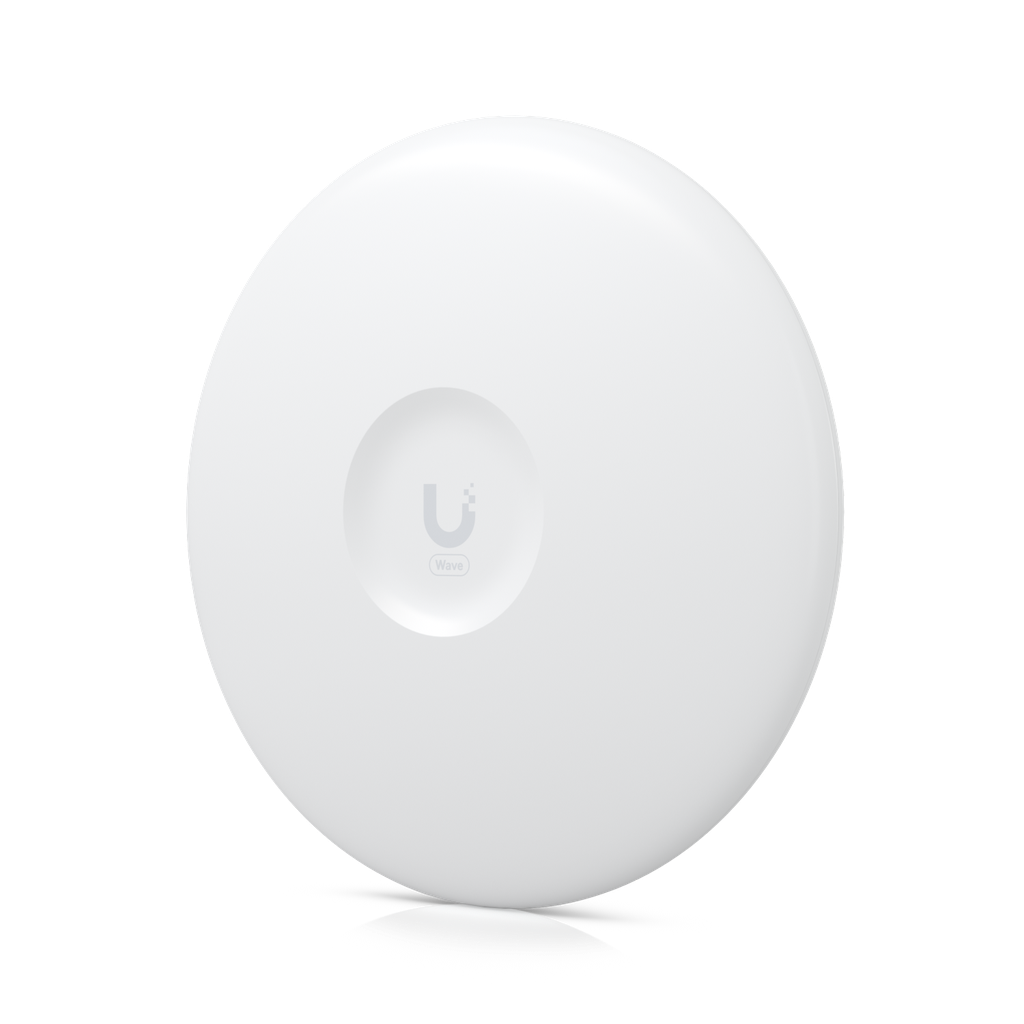

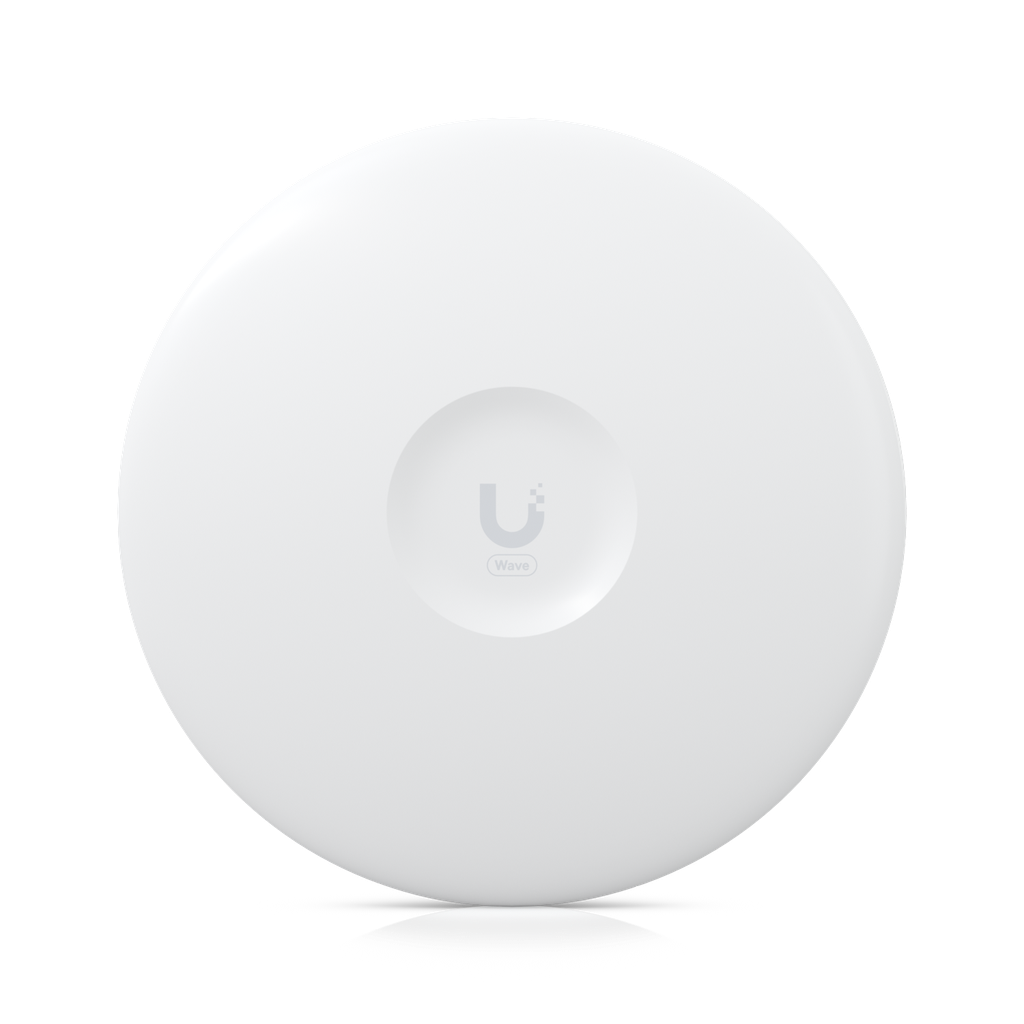

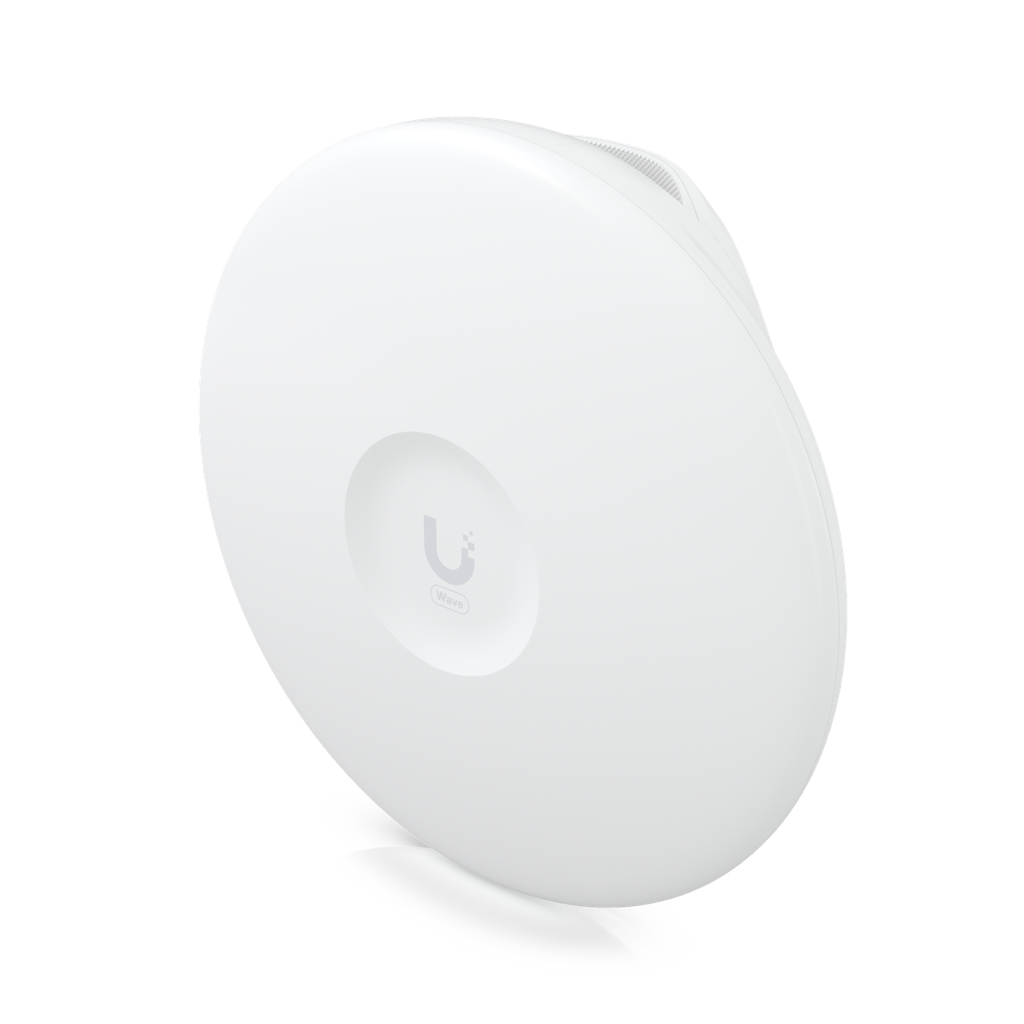

Ubiquiti Wave-Pro Wave Pro

https://arcip.com.au/web/image/product.template/7956/image_1920?unique=1a15e79
Wave Pro. Max. link range:— PtP: Up to 15 km— PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro). Max. total throughput: 5.4 Gbps. 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps). Australian stock from ARC IP Networks.

1,164.35 1164.35 AUD 1,164.35 incl. GST

Not Available For Sale


  • Max Throughput
  • Coverage Area
  • Brand

This combination does not exist.

UISP Ubiquiti
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
Wave-Pro
Tags
Wave-Pro
Wave Pro

Wave-Pro

Wave-Pro

Features

  • Max. link range:— PtP: Up to 15 km— PtMP: Up to 8 km (Wave AP), up to 6 km (Wave AP Micro)
  • Max. total throughput: 5.4 Gbps
  • 5 GHz weatherproof backup radio (Max. throughput: 800 Mbps)
  • (2) 2.5 GbE and (1) 10G SFP+ ports
  • Ergonomic transportation handle

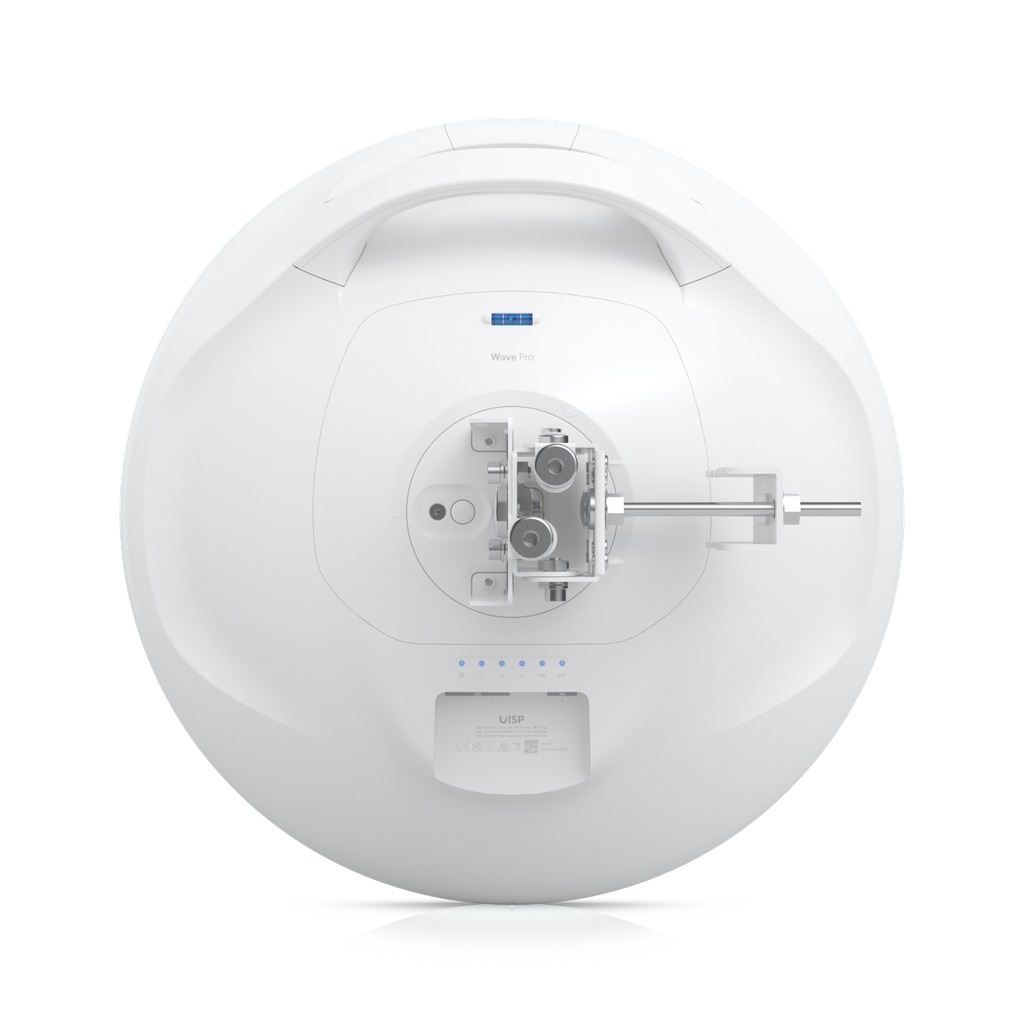

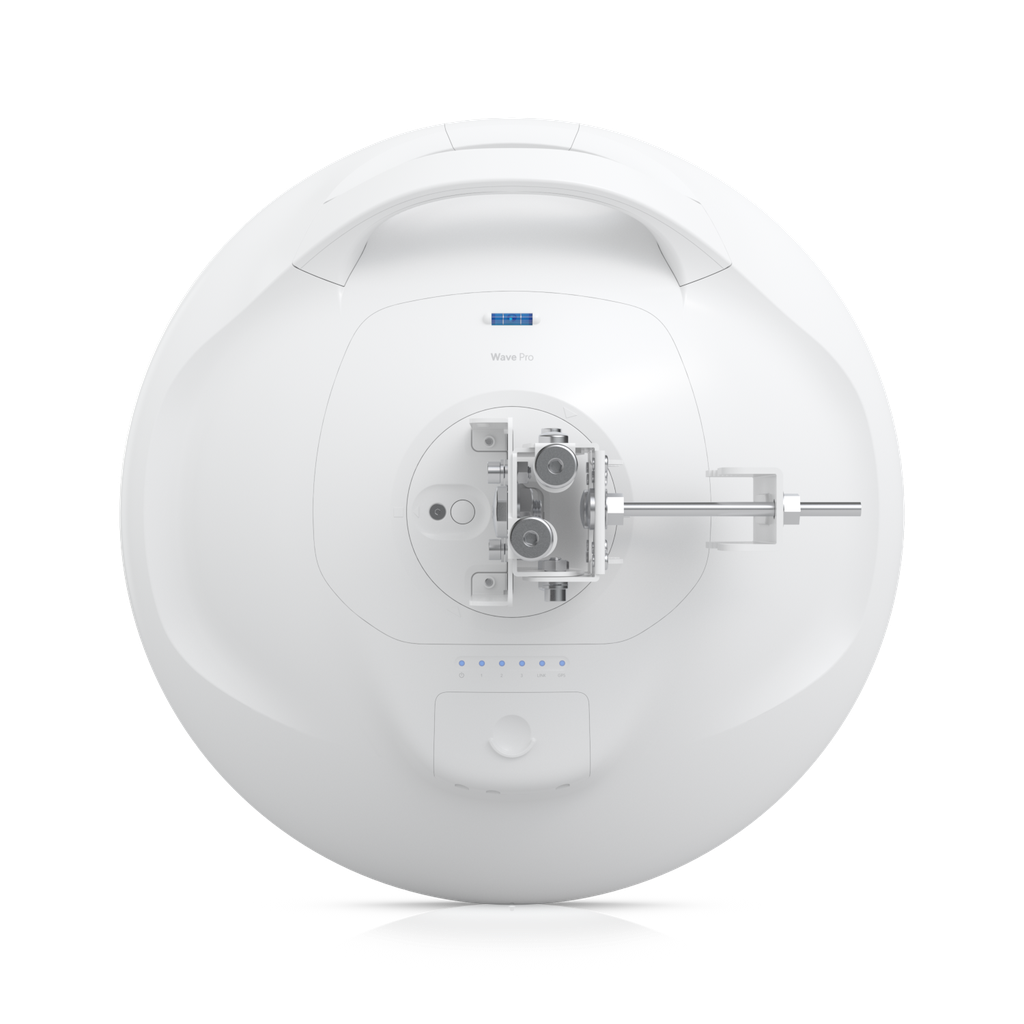

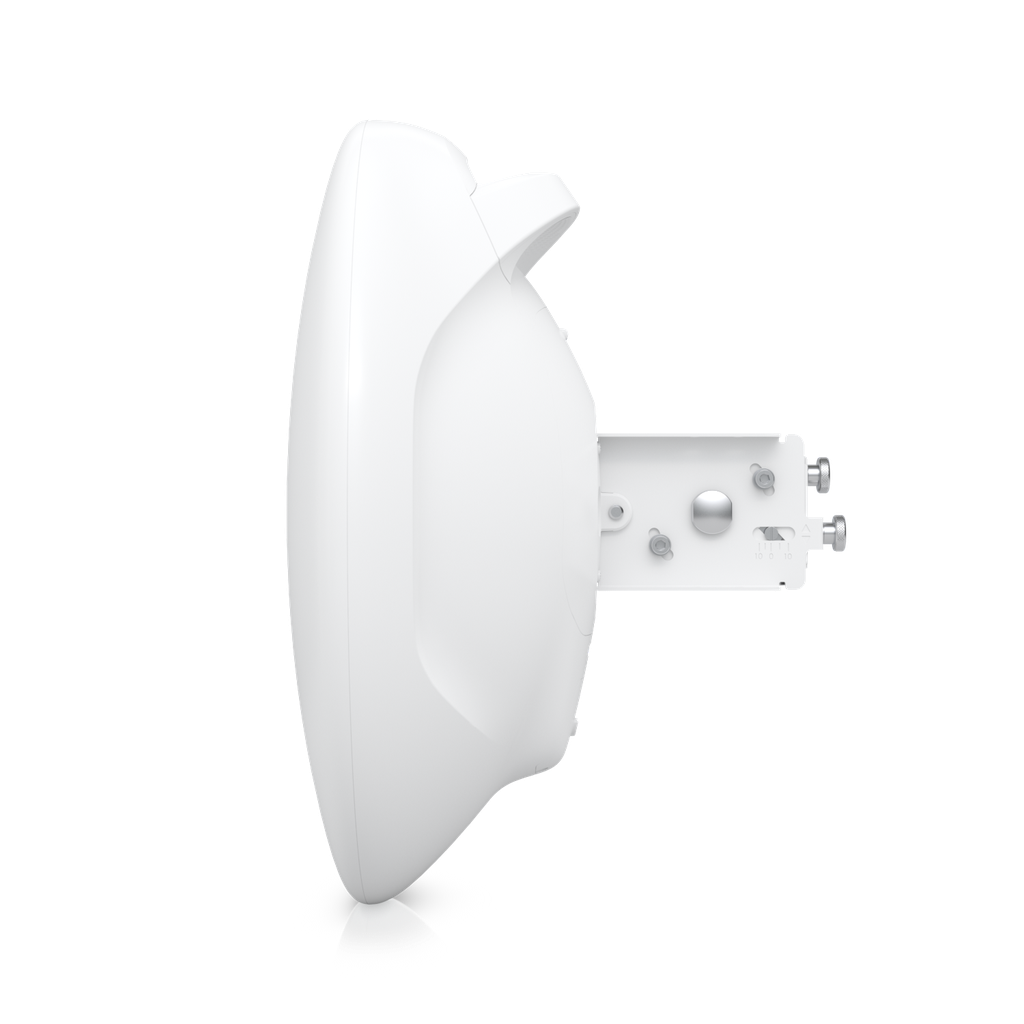

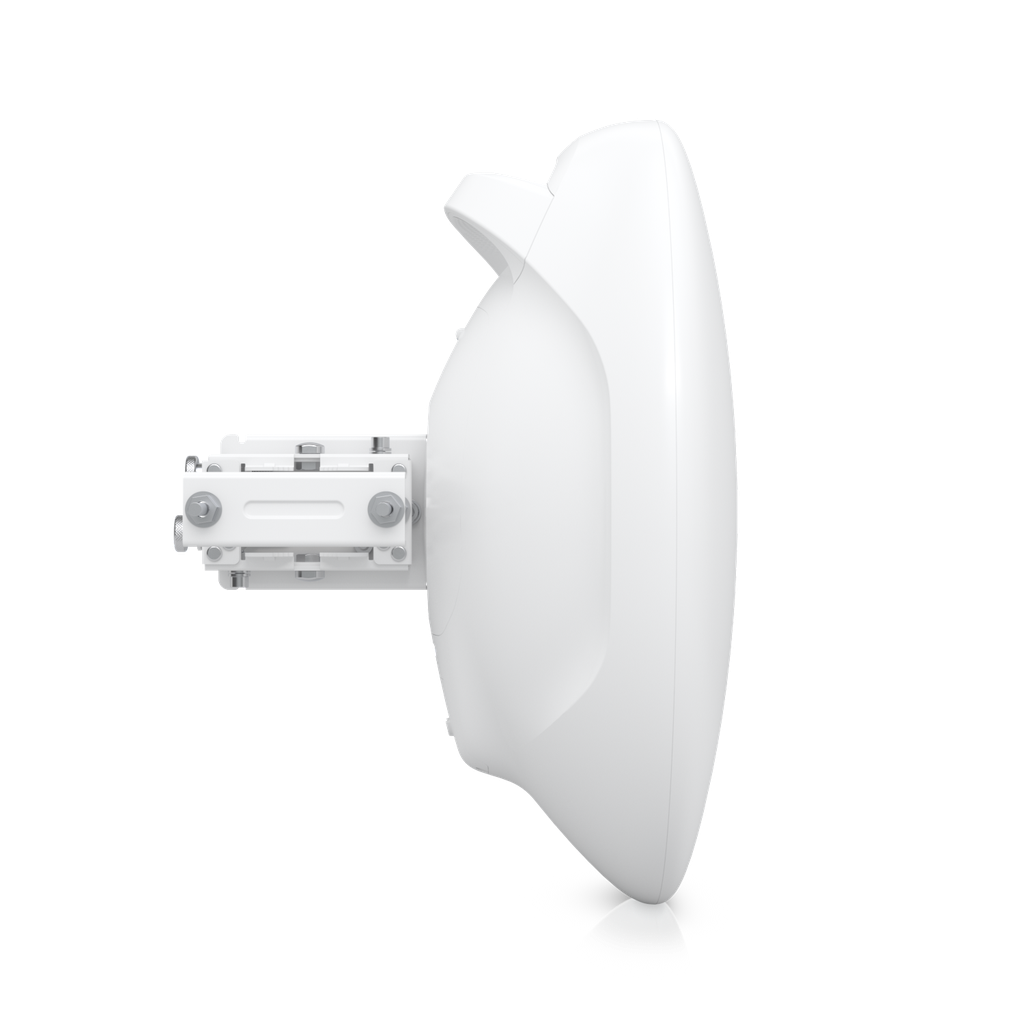

  • Precision alignment mount
  • Integrated GPS & Bluetooth

Specifications

Mechanical
Dimensions⌀424.4 x 166.2 mm / (⌀16.7 x 6.5")
WeightWithout mount: 2.8 kg (6.2 lb) / With mount: 4 kg (8.8 lb)
Enclosure MaterialAluminum alloy, UV stabilized polycarbonate
Mount MaterialStainless steel
Pole Mount Diameter25 to 76.2 mm (1 to 3")
Wind Loading369 N at 200 km/h (83 lbf at 125 mph)
WeatherproofingIPX6
Hardware
ProcessorQuad-core ARM® Cortex®-A53 at 1.4 GHz
Memory512 MB
Networking Interface(2) 2.5 GbE RJ45 ports / (1) 10G SFP+ port
Max. Power Consumption26W
Power MethodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) / Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
Supported Voltage Range44–54V DC / 22–27V DC
Power Supply48V DC, 0.65A, 2.5 GbE PoE adapter (Included)
Buttons(1) Factory reset
PowerFlashing white: bootup in progress / White: not connected to UISP application / Blue: connected to UISP application / Flashing blue: locate in progress / Blue/white: firmware upgrade in progress
Ethernet(2) Flashing blue: Ethernet traffic detected
GPSBlue: receiving at least (4) GPS satellite signal
LinkWhite: 5 GHz link / Blue: 60 GHz link
SFP+(1) Flashing blue: SFP+ traffic detected
Ambient Operating Temperature-40 to 60° C (-40 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC, CE
Software
Operating ModesPtP / PtMP Station
NetworkBridge/Router mode
UISPVersion 2.3.0 and later
System
Total Throughput5.4 Gbps
Max. RangePtP: Up to 15 km (9.3 miles) / PtMP: Up to 8 km (5 miles) (Wave AP), up to 6 km (3.7 miles) (Wave AP Micro, Wave AP Gen2)
EncryptionWPA2-PSK (AES)
Radio Frequency
Worldwide57–71 GHz
Channel Bandwidth2160, 1080, 540 MHz
Operating Channels58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
Modulation16QAM, QPSK
Antenna Gain46 dBi
PolarizationVertically-Linear
BeamwidthAzimuth: 3 dB 1.3° / Elevation: 3 dB 1.3°
Radio Frequency (Back-Up)
WiFi Standard802.11ax (WiFi 6)
US/CAU-NII-1 5150 - 5250 MHz / U-NII-2A 5250 - 5350 MHz / U-NII-2C 5470 - 5725 MHz / U-NII-3 5725 - 5850 MHz
Worldwide5150 - 5875 MHz
Channel Bandwidth20, 40, 80 MHz
ModulationBPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)
Antenna Gain22 dBi
PolarizationDual-Linear
BeamwidthAzimuth: 3 dB 8° / Elevation: 3 dB 8°
Cross-Pol Isolation20 dB
Electrical Downtilt

Professional Overview

The Ubiquiti Wave-Pro is High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.. Key capabilities include max. link range:— ptp: up to 15 km— ptmp: up to 8 km (wave ap), up to 6 km (wave ap micro) and max. total throughput: 5.4 gbps.

Performance specifications include total throughput of 5.4 Gbps.

The Wave-Pro integrates seamlessly with the Ubiquiti UniFi ecosystem, enabling centralized management through the UniFi Network application. Notable features include 5 ghz weatherproof backup radio (max. throughput: 800 mbps), (2) 2.5 gbe and (1) 10g sfp+ ports, ergonomic transportation handle.

Built to Ubiquiti's commercial-grade standards with a weight of Without mount: 2.8 kg (6.2 lb) / With mount: 4 kg (8.8 lb), featuring operating temperature range of -40 to 60° C (-40 to 140° F), FCC, IC, CE. Australian stock from ARC IP Networks with fast nationwide shipping and local support.

Max Throughput 5.4 Gbps
Coverage Area 44–54V DC / 22–27V DC
Brand Ubiquiti
