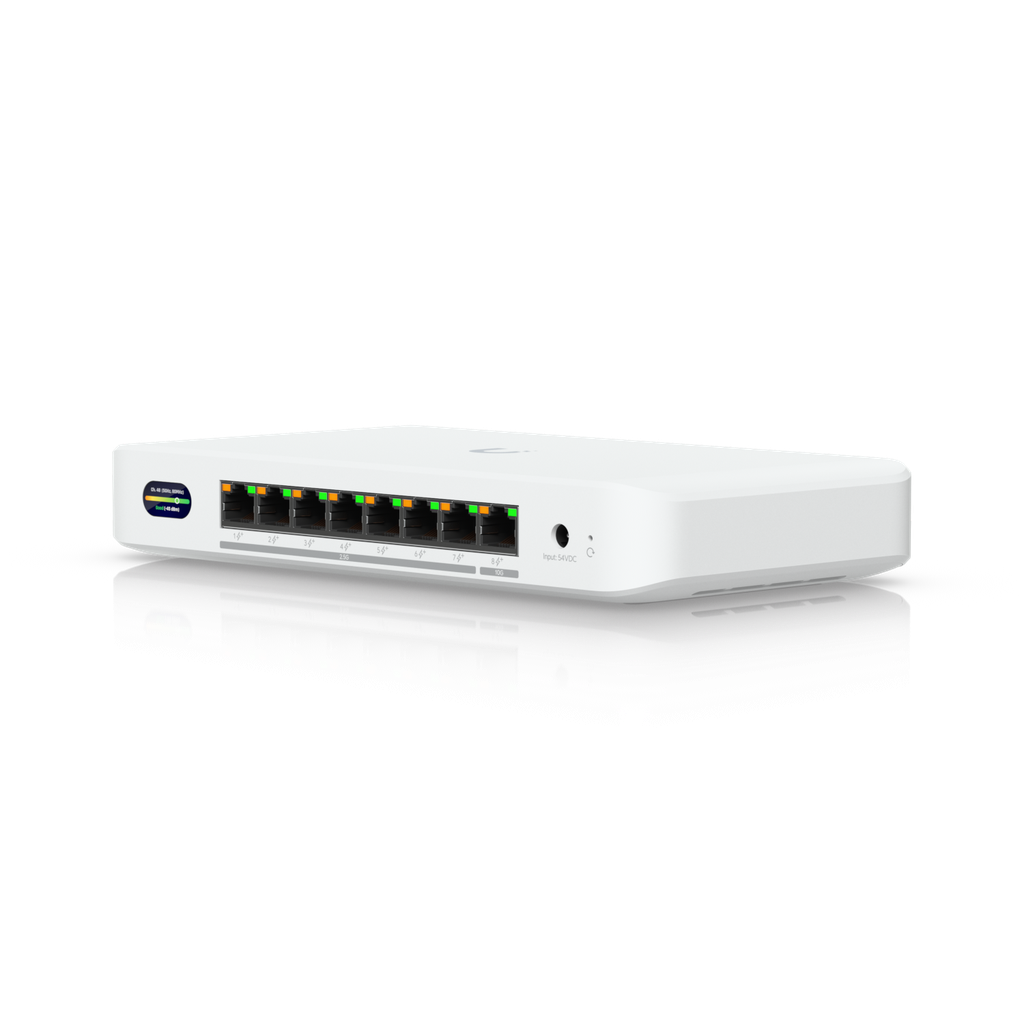

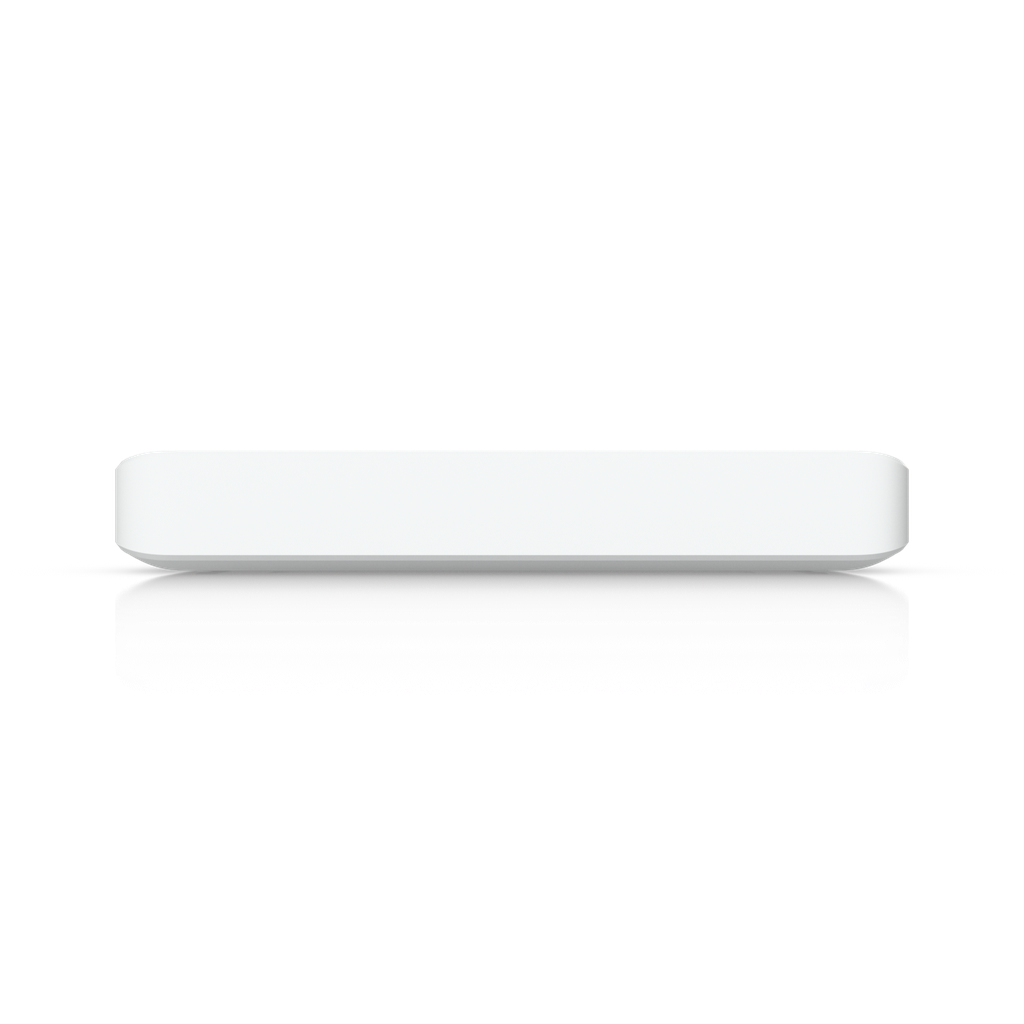

Ubiquiti UDB-Switch Device Bridge Switch

https://arcip.com.au/web/image/product.template/7887/image_1920?unique=1a15e79
Device Bridge Switch. Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi. Australian stock. Available for store pickup or shipping.

553.30 553.3 AUD 553.30 incl. GST

Not Available For Sale


  • Network Connectivity
  • Brand

This combination does not exist.

UniFi Switch PoE Ubiquiti
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UDB-Switch
Tags
UDB-Switch
Device Bridge Switch

UDB-Switch

UDB-Switch

UDB-Switch

Specifications

Overview
Dimensions212.9 x 113 x 32.5 mm / (8.4 x 4.4 x 1.3")
WiFi StandardWiFi 7
Spatial Streams4

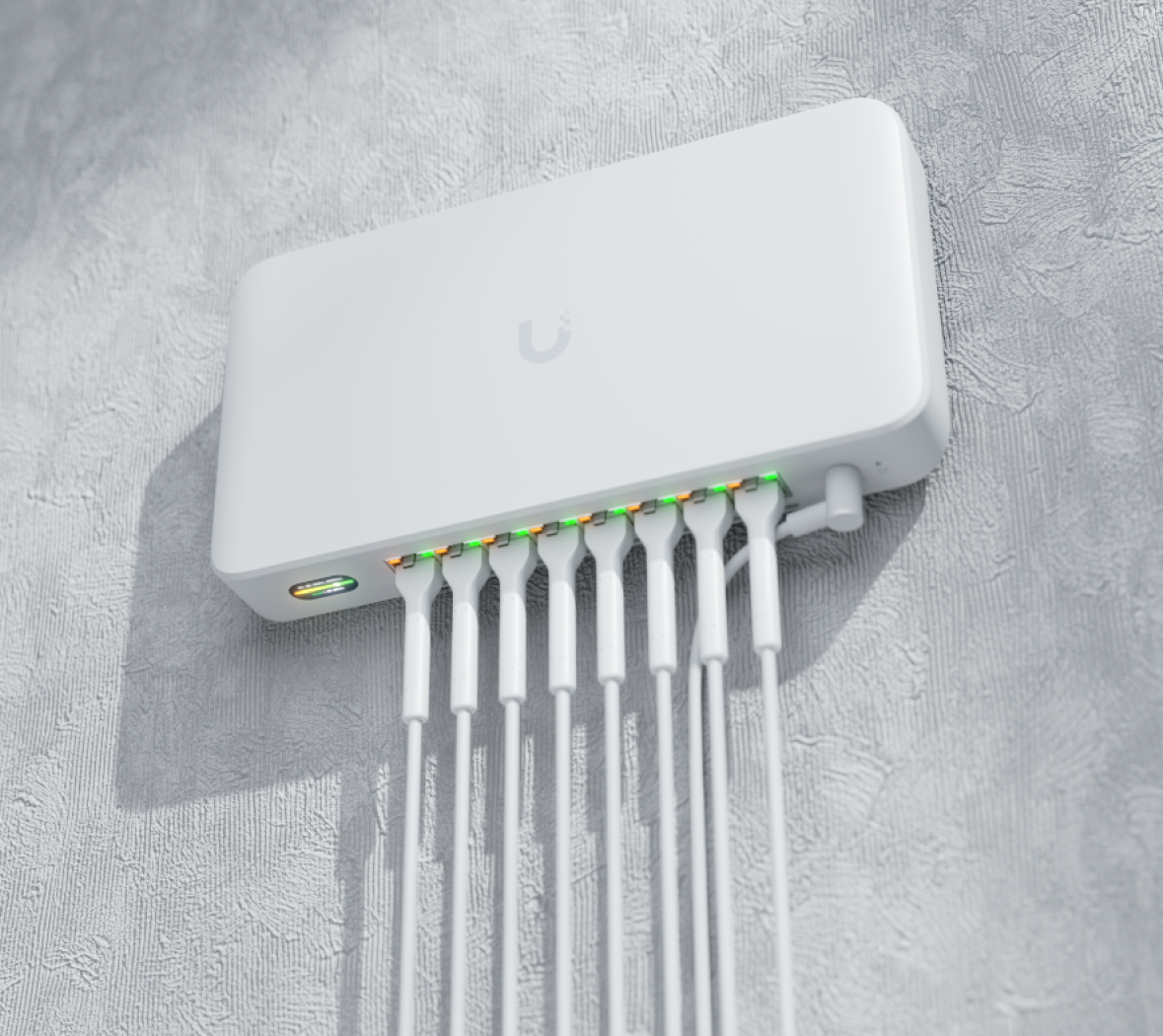

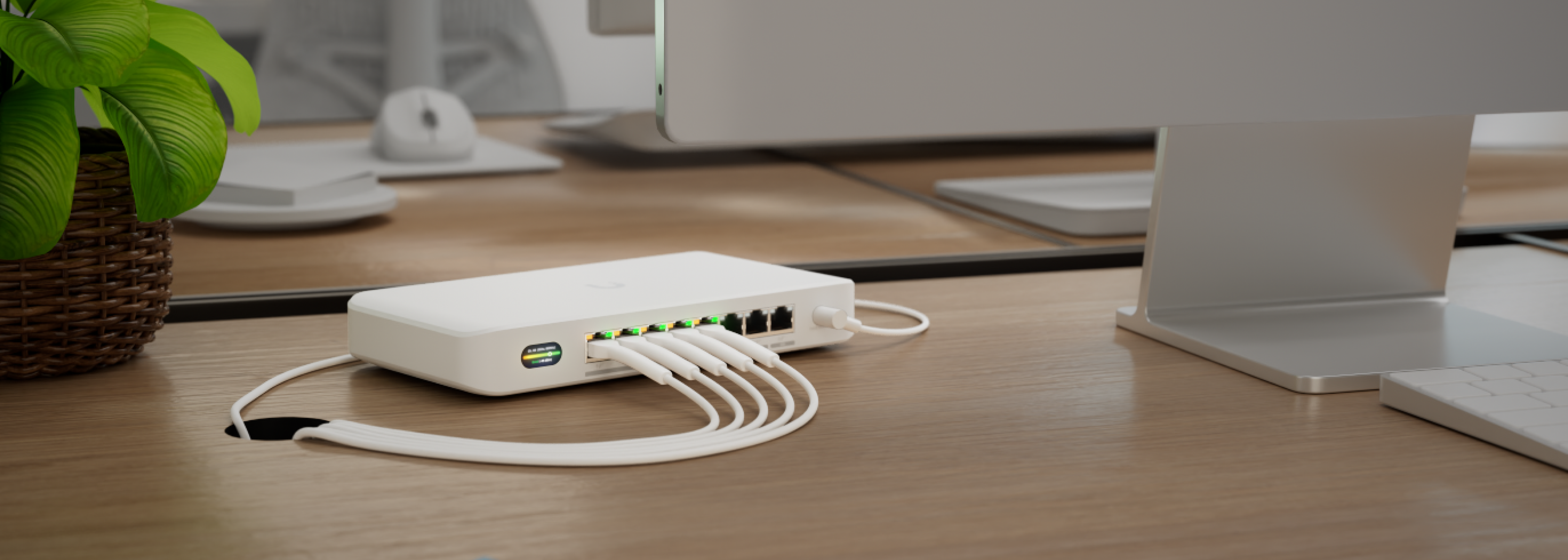

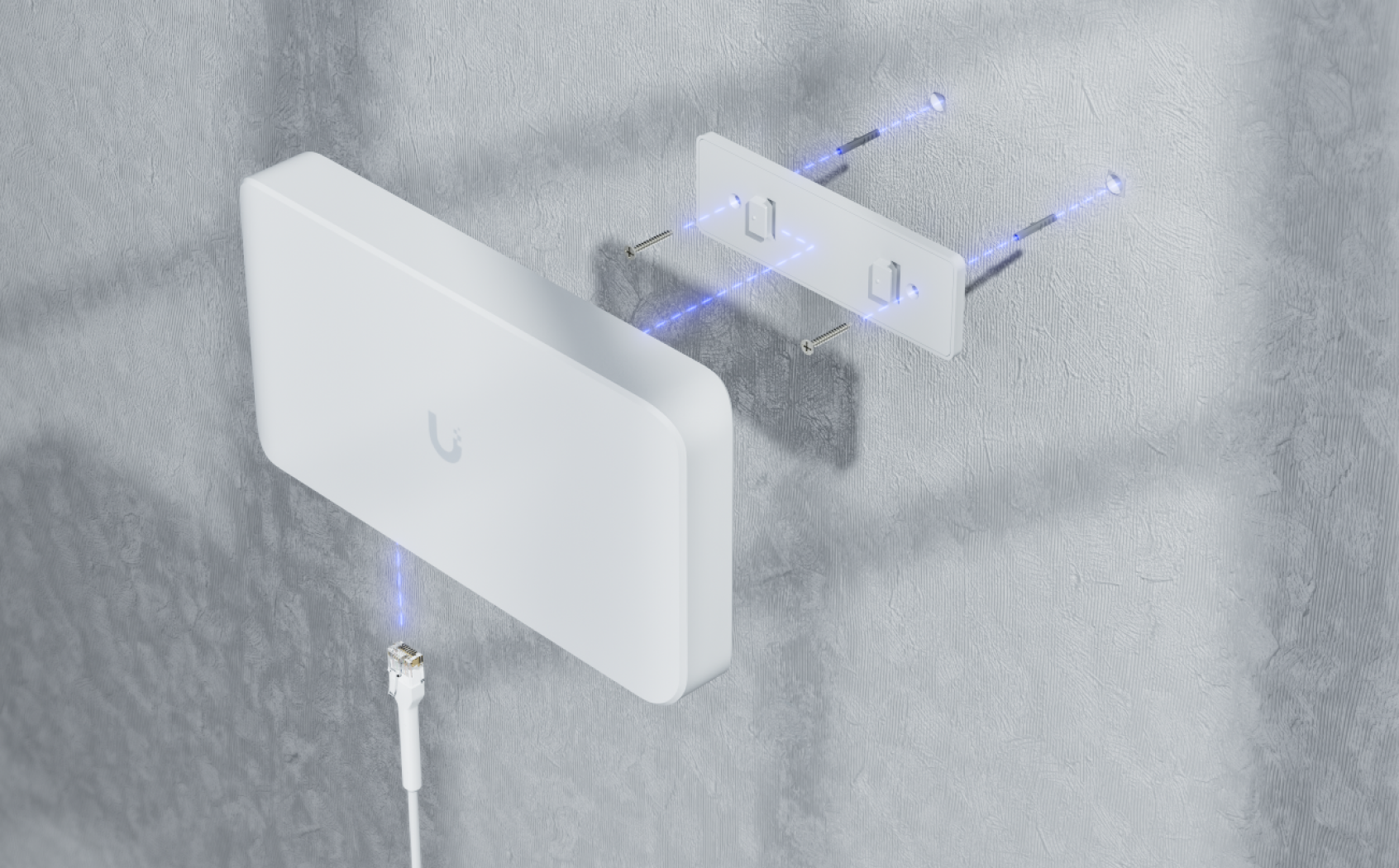

Mounting LocationsDesktop, wall
Power MethodDC jack (54V DC/1.1A)
Power Supply54V DC/1.1A (Adapter included)
Performance
6 GHz2 x 2
5 GHz2 x 2
6 GHz5.8 Gbps (BW320)
5 GHz4.3 Gbps (BW240)
6 GHz8 dBi
5 GHz8 dBi
6 GHz23 dBm
5 GHz26 dBm
Max. Conducted TX Power26 dBm (Combined)
802.11be (WiFi 7)6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) / 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA3 SAE (Always On)
Hardware
Max. Power Consumption25W (Excluding PoE output)
Supported Voltage Range42.5–57V DC

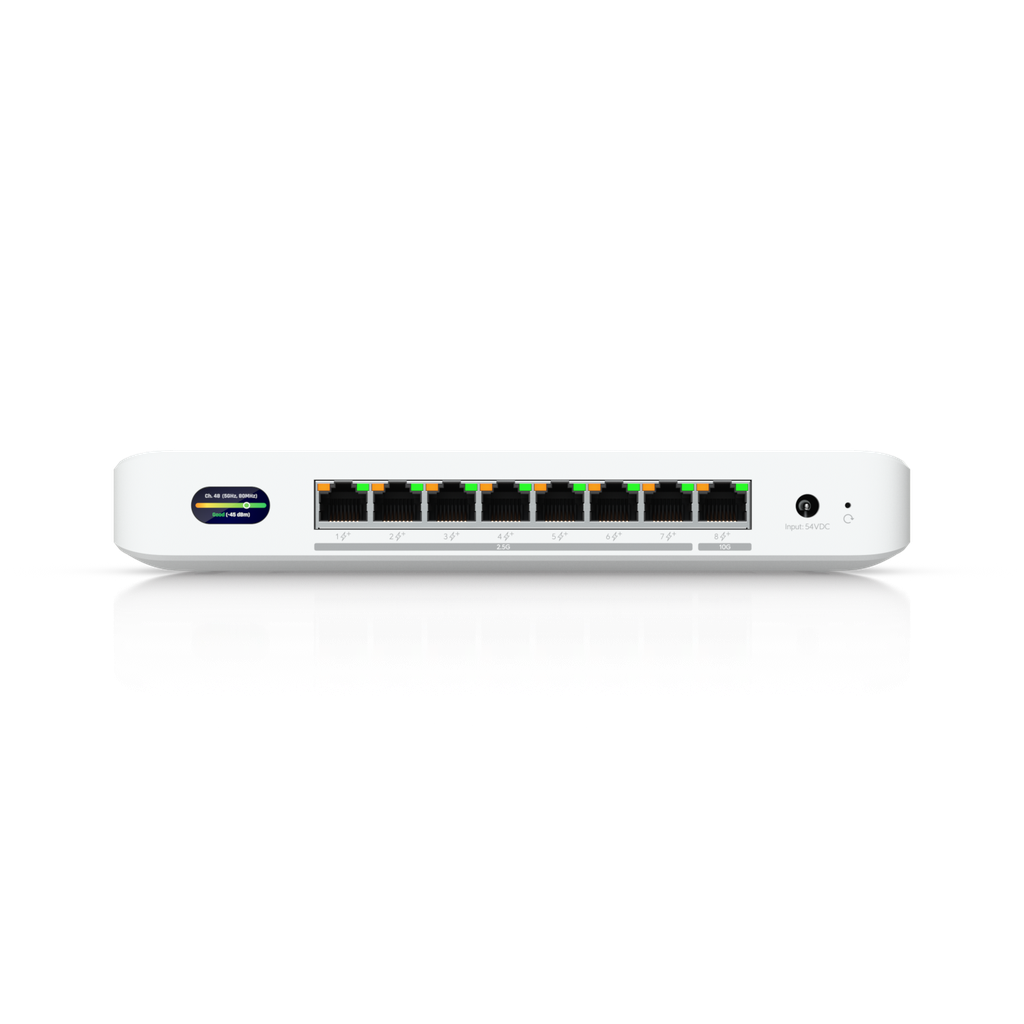

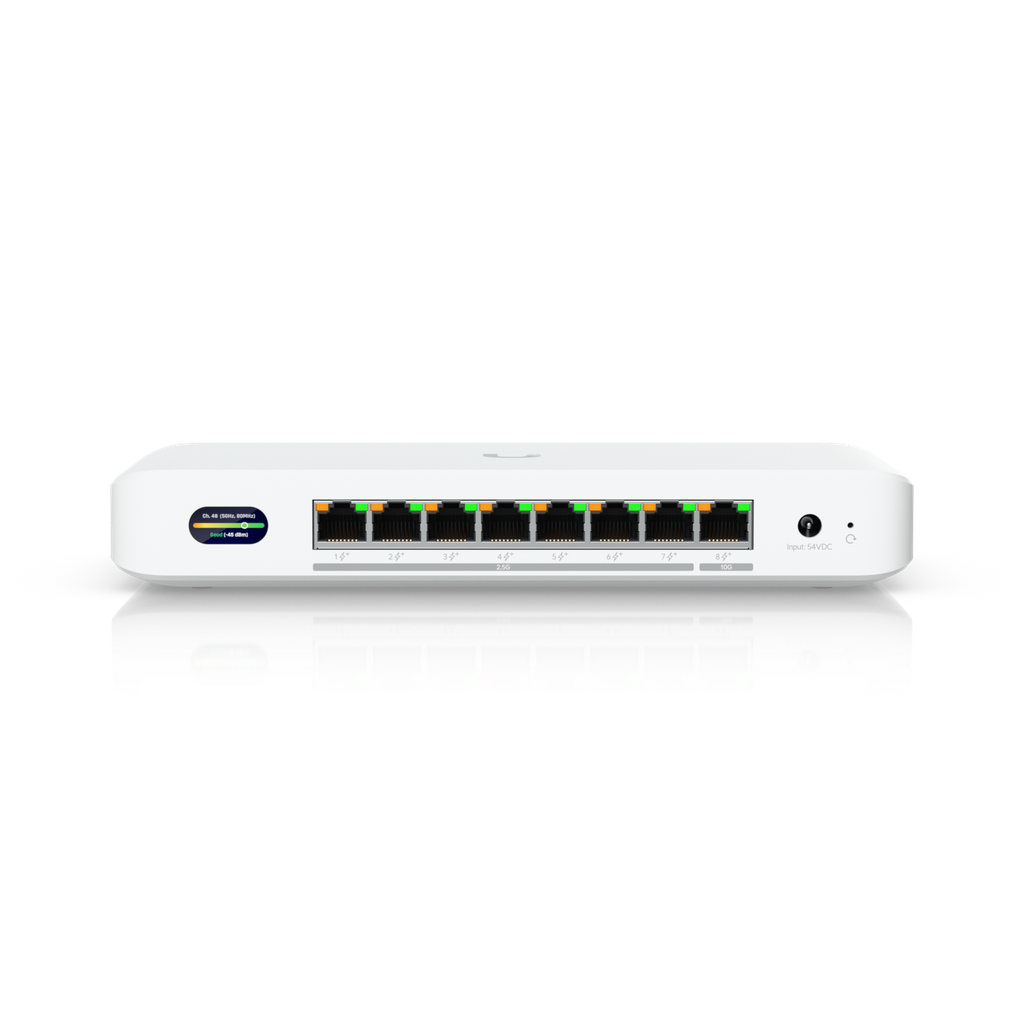

Networking Interface(1) 10 GbE RJ45 port / (7) 2.5 GbE RJ45 ports
PoE Interface(8) PoE+ ports
Max. PoE Wattage per Port30W
Total PoE Availability60W AC adapter input: 35W / 210W AC adapter input: 185W
Antennas(1) Internal
ManagementEthernet / WiFi
Channel Bandwidth20/40/80/160/240/320 MHz
WeightDevice: 548 g (1.21 lb) / With mount: 563 g (1.24 lb)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
LCM Display0.96" status display
Button(1) Factory reset
CertificationsCE, FCC, IC
Operating FrequencyWorldwide: / 5150—5875 MHz / 5945—7125 MHz
Ambient Operating Temperature-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
Software
UniFi NetworkVersion 10.0.156 or later.

Professional Overview

The Ubiquiti UDB-Switch is Compact PoE+ switch* with (1) 10 GbE port, (7) 2.5 GbE ports, and 6 GHz-ready WiFi 7 bridging integration for seamless, high-capacity wireless uplink to UniFi WiFi..

The UDB-Switch delivers reliable performance for demanding network environments.

The UDB-Switch integrates seamlessly with the Ubiquiti UniFi ecosystem, enabling centralized management through the UniFi Network application.

Built to Ubiquiti's commercial-grade standards with a weight of Device: 548 g (1.21 lb) / With mount: 563 g (1.24 lb), featuring CE, FCC, IC, operating temperature range of -30 to 40° C (-22 to 104° F). Australian stock from ARC IP Networks with fast nationwide shipping and local support.

Network Connectivity Wired
Brand Ubiquiti
