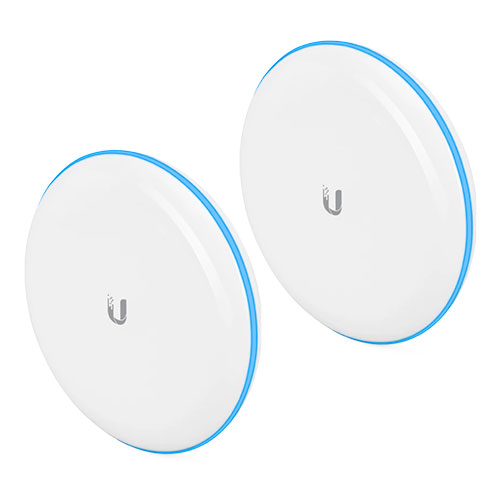

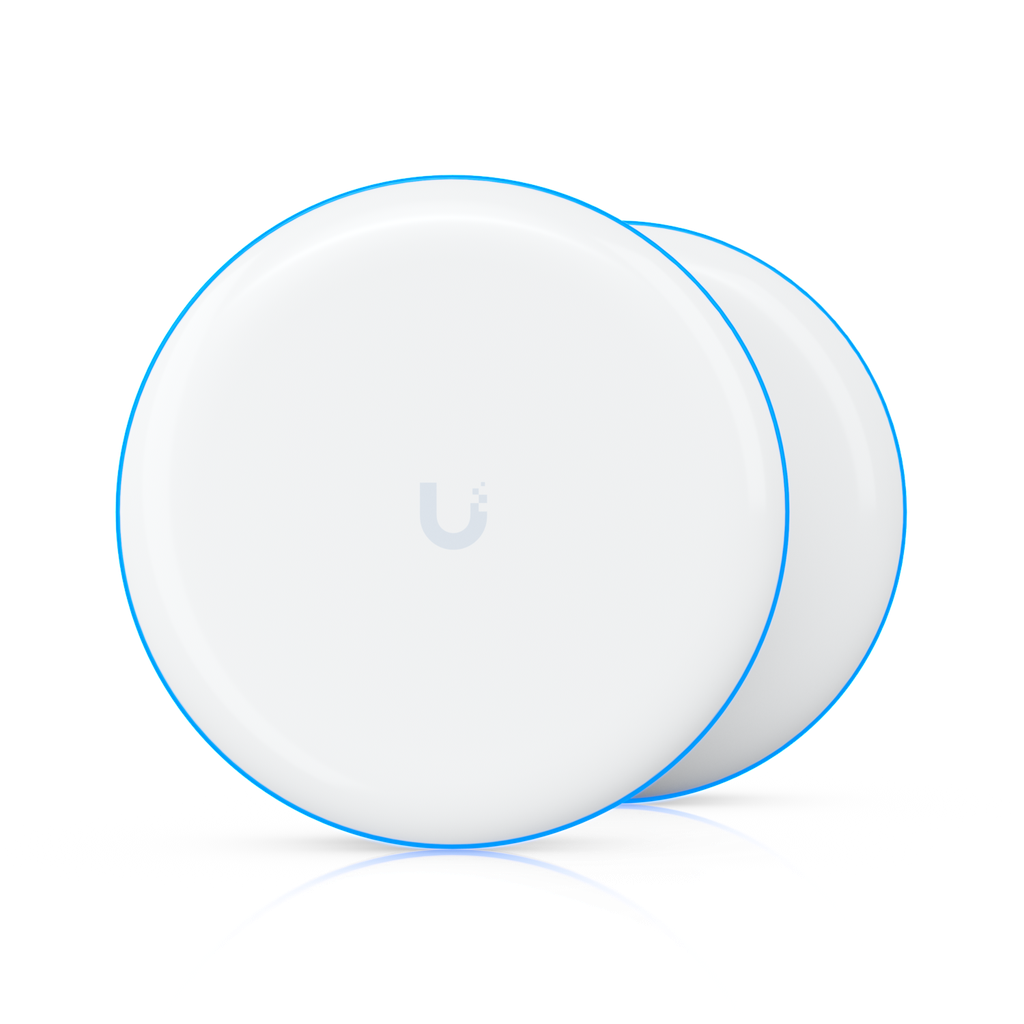

Ubiquiti UBB-XG Unifi Building to Building Bridge

https://arcip.com.au/web/image/product.template/3944/image_1920?unique=b252c81
The Ubiquiti UBB-XG Building-to-Building Bridge XG provides 60 GHz wireless point-to-point connectivity at up to 6 Gbps throughput over 500 m range. Features dual-radio redundancy with automatic 5 GHz failover, 10G SFP+ and GbE ports, IPX6 weatherproofing, and PoE++ power. Managed through the UniFi Network application.

2,182.95 2182.95 AUD 2,182.95 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • Uplink
  • PoE Specification
  • WiFi Standard
  • Frequency Band
  • Max Throughput
  • PoE Requirement
  • Max Clients
  • Coverage Area
  • AP Features

This combination does not exist.

Outdoor UniFi 60 GHz Ubiquiti Point-to-Point Wireless Bridge 10G SFP+
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UBB-XG
Barcode
810010076045
Tags
UBB-XG
Ubiquiti Building-to-Building Bridge XG — 60 GHz Point-to-Point with 10G SFP+ Uplink and 5 GHz Backup
UBB-XG Deployment Diagram
UBB-XG Installation Diagram

Features

  • 500 m (1,640 ft) maximum range for building-to-building connectivity
  • 60 GHz & 5 GHz dual-radio redundancy with automatic failover
  • (1) 10G SFP+ and (1) GbE PoE++ port
  • 6 Gbps throughput on 60 GHz primary link
  • 866.6 Mbps throughput on 5 GHz backup radio
  • 21 dBi antenna gain (60 GHz) / 14 dBi (5 GHz)
  • PoE++ powered, 29W max consumption
  • IPX6 weatherproof with aluminum alloy and UV-resistant polycarbonate
  • Built-in LED alignment indicators for easy installation
  • Wall and pole mount options (1–2.5" diameter)
  • Managed through the UniFi Network application

Overview

Dimensions⌀191.8 x 59 mm (⌀7.6 x 2.3")
WiFi StandardWiFi 5
Coverage Area500 m (1,640 ft)
MountingWall, pole
WeatherproofingIPX6
Power MethodPoE++ / Passive PoE

Performance

60 GHz Throughput6 Gbps
5 GHz Throughput866.6 Mbps (BW80)
60 GHz Antenna Gain21 dBi
5 GHz Antenna Gain14 dBi
60 GHz TX Power16 dBm
5 GHz TX Power23 dBm
Wireless SecurityWPA2 AES

Hardware

Max Power Consumption29W
Voltage Range48V DC ± 10%
Networking Interface(1) GbE RJ45 port (1) 1/10G SFP+ port
Weight1.7 kg (3.8 lb) / With mount: 2.9 kg (6.3 lb)
Operating ModePoint-to-Point (PtP)
Wind Loading56 N at 200 km/h
Pole Mount1–2.5" (25–63.5 mm)
EnclosureAluminum alloy, UV-resistant polycarbonate
Operating Temp-40 to 55°C (-40 to 131°F)
60 GHz Frequency57 - 66 GHz
5 GHz Frequency5150 - 5850 MHz
CertificationsCE, FCC, IC, Terragraph

The Ubiquiti UBB-XG Building-to-Building Bridge XG delivers high-speed wireless connectivity between buildings using a 60 GHz primary radio capable of 6 Gbps throughput over distances up to 500 metres. This makes it ideal for campus networks, multi-building offices, and distributed enterprise sites where running fibre between structures is impractical or cost-prohibitive.

The dual-radio architecture sets the UBB-XG apart from single-radio alternatives. The 60 GHz primary link provides near-fibre speeds with 21 dBi antenna gain, while the integrated 5 GHz backup radio (866.6 Mbps, 14 dBi gain) ensures automatic failover if the 60 GHz link is disrupted by heavy rain or other environmental factors. The 10G SFP+ port delivers maximum wired throughput, with a GbE RJ45 port available for management or lower-bandwidth connections.

Built for outdoor deployment, the UBB-XG features IPX6 weatherproofing with an aluminum alloy and UV-resistant polycarbonate enclosure rated for -40 to 55°C operation. Wind loading is rated at 56 N at 200 km/h, and the stainless steel mount supports pole diameters from 25 to 63.5 mm. Built-in LED alignment indicators simplify installation, and the unit draws a maximum of 29W via PoE++ or passive PoE at 48V DC.

Fully managed through the UniFi Network application, the UBB-XG integrates seamlessly into existing UniFi deployments for centralised monitoring and configuration. At just 1.7 kg (2.9 kg with mount) and ⌀191.8 x 59 mm in dimension, it maintains a low-profile installation footprint. Available from Australian stock at ARC IP Networks with genuine local warranty.

Ubiquiti UBB-XG: WiFi 5 access point

The Building-to-Building Bridge XG is a UniFi WiFi 5 access point with 2 spatial streams and a rated coverage area of 500 m (1,640 ft).

On the wired side it is powered by PoE++ Passive PoE, and draws at most 29W.

It carries a IPX6 rating, so unlike an ordinary indoor AP it can be mounted outside under normal Australian conditions. Read the rating literally: it covers water, not immersion, and it is not a reason to site the unit where it will sit in standing water.

Radios and throughput

BandMIMOMax. throughputAntenna gainMax. TX power
60 GHz6 Gbps21 dBi16 dBm
5 GHz2 x 2 (DL MU-MIMO)866.6 Mbps (BW80)14 dBi23 dBm
2.4 GHz2 dBi (BLE)
Spatial streams2
WiFi standardWiFi 5
Channel bandwidthMain radio (60 GHz): 2160/4320 MHz Backup radio (5 GHz): VHT 20/40/80 MHz

Supported data rates

802.11ac (WiFi 5)6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

These are modulation-coding-scheme ceilings measured at the radio, not speeds a client will see. Real throughput depends on the client's own radio, the channel width you can actually use, distance and how much of the band your neighbours are already occupying. Our UniFi access point comparison puts the range side by side.

Uplink and power

Networking interface(1) GbE RJ45 port (1) 1/10G SFP+ port
Power methodPoE++ Passive PoE
Max. power consumption29W
Supported voltage range48V DC ± 10%
ManagementEthernet Bluetooth

Power comes down the Ethernet run as PoE++ Passive PoE, drawing up to 29W. On a switch that shares one PoE budget across every port, add up the draw of every AP before you commit — the UniFi switch range lists the total availability for each model.

Who the UBB-XG suits

  • Building-to-building links where trenching fibre is impractical
  • Campuses, farms and multi-shed sites needing a gigabit-class hop
  • Temporary or leased sites where cabling cannot be installed
  • Links with clear line of sight between the two mounting points

Physical and mounting

Dimensions⌀191.8 x 59 mm (⌀7.6 x 2.3")
WeightDevice: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb)
WeatherproofingIPX6
Wind loading56 N at 200 km/h (12.6 lbf at 125 mph)
Pole mount diameter1–2.5" (25–63.5 mm)
Enclosure materialAluminum alloy, UV-resistant polycarbonate
Mount materialStainless steel
Status LEDR/G/B
Operating temperature-40 to 55° C (-40 to 131° F)
Operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, Terragraph

Rated for -40 to 55° C (-40 to 131° F). Worth checking against a roof space in an Australian summer, which routinely runs hotter than an occupied room.

Management and requirements

ManagementEthernet Bluetooth

Like every UniFi access point, the UBB-XG is adopted and managed by a UniFi controller — a Cloud Gateway or Dream Machine, a Cloud Key, or UniFi hosting. The AP does not run the controller itself, and it is not a standalone router: it provides the WiFi, while routing, firewall and VLANs live on the gateway.

Frequently Asked Questions

What is the UBB-XG?

The Building-to-Building Bridge XG is a UniFi WiFi 5 access point with 2 spatial streams and a rated coverage area of 500 m (1,640 ft).

What area does the UBB-XG cover?

500 m (1,640 ft) is the published figure. Coverage in a real building depends on what the signal has to pass through: plasterboard costs little, double brick, foil-backed insulation and concrete cost a great deal.

How is the UBB-XG powered?

PoE++ Passive PoE over the Ethernet run, drawing up to 29W, within a supported voltage range of 48V DC ± 10%.

Can the UBB-XG be used outdoors?

It is rated IPX6, so it is built for outdoor mounting. Treat the rating literally — it covers water, not immersion.

Does the UBB-XG need a UniFi controller?

Yes. UniFi access points are adopted and managed by a controller — a Cloud Gateway, Dream Machine, Cloud Key or UniFi hosting. The AP supplies the WiFi; routing, firewall and VLANs live on the gateway.

Is the UBB-XG available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti UBB-XG in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the UBB-XG from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive Australian pricing, monitored against the local market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Browse the full UniFi access point range, plus cloud gateways, switches and the Protect camera range. New to UniFi? Start with the complete UniFi buying guide, or compare the APs directly in our access point comparison. More on buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Form Factor Wall, Pole (Mounts Included), VESA (Optional)
Network Connectivity Wireless (60 GHz + 5 GHz)
Uplink 1 x 10G SFP+ / 1 x GbE RJ45
PoE Specification PoE++ 802.3bt / 29W Max
WiFi Standard WiFi 5 (802.11ac)
Frequency Band Single-Band (5 GHz)
Max Throughput Low Band: 1.7 Gbps (BW80) / Vertical Band: 1.7 Gbps (BW80) / High Band: 1.7 Gbps (BW80)
PoE Requirement PoE++
Max Clients 1,500
Coverage Area 465 m²
AP Features Mesh, Band Steering, MU-MIMO, 10 GbE Uplink
