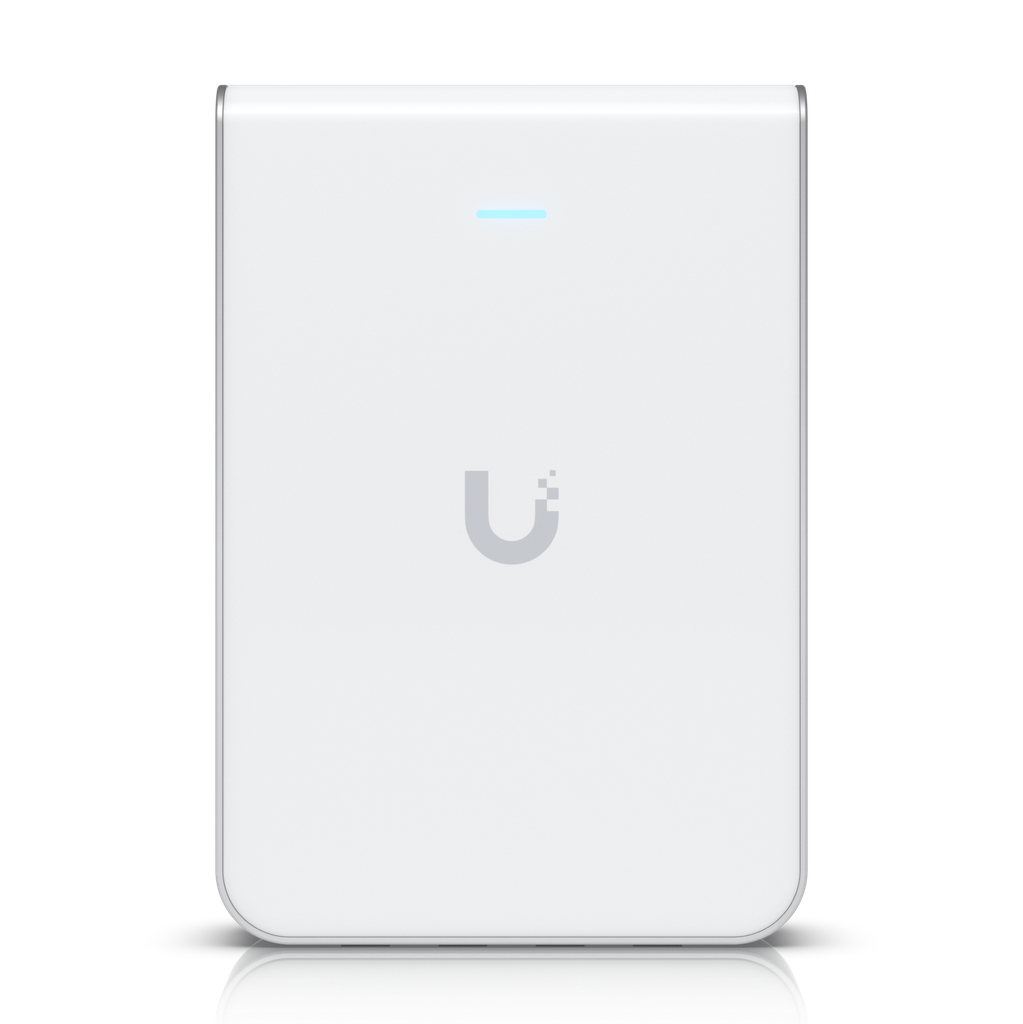

Ubiquiti U6-IW UniFi Access Point WiFi 6 In-Wall

https://arcip.com.au/web/image/product.template/10113/image_1920?unique=79316a3
The Ubiquiti U6-IW is a wall-mounted WiFi 6 access point with a built-in four-port Gigabit switch, designed for single-room coverage in hospitality and multi-dwelling environments. It runs six spatial streams — 4x4 MU-MIMO at 5 GHz reaching 4.8 Gbps at 160 MHz, and 2x2 at 2.4 GHz reaching 573.5 Mbps — covering 115 m² and supporting 250+ connected clients. It has one GbE uplink and four GbE data-out ports, one of which provides PoE output. The unit is 139.7 x 96 x 31.2 mm, weighs 460 g, draws a maximum of 13W, and is powered by PoE or PoE+ (PoE+ is required if the PoE output port is used).

354.01 354.01 AUD 386.65 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Ports
  • Network Connectivity
  • Data Rate
  • Power Method

This combination does not exist.

WiFi 6 UniFi Access Point PoE Ubiquiti In-Wall
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
U6-IW
Tags
U6-IW
Ubiquiti UniFi Access Point U6 In-Wall — WiFi 6, 6 Spatial Streams, 4-Port GbE Switch with PoE Output

What the U6-IW Is

The Ubiquiti U6-IW is a wall-mounted WiFi 6 access point with a built-in four-port Gigabit switch, designed for single-room coverage in hospitality and multi-dwelling environments. It runs six spatial streams — 4x4 MU-MIMO at 5 GHz reaching 4.8 Gbps at 160 MHz, and 2x2 at 2.4 GHz reaching 573.5 Mbps — covering 115 m² and supporting 250+ connected clients. It has one GbE uplink and four GbE data-out ports, one of which provides PoE output. The unit is 139.7 x 96 x 31.2 mm, weighs 460 g, draws a maximum of 13W, and is powered by PoE or PoE+ (PoE+ is required if the PoE output port is used).

U6-IW deployment

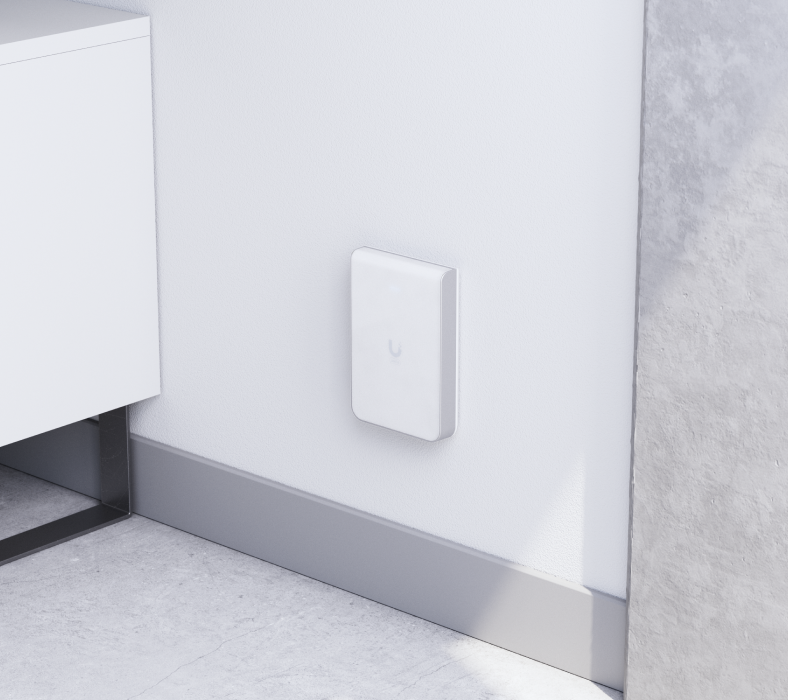

U6-IW in-use

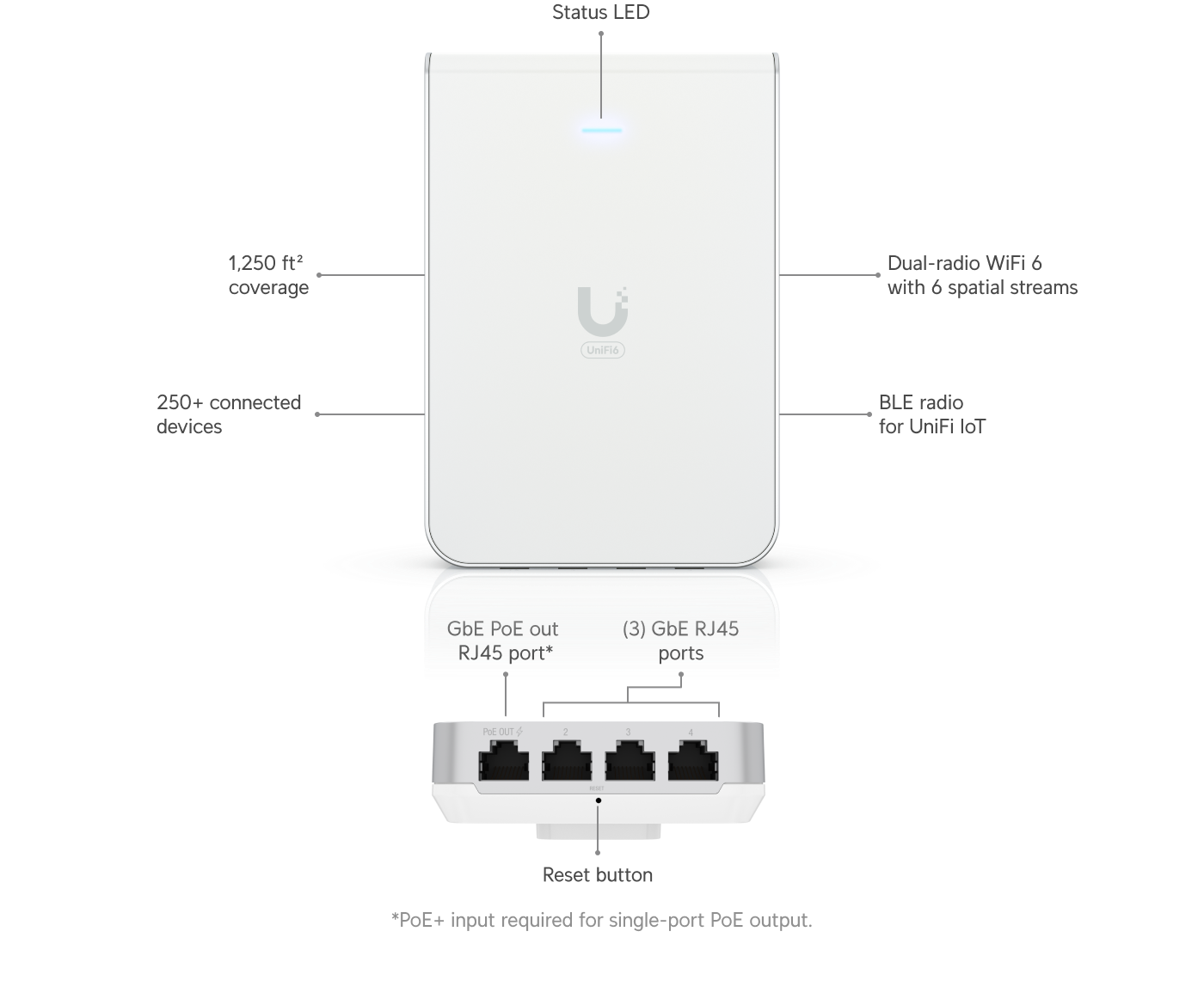

U6-IW dimensions

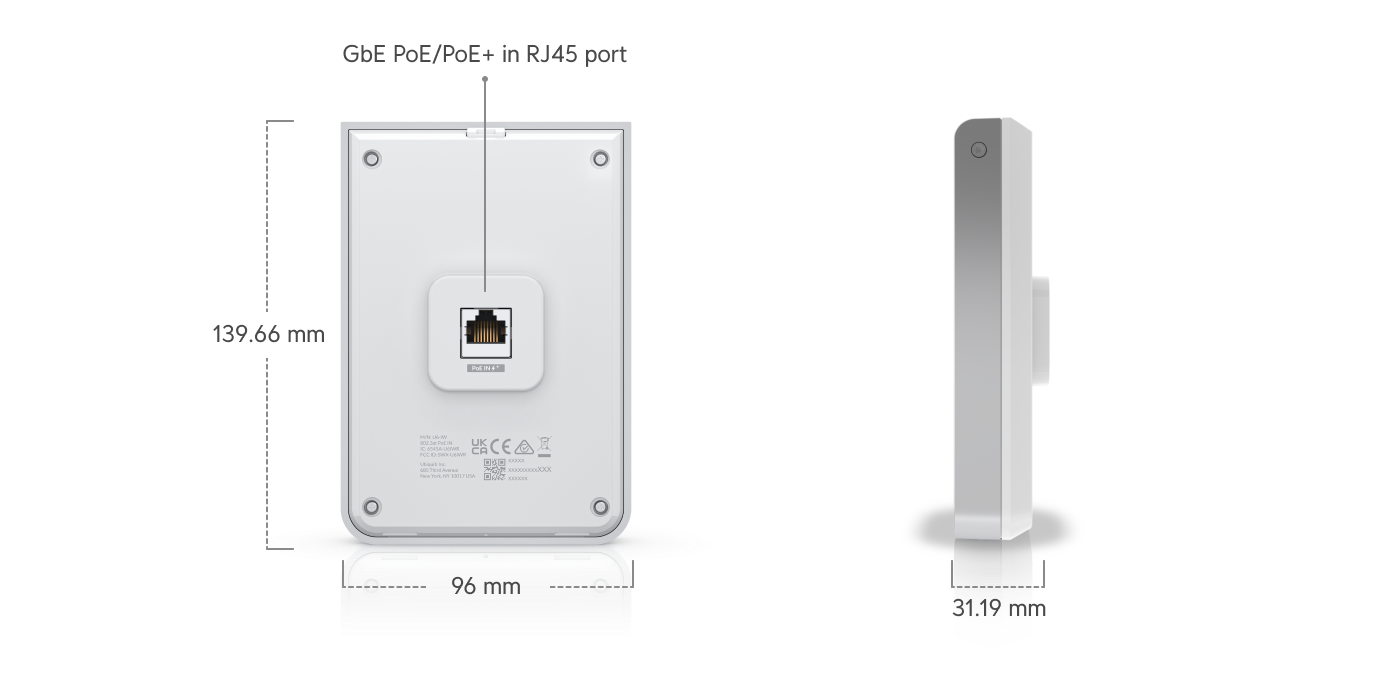

U6-IW mounting

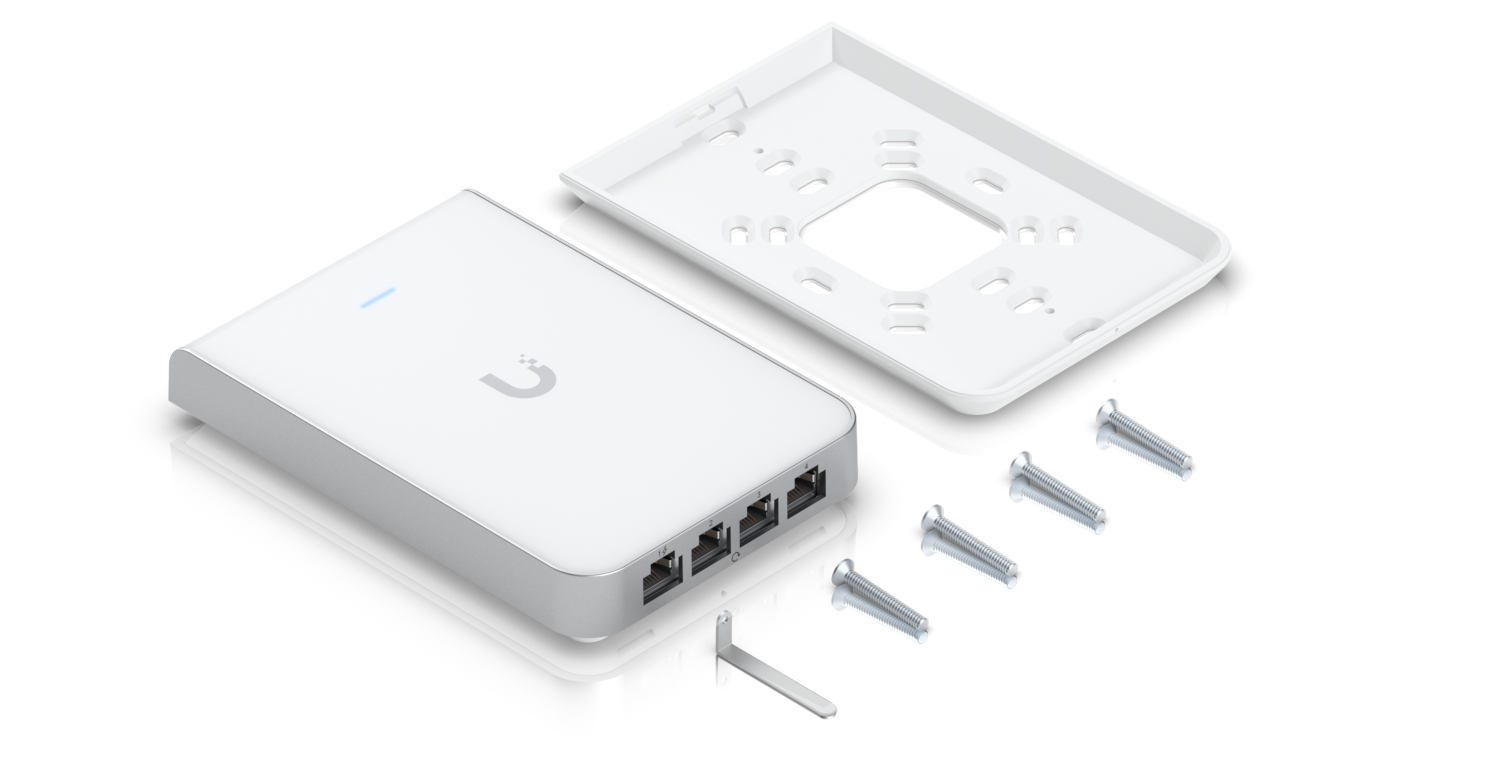

U6-IW in-the-box

Key Features

  • WiFi 6
  • 6 spatial streams
  • 115 m² (1,250 ft²) coverage
  • 250+ connected devices
  • Powered using PoE/PoE+*
  • (4) GbE ports with (1) PoE output
  • GbE uplink
  • *PoE+ input required for single-port PoE output.

Technical Specifications

Overview

Dimensions139.7 x 96 x 31.2 mm
WiFi StandardWiFi 6
Spatial Streams6
Coverage Area115 m² (1,250 ft²)
Max. Client Count250+
UplinkGbE
MountingWall / (Mount Included)
Power MethodPoE / PoE+ (Required for PoE output)

Performance

MIMO — 5 GHz4 x 4 (DL/UL MU-MIMO)
MIMO — 2.4 GHz2 x 2 (DL/UL MU-MIMO)
Max. Data Rate — 5 GHz4.8 Gbps (BW160)
Max. Data Rate — 2.4 GHz573.5 Mbps (BW40)
Antenna Gain — 5 GHz5.9 dBi
Antenna Gain — 2.4 GHz5 dBi
Max. TX Power — 5 GHz26 dBm
Max. TX Power — 2.4 GHz22 dBm
Max. BSSIDs8 per Radio
Supported Data Rates — 802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Supported Data Rates — 802.11ac (WiFi 5)6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
Supported Data Rates — 802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

Hardware

Max. Power Consumption13W (Excluding PoE output)
Networking Interface(1) Data-in: GbE RJ45 port / (4) Data-out: GbE RJ45 ports
Weight460 g
ManagementEthernet / Bluetooth
Built-In Switch(4) GbE ports with (1) PoE output
Enclosure MaterialPlastic, aluminum
Mount MaterialAluminum
LEDs — SystemWhite/Blue
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
Operating FrequencyUS/CA: / 2400 - 2472 MHz / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide: / 2400 - 2483.5 MHz / 5150 - 5850 MHz
Ambient Operating Temperature-30 to 60° C
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, SRRC, Anatel: 11546-22-08356

Software

Application Requirements — UniFi NetworkVersion 6.0.45 and later

Professional Overview

The In-Wall form factor solves a specific problem: covering many small rooms without hanging an access point in each ceiling. It mounts to a standard wall box in place of a data outlet, so the room gets WiFi and wired ports from the same plate. That makes it the default choice for hotels, student accommodation and apartments, where per-room coverage matters more than raw aggregate throughput.

Radio performance is genuine WiFi 6 with six spatial streams: 4x4 downlink and uplink MU-MIMO on 5 GHz reaching 4.8 Gbps at 160 MHz channel width, and 2x2 on 2.4 GHz reaching 573.5 Mbps at 40 MHz. Antenna gain is 5.9 dBi at 5 GHz and 5 dBi at 2.4 GHz, with maximum transmit power of 26 dBm and 22 dBm respectively. Ubiquiti rates coverage at 115 m² and 250+ concurrent clients, and supports up to 8 BSSIDs per radio — enough to run separate guest, staff and IoT networks off one unit.

The built-in switch is what makes it more than an access point. Four GbE data-out ports serve the room's wired devices — a TV, a phone, a desk — from the single GbE uplink, and one of those ports supplies PoE output for a downstream device such as a camera or a desk phone. That output is why the power requirement matters: the AP itself runs on standard PoE at up to 13W, but PoE+ input is required if you intend to use the PoE output port.

The enclosure is plastic and aluminium on an aluminium mount, included in the box. Management is over Ethernet or Bluetooth, with a white/blue system LED. Operating range is -30 to 60°C at 5 to 95% non-condensing humidity, and certifications are CE, FCC, IC, SRRC and Anatel. It requires UniFi Network 6.0.45 or later. Australian stock from ARC IP Networks.

Frequently Asked Questions

What does the U6-IW cover?

Ubiquiti rates it at 115 m² with 250+ concurrent connected devices — sized for a single room rather than an open floor.

How fast is it?

4.8 Gbps on 5 GHz at 160 MHz channel width using 4x4 MU-MIMO, and 573.5 Mbps on 2.4 GHz at 40 MHz using 2x2. Six spatial streams in total.

Does it need PoE or PoE+?

Standard PoE runs the access point itself, at up to 13W. PoE+ input is required if you want to use the single PoE output port to power a downstream device.

How many wired ports does it have?

Five in total: one GbE uplink (data-in) and four GbE data-out ports, one of which supports PoE output.

How is it mounted?

To a wall, using the mount included in the box. It is designed to sit in place of a wall data outlet.

What temperature range does it tolerate?

-30 to 60°C at 5 to 95% non-condensing humidity.

What software version does it need?

UniFi Network version 6.0.45 or later.

How many SSIDs can it broadcast?

Up to 8 BSSIDs per radio.

Brand UBIQUITI
Form Factor In-Wall
Ports 1x GbE uplink + 4x GbE
Network Connectivity WiFi 6 + 4x GbE
Data Rate 4.8 Gbps (5 GHz)
Power Method PoE / PoE+ (13W max)
