Ubiquiti UISP-Dish 30 dBi Dish Antenna 5.15-6.875 GHz

https://arcip.com.au/web/image/product.template/10118/image_1920?unique=79316a3
The Ubiquiti UISP-Dish is a point-to-point dish antenna covering 5.15 to 6.875 GHz with 30 dBi of gain and a stated link range beyond 30 km. It is a ⌀650 x 200 mm dish in powder-coated galvanised steel, UV-stabilised polycarbonate and aluminium alloy, weighing 4.54 kg with a 3.1 kg precision alignment mount included. Beamwidth is 5 to 6° at 3 dB in both azimuth and elevation, polarisation is dual-linear, and cross-polarisation isolation is 20 dB. It is rated IPX6, survives wind to 200 km/h with a wind loading of 860 N, and takes poles from 40 to 90 mm with ±15° of mechanical elevation adjustment.

310.75 310.75 AUD 310.75 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Network Connectivity
  • Data Rate
  • Weatherproofing

This combination does not exist.

Outdoor UniFi UISP Ubiquiti Antenna Point-to-Point
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UISP-Dish
Tags
UISP-Dish
Ubiquiti UISP Dish Antenna — 30 dBi Dual-Linear Point-to-Point Dish, 5.15–6.875 GHz, 30+ km Link Range

What the UISP-Dish Is

The Ubiquiti UISP-Dish is a point-to-point dish antenna covering 5.15 to 6.875 GHz with 30 dBi of gain and a stated link range beyond 30 km. It is a ⌀650 x 200 mm dish in powder-coated galvanised steel, UV-stabilised polycarbonate and aluminium alloy, weighing 4.54 kg with a 3.1 kg precision alignment mount included. Beamwidth is 5 to 6° at 3 dB in both azimuth and elevation, polarisation is dual-linear, and cross-polarisation isolation is 20 dB. It is rated IPX6, survives wind to 200 km/h with a wind loading of 860 N, and takes poles from 40 to 90 mm with ±15° of mechanical elevation adjustment.

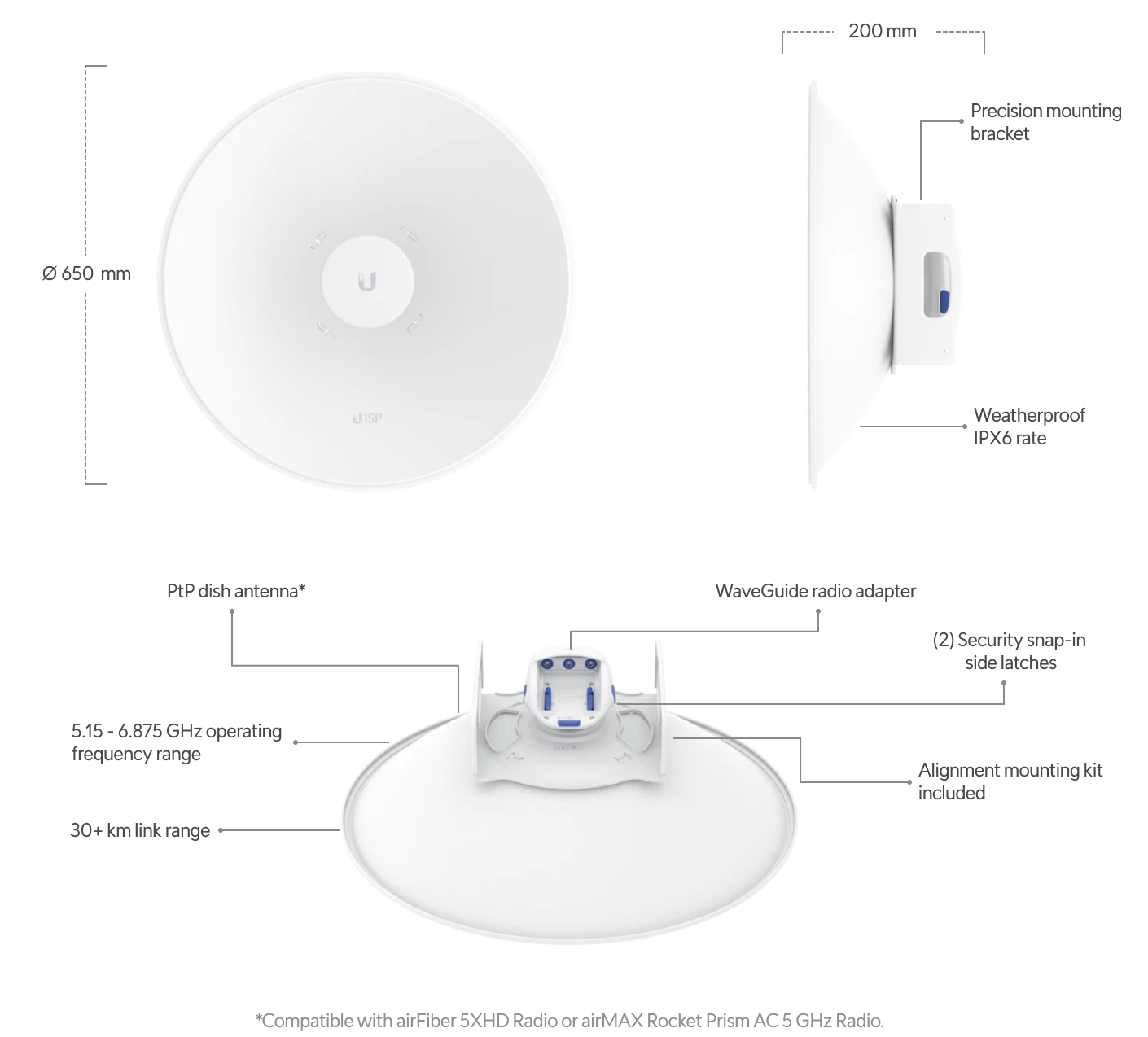

UISP-Dish dimensions

Key Features

  • Frequency range: 5.15 - 6.875 GHz
  • 30+ km PtP link range
  • Precision mounting bracket for easy installation and alignment

Technical Specifications

Mechanical

Dimensions⌀650 x 200 mm
WeightDevice: 4.54 kg / Mount: 3.1 kg
Enclosure MaterialPowder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy
Wind SurvivabilityUp to 200 km/h (124 mph)
Wind Loading860 N at 200 km/h (193 lbf at 124 mph)
MountingPole Mount / Alignment Mount Included) / Mechanical adjustment: ±15° elevation
Pole Mount Diameter⌀1.57 to 3.5" (⌀40 to 90 mm)
WeatherproofingIPX6

Hardware

Frequency Range5.15 to 6.875 GHz
Gain30 dBi
BeamwidthAzimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) / Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Electrical Downtilt
Electrical Beamwidth2:1
PolarizationDual-linear
Cross-Pol Isolation20 dB

Professional Overview

A 30 dBi dish is a long-haul antenna. Where a small integrated radio covers a few kilometres, this is the reflector you fit when the far end is over the horizon of a lesser link — Ubiquiti quotes 30+ km — and when the link has to hold through weather rather than merely work on a calm day.

The wide frequency range is the notable specification: 5.15 to 6.875 GHz in one antenna. That spans the whole of 5 GHz plus the lower 6 GHz band, so the same dish serves existing 5 GHz links and newer 6 GHz radios without restocking. Gain is 30 dBi with dual-linear polarisation and 20 dB cross-pol isolation, which is what allows two polarisations to run on the same channel without interfering.

Beamwidth is 5 to 6° at 3 dB, narrowing to 6.5 to 8° at 6 dB, in both azimuth and elevation. A beam that tight is the source of the gain and also the reason the mount matters: a couple of degrees of drift and the link degrades. Ubiquiti supplies a precision alignment bracket in the box with ±15° of mechanical elevation adjustment, taking pole diameters from 40 to 90 mm.

Structurally it is built for a mast: powder-coated galvanised steel and UV-stabilised polycarbonate, IPX6 rated, surviving wind to 200 km/h with 860 N of wind loading at that speed. That last figure is the one to hand your structural engineer — a 650 mm dish presents real sail area, and the tower has to carry it. The dish is 4.54 kg and the mount another 3.1 kg. Australian stock from ARC IP Networks.

Frequently Asked Questions

What frequencies does the UISP Dish cover?

5.15 to 6.875 GHz, spanning the 5 GHz band and the lower 6 GHz band in a single antenna.

What is the gain and link range?

30 dBi of gain, with a point-to-point link range Ubiquiti states as 30+ km.

Is the mount included?

Yes. A precision alignment bracket is included, with ±15° of mechanical elevation adjustment, taking pole diameters from 40 to 90 mm.

How much does it weigh?

The dish is 4.54 kg and the mount a further 3.1 kg.

What wind loading does it present?

860 N at 200 km/h, and it survives wind up to 200 km/h. Confirm the mast can carry that load.

What is the beamwidth?

5 to 6° at 3 dB in both azimuth and elevation, and 6.5 to 8° at 6 dB. Precise alignment is essential at this beamwidth.

Do I need two?

Yes, for a point-to-point link — one dish at each end, each fitted to a compatible radio.

Is it weatherproof?

Rated IPX6, in powder-coated galvanised steel with UV-stabilised polycarbonate.

Brand UBIQUITI
Form Factor 650 mm Dish
Network Connectivity Wireless PtP Antenna
Data Rate 30 dBi Gain, 5.15-6.875 GHz
Weatherproofing IPX6
