EAV-XG-24-PoE
Ubiquiti UniFi Switch Enterprise Audio/Video XG 24 PoE — (24) 10G PoE+++ Ports, (4) 100G QSFP28 Uplinks, 2,150W PoE Budget, SMPTE ST 2110 / SDVoE / AES67
💼

Deal Registration Required

The Ubiquiti EAV-XG-24-PoE ships under Ubiquiti’s deal-registration program for project pricing and deployment support. Please contact ARC IP Networks before ordering to register the deal, confirm lead time, and unlock project pricing.

EAV-XG-24-PoE
EAV-XG-24-PoE
EAV-XG-24-PoE
Key Features
  • (24) 10G RJ45 ports, every port PoE+++ (802.3bt, up to 90W per port)
  • (4) 100G QSFP28 uplinks (100G/40G) for aggregation-grade backhaul
  • 2,150W total PoE availability in shared mode with dual hot-swappable 1,200W PSUs
  • Deterministic AV timing: PTP with high-precision OCXO clock and GPS grandmaster input (SMA)
  • Broadcast and pro-AV standards: SMPTE ST 2110, SDVoE, AES67 audio
  • 1,280 Gbps switching capacity, 640 Gbps non-blocking throughput, 810 Mpps forwarding
  • (2) hot-swappable PSUs + (4) hot-swappable fan modules, 1.3" touchscreen LCM
  • Layer 3: 512 IPv4 static routes, 1,000 VLANs, 32,000 MAC table

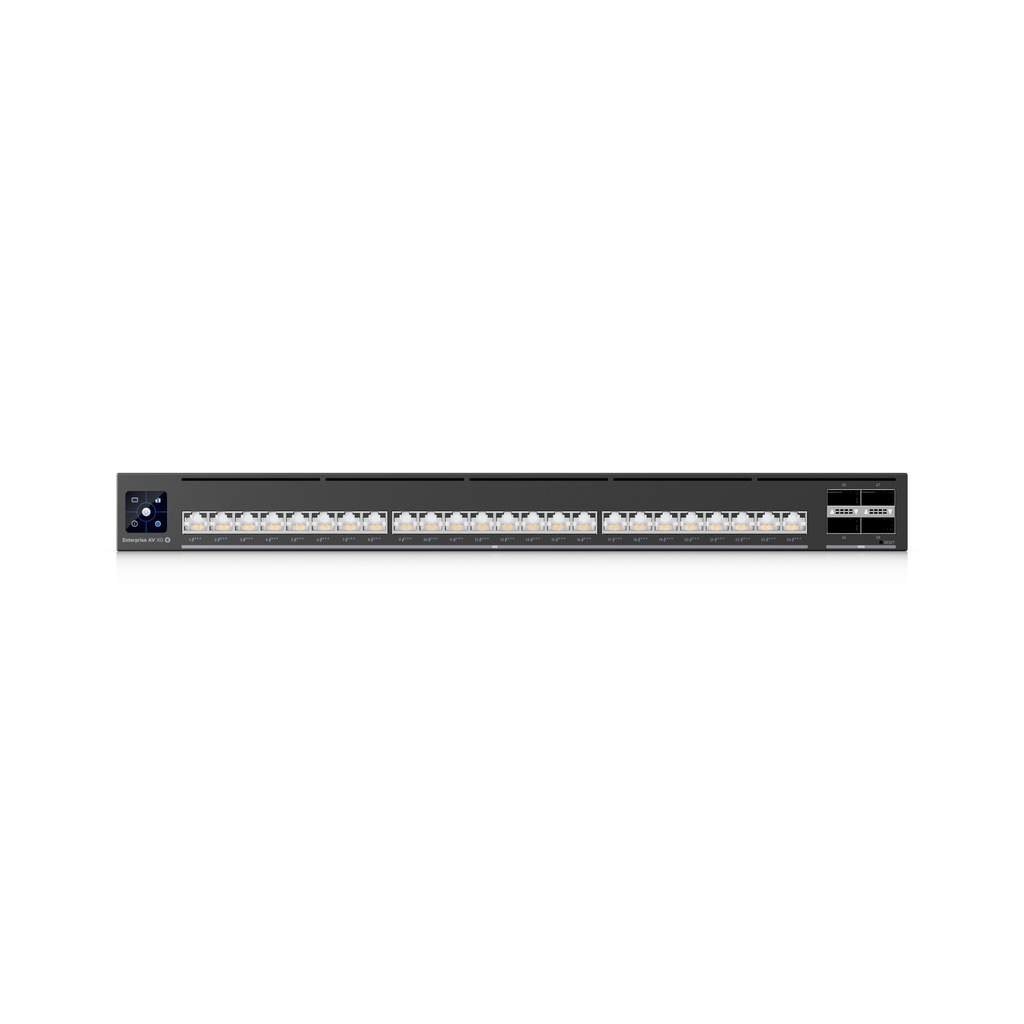

Interfaces
10 GbE RJ45 (PoE+++)24 — 10G/5G/2.5G/1G/100M/10M
100G QSFP284 — 100G/40G
1 GbE RJ451 (management)
Console / SMA1 / 1 (GPS grandmaster input)
Performance
Switching Capacity1,280 Gbps
Non-Blocking Throughput640 Gbps
Forwarding Rate810 Mpps
VLANs / MAC Table1,000 / 32,000
IPv4 Static Routes512
Packet Buffer8 MB
PoE
PoE StandardPoE+++ 802.3bt (90W max per port) on all 24 ports
Total PoE Budget2,150W (200-240V AC shared) / 1,850W (100-120V) / 1,050W (redundant)

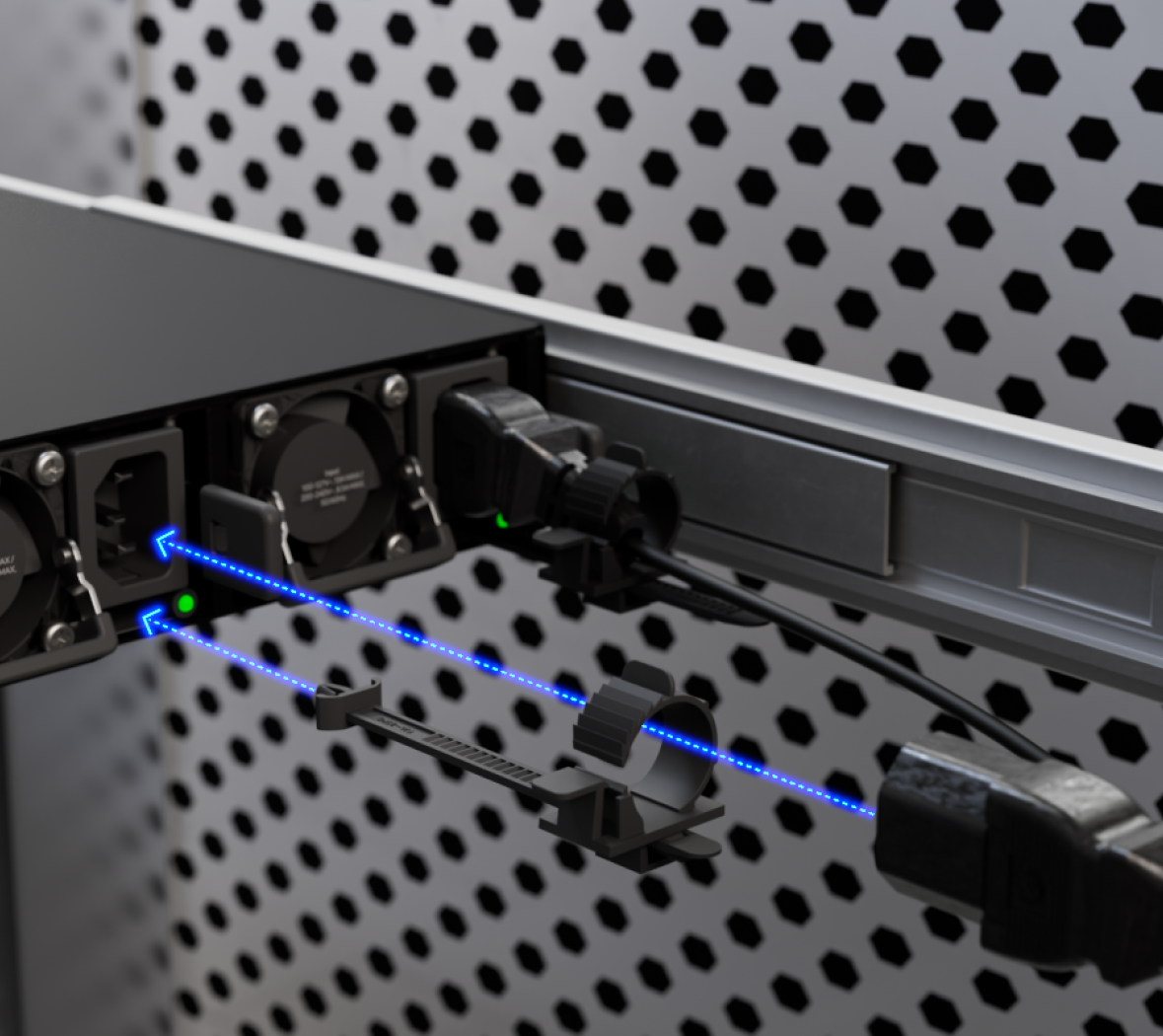

Power Supplies(2) hot-swappable 1,200W AC/DC modules
Hardware

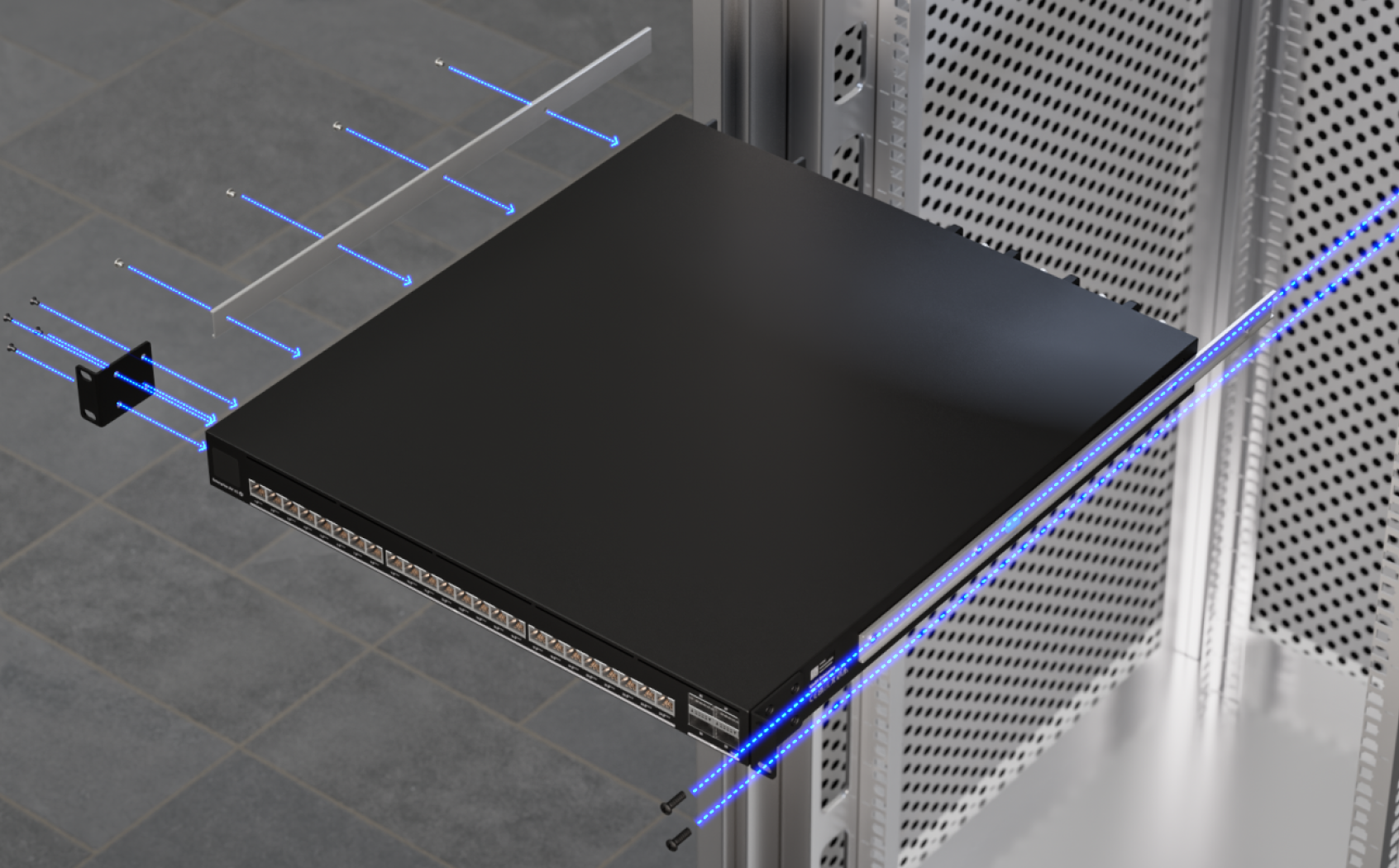

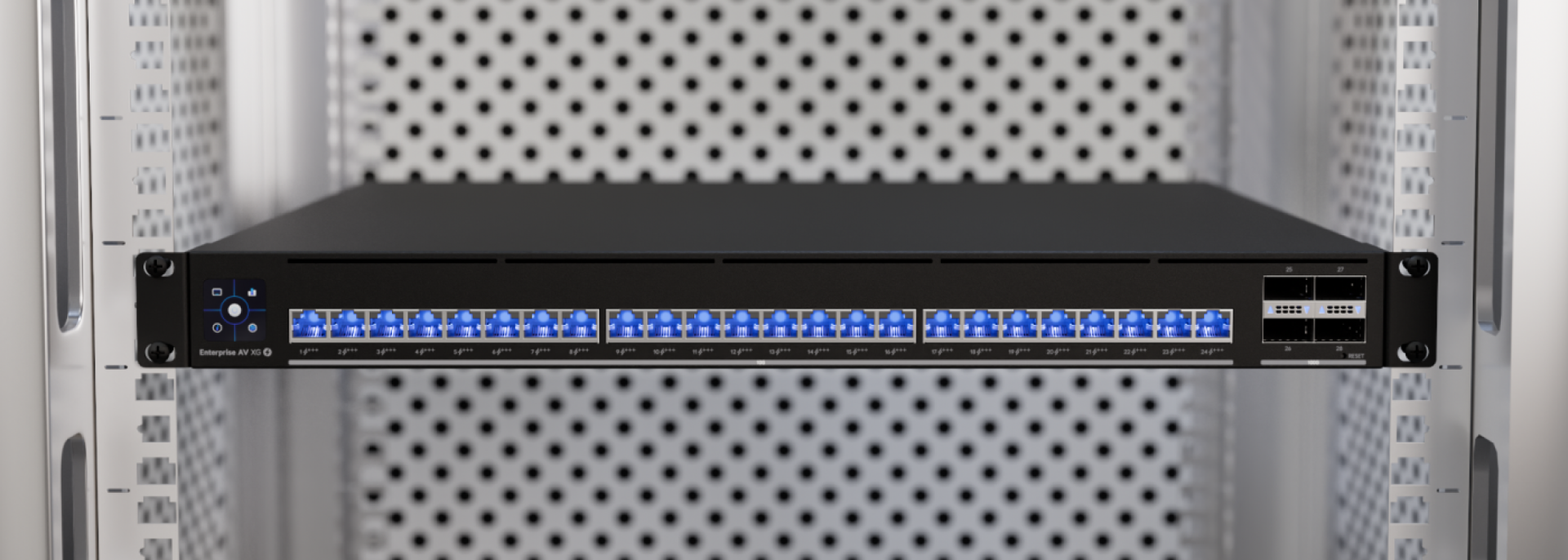

Form FactorRack Mount, 1U full-depth (442.4 x 480 x 43.7 mm)
Weight9.85 kg (9.95 kg with brackets)
Max Power Consumption150W excl. PoE / 2,400W incl. PoE
Cooling(4) hot-swappable fan modules
Display1.3" touchscreen
Operating Range-5 to 40°C, 10-90% RH
CertificationsCE, FCC, IC
Professional Overview

The Ubiquiti EAV-XG-24-PoE is the flagship of the UniFi Enterprise Audio/Video line: a 1U, full-depth 24-port 10G switch engineered specifically for professional AV-over-IP deployments. All 24 RJ45 ports deliver multi-gigabit rates from 10M to 10G with PoE+++ (802.3bt) on every port, powering cameras, encoders, decoders and amplified endpoints at up to 90W each from a 2,150W shared PoE budget backed by dual hot-swappable 1,200W supplies.

What separates the EAV-XG from general-purpose switches is its timing architecture. A high-precision OCXO oscillator drives PTP timing, and a dedicated SMA input accepts an external GPS grandmaster reference, enabling the deterministic synchronisation that SMPTE ST 2110 broadcast video, SDVoE distribution and AES67 networked audio demand. For venues, studios, stadiums and command centres, this means frame-accurate video walls and sample-accurate audio without a separate timing appliance.

Backhaul is handled by four 100G QSFP28 uplinks (also supporting 40G), giving the platform 1,280 Gbps of switching capacity, 640 Gbps of non-blocking throughput and an 810 Mpps forwarding rate. Layer 3 capability covers 512 IPv4 static routes and 1,000 VLANs with a 32,000-entry MAC table, so AV traffic can be segmented and routed at line rate alongside control networks.

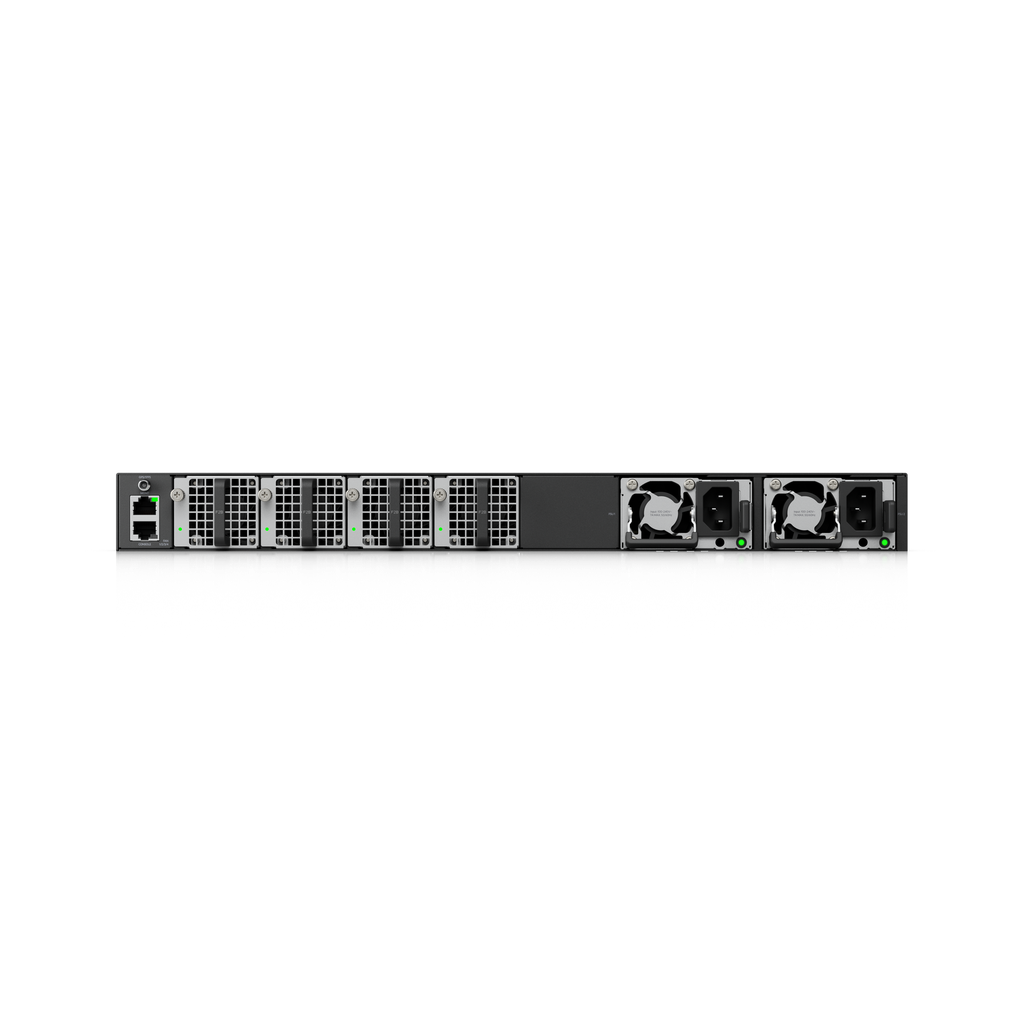

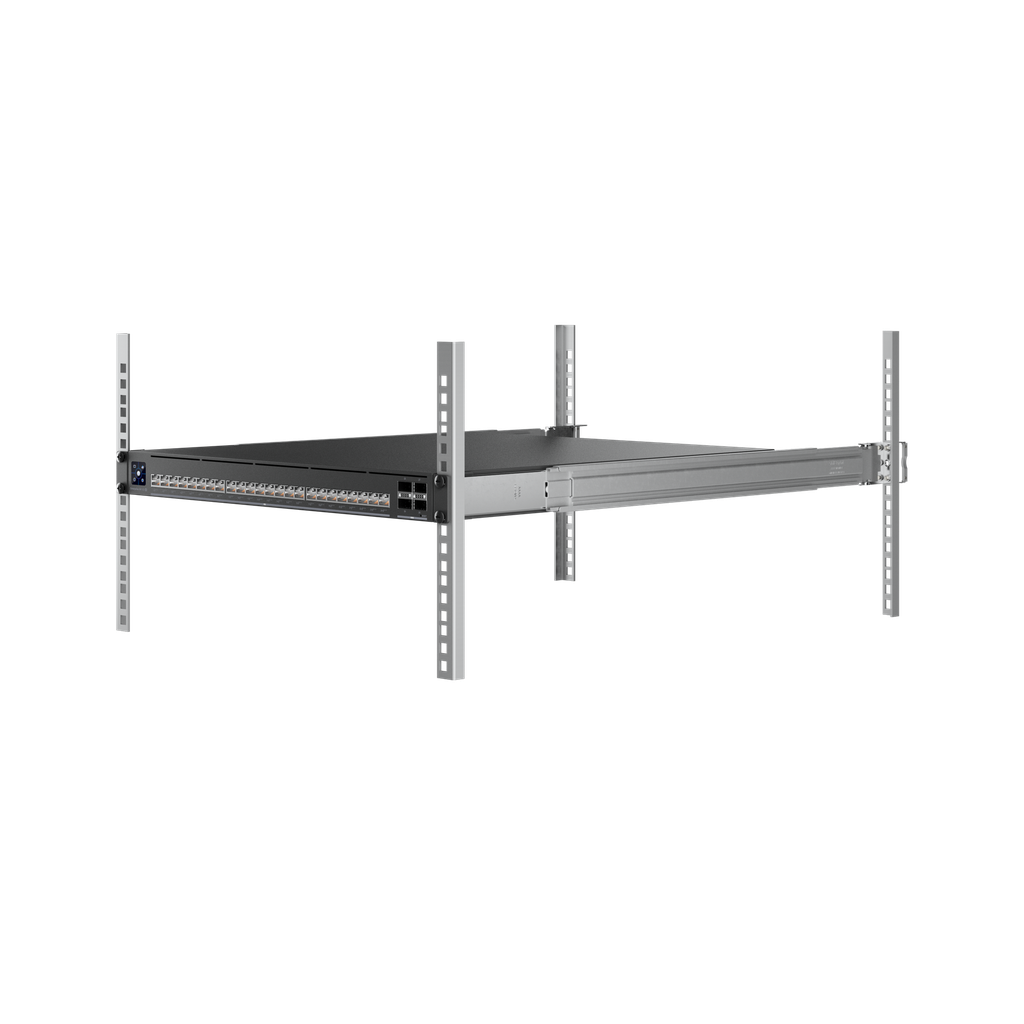

Serviceability is enterprise-grade throughout: hot-swappable PSUs and four hot-swappable fan modules, a 1.3" touchscreen for on-device status, SGCC steel enclosure, and support for standard 19" four-post racks. The EAV-XG-24-PoE ships under Ubiquiti’s deal-registration program — contact ARC IP Networks to register your project and confirm lead time on Australian stock.

Switching Capacity 1,280 Gbps
Network Layer Layer 3
Form Factor Rack Mount (1U)
Port Speed (24) 10G PoE+++ + (4) 100G QSFP28 + (1) GbE
Ports 24 Ports
Network Connectivity Wired
Uplink 4 x 100G QSFP28
PoE Specification PoE+++ 802.3bt / 2,150W Budget
Brand UBIQUITI
