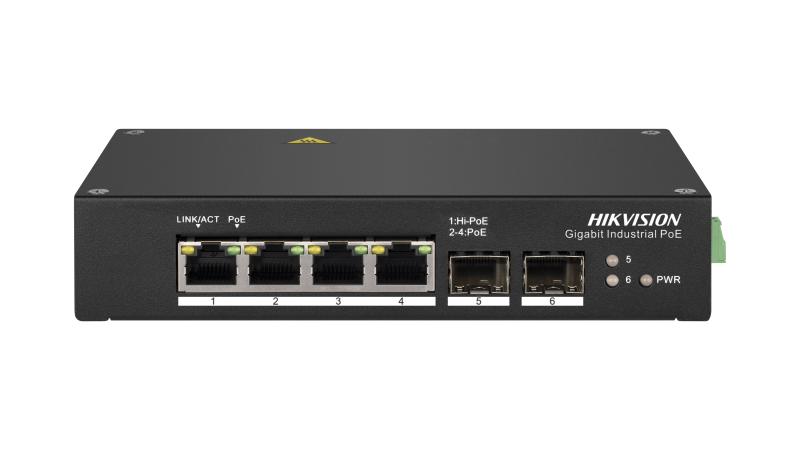

Hikvision DS-3T0506HP 4-Port Gigabit Industrial Unmanaged Hi-PoE Switch

Price:

111.32


Hikvision DS-3E0310HP-E 8-Port Fast Ethernet Unmanaged PoE Switch
Hikvision DS-3E0310HP-E 8-Port Fast Ethernet Unmanaged PoE Switch
159.56
159.56
Hikvision DS-3T0510HP 8-Port Gigabit Industrial Unmanaged Hi-PoE Switch
Hikvision DS-3T0510HP 8-Port Gigabit Industrial Unmanaged Hi-PoE Switch
196.08
196.08

Hikvision DS-3T0506HP 4-Port Gigabit Industrial Unmanaged Hi-PoE Switch

https://arcip.com.au/web/image/product.template/9978/image_1920?unique=0503dfe

111.32 111.32 AUD 111.32 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
DS-3T0506HP
At a glance

The Hikvision DS-3T0506HP is a 4-port gigabit industrial Hi-PoE switch built for harsh outdoor and plant-room sites. All four ports are full gigabit, port 1 delivers 90 W Hi-PoE, and two SFP fibre ports carry the uplink over long distances. Fanless aluminium body rated −40 to 75 °C, DIN-rail mount.

Device type
Unmanaged PoE switch
Ports
4 × gigabit PoE + 2 × gigabit SFP fibre
PoE budget
110 W total
PoE standard
802.3af / 802.3at / 802.3bt
Power per port
Port 1: up to 90 W Hi-PoE; ports 2–4: up to 30 W
Management
Unmanaged industrial, plug-and-play
Switching capacity
12 Gbps switching
MAC address table
2 K
Long-range PoE
Up to 300 m (varies with camera and cable)
PoE watchdog
Not available on this model
Power input
External DC 48–57 V (industrial DIN-rail PSU), max 120 W
Construction
Rugged aluminium, fanless, DIN-rail or desktop
Operating temperature
−40 to 75 °C
Dimensions / weight
158 × 101.2 × 31.6 mm, 0.38 kg
Surge protection
6 kV on PoE ports
Compliance
RCM approved (AS/NZS CISPR 32:2015)
Warranty
Australian warranty via ARC IP Networks

Key Features

4 Gig PoE + 2 SFP
110 W / 90 W Hi-PoE
−40 to 75 °C
Fibre Uplinks

Why choose the DS-3T0506HP

The Hikvision DS-3T0506HP is for cameras in places a plastic switch would not survive — a roadside cabinet, a factory floor, an unconditioned plant room. Its aluminium fanless body runs from −40 to 75 °C with no moving parts to fail, and it mounts on a DIN rail alongside other industrial gear. Four gigabit PoE ports (port 1 at 90 W Hi-PoE) feed the cameras, and two SFP fibre ports carry the link back over distances copper cannot reach. It needs an industrial DC power supply, sold separately. Supplied and supported by ARC IP Networks, an authorised Australian Hikvision reseller, with genuine stock, Australian warranty and local support.

Best for

  • Simple camera systems: plug-and-play, nothing to configure.
  • Hi-PoE devices: a 90 W port for a PTZ or heated housing.
  • Long cable runs: 300 m long-range PoE reaches distant cameras.
  • Harsh environments: fanless aluminium, −40 to 75 °C, DIN-rail.

Who it’s for

Installers

Genuine AU stock, warranty, and the right PoE budget for the job.

Small business

A complete camera system on one switch.

Trade & industrial

Yards, workshops and sites that need rugged or Hi-PoE.

Multi-site operators

Remote management and monitoring where fitted.

How it compares

All Hikvision PoE switches share 300 m long-range transmission and 6 kV surge protection. The choice comes down to port count, gigabit vs Fast Ethernet, Hi-PoE, and managed vs unmanaged.

FeatureDS-3E0103DP-E/R1-portDS-3E0310HP-E8-portDS-3T0506HPThis switchDS-3T0510HP8-port
PoE ports1848
Port speedFast EthernetFast EthernetGigabitGigabit
PoE budget30 W total110 W total110 W total110 W total
Hi-PoE (90 W)YesYesYes
ManagementUnmanagedUnmanagedUnmanaged
PoE watchdog
Fibre SFPYesYes
Industrial (−40–75°C)YesYes
MountingDesktopDesktopDIN-railDIN-rail

PoE watchdog is available on the smart-managed (-EI) models only. Hi-PoE ports deliver up to 90 W (802.3bt).

Complete your system

Pair this switch with Hikvision or HiLook PoE cameras and an NVR for a complete system. Count each camera’s wattage against the PoE budget, and leave a port or two spare for growth.

Browse cameras →

Part of the Hikvision range

Authorised Australian Hikvision reseller — explore the range and guides:

RecordersCamerasBullet camerasWhere to buy

Frequently asked questions

It has a 110 W total PoE budget. A typical HiLook or Hikvision turret draws about 6.5 W, so the budget comfortably runs its full complement of ports — roughly 4 standard cameras. High-draw cameras (PTZ, heated housings) use more, so count their wattage against the budget rather than the port count.

Yes. Port 1: up to 90 W Hi-PoE; ports 2–4: up to 30 W. The 802.3bt Hi-PoE ports supply up to 90 W, enough for pan-tilt-zoom cameras, heated housings and other high-draw devices that standard 30 W PoE cannot run.

No. This model does not include the PoE watchdog auto-recovery feature — that is on the smart-managed Hikvision switches (the -EI models). This switch simply supplies power and data.

No — it is unmanaged and plug-and-play. Connect the cameras and the uplink and it works; there is nothing to configure. If you later need VLANs or remote management, the smart-managed -EI models add that.

Standard Ethernet stops at 100 m. In long-range mode this switch can power and connect a camera up to 300 m away over a single cable run — useful for a far gate or car park. Hikvision notes the reach varies with the camera model and cable condition.

In places a standard switch would fail — roadside cabinets, factory floors, unheated plant rooms, exposed poles. Its fanless metal body runs −40 to 75 °C with no moving parts, and it mounts on a DIN rail alongside other industrial equipment.

Yes. It is a standard PoE switch and works with any IEEE 802.3af/at/bt powered camera — Hikvision, HiLook or third-party — and connects to any NVR or network over its uplink or fibre SFP ports.

Yes — it is RCM approved to AS/NZS CISPR 32:2015, supplied as genuine Australian stock with warranty and support from ARC IP Networks.
