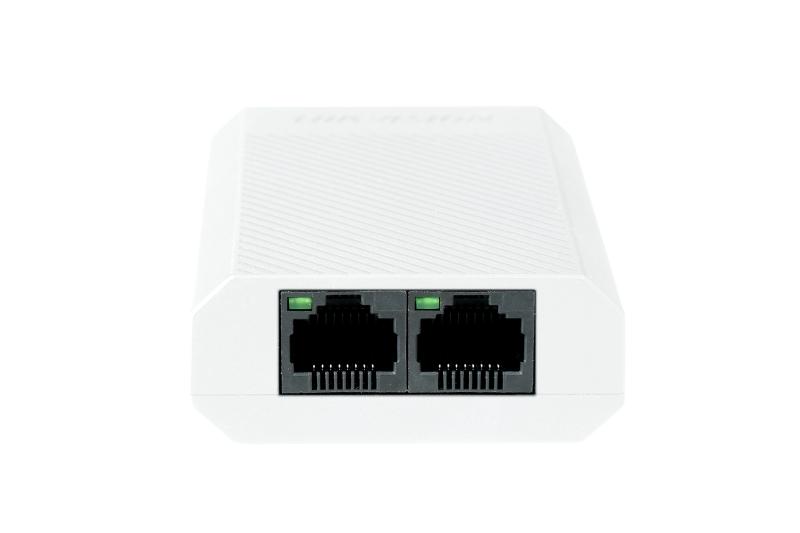

Hikvision DS-3E0103DP-E/R 2-Port 100M PoE Repeater/Extender

Price:

22.77


MikroTik HS-85DLC05D 1G/2.5G Multimode SFP Module (550m, 850nm)
MikroTik HS-85DLC05D 1G/2.5G Multimode SFP Module (550m, 850nm)
29.15
29.15
Hikvision DS-3E0310HP-E 8-Port Fast Ethernet Unmanaged PoE Switch
Hikvision DS-3E0310HP-E 8-Port Fast Ethernet Unmanaged PoE Switch
159.56
159.56

Hikvision DS-3E0103DP-E/R 2-Port 100M PoE Repeater/Extender

https://arcip.com.au/web/image/product.template/9976/image_1920?unique=0503dfe

22.77 22.77 AUD 22.77 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
DS-3E0103DP-E-R
At a glance

The Hikvision DS-3E0103DP-E/R is a PoE repeater — not a switch. It takes one PoE feed from an existing switch and extends it to two more cameras further down the line, regenerating both power and data so you can push past the usual 100 m Ethernet limit. Fully passive: no configuration, no separate power supply.

Device type
PoE repeater / extender
Ports
1 × PoE-in + 2 × PoE-out, all 10/100 Mbps (Fast Ethernet)
PoE budget
30 W total
PoE standard
802.3af / 802.3at
Power per port
Up to 30 W per port
Management
Unmanaged, plug-and-play
Switching capacity
0.6 Gbps switching
MAC address table
2 K
Long-range PoE
Not applicable
PoE watchdog
Not available on this model
Power input
PoE-powered by the upstream switch (no separate PSU) — draws just 1.2 W
Construction
Plastic, fanless, desktop
Operating temperature
0 to 40 °C
Dimensions / weight
79 × 22 × 53 mm, 46 g
Surge protection
2 kV
Compliance
RCM not stated by Hikvision for this model
Warranty
Australian warranty via ARC IP Networks

Key Features

1 PoE-in / 2 PoE-out
30 W Passthrough
Plug-and-Play

Why choose the DS-3E0103DP-E/R

The Hikvision DS-3E0103DP-E/R solves one specific problem: a camera that sits beyond 100 m from the switch. Standard Ethernet stops at 100 m; this repeater takes an incoming PoE feed, regenerates it, and hands it on to up to two cameras, extending the run by another segment. It draws its own power from the feed, so there is nothing to plug in and nothing to configure — it simply goes inline on the cable. Note it passes 30 W total, which suits standard cameras rather than high-draw PTZs. Supplied and supported by ARC IP Networks, an authorised Australian Hikvision reseller, with genuine stock, Australian warranty and local support.

Compliance note. Hikvision’s datasheet for this exact model does not list RCM/AS-NZS certification, so we do not claim it. Ask us if AU compliance documentation is required for your project.

Best for

  • Cameras beyond 100 m: extends a PoE run past the standard Ethernet limit.
  • Retrofits: reach a new camera position without pulling a fresh cable to the switch.
  • No power at the mid-point: fully powered by the existing feed.

Who it’s for

Installers

Genuine AU stock, warranty, and the right PoE budget for the job.

Small business

A complete camera system on one switch.

Trade & industrial

Yards, workshops and sites that need rugged or Hi-PoE.

Multi-site operators

Remote management and monitoring where fitted.

How it compares

All Hikvision PoE switches share 300 m long-range transmission and 6 kV surge protection. The choice comes down to port count, gigabit vs Fast Ethernet, Hi-PoE, and managed vs unmanaged.

FeatureDS-3E0103DP-E/RThis switchDS-3E0310HP-E8-portDS-3T0506HP4-portDS-3T0510HP8-port
PoE ports1848
Port speedFast EthernetFast EthernetGigabitGigabit
PoE budget30 W total110 W total110 W total110 W total
Hi-PoE (90 W)YesYesYes
ManagementUnmanagedUnmanagedUnmanaged
PoE watchdog
Fibre SFPYesYes
Industrial (−40–75°C)YesYes
MountingDesktopDesktopDIN-railDIN-rail

PoE watchdog is available on the smart-managed (-EI) models only. Hi-PoE ports deliver up to 90 W (802.3bt).

Complete your system

Pair this switch with Hikvision or HiLook PoE cameras and an NVR for a complete system. Count each camera’s wattage against the PoE budget, and leave a port or two spare for growth.

Browse cameras →

Part of the Hikvision range

Authorised Australian Hikvision reseller — explore the range and guides:

RecordersCamerasBullet camerasWhere to buy

Frequently asked questions

A PoE repeater extends one existing PoE connection further down the cable — it regenerates power and data so you can push a camera past the 100 m Ethernet limit. It does not add independent switch ports; it takes one feed in and passes it to up to two cameras. For a set of cameras each needing their own port, you need a PoE switch.

It adds another cable segment beyond the switch’s 100 m. Hikvision does not publish an exact total distance for this model, and reach depends on cable quality — ask us if you need a specific run confirmed.

No. It is powered by the PoE feed itself and draws only 1.2 W, so it goes inline on the cable with nothing extra to plug in.

Yes. It is a standard PoE switch and works with any IEEE 802.3af/at powered camera — Hikvision, HiLook or third-party — and connects to any NVR or network over its uplink.
