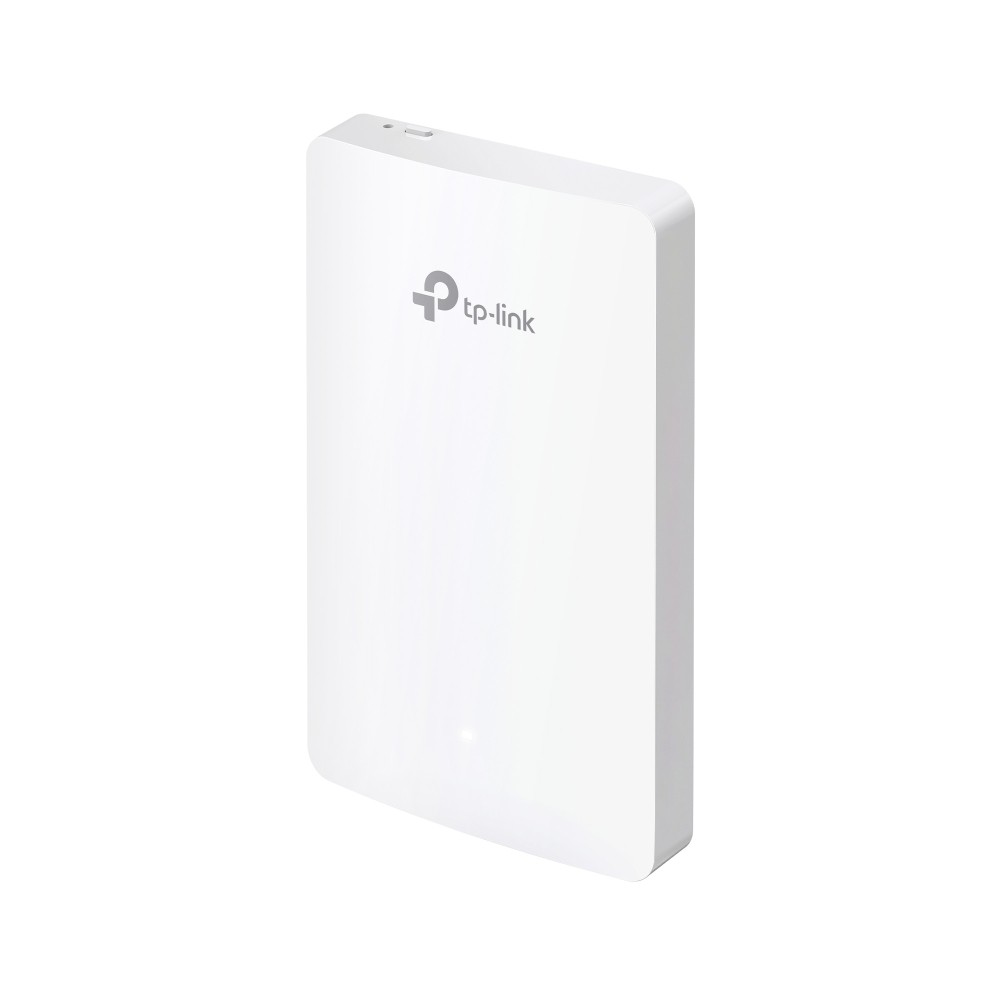

TP-Link EAP615-Wall Omada AX1800 Wi-Fi 6 Wall Plate Access Point with PoE Pass-Through

https://arcip.com.au/web/image/product.template/8066/image_1920?unique=874d354

The TP-Link EAP615-Wall (V1.20 in Australia) is an Omada AX1800 wall plate Wi-Fi 6 access point that mounts over a standard wall plate to deliver dedicated in-room Wi-Fi for hotels, dorms, offices and apartments. It provides 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz with MU-MIMO, OFDMA and 1024-QAM, corner-to-corner coverage of up to 50 m² and 120+ concurrent clients. One Gigabit uplink takes 802.3af/at PoE, and three Gigabit downlink ports serve wired devices, with one supporting PoE pass-through (requires 802.3at input; up to 13 W EU / 12 W US). Up to 16 SSIDs, WPA3, captive portal, mesh and seamless roaming are supported with Omada SDN.

$ 146.44 146.44 AUD $ 146.44 incl. GST

Not Available For Sale


  • Brand
  • WiFi Standard

This combination does not exist.

In stock online
WiFi 6 Access Point TP-Link Omada
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
EAP615-WALL
Barcode
4897098683606
Tags

The TP-Link EAP615-Wall is an Omada AX1800 Wi-Fi 6 wall plate access point that gives each room its own Wi-Fi and wired ports. It delivers 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, covers up to 50 m² with 120+ concurrent clients, and has one Gigabit PoE uplink plus three Gigabit downlink ports, one of which passes PoE through to a device such as an IP phone. It runs on 802.3af/at PoE and is managed through Omada SDN.

EAP615-Wall overview

The EAP615-Wall is TP-Link's Omada AX1800 wall plate Wi-Fi 6 access point, shown as V1.20 on the Australian page. TP-Link positions it as the ideal choice for an entry-level Wi-Fi 6 solution and as a way to give a dedicated, complete and private Wi-Fi network to each room. Rather than one ceiling AP covering several rooms through walls, the EAP615-Wall sits in the room itself, mounted on the wall plate, with guaranteed strong signals and corner-to-corner coverage of up to 50 m² (600 ft²) according to TP-Link. Coverage is calculated from laboratory testing and actual coverage will vary with client limitations and environmental factors. It supports 120+ concurrent connections.

Wi-Fi is dual-band Wi-Fi 6 (802.11ax/ac/n/g/b/a): up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, through dual-band antennas rated at 3 dBi on 2.4 GHz and 4 dBi on 5 GHz. OFDMA lets multiple devices share channels efficiently, MU-MIMO supports more simultaneous connections, and 1024-QAM gives 25% faster data rates than Wi-Fi 5, according to TP-Link. Wireless functions include up to 16 SSIDs (eight per band), automatic channel assignment, transmit power control, WMM QoS, beamforming, rate limits, load balance, airtime fairness, band steering, schedules, RADIUS accounting and MAC authentication.

The ports are what set a wall plate AP apart. The EAP615-Wall has one Gigabit Ethernet uplink port that takes 802.3af/at PoE, and three Gigabit Ethernet downlink ports for wired devices such as smart TVs, computers or IP phones. One downlink supports PoE pass-through (pins 1,2+ and 3,6-), which requires 802.3at PoE input; TP-Link lists a maximum pass-through output of 13 W for the EU version or 12 W for the US version, based on laboratory testing. Maximum power consumption with PoE out off is 10 W (EU) or 11.5 W (US). A physical security lock is supported, and the slim housing measures 143 x 86 x 19.7 mm and weighs 0.22 kg according to the datasheet. Operating temperature is 0 to 40 °C, and the package contains the access point, mounting kit and installation guide.

For management the EAP615-Wall supports one-click setup with Omada SDN and centralised management through an Omada hardware controller, Omada software controller or the Omada cloud-based controller, plus the Omada app. Cloud access requires an Omada controller and zero-touch provisioning requires the Omada cloud-based controller. Omada mesh, seamless roaming with 802.11k/v/r and captive portal also require a controller, and the datasheet lists Omada Controller and Omada Essential V5.14.25 and above and Omada App V4.24 and above. Security covers access control, MAC filtering, wireless client isolation, VLAN, rogue AP detection, 802.1X and WPA/WPA2/WPA3 Personal and Enterprise. Standalone management includes HTTP/HTTPS web management, SSH, SNMP v1/v2c/v3, local and remote syslog, L3 and multi-site management, a management VLAN and LED control. It is CE and FCC certified.

Key features

In-room Wi-Fi 6

AX1800: 1201 Mbps on 5 GHz plus 574 Mbps on 2.4 GHz, with OFDMA and 1024-QAM.

Corner-to-corner coverage

Up to 50 m² per room (lab tested) and 120+ concurrent clients.

Three Gigabit downlinks

Wire in TVs, PCs or phones next to the AP.

PoE pass-through

One downlink powers a device; requires 802.3at input, up to 13 W (EU) / 12 W (US).

802.3af/at PoE powered

Single Gigabit uplink for power and data; 10 W (EU) maximum with PoE out off.

Wall plate design

Slim 143 x 86 x 19.7 mm housing with a physical security lock.

Mesh and roaming

Omada mesh and 802.11k/v/r seamless roaming via an Omada controller.

Omada SDN

Hardware, software or cloud-based controller with zero-touch provisioning.

EAP615-Wall specifications

At a glance

AX1800 Wi-Fi 6
1201 + 574 Mbps
Up to 50 m²
120+ clients
1 x Gigabit PoE uplink
3 x Gigabit downlinks
PoE pass-through
Omada SDN
EAP615-Wall full specifications
Hardware Features
InterfaceUplink: 1× Gigabit Ethernet Port; Downlink: 3× Gigabit Ethernet Ports (One port supports PoE pass-through.)
Physical Security LockYes
ButtonReset
Power Supply802.3af/at PoE
PoE OutPassthrough (Pins 1,2+; 3,6-) The PoE pass-through feature requires 802.3at PoE input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.
Max. Power ConsumptionEU: 10W (802.3at PoE, PoE Out off); US: 11.5W (802.3at PoE, PoE Out off)
Dimensions ( W x D x H )5.6 × 3.4 × 0.8 in (143 × 86 × 19.7 mm)
AntennaDual-Band Antennas:; 2.4 GHz: 2× 3 dBi; 5 GHz: 2× 4 dBi
MountingWall Plate Mounting
Management Features
Omada AppYes
Centralised ManagementOmada Hardware Controller; Omada Software Controller; Omada Cloud-Based Controller
Cloud AccessYes. Require the use of an Omada controller.
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller.
Wireless Features
Coverage600 ft² (50㎡)
Concurrent Clients120+
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal Rate5 GHz: Up to 1201 Mbps; 2.4 GHz: Up to 574 Mbps
Wireless Functions16 SSIDs (Up to 8 SSIDs on each band); Enable/Disable Wireless Radio; Automatic Channel Assignment; Transmit Power Control (Adjust Transmit Power on dBm); QoS(WMM); Omada Mesh; Seamless Roaming(802.11k/v/r); Beamforming; MU-MIMO; Rate Limit; Load Balance; Airtime Fairness; Band Steering; Reboot Schedule; Wireless Schedule; RADIUS Accounting; MAC Authentication; Wireless Statistics; Static IP/Dynamic IP
Wireless SecurityCaptive Portal Authentication; Access Control; Wireless Mac Address Filtering; Wireless Isolation Between Clients; VLAN; Rogue AP Detection; 802.1X Support; WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission PowerCE: 7-24 dBm (2.4 GHz, EIRP) 7-24 dBm (5 GHz, U-NII-1, U-NII-2A, EIRP) 7-24 dBm(5 GHz, U-NII-2C, EIRP); FCC: 4-21 dBm (2.4 GHz) 4-21 dBm (5 GHz, U-NII-1, U-NII-2A, U-NII-2C, U-NII-3)
Others
CertificationCE, FCC
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux
EnvironmentOperating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). Some features run only in Standalone Mode or only under an Omada Controller; throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • EAP615-Wall
  • Installation Guide
  • Mounting Kit

Source: TP-Link's published package contents.

Who the EAP615-Wall is for

Hotels and student housing

  • Dedicated Wi-Fi in each room
  • Wired ports for TVs and PCs
  • Captive portal for guests

Rooms with IP phones

  • PoE pass-through on one downlink
  • Requires 802.3at input
  • Single cable to the wall plate

Managed multi-room sites

  • Omada mesh and seamless roaming
  • Up to 16 SSIDs
  • Zero-touch provisioning

EAP615-Wall compared

The EAP615-Wall and EAP615GP-Wall share the same AX1800 Wi-Fi 6 radio class and 50 m² coverage rating. The EAP615-Wall is fed by Ethernet with PoE and has three downlink ports; the EAP615GP-Wall is fed by GPON fibre, is mains powered and adds an FXS phone port.

SpecificationEAP615-WallEAP615GP-Wall
Wi-FiAX1800, 1201 + 574 MbpsAX1800, 1201 + 574 Mbps
Uplink1 x Gigabit Ethernet (PoE in)1 x GPON (SC/APC)
Wired downlinks3 x Gigabit (1 with PoE pass-through)2 x Gigabit
Phone portNot listed1 x FXS
Power802.3af/at PoE100-240 V AC
Coverage / clients50 m² / 120+50 m² / 120+
Depth19.7 mm37.6 mm

Source: TP-Link Australia product pages for each model.

Buy the EAP615-Wall from ARC IP Networks

ARC IP Networks supplies TP-Link Omada products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • New TP-Link Omada product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the EAP615-Wall from the ARC IP Networks team.

Last reviewed October 2026.

An Omada AX1800 Wi-Fi 6 access point that mounts on a wall plate, giving each room its own Wi-Fi plus three Gigabit wired ports.

Up to 50 m² (600 ft²), corner to corner, based on TP-Link laboratory testing. It supports 120+ concurrent clients.

By 802.3af/at PoE on its Gigabit uplink port. No power adapter is listed in the box.

Yes. One of the three downlink ports supports PoE pass-through, which needs 802.3at PoE input. TP-Link lists up to 13 W (EU version) or 12 W (US version).

One Gigabit uplink and three Gigabit downlink ports.

AX1800 Wi-Fi 6: up to 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

Yes. Omada mesh and 802.11k/v/r seamless roaming are supported and require an Omada controller.

The EAP615-Wall is fed by Ethernet and powered by PoE, with three downlinks and PoE pass-through. The EAP615GP-Wall is fed by GPON fibre, powered from mains and has two Gigabit ports plus an FXS port.
