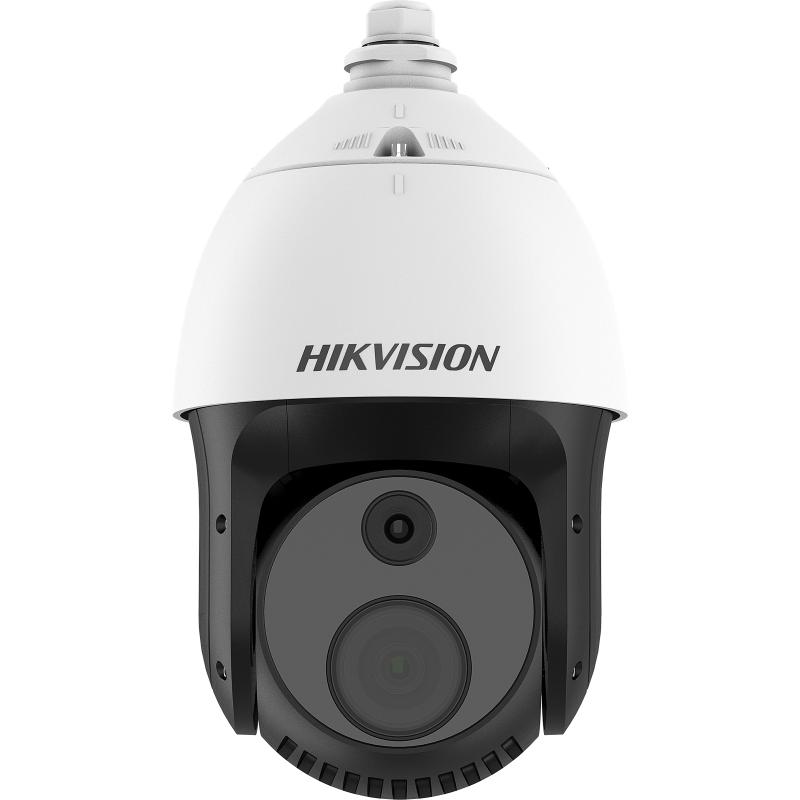

Hikvision DS-2TD4228T-10-S2 Thermographic Bi-Spectrum PTZ Speed Dome, 256 × 192 Thermal 10 mm, 4 MP 32× Optical Zoom

https://arcip.com.au/web/image/product.template/11143/image_1920?unique=d95db27
  • 256 × 192 thermal (NETD ≤35 mK) + 4 MP 32× optical PTZ
  • Temperature measurement −20 to 550 °C, accuracy max ±2 °C / ±2%
  • Dynamic fire detection (10 points), smoke detection, smart tracking
  • 100 m IR, IP66, Hi-PoE / 24 VAC / 36–48 VDC (max 30 W)

$ 3,998.64 3998.64 AUD $ 3,998.64 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Hikvision 4MP Thermal Bi-Spectrum Fire Detection PTZ
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2TD4228T-10-S2
Barcode
6942160446295
Tags

Key Features

256×192
Thermal VOx 12 μm
32× Optical Zoom 4 MP
−20 to 550 °C
Fire & Smoke Detection
360° Pan, Smart Tracking
100 m IR
IP66, 6000 V TVS
Hi-PoE
Hi-PoE / 24 VAC
At a glance

The Hikvision DS-2TD4228T-10/S2 is a thermographic bi-spectrum PTZ speed dome: a 256 × 192 thermal camera (10 mm, NETD ≤35 mK) measuring −20 °C to 550 °C, beside a 4 MP 32× optical zoom camera. It runs fire and smoke detection, perimeter rules and smart tracking across up to 273 preset scenes. Part of the Hikvision PTZ range.

Thermal sensor
256 × 192 VOx, 12 μm
Thermal lens
10 mm, 18.1° × 13.6°
NETD
≤35 mK
Optical camera
4 MP, 1/2.8″, 32× (4.8–153 mm)
Temperature range
−20 °C to 550 °C
Accuracy
Max (±2 °C, ±2%)
Pan / tilt
360° continuous / −5° to 90°
Power / rating
Hi-PoE, 24 VAC, 36 or 48 VDC; max 30 W; IP66

Why choose the DS-2TD4228T-10/S2

Where a fixed thermal camera watches one view, the DS-2TD4228T-10/S2 patrols a whole site. Its 256 × 192 vanadium-oxide thermal module (NETD ≤35 mK, 10 mm athermalised lens) measures temperature from −20 °C to 550 °C with accuracy of max (±2 °C, ±2%), and can hold 21 measurement rules on each of 273 preset scenes. The 4 MP optical channel zooms 32× (4.8–153 mm) to confirm what the thermal channel found, with picture-in-picture overlay of the thermal image. Dynamic fire detection locates up to 10 fire points, smoke detection adds a second line of defence, and smart tracking (panorama, event and multi-scene patrol) links the thermal and optical views. Rated IP66 from −40 °C to 70 °C with 100 m IR. Supplied and supported by ARC IP Networks with genuine Australian stock.

Before you order: this speed dome draws up to 30 W and is powered by Hi-PoE, 24 VAC, 36 VDC or 48 VDC — a standard 802.3af/at PoE port is not listed as a supported power source. It measures the surface temperature of objects and scenes for fire prevention and equipment monitoring. It is not a body-temperature, fever-screening or medical device.

Best for

  • Process and equipment temperature: monitors materials and plant from −20 °C to 550 °C across up to 273 preset scenes.
  • Long-range fire detection: Hikvision reference range of 833 m for a 2 × 2 m fire and 417 m for a 1 × 1 m fire.
  • Large perimeters: thermal VCA reaches 240 m for vehicles and 80 m for people, with 360° continuous pan.
  • Visual confirmation: the 32× optical zoom and picture-in-picture let operators verify an alarm without leaving the control room.
  • Harsh sites: IP66, 6000 V TVS protection and −40 °C to 70 °C operation.

Who it’s for

Electrical substations

Patrol transformers, switchgear and busbars for abnormal heating.

Hydropower & utilities

Temperature monitoring of generation and distribution equipment.

Factories handling pyrophoric materials

Hikvision’s stated application: supervising processes where materials can self-ignite.

Waste & bulk storage

Scan stockpiles and bunkers for hot spots and early fire.

Industrial perimeters

Thermal intrusion detection across yards and fence lines, day or night.

Integrators & control rooms

ONVIF S/G/T, ISAPI and SDK for VMS and SCADA-style integration.

DS-2TD4228T-10/S2
Thermographic Thermal & Optical Bi-spectrum Network Speed Dome — 256 × 192 Thermal (10 mm) + 4 MP 32× Optical

Features

  • 256 × 192 thermal resolution (1280 × 720 output), 12 μm VOx uncooled sensor, NETD ≤35 mK
  • 10 mm athermalised thermal lens, 18.1° × 13.6° field of view, digital zoom ×2/×4/×8
  • 4 MP (2688 × 1520) 1/2.8″ optical module with 32× optical zoom (4.8–153 mm), 120 dB WDR
  • Temperature-exception alarm for fire prevention, −20 °C to 550 °C, accuracy max (±2 °C, ±2%)
  • 3 temperature measurement rule types; 273 presets as scenes, 21 rules per scene (10 points, 10 areas, 1 line)
  • Dynamic fire detection (up to 10 fire points) and smoke detection for fire prevention
  • Perimeter protection: line crossing, intrusion, region entrance and exit; up to 10 scenes with 8 VCA rules each
  • Smart tracking: panorama, event and multi-scene patrol tracking, linked between thermal and optical views
  • 360° continuous pan, −5° to 90° tilt, 300 presets, 8 patrols, 4 patterns, power-off memory
  • IR up to 100 m; picture-in-picture thermal overlay on the optical image
  • 7 alarm inputs, 2 relay outputs, audio in/out, RS-485, analogue video output; IP66 with 6000 V TVS protection

Specifications

Thermal Module
Image sensorVanadium oxide uncooled focal plane array
Resolution256 × 192 (output 1280 × 720)
Pixel interval12 μm
Response waveband8–14 μm
NETD<35 mK (@25 °C, F#1.0)
Focal length10 mm, athermalised
IFOV1.2 mrad
ApertureF1.0
Field of view18.1° × 13.6° (H × V)
Min. focusing distance1.5 m
Digital zoom×2, ×4, ×8
Optical Module
Image sensor1/2.8″ progressive scan CMOS
Resolution2688 × 1520, 4 MP
Min. illuminationColour 0.05 lux, B/W 0.01 lux @ F1.2 (AGC on)
Focal length4.8–153 mm, 32×
Field of view58.8° × 34.4° to 2.18° × 1.2° (H × V)
ApertureF1.2–F4.4
FocusAuto / semi-auto / manual
WDR120 dB
DefogAlgorithmic defog (no optical defog)
PTZ
Movement rangePan 360° continuous; tilt −5° to +90° (auto flip)
Pan speed0.1°/s to 200°/s; preset 240°/s
Tilt speed0.1°/s to 105°/s; preset 200°/s
Presets300 (273 configurable)
Patrols / patterns8 patrols (32 presets each) / 4 patterns
OtherProportional zoom, power-off memory, park actions, scheduled tasks
Smart Functions
VCALine crossing, intrusion, region entrance, region exiting; up to 10 scenes, 8 rules each
Temperature measurement3 rule types; 273 preset scenes, 21 rules per scene
Temperature range / accuracy−20 °C to 550 °C / max (±2 °C, ±2%)
Fire detectionDynamic, up to 10 fire points
OtherSmoke detection; smart tracking (panorama, event, multi-scene patrol)
Image effectPicture-in-picture; white-hot / black-hot target colouration
IR distanceUp to 100 m
Range (reference)
VCA — humans / vehicles80 m / 240 m
Fire detection (2 × 2 m / 1 × 1 m)833 m / 417 m
Temperature measurement (0.5 m / 0.2 m object)83 m / 33 m
Thermal DORI — humans (D / R / I)417 m / 104 m / 52 m
Thermal DORI — vehicles (D / R / I)1278 m / 319 m / 160 m
Video & Network
Main streamOptical 25/30 fps up to 2688 × 1520; thermal 25 fps up to 1280 × 720
Video compressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
StoragemicroSD/SDHC/SDXC up to 256 GB, NAS (NFS, SMB/CIFS), ANR
APIISAPI, Hikvision SDK, ONVIF (Profile S, G, T)
ClientsiVMS-4200, Hik-Connect
Live viewUp to 20 channels
Interface
Ethernet1 × RJ45 10/100 Mbps
Alarm7 inputs, 2 relay outputs
AudioLine/mic in, line out
Serial1 × RS-485
Analogue video out1.0 V[p-p] / 75 Ω
General
Power24 VAC ±20%, 36 VDC ±20% or 48 VDC ±20% (terminal block); Hi-PoE
Power consumptionMax 30 W
Operating conditions−40 °C to 70 °C, humidity 90% or less
ProtectionIP66; TVS 6000 V lightning, surge and voltage-transient protection

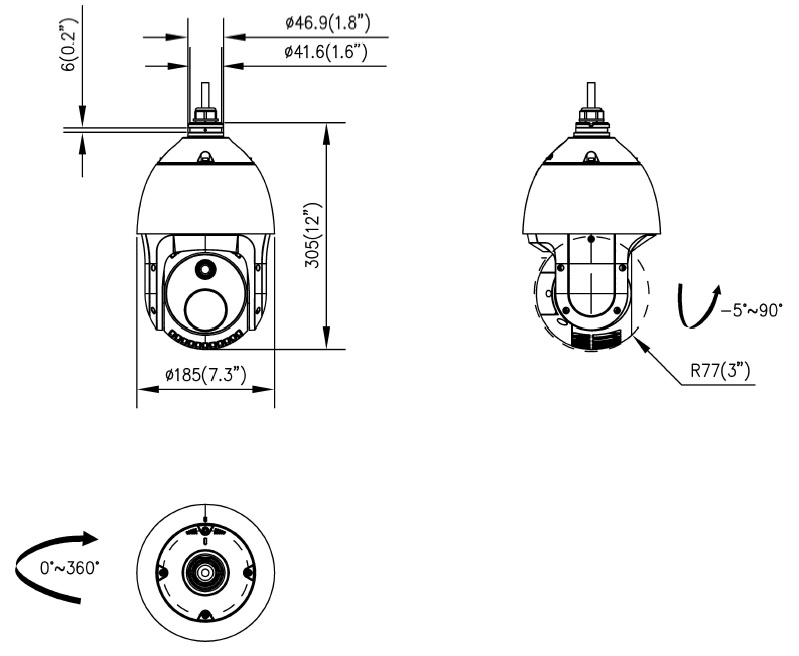

Dimensions305 × 185 × 163 mm
WeightApprox. 3.9 kg

Specifications from the official Hikvision datasheet for the DS-2TD4228T-10/S2. Range and DORI figures are Hikvision reference values and vary with environment.

Professional Overview

The Hikvision DS-2TD4228T-10/S2 is a thermographic thermal and optical bi-spectrum network speed dome. Hikvision designs it for supervising manufacturing processes that handle pyrophoric materials, and for electrical substations and hydropower stations — places where equipment temperature and early fire warning matter as much as intrusion detection.

Its thermal channel uses a 256 × 192, 12 μm vanadium-oxide sensor with NETD below 35 mK behind a 10 mm athermalised lens (18.1° × 13.6°), output at 1280 × 720. The optical channel is a 4 MP 1/2.8″ camera with a 32× 4.8–153 mm zoom, 120 dB WDR and 100 m IR. The PTZ pans 360° continuously at up to 200°/s and tilts from −5° to 90°, with 300 presets, 8 patrols and 4 patterns.

Temperature measurement covers −20 °C to 550 °C with accuracy of max (±2 °C, ±2%). Up to 273 presets can be used as measurement scenes, each with 21 rules (10 points, 10 areas, 1 line). Dynamic fire detection locates up to 10 fire points, smoke detection adds fire prevention, perimeter rules cover line crossing, intrusion and region entrance/exit, and smart tracking links the thermal and optical views. It measures the surface temperature of objects and scenes for fire prevention and equipment monitoring. It is not a body-temperature, fever-screening or medical device.

It is powered by Hi-PoE, 24 VAC, 36 VDC or 48 VDC (max 30 W), rated IP66 with 6000 V TVS protection, and operates from −40 °C to 70 °C. Seven alarm inputs, two relay outputs, RS-485, ONVIF Profile S/G/T, ISAPI and SDK support make it straightforward to integrate. Thermal products can be subject to export controls. Australian stock from ARC IP Networks.

How it compares

Choosing between a fixed bi-spectrum turret and a thermographic PTZ? Here is how the DS-2TD4228T-10/S2 compares with the compact HeatPro turret in the same bi-spectrum family.

FeatureDS-2TD1228-7/QAHeatPro turretDS-2TD4228T-10/S2This camera
Form factorFixed turretPTZ speed dome, 360° pan
Thermal sensor256 × 192, NETD <40 mK256 × 192, NETD ≤35 mK
Thermal lens6.9 mm10 mm athermalised
Optical channel4 MP, 6.4 mm fixed4 MP, 4.8–153 mm (32×)
Temperature range−20 to 150 °C−20 to 550 °C
Temperature accuracy±8 °CMax (±2 °C, ±2%)
Measurement scenes1 scene, 21 rules273 preset scenes, 21 rules each
IR range15 m100 m
PowerPoE 802.3af / 12 VDC, max 6.5 WHi-PoE / 24 VAC / 36 VDC / 48 VDC, max 30 W
Best forFire warning & perimeter at one spotLarge sites, process temperature monitoring

Both are thermal & optical bi-spectrum network cameras with fire detection. Model names link to full specs and live pricing.

Complete your system

Plan power first: the DS-2TD4228T-10/S2 needs Hi-PoE or a 24 VAC / 36 VDC / 48 VDC supply, up to 30 W. Hikvision industrial Hi-PoE switches such as the DS-3T0510HP (two 90 W Hi-PoE ports) or DS-3T0506HP carry power and data on one cable. Record to the on-board microSD, a NAS, or an NVR/VMS that supports thermal channels and temperature data.

Browse Hikvision NVRs →

Works with your system

One dome, two eyes. The thermal channel detects heat and fire; the 32× optical channel confirms the detail. Picture-in-picture shows part of the thermal image over the full optical view, and smart tracking links the two.

iVMS-4200

Hikvision desktop client listed in the datasheet for live view, PTZ control and playback.

Hik-Connect

Remote viewing and alarm notifications on iOS and Android.

ONVIF Profile S, G & T

Integrates with compatible third-party NVRs and VMS platforms.

ISAPI & SDK

Open interfaces for integrators and management platforms.

7 alarm in / 2 relay out

Drive sirens, suppression interlocks or PLC inputs from temperature and fire events.

RS-485 & analogue out

Legacy control and a 1.0 V[p-p] analogue video output for local monitors.

Explore the Hikvision range

Hikvision cameras, recorders and guides from ARC IP Networks:

PTZ camerasTurret camerasNVR recordersWhere to buy

Frequently asked questions

A Hikvision thermographic thermal and optical bi-spectrum network speed dome. It combines a 256 × 192 thermal camera (10 mm lens) with a 4 MP optical camera with 32× optical zoom on a 360° PTZ.

The optical module is 4 MP (2688 × 1520) on a 1/2.8″ sensor, with a 4.8–153 mm 32× zoom. The thermal module is 256 × 192, output at 1280 × 720.

−20 °C to 550 °C, with accuracy of max (±2 °C, ±2%). It supports 3 rule types and up to 21 rules (10 points, 10 areas, 1 line) on each of 273 preset scenes.

No. It measures the surface temperature of objects and scenes for fire prevention and equipment monitoring. It is not a body-temperature, fever-screening or medical device.

Hikvision’s reference range is 833 m for a 2 × 2 m fire and 417 m for a 1 × 1 m fire. Dynamic fire detection can locate up to 10 fire points, and smoke detection is also supported.

Yes. Hikvision lists smart tracking modes — panorama tracking, event tracking and multi-scene patrol tracking — with tracking linkage between the thermal and optical views.

By Hi-PoE, or by 24 VAC, 36 VDC or 48 VDC via a two-core terminal block. Maximum consumption is 30 W. Standard 802.3af/at PoE is not listed as a power option.

Yes. It is rated IP66 with 6000 V TVS lightning, surge and voltage-transient protection, and operates from −40 °C to 70 °C.
Brand Hikvision
Network Connectivity Wired
Resolution 4 MP optical + 256 × 192 thermal
Camera Type PTZ
Lens 10 mm thermal / 4.8–153 mm 32× optical
Smart Features Temperature measurement -20 to 550 °C, fire & smoke detection, smart tracking
Ingress Protection IP66
Power Hi-PoE / 24 VAC / 36 VDC / 48 VDC
IR Range 100 m
Audio / Alarm Audio in/out, 7 alarm in / 2 relay out
DS-2TD4228T-10_S2_Datasheet.pdf
Download

Accurate Shipping Costs

Our online shipping calculator is designed to provide a final, accurate shipping cost based on the items in your cart and your delivery postcode. Shipping costs are calculated at checkout based on your order and delivery postcode. The final cost is calculated based on several factors which are automatically accounted for by our system, including:

  • The stock location of the item(s) across our warehouses.
  • Orders with multiple items that may require special packaging.
  • The weight and dimensions of the order (including heavy or oversized items).
  • The delivery courier servicing your specific region.

Delivery Times




Standard Processing


Most orders placed by 2pm AEDT are dispatched for next working day delivery. Larger orders may require 1-2 additional business days for processing. If timing is critical, please contact us to discuss expedited options (additional charges may apply).


Delivery Timeframes


Region

Processing Time

Express Delivery

Standard Delivery

VIC, NSW, SA, QLD Metro, TAS

1-2 business days

1-2 business days

2-4 business days

NT, WA, QLD Rural

1-2 business days

1-2 business days

3-5 business days

New Zealand

1-2 business days

2-3 business days

4-10 business days

Please note: Processing times may extend during peak periods such as Christmas and end of financial year.

Free Warehouse Pickup



Save on shipping costs with free pickup from our ARC IP Networks Blackburn warehouse. Simply place your order online or by phone, and collect during business hours (Monday to Friday). Please allow time for picking and packing. For urgent orders, call 1300 100 440 to confirm your order is ready.

ARC IP Networks Pickup Address: 6 George Street, Blackburn, VIC 3130


Insurance & Tracking



All ARC IP Networks shipments are fully insured and trackable. Once dispatched, you'll receive an email with your tracking number and courier website details. If your item is confirmed lost or damaged by our courier, we'll arrange a replacement in consultation with you.


International Shipping



ARC IP Networks ships to New Zealand. Please note:


  • Import duties and taxes vary by country
  • Buyers are responsible for all customs charges
  • Contact your local customs authority before ordering
  • We'll provide required documentation for smooth customs clearance
  • Buyers cover all shipping costs for returns due to refused duties/taxes


Delivery Requirements


Signature Required


All deliveries must be signed for. If you won't be home, contact our Sales Support team to arrange Authority to Leave. Important: Authority to Leave voids shipping insurance if parcels are lost or stolen.


Delivery Restrictions


We do not deliver to PO Boxes or Parcel Lockers as our couriers cannot access them. Orders sent to these addresses will be returned, incurring redelivery fees.


Shipping Issue Resolution


ARC IP Networks works closely with our shipping partners to resolve any delivery issues quickly and fairly:


  1. Confirmation: We verify expected delivery dates with our shipping partners
  2. Investigation: Issues outside normal timeframes trigger formal investigations
  3. Communication: We keep you updated throughout the resolution process
  4. Resolution: Confirmed lost items are replaced or refunded after investigation completion


Please note: Refunds for lost, missing, or delayed orders cannot be processed until shipping partner investigations are complete. This does not affect your rights under the Australian Consumer Law, and refunds or replacements will be provided where required once loss or damage is confirmed.

Warranty & Faulty Products

ARC IP Networks complies with the Australian Consumer Law (ACL).

If a product is faulty, damaged, not of acceptable quality, or does not perform as advertised, you are entitled to a repair, replacement, or refund in accordance with ACL.

Manufacturer Warranty Returns

For faults developing after 14 days within the warranty period:

  • Contact ARC IP Networks first at info@arcip.com.au or 1300 100 440
  • We will assess the issue and coordinate with manufacturers, authorised service centres, or distributors on your behalf
  • Where required, a manufacturer RMA may be arranged
  • ARC IP Networks manages the return process and next steps

Dead on Arrival (DOA)

Products that arrive faulty or damaged must be reported within 14 days of delivery.

ARC IP Networks will arrange assessment, replacement, or refund as appropriate.

Change of Mind & Non-Faulty Returns

Change-of-mind returns must be requested within 14 days of delivery. For change-of-mind returns, the product must be unused, unopened, in its original packaging, and returned with all accessories and documentation. These conditions apply only to change-of-mind returns and do not limit or exclude your rights under the Australian Consumer Law. Some products are not eligible for change-of-mind returns, including:

  • Ex-demo products
  • Clearance or markdown items
  • Special-order items
  • Products clearly marked “No Change-of-Mind Returns”

Important

This does not affect your rights under Australian Consumer Law.

If a product is faulty, not of acceptable quality, or does not meet advertised specifications, it remains eligible for return regardless of category.

Refunds & Processing Timeframes

  • Approved refunds are processed within 7 business days of receiving returned goods
  • Refunds are issued to the original payment method, unless otherwise agreed
  • Replacement or repair may be offered where appropriate
  • Store credit may be offered only with customer consent

Handling fees and non-returnable service charges may not be refundable where permitted by law.


Restocking Fees

For approved change-of-mind or non-faulty returns, a 15% restocking fee applies.

  • Any applicable restocking fee will be clearly communicated prior to return approval
  • The fee will be deducted from the refund amount
  • Restocking fees do not apply to returns made under the Australian Consumer Law, including faulty, damaged, or misrepresented goods.

Return Shipping Costs

  • Change-of-mind returns: The customer is responsible for return shipping costs.
  • Faulty or defective products: ARC IP Networks covers return shipping under Australian Consumer Law.

Non-Warranty Repairs

For issues not covered by warranty:

  • ARC IP Networks will provide a quote before proceeding
  • Customers are responsible for all shipping and service costs
  • No repairs are undertaken without customer approval

Return Methods

Returns may be made:

  • In-store at ARC IP Networks – 6 George Street, Blackburn VIC 3130
  • Or by shipment as instructed by our support team

Proof of purchase is required for all returns.

Enquire About this Product


Any questions about this product? Fill out the form below, and we'll get back to you soon!

Accessory Products
