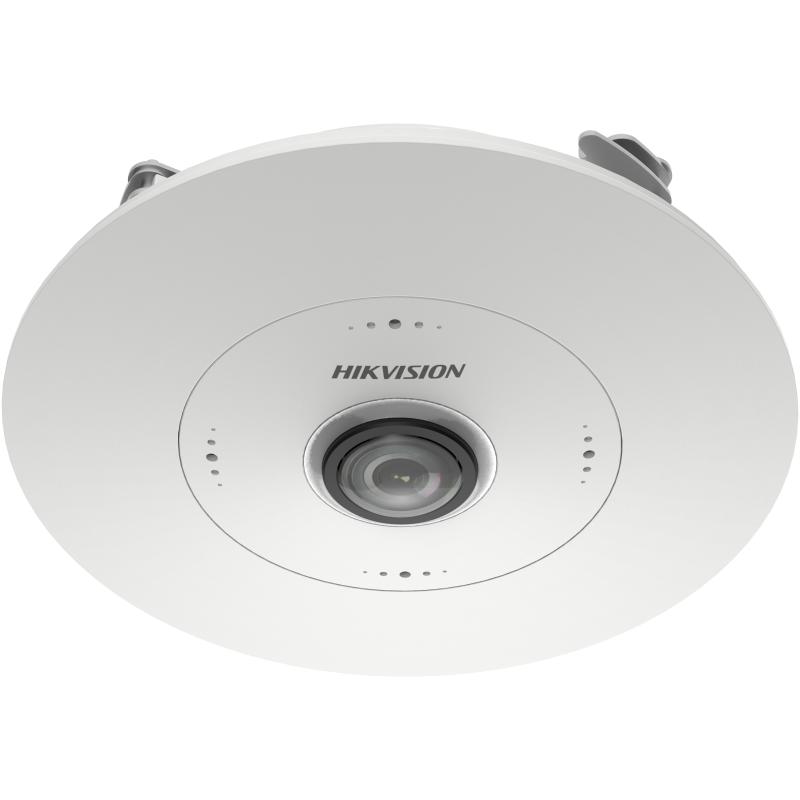

Hikvision DS-2CD6365G1-S-RC DeepinView 6 MP Fisheye Network Camera, 1.16 mm 180°, People Counting, 4 Built-in Mics, Indoor

https://arcip.com.au/web/image/product.template/11144/image_1920?unique=d95db27
  • 6 MP (2560 × 2560) fisheye, 1.16 mm, 180° × 180°
  • People counting, queue management, heat map & intersection analysis
  • 20 display modes incl. camera-side 4PTZ and panorama dewarping
  • 4 built-in mics, indoor, PoE 802.3af (max 8 W), no IR

$ 963.85 963.85 AUD $ 963.85 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Panoramic Hikvision IP Camera DeepinView 6MP Fisheye
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2CD6365G1-S-RC
Tags

Key Features

6MP
6 MP Fisheye
1.16 mm 180° Lens
20 Display Modes
People Counting
Heat Map & Queue
4 Built-in Mics
2 TOPS HEOP 2.0
H.265+
H.265+ Compression
At a glance

The Hikvision DS-2CD6365G1-S/RC is a 6 MP DeepinView indoor fisheye (2560 × 2560, 1.16 mm, 180° × 180°) that covers a whole room from one point. It runs people counting, queue management, heat maps and intersection analysis on board, dewarps into 20 display modes, and has 4 built-in microphones. It has no infrared. Part of the Hikvision panoramic range.

Resolution
6 MP (2560 × 2560)
Sensor
1/1.8″ progressive scan CMOS
Lens
1.16 mm fixed, 180° × 180°
Low light
0.01 lux colour, 0.005 lux B/W
Analytics
People counting, queue, heat map, intersection
Audio
4 built-in mics; line in / line out
Environment
Indoor, −10 °C to 40 °C (no IR)
Power
PoE 802.3af (max 8 W) or 12 VDC

Why choose the DS-2CD6365G1-S/RC

A fisheye replaces several fixed cameras with one: the DS-2CD6365G1-S/RC sees 180° × 180° through a 1.16 mm lens onto a large 1/1.8″ 6 MP sensor, giving a full overhead view of a shop floor, lobby or office. Unlike a plain fisheye, it is a DeepinView camera with 2 TOPS of on-board deep learning: it counts people entering, exiting and passing by, measures queue length and waiting time, builds space and time heat maps, and analyses flow through an intersection of up to 10 ways. The camera itself can output dewarped 4PTZ, panorama and fisheye + 3PTZ streams, so any recorder sees ready-to-use views. Four built-in microphones with environmental noise filtering add audio, and 2 alarm inputs and outputs tie it into the rest of the site. Supplied and supported by ARC IP Networks with genuine Australian stock.

Indoor camera without infrared: the DS-2CD6365G1-S/RC is rated for −10 °C to 40 °C, has no published IP rating and no IR illuminator. For outdoor or dark areas choose the IR models, the DS-2CD6395G1E-IVS or DS-2CD63C5G1-IVS.

Best for

  • Counting visitors: separate in, out and passing-by counts with daily to annual email reports.
  • Managing queues: regional queue length and waiting-time detection with threshold alarms and exportable raw data.
  • Store layout decisions: space heat maps and time heat-map charts show where people go and dwell.
  • One camera per room: 180° × 180° coverage replaces several fixed cameras in lobbies, offices and shop floors.
  • Audio-aware spaces: 4 built-in microphones with noise filtering and audio-exception detection.

Who it’s for

Retail stores

Count shoppers, map hot zones and watch the whole sales floor from one ceiling point.

Banks & service counters

Queue and waiting-time analytics with alarms when lines grow.

Shopping-centre corridors

Intersection analysis of people flow through junctions of up to 10 ways.

Offices & lobbies

One camera covers reception, lifts and entrances without blind spots.

Hospitality

Monitor dining rooms and foyers with clear dewarped views.

Integrators

HEOP 2.0 open platform and SIP support for custom solutions.

DS-2CD6365G1-S/RC
6 MP DeepinView Network Fisheye Camera — 1.16 mm, 180° × 180°, 4 Built-in Microphones, Indoor

Features

  • 6 MP (2560 × 2560) 1/1.8″ progressive-scan CMOS sensor
  • 1.16 mm fixed fisheye lens, 180° horizontal and 180° vertical field of view, F2.25
  • Deep learning: people counting, queue management, heat map and intersection analysis
  • 20 display modes; camera-side (hardware) dewarping: fisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion
  • Mount types: wall, table and ceiling
  • 4 built-in microphones with environmental noise filtering; 1 line in, 1 line out
  • Smart events: line crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage and object removal detection
  • HEOP 2.0 open platform with 2 TOPS computing power
  • H.265+/H.265/H.264+/H.264; digital WDR, BLC, HLC, 3D DNR, distortion correction, defog
  • 2 alarm inputs, 2 alarm outputs, RS-485; Gigabit Ethernet; microSD up to 256 GB
  • PoE (802.3af, class 3, max 8 W) or 12 VDC (max 7 W); metal housing

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution2560 × 2560
Min. illuminationColour 0.01 lux, B/W 0.005 lux @ F2.25 (AGC on)
Shutter1 s to 1/100,000 s
Day & nightIR cut filter
Lens
Lens typeFixed focal, 1.16 mm
Field of view180° horizontal, 180° vertical
ApertureF2.25
Depth of field0.2 m to ∞
DORID 23.2 m / O 9.2 m / R 4.6 m / I 2.3 m
Fisheye Display
Mount typeWall / table / ceiling
DecodingHardware (camera) and software (client) dewarping
Hardware modesfisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion
Software modesfisheye, 180° and 360° panorama, 360° panorama + PTZ/3PTZ/6PTZ/8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere and cylinder
Total20 display modes
Video & Audio
Main stream25/30 fps; fisheye 2560 × 2560; panorama 2048 × 1536; 4PTZ 4 × 1024 × 768
CompressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Bit rate32 Kbps to 16 Mbps
AudioG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; environmental noise filtering
Smart & Deep Learning
Smart eventsline crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage and object removal detection
People countingIn, out and passing-by counts; up to 3 regions; scheduled email reports
Queue managementUp to 8 regions; queue length and waiting-time detection
Heat mapSpace heat map and time heat-map line chart
Intersection analysisOne intersection of up to 10 ways
HEOP2 TOPS; HEOP 2.0 OpendevSDK; Caffe, TensorFlow, PyTorch
Network
APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP, SIP
ClientsiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
StoragemicroSD/SDHC/SDXC up to 256 GB; NAS (NFS, SMB/CIFS), ANR
Live viewUp to 20 channels
Interface
Ethernet1 × RJ45 10/100/1000 Mbps
Microphones4 built-in
Audio1 line in, 1 line out (3.5 mm)
Alarm2 inputs, 2 outputs (max 24 VDC, 1 A)
Serial1 × RS-485
General
Power12 VDC ±20% (max 7 W) or PoE 802.3af class 3 (max 8 W)
MaterialMetal
Operating conditions−10 °C to 40 °C, humidity 95% or less (non-condensing)
DimensionsØ165.0 × 48.9 mm
WeightApprox. 470 g

Specifications from the official Hikvision datasheet for the DS-2CD6365G1-S/RC. Range and DORI figures are Hikvision reference values and vary with environment.

Professional Overview

The Hikvision DS-2CD6365G1-S/RC is a 6 MP DeepinView network fisheye camera for indoor spaces. A 1/1.8″ sensor at 2560 × 2560 and a 1.16 mm lens deliver a 180° × 180° view, so a single camera covers an entire room, sales floor or lobby. It suits wall, table or ceiling mounting.

Twenty display modes let you view the scene as a raw fisheye or dewarped into normal-looking images. The camera can dewarp in hardware and stream fisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion views directly, while compatible client software offers further modes such as hemisphere, cylinder and 360° panorama with up to 8 virtual PTZ windows.

Its value is in the analytics. With 2 TOPS of on-board deep learning it counts people entering, exiting and passing by, manages queues with length and waiting-time detection, produces space and time heat maps, and analyses flow through intersections of up to 10 ways. Standard smart events include line crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage and object removal detection. Four built-in microphones, a line in and line out, 2 alarm inputs and 2 outputs, and SIP support round out the I/O.

It runs on 802.3af PoE (max 8 W) or 12 VDC, connects at Gigabit speed, records to microSD up to 256 GB and integrates via ONVIF Profile S/G/T, ISAPI and ISUP. It is an indoor camera (−10 °C to 40 °C) with no infrared illuminator. Australian stock from ARC IP Networks.

How it compares

Hikvision’s DeepinView G1 fisheye family shares one platform but differs in resolution, infrared, audio and analytics. Here is how the DS-2CD6365G1-S/RC compares with its siblings.

FeatureDS-2CD6395G1E-IVS9 MP IRDS-2CD6365G1-S/RCThis cameraDS-2CD63C5G1-IVS12 MP IR
Resolution9 MP (3024 × 3024)6 MP (2560 × 2560)12 MP (3504 × 3504)
Lens2 mm, 360° panoramic1.16 mm, 180° × 180°1.29 mm Panomorph, 180° × 180°
InfraredIR to 15 mNoneIR to 15 m
EnvironmentIP67 / IK10, −30 to 60 °CIndoor, −10 to 40 °CIP67 / IK10, −40 to 60 °C, heater
Audio2 mics + speaker (two-way)4 mics (no speaker)4 mics + speaker (two-way)
Deep-learning analyticsHeat mapPeople counting, queue management, heat map, intersection analysisPeople counting, queue management, heat map, intersection analysis
Alarm I/O1 in / 1 out2 in / 2 out2 in / 2 out
Ethernet10/10010/100/100010/100/1000
microSDUp to 512 GBUp to 256 GBUp to 256 GB
Max power (PoE 802.3af)9.6 W8 W12.5 W
Best forRugged 360° coverage, day and nightIndoor retail analyticsMaximum detail plus full analytics

All three are DeepinView fisheyes with 20 display modes, 2 TOPS HEOP processing and H.265+. Model names link to full specs and live pricing.

Complete your system

Every Hikvision IP camera records to a network video recorder (NVR) or VMS. This fisheye draws a maximum of 8 W on 802.3af PoE (or 12 VDC), so any 802.3af PoE NVR port or switch can power it — for example the DS-7608NI-M2/8P 8-channel PoE NVR, or the DS-3E1309P-EI PoE switch for larger installs. Because the camera can output dewarped views itself, the recorder simply records the streams you choose.

Browse Hikvision NVRs →

Works with your system

Dewarped at the source. The camera can stream panorama, 4PTZ or fisheye + 3PTZ views itself, so your recorder stores ready-to-review images, and H.265+ keeps storage and bandwidth in check.

Hikvision NVRs

Record the camera’s fisheye or camera-dewarped streams; PoE NVRs power it over one cable.

iVMS-4200

Free Hikvision desktop client listed in the datasheet, with software dewarping for live view and playback.

Hik-Connect

Remote viewing and notifications on iOS and Android.

ONVIF Profile S, G & T

Integrates with compatible third-party NVRs and VMS platforms.

SIP / VoIP

Session Initiation Protocol support for peer-to-peer or SIP/PBX integration.

HEOP 2.0 open platform

2 TOPS of on-camera compute for third-party apps (Caffe, TensorFlow, PyTorch; C/C++).

Explore the Hikvision range

Hikvision cameras, recorders and guides from ARC IP Networks:

Panoramic camerasDeepinView camerasDome camerasNVR recordersWhere to buy

Frequently asked questions

It is a Hikvision 6 MP DeepinView network fisheye camera with a 1.16 mm lens giving a 180° × 180° view at up to 2560 × 2560, designed for indoor use.

No. This model has no IR illuminator; it relies on ambient light (0.01 lux colour, 0.005 lux B/W). For dark areas choose the DS-2CD6395G1E-IVS or DS-2CD63C5G1-IVS, which have 15 m IR.

20 display modes in total. The camera can dewarp in hardware to fisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion. Software dewarping in compatible clients adds modes such as 360° panorama with up to 8 PTZ windows, hemisphere, AR hemisphere and cylinder.

Yes. It counts people entering, exiting and passing by separately, sends daily to annual email reports, and supports queue-length and waiting-time detection with threshold alarms. It also produces heat maps and intersection-flow analysis.

Yes. It has 4 built-in microphones with environmental noise filtering, plus a 3.5 mm line in and line out. It has no built-in speaker.

No. It is rated for −10 °C to 40 °C and has no published IP rating, so it is intended for indoor installation.

By standard PoE (IEEE 802.3af, class 3) at a maximum of 8 W, or by 12 VDC at a maximum of 7 W.

Any Hikvision PoE NVR with an 802.3af port, such as the DS-7608NI-M2/8P, can power and record it. It also supports ONVIF Profile S/G/T for compatible third-party systems.
Brand Hikvision
Network Connectivity Wired
Resolution 6 MP (2560 × 2560)
Camera Type Fisheye
Lens 1.16 mm fixed fisheye (180°)
Smart Features DeepinView people counting, queue, heat map, intersection analysis
Ingress Protection Indoor (no IP rating)
Power PoE (802.3af) / 12 VDC
IR Range No IR
Audio / Alarm 4 built-in mics, line in/out, 2/2 alarm I/O
DS-2CD6365G1-S_RC_Datasheet.pdf
Download

Accurate Shipping Costs

Our online shipping calculator is designed to provide a final, accurate shipping cost based on the items in your cart and your delivery postcode. Shipping costs are calculated at checkout based on your order and delivery postcode. The final cost is calculated based on several factors which are automatically accounted for by our system, including:

  • The stock location of the item(s) across our warehouses.
  • Orders with multiple items that may require special packaging.
  • The weight and dimensions of the order (including heavy or oversized items).
  • The delivery courier servicing your specific region.

Delivery Times




Standard Processing


Most orders placed by 2pm AEDT are dispatched for next working day delivery. Larger orders may require 1-2 additional business days for processing. If timing is critical, please contact us to discuss expedited options (additional charges may apply).


Delivery Timeframes


Region

Processing Time

Express Delivery

Standard Delivery

VIC, NSW, SA, QLD Metro, TAS

1-2 business days

1-2 business days

2-4 business days

NT, WA, QLD Rural

1-2 business days

1-2 business days

3-5 business days

New Zealand

1-2 business days

2-3 business days

4-10 business days

Please note: Processing times may extend during peak periods such as Christmas and end of financial year.

Free Warehouse Pickup



Save on shipping costs with free pickup from our ARC IP Networks Blackburn warehouse. Simply place your order online or by phone, and collect during business hours (Monday to Friday). Please allow time for picking and packing. For urgent orders, call 1300 100 440 to confirm your order is ready.

ARC IP Networks Pickup Address: 6 George Street, Blackburn, VIC 3130


Insurance & Tracking



All ARC IP Networks shipments are fully insured and trackable. Once dispatched, you'll receive an email with your tracking number and courier website details. If your item is confirmed lost or damaged by our courier, we'll arrange a replacement in consultation with you.


International Shipping



ARC IP Networks ships to New Zealand. Please note:


  • Import duties and taxes vary by country
  • Buyers are responsible for all customs charges
  • Contact your local customs authority before ordering
  • We'll provide required documentation for smooth customs clearance
  • Buyers cover all shipping costs for returns due to refused duties/taxes


Delivery Requirements


Signature Required


All deliveries must be signed for. If you won't be home, contact our Sales Support team to arrange Authority to Leave. Important: Authority to Leave voids shipping insurance if parcels are lost or stolen.


Delivery Restrictions


We do not deliver to PO Boxes or Parcel Lockers as our couriers cannot access them. Orders sent to these addresses will be returned, incurring redelivery fees.


Shipping Issue Resolution


ARC IP Networks works closely with our shipping partners to resolve any delivery issues quickly and fairly:


  1. Confirmation: We verify expected delivery dates with our shipping partners
  2. Investigation: Issues outside normal timeframes trigger formal investigations
  3. Communication: We keep you updated throughout the resolution process
  4. Resolution: Confirmed lost items are replaced or refunded after investigation completion


Please note: Refunds for lost, missing, or delayed orders cannot be processed until shipping partner investigations are complete. This does not affect your rights under the Australian Consumer Law, and refunds or replacements will be provided where required once loss or damage is confirmed.

Warranty & Faulty Products

ARC IP Networks complies with the Australian Consumer Law (ACL).

If a product is faulty, damaged, not of acceptable quality, or does not perform as advertised, you are entitled to a repair, replacement, or refund in accordance with ACL.

Manufacturer Warranty Returns

For faults developing after 14 days within the warranty period:

  • Contact ARC IP Networks first at info@arcip.com.au or 1300 100 440
  • We will assess the issue and coordinate with manufacturers, authorised service centres, or distributors on your behalf
  • Where required, a manufacturer RMA may be arranged
  • ARC IP Networks manages the return process and next steps

Dead on Arrival (DOA)

Products that arrive faulty or damaged must be reported within 14 days of delivery.

ARC IP Networks will arrange assessment, replacement, or refund as appropriate.

Change of Mind & Non-Faulty Returns

Change-of-mind returns must be requested within 14 days of delivery. For change-of-mind returns, the product must be unused, unopened, in its original packaging, and returned with all accessories and documentation. These conditions apply only to change-of-mind returns and do not limit or exclude your rights under the Australian Consumer Law. Some products are not eligible for change-of-mind returns, including:

  • Ex-demo products
  • Clearance or markdown items
  • Special-order items
  • Products clearly marked “No Change-of-Mind Returns”

Important

This does not affect your rights under Australian Consumer Law.

If a product is faulty, not of acceptable quality, or does not meet advertised specifications, it remains eligible for return regardless of category.

Refunds & Processing Timeframes

  • Approved refunds are processed within 7 business days of receiving returned goods
  • Refunds are issued to the original payment method, unless otherwise agreed
  • Replacement or repair may be offered where appropriate
  • Store credit may be offered only with customer consent

Handling fees and non-returnable service charges may not be refundable where permitted by law.


Restocking Fees

For approved change-of-mind or non-faulty returns, a 15% restocking fee applies.

  • Any applicable restocking fee will be clearly communicated prior to return approval
  • The fee will be deducted from the refund amount
  • Restocking fees do not apply to returns made under the Australian Consumer Law, including faulty, damaged, or misrepresented goods.

Return Shipping Costs

  • Change-of-mind returns: The customer is responsible for return shipping costs.
  • Faulty or defective products: ARC IP Networks covers return shipping under Australian Consumer Law.

Non-Warranty Repairs

For issues not covered by warranty:

  • ARC IP Networks will provide a quote before proceeding
  • Customers are responsible for all shipping and service costs
  • No repairs are undertaken without customer approval

Return Methods

Returns may be made:

  • In-store at ARC IP Networks – 6 George Street, Blackburn VIC 3130
  • Or by shipment as instructed by our support team

Proof of purchase is required for all returns.

Enquire About this Product


Any questions about this product? Fill out the form below, and we'll get back to you soon!

Similar Products
Accessory Products
