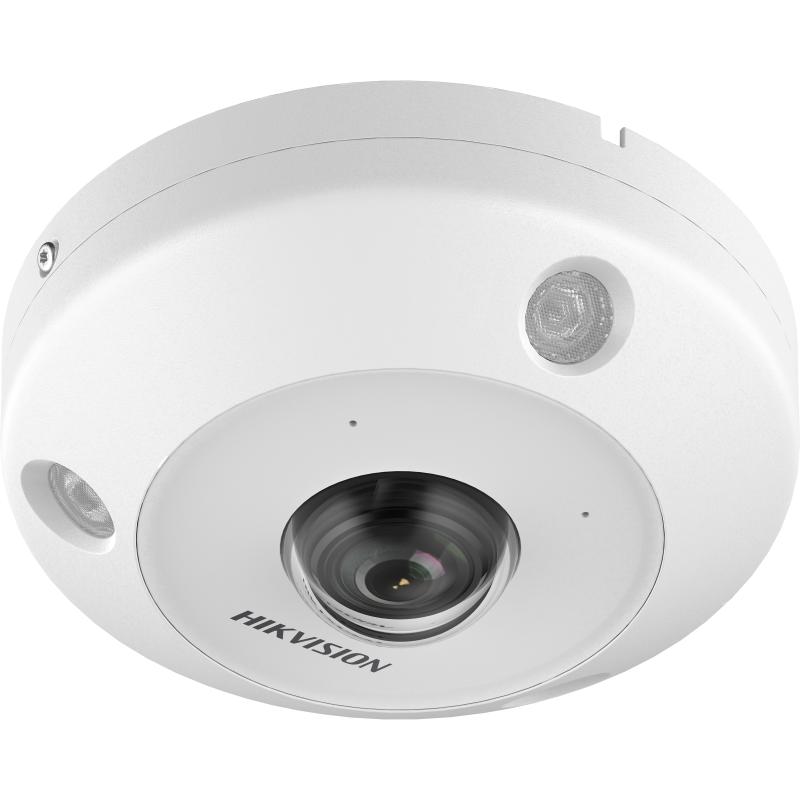

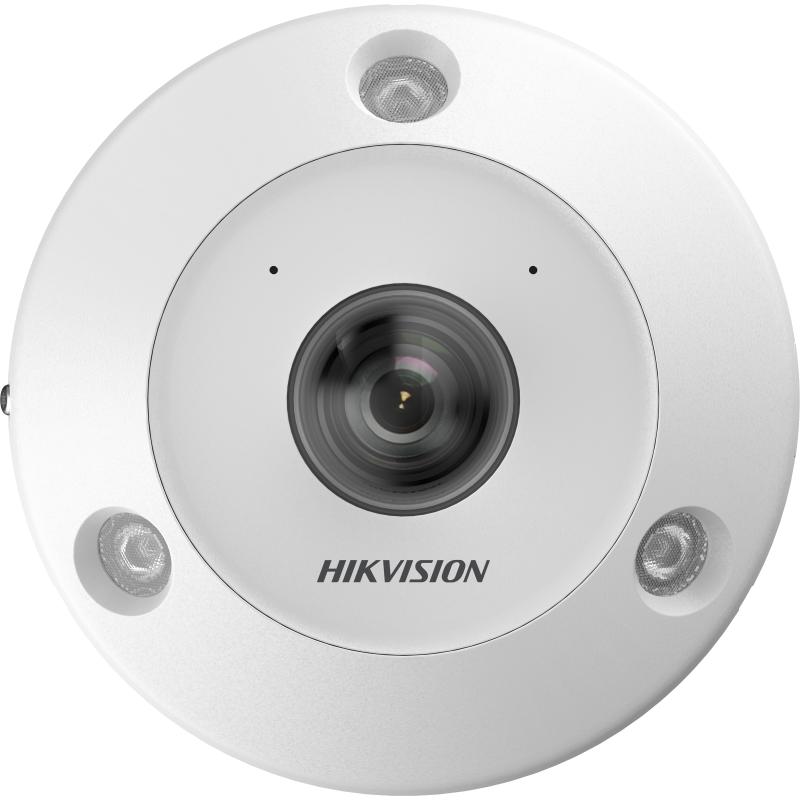

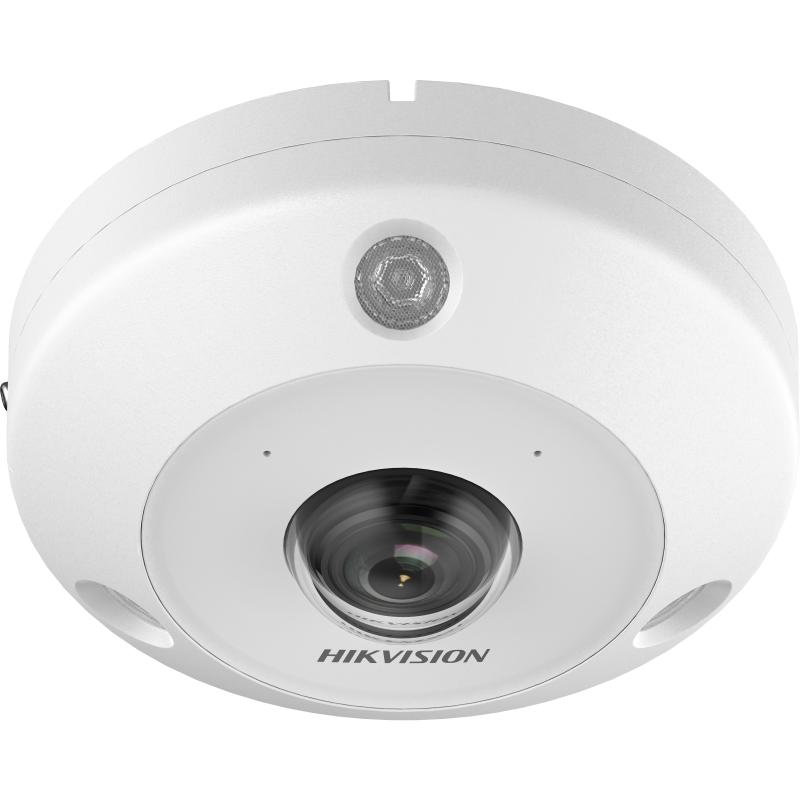

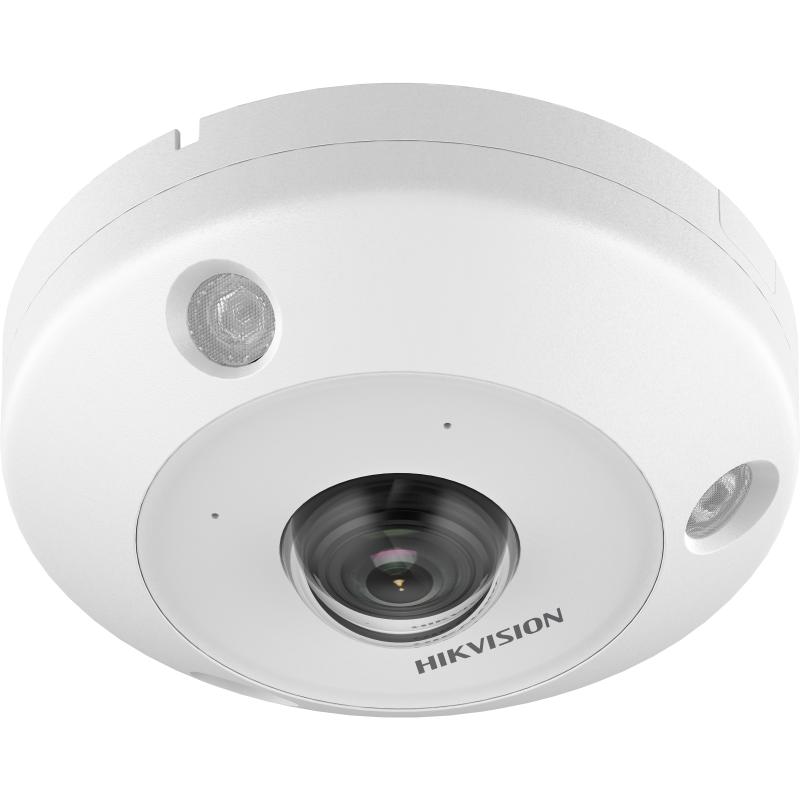

Hikvision DS-2CD6395G1E-IVS DeepinView 9 MP IR Fisheye Network Camera, 2 mm 360°, 15 m IR, Two-Way Audio, IP67/IK10

https://arcip.com.au/web/image/product.template/11145/image_1920?unique=d95db27
  • 9 MP (3024 × 3024) fisheye, 2 mm, 360° panoramic
  • 3 independently controlled IR lights to 15 m
  • Two-way audio: 2 mics + built-in speaker
  • Heat map, 20 display modes, IP67 / IK10, PoE 802.3af

$ 1,019.34 1019.34 AUD $ 1,019.34 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Panoramic Hikvision IP Camera DeepinView Fisheye 9MP
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2CD6395G1E-IVS
Tags

Key Features

9MP
9 MP Fisheye
2 mm 360° Panoramic
15 m Smart IR
Two-Way Audio
Deep-Learning Heat Map
20 Display Modes
IP67 & IK10
H.265+
H.265+ Compression
At a glance

The Hikvision DS-2CD6395G1E-IVS is a 9 MP DeepinView IR fisheye (3024 × 3024, 2 mm, 360° panoramic) with three independently controlled IR lights to 15 m, two-way audio (2 mics + speaker) and a deep-learning heat map. It dewarps into 20 display modes and is rated IP67 and IK10. Part of the Hikvision panoramic range.

Resolution
9 MP (3024 × 3024)
Sensor
1/1.8″ progressive scan CMOS
Lens
2 mm fixed, 360° panoramic
Night vision
3 IR lights, up to 15 m, 850 nm
Audio
2 built-in mics + 1 speaker
Analytics
Deep-learning heat map
Rating
IP67 / IK10, −30 °C to 60 °C
Power
PoE 802.3af or 12 VDC, max 9.6 W

Why choose the DS-2CD6395G1E-IVS

The DS-2CD6395G1E-IVS gives you a complete 360° panoramic view at 9 MP (3024 × 3024) from a single 1/1.8″ sensor, clear enough to stay detailed when split into four virtual PTZ views of 1600 × 1200 each. Three independently controlled IR lights reach 15 m with smart IR, so it keeps working in low or zero light, and a built-in speaker and two microphones enable two-way audio for challenging visitors or talking to staff. A DeepinView heat map shows where people go and how long they stay, and nine smart events — from intrusion to unattended baggage — cover security. The metal housing is rated IP67 and IK10 and operates from −30 °C to 60 °C. Supplied and supported by ARC IP Networks with genuine Australian stock.

Best for

  • Whole-area coverage: one 360° panoramic camera instead of several fixed cameras in open spaces.
  • Day and night: three independently controlled IR lights cover to 15 m in total darkness.
  • Talk-back: built-in speaker and two microphones for two-way audio with visitors or staff.
  • Tough locations: IP67 water and dust protection and IK10 vandal resistance.
  • Understanding traffic: deep-learning space and time heat maps of visits and dwell time.

Who it’s for

Retail & showrooms

Heat maps reveal hot and cold zones across the floor.

Warehouses & loading areas

Overhead 360° coverage of aisles and bays, day and night.

Car parks & undercrofts

Vandal-resistant IK10 housing with IR for dim covered parking.

Schools & campuses

Courtyards, halls and corridor junctions from a single point.

Reception & lobbies

Two-way audio for greeting or challenging visitors.

Integrators

HEOP 2.0 open platform, SIP and ONVIF Profile S/G/T.

DS-2CD6395G1E-IVS
9 MP DeepinView IR Network Fisheye Camera — 2 mm 360° Panoramic, 15 m IR, Two-Way Audio, IP67/IK10

Features

  • 9 MP (3024 × 3024) 1/1.8″ progressive-scan CMOS sensor
  • 2 mm fixed fisheye lens with 360° panoramic view, F2.25
  • Three independently controlled IR lights, up to 15 m, smart IR, 850 nm
  • Built-in microphone (2) and speaker for two-way audio; 1 line in, 1 line out
  • Deep-learning heat map: space heat map and time heat-map line chart
  • 20 display modes; camera-side (hardware) dewarping: fisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion
  • Smart events: line crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage and object removal detection
  • HEOP 2.0 open platform with 2 TOPS computing power
  • H.265+/H.265/H.264+/H.264; digital WDR, BLC, HLC, 3D DNR, distortion correction, defog
  • 1 alarm input, 1 alarm output, RS-485; microSD up to 512 GB
  • IP67 and IK10; PoE (802.3af, class 3) or 12 VDC, max 9.6 W

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution3024 × 3024
Min. illuminationColour 0.01 lux, B/W 0.005 lux @ F2.25 (AGC on); 0 lux with IR
Shutter1 s to 1/100,000 s
Day & nightIR cut filter
Lens & Illuminator
Lens typeFixed focal, 2 mm
Field of view360° panoramic view
ApertureF2.25
Depth of field0.2 m to ∞
Supplement lightIR, 3 lights, up to 15 m, smart IR, 850 nm
Fisheye Display
Mount typeWall / table / ceiling
DecodingHardware (camera) and software (client) dewarping
Hardware modesfisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion
Software modesfisheye, 180° and 360° panorama, 360° panorama + PTZ/3PTZ/6PTZ/8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere and cylinder
Total20 display modes
Video & Audio
Main stream25/30 fps; fisheye 3024 × 3024; panorama 3072 × 2304; 4PTZ 4 × 1600 × 1200; 4PTZ fusion 3200 × 2400
CompressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Bit rate32 Kbps to 16 Mbps
AudioG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; environmental noise filtering
Smart & Deep Learning
Smart eventsline crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage and object removal detection
Heat mapSpace heat map and time heat-map line chart (by people count or dwell time)
HEOP2 TOPS; HEOP 2.0 OpendevSDK; Caffe, TensorFlow, PyTorch
Network
APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP, SIP
ClientsiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
StoragemicroSD/SDHC/SDXC up to 512 GB; NAS (NFS, SMB/CIFS), ANR
Live viewUp to 20 channels
Interface
Ethernet1 × RJ45 10/100 Mbps
Microphones / speaker2 built-in mics, 1 built-in speaker
Audio1 line in, 1 line out (3.5 mm)
Alarm1 input, 1 output (max 24 VDC, 1 A)
Serial1 × RS-485
General
Power12 VDC ±20% or PoE 802.3af class 3; max 9.6 W
MaterialMetal
ProtectionIP67, IK10
Operating conditions−30 °C to 60 °C, humidity 95% or less (non-condensing)
DimensionsØ140.3 × 59.4 mm
WeightApprox. 715 g

Specifications from the official Hikvision datasheet for the DS-2CD6395G1E-IVS. Range and DORI figures are Hikvision reference values and vary with environment.

Professional Overview

The Hikvision DS-2CD6395G1E-IVS is a 9 MP DeepinView IR network fisheye camera. A 1/1.8″ sensor at 3024 × 3024 behind a 2 mm lens delivers a 360° panoramic image, so one camera can watch an open-plan area, warehouse aisle junction or car park that would otherwise need several fixed cameras. It supports wall, table and ceiling mounting.

Three independently controlled infrared lights reach 15 m with smart IR, giving usable images in low or zero light. Twenty display modes let you view the raw fisheye or dewarped images; the camera can dewarp in hardware and stream fisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion views, and at 9 MP each of its four virtual PTZ views is 1600 × 1200.

DeepinView analytics produce space and time heat maps of visits and dwell time, while smart events cover line crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage and object removal detection. Two built-in microphones and a built-in speaker provide two-way audio, and there is a line in, line out, 1 alarm input, 1 alarm output and RS-485. SIP support allows integration with VoIP systems.

The metal housing is rated IP67 and IK10 and operates from −30 °C to 60 °C. It is powered by 802.3af PoE or 12 VDC (max 9.6 W), records to microSD up to 512 GB, and integrates via ONVIF Profile S/G/T, ISAPI and ISUP. Australian stock from ARC IP Networks.

How it compares

Hikvision’s DeepinView G1 fisheye family shares one platform but differs in resolution, infrared, audio and analytics. Here is how the DS-2CD6395G1E-IVS compares with its siblings.

FeatureDS-2CD6365G1-S/RC6 MPDS-2CD6395G1E-IVSThis cameraDS-2CD63C5G1-IVS12 MP IR
Resolution6 MP (2560 × 2560)9 MP (3024 × 3024)12 MP (3504 × 3504)
Lens1.16 mm, 180° × 180°2 mm, 360° panoramic1.29 mm Panomorph, 180° × 180°
InfraredNoneIR to 15 mIR to 15 m
EnvironmentIndoor, −10 to 40 °CIP67 / IK10, −30 to 60 °CIP67 / IK10, −40 to 60 °C, heater
Audio4 mics (no speaker)2 mics + speaker (two-way)4 mics + speaker (two-way)
Deep-learning analyticsPeople counting, queue management, heat map, intersection analysisHeat mapPeople counting, queue management, heat map, intersection analysis
Alarm I/O2 in / 2 out1 in / 1 out2 in / 2 out
Ethernet10/100/100010/10010/100/1000
microSDUp to 256 GBUp to 512 GBUp to 256 GB
Max power (PoE 802.3af)8 W9.6 W12.5 W
Best forIndoor retail analyticsRugged 360° coverage, day and nightMaximum detail plus full analytics

All three are DeepinView fisheyes with 20 display modes, 2 TOPS HEOP processing and H.265+. Model names link to full specs and live pricing.

Complete your system

Every Hikvision IP camera records to a network video recorder (NVR) or VMS. This fisheye draws a maximum of 9.6 W on 802.3af PoE (or 12 VDC), so any 802.3af PoE NVR port or switch can power it — for example the DS-7608NI-M2/8P 8-channel PoE NVR, or the DS-3E1309P-EI PoE switch for larger installs. Because the camera can output dewarped views itself, the recorder simply records the streams you choose.

Browse Hikvision NVRs →

Works with your system

Dewarped at the source. The camera can stream panorama, 4PTZ or fisheye + 3PTZ views itself, so your recorder stores ready-to-review images, and H.265+ keeps storage and bandwidth in check.

Hikvision NVRs

Record the camera’s fisheye or camera-dewarped streams; PoE NVRs power it over one cable.

iVMS-4200

Free Hikvision desktop client listed in the datasheet, with software dewarping for live view and playback.

Hik-Connect

Remote viewing and notifications on iOS and Android.

ONVIF Profile S, G & T

Integrates with compatible third-party NVRs and VMS platforms.

SIP / VoIP

Session Initiation Protocol support for peer-to-peer or SIP/PBX integration.

HEOP 2.0 open platform

2 TOPS of on-camera compute for third-party apps (Caffe, TensorFlow, PyTorch; C/C++).

Explore the Hikvision range

Hikvision cameras, recorders and guides from ARC IP Networks:

Panoramic camerasDeepinView camerasDome camerasNVR recordersWhere to buy

Frequently asked questions

A Hikvision 9 MP DeepinView IR network fisheye camera with a 2 mm lens giving a 360° panoramic view at up to 3024 × 3024, with 15 m IR and two-way audio.

Three independently controlled IR lights (850 nm, smart IR) reach up to 15 m, giving black-and-white images down to 0 lux.

Yes. It has 2 built-in microphones and 1 built-in speaker for two-way audio, plus a 3.5 mm line in and line out.

20 display modes in total. The camera can dewarp in hardware to fisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion. Software dewarping in compatible clients adds 360° panorama with up to 8 PTZ windows, hemisphere, AR hemisphere and cylinder views.

Hikvision lists a deep-learning heat map for this model (space heat map and time heat-map chart based on people count or dwell time). People counting and queue management are listed on the DS-2CD6365G1-S/RC and DS-2CD63C5G1-IVS, not this model.

Yes. It is rated IP67 for water and dust and IK10 for vandal resistance, and operates from −30 °C to 60 °C.

By standard PoE (IEEE 802.3af, class 3) or 12 VDC, with maximum consumption of 9.6 W.

It accepts microSD/SDHC/SDXC cards up to 512 GB, and also supports NAS and Auto Network Replenishment (ANR).
Brand Hikvision
Network Connectivity Wired
Resolution 9 MP (3024 × 3024)
Camera Type Fisheye
Lens 2 mm fixed fisheye (360°)
Smart Features DeepinView heat map, smart events
Ingress Protection IP67 / IK10
Power PoE (802.3af) / 12 VDC
IR Range 15 m
Audio / Alarm Two-way audio (2 mics + speaker), 1/1 alarm I/O
DS-2CD6395G1E-IVS_Datasheet.pdf
