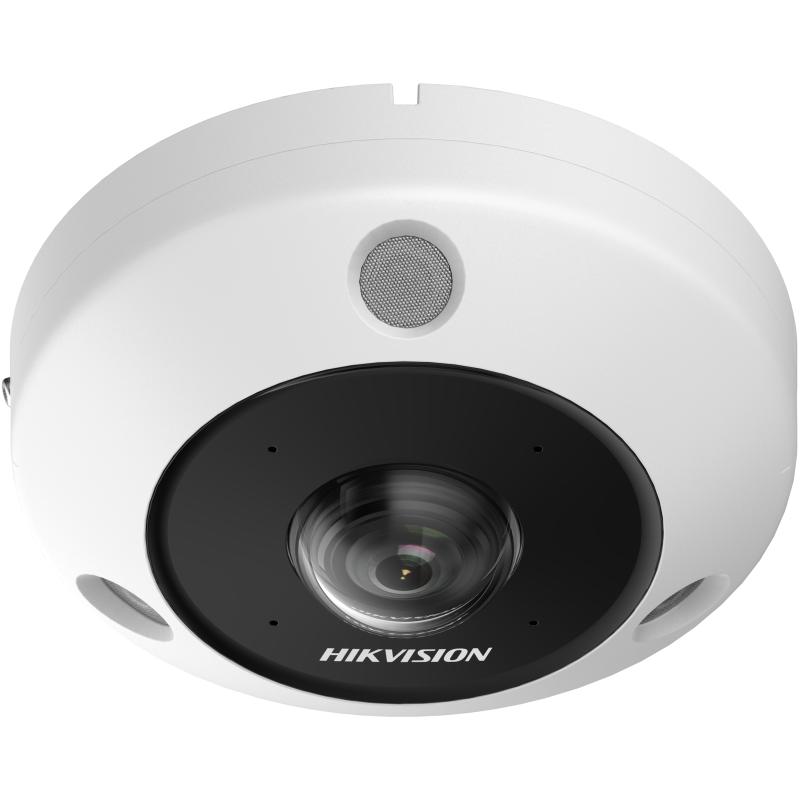

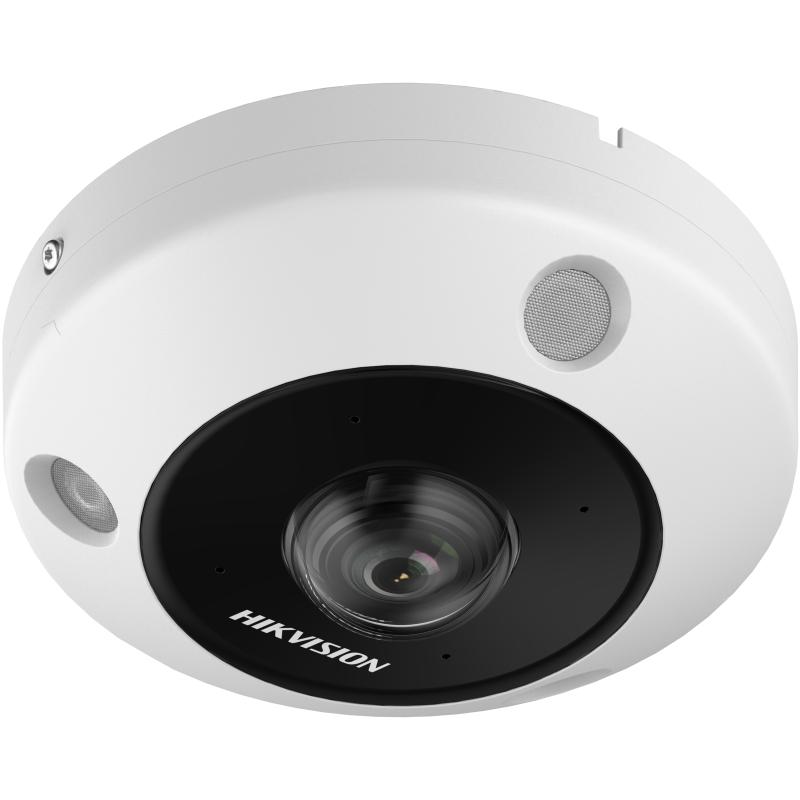

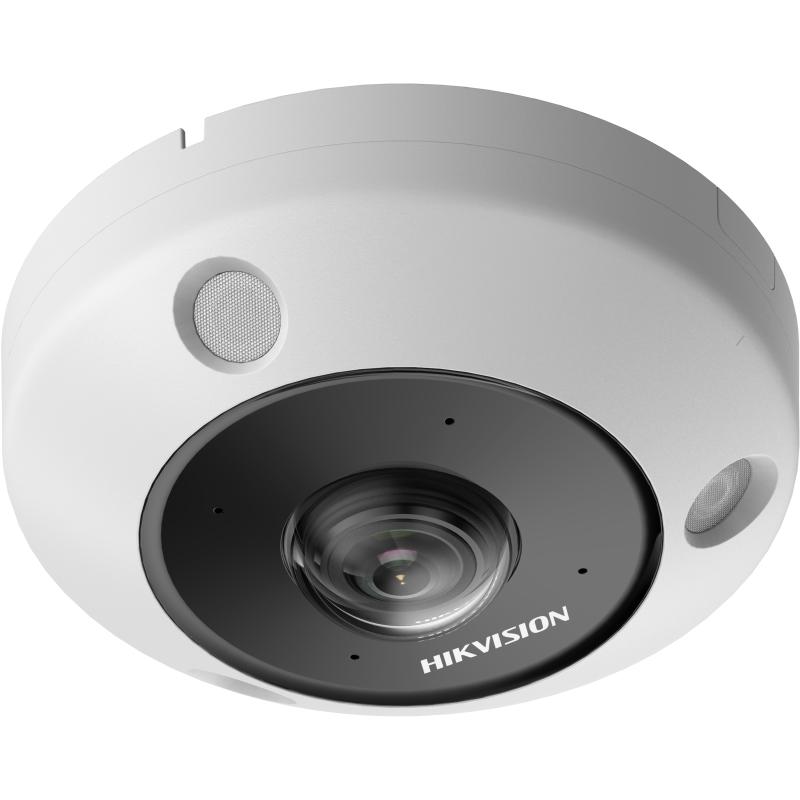

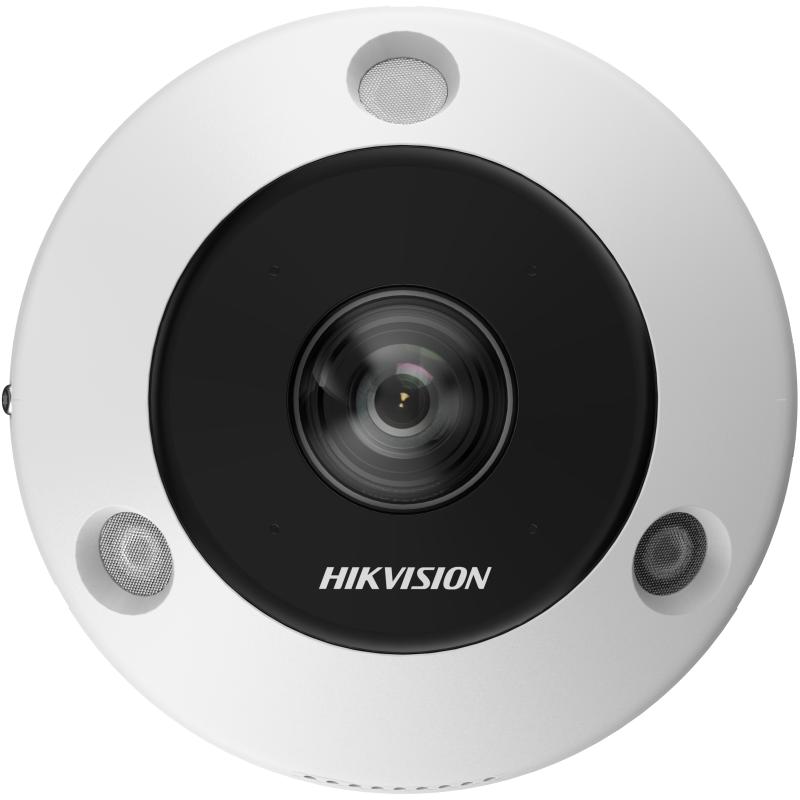

Hikvision DS-2CD63C5G1-IVS DeepinView 12 MP IR Fisheye Network Camera, 1.29 mm Panomorph, 15 m IR, Two-Way Audio, IP67/IK10

https://arcip.com.au/web/image/product.template/11146/image_1920?unique=d95db27
  • 12 MP (3504 × 3504) fisheye, 1.29 mm Panomorph, 180° × 180°
  • People counting, queue management, heat map & intersection analysis
  • 15 m IR, two-way audio (4 mics + speaker)
  • IP67 / IK10 with heater, PoE 802.3af (max 12.5 W)

$ 1,592.23 1592.23 AUD $ 1,592.23 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Panoramic Hikvision IP Camera DeepinView 12MP Fisheye
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2CD63C5G1-IVS
Tags

Key Features

12MP
12 MP Fisheye
1.29 mm Panomorph 180°
15 m Smart IR
People Counting & Queue
Heat Map
Two-Way Audio, 4 Mics
IP67 & IK10
20 Display Modes
At a glance

The Hikvision DS-2CD63C5G1-IVS is the 12 MP flagship DeepinView IR fisheye (3504 × 3504) with a 1.29 mm Panomorph lens (180° × 180°), 15 m IR, two-way audio and the full analytics set: people counting, queue management, heat maps and intersection analysis. Rated IP67 and IK10 with a heater. Part of the Hikvision panoramic range.

Resolution
12 MP (3504 × 3504)
Sensor
1/1.8″ progressive scan CMOS
Lens
1.29 mm Panomorph, 180° × 180°
Night vision
3 IR lights, up to 15 m, 850 nm
Analytics
People counting, queue, heat map, intersection
Audio
4 built-in mics + 1 speaker
Rating
IP67 / IK10, −40 °C to 60 °C, heater
Power
PoE 802.3af (max 12.5 W) or 12 VDC

Why choose the DS-2CD63C5G1-IVS

The DS-2CD63C5G1-IVS is the most capable camera in Hikvision’s DeepinView G1 fisheye family. Its 12 MP (3504 × 3504) 1/1.8″ sensor sits behind a 1.29 mm Panomorph lens (RPL: 89VVT) covering 180° × 180°, so detail holds up even when the image is split into four virtual PTZ views. It combines every analytic in the range — people counting, queue management, space and time heat maps and intersection analysis — with three independently controlled IR lights to 15 m, four microphones and a speaker for two-way audio, and a rugged IP67 / IK10 metal housing with a heater rated from −40 °C to 60 °C. Supplied and supported by ARC IP Networks with genuine Australian stock.

Best for

  • Maximum detail from one camera: 12 MP keeps dewarped views sharp across a whole room or yard.
  • Business intelligence: people counting, queue and waiting-time detection, heat maps and intersection-flow reports.
  • Day and night: three independently controlled IR lights cover to 15 m.
  • Talk-back: four built-in microphones and a built-in speaker for two-way audio.
  • Harsh or exposed sites: IP67, IK10, heater and −40 °C to 60 °C operating range.

Who it’s for

Large retail & supermarkets

Count shoppers, measure queues and map dwell time across the floor.

Shopping centres & transport hubs

Intersection analysis of people flow through junctions of up to 10 ways.

Banks & service centres

Queue analytics with threshold alarms, plus two-way audio.

Warehouses & yards

Rugged overhead coverage of busy areas, day and night.

Campuses & public spaces

Vandal-resistant IK10 coverage of courtyards and walkways.

Integrators

HEOP 2.0 open platform, SIP and ONVIF Profile S/G/T.

DS-2CD63C5G1-IVS
12 MP DeepinView IR Network Fisheye Camera — 1.29 mm Panomorph, 15 m IR, Two-Way Audio, IP67/IK10

Features

  • 12 MP (3504 × 3504) 1/1.8″ progressive-scan CMOS sensor
  • 1.29 mm Panomorph fisheye lens (RPL: 89VVT), 180° horizontal and 180° vertical, F2.2
  • Three independently controlled IR lights, up to 15 m, smart IR, 850 nm
  • Deep learning: people counting, queue management, heat map and intersection analysis
  • 4 built-in microphones and 1 speaker for two-way audio; 1 line in, 1 line out
  • 20 display modes; camera-side (hardware) dewarping: fisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion
  • Smart events: line crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage and object removal detection
  • HEOP 2.0 open platform with 2 TOPS computing power
  • H.265+/H.265/H.264+/H.264; digital WDR, BLC, HLC, 3D DNR, distortion correction, defog
  • 2 alarm inputs, 2 alarm outputs, RS-485; Gigabit Ethernet; microSD up to 256 GB
  • IP67 and IK10 with heater; PoE (802.3af, class 3, max 12.5 W) or 12 VDC (max 11.5 W)

Specifications

Camera
Image sensor1/1.8″ progressive scan CMOS
Max. resolution3504 × 3504
Min. illuminationColour 0.03 lux, B/W 0.006 lux @ F2.2 (AGC on); 0 lux with IR
Shutter1 s to 1/100,000 s
Day & nightIR cut filter
Lens & Illuminator
Lens typeFixed focal, 1.29 mm Panomorph (RPL: 89VVT)
Field of view180° horizontal, 180° vertical
ApertureF2.2
Depth of field0.2 m to ∞
DORID 27.9 m / O 11.1 m / R 5.6 m / I 2.8 m
Supplement lightIR, 3 lights, up to 15 m, smart IR, 850 nm
Fisheye Display
Mount typeWall / table / ceiling
DecodingHardware (camera) and software (client) dewarping
Hardware modesfisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion
Software modesfisheye, 180° and 360° panorama, 360° panorama + PTZ/3PTZ/6PTZ/8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye + 8PTZ, hemisphere, AR hemisphere and cylinder
Total20 display modes
Video & Audio
Main stream25/30 fps; fisheye up to 3504 × 3504; panorama 3072 × 2304; 4PTZ 4 × 1600 × 1200
CompressionMain: H.265+/H.265/H.264+/H.264; sub: H.265/H.264/MJPEG
Bit rate32 Kbps to 16 Mbps
AudioG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC; environmental noise filtering
Smart & Deep Learning
Smart eventsline crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage and object removal detection
People countingIn, out and passing-by counts; up to 3 regions; scheduled email reports
Queue managementUp to 8 regions; queue length and waiting-time detection
Heat mapSpace heat map and time heat-map line chart
Intersection analysisOne intersection of up to 10 ways
HEOP2 TOPS; HEOP 2.0 OpendevSDK; Caffe, TensorFlow, PyTorch
Network
APIONVIF (Profile S, G, T), ISAPI, SDK, ISUP, SIP
ClientsiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
StoragemicroSD/SDHC/SDXC up to 256 GB; NAS (NFS, SMB/CIFS), ANR
Live viewUp to 20 channels
Interface
Ethernet1 × RJ45 10/100/1000 Mbps
Microphones / speaker4 built-in mics, 1 built-in speaker
Audio1 line in, 1 line out (3.5 mm)
Alarm2 inputs, 2 outputs (max 24 VDC, 1 A)
Serial1 × RS-485
General
Power12 VDC ±20% (max 11.5 W) or PoE 802.3af class 3 (max 12.5 W)
MaterialMetal
HeaterYes
ProtectionIP67, IK10
Operating conditions−40 °C to 60 °C, humidity 95% or less (non-condensing)
DimensionsØ140.3 × 59.4 mm
WeightApprox. 715 g

Specifications from the official Hikvision datasheet for the DS-2CD63C5G1-IVS. Range and DORI figures are Hikvision reference values and vary with environment.

Professional Overview

The Hikvision DS-2CD63C5G1-IVS is a 12 MP DeepinView IR network fisheye camera. A 1/1.8″ sensor at 3504 × 3504 and a 1.29 mm Panomorph lens (RPL: 89VVT) deliver a 180° × 180° view, letting one camera cover a large room, shop floor or yard. It supports wall, table and ceiling mounting.

Twenty display modes let you view the raw fisheye or dewarped images. The camera can dewarp in hardware and stream fisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion views, with 4PTZ views at 1600 × 1200 each, while compatible client software adds hemisphere, cylinder and 360° panorama layouts with up to 8 virtual PTZ windows. Three independently controlled IR lights reach 15 m.

With 2 TOPS of on-board deep learning it counts people entering, exiting and passing by, manages queues with length and waiting-time detection, produces space and time heat maps and analyses flow through intersections of up to 10 ways. Smart events cover line crossing, intrusion, region entrance, region exiting, scene change, audio exception, defocus, unattended baggage and object removal detection. Four built-in microphones and a speaker provide two-way audio, alongside a line in and out, 2 alarm inputs, 2 alarm outputs, RS-485 and SIP support.

The metal housing is rated IP67 and IK10, includes a heater and operates from −40 °C to 60 °C. It runs on 802.3af PoE (max 12.5 W) or 12 VDC, connects at Gigabit speed, records to microSD up to 256 GB and integrates via ONVIF Profile S/G/T, ISAPI and ISUP. Australian stock from ARC IP Networks.

How it compares

Hikvision’s DeepinView G1 fisheye family shares one platform but differs in resolution, infrared, audio and analytics. Here is how the DS-2CD63C5G1-IVS compares with its siblings.

FeatureDS-2CD6365G1-S/RC6 MPDS-2CD63C5G1-IVSThis cameraDS-2CD6395G1E-IVS9 MP IR
Resolution6 MP (2560 × 2560)12 MP (3504 × 3504)9 MP (3024 × 3024)
Lens1.16 mm, 180° × 180°1.29 mm Panomorph, 180° × 180°2 mm, 360° panoramic
InfraredNoneIR to 15 mIR to 15 m
EnvironmentIndoor, −10 to 40 °CIP67 / IK10, −40 to 60 °C, heaterIP67 / IK10, −30 to 60 °C
Audio4 mics (no speaker)4 mics + speaker (two-way)2 mics + speaker (two-way)
Deep-learning analyticsPeople counting, queue management, heat map, intersection analysisPeople counting, queue management, heat map, intersection analysisHeat map
Alarm I/O2 in / 2 out2 in / 2 out1 in / 1 out
Ethernet10/100/100010/100/100010/100
microSDUp to 256 GBUp to 256 GBUp to 512 GB
Max power (PoE 802.3af)8 W12.5 W9.6 W
Best forIndoor retail analyticsMaximum detail plus full analyticsRugged 360° coverage, day and night

All three are DeepinView fisheyes with 20 display modes, 2 TOPS HEOP processing and H.265+. Model names link to full specs and live pricing.

Complete your system

Every Hikvision IP camera records to a network video recorder (NVR) or VMS. This fisheye draws a maximum of 12.5 W on 802.3af PoE (or 12 VDC), so any 802.3af PoE NVR port or switch can power it — for example the DS-7608NI-M2/8P 8-channel PoE NVR, or the DS-3E1309P-EI PoE switch for larger installs. Because the camera can output dewarped views itself, the recorder simply records the streams you choose.

Browse Hikvision NVRs →

Works with your system

Dewarped at the source. The camera can stream panorama, 4PTZ or fisheye + 3PTZ views itself, so your recorder stores ready-to-review images, and H.265+ keeps storage and bandwidth in check.

Hikvision NVRs

Record the camera’s fisheye or camera-dewarped streams; PoE NVRs power it over one cable.

iVMS-4200

Free Hikvision desktop client listed in the datasheet, with software dewarping for live view and playback.

Hik-Connect

Remote viewing and notifications on iOS and Android.

ONVIF Profile S, G & T

Integrates with compatible third-party NVRs and VMS platforms.

SIP / VoIP

Session Initiation Protocol support for peer-to-peer or SIP/PBX integration.

HEOP 2.0 open platform

2 TOPS of on-camera compute for third-party apps (Caffe, TensorFlow, PyTorch; C/C++).

Explore the Hikvision range

Hikvision cameras, recorders and guides from ARC IP Networks:

Panoramic camerasDeepinView camerasDome camerasNVR recordersWhere to buy

Frequently asked questions

A Hikvision 12 MP DeepinView IR network fisheye camera with a 1.29 mm Panomorph lens giving a 180° × 180° view at up to 3504 × 3504.

Hikvision lists this model with a Panomorph lens (RPL: 89VVT), a 1.29 mm fisheye lens covering 180° horizontally and vertically.

People counting (in, out and passing by, with scheduled email reports), queue management (queue length and waiting time), space and time heat maps, and intersection analysis for up to 10 ways, plus smart events such as intrusion, line crossing and unattended baggage.

20 display modes in total. The camera can dewarp in hardware to fisheye, 180° panorama, 180° dual-channel panorama, panorama, 4PTZ, fisheye + 3PTZ and 4PTZ fusion. Software dewarping in compatible clients adds 360° panorama with up to 8 PTZ windows, hemisphere, AR hemisphere and cylinder views.

Yes. Three independently controlled IR lights reach 15 m, and 4 built-in microphones plus 1 built-in speaker support two-way audio.

Yes. It is rated IP67 and IK10, has a built-in heater and operates from −40 °C to 60 °C.

By standard PoE (IEEE 802.3af, class 3) at a maximum of 12.5 W, or 12 VDC at a maximum of 11.5 W.

The DS-2CD63C5G1-IVS has higher resolution (12 MP vs 9 MP), Gigabit Ethernet, 4 microphones, 2 alarm inputs/outputs, a heater and the full analytics set; the 9 MP model lists a heat map only, 2 microphones and microSD up to 512 GB.
Brand Hikvision
Network Connectivity Wired
Resolution 12 MP (3504 × 3504)
Camera Type Fisheye
Lens 1.29 mm Panomorph fisheye (180°)
Smart Features DeepinView people counting, queue, heat map, intersection analysis
Ingress Protection IP67 / IK10
Power PoE (802.3af) / 12 VDC
IR Range 15 m
Audio / Alarm Two-way audio (4 mics + speaker), 2/2 alarm I/O
DS-2CD63C5G1-IVS_Datasheet.pdf
Download

Accurate Shipping Costs

Our online shipping calculator is designed to provide a final, accurate shipping cost based on the items in your cart and your delivery postcode. Shipping costs are calculated at checkout based on your order and delivery postcode. The final cost is calculated based on several factors which are automatically accounted for by our system, including:

  • The stock location of the item(s) across our warehouses.
  • Orders with multiple items that may require special packaging.
  • The weight and dimensions of the order (including heavy or oversized items).
  • The delivery courier servicing your specific region.

Delivery Times




Standard Processing


Most orders placed by 2pm AEDT are dispatched for next working day delivery. Larger orders may require 1-2 additional business days for processing. If timing is critical, please contact us to discuss expedited options (additional charges may apply).


Delivery Timeframes


Region

Processing Time

Express Delivery

Standard Delivery

VIC, NSW, SA, QLD Metro, TAS

1-2 business days

1-2 business days

2-4 business days

NT, WA, QLD Rural

1-2 business days

1-2 business days

3-5 business days

New Zealand

1-2 business days

2-3 business days

4-10 business days

Please note: Processing times may extend during peak periods such as Christmas and end of financial year.

Free Warehouse Pickup



Save on shipping costs with free pickup from our ARC IP Networks Blackburn warehouse. Simply place your order online or by phone, and collect during business hours (Monday to Friday). Please allow time for picking and packing. For urgent orders, call 1300 100 440 to confirm your order is ready.

ARC IP Networks Pickup Address: 6 George Street, Blackburn, VIC 3130


Insurance & Tracking



All ARC IP Networks shipments are fully insured and trackable. Once dispatched, you'll receive an email with your tracking number and courier website details. If your item is confirmed lost or damaged by our courier, we'll arrange a replacement in consultation with you.


International Shipping



ARC IP Networks ships to New Zealand. Please note:


  • Import duties and taxes vary by country
  • Buyers are responsible for all customs charges
  • Contact your local customs authority before ordering
  • We'll provide required documentation for smooth customs clearance
  • Buyers cover all shipping costs for returns due to refused duties/taxes


Delivery Requirements


Signature Required


All deliveries must be signed for. If you won't be home, contact our Sales Support team to arrange Authority to Leave. Important: Authority to Leave voids shipping insurance if parcels are lost or stolen.


Delivery Restrictions


We do not deliver to PO Boxes or Parcel Lockers as our couriers cannot access them. Orders sent to these addresses will be returned, incurring redelivery fees.


Shipping Issue Resolution


ARC IP Networks works closely with our shipping partners to resolve any delivery issues quickly and fairly:


  1. Confirmation: We verify expected delivery dates with our shipping partners
  2. Investigation: Issues outside normal timeframes trigger formal investigations
  3. Communication: We keep you updated throughout the resolution process
  4. Resolution: Confirmed lost items are replaced or refunded after investigation completion


Please note: Refunds for lost, missing, or delayed orders cannot be processed until shipping partner investigations are complete. This does not affect your rights under the Australian Consumer Law, and refunds or replacements will be provided where required once loss or damage is confirmed.

Warranty & Faulty Products

ARC IP Networks complies with the Australian Consumer Law (ACL).

If a product is faulty, damaged, not of acceptable quality, or does not perform as advertised, you are entitled to a repair, replacement, or refund in accordance with ACL.

Manufacturer Warranty Returns

For faults developing after 14 days within the warranty period:

  • Contact ARC IP Networks first at info@arcip.com.au or 1300 100 440
  • We will assess the issue and coordinate with manufacturers, authorised service centres, or distributors on your behalf
  • Where required, a manufacturer RMA may be arranged
  • ARC IP Networks manages the return process and next steps

Dead on Arrival (DOA)

Products that arrive faulty or damaged must be reported within 14 days of delivery.

ARC IP Networks will arrange assessment, replacement, or refund as appropriate.

Change of Mind & Non-Faulty Returns

Change-of-mind returns must be requested within 14 days of delivery. For change-of-mind returns, the product must be unused, unopened, in its original packaging, and returned with all accessories and documentation. These conditions apply only to change-of-mind returns and do not limit or exclude your rights under the Australian Consumer Law. Some products are not eligible for change-of-mind returns, including:

  • Ex-demo products
  • Clearance or markdown items
  • Special-order items
  • Products clearly marked “No Change-of-Mind Returns”

Important

This does not affect your rights under Australian Consumer Law.

If a product is faulty, not of acceptable quality, or does not meet advertised specifications, it remains eligible for return regardless of category.

Refunds & Processing Timeframes

  • Approved refunds are processed within 7 business days of receiving returned goods
  • Refunds are issued to the original payment method, unless otherwise agreed
  • Replacement or repair may be offered where appropriate
  • Store credit may be offered only with customer consent

Handling fees and non-returnable service charges may not be refundable where permitted by law.


Restocking Fees

For approved change-of-mind or non-faulty returns, a 15% restocking fee applies.

  • Any applicable restocking fee will be clearly communicated prior to return approval
  • The fee will be deducted from the refund amount
  • Restocking fees do not apply to returns made under the Australian Consumer Law, including faulty, damaged, or misrepresented goods.

Return Shipping Costs

  • Change-of-mind returns: The customer is responsible for return shipping costs.
  • Faulty or defective products: ARC IP Networks covers return shipping under Australian Consumer Law.

Non-Warranty Repairs

For issues not covered by warranty:

  • ARC IP Networks will provide a quote before proceeding
  • Customers are responsible for all shipping and service costs
  • No repairs are undertaken without customer approval

Return Methods

Returns may be made:

  • In-store at ARC IP Networks – 6 George Street, Blackburn VIC 3130
  • Or by shipment as instructed by our support team

Proof of purchase is required for all returns.

Enquire About this Product


Any questions about this product? Fill out the form below, and we'll get back to you soon!

Similar Products
Accessory Products
