Hikvision DS-2CD6825G0/C-IVS Dual-Lens People Counting Network Camera, 2 MP, 2 mm, IR 6 m, IP67

https://arcip.com.au/web/image/product.template/11148/image_1920?unique=d95db27
  • Dual-lens overhead people counter — counts entries and exits separately
  • Height filtering, on-board data storage, daily/weekly/monthly/annual email reports
  • 2 MP 1080p video, 2 mm lens (104.5°), IR up to 6 m
  • Built-in mic, line audio in/out, 1/1 alarm I/O, RS-485
  • 802.3af PoE or 12 VDC, IP67 housing

$ 2,029.64 2029.64 AUD $ 2,029.64 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm
  • Deep Learning Features

This combination does not exist.

In stock online
Hikvision IP Camera 2MP People Counting Dual-Lens Retail Analytics
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2CD6825G0-C-IVS
Tags

Key Features

In / Out People Counting
Dual-Lens Design
2MP
1080p Video
Height Filtering
Scheduled Email Reports
IR up to 6 m
Built-in Mic + Audio I/O
IP67 (-V Model)
At a glance

The Hikvision DS-2CD6825G0/C-IVS is a dual-lens people counting camera. Mounted overhead at an entrance, it counts people entering and exiting separately, filters targets by height, stores the counts on board and can upload them in real time or email daily, weekly, monthly or annual reports — while also streaming 2 MP video. The -V housing is rated IP67. Part of the Hikvision special-function camera range.

Function
People counting (in / out)
Resolution
2 MP (1920 × 1080)
Lens
2 mm (104.5° H)
IR range
Up to 6 m
Mount height
2.1 – 6 m (typical)
Audio / alarm
Mic + line in/out · 1/1 alarm
Protection
IP67
Power
PoE (802.3af) / 12 VDC

Why choose the DS-2CD6825G0/C-IVS

Footfall is one of the most useful numbers a site can have — for retail conversion, staffing, occupancy and cleaning schedules — and a general-purpose CCTV camera doesn’t produce it. The DS-2CD6825G0/C-IVS is purpose-built for it. It is a dual-lens camera designed to be mounted overhead, looking down on a doorway, where it counts people entering and exiting separately and supports target filtering by height.

The counting data is stored on the camera’s own eMMC storage, can be uploaded in real time or per statistics cycle, and the camera can email reports on a daily, weekly, monthly or annual basis. Alongside the counting it streams 1920 × 1080 video with H.265+ compression, has a built-in microphone, a line-level audio input and output, 1 alarm input and 1 alarm output, and RS-485. The -V housing is IP67, and it runs on standard 802.3af PoE (max. 8.3 W) or 12 VDC.

Best for

  • Retail entrances: separate in and out counts at the shopfront for footfall and conversion reporting.
  • Occupancy tracking: compare entries and exits through the day at a single controlled doorway.
  • Staffing and opening hours: scheduled email reports show traffic by day, week, month or year.
  • Counting adults, not trolleys: height filtering helps exclude low objects and set who gets counted.
  • Covered outdoor entries: the -V version is IP67 rated, so it suits sheltered external doorways as well as indoor ones.

Who it’s for

Retail stores

Measure footfall at the front door and compare it with sales to see real conversion.

Shopping centres

Count traffic at mall entries and tenancy doorways for leasing and marketing reports.

Libraries & galleries

Report visitor numbers by day, week, month or year without manual clickers.

Offices & venues

Track how many people pass through a doorway across the day.

Facilities managers

Use traffic data to plan cleaning, staffing and opening hours.

Installers & integrators

A standalone counter that runs on standard PoE and reports by email or upload.

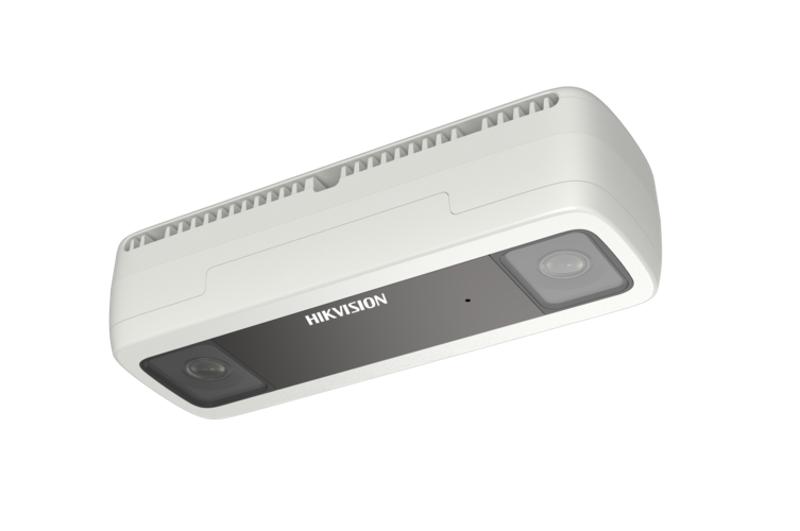

DS-2CD6825G0/C-IVS
Dual-Lens People Counting Network Camera, 2 MP, 2 mm, IR 6 m, IP67 — In/Out Counting with Audio & Alarm I/O

Professional Overview

The Hikvision DS-2CD6825G0/C-IVS is a dual-lens people counting network camera from Hikvision’s special-function series. Designed for overhead installation above an entrance, it uses on-camera analytics to count people entering and exiting separately, with target filtering by height. The camera also records 2 MP video: a 1/2.7″ progressive-scan CMOS sensor delivers 1920 × 1080 at up to 25 fps (50 Hz) or 30 fps (60 Hz).

Its 2 mm fixed lens (F2.25) provides a 104.5° horizontal, 70.5° vertical and 112° diagonal field of view, and 850 nm IR covers up to 6 m. Hikvision’s installation table relates mounting height to detection span — for example around 3.34 m of span at 3.1 m height, rising to 7.69 m at 6 m height. Hikvision does not publish a counting-accuracy percentage in the datasheet; correct mounting height and placement over the traffic path are what matter most.

Counting data is kept on the built-in eMMC storage, uploaded in real time or by statistic cycle, and summarised in email reports on a daily, weekly, monthly or annual basis. Event linkage covers FTP/NAS upload, surveillance-centre notification, email, alarm output, recording and capture. The -S version adds a line-level audio input and output (two-core terminal blocks) and RS-485 to the built-in microphone, plus 1 alarm input and 1 alarm output.

Video is compressed with H.265+/H.265/H.264+/H.264 (sub-stream H.265/H.264/MJPEG), and the camera supports ONVIF Profile S and G, ISAPI and SDK, with iVMS-4200 and Hik-Connect clients. Power is 802.3af PoE (Class 3, max. 8.3 W) or 12 VDC (max. 8 W). The -V housing is IP67 rated and operates from −30 °C to +45 °C. Australian stock from ARC IP Networks.

Features

  • Dual-lens people counting camera for overhead mounting
  • Counts people entering and exiting separately
  • Target filtering by height
  • Real-time upload or upload by statistic cycle
  • Email reports on a daily, weekly, monthly or annual basis
  • Built-in eMMC storage for people counting data
  • 2 MP (1920 × 1080) video, H.265+ compression
  • 2 mm fixed lens, 104.5° horizontal FOV, IR up to 6 m
  • Built-in microphone; -S: line audio in/out and RS-485; 1 alarm in / 1 alarm out
  • PoE (802.3af) or 12 VDC
  • IP67 (-V model)

Specifications

Camera
Image Sensor1/2.7″ Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColour: 0.0176 lux @ (F2.25, AGC ON); B/W: 0.0035 lux @ (F2.25, AGC ON); 0 lux with IR
Shutter Time1/25 s to 1/100,000 s
Day & NightIR cut filter
Lens
Lens TypeFixed focal, 2 mm
ApertureF2.25
Field of ViewHorizontal 104.5°, vertical 70.5°, diagonal 112°
Lens MountM12
Illuminator
TypeIR, 850 nm
RangeUp to 6 m
Video
Main Stream50 Hz: 25 fps; 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Video CompressionMain: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
Region of Interest4 fixed regions
People Counting
CountingCounts people entering and exiting separately
Data UploadReal-time, or by statistic cycle
ReportsEmail reports on a daily, weekly, monthly or annual basis
FilteringTarget filtering by height
Data StorageBuilt-in eMMC storage for people counting data
Events
Basic EventsMotion detection, video tampering, exceptions
LinkageUpload to FTP/NAS, notify surveillance centre, send email, trigger alarm output, recording, capture
Interface
Ethernet1 × RJ45 10/100 Mbps
Audio1 built-in microphone; -S: 1 line in, 1 line out (two-core terminal block), mono
Alarm1 input, 1 output (max. 24 VDC, 1 A)
RS-485-S: 1 (half duplex)
Image EnhancementHLC, BLC, 3D DNR, defog
Day/Night SwitchDay / Night / Auto / Schedule / triggered by alarm input (-S)
Network
APIONVIF (Profile S, Profile G), ISAPI, SDK, Ehome 5.0
ClientsiVMS-4200, Hik-Connect
Simultaneous Live ViewUp to 20 channels
General
Power12 VDC ± 20%, 0.66 A, max. 8 W; PoE 802.3af, Class 3, max. 8.3 W
MaterialFront cover plastic, body metal

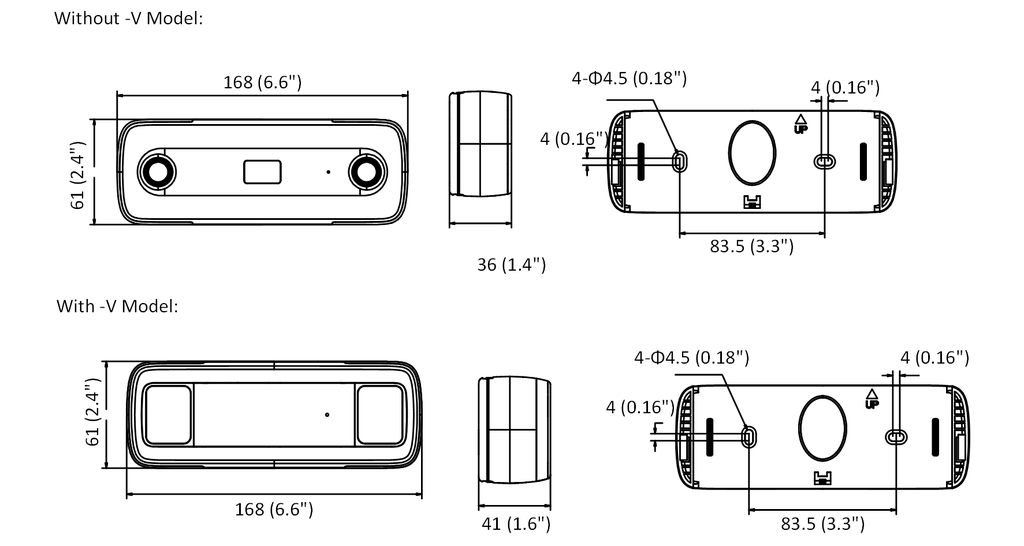

Dimensions (-V)168 × 61 × 41 mm
WeightApprox. 435 g
Operating Conditions−30 °C to +45 °C, humidity 95% or less (non-condensing)
ProtectionIP67 (-V model, IEC 60529-2013)

Specifications from the official Hikvision DS-2CD6825G0/C-I(V)(S) datasheet and hikvision.com product page; figures shown are for the C-IVS (2 mm). The datasheet is attached below for download.

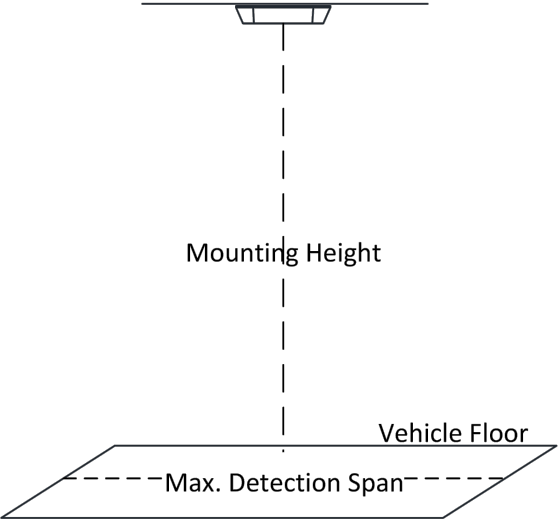

Installation recommendation (2 mm lens)

Hikvision’s typical values for mounting height versus maximum detection span. For site-specific advice, Hikvision recommends contacting its technical support.

Mounting heightMax. detection span
2.1 m0.95 m
2.6 m2.15 m
3.1 m3.34 m
3.6 m4.53 m
4.1 m5.72 m
4.7 m5.36 m
5.1 m6.08 m
5.6 m6.97 m
6.0 m7.69 m

How it compares

The DS-2CD6825G0/C counter comes in a few versions. Here’s how the C-IVS we supply compares with its variants, so you can be sure it has the inputs your project needs.

FeatureDS-2CD6825G0/C-ISIndoor versionDS-2CD6825G0/C-IVSThis cameraDS-2CD6825G0/C-IVNo -S interfaces
People counting (in / out)YesYesYes
Height filteringYesYesYes
IP67 housing (-V)NoYesYes
Built-in microphoneYesYesYes
Line audio in/out + RS-485 (-S)YesYesNo
Best forIndoor doorwaysFully featured, IP67IP67, basic I/O

Variant differences per the official DS-2CD6825G0/C-I(V)(S) datasheet. Variants shown for reference.

Complete your system

The DS-2CD6825G0/C-IVS works as a standalone counter — it stores its own counting data and can email reports — and it also streams video to a network video recorder (NVR). It needs only standard 802.3af PoE (max. 8.3 W), so any Hikvision PoE NVR or PoE switch port can power it over a single cable.

Browse all Hikvision NVRs →

Works with your system

Data and video from one device. Counting statistics are stored on the camera and delivered by real-time upload, upload per statistic cycle or scheduled email reports — while H.265+ keeps the 2 MP video stream light on bandwidth and storage.

Hikvision NVRs

Records the 2 MP video over a single PoE cable.

iVMS-4200

Free Hikvision desktop software for live view and management.

Hik-Connect

Remote live view and playback on iOS & Android.

ONVIF Profile S / G

Video integration with compatible third-party NVRs and VMS.

Email & FTP/NAS

Scheduled email reports and uploads deliver the counting data.

Part of the Hikvision range

Genuine Australian Hikvision stock from ARC IP Networks — explore the range, technology and guides:

DeepinView & special camerasDome camerasNVR recordersWhere to buyBuyer’s guide

Frequently asked questions

It is a dual-lens people counting camera. Mounted overhead at an entrance, it counts people entering and exiting separately, supports target filtering by height, stores the counting data on board and can upload it or email reports — while also streaming 2 MP video.

Hikvision does not publish a counting-accuracy percentage in the DS-2CD6825G0/C-I(V)(S) datasheet, so we don’t quote one. Results depend on installation: mount the camera overhead within Hikvision’s recommended height range so the doorway falls inside the detection span.

Hikvision’s installation table runs from 2.1 m mounting height (about 0.95 m detection span) to 6 m (about 7.69 m span). For example, at 3.1 m height the typical maximum detection span is 3.34 m.

Counts can be uploaded in real time or per statistic cycle, and the camera can send email reports on a daily, weekly, monthly or annual basis. The data is held on the camera’s built-in eMMC storage.

The -V model is rated IP67 against dust and water and operates from −30 °C to +45 °C, so it suits covered external entrances as well as indoor doorways.

The -S version adds a line-level audio input and output (two-core terminal blocks) and an RS-485 interface on top of the built-in microphone. The camera also has 1 alarm input and 1 alarm output (max. 24 VDC, 1 A).

By standard 802.3af PoE (Class 3, max. 8.3 W) or 12 VDC (max. 8 W), so any Hikvision PoE NVR or PoE switch can power it on a single network cable.

Yes. It streams 1920 × 1080 video at up to 25/30 fps with H.265+ compression to an NVR or VMS, and supports ONVIF Profile S and G.
Brand Hikvision
Network Connectivity Wired (RJ45 100M)
Resolution 2 MP (1920×1080)
Camera Type Dual-Lens People Counter
Lens 2 mm fixed
Smart Features People Counting (in/out)
Ingress Protection IP67
Power PoE 802.3af / 12 VDC
IR Range Up to 6 m
Audio / Alarm Built-in mic + audio in/out + 1×1 alarm I/O + RS-485
Deep Learning Features People Counting / Height Filtering
DS-2CD6825G0_C-IVS_Datasheet.pdf
Download
