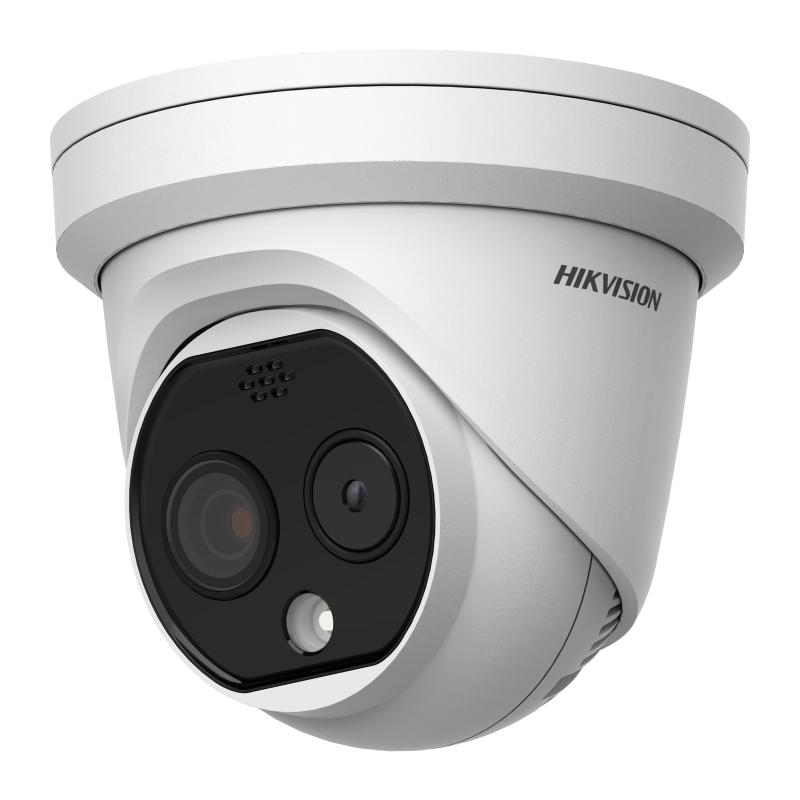

Hikvision DS-2TD1228-7-QA HeatPro Bi-Spectrum Thermal Turret Network Camera, 256 × 192 Thermal 6.9 mm, 4 MP Optical 6.4 mm

https://arcip.com.au/web/image/product.template/11142/image_1920?unique=d95db27
  • 256 × 192 thermal (NETD <40 mK) + 4 MP optical in one turret
  • Fire detection, smoking detection & temperature-exception alarm (−20 to 150 °C)
  • Human/vehicle VCA with flashing white light & audible alarm
  • 15 m IR, PoE 802.3af (max 6.5 W), IP67

$ 385.80 385.8 AUD $ 385.80 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Resolution
  • Camera Type
  • Lens
  • Smart Features
  • Ingress Protection
  • Power
  • IR Range
  • Audio / Alarm

This combination does not exist.

In stock online
Hikvision Turret 4MP Thermal Bi-Spectrum HeatPro Fire Detection
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
DS-2TD1228-7-QA
Tags

Key Features

256×192
Thermal VOx 12 μm
4MP
4 MP Optical
Fire & Smoking Detection
Temp. Exception Alarm
Human & Vehicle VCA
Flashing Light & Audible Alarm
15 m IR
IP67 Weatherproof
At a glance

The Hikvision DS-2TD1228-7/QA is a HeatPro bi-spectrum turret that pairs a 256 × 192 thermal sensor (6.9 mm, NETD <40 mK) with a 4 MP optical camera (6.4 mm). It runs fire and smoking detection, temperature-exception alarms and human/vehicle classification, and answers with a flashing white light and audible alarm. PoE powered, IP67. Part of the Hikvision turret range.

Thermal sensor
256 × 192 VOx, 12 μm
Thermal lens
6.9 mm, 24.9° × 18.7°
NETD
<40 mK
Optical camera
4 MP (2688 × 1520), 1/2.7″
Optical lens
6.4 mm, 53.0° horizontal
Temperature range
−20 °C to 150 °C, ±8 °C
Deterrence
White light to 30 m + audible alarm
Power / rating
PoE (802.3af) or 12 VDC; IP67

Why choose the DS-2TD1228-7/QA

Ordinary cameras need light and contrast to see; a thermal sensor sees heat. The DS-2TD1228-7/QA puts both in one turret: a 256 × 192 vanadium-oxide thermal module with NETD below 40 mK picks out people, vehicles and hot spots even in complete darkness, while the 4 MP optical channel gives you a familiar colour image for identification. On top of the imaging it adds genuinely useful site protection: fire detection, smoking detection and temperature-exception alarms from −20 °C to 150 °C, plus four perimeter rules (line crossing, intrusion, region entrance and exit) with human and vehicle classification. When a rule fires it can flash its white light (up to 30 m) and play a voice alert. It runs on standard 802.3af PoE at just 6.5 W and is rated IP67 from −40 °C to 65 °C. Supplied and supported by ARC IP Networks with genuine Australian stock.

Thermal measurement, not medical screening: It measures the surface temperature of objects and scenes for fire prevention and equipment monitoring. It is not a body-temperature, fever-screening or medical device. Temperature accuracy is ±8 °C, which suits early fire warning, not precise process control.

Best for

  • Early fire warning: flags hot spots and open flame (a 0.2 × 0.2 m fire at up to 82.8 m) before smoke detectors react.
  • No-smoking zones: built-in smoking detection for fuel, chemical and storage areas (reference range 10.35 m).
  • Perimeters in total darkness: thermal imaging is independent of light, with human and vehicle classification to cut nuisance alarms.
  • Active deterrence: a flashing white light (to 30 m) and voice alerts warn intruders off before they reach the asset.
  • Simple PoE installs: one 802.3af cable, 6.5 W maximum, in a compact 138 mm turret.

Who it’s for

Warehouses & storage

Watch stock, pallets and loading docks for hot spots and after-hours intrusion.

Waste & recycling

Early warning of smouldering material in incineration and recycling plants.

Manufacturing workshops

Temperature-exception alarms on machinery areas and fire detection across the floor.

Construction sites

Thermal perimeter protection for plant, materials and compounds at night.

Car parks

Vehicle and human detection plus fire detection in parking areas.

Villas & communities

Thermal perimeter coverage that works without lighting, with audible and visual deterrence.

DS-2TD1228-7/QA
HeatPro Thermal & Optical Bi-spectrum Network Turret Camera — 256 × 192 Thermal (6.9 mm) + 4 MP Optical (6.4 mm)

Features

  • 256 × 192 thermal resolution, 12 μm vanadium-oxide uncooled focal plane array, NETD <40 mK
  • 4 MP (2688 × 1520) 1/2.7″ progressive-scan CMOS optical channel with 120 dB WDR
  • Temperature-exception alarm for fire prevention, −20 °C to 150 °C, accuracy ±8 °C
  • 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, 1 line)
  • Fire detection, smoking detection and sun-reflection filter
  • VCA: line crossing, intrusion, region entrance and region exiting with vehicle/human classification (up to 8 rules)
  • Audible and visual alarm: white light up to 30 m with adjustable flashing, 2 preset and 6 importable voice alerts
  • IR up to 15 m with automatically adjusted intensity and angle
  • Thermal image processing: linear, histogram and self-adaptive AGC, DDE, 3D DNR; target colouration in white-hot and black-hot
  • microSD up to 256 GB, NAS and ANR; 1 alarm in / 1 alarm out, audio in/out, RS-485
  • PoE (802.3af, class 3, max 6.5 W) or 12 VDC; IP67 with 6000 V TVS lightning protection

Specifications

Thermal Module
Image sensorVanadium oxide uncooled focal plane array
Resolution256 × 192
Pixel pitch12 μm
Spectral range8–14 μm
NETD<40 mK (25 °C, F1.1)
Focal length6.9 mm
IFOV1.74 mrad
Field of view24.9° × 18.7° (H × V)
Min. focusing distance1.3 m
ApertureF1.0
Digital zoom×2, ×4
Optical Module
Image sensor1/2.7″ progressive scan CMOS
Resolution2688 × 1520
Min. illumination0.0089 lux @ F1.6 (AGC on), 0 lux with IR
Shutter1 s to 1/100,000 s
Focal length6.4 mm
Field of view53.0° (H) × 28.0° (V)
ApertureF1.6
WDR120 dB
Illuminator & Alarm
IR distanceUp to 15 m
White light rangeUp to 30 m
Visual alarmWhite light with adjustable flashing frequency
Audible alarmVCA and temperature-exception alerts; 2 preset + 6 importable voice alerts
Smart Functions
VCALine crossing, intrusion, region entrance, region exiting; up to 8 rules
Temperature measurement3 rule types, 21 rules (10 points, 10 areas, 1 line)
Temperature range / accuracy−20 °C to 150 °C / ±8 °C
OtherFire detection, smoking detection, sun-reflection filter
Range (reference)
VCA — vehicles / humans144.9 m / 55.2 m
Fire detection (0.2 × 0.2 m)82.8 m
Smoking detection10.35 m
Temperature measurement (0.2 m / 1 m object)23.3 m / 116.7 m
Thermal DORI — humans (D / R / I)287 m / 72 m / 36 m
Thermal DORI — vehicles (D / R / I)881 m / 220 m / 110 m
Video & Network
Main streamThermal 25 fps (1280 × 720 max); optical 25/30 fps (2688 × 1520 max)
Video compressionMain: H.265/H.264; sub: H.265/H.264/MJPEG
StoragemicroSD/SDHC/SDXC up to 256 GB, NAS (NFS, SMB/CIFS), ANR
APIISAPI, Hikvision SDK, ISUP, ONVIF (Profile S, Profile G)
ClientsiVMS-4200, Hik-Connect
Live viewUp to 20 channels
Interface
Ethernet1 × RJ45 10/100 Mbps
Alarm1 input, 1 output
Audio1 × 3.5 mm mic/line in, 1 audio out
Serial1 × RS-485 (half duplex)
General
Power12 VDC ±25% or PoE (802.3af, class 3)
Power consumptionMax 6 W (12 VDC), max 6.5 W (PoE)
Operating conditions−40 °C to 65 °C, humidity 95% or less
ProtectionIP67; TVS 6000 V lightning, surge and voltage-transient protection

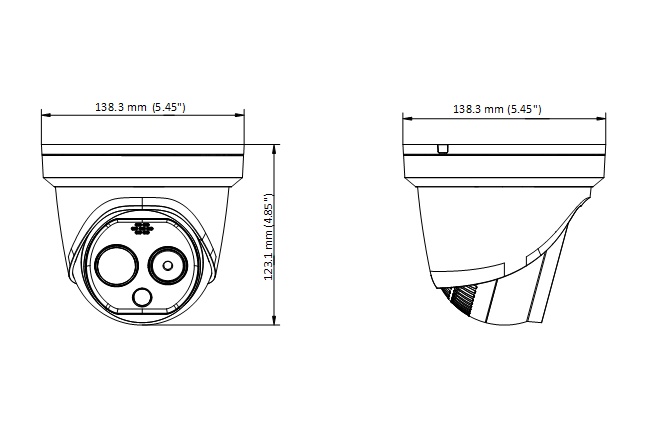

Dimensions138.3 × 138.3 × 123.1 mm
Weight940 g

Specifications from the official Hikvision datasheet for the DS-2TD1228-7/QA. Range and DORI figures are Hikvision reference values and vary with environment.

Professional Overview

The Hikvision DS-2TD1228-7/QA is a HeatPro thermal and optical bi-spectrum turret designed for sites where an ordinary camera is not enough: villas and residential communities, car parks, warehouses, construction sites, waste-incineration plants and manufacturing workshops. It combines a 256 × 192 thermal channel with a 4 MP optical channel in a single IP67 turret housing, so one mounting point delivers both heat-based detection and a familiar colour picture.

The thermal module uses a 12 μm vanadium-oxide uncooled sensor with NETD below 40 mK, a 6.9 mm lens and a 24.9° × 18.7° field of view. The optical side uses a 1/2.7″ sensor at 2688 × 1520 behind a 6.4 mm lens (53.0° horizontal), with 120 dB WDR, 0.0089 lux sensitivity and infrared to 15 m. Hikvision’s reference ranges put vehicle VCA at 144.9 m, human VCA at 55.2 m and fire detection of a 0.2 m object at 82.8 m.

Its analytics are aimed at prevention. Temperature-exception alarms cover −20 °C to 150 °C with ±8 °C accuracy across up to 21 point, area and line rules; fire detection and smoking detection run on the camera; and a sun-reflection filter reduces false fire alarms. Four perimeter rule types classify humans and vehicles, and an alarm can trigger the white light (to 30 m), a voice alert, an SD recording, a relay output, FTP upload or email. It measures the surface temperature of objects and scenes for fire prevention and equipment monitoring. It is not a body-temperature, fever-screening or medical device.

Installation is straightforward: 802.3af PoE at a maximum of 6.5 W or 12 VDC, microSD recording up to 256 GB, ONVIF Profile S/G, ISAPI and ISUP for integration, and management through iVMS-4200 or Hik-Connect. It operates from −40 °C to 65 °C with 6000 V TVS protection. Note that thermal products can be subject to export controls. Australian stock from ARC IP Networks.

How it compares

Hikvision makes thermal cameras for very different jobs. Here is how this compact HeatPro turret compares with the thermographic PTZ speed dome in the same bi-spectrum family.

FeatureDS-2TD1228-7/QAThis cameraDS-2TD4228T-10/S2Thermographic PTZ
Form factorFixed turretPTZ speed dome, 360° pan
Thermal sensor256 × 192, NETD <40 mK256 × 192, NETD ≤35 mK
Thermal lens6.9 mm10 mm athermalised
Optical channel4 MP, 6.4 mm fixed4 MP, 4.8–153 mm (32×)
Temperature range−20 to 150 °C−20 to 550 °C
Temperature accuracy±8 °CMax (±2 °C, ±2%)
IR range15 m100 m
DeterrenceWhite light + audible alarm—
PowerPoE 802.3af / 12 VDC, max 6.5 WHi-PoE / 24 VAC / 36 VDC / 48 VDC, max 30 W
Best forFire warning & perimeter at one spotLarge sites, process temperature monitoring

Both are thermal & optical bi-spectrum network cameras with fire detection. Model names link to full specs and live pricing.

Complete your system

The DS-2TD1228-7/QA runs on a single 802.3af PoE port (max 6.5 W) and records to its own microSD card, a NAS, or an NVR/VMS over ONVIF, ISAPI or ISUP. Before choosing a recorder, confirm it supports thermal/bi-spectrum channels and temperature data if you need them in playback. A managed PoE switch such as the Hikvision DS-3E1309P-EI powers the camera and its neighbours from one box.

Browse Hikvision NVRs →

Works with your system

Two views, one camera. The thermal channel streams at up to 1280 × 720 and the optical channel at 2688 × 1520, each with H.265 compression, so you get heat detection and a recognisable picture from a single network drop.

iVMS-4200

Hikvision desktop client listed in the datasheet for live view, configuration and playback.

Hik-Connect

Remote viewing and alarm notifications on iOS and Android.

ONVIF Profile S & G

Integrates with compatible third-party NVRs and VMS platforms.

ISAPI, SDK & ISUP

Open interfaces for integrators and management platforms.

Alarm I/O & RS-485

Trigger sirens, relays or PLC inputs from fire and temperature events.

Standard PoE (802.3af)

Single-cable power and data from any 802.3af switch or injector.

Explore the Hikvision range

Hikvision cameras, recorders and guides from ARC IP Networks:

Turret camerasActive deterrencePTZ camerasNVR recordersWhere to buy

Frequently asked questions

It is a Hikvision HeatPro thermal and optical bi-spectrum network turret camera. One housing contains a 256 × 192 thermal sensor with a 6.9 mm lens and a 4 MP optical camera with a 6.4 mm lens.

No. It measures the surface temperature of objects and scenes for fire prevention and equipment monitoring. It is not a body-temperature, fever-screening or medical device. Its temperature accuracy is ±8 °C across −20 °C to 150 °C.

The thermal channel looks for abnormal heat sources and raises a fire alarm; Hikvision rates detection of a 0.2 × 0.2 m fire at up to 82.8 m. A sun-reflection filter helps avoid false alarms from reflected sunlight, and temperature-exception rules (10 points, 10 areas, 1 line) can alarm on specific objects or zones.

Yes. Smoking detection is built in, with a Hikvision reference range of 10.35 m, which suits no-smoking areas such as fuel, chemical and storage zones.

Yes. Its VCA supports line crossing, intrusion, region entrance and region exiting with vehicle/human classification, up to 8 rules in total. Reference VCA range is 144.9 m for vehicles and 55.2 m for humans.

It can flash its white light (up to 30 m, adjustable frequency), play one of 2 preset or 6 importable voice alerts, record to microSD, switch its alarm output, capture, upload to FTP or send an email.

By standard PoE (IEEE 802.3af, class 3) at a maximum of 6.5 W, or by 12 VDC at a maximum of 6 W.

Yes. It is rated IP67 with 6000 V TVS lightning and surge protection, and operates from −40 °C to 65 °C.
Brand Hikvision
Network Connectivity Wired
Resolution 4 MP optical + 256 × 192 thermal
Camera Type Turret
Lens 6.9 mm thermal / 6.4 mm optical
Smart Features Fire & smoking detection, temperature alarm, human/vehicle VCA
Ingress Protection IP67
Power PoE (802.3af) / 12 VDC
IR Range 15 m
Audio / Alarm Audio in/out, 1/1 alarm I/O, white-light & audible alarm
DS-2TD1228-7_QA_Datasheet.pdf
Download

Accurate Shipping Costs

Our online shipping calculator is designed to provide a final, accurate shipping cost based on the items in your cart and your delivery postcode. Shipping costs are calculated at checkout based on your order and delivery postcode. The final cost is calculated based on several factors which are automatically accounted for by our system, including:

  • The stock location of the item(s) across our warehouses.
  • Orders with multiple items that may require special packaging.
  • The weight and dimensions of the order (including heavy or oversized items).
  • The delivery courier servicing your specific region.

Delivery Times




Standard Processing


Most orders placed by 2pm AEDT are dispatched for next working day delivery. Larger orders may require 1-2 additional business days for processing. If timing is critical, please contact us to discuss expedited options (additional charges may apply).


Delivery Timeframes


Region

Processing Time

Express Delivery

Standard Delivery

VIC, NSW, SA, QLD Metro, TAS

1-2 business days

1-2 business days

2-4 business days

NT, WA, QLD Rural

1-2 business days

1-2 business days

3-5 business days

New Zealand

1-2 business days

2-3 business days

4-10 business days

Please note: Processing times may extend during peak periods such as Christmas and end of financial year.

Free Warehouse Pickup



Save on shipping costs with free pickup from our ARC IP Networks Blackburn warehouse. Simply place your order online or by phone, and collect during business hours (Monday to Friday). Please allow time for picking and packing. For urgent orders, call 1300 100 440 to confirm your order is ready.

ARC IP Networks Pickup Address: 6 George Street, Blackburn, VIC 3130


Insurance & Tracking



All ARC IP Networks shipments are fully insured and trackable. Once dispatched, you'll receive an email with your tracking number and courier website details. If your item is confirmed lost or damaged by our courier, we'll arrange a replacement in consultation with you.


International Shipping



ARC IP Networks ships to New Zealand. Please note:


  • Import duties and taxes vary by country
  • Buyers are responsible for all customs charges
  • Contact your local customs authority before ordering
  • We'll provide required documentation for smooth customs clearance
  • Buyers cover all shipping costs for returns due to refused duties/taxes


Delivery Requirements


Signature Required


All deliveries must be signed for. If you won't be home, contact our Sales Support team to arrange Authority to Leave. Important: Authority to Leave voids shipping insurance if parcels are lost or stolen.


Delivery Restrictions


We do not deliver to PO Boxes or Parcel Lockers as our couriers cannot access them. Orders sent to these addresses will be returned, incurring redelivery fees.


Shipping Issue Resolution


ARC IP Networks works closely with our shipping partners to resolve any delivery issues quickly and fairly:


  1. Confirmation: We verify expected delivery dates with our shipping partners
  2. Investigation: Issues outside normal timeframes trigger formal investigations
  3. Communication: We keep you updated throughout the resolution process
  4. Resolution: Confirmed lost items are replaced or refunded after investigation completion


Please note: Refunds for lost, missing, or delayed orders cannot be processed until shipping partner investigations are complete. This does not affect your rights under the Australian Consumer Law, and refunds or replacements will be provided where required once loss or damage is confirmed.

Warranty & Faulty Products

ARC IP Networks complies with the Australian Consumer Law (ACL).

If a product is faulty, damaged, not of acceptable quality, or does not perform as advertised, you are entitled to a repair, replacement, or refund in accordance with ACL.

Manufacturer Warranty Returns

For faults developing after 14 days within the warranty period:

  • Contact ARC IP Networks first at info@arcip.com.au or 1300 100 440
  • We will assess the issue and coordinate with manufacturers, authorised service centres, or distributors on your behalf
  • Where required, a manufacturer RMA may be arranged
  • ARC IP Networks manages the return process and next steps

Dead on Arrival (DOA)

Products that arrive faulty or damaged must be reported within 14 days of delivery.

ARC IP Networks will arrange assessment, replacement, or refund as appropriate.

Change of Mind & Non-Faulty Returns

Change-of-mind returns must be requested within 14 days of delivery. For change-of-mind returns, the product must be unused, unopened, in its original packaging, and returned with all accessories and documentation. These conditions apply only to change-of-mind returns and do not limit or exclude your rights under the Australian Consumer Law. Some products are not eligible for change-of-mind returns, including:

  • Ex-demo products
  • Clearance or markdown items
  • Special-order items
  • Products clearly marked “No Change-of-Mind Returns”

Important

This does not affect your rights under Australian Consumer Law.

If a product is faulty, not of acceptable quality, or does not meet advertised specifications, it remains eligible for return regardless of category.

Refunds & Processing Timeframes

  • Approved refunds are processed within 7 business days of receiving returned goods
  • Refunds are issued to the original payment method, unless otherwise agreed
  • Replacement or repair may be offered where appropriate
  • Store credit may be offered only with customer consent

Handling fees and non-returnable service charges may not be refundable where permitted by law.


Restocking Fees

For approved change-of-mind or non-faulty returns, a 15% restocking fee applies.

  • Any applicable restocking fee will be clearly communicated prior to return approval
  • The fee will be deducted from the refund amount
  • Restocking fees do not apply to returns made under the Australian Consumer Law, including faulty, damaged, or misrepresented goods.

Return Shipping Costs

  • Change-of-mind returns: The customer is responsible for return shipping costs.
  • Faulty or defective products: ARC IP Networks covers return shipping under Australian Consumer Law.

Non-Warranty Repairs

For issues not covered by warranty:

  • ARC IP Networks will provide a quote before proceeding
  • Customers are responsible for all shipping and service costs
  • No repairs are undertaken without customer approval

Return Methods

Returns may be made:

  • In-store at ARC IP Networks – 6 George Street, Blackburn VIC 3130
  • Or by shipment as instructed by our support team

Proof of purchase is required for all returns.

Enquire About this Product


Any questions about this product? Fill out the form below, and we'll get back to you soon!

Accessory Products
