The Netgear M4250 AV Line is a family of managed switches built for audio and video over IP. Every model ships pre-configured with NETGEAR IGMP Plus, so multicast AV streams work out of the box, and adds an AV web interface with ready-made port profiles for Dante, Q-SYS, AES67 and AVB audio and NVX, NDI, Q-SYS and Dante video. The range runs from the fanless desktop GSM4210PD (8 PoE+ ports) through the 1U GSM4212P, GSM4212PX, GSM4212UX, GSM4230P, GSM4230PX, GSM4230UP, GSM4248P and GSM4248PX to the 2U GSM4248UX with 40 Ultra90 PoE++ ports, plus the MSM4214X (12 x 2.5G) and XSM4216F (16 x 10G SFP+) aggregation switches.
Quick pick: meeting room or lectern → GSM4210PD; Dante audio rack → GSM4230P; displays and PTZ cameras needing 60W to 90W → GSM4212UX; large video-over-IP rack with 10G uplinks → GSM4248PX. ARC IP Networks is an authorised Netgear reseller and supplies genuine Netgear from Australian stock with a GST tax invoice.
Netgear M4250 AV Line at a glance
Netgear designed the M4250 with input from AV professionals. Its datasheet notes that AV codecs generally use 1Gbps or 10Gbps per stream, and the M4250 targets the widespread 1Gbps codecs: every edge port is Gigabit, with 1G or 10G uplinks. All models share the same Layer 2 and Layer 3 switching engine, so the AV settings you learn on one apply to all of them.
| Model | Ports and PoE budget | Best for |
|---|---|---|

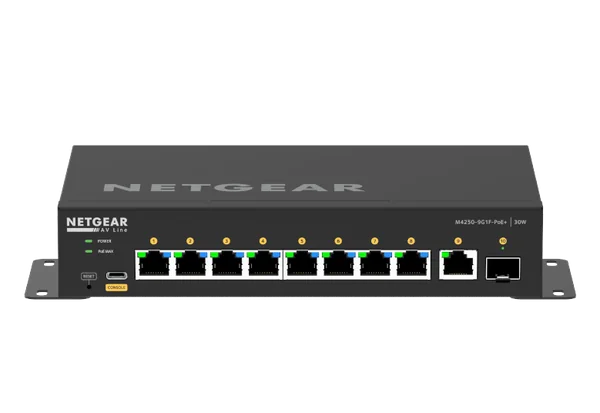

| GSM4210PD M4250-9G1F-PoE+ | Fanless desktop, 8 x 1G PoE+ (110W), 1 x 1G, 1 x SFP | Meeting rooms, lecterns, behind a display |
| GSM4210PX M4250-8G2XF-PoE+ | Desktop, 8 x 1G PoE+ (220W), 2 x 10G SFP+ | Small rooms that need a 10G uplink |
| GSM4212P M4250-10G2F-PoE+ | 1U, 8 x 1G PoE+ (125W), 2 x 1G, 2 x SFP | Small AV racks, Dante audio |
| GSM4212PX M4250-10G2XF-PoE+ | 1U, 8 x 1G PoE+ (240W), 2 x 1G, 2 x 10G SFP+ | Small racks with 10G uplinks |

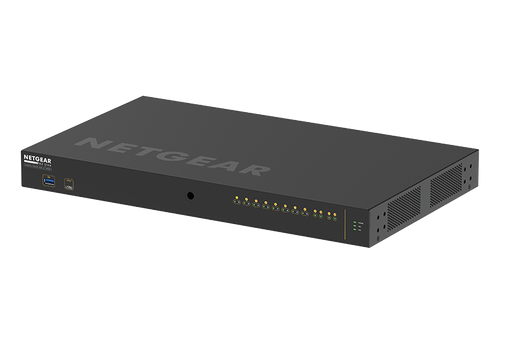

| GSM4212UX M4250-10G2XF-PoE++ | 1U, 8 x 1G Ultra90 PoE++ (720W), 2 x 1G, 2 x 10G SFP+ | PTZ cameras, PoE displays |
| GSM4230P M4250-26G4F-PoE+ | 1U, 24 x 1G PoE+ (300W), 2 x 1G, 4 x SFP | Audio racks, classrooms, function rooms |

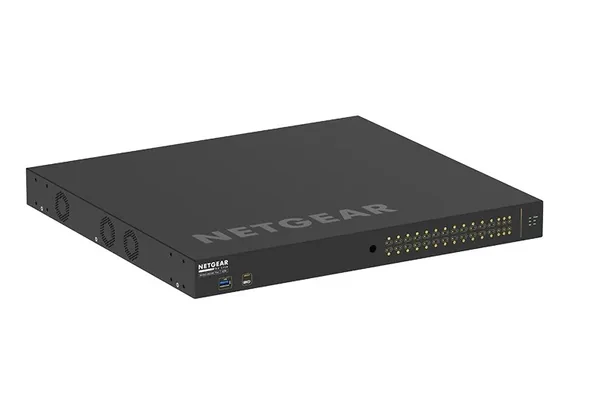

| GSM4230PX M4250-26G4XF-PoE+ | 1U, 24 x 1G PoE+ (480W), 2 x 1G, 4 x 10G SFP+ | Video encoders and decoders with 10G uplinks |
| GSM4230UP M4250-26G4F-PoE++ | 1U, 24 x 1G Ultra90 PoE++ (720W, or 1,440W with both PSUs), 4 x SFP | Many high-power endpoints |

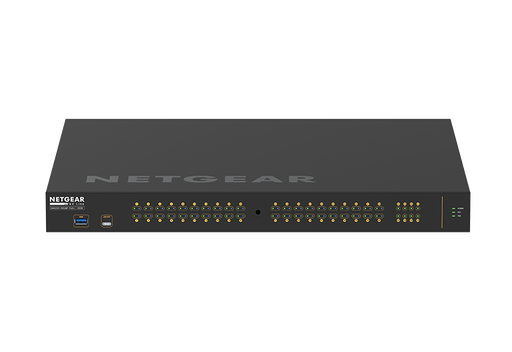

| GSM4248P M4250-40G8F-PoE+ | 1U, 40 x 1G PoE+ (480W), 8 x SFP | Large audio systems, 1G fibre uplinks |
| GSM4248PX M4250-40G8XF-PoE+ | 1U, 40 x 1G PoE+ (960W), 8 x 10G SFP+ | Large video-over-IP racks |

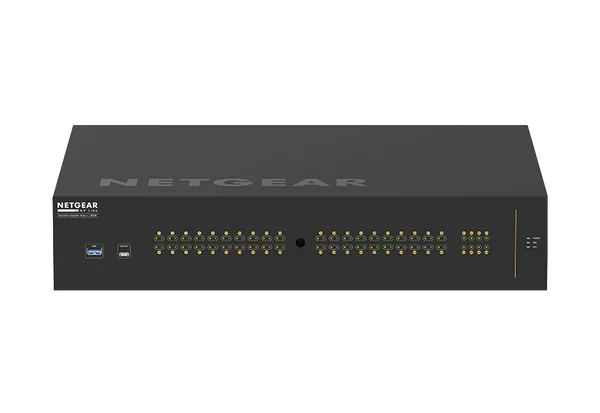

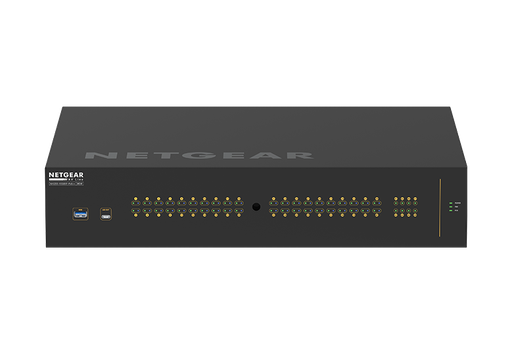

| GSM4248UX M4250-40G8XF-PoE++ | 2U, 40 x 1G Ultra90 PoE++ (up to 2,880W), 8 x 10G SFP+ | Venues full of PTZ cameras and PoE displays |
| MSM4214X M4250-12M2XF | 1U, 12 x 2.5G RJ45, 2 x 10G SFP+, no PoE | Aggregating M4250 switches over copper |
| XSM4216F M4250-16XF | 1U, 16 x 10G SFP+ (ports 1 to 12 also 1G), no PoE | Fibre core of a star topology |
Port counts and PoE budgets from Netgear's M4250 datasheet and product brief.
M4250 specifications compared
Budgets on the GSM4230UP and GSM4248UX depend on how many of their internal power supplies are fitted and powered: one, two or (on the GSM4248UX) three.
Swipe the table sideways to compare all models →
| Model | Form | PoE ports | PoE budget | Uplinks | Switching fabric | Fan-off operation |
|---|---|---|---|---|---|---|
| GSM4210PD | Desktop | 8 x PoE+ | 110W | 1 x 1G SFP | 20 Gbps | Totally fanless |
| GSM4210PX | Desktop | 8 x PoE+ | 220W | 2 x 10G SFP+ | 56 Gbps | Fanless up to 180W PoE |
| GSM4212P | 1U | 8 x PoE+ | 125W | 2 x 1G SFP | 24 Gbps | Fanless up to 80W PoE |
| GSM4212PX | 1U | 8 x PoE+ | 240W | 2 x 10G SFP+ | 60 Gbps | Fanless up to 90W PoE |
| GSM4212UX | 1U | 8 x Ultra90 PoE++ | 720W | 2 x 10G SFP+ | 60 Gbps | Fanless up to 45W PoE |
| GSM4230P | 1U | 24 x PoE+ | 300W | 4 x 1G SFP | 60 Gbps | Fanless up to 45W PoE |
| GSM4230PX | 1U | 24 x PoE+ | 480W | 4 x 10G SFP+ | 132 Gbps | Fanless up to 45W PoE |
| GSM4230UP | 1U | 24 x Ultra90 PoE++ | 720W / 1,440W | 4 x 1G SFP | 60 Gbps | Quiet or cool fan modes |
| GSM4248P | 1U | 40 x PoE+ | 480W | 8 x 1G SFP | 96 Gbps | Fanless up to 30W PoE |
| GSM4248PX | 1U | 40 x PoE+ | 960W | 8 x 10G SFP+ | 240 Gbps | Quiet or cool fan modes |
| GSM4248UX | 2U | 40 x Ultra90 PoE++ | 720W / 1,650W / 2,880W | 8 x 10G SFP+ | 240 Gbps | Quiet or cool fan modes |
| MSM4214X | 1U | 12 x 2.5G (no PoE) | None | 2 x 10G SFP+ | 100 Gbps | Quiet or cool fan modes |
| XSM4216F | 1U | 16 x 10G SFP+ | None | (all fibre) | 320 Gbps | Quiet or cool fan modes |
Source: Netgear M4250 datasheet and product brief (Hardware-at-a-Glance and Acoustic-at-a-Glance tables). Fan-off limits apply at 25°C ambient and some require certain ports to be unused, for example no SFP+ in use.
IGMP Plus: multicast that works out of the box
Video encoders, decoders and most networked audio send their streams as multicast. On an ordinary switch, multicast without IGMP snooping and a querier floods every port, and a few HD streams can swamp a network. The M4250 ships with NETGEAR IGMP Plus pre-configured on the default VLAN 1, so, in Netgear's words, AV-over-IP multicasting "will work out of the box and not flood your network".
IGMP Plus also works across several switches. Netgear's datasheet says it lets transmitters and receivers be connected across multiple M4250, M4300, M4350 and M4500 switches in a star topology, removing the need for Layer 3 PIM routing. Combined with Auto-LAG and Auto-Trunk, which configure the links between switches automatically, you plug the switches together and the AV network forms. IGMP Plus can be moved to another VLAN when you want to keep AV apart from office traffic.
Dante, NDI, Q-SYS and AVB port profiles

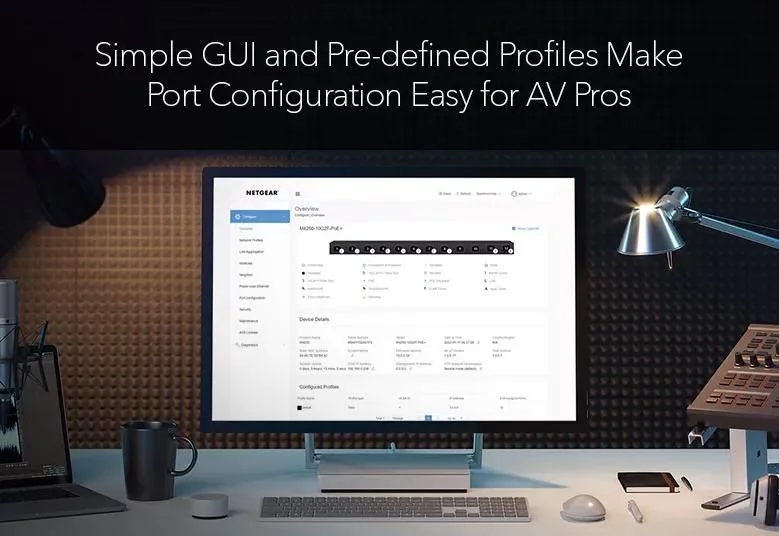

Alongside the full IT web interface, every M4250 has a second, AV web interface (at the switch's IP address on port 8080) designed for AV installers. Instead of hunting through IT settings you pick a colour-coded profile per port:
- Audio: Dante, Q-SYS, AES67 and AVB.
- Video: NVX, SVSI, Q-SYS, NDI, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE, per Netgear's product brief.
- Mixed: audio, video and control profiles together, for rooms where a DSP, a camera and a control processor share one switch.
The NETGEAR Engage Controller manages M4250, M4300, M4350 and M4500 switches together for an AV installation. For IT teams, the same switches offer a CLI over console, Telnet and SSH, SNMP, sFlow and RSPAN, so a university or council IT department can run them like any other managed switch.
AVB and PTP timing
AVB (Audio Video Bridging) is an IEEE standard that Netgear's datasheet describes as "used most often when very low latency is required such as in live performances when lip sync is critical". The M4250 supports IEEE 802.1BA AVB with gPTP (802.1AS), up to 256 AVB streams per switch, and AVB over link aggregation. AVB is enabled with a separate electronic licence for each model (for example AVB4230P-10000S for the GSM4230P), with the activation key sent by email, so budget for it if your system uses AVB rather than Dante.
For Dante and AES67, which rely on PTP clocking, every M4250 supports IEEE 1588 PTPv2 Transparent Clock (1-step, end-to-end). If your project needs SMPTE ST 2110 with PTP Boundary or Grandmaster Clock modes, that is supported on select M4350 models, covered in our Netgear 10G switch guide.
PoE+ or Ultra90 PoE++: powering AV endpoints
PoE+ (802.3at) gives up to 30W per port: enough for Dante wall plates, ceiling microphones, most encoders and decoders, touch panels and many cameras. The Ultra90 PoE++ models (GSM4212UX, GSM4230UP and GSM4248UX) are compatible with 802.3af (15.4W), 802.3at (30W) and 802.3bt at 60W, 75W and 90W, for PTZ cameras, PoE displays and other endpoints that PoE+ cannot run.
Add up the rated draw of every device and compare it with the budget. A GSM4248PX has 960W for 40 PoE+ ports, enough for all 40 ports at the full 30W at once; a GSM4230P has 300W across 24 ports. Our PoE switch guide explains PoE budgets in more detail, and the Netgear PoE switch comparison covers the non-AV range.
Made for AV racks, lecterns and the back of a screen

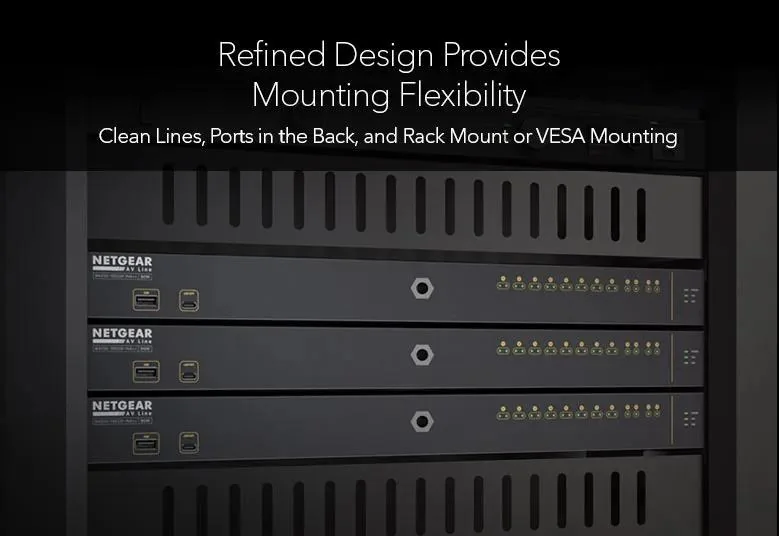

The rackmount M4250 models put all ports at the rear and show status on a black front panel, so they sit neatly with amplifiers and processors. Mounting is reversible when you want ports at the front, and a second pair of brackets recesses the switch 5 cm to leave room for cabling. Threaded holes underneath (4 x M5 for 50 x 100 mm VESA) and an M10 clamp hole at the front allow mounting outside a rack.
Fan noise matters in a boardroom or a recording space. The fans are software controlled: quiet mode keeps the GSM4212PX at 27.4dBA across its whole 240W budget, and several models can turn the fans off entirely when ambient temperature and PoE load allow. The desktop GSM4210PD is totally fanless at its full 110W load.
Building a bigger AV network: edge, aggregation and fibre
Netgear designs the M4250 for a star topology: edge switches in each room or rack, linked back to an aggregation switch. Two M4250 models do that job without PoE. The MSM4214X has 12 x 2.5G RJ45 ports and 2 x 10G SFP+ in a chassis only 100 mm deep. The XSM4216F has 16 x 10G SFP+ ports, of which ports 1 to 12 also take 1G modules, for fibre runs between floors or buildings.
Fibre uplinks need SFP or SFP+ modules: the AGM731F (1G multimode), AGM732F (1G single mode up to 10km), AXM761 (10G multimode) and AXM762 (10G single mode up to 10km) are all listed in Netgear's M4250 datasheet. Our Netgear SFP and SFP+ guide explains which module suits which cable. When a project grows to 10G or 25G AV codecs, Netgear's M4350 range brings the same AV interface to larger hardware, and Netgear's Pro AV Design team can help with system design.
Which M4250 for which Australian venue?
ARC IP Networks suggestions, based on Netgear's specifications above.
| Venue or system | Choose | Why |
|---|---|---|
| Boardroom or meeting room with a Dante microphone and DSP | GSM4210PD | Totally fanless, 110W PoE+, sits under a table |
| University lecture theatre or school hall | GSM4230P | 24 PoE+ ports, 300W, Dante and Q-SYS profiles |
| Council chamber or courtroom with PTZ cameras | GSM4212UX | 8 Ultra90 ports at up to 90W each, 10G uplinks |
| Hotel function rooms or club with video over IP to many screens | GSM4248PX | 40 PoE+ ports at full power, 8 x 10G SFP+ |
| Church, theatre or stadium with large PoE++ loads | GSM4248UX | Up to 2,880W with three PSUs, 40 Ultra90 ports |
| Live sound with AVB | Any M4250 plus its AVB licence | IEEE 802.1BA AVB, up to 256 streams per switch |
| Fibre core linking rooms or buildings | XSM4216F | 16 x 10G SFP+, IGMP Plus across switches |
Why buy Netgear from ARC IP Networks
- Authorised Netgear reseller: genuine Netgear with the full manufacturer's warranty, supplied from Australian stock.
- Australian stock shipped Australia-wide.
- Manufacturer's warranty and local pre-sales help choosing the right switches, access points and accessories.
- Every product page backed by Netgear's own specifications, with the exact warranty for each model.
- GST tax invoice on every order, with trade and project pricing for installers and integrators.
See the full range on our Netgear Australia hub, or read where to buy Netgear in Australia. Questions? Call 1300 100 440 or email info@arcip.com.au.
Shop the Netgear M4250 AV Line
Live Australian pricing (inc. GST) is on each product page. See every model in our Netgear managed switch category.
8 x Ultra90 PoE++ up to 90W, 720W, 2 x 10G SFP+
Common questions
Straight answers from the ARC IP Networks team. Last reviewed October 2026.
A range of Netgear managed switches built for audio and video over IP. They ship pre-configured with NETGEAR IGMP Plus for multicast, add an AV web interface with Dante, Q-SYS, AES67, AVB, NVX and NDI port profiles, and come in desktop, 1U and 2U models from 8 to 48 ports with PoE+ or Ultra90 PoE++.
Yes. Dante is one of the built-in audio profiles, IGMP Plus handles multicast out of the box, and every M4250 supports PTPv2 Transparent Clock. For a Dante audio rack the GSM4230P (24 PoE+ ports, 300W) is a common choice.
Yes. Netgear lists NDI among the M4250 video profiles, alongside NVX, SVSI, Q-SYS, Kramer KDS, Aurora Multimedia, ZeeVee, Atlona, Dante and SDVoE.
IGMP Plus is pre-configured on VLAN 1 of every M4250 so AV-over-IP multicast works out of the box without flooding the network. It also lets encoders and decoders connect across multiple M4250, M4300, M4350 and M4500 switches in a star topology without Layer 3 PIM routing.
The Ultra90 PoE++ models: GSM4212UX (8 ports, 720W), GSM4230UP (24 ports, 720W or 1,440W with both PSUs) and GSM4248UX (40 ports, up to 2,880W with three PSUs). They also power 802.3af and 802.3at devices.
The M4250 targets 1Gbps AV codecs with 1G or 10G uplinks. The M4350 brings the same AV interface and IGMP Plus to larger hardware with 2.5G and 10G ports, 25G and 100G uplinks, redundant power and SMPTE ST 2110 on select models.
ARC IP Networks is an authorised Netgear reseller and supplies genuine Netgear from Australian stock with a GST tax invoice, including the M4250 AV Line, SFP modules and Insight licences. Order at arcip.com.au or call 1300 100 440.
Designing an AV-over-IP network?
Send us your device list or schematic. ARC IP Networks will size the M4250 switches, PoE budgets and fibre modules and quote them with trade pricing for AV integrators and installers. Call 1300 100 440 or email info@arcip.com.au.
