Ubiquiti UVC-AI-Theta-Lens-LD UniFi Protect AI Theta Long-Distance Lens 4K

Price:

109.45


Ubiquiti UACC-UCG-Industrial-RM Cloud Gateway Industrial 1U Rack Mount
Ubiquiti UACC-UCG-Industrial-RM Cloud Gateway Industrial 1U Rack Mount
118.78
128.70 (8% OFF)
Ubiquiti FlexHD-CM-3 UniFi Mesh AP In-Ceiling Mount 3-Pack
Ubiquiti FlexHD-CM-3 UniFi Mesh AP In-Ceiling Mount 3-Pack
95.00
95.70 (1% OFF)

Ubiquiti UVC-AI-Theta-Lens-LD UniFi Protect AI Theta Long-Distance Lens 4K

https://arcip.com.au/web/image/product.template/10139/image_1920?unique=63fb83f
The Ubiquiti UVC-AI-Theta-Lens-LD is a Standard long-distance lens for the UniFi Protect AI Theta system. It records 4K video at 8MP (3264 x 2448, 4:3) at up to 24 FPS from an 8MP CMOS sensor through a fixed-focal-length lens with a 36.2° horizontal, 27.7° vertical and 44.4° diagonal field of view. It is a ⌀22.8 x 43.5 mm aluminium alloy and polycarbonate unit weighing just 15 g, drawing 2.5W at 5V DC over the Theta proprietary connection, and is specified for indoor use only. A Standard Flush Mount is included. It requires an AI Theta Hub, sold separately.

109.45 109.45 AUD 109.45 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Resolution
  • Operating Environment
  • Power Method
  • Camera

This combination does not exist.

UniFi Camera Ubiquiti UniFi Protect 4K AI Camera
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UVC-AI-Theta-Lens-LD
Tags
UVC-AI-Theta-Lens-LD
Ubiquiti UniFi Protect AI Theta Long-Distance Lens — 4K (8MP) 36.2° Lens for Detail Capture

What the UVC-AI-Theta-Lens-LD Is

The Ubiquiti UVC-AI-Theta-Lens-LD is a Standard long-distance lens for the UniFi Protect AI Theta system. It records 4K video at 8MP (3264 x 2448, 4:3) at up to 24 FPS from an 8MP CMOS sensor through a fixed-focal-length lens with a 36.2° horizontal, 27.7° vertical and 44.4° diagonal field of view. It is a ⌀22.8 x 43.5 mm aluminium alloy and polycarbonate unit weighing just 15 g, drawing 2.5W at 5V DC over the Theta proprietary connection, and is specified for indoor use only. A Standard Flush Mount is included. It requires an AI Theta Hub, sold separately.

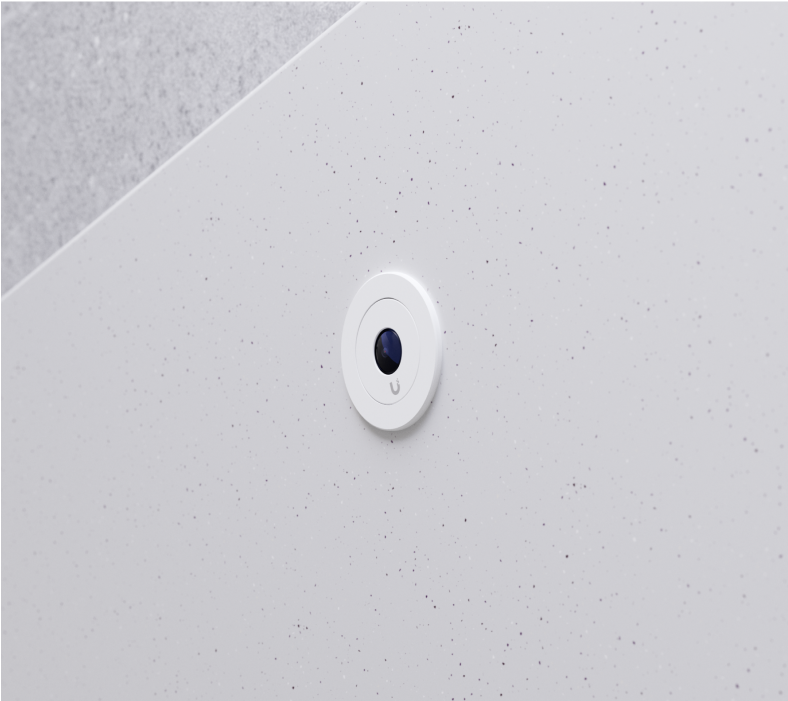

UVC-AI-Theta-Lens-LD deployment

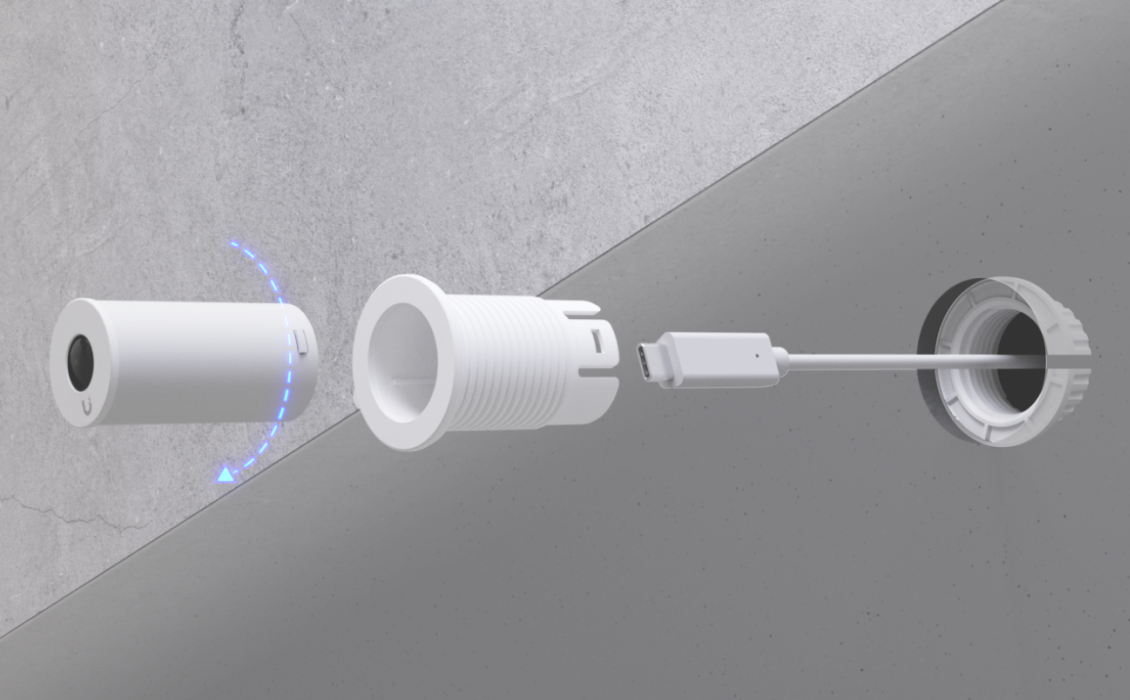

UVC-AI-Theta-Lens-LD in-use

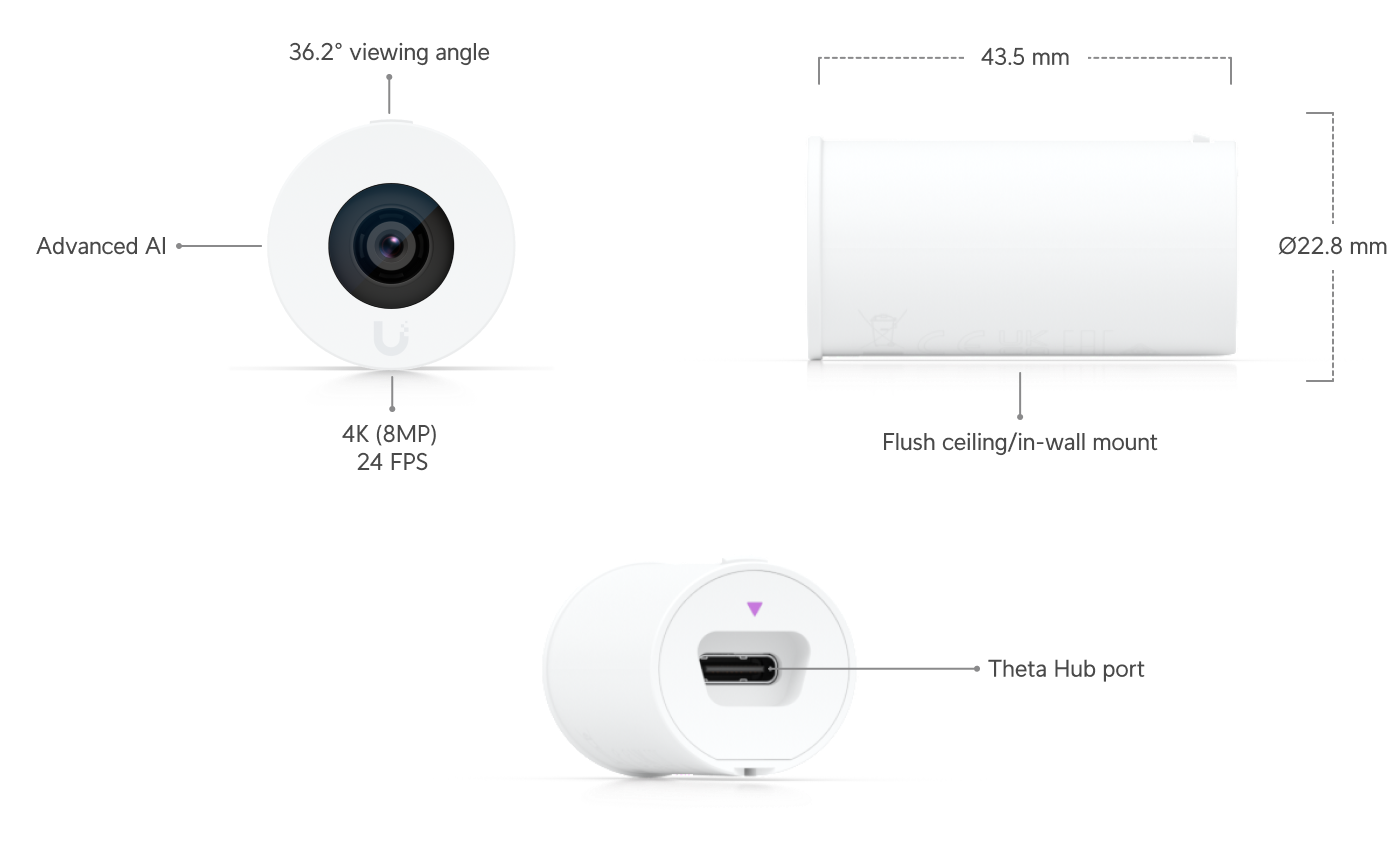

UVC-AI-Theta-Lens-LD dimensions

Key Features

  • 4K (8MP) video resolution
  • 36.2° horizontal field of view
  • Ideal for capturing detail to secure business critical spaces such as retail point of sale
  • Includes Standard Flush Mount for flat ceiling or wall mounting
  • Compatible with AI Theta Angle Mount for flexible ceiling or wall mounting

Technical Specifications

Overview

Dimensions⌀22.8. x 43.5 mm
Field of ViewH: 36.2°, V: 27.7°, D: 44.4°
Resolution4K
MountingWall, ceiling mount (Included) / Angle mount (Optional)
Operating EnvironmentIndoor only

Performance

Video — Image SettingsColor, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
Video — Max. Frame Rate24 FPS
Video — Resolution8MP 3264 x 2448 (4:3)
Optics — Sensor8MP CMOS
Optics — LensFixed focal length

Hardware

Enclosure MaterialAluminum alloy, polycarbonate
Mounting MaterialPolycarbonate
Weight15 g
Power MethodTheta proprietary
Power Supply5V DC, 0.5A
Max. Power Consumption2.5W
Ambient Operating Temperature-20 to 40° C
Ambient Operating Humidity10 to 90% noncondensing
CertificationsFCC, IC, CE

Professional Overview

This is the narrow lens in the Standard Theta range, and at 36.2° horizontal it is tighter than any of the Professional lenses. Ubiquiti positions it for capturing detail in business-critical spaces — retail point of sale being the stated example, where reading a transaction matters more than seeing the room.

The distinction from the Professional ProLens50 is worth understanding before choosing. Both are long-distance lenses, but this Standard version uses an 8MP CMOS sensor recording 3264 x 2448 in a 4:3 aspect, where the Professional uses a larger 1/1.8" sensor recording 3840 x 2160 in 16:9 with enhanced low-light performance and dynamic range. This lens is narrower — 36.2° against 53° — so it reaches further into a scene, but the Professional handles difficult lighting better.

It is remarkably small: ⌀22.8 x 43.5 mm and 15 g, roughly a quarter the weight of the Professional lenses. That is the point of the Theta architecture — the lens is small enough to be genuinely discreet, and the hub does the processing elsewhere. A Standard Flush Mount for flat ceiling or wall mounting is included, and it is compatible with the AI Theta Angle Mount for more flexible positioning.

Power is 5V DC at 0.5A over the Theta proprietary connection from the hub, drawing a maximum of 2.5W — there is no network port or PoE on the lens itself. Note the environmental limit: indoor only, -20 to 40°C at 10 to 90% non-condensing humidity. Certifications are FCC, IC and CE. An AI Theta Hub is required. Australian stock from ARC IP Networks.

Frequently Asked Questions

Can this lens be used on its own?

No. It connects to a UniFi Protect AI Theta Hub, sold separately, which provides processing, network and power.

What is the field of view?

36.2° horizontal, 27.7° vertical and 44.4° diagonal — the narrowest lens in the Theta range.

What is the difference between this and the ProLens50?

This Standard lens uses an 8MP CMOS sensor recording 4:3 at 3264 x 2448 and is narrower at 36.2°. The Professional ProLens50 uses a larger 1/1.8" sensor recording 16:9 at 3840 x 2160 with better low-light performance, at 53°.

What resolution does it record?

4K — 8MP at 3264 x 2448 in a 4:3 aspect, up to 24 FPS.

Can it be used outdoors?

No. It is specified as indoor only, -20 to 40°C at 10 to 90% non-condensing humidity.

How is it powered?

5V DC at 0.5A over the Theta proprietary connection from the hub, drawing a maximum of 2.5W.

What mount is included?

A Standard Flush Mount for flat ceiling or wall mounting. It also works with the AI Theta Angle Mount.

How big is it?

⌀22.8 x 43.5 mm and just 15 g.

Brand UBIQUITI
Form Factor Theta Lens Module
Resolution 4K (8MP)
Operating Environment Indoor
Power Method Theta Hub (2.5W max)
Camera 8MP CMOS, 36.2° horizontal
