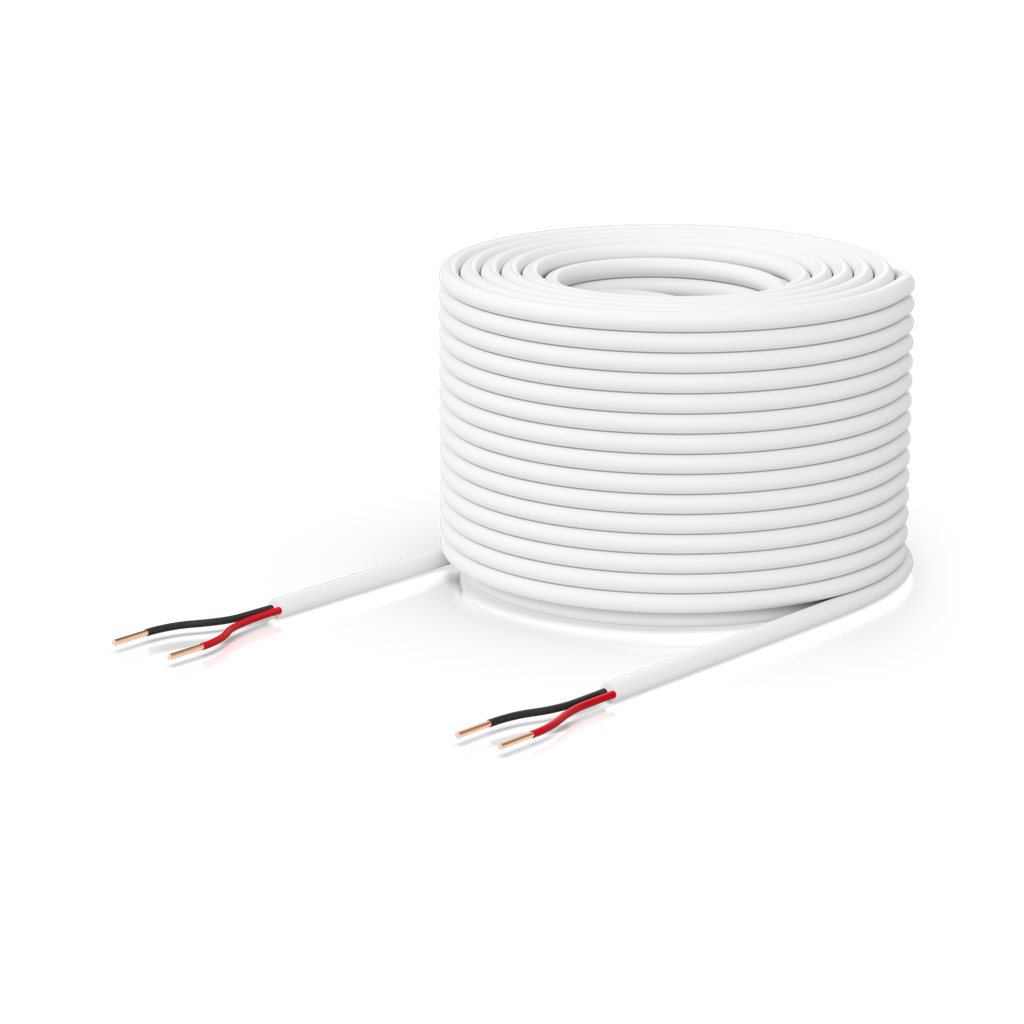

Ubiquiti UACC-Cable-DoorLockRelay-1P UniFi Access Door Lock Relay Cable 152.4m

https://arcip.com.au/web/image/product.template/10130/image_1920?unique=79316a3
The Ubiquiti UACC-Cable-DoorLockRelay-1P is a 152.4 m spool of one-pair low-voltage cable for connecting an electric or magnetic lock to a UniFi Access Hub. It carries two 18 AWG solid bare copper conductors under a thermoplastic elastomer (TPE) jacket, and weighs 4.58 kg. The two-pair version, UACC-Cable-DoorLockRelay-2P, adds two 22 AWG conductors for a door position sensor and is the option to choose if the door needs position sensing as well as lock control.

217.80 217.8 AUD 217.80 incl. GST

Not Available For Sale


  • Brand
  • Length
  • Colour
  • Connector Type
  • Cable Category
  • Conductor

This combination does not exist.

UniFi Ubiquiti Door Access UniFi Access Bulk Cable
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UACC-Cable-DoorLockRelay-1P
Tags
UACC-Cable-DoorLockRelay-1P
Ubiquiti UniFi Access Door Lock Relay Cable — 152.4 m Spool of One-Pair 18 AWG Low-Voltage Cable

What the UACC-Cable-DoorLockRelay-1P Is

The Ubiquiti UACC-Cable-DoorLockRelay-1P is a 152.4 m spool of one-pair low-voltage cable for connecting an electric or magnetic lock to a UniFi Access Hub. It carries two 18 AWG solid bare copper conductors under a thermoplastic elastomer (TPE) jacket, and weighs 4.58 kg. The two-pair version, UACC-Cable-DoorLockRelay-2P, adds two 22 AWG conductors for a door position sensor and is the option to choose if the door needs position sensing as well as lock control.

Key Features

  • 1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub
  • 2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub

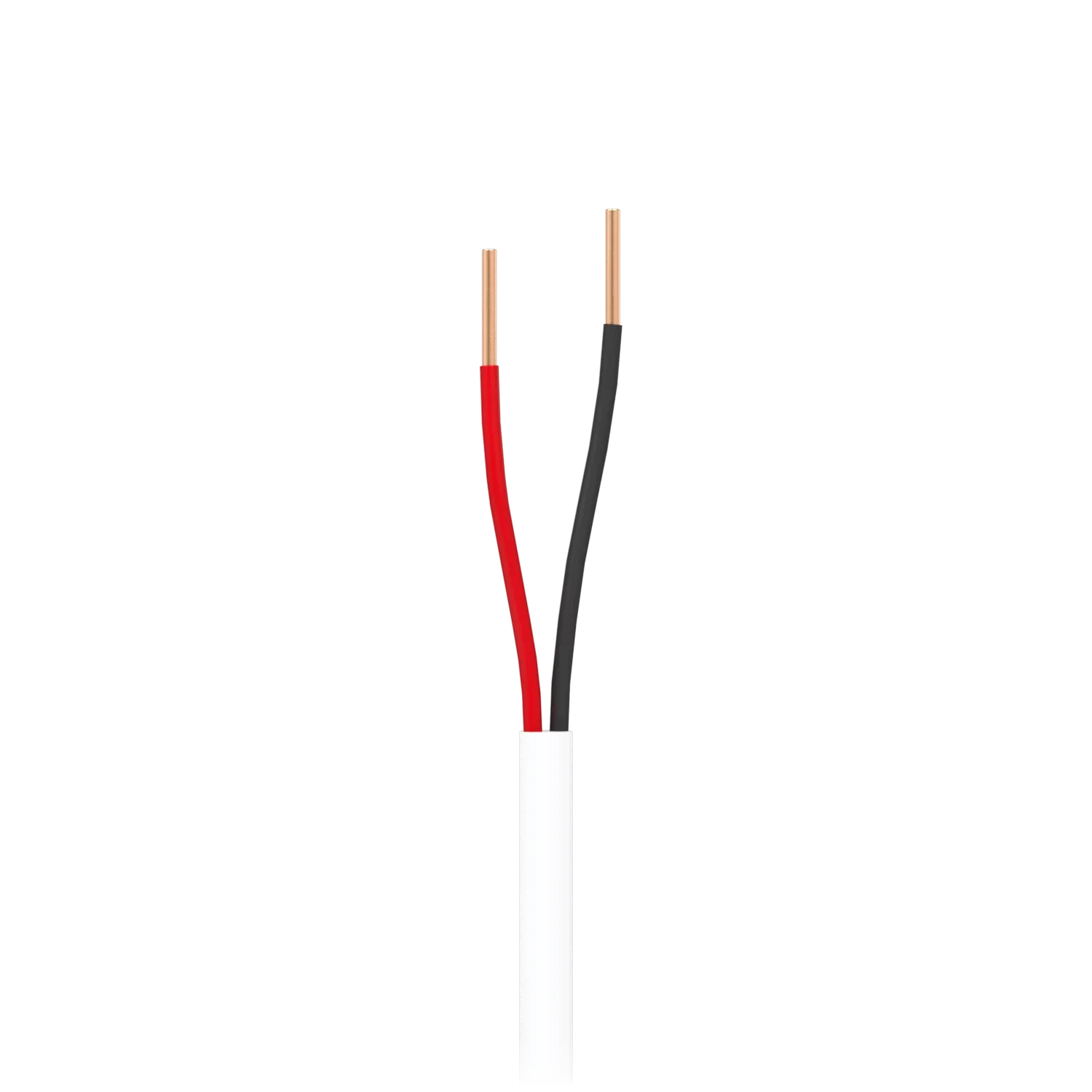

  • 1-Pair Relay Cable:— (2) 18 AWG conductors for an electric/magnetic lock
  • 2-Pair Relay Cable:— (2) 18 AWG conductors for an electric/magnetic lock— (2) 22 AWG conductors for a door position sensor
  • Cable length 152.4 m

Technical Specifications

Overview

Length152.4 m
MaterialConductor: Solid bare copper / Jacket: Thermoplastic elastomer (TPE) / Insulation: Semi-rigid polyvinyl chloride (SR-PVC)
InsulationUACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG) / UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
Current Rating18AWG: 2A for 500 ft length / 22AWG: 1A for 500 ft length
Flame RatingVW-1
Conductor Wire GaugeUACC-Cable-DoorLockRelay-2P: 18/22 AWG / UACC-Cable-DoorLockRelay-1P: 18 AWG
WeightUACC-Cable-DoorLockRelay-2P: 5.6 kg / UACC-Cable-DoorLockRelay-1P: 4.58 kg
Cable — Jacket Outer DiameterUACC-Cable-DoorLockRelay-2P: 4.5 mm / UACC-Cable-DoorLockRelay-1P: 4.2 mm
Cable — Jacket ColorWhite
Cable — Bend RadiusUACC-Cable-DoorLockRelay-2P: 56 mm / UACC-Cable-DoorLockRelay-1P: 33 mm
Pulling TensionUACC-Cable-DoorLockRelay-2P: 24.2 kgf / UACC-Cable-DoorLockRelay-1P: 16.4 kgf
Conductor DCRUACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG) / UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)
Supported Voltage Range36V DC
Number of ConductorsUACC-Cable-DoorLockRelay-2P: 4 / UACC-Cable-DoorLockRelay-1P: 2
Ambient Storage Temperature-45 to 65° C
Ambient Operating Temperature-45 to 65° C

Professional Overview

Lock cable is not network cable, and this is the spool that does the job properly. One pair of 18 AWG solid bare copper runs from the UniFi Access Hub's relay output to the electric or magnetic lock, and that gauge is chosen deliberately: locks draw real current, and the voltage drop over a long thin run is what makes a magnetic lock buzz or an electric strike fail to release cleanly.

The choice between this and the 2P version is about door position sensing. The 1P cable carries only the two 18 AWG conductors for the lock. The 2P version adds two 22 AWG conductors for a door position sensor in the same jacket, so a single pull serves both functions. If the design calls for knowing whether the door is actually closed — and for most access-controlled doors it should — the 2P is the cable to specify.

The jacket is thermoplastic elastomer rather than PVC, which stays flexible in cold and resists abrasion better during the pull. Conductors are solid rather than stranded, correct for a fixed run terminated into screw terminals at both ends.

The spool holds 152.4 m and weighs 4.58 kg. Against Ubiquiti's own published cable-length guidance for the UA Hub Door — 25 m at 24 AWG for a 400 mA electric lock, dropping to 12 m for an 800 mA magnetic lock — this 18 AWG cable is substantially heavier than the minimum, which is what buys the run length. Australian stock from ARC IP Networks.

Frequently Asked Questions

What is the difference between the 1P and 2P cable?

The 1P carries two 18 AWG conductors for the lock only. The 2P adds two 22 AWG conductors for a door position sensor in the same jacket. Choose 2P if the door needs position sensing.

How long is the spool?

152.4 m (500 ft).

What gauge are the conductors?

Two 18 AWG solid bare copper conductors.

What is it used for?

Connecting an electric or magnetic lock to a UniFi Access Hub relay output.

Why 18 AWG rather than something thinner?

Locks draw significant current, and voltage drop over a long thin run causes magnetic locks to buzz and electric strikes to release poorly. The heavier gauge is what allows longer runs.

What is the jacket made of?

Thermoplastic elastomer (TPE), which stays flexible in cold and resists abrasion during installation.

How much does the spool weigh?

4.58 kg. The 2P version weighs 5.6 kg.

Brand UBIQUITI
Length 152.4 m
Colour Black
Connector Type Unterminated (Bulk Cable)
Cable Category Low-Voltage Lock Cable
Conductor 18 AWG Solid Bare Copper
