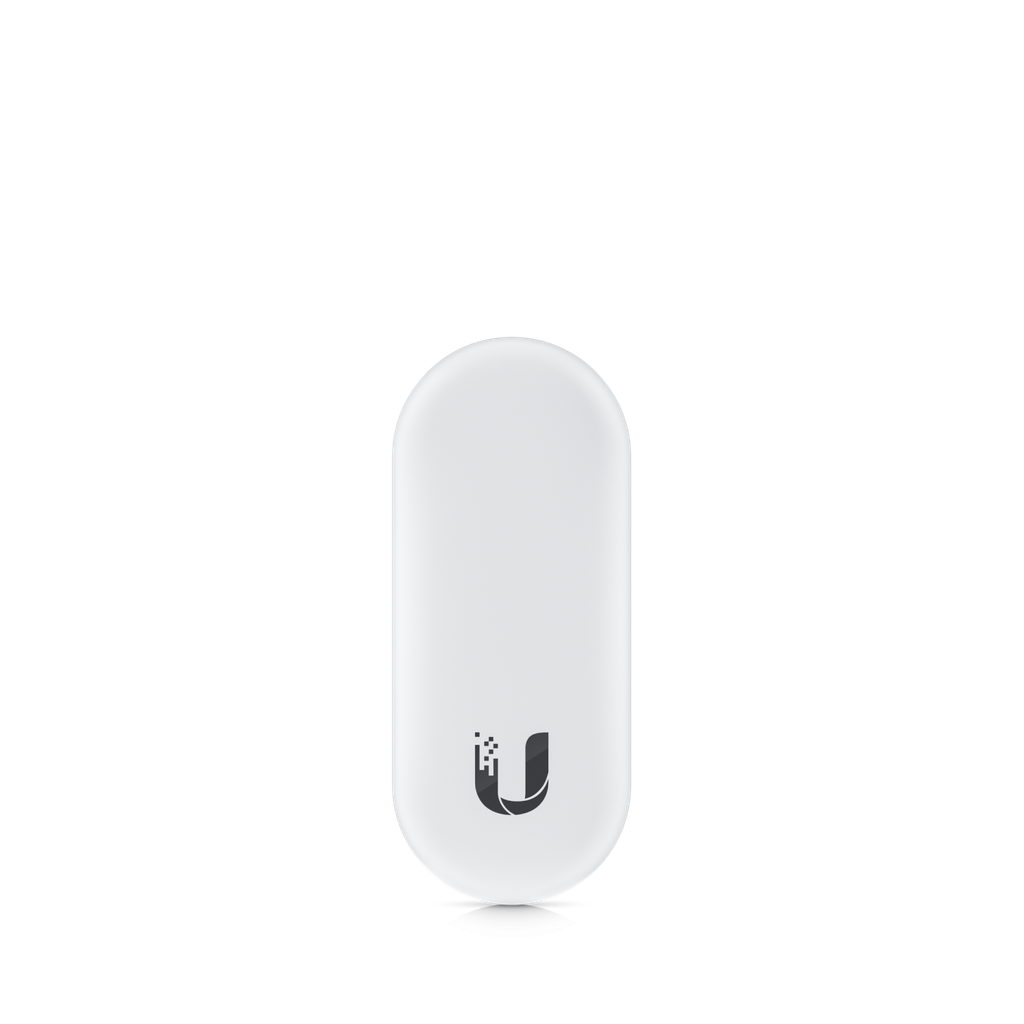

Ubiquiti UA-Reader Lite UniFi Access Reader Lite NFC and Handwave Unlock

https://arcip.com.au/web/image/product.template/10132/image_1920?unique=63fb83f

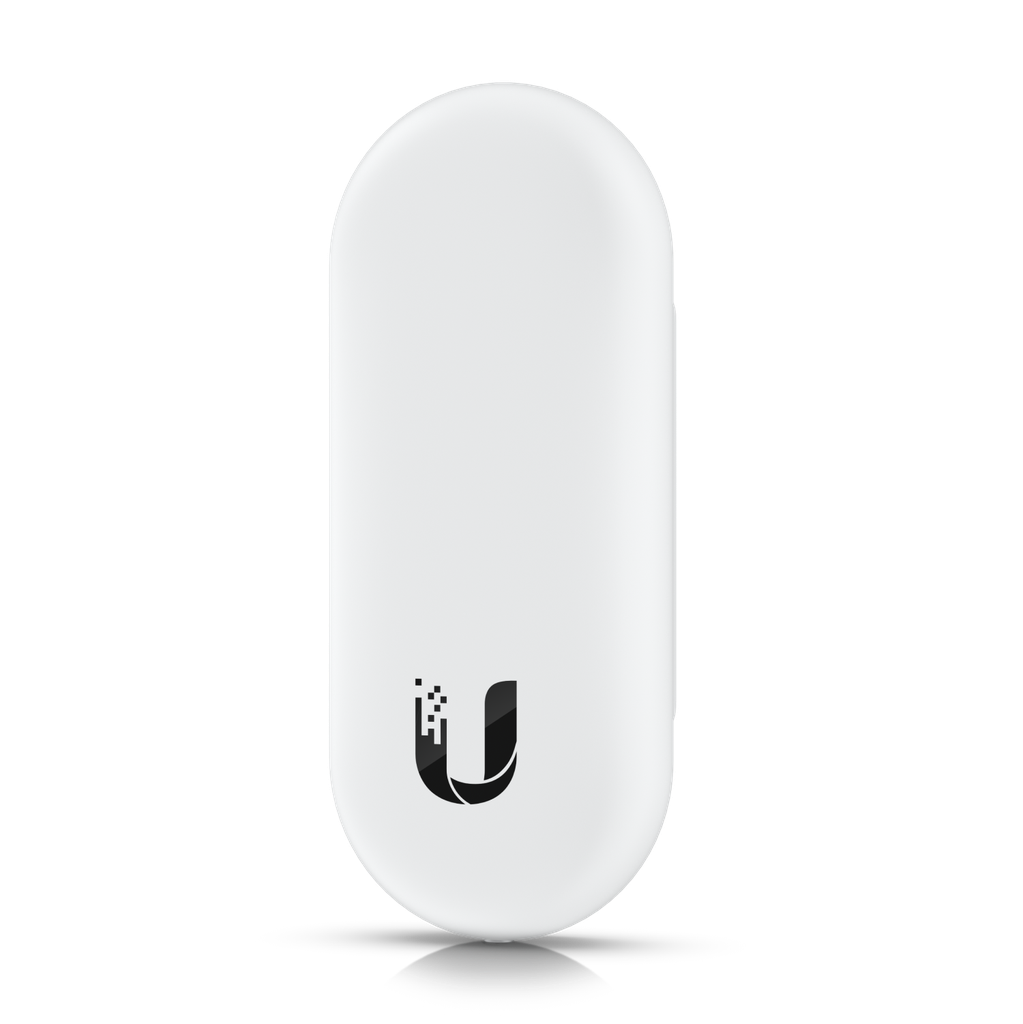

The Ubiquiti UA-Reader Lite is a compact UniFi Access door reader that unlocks by NFC card, the UniFi Identity mobile app, or a handwave gesture. It reads NFC at 13.56 MHz within 30 mm, supporting ISO 14443A, 14443B and 15693, NFC tag types 1 to 5, and MIFARE Classic. It is a 94.9 x 40 x 31.1 mm polycarbonate unit weighing 67 g, rated IP54 for indoor and outdoor use from -20 to 40°C, and connects to a UniFi Access Hub over a 10/100 PoE port drawing a maximum of 6W. It carries UL 294 Level I and CAN/ULC-60839-11-1 Grade I.

191.40 191.4 AUD 191.40 incl. GST

Not Available For Sale


  • Brand
  • Door Access Form Factor
  • Power Method
  • Unlock Method
  • Weatherproofing

This combination does not exist.

UniFi PoE Ubiquiti Door Access UniFi Access Access Reader NFC
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UA-Reader Lite
Tags
UA-Reader Lite
Ubiquiti UniFi Access Reader Lite — NFC and Handwave Door Reader, IP54, PoE Powered

What the UA-Reader Lite Is

The Ubiquiti UA-Reader Lite is a compact UniFi Access door reader that unlocks by NFC card, the UniFi Identity mobile app, or a handwave gesture. It reads NFC at 13.56 MHz within 30 mm, supporting ISO 14443A, 14443B and 15693, NFC tag types 1 to 5, and MIFARE Classic. It is a 94.9 x 40 x 31.1 mm polycarbonate unit weighing 67 g, rated IP54 for indoor and outdoor use from -20 to 40°C, and connects to a UniFi Access Hub over a 10/100 PoE port drawing a maximum of 6W. It carries UL 294 Level I and CAN/ULC-60839-11-1 Grade I.

UA-Reader Lite deployment

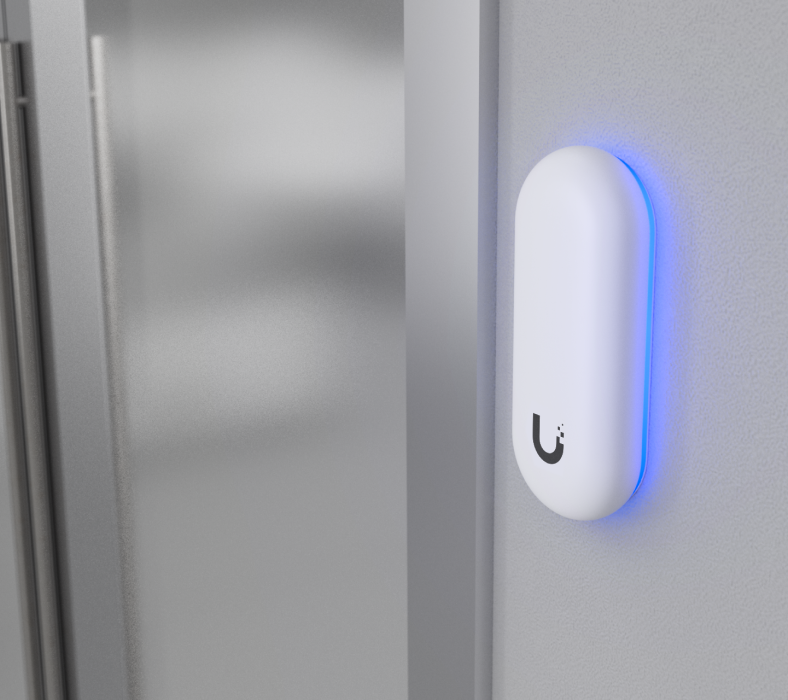

UA-Reader Lite in-use

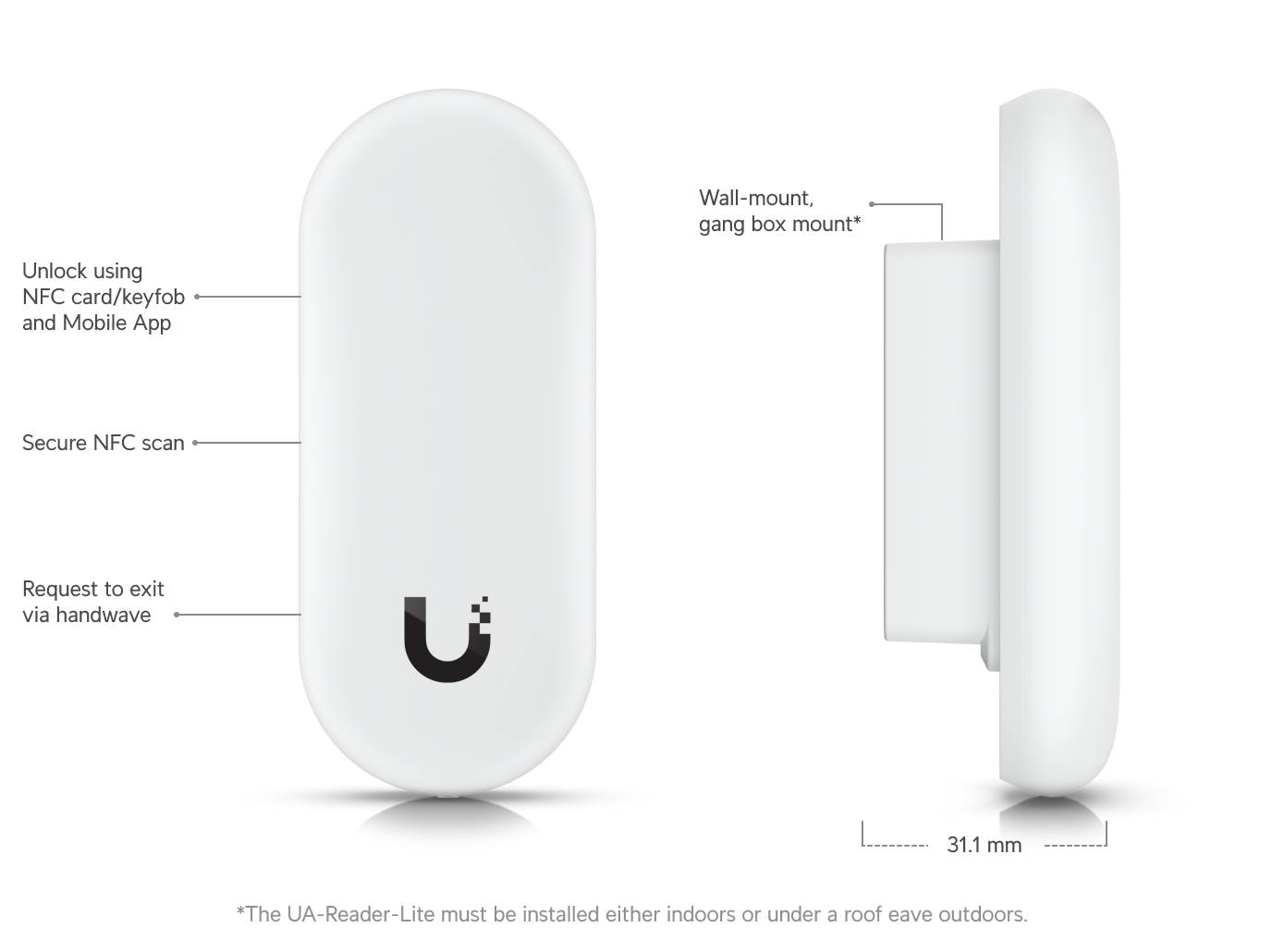

UA-Reader Lite dimensions

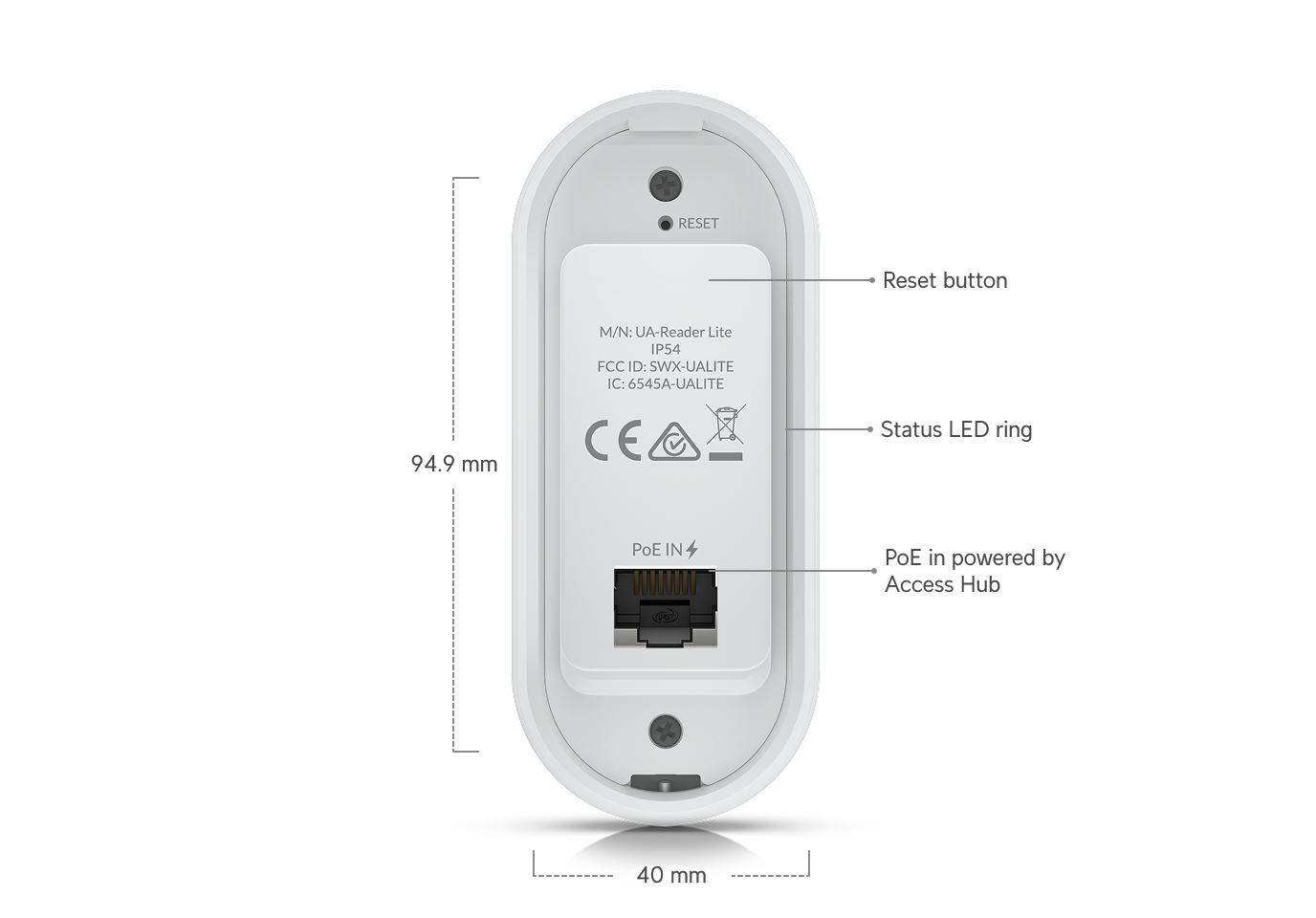

UA-Reader Lite mounting

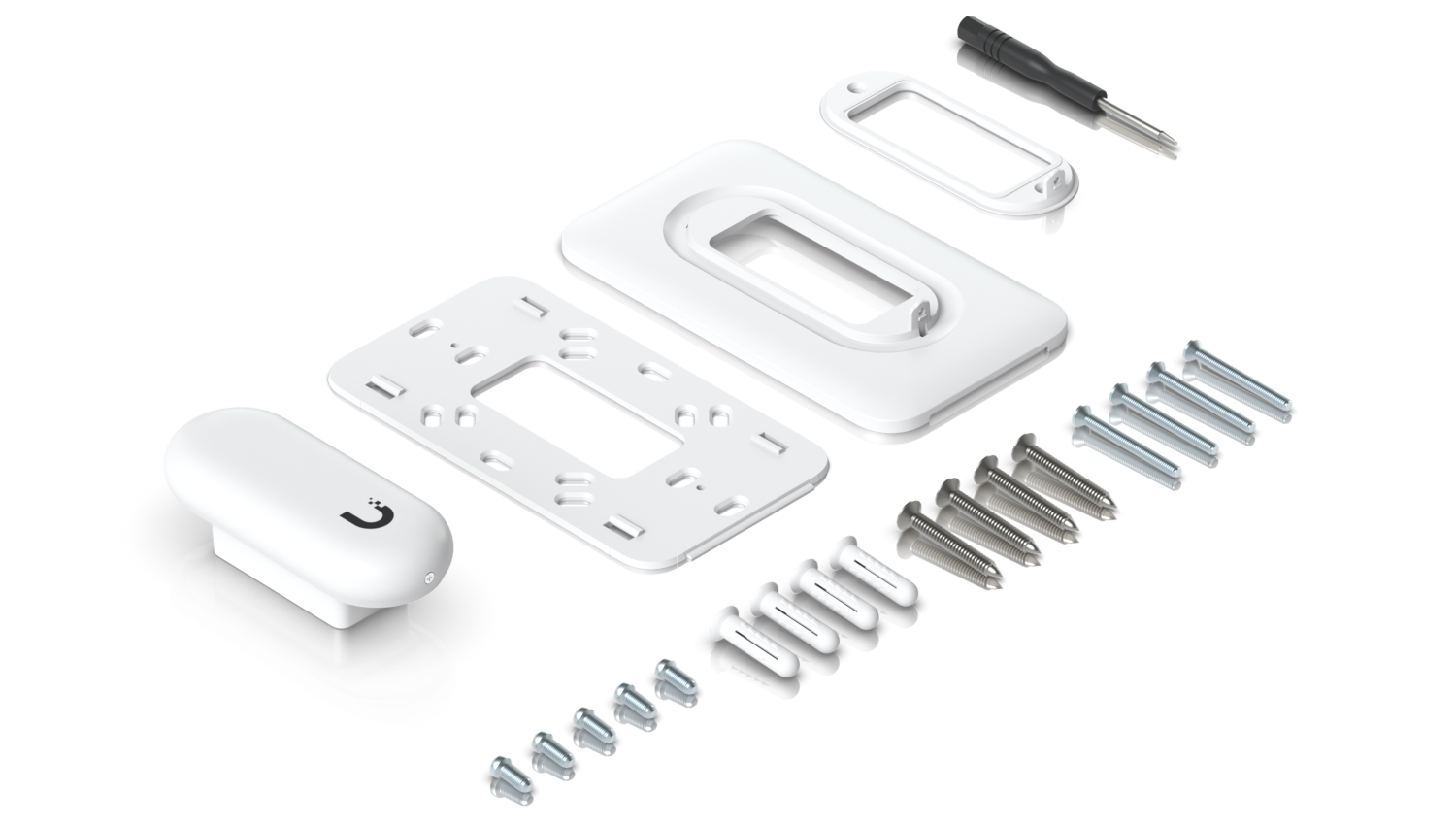

UA-Reader Lite in-the-box

Key Features

  • Unlock using an NFC card or UniFi Identity mobile app
  • Additional handwave unlock functionality
  • Connects to UniFi Access Hub using PoE

Technical Specifications

Overview

Dimensions94.9 x 40 x 31.1 mm
UniFi Application SuiteAccess
WeatherproofingIP54
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I

Mechanical

Weight67 g
Enclosure MaterialPolycarbonate
MountingWall-mount, gang box mount (Included)

Hardware

Indoor and Outdoor UseYes
Networking Interface(1) 10/100 MbE port
ConnectivityBLE 4.1 / Ethernet
Power MethodPoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption6W
Supported Voltage Range44–57V DC
LEDsB/W Learn More
Button(1) Factory reset
NFC Frequency13.56 MHz
NFC Read Range< 30 mm
NFC TechnologyISO 14443A, 14443B, 15693 / NFC Tag 1, 2, 3, 4, 5 / MIFARE Classic / MIFARE Plus / MIFARE Ultralight / MIFARE DESFire
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG for patch cords; 24 AWG for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, Anatel, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Reader Lite, V02
Ambient Operating Temperature-20 to 40° C
Ambient Operating Humidity5 to 90% noncondensing

Software

Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com

Professional Overview

The Reader Lite is the entry point to UniFi Access hardware — the reader you fit when the door needs credential control and nothing more. There is no screen, no camera and no intercom, which is exactly why it costs a fraction of the G2 Pro and fits doors where those features would be wasted: back-of-house, storerooms, plant rooms, internal office doors.

Credentials are NFC card, the UniFi Identity mobile app over BLE 4.1, or a handwave gesture. That last one is the quietly useful feature: a wave in front of the reader releases the door without a card, which suits an exit side, a clean area, or anywhere hands are full. NFC runs at 13.56 MHz with a read range under 30 mm and supports ISO 14443A, 14443B and 15693, NFC tag types 1 through 5, and MIFARE Classic.

It is small — 94.9 x 40 x 31.1 mm and 67 g in polycarbonate — and mounts to a wall or a gang box with hardware included. IP54 covers indoor and outdoor use, though it is a lower rating than the IP55 readers in the range, so a sheltered position is preferable. Operating range is -20 to 40°C at 5 to 90% non-condensing humidity.

Power and data are one 10/100 PoE run at 44–57V DC drawing a maximum of 6W, back to a UniFi Access Hub — this is a reader, not a controller, so the hub does the door logic and drives the lock. Certification is thorough for the price: UL 294 at Level I across destructive attack, line security, endurance and standby power, plus CAN/ULC-60839-11-1 Grade I, CE, FCC, IC, SRRC and Anatel. Australian stock from ARC IP Networks.

Frequently Asked Questions

Does the UA-Reader Lite need a UniFi Access Hub?

Yes. It is a reader, not a controller — the hub holds the door logic and drives the lock.

What unlock methods does it support?

NFC card, the UniFi Identity mobile app over BLE 4.1, and a handwave gesture.

What is handwave unlock?

A wave of the hand in front of the reader releases the door without presenting a card — useful on an exit side or where hands are full.

Which card types does it read?

ISO 14443A, 14443B and 15693, NFC tag types 1 to 5, and MIFARE Classic, at 13.56 MHz with a read range under 30 mm.

Can it be mounted outdoors?

It is rated IP54 for indoor and outdoor use, which is a lower rating than the IP55 readers in the range — a sheltered position is preferable.

How is it powered?

PoE over one 10/100 MbE port at 44–57V DC, drawing a maximum of 6W.

How does it compare to the G2 Reader Pro?

The Reader Lite is credential-only. The G2 Pro adds a touchscreen, a 12 MP camera, two-way intercom, and PIN and face unlock.

Is it certified for access control?

Yes — UL 294 Level I across all four categories, plus CAN/ULC-60839-11-1 Grade I, CE, FCC, IC, SRRC and Anatel.

Brand UBIQUITI
Door Access Form Factor Compact Reader
Power Method PoE (6W max)
Unlock Method NFC / App / Handwave
Weatherproofing IP54
