Ubiquiti U7-Mesh Access Point U7 Mesh

https://arcip.com.au/web/image/product.template/7907/image_1920?unique=fa59611

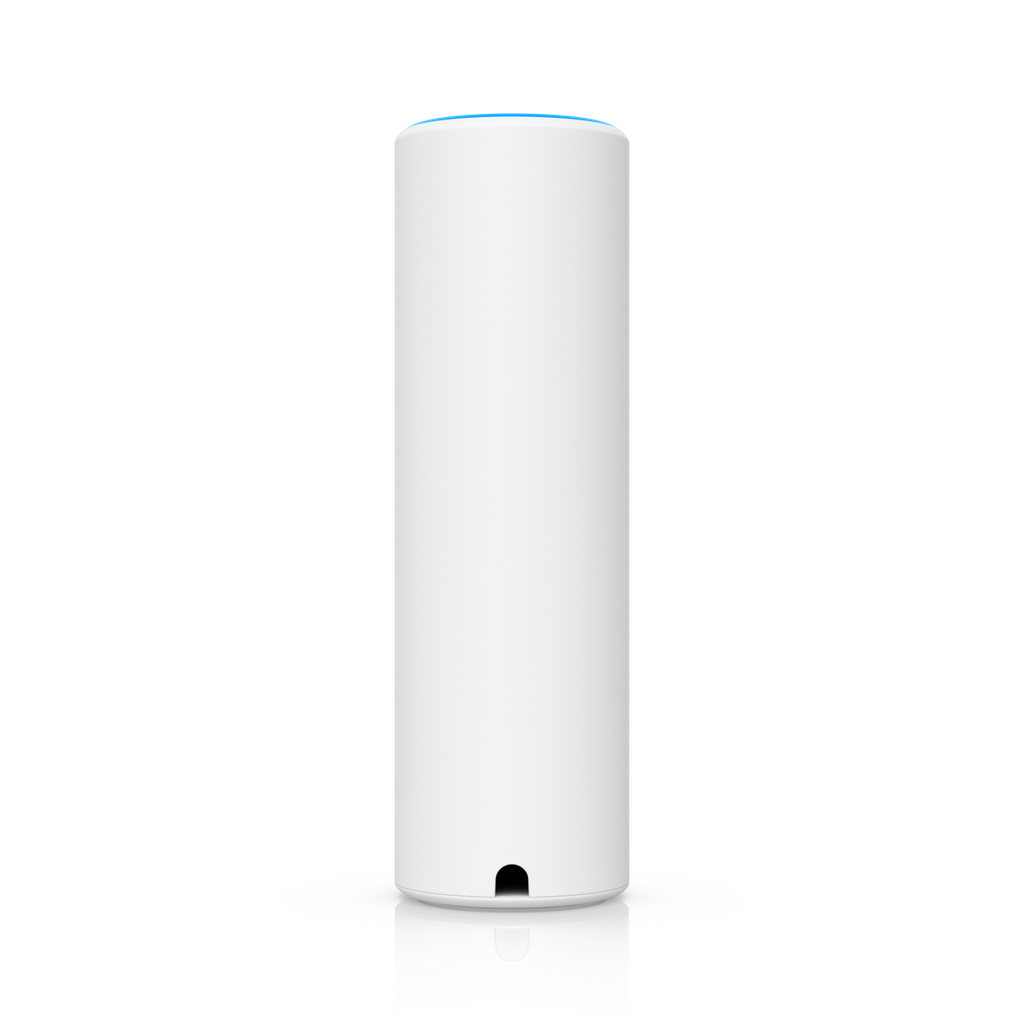

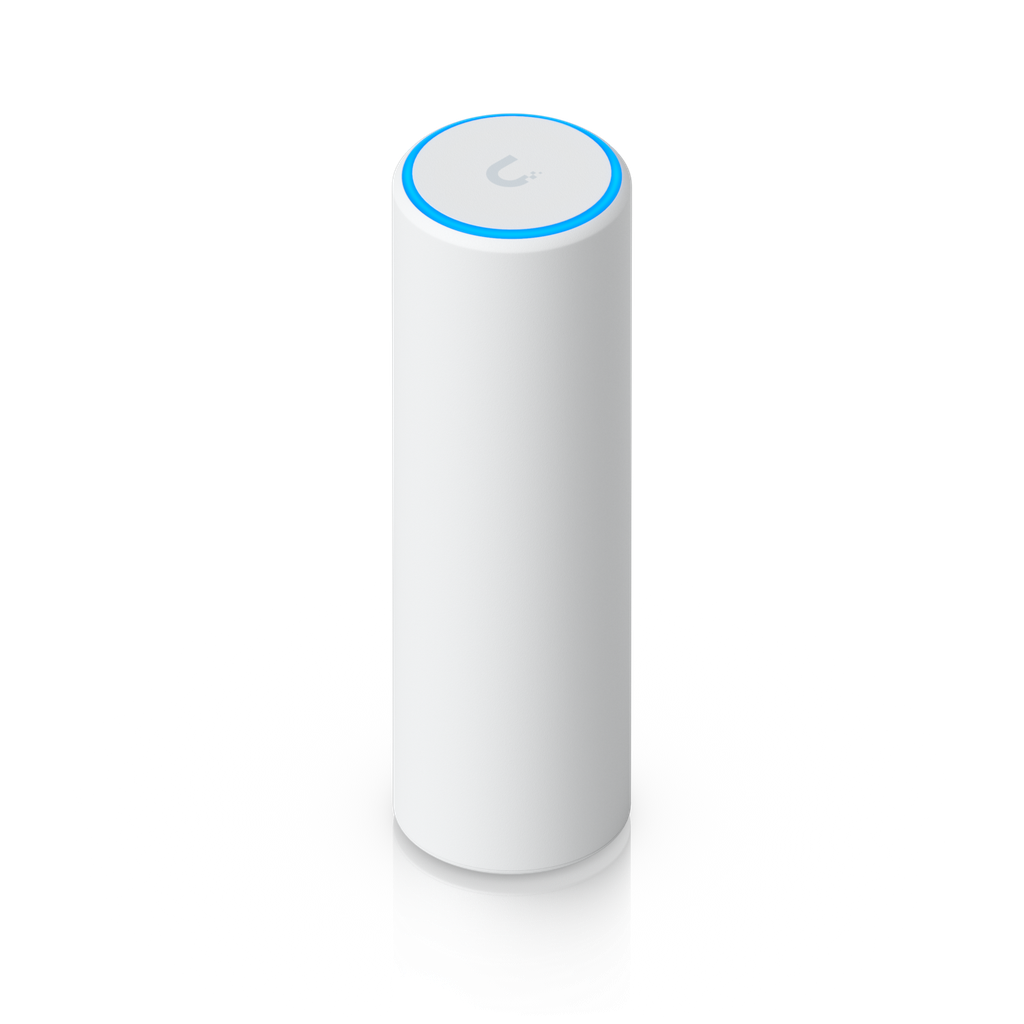

Access Point U7 Mesh. Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system. Australian stock. Available for store pickup or shipping.

337.70 337.7 AUD 337.70 incl. GST

Not Available For Sale


  • Form Factor
  • WiFi Standard
  • Frequency Band
  • Coverage Area
  • Brand

This combination does not exist.

WiFi 7 Indoor UniFi Access Point Ubiquiti
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
U7-Mesh
Tags
U7-Mesh
Access Point U7 Mesh

U7-Mesh

U7-Mesh

U7-Mesh

U7-Mesh

Specifications

Grid overview
WiFi7WiFi 7
Radio/AntennaOmnidirectional
Overview
Dimensions⌀48.5 x 159.5 mm / (⌀1.9 x 6.3")
WiFi StandardWiFi 7
Spatial Streams4
Coverage Area140 m² (1,500 ft²)
Max. Client Count200+
Uplink2.5 GbE

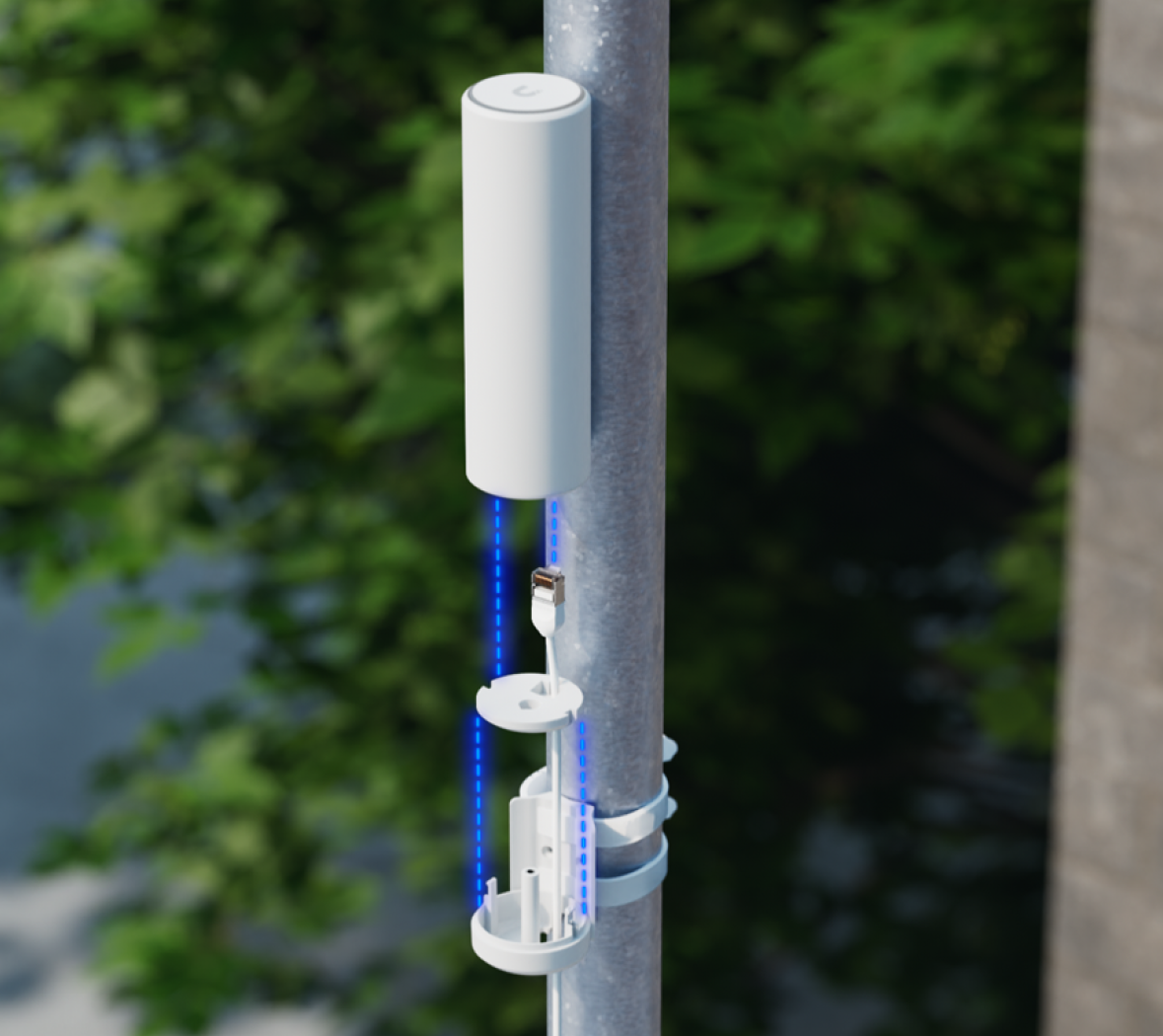

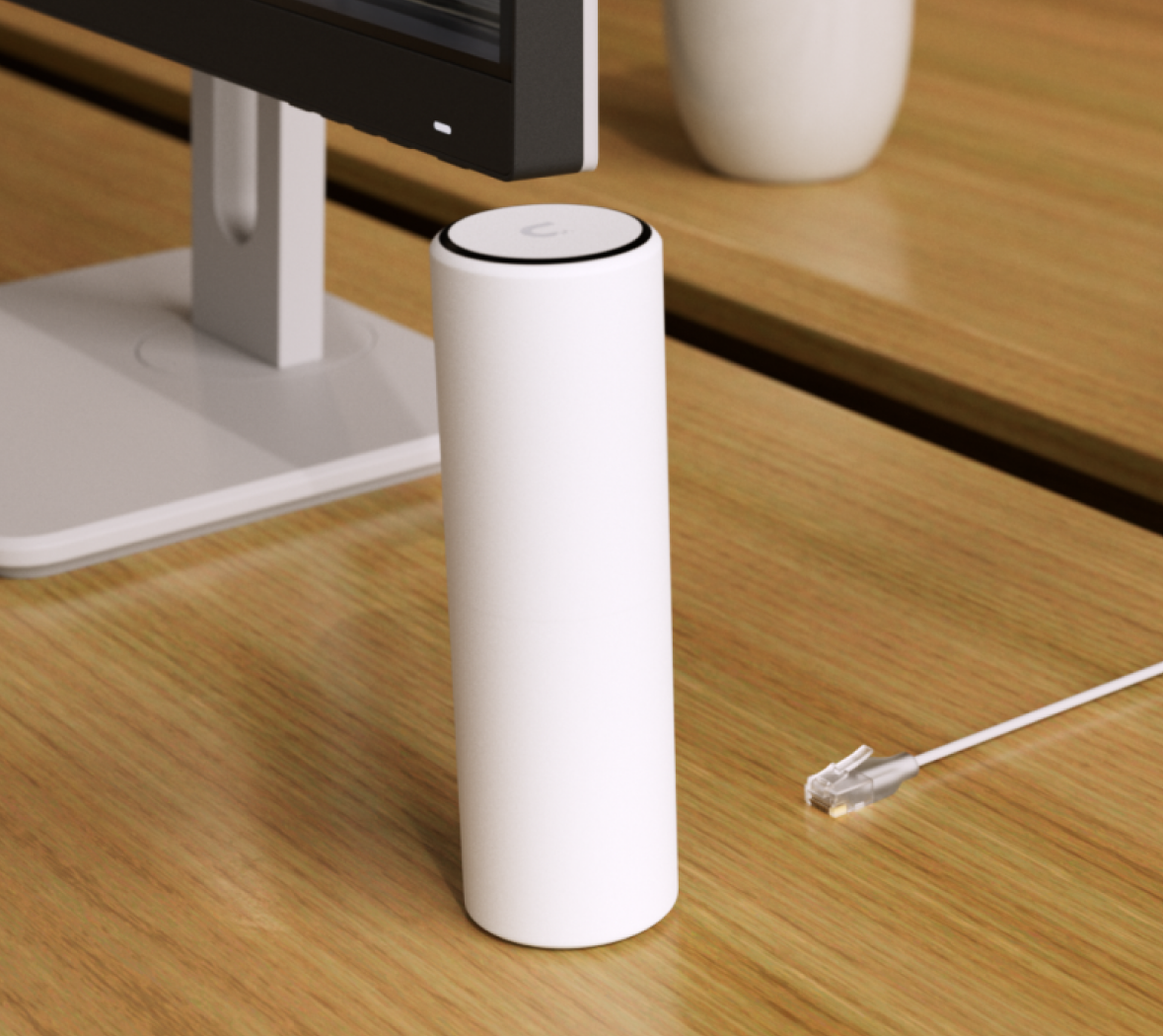

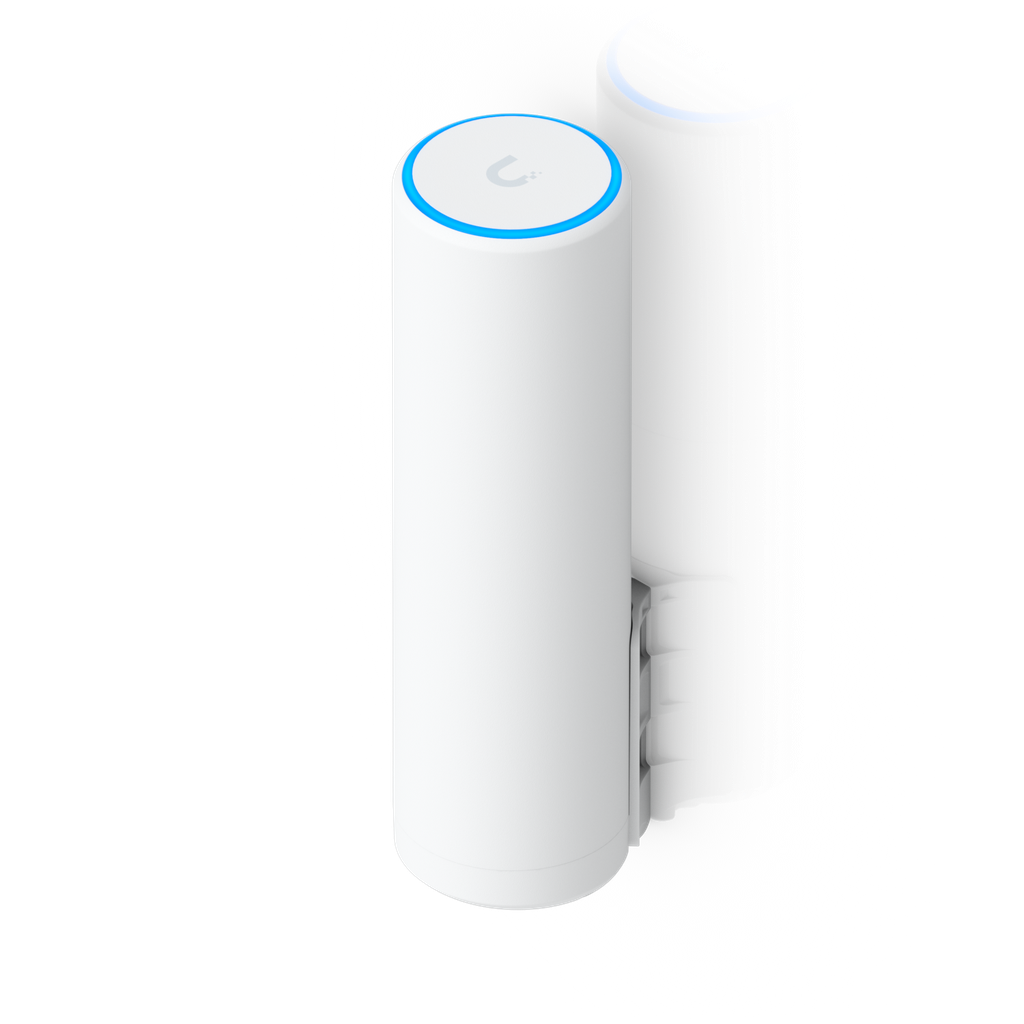

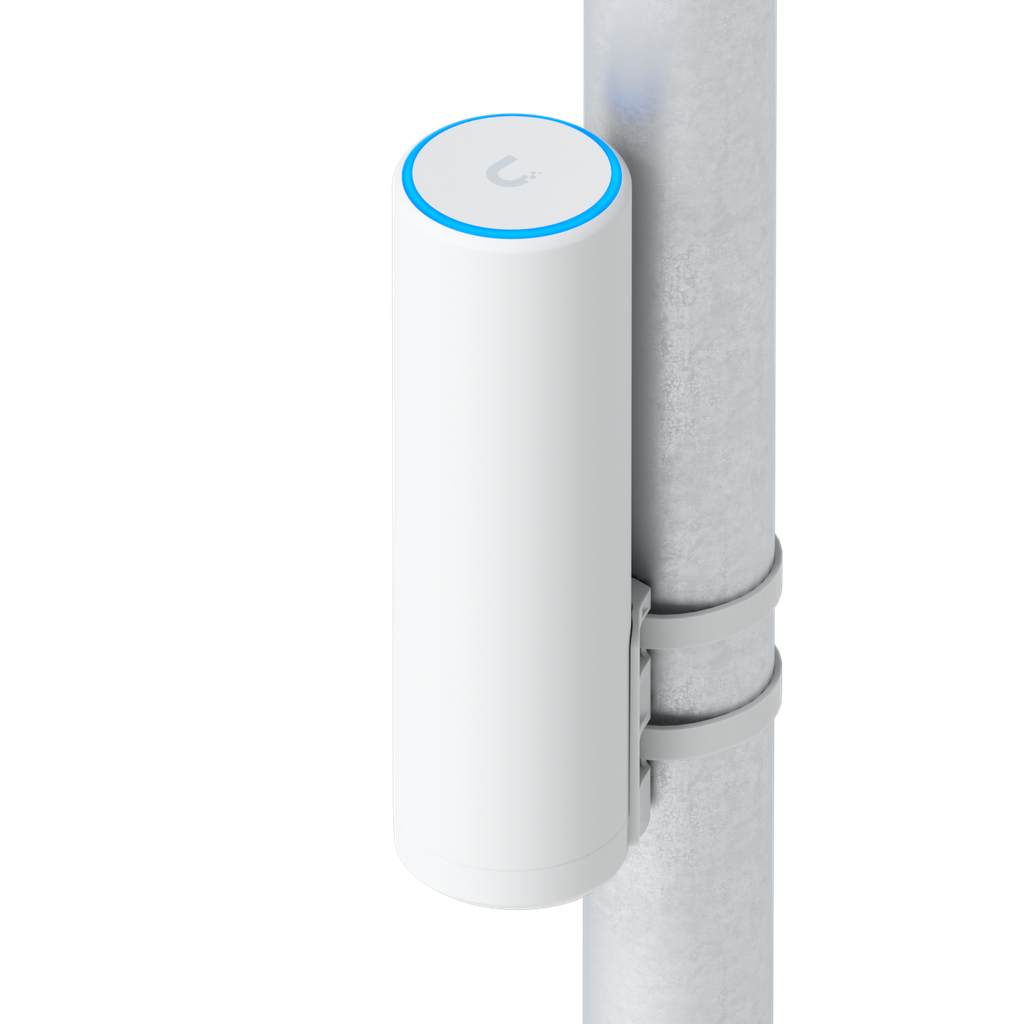

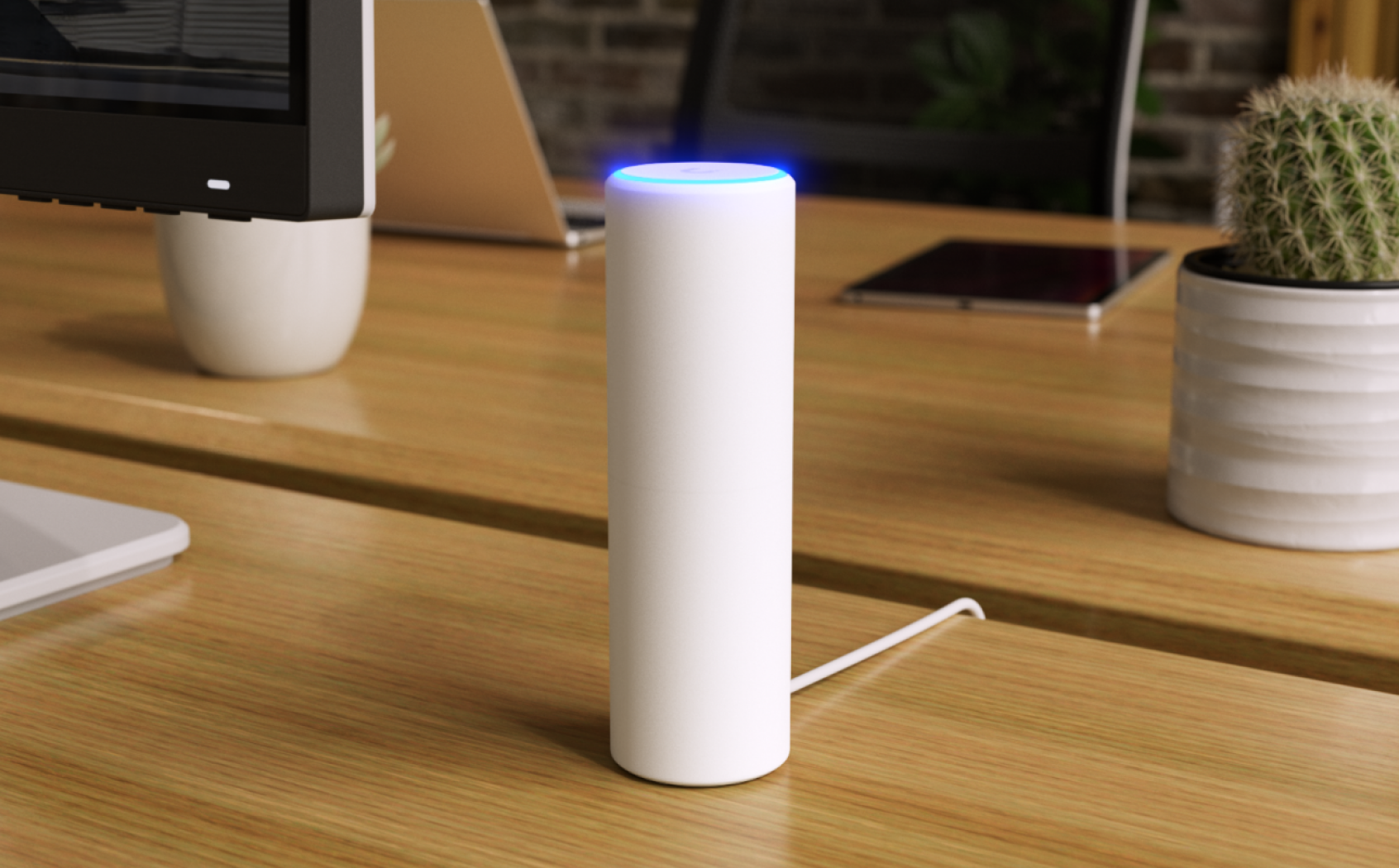

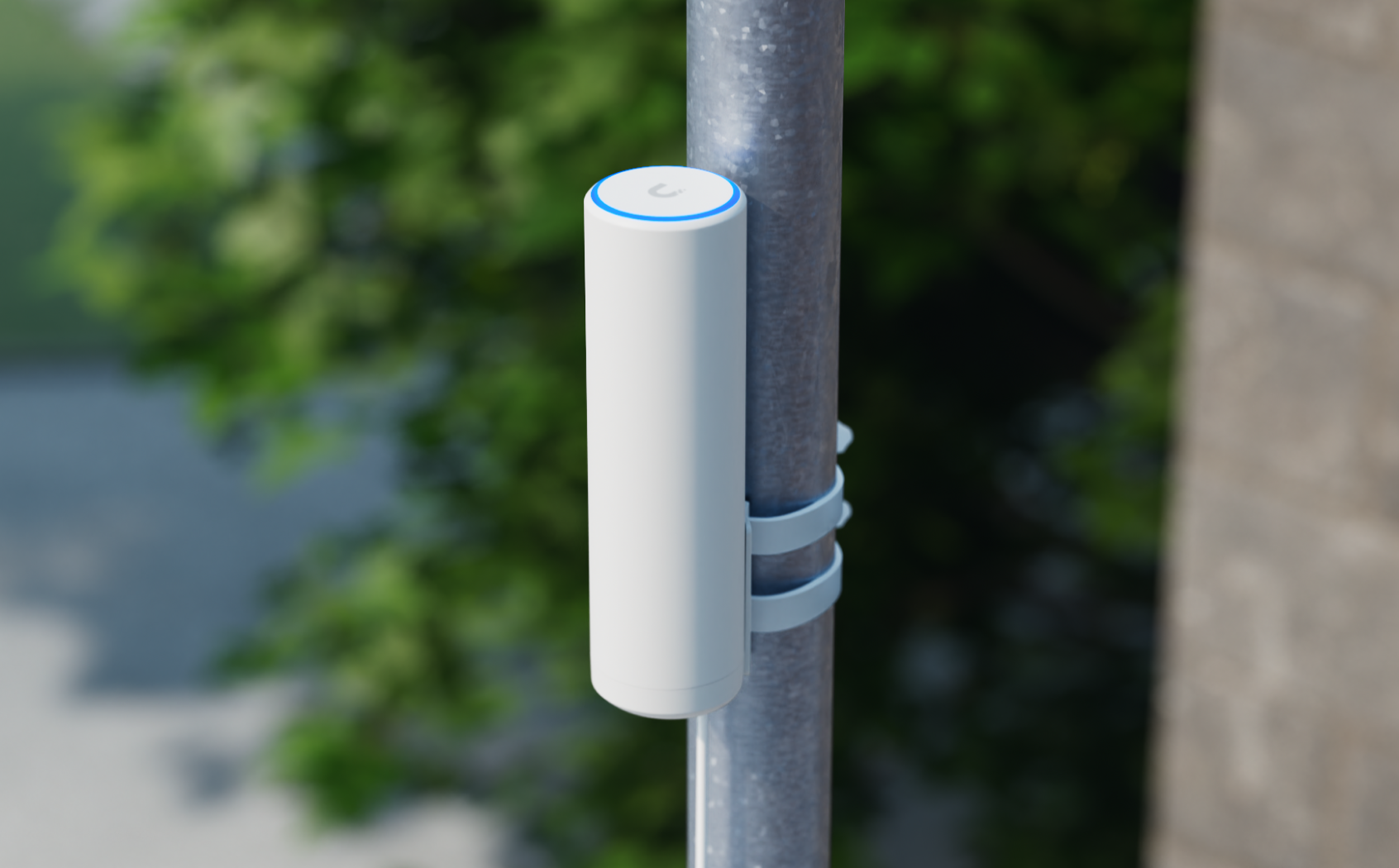

MountingWall, Pole, Table stand / (Mounts included)
WeatherproofingIPX6 (Installed with the outdoor mount)
Power MethodPoE
Performance
5 GHz2 x 2 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
5 GHz4.3 Gbps (BW240)
2.4 GHz688 Mbps (BW40)
5 GHzOmnidirectional: 6 dBi / Directional: 10 dBi
2.4 GHz3 dBi
5 GHz24 dBm
2.4 GHz23 dBm
Max. BSSIDs8 per Radio
802.11be (WiFi 7)7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Hardware
Max. Power Consumption13W
Supported Voltage Range42.5–57V DC

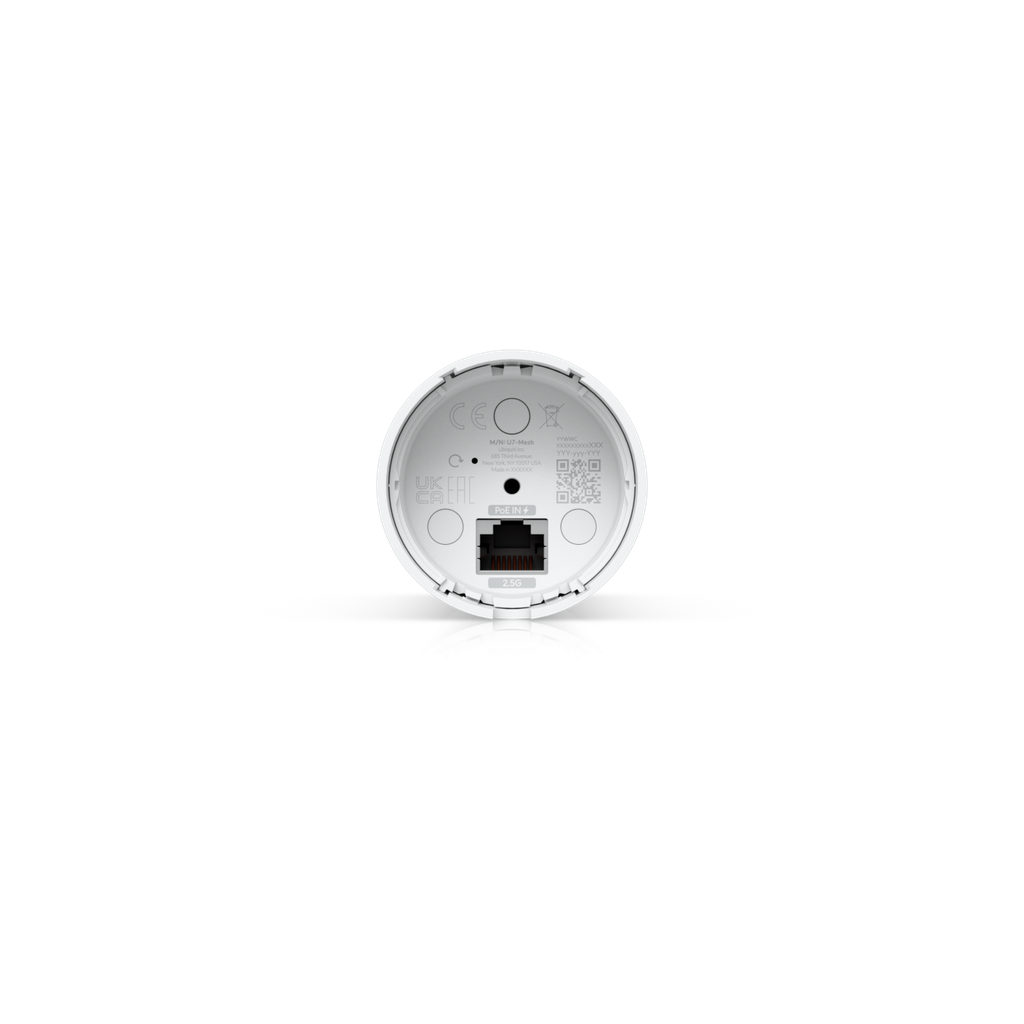

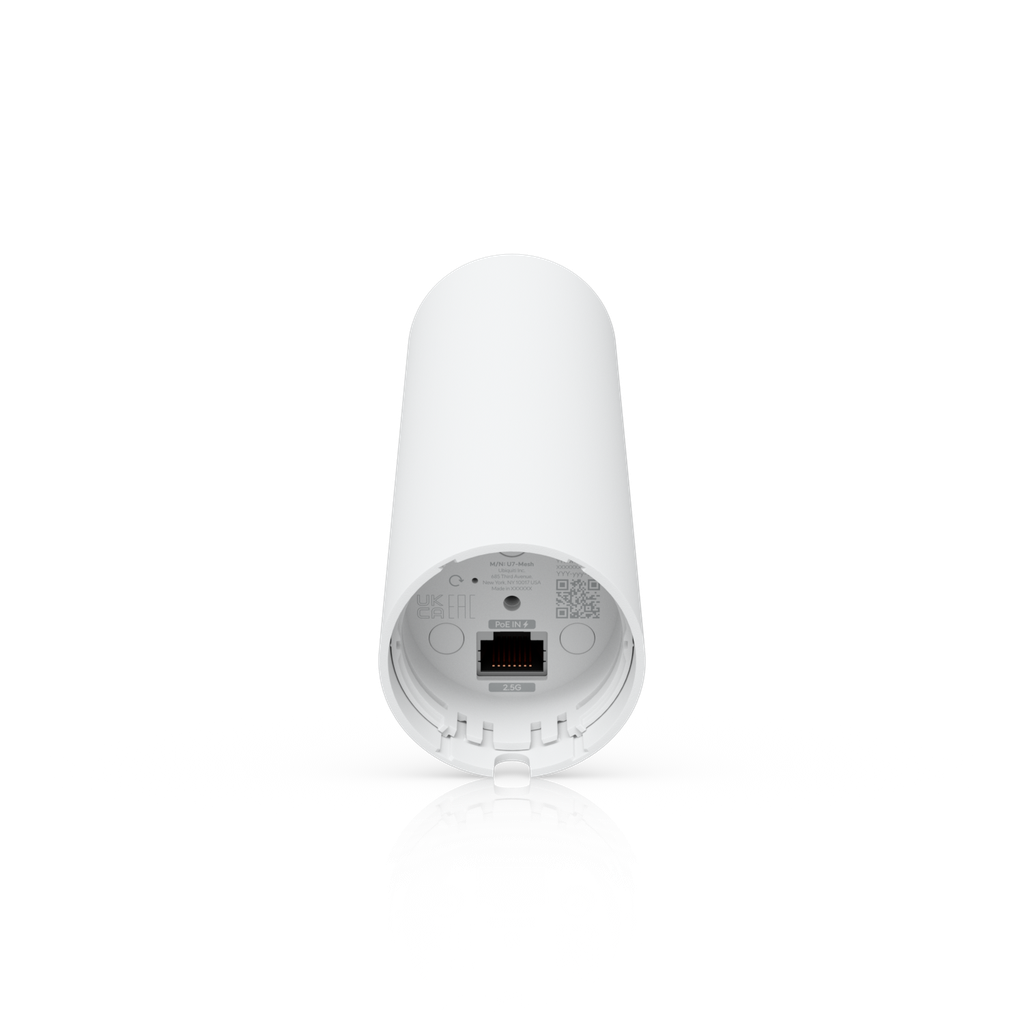

Networking Interface(1) 2.5 GbE RJ45 port
Weight313 g (11 oz)
ManagementEthernet
Enclosure MaterialUV-stabilized polycarbonate
Mount MaterialUV-stabilized polycarbonate
SystemW/B
Channel BandwidthHT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
CertificationsCE, FCC, IC
Ambient Operating Temperature-30 to 60° C (-22 to 140° F)
Ambient Operating Humidity5 to 95% noncondensing
Software
UniFi NetworkVersion 10.1.85 and later
Mobile AppUniFi iOS™: Version 10.32.1 and later / Android™: Version 10.35.1 and later

Professional Overview

The Ubiquiti U7-Mesh is Compact indoor/outdoor WiFi 7 AP with integrated long-range antenna system..

Performance specifications include coverage of 140 m² (1,500 ft²), support for 200+ concurrent clients.

The U7-Mesh integrates seamlessly with the Ubiquiti UniFi ecosystem, enabling centralized management through the UniFi Network application.

Built to Ubiquiti's commercial-grade standards with a weight of 313 g (11 oz), featuring CE, FCC, IC, operating temperature range of -30 to 60° C (-22 to 140° F). Australian stock from ARC IP Networks with fast nationwide shipping and local support.

Form Factor Wall, Pole, Table stand / (Mounts included)
WiFi Standard WiFi 7
Frequency Band HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Coverage Area 140 m² (1,500 ft²)
Brand Ubiquiti
