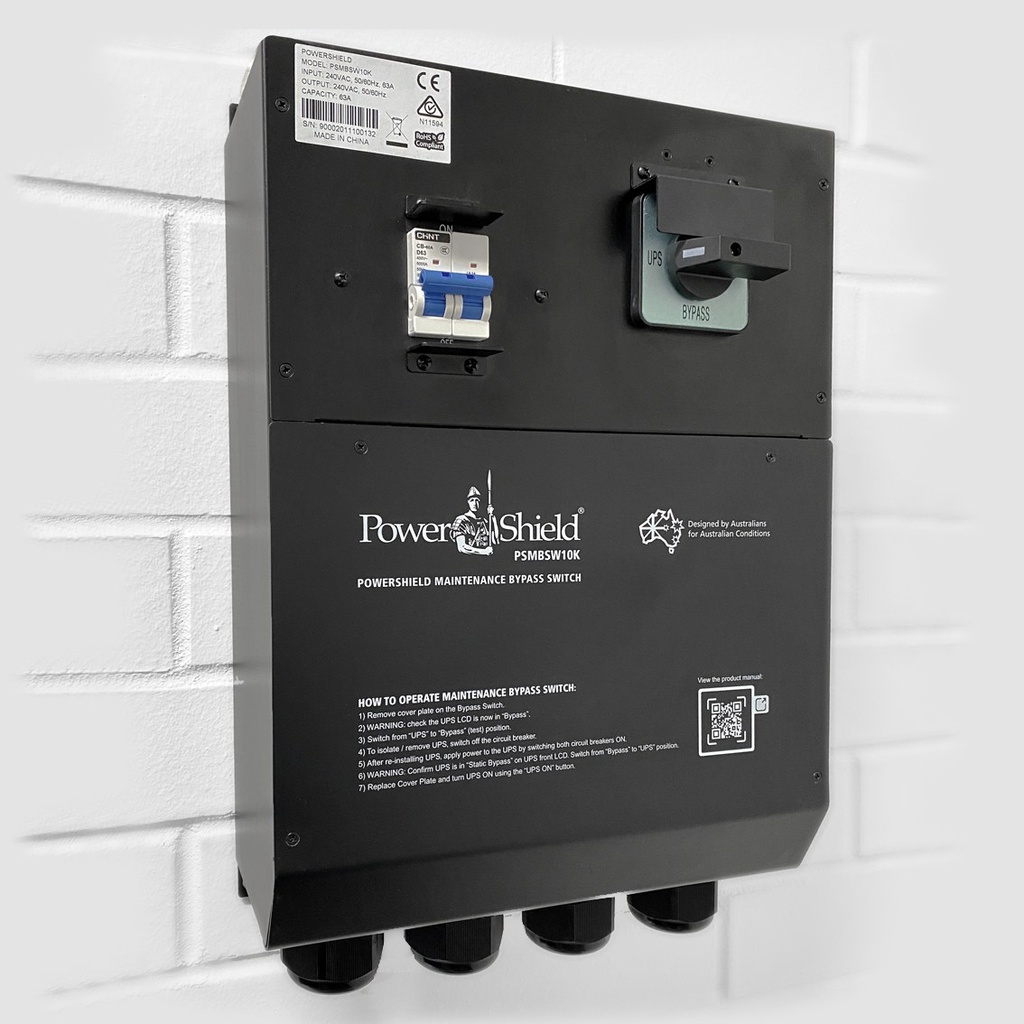

PowerShield 10kVA Wall Mount Maintenance Bypass Switch for 6–10kVA UPS, Hardwired, Interlocked

https://arcip.com.au/web/image/product.template/10864/image_1920?unique=68ee25a

The PowerShield PSMBSW10K is a wall-mount, mechanically interlocked maintenance bypass switch for 6 kVA or 10 kVA single-phase UPSs, with hard-wired 240 VAC input and output. Highlights: Three positions; Mechanical interlock; 6 or 10 kVA UPS; Wall mount. PowerShield Australian warranty: 2 years, with on-site service as a hardwired product. Genuine PowerShield from ARC IP Networks at competitive prices, with Australia-wide delivery.

$ 865.26 865.26 AUD $ 865.26 incl. GST

Not Available For Sale


  • Brand
  • Warranty

This combination does not exist.

In stock online
Server Rack Maintenance Bypass Switch UPS Accessories
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout

The PowerShield PSMBSW10K is a wall-mount, mechanically interlocked maintenance bypass switch for 6 kVA or 10 kVA single-phase UPSs, with hard-wired 240 VAC input and output.

ARC IP Networks supplies the genuine PowerShield PSMBSW10K in Australia with the full PowerShield Australian warranty (2 years, with on-site service as a hardwired product) and Australia-wide delivery.

PowerShield PSMBSW10K overview

The PSMBSW10K is an external maintenance bypass switch module that keeps power flowing to the connected loads during scheduled UPS maintenance, battery replacement or UPS replacement. It has three positions (UPS, Bypass, and Bypass & Isolate) and a mechanical interlock.

It is a 1 phase in / 1 phase out wall-mount unit rated for 10 kVA, with hard-wired input and output, measuring 420 x 283 x 125 mm. Cable glands (3 x M25, 1 x M19) are supplied for the installation, which must follow local electrical wiring rules.

Key features

Three positions

UPS, Bypass, Bypass & Isolate.

Mechanical interlock

Prevents incorrect switching.

6 or 10 kVA UPS

Single phase in and out.

Wall mount

Hard-wired, glands supplied.

PowerShield PSMBSW10K specifications

At a glance

6–10 kVA UPS
Mechanical interlock
1 phase in/out
Wall mount
Hard-wired
Model
PowerShield part numberPSMBSW10K
UPS rating10kVA (suits 6kVA or 10kVA UPS)
Phase1 phase in / 1 phase out
PositionsUPS, Bypass, and Bypass & Isolate
InterlockMechanical interlock
Input
Input (nominal)240 VAC, hard wire
Output
Output240 VAC, hard wire
Physical
StyleWall mount
Dimensions (L x W x H)420 x 283 x 125 mm
Warranty
PowerShield Australian warranty2 years, with on-site service as a hardwired product

Source: PowerShield official specifications (Maintenance Bypass Switches Brochure, Maintenance Bypass Switch Quick Guide PSMBSW10K). Specifications are subject to change by the manufacturer.

Download the Maintenance Bypass Switches Brochure (PDF)

What's in the box

  • PSMBSW10K maintenance bypass switch module
  • Quick guide
  • Gland M25 x 3
  • Gland M19 x 1

Source: PSMBSW10K quick guide.

Compatibility and fit

Matches: PSCE6000 (Centurion 6000VA Online UPS) (hard-wired 6 kVA tower).

Related PowerShield guides

Buying and deployment advice from the ARC IP Networks team for PowerShield power protection in Australia.

Use-case guide

UPS for comms racks and shallow cabinets

Read the guide

Range guide

PowerShield UPS range explained

Read the guide

Buying guide

Where to buy genuine PowerShield in Australia

Read the guide

Buy the PowerShield PSMBSW10K from ARC IP Networks

ARC IP Networks is a trusted PowerShield supplier in Australia: genuine stock at competitive prices, with the full PowerShield Australian warranty, Australia-wide delivery and trade pricing.

  • Genuine PowerShield: supplied new with the PowerShield documentation listed above.
  • PowerShield Australian warranty: 2 years, with on-site service as a hardwired product.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the PowerShield PSMBSW10K from the ARC IP Networks team. Last reviewed October 2026.

It lets a 6–10kVA UPS be serviced or replaced while the load stays powered, using UPS, Bypass, and Bypass & Isolate positions.

Yes. Input and output are hard-wired at 240 VAC, so it is installed by an electrician as part of the fixed wiring.

The PSMBSR10K uses a mechanical safety microswitch with static bypass activation; the PSMBSW10K uses a mechanical interlock.

PowerShield lists it for 6 kVA and 10 kVA single-phase UPSs such as the Centurion 6000 tower.

In the Bypass & Isolate position no voltage is present at the UPS input and output terminals, so a trained technician can safely work inside the UPS or remove and replace it without interrupting the load.

It is a wall-mount unit measuring 420 x 283 x 125 mm (L x W x H); cable glands are supplied.

PowerShield Australian warranty: 2 years, with on-site service as a hardwired product.

ARC IP Networks is a trusted PowerShield supplier in Australia: genuine stock at competitive prices, with the full PowerShield Australian warranty, Australia-wide delivery and trade pricing. Call 1300 100 440 or request a quote for project and volume pricing.

Need the PSMBSW10K for rack fit-outs?

Ask ARC IP Networks for volume and project pricing, or a configured PowerShield quote with matching battery modules, network cards, rail kits and PDUs.

Genuine PowerShield in Australia. ARC IP Networks is a trusted PowerShield supplier in Australia: genuine stock at competitive prices, with the full PowerShield Australian warranty, Australia-wide delivery and trade pricing. Explore the PowerShield Australia hub for every UPS range, accessories and buying guides.

PowerShield Australia hub

Brand PowerShield
Warranty 2 Years
