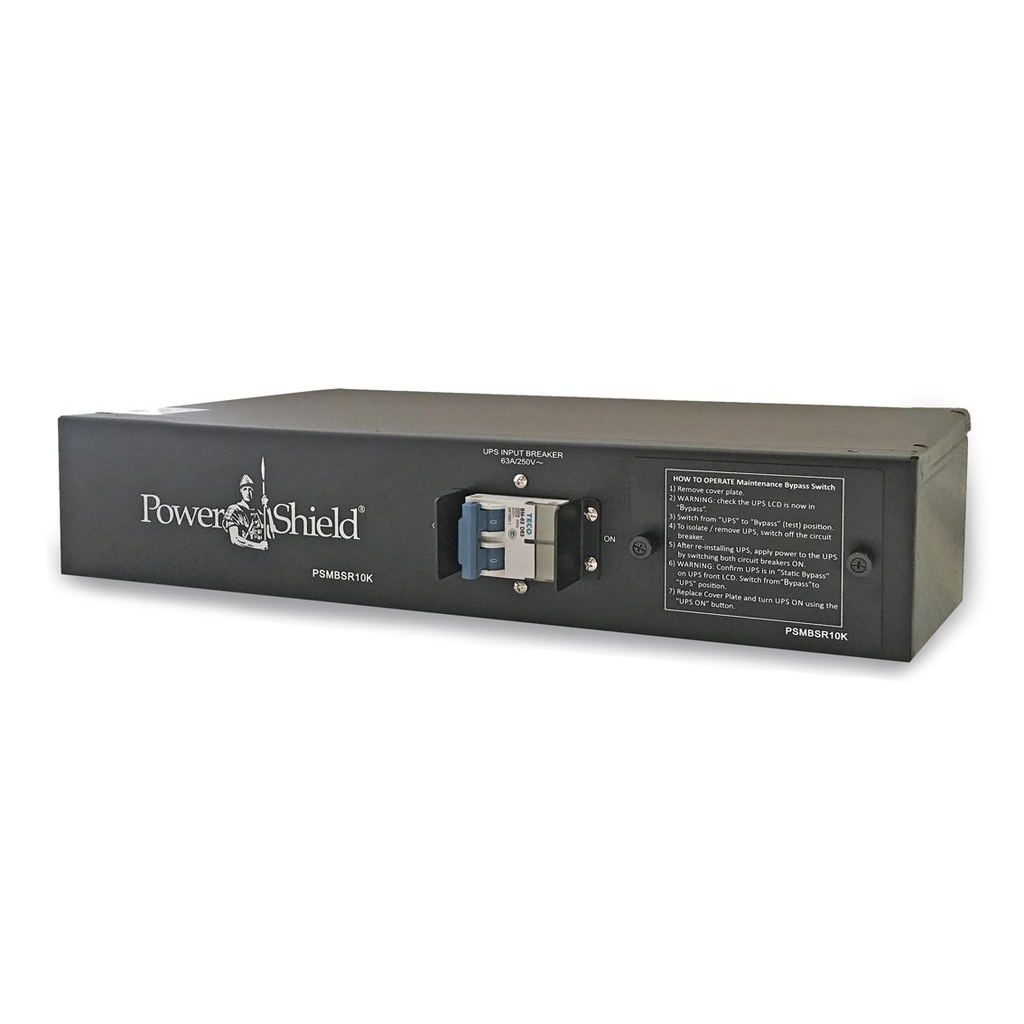

PowerShield 10kVA Rackmount Maintenance Bypass Switch for 6–10kVA UPS, 2U, Hardwired

https://arcip.com.au/web/image/product.template/10865/image_1920?unique=68ee25a

The PowerShield PSMBSR10K is a rackmount maintenance bypass switch for 6–10kVA UPSs with UPS, Bypass and Bypass & Isolate modes and hard-wired input and output, so the UPS can be serviced or replaced without interrupting the load. Highlights: Three modes; Safety microswitch; 6–10kVA UPS; Hard-wired. PowerShield Australian warranty: 2 years, with on-site service as a hardwired product. Genuine PowerShield from ARC IP Networks at competitive prices, with Australia-wide delivery.

$ 777.98 777.98 AUD $ 777.98 incl. GST

Not Available For Sale


  • Brand
  • Warranty

This combination does not exist.

In stock online
Server Rack Maintenance Bypass Switch UPS Accessories
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout

The PowerShield PSMBSR10K is a rackmount maintenance bypass switch for 6–10kVA UPSs with UPS, Bypass and Bypass & Isolate modes and hard-wired input and output, so the UPS can be serviced or replaced without interrupting the load.

ARC IP Networks supplies the genuine PowerShield PSMBSR10K in Australia with the full PowerShield Australian warranty (2 years, with on-site service as a hardwired product) and Australia-wide delivery.

PowerShield PSMBSR10K overview

The PSMBSR10K has three modes of operation: UPS, Bypass, and Bypass & Isolate. In Bypass the UPS still receives power so a technician can carry out maintenance; in Bypass & Isolate no voltage is present at the UPS input and output terminals, so a trained technician can work inside the UPS or replace it without interrupting the load.

A mechanical safety microswitch with static bypass activation is standard, which prevents incorrect switching sequences and the damage or injury they could cause. Input and output are hard-wired at 240 VAC. Add the PSPDU10K rackmount PDU to connect 10 A and 16 A devices through IEC outlets.

Key features

Three modes

UPS, Bypass, Bypass & Isolate.

Safety microswitch

Static bypass activation prevents wrong sequences.

6–10kVA UPS

Pairs with the Centurion RT 6000L.

Hard-wired

240 VAC input and output.

Optional PDU

PSPDU10K adds 8 x C13 + 4 x C19.

PowerShield PSMBSR10K specifications

At a glance

6–10kVA UPS
3 modes
Hard-wired 240 VAC
Rackmount
254 x 433 x 88 mm
Model
PowerShield part numberPSMBSR10K
UPS rating6–10kVA
ModesUPS, Bypass, and Bypass & Isolate
SafetyMechanical safety microswitch with static bypass activation (standard)
Input
Input (nominal)240 VAC, hard wire
Output
Output240 VAC, hard wire
Optional PDUPSPDU10K: 10 A IEC 320 C13 x 8, 16 A IEC 320 C19 x 4
Physical
StyleRackmount
Dimensions (D x W x H)254 x 433 x 88 mm
Warranty
PowerShield Australian warranty2 years, with on-site service as a hardwired product

Source: PowerShield official specifications (Maintenance Bypass Switches Brochure, Maintenance Bypass Switch Quick Guide). Specifications are subject to change by the manufacturer.

Download the Maintenance Bypass Switches Brochure (PDF)

What's in the box

  • Maintenance bypass switch module
  • Quick guide

Source: PSMBSR10K quick guide.

Compatibility and fit

Matches: PSCERT6000L (Centurion RT 6000VA Long Run Online UPS); PowerShield also lists it for the Centurion RT 10KL. Optional PDU: PSPDU10K (Rackmount PDU for PSMBSR10K).

Related PowerShield guides

Buying and deployment advice from the ARC IP Networks team for PowerShield power protection in Australia.

Use-case guide

UPS for comms racks and shallow cabinets

Read the guide

Range guide

PowerShield UPS range explained

Read the guide

Buying guide

Where to buy genuine PowerShield in Australia

Read the guide

Buy the PowerShield PSMBSR10K from ARC IP Networks

ARC IP Networks is a trusted PowerShield supplier in Australia: genuine stock at competitive prices, with the full PowerShield Australian warranty, Australia-wide delivery and trade pricing.

  • Genuine PowerShield: supplied new with the PowerShield documentation listed above.
  • PowerShield Australian warranty: 2 years, with on-site service as a hardwired product.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the PowerShield PSMBSR10K from the ARC IP Networks team. Last reviewed October 2026.

It lets a 6–10kVA UPS be serviced or replaced while the load stays powered, using UPS, Bypass, and Bypass & Isolate positions.

Yes. Input and output are hard-wired at 240 VAC, so it is installed by an electrician as part of the fixed wiring.

The PSMBSR10K uses a mechanical safety microswitch with static bypass activation; the PSMBSW10K uses a mechanical interlock.

PowerShield lists it for 6 kVA and 10 kVA single-phase UPSs such as the Centurion RT 6000L and 10KL.

In the Bypass & Isolate position no voltage is present at the UPS input and output terminals, so a trained technician can safely work inside the UPS or remove and replace it without interrupting the load.

Yes. PowerShield offers the optional PSPDU10K rackmount PDU with 8 x C13 and 4 x C19 outlets to connect 10 A and 16 A devices.

PowerShield Australian warranty: 2 years, with on-site service as a hardwired product.
