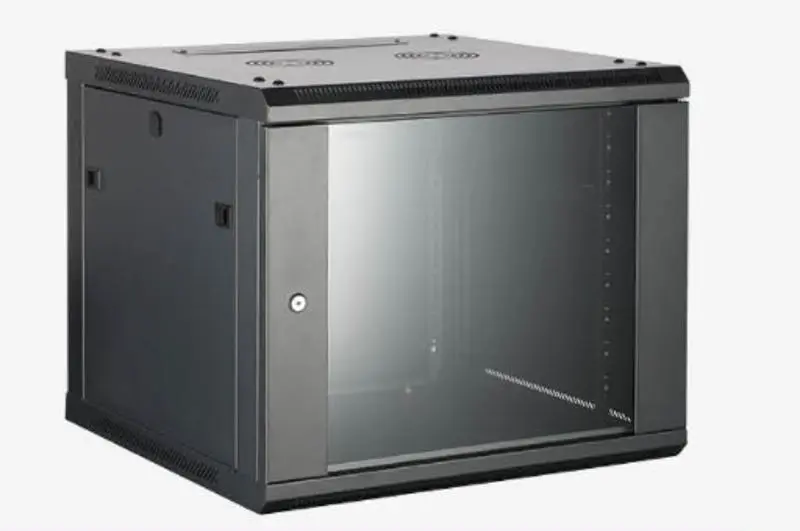

Hikvision DS-XS6404-S/B 4U 40kg Server Rack Cabinet

https://arcip.com.au/web/image/product.template/6448/image_1920?unique=0503dfe
The Hikvision DS-XS6404-S/B 4U server rack provides a compact and robust solution for organizing and protecting your critical network and security surveillance equipment, supporting up to 40kg of load.

104.46 104.46 AUD 111.32 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
Hikvision
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
DS-XS6404-S/B
Tags
At a glance

The Hikvision DS-XS6404-S/B is a 4U wall-mount rack cabinet for network and surveillance equipment. It takes standard 19-inch rack gear — recorders, PoE switches, patch panels — behind a lockable tempered-glass door, and mounts flat to a wall rather than needing floor space. Total static load 40 kg.

Rack capacity
4U of 19-inch rack space
External dimensions
600 × 450 × 281 mm (W × D × H)
Static load capacity
40 kg total
Net weight
14.5 kg
Installation
Wall-mounted
Front door
4 mm tempered glass in 1 mm SPCC steel frame, lockable
Front door open area
78% — status lights visible when closed
Rear panel
Solid — front access only
Frame / side / rail
1.2 mm / 1.0 mm / 1.5 mm SPCC steel
Mounting standard
19-inch rack, ETSI compatible
Optional accessories
Shelf (DS-XSPB04-S/B), cooling fan, rack PDU
Warranty
Australian warranty via ARC IP Networks

Key Features

4U Rack Capacity
600 × 450 × 281 mm
40 kg Static Load
Lockable Glass Door
Wall-Mounted
SPCC Steel Frame

Why choose the DS-XS6404-S/B

The Hikvision DS-XS6404-S/B keeps a site’s equipment tidy, secure and off the floor. Its 4U of 19-inch rack space fits a recorder, a PoE switch and a patch panel — typically an 8-channel NVR, an 8-port PoE switch and a 12-port patch panel, with 1U spare — behind a lockable 4 mm tempered-glass door that keeps hands off the hardware while leaving status lights visible. The frame is SPCC steel and it wall-mounts, so it suits a comms cupboard, a back-of-house wall or a plant room where a floor-standing rack would not fit. Total static load is 40 kg, which comfortably carries a recorder, a switch and patch panels — worth checking against your kit if you plan to load it heavily. Supplied and supported by ARC IP Networks with genuine Australian stock and local support.

What this is: an empty steel enclosure. It has no ports, no PoE and no power supply — it is the housing your recorder, switch and patch panels mount into. Shelves, cooling fans and rack PDUs are optional extras.

Best for

  • Sites needing 4U of rack space: a recorder, a PoE switch and a patch panel.
  • Where floor space is tight: mounts flat to a wall instead of standing on the floor.
  • Shared or public areas: a lockable glass door keeps hands off the hardware.
  • Tidy handovers: equipment and cabling contained in one enclosure rather than screwed to a board.

Who it’s for

Small business

A complete system contained in one wall cabinet.

Retail & hospitality

Back-of-house comms in a lockable enclosure.

Trade & industrial

Plant rooms and workshops where dust and knocks are a risk.

Installers

A professional finish and simpler service access.

DS-XS6404-S/B
4U Server Rack Cabinet

Features

  • Standard 4U rack unit size
  • Compact dimensions: 600mm (W) x 450mm (D) x 281mm (H)
  • Robust load bearing capacity: 40kg
  • Durable construction for secure equipment housing
  • Optimized for network and security surveillance devices
  • Efficient space management and organization

Specifications

General
ModelDS-XS6404-S/B
Form Factor4U
Dimensions (W x D x H)600 x 450 x 281mm
Load Bearing Capacity40kg
BrandHikvision

Professional Overview

The Hikvision DS-XS6404-S/B 4U Server Rack Cabinet provides a robust and organized solution for housing your essential network and security surveillance equipment. With its standard 4U form factor and compact dimensions of 600mm wide, 450mm deep, and 281mm high, it is perfectly suited for installations where space efficiency is a key consideration. This cabinet is designed to integrate seamlessly into various environments, from small offices and server rooms to dedicated surveillance control centers, offering a neat and professional appearance.

Engineered for durability, the DS-XS6404-S/B boasts a substantial load bearing capacity of 40kg, ensuring it can securely support a range of critical devices including Network Video Recorders (NVRs), PoE switches, patch panels, and other networking components. This robust construction not only protects valuable electronics from dust, unauthorized access, and accidental damage but also contributes to the longevity and stable operation of your entire security system. Proper equipment housing helps maintain optimal operating temperatures and reduces potential points of failure, enhancing overall system reliability.

Ideal for organizing complex cabling and consolidating equipment, this Hikvision rack cabinet promotes efficient space management and simplifies maintenance. Its thoughtful design aids in reducing clutter, improving airflow around devices, and providing a centralized, secure location for your surveillance infrastructure. By investing in the DS-XS6404-S/B, you ensure a professional, secure, and highly efficient environment for your network and security surveillance operations, safeguarding your assets and ensuring uninterrupted performance.

How the sizes compare

All four cabinets share the same 600 × 450 mm footprint, the same lockable tempered-glass door and the same 40 kg static load. Only the height and rack capacity change — so choose on the rack units your equipment needs, plus room to grow.

FeatureDS-XS6404-S/BThis cabinetDS-XS6406-S/B6UDS-XS6409-S/B9UDS-XS6412-S/B12U
Rack capacity4U6U9U12U
Height281 mm368 mm500 mm635 mm
Width × depth600 × 450 mm600 × 450 mm600 × 450 mm600 × 450 mm
Net weight14.5 kg18.7 kg21 kg
Static load40 kg40 kg40 kg40 kg
Lockable glass doorYesYesYesYes
MountingWallWallWallWall
Typical fitNVR + switch + patch panelAdds room to growSmall-site rackFull site with expansion

Static load is the total for the cabinet, not per shelf. Shelves, fans and PDUs are optional extras.

Complete your rack

Cabinets are supplied empty. Add a shelf (DS-XSPB04-S/B) for equipment without rack ears, a cooling fan if the cupboard runs warm, and a rack PDU to distribute mains power inside. Then fit your recorder, PoE switch and patch panels.

Browse recorders →

Part of the Hikvision range

Authorised Australian Hikvision reseller — explore the range and guides:

RecordersDome & turret camerasBullet camerasWhere to buy

Frequently asked questions

4U of standard 19-inch rack space. As a guide, 1U fits most network switches and patch panels, and a typical NVR is 1U or 2U. A realistic 4U load is an 8-channel NVR, an 8-port PoE switch and a 12-port patch panel, with 1U spare. Remember to leave space for cable management and airflow.

40 kg total static load — that is the whole cabinet, not per shelf or per U. That comfortably carries a recorder, a switch and patch panels. If you are mounting several loaded recorders or a UPS, check the combined weight first, and make sure the wall fixings suit the substrate.

No — those are optional extras. Hikvision offers a matching shelf (DS-XSPB04-S/B), a cooling fan and rack PDUs for this cabinet range. Equipment that does not have rack ears needs a shelf to sit on, so it is worth adding one if you are fitting a desktop-style recorder or modem.

No. The front door is 4 mm tempered glass in a steel frame and opens for access; the rear panel is solid. Plan your cable entry accordingly — access is from the front, with cable entry through the knockouts.

Yes. The front door is tempered glass with a 78% open area, so status LEDs stay visible with the door closed and locked.

Wall-mounted. It fixes flat to a wall, which is why it suits comms cupboards, back-of-house walls and plant rooms where there is no floor space for a full rack.

No — this is an empty steel enclosure. It has no ports, no PoE and no power supply of its own. It is the housing your recorder, switch and patch panels go into. An optional rack PDU can be added to distribute mains power inside it.

Count the rack units your equipment needs and add room to grow. 4U suits a small system with a recorder, one switch and a patch panel. 6U and 9U suit typical commercial sites. 12U gives generous expansion room. Ask us if you would like it sized against your equipment list.
