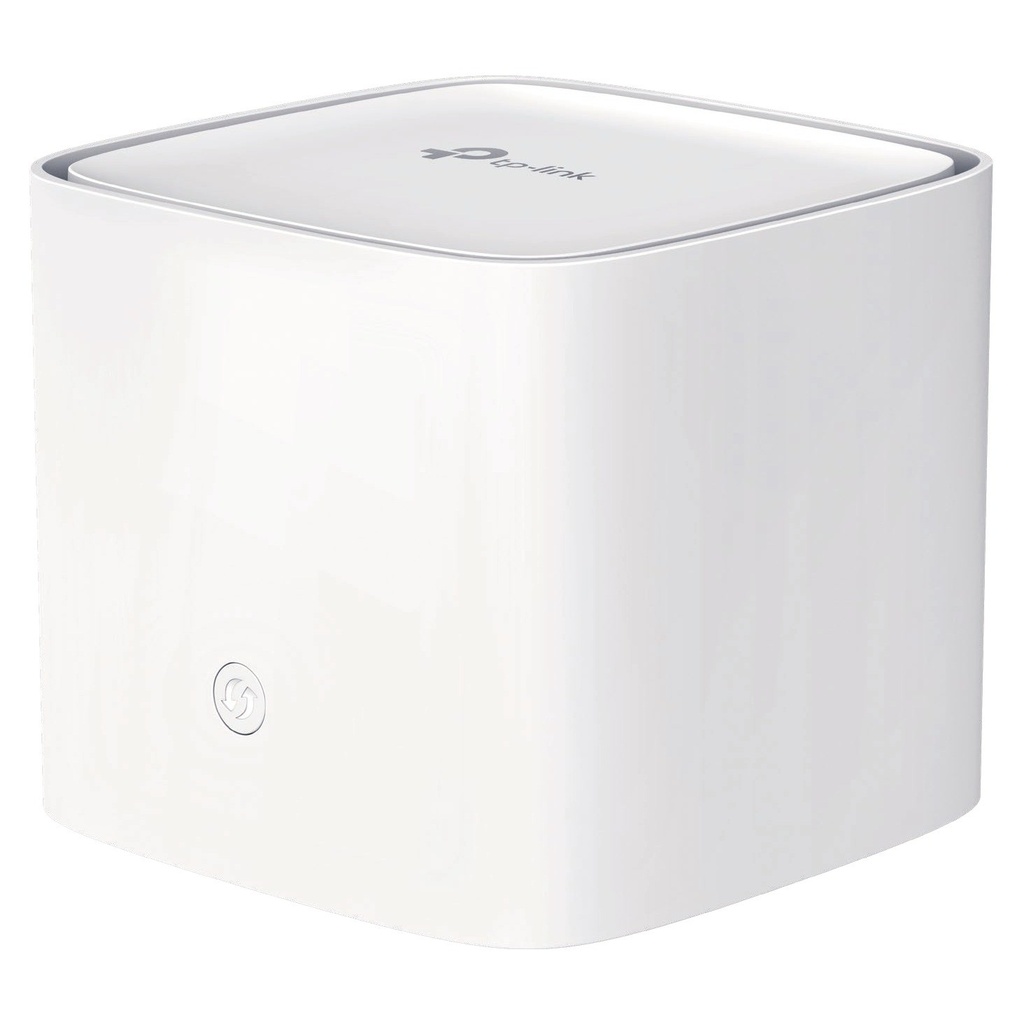

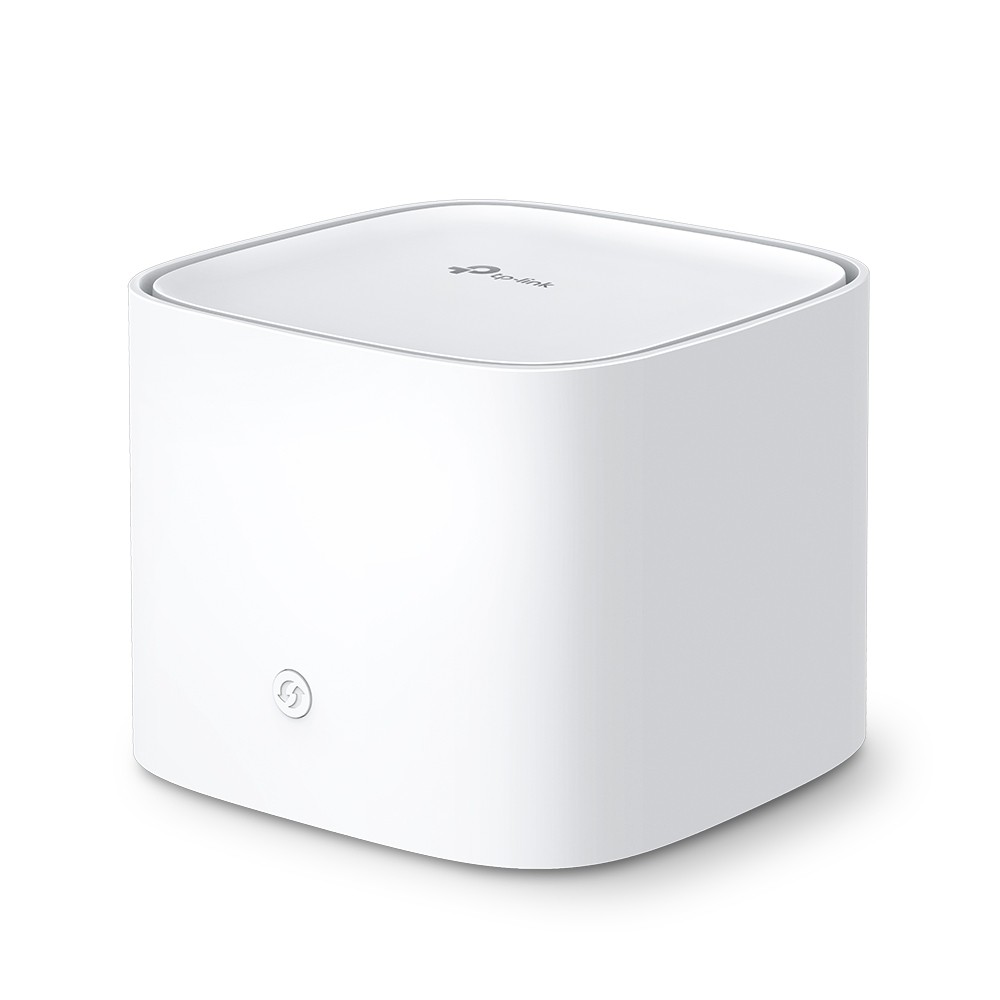

TP-Link HX510 AX3000 Whole Home Mesh Wi-Fi System

https://arcip.com.au/web/image/product.template/11504/image_1920?unique=f8753a1

The TP-Link HX510 is an AX3000 whole home mesh Wi-Fi system unit with dual-band Wi-Fi 6, rated up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Each unit has three gigabit Ethernet ports with one WAN/LAN auto-sensing port, router and access point modes, WPA3 encryption, parental controls and Multi-SSID. Units form one network with EasyMesh and optional Ethernet backhaul, and can be managed with the Aginet app, web interface, TAUC or TR-069. This listing is one unit. Supplied by ARC IP Networks from Australian stock with the full manufacturer's warranty.

$ 144.40 144.4 AUD $ 144.40 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

In stock online
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
HX510

The TP-Link HX510 is an AX3000 whole home mesh Wi-Fi system unit with dual-band Wi-Fi 6: up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Each unit has three gigabit Ethernet ports, one of which auto-senses WAN or LAN, works in router or access point mode, supports EasyMesh with optional Ethernet backhaul, and is managed with the Aginet app, the web interface or TAUC and TR-069 by service providers. This listing is one HX510 unit.

HX510 overview

The HX510 is TP-Link's AX3000 whole home mesh Wi-Fi system, sold here as a single unit. TP-Link's datasheet calls it an AX3000 whole home mesh Wi-Fi AP, and its product page says the system delivers a strong Wi-Fi signal to every corner of your home with whole-home coverage and a seamless roaming experience. It is dual-band Wi-Fi 6: IEEE 802.11a/n/ac/ax on 5 GHz and 802.11b/g/n/ax on 2.4 GHz, with signal rates of up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz, which TP-Link describes as speeds up to 3000 Mbps. TP-Link notes these are maximum physical rates derived from IEEE 802.11 specifications, and that actual throughput, coverage and number of connected devices vary with network conditions, client limitations and the environment. The page lists 1024-QAM, 160 MHz channels and Target Wake Time; Wi-Fi 6, OFDMA, 1024-QAM, HE160, TWT, MU-MIMO and WPA3 require clients that support the same features, and the 160 MHz bandwidth may be unavailable on 5 GHz in some regions because of regulatory restrictions. The datasheet lists a dual-core 1 GHz CPU and internal antennas.

Coverage comes from combining units. TP-Link says that, empowered by EasyMesh technology, the HX510 provides a strong Wi-Fi signal in every corner of the home, with wireless connections and optional Ethernet backhaul working together to link each unit, and that you can add another HX510 unit whenever you want; its footnote states some features require two or more units. All units form one unified network, and TP-Link says a mobile device automatically connects to the fastest unit as you move through the home. Its seamless roaming footnote explains this refers to Wi-Fi roaming using IEEE 802.11k/v/r, helping devices shift from one AP to another within 0.3 seconds; clients need to support 802.11k/v/r, may need additional setup, and performance varies by client device. The datasheet adds client steering and band steering, path fail-over so network resources can stay available via a second link when a backhaul link is unusable, and airtime fairness. Units are added by pressing the WPS buttons on the main AP and the add-on unit, after which the add-on syncs automatically.

Each unit has three gigabit Ethernet ports, and one of them supports WAN/LAN auto-sensing; the datasheet describes these as one 10/100/1000 Mbps WAN/LAN port and two 10/100/1000 Mbps LAN ports. TP-Link says this lets you take full advantage of broadband with speeds up to 1 Gbps through the gigabit WAN/LAN port, and its footnote notes actual network speed may be limited by the port rate, the cable, internet service provider factors and other conditions. The HX510 works in router mode, creating a private wireless network, or access point mode, adding Wi-Fi to an existing wired network. WAN types on the product page are dynamic IP, static IP and PPPoE, with the datasheet also listing L2TP and PPTP. The datasheet lists IPTV with IGMP v2/v3 and IGMP snooping, LED schedule and Wi-Fi schedule, and power comes from a 12 V 1.5 A external supply. The unit measures 120 x 120 x 96.5 mm and operates from 0 to 40 °C.

Security includes WPA, WPA2 and WPA3 Personal encryption, which TP-Link says gives higher password safety and enhanced protection against brute-force attacks, plus WPA/WPA2 Enterprise in the datasheet, an SPI firewall, parental controls to block inappropriate content and restrict time online, and Multi-SSID for separate visitor networks; the product page lists 2 Multi-SSIDs per band, while the datasheet lists up to 4 SSIDs per band. The datasheet also lists OpenVPN, PPTP and IPSec VPN server support. Setup is through the Aginet app or the web interface. For internet providers, TP-Link supports TR-069 remote management via their ACS or the Aginet ACS, together with TR-098, TR-181, TR-111 and TR-143 and TAUC cloud management, and describes the Aginet solution as offering dynamic service provisioning, zero-touch firmware upgrading, remote troubleshooting and mesh Wi-Fi diagnostics. The page lists Wi-Fi CERTIFIED 6 and Wi-Fi CERTIFIED EasyMesh among its certifications. In the box are one HX510 unit, an RJ45 Ethernet cable, a power adapter and a quick installation guide.

Key features

AX3000 dual-band Wi-Fi 6

Up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.

EasyMesh whole-home Wi-Fi

Add HX510 units for one unified network; some features need two or more units.

Optional Ethernet backhaul

Wired and wireless links work together between units.

Three gigabit ports

One WAN/LAN auto-sensing port and two LAN ports per unit.

Router or access point

Create a private network or add Wi-Fi to an existing wired network.

Seamless roaming

802.11k/v/r roaming for clients that support it.

WPA3 and parental controls

WPA3 Personal, SPI firewall, Multi-SSID and parental controls.

Aginet and TR-069

Aginet app, web interface, TAUC cloud and TR-069 remote management.

HX510 specifications

At a glance

AX3000 Wi-Fi 6
2402 Mbps (5 GHz)
574 Mbps (2.4 GHz)
3x gigabit ports
EasyMesh
Router / AP mode
WPA3
1 unit
HX510 full specifications
Hardware Features

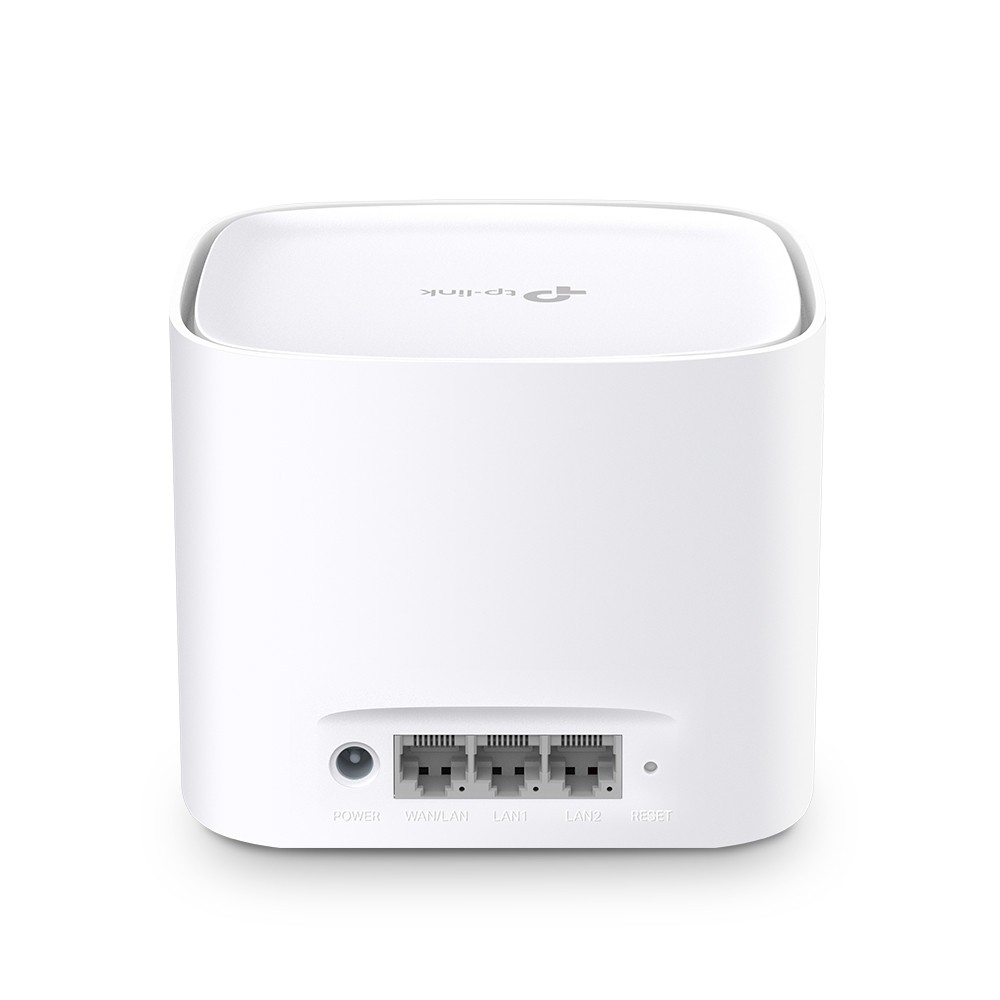

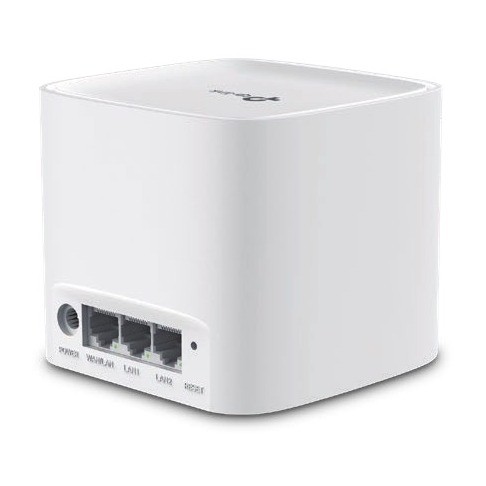

Interface3× Gigabit Ports Per Unit 1 Port supports WAN/LAN auto-sensing
ButtonReset Button WPS Button
External Power Supply12 V ⎓ 1.5 A
Dimensions ( W x D x H )4.7 x 4.7 x 3.8 in (120 x 120 x 96.5 mm)
Software Features
Quality of ServiceWMM
Advanced FeaturesParental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, WiFi Schedule
WAN TypeDynamic IP/Static IP/PPPoE
Management FeaturesLocal Management, TAUC Cloud Management, TR-069 (TR-098/TR-181), TR-111, TR-143
Firewall SecuritySPI Firewall
ProtocolsIPv4 IPv6
Working ModesRouter Mode Access Point Mode
Wireless Features
Wireless StandardsWi-Fi 6 IEEE 802.11a/n/ac/ax 5 GHz IEEE 802.11b/g/n/ax 2.4 GHz
Frequency2.4 GHz and 5 GHz
Signal RateAX3000 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps
Wireless SecurityWPA-PSK/WPA2-PSK/WPA3 Personal encryptions
Transmission PowerFCC: CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
Multi-SSID2× 5 GHz Multi-SSID 2× 2.4 GHz Multi-SSID
Others
Smartphone/Tablet RequirementsAndroid 4.4 or later iOS 9.0 or later
CertificationsCE, FCC, Wi-Fi CERTIFIED 6, Wi-Fi CERTIFIED EasyMesh
EnvironmentOperating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing

Source: TP-Link's published specifications for this model (TP-Link Australia product page and datasheet). throughput figures are TP-Link's lab results. TP-Link may change specifications without notice.

What's in the box

  • 1 HX510 Unit
  • 1 RJ45 Ethernet Cable
  • 1 Power Adapter
  • 1 Quick Installation Guide

Source: TP-Link's published package contents.

Who the HX510 is for

Whole-home Wi-Fi

  • Add units for more coverage
  • One Wi-Fi name throughout
  • Optional Ethernet backhaul

Internet provider deployments

  • TR-069 and TAUC management
  • Aginet ACS support
  • Remote diagnostics

Existing wired networks

  • Access point mode
  • Three gigabit ports
  • Router mode also available

HX510 compared

The HX510 and HB210 Pro are both TP-Link Aginet whole-home mesh units with EasyMesh and router or access point modes. The HB210 Pro moves to Wi-Fi 7 and 2.5 GbE ports; the HX510 has three gigabit ports.

SpecificationHX510HB210 Pro
Wi-Fi classAX3000 Wi-Fi 6BE3600 Wi-Fi 7
5 GHz signal rate2402 Mbps2880 Mbps
2.4 GHz signal rate574 Mbps688 Mbps
Ethernet per unit3x gigabit (1 WAN/LAN auto-sensing)1x 2.5 GbE WAN/LAN, 1x 2.5 GbE LAN
ModesRouter, access pointRouter, access point
Power supply12 V 1.5 A12 V 1.5 A
Dimensions120 x 120 x 96.5 mm150 x 150 x 62 mm

Source: TP-Link Australia product pages for each model.

Buy the HX510 from ARC IP Networks

ARC IP Networks supplies genuine TP-Link products from Australian stock at competitive prices, with the full manufacturer's warranty, Australia-wide delivery and trade pricing for installers and MSPs.

  • Genuine TP-Link: new TP-Link product from Australian stock.
  • Manufacturer warranty: the full TP-Link manufacturer's warranty for this model.
  • Australia-wide delivery to every state and territory.
  • Trade and project pricing: call 1300 100 440 or email info@arcip.com.au.

Frequently asked questions

Straight answers about the HX510 from the ARC IP Networks team.

Last reviewed October 2026.

It is an AX3000 dual-band Wi-Fi 6 unit: up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. These are maximum physical rates; real throughput depends on clients and the environment.

This listing is one HX510 unit. TP-Link notes some mesh features require two or more units, and you can add HX510 units whenever you want.

Three gigabit Ethernet ports per unit. One supports WAN/LAN auto-sensing and the other two are LAN ports.

Yes. TP-Link states wireless connections and optional Ethernet backhaul work together to link each unit.

Yes. It works in router mode or access point mode, so it can add Wi-Fi to an existing wired network.

Yes. TP-Link says the HX510 adopts EasyMesh, a standard mesh technology developed by the Wi-Fi Alliance, and the page lists Wi-Fi CERTIFIED EasyMesh.

All units share one network name. Seamless roaming uses 802.11k/v/r; clients need to support it, may need extra setup, and performance varies by device.

The product page lists dynamic IP, static IP and PPPoE WAN types; the datasheet also lists L2TP and PPTP.

With the TP-Link Aginet app or the web interface. Additional units sync with the main unit after pressing the WPS buttons on both.

WPA, WPA2 and WPA3 Personal encryption, WPA/WPA2 Enterprise in the datasheet, an SPI firewall, parental controls and Multi-SSID guest networks.

Yes. It supports TR-069 with TR-098, TR-181, TR-111 and TR-143, and TAUC cloud management.

One HX510 unit, an RJ45 Ethernet cable, a power adapter and a quick installation guide.

Need more than one HX510 for a home or ISP mesh rollout?

Ask ARC IP Networks for volume and project pricing on genuine TP-Link products.
