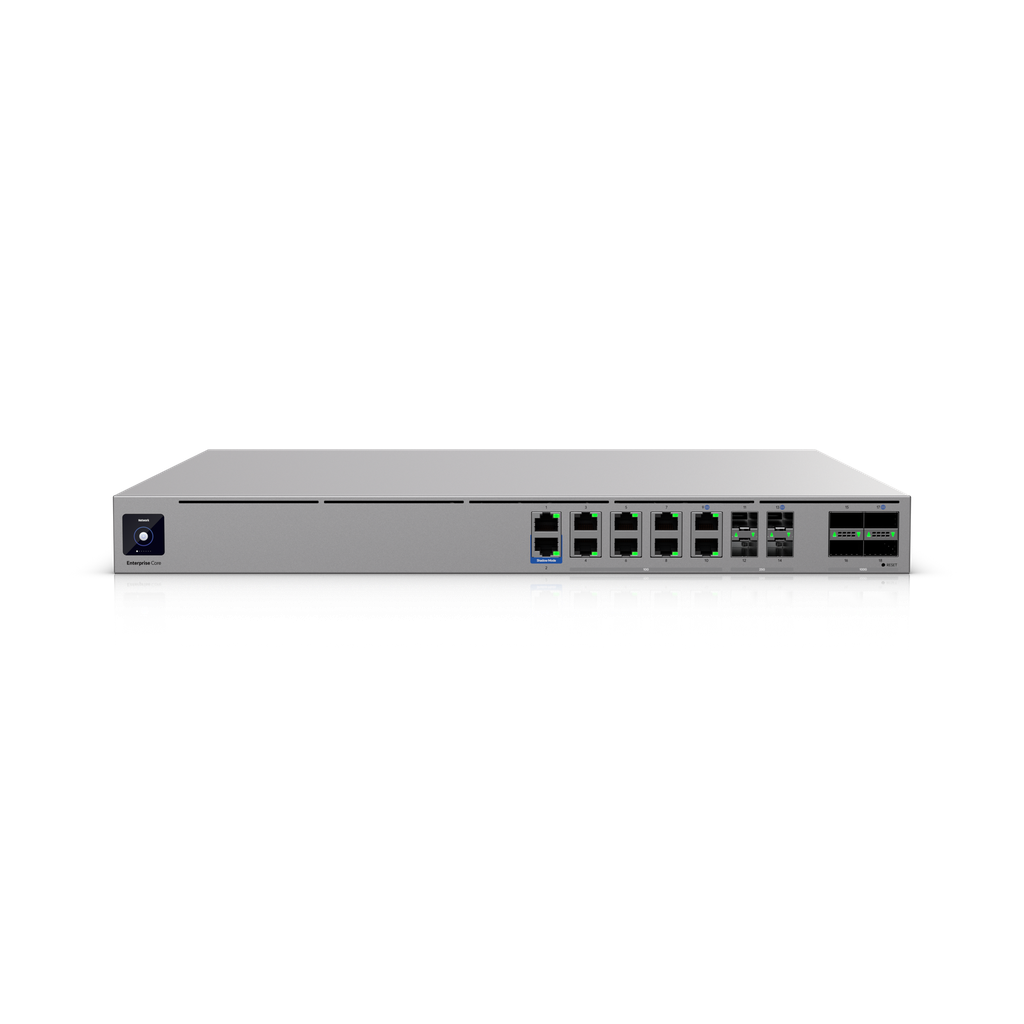

Ubiquiti EF-Core UniFi Enterprise Firewall Core 1U Rack Mount 79 Gbps IDS/IPS

https://arcip.com.au/web/image/product.template/10071/image_1920?unique=9223f94
The Ubiquiti EF-Core is the UniFi Enterprise Firewall Core, a 1U rack-mount cloud gateway built for campus and data-centre edges. It routes at 100 Gbps and inspects at 79 Gbps IDS/IPS using 95,000+ signatures with CyberSecure Enterprise, supports 22,500+ simultaneous users and 2,250+ managed UniFi devices, and terminates 5,000+ concurrent IPsec tunnels. Its fixed port layout is four 100G QSFP28, four 25G SFP28, eight 10 GbE RJ45 and two 1 GbE RJ45, plus dedicated management and console ports, with up to eight ports assignable as WAN. It runs a 24-core ARM v9 processor at 2.5 GHz with 32 GB of memory and a 128 GB SSD, and carries two hot-swappable 550W power supplies with VRRP Shadow Mode gateway failover.

7,884.80 7884.8 AUD 7,884.80 incl. GST

Not Available For Sale


  • Brand
  • Network Layer
  • Form Factor
  • Ports
  • Data Rate
  • Power Method

This combination does not exist.

UniFi Gateway Rack Mount Ubiquiti Firewall Enterprise 100G
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
EF-Core
Tags
EF-Core
Ubiquiti UniFi Enterprise Firewall Core — 1U Rack-Mount Cloud Gateway with 100G QSFP28, 79 Gbps IDS/IPS and Dual Hot-Swappable PSUs

What the EF-Core Is

The Ubiquiti EF-Core is the UniFi Enterprise Firewall Core, a 1U rack-mount cloud gateway built for campus and data-centre edges. It routes at 100 Gbps and inspects at 79 Gbps IDS/IPS using 95,000+ signatures with CyberSecure Enterprise, supports 22,500+ simultaneous users and 2,250+ managed UniFi devices, and terminates 5,000+ concurrent IPsec tunnels. Its fixed port layout is four 100G QSFP28, four 25G SFP28, eight 10 GbE RJ45 and two 1 GbE RJ45, plus dedicated management and console ports, with up to eight ports assignable as WAN. It runs a 24-core ARM v9 processor at 2.5 GHz with 32 GB of memory and a 128 GB SSD, and carries two hot-swappable 550W power supplies with VRRP Shadow Mode gateway failover.

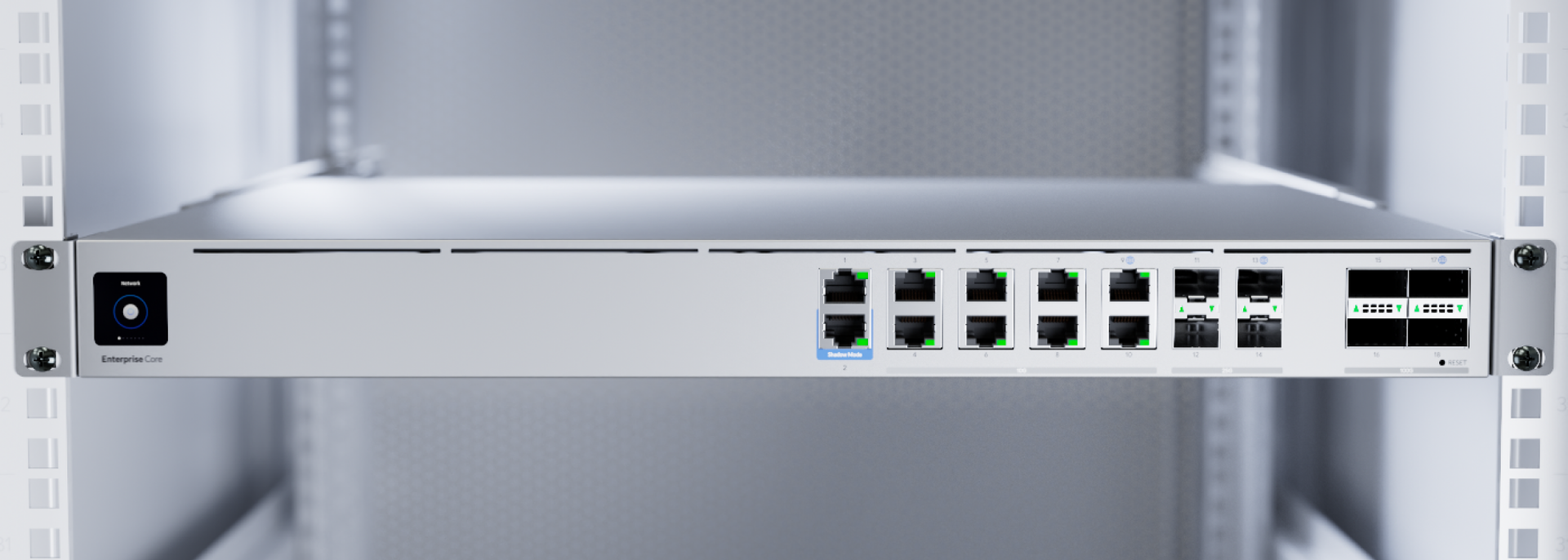

EF-Core deployment

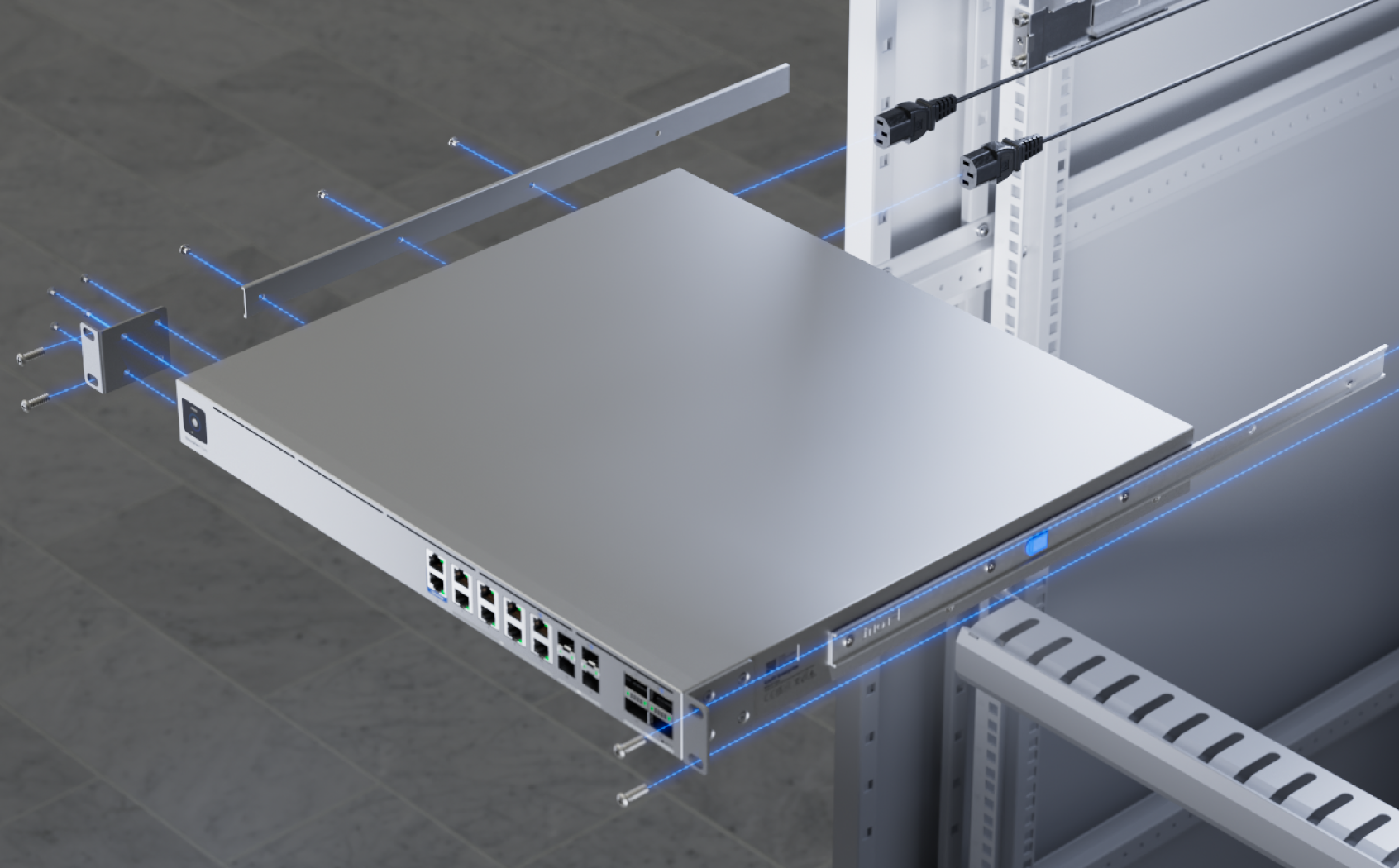

EF-Core in-use

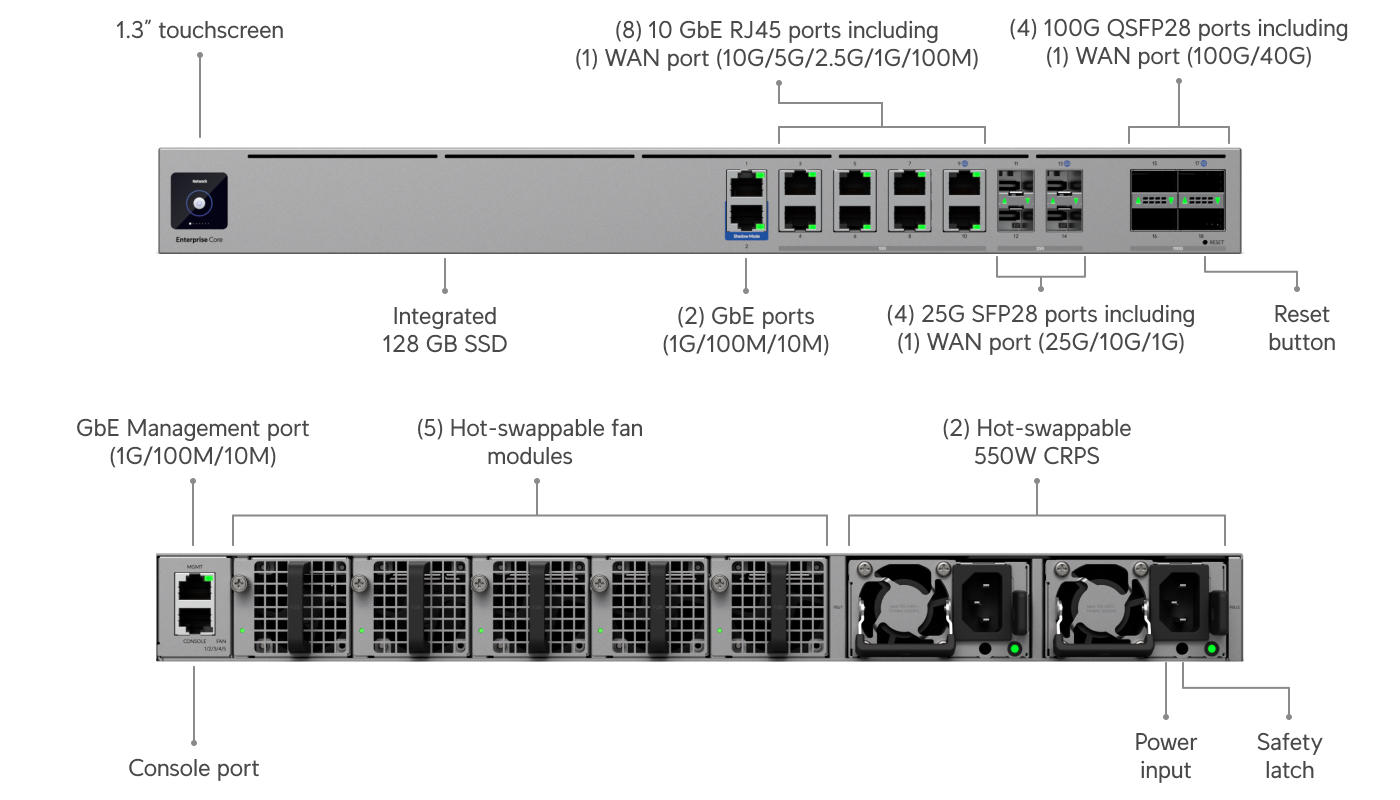

EF-Core dimensions

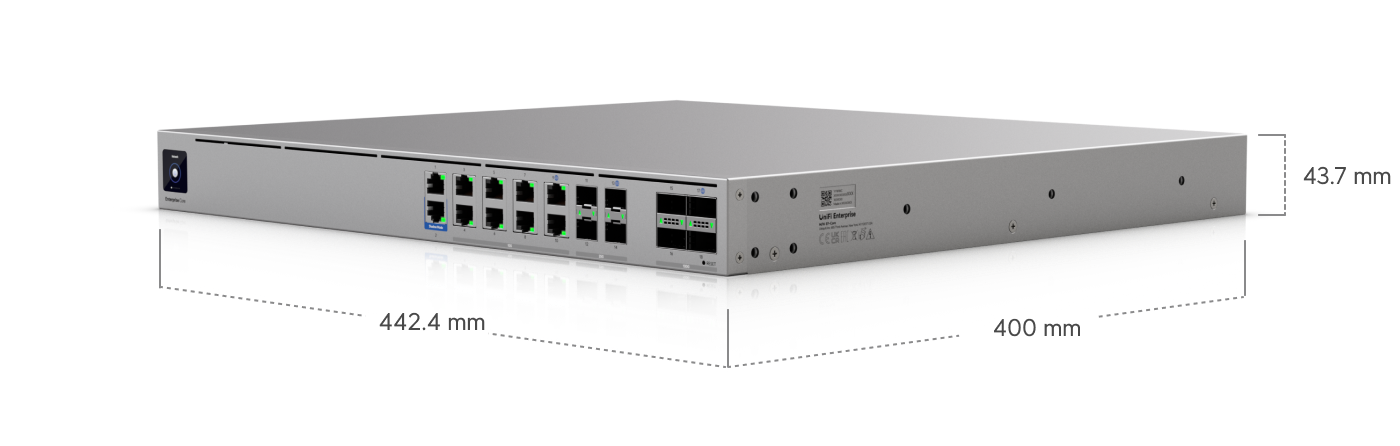

EF-Core mounting

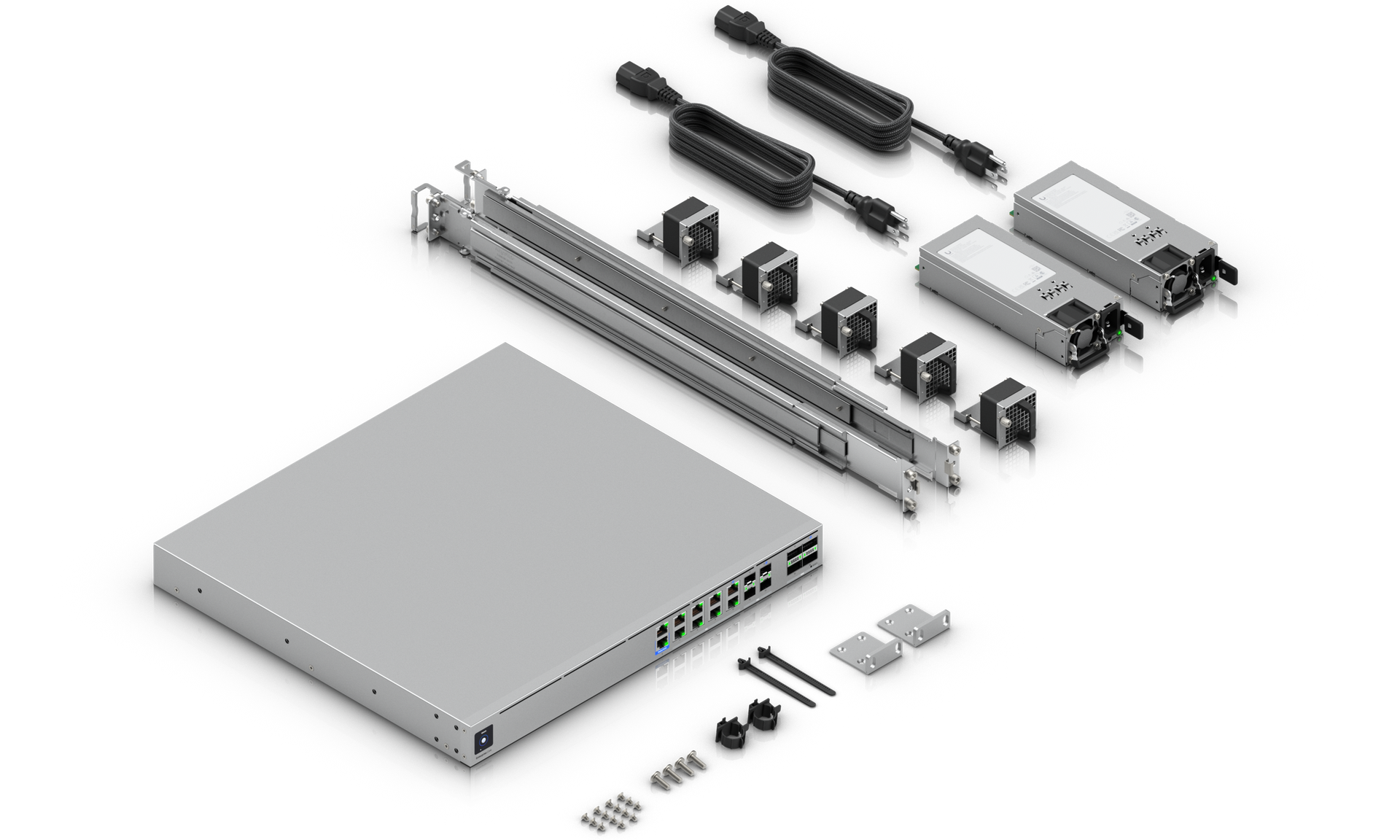

EF-Core in-the-box

Technical Specifications

Overview

Dimensions442.4 x 43.7 x 400 mm
Managed UniFi Devices2,250+
Simultaneous Users Connected22,500+
Max. WAN Port Count8
Default WAN Ports(1) 100G QSFP28 / (1) 25G SFP28 / (1) 10 GbE RJ45
Port Layout — 1 GbE RJ452 / (1G/100M/10M)
Port Layout — 10 GbE RJ458 / (10G/5G/2.5G/1G/100M)
Port Layout — 25G SFP284 / (25G/10G/1G)
Port Layout — 100G QSFP284 / (100G/40G)
Port Layout — MGMT1 / (1G/100M/10M)
Port Layout — Console1
IDS/IPS Throughput79 Gbps
Capacity — SSL/TLS Inspection Concurrent Sessions10,000
Capacity — Concurrent Sessions10 Million
Capacity — New Sessions / Second120,000
Form FactorRack mount (1U)
RedundancyShadow Mode (VRRP) Gateway Failover / (2) Hot-Swappable PSUs

Security

IDS/IPS Signatures95,000+ with CyberSecure Enterprise

Networking

MAC Address Table Size130,000

Hardware

Max. Power Consumption171W
Power MethodUniversal AC input, 100–240V AC, 7.5A Max., 50/60 Hz
Power Supply(2) Hot-Swappable AC/DC 550W PSU
Supported Voltage Range100–240V AC
Heat Dissipation585 BTU/hr
Processor24-core ARM® v9 at 2.5 GHz
System Memory32 GB
On-board StorageIntegrated 128 GB SSD
Weight7.85 kg
Enclosure MaterialAluminium CNC, SGCC steel
LCM Display1.3" touchscreen
ManagementEthernet / Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature0 to 40° C
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC

Software

Application Requirements — Mobile AppUniFi iOS™: Version 10.35.0 and later / UniFi Android™: Version 10.38.1 and later

Professional Overview

The Enterprise Firewall Core sits at the top of Ubiquiti's gateway range, and its specification is aimed squarely at networks that have outgrown a Dream Machine. Where a UDM-Pro-Max is sized for a building, EF-Core is sized for a campus core or a service-provider edge: 10 million concurrent sessions, 120,000 new sessions per second, a 130,000-entry MAC address table and 22,500 or more simultaneous connected users. It manages 2,250+ UniFi devices from the same UniFi Network application used on the rest of the range, so the operational model does not change as the network scales.

Throughput is the headline. The gateway is a 100 Gbps class device, and critically it sustains 79 Gbps with IDS/IPS enabled — deep packet inspection on most firewalls collapses throughput, and the point of the silicon here is that it does not. Signature coverage is 95,000+ with a CyberSecure Enterprise subscription. SSL/TLS inspection is supported to 10,000 concurrent sessions, and the device terminates more than 5,000 simultaneous IPsec tunnels, which is the figure that matters for hub-and-spoke or site-to-site topologies.

The port layout is fixed rather than modular: four 100G QSFP28 (also running 40G), four 25G SFP28 (25G/10G/1G), eight 10 GbE RJ45 that step down to 5G, 2.5G, 1G and 100M, and two 1 GbE RJ45. Up to eight of these can be assigned as WAN interfaces, with a default of one 100G QSFP28, one 25G SFP28 and one 10 GbE RJ45. A separate management port and an RJ45 console port keep out-of-band access independent of the data plane, and a 1.3" front touchscreen surfaces status without a laptop.

Physically it is a 442.4 x 43.7 x 400 mm 1U chassis in CNC aluminium and SGCC steel, weighing 7.85 kg. Power is universal AC 100–240V through two hot-swappable 550W supplies, drawing a maximum of 171W and dissipating 585 BTU/hr — modest for the class, and worth knowing when sizing rack cooling. Redundancy extends beyond the PSUs to Shadow Mode (VRRP) gateway failover, so a second unit can take over the routing role. Operating range is 0 to 40°C at 5 to 95% non-condensing humidity, with CE, FCC and IC certification. Australian stock from ARC IP Networks.

Frequently Asked Questions

What is the throughput of the UniFi Enterprise Firewall Core?

It is a 100 Gbps class gateway that sustains 79 Gbps of IDS/IPS inspection. Session capacity is 10 million concurrent sessions and 120,000 new sessions per second.

How many users and devices can the EF-Core support?

More than 22,500 simultaneous connected users and more than 2,250 managed UniFi devices.

What ports does the EF-Core have?

Four 100G QSFP28 (100G/40G), four 25G SFP28 (25G/10G/1G), eight 10 GbE RJ45 (10G/5G/2.5G/1G/100M), two 1 GbE RJ45, one management port and one console port. Up to eight ports can be assigned as WAN.

Does the EF-Core have redundant power?

Yes. It ships with two hot-swappable AC/DC 550W power supplies. It also supports Shadow Mode (VRRP) gateway failover to a second unit.

How many IPsec VPN tunnels can it terminate?

More than 5,000 concurrent IPsec tunnels.

Does IDS/IPS require a subscription?

The 95,000+ signature set is provided with CyberSecure Enterprise. The gateway itself is managed from the standard UniFi Network application at no additional licence cost.

How much rack space and power does it need?

One rack unit (442.4 x 43.7 x 400 mm, 7.85 kg). Maximum draw is 171W from a universal 100–240V AC input, dissipating 585 BTU/hr.

What are the operating conditions?

0 to 40°C ambient and 5 to 95% non-condensing humidity. Certifications are CE, FCC and IC.

Brand UBIQUITI
Network Layer Layer 3
Form Factor Rack Mount (1U)
Ports 4x 100G QSFP28 + 4x 25G SFP28 + 8x 10 GbE RJ45 + 2x 1 GbE RJ45
Data Rate 100G
Power Method Dual Hot-Swappable 550W AC PSU
