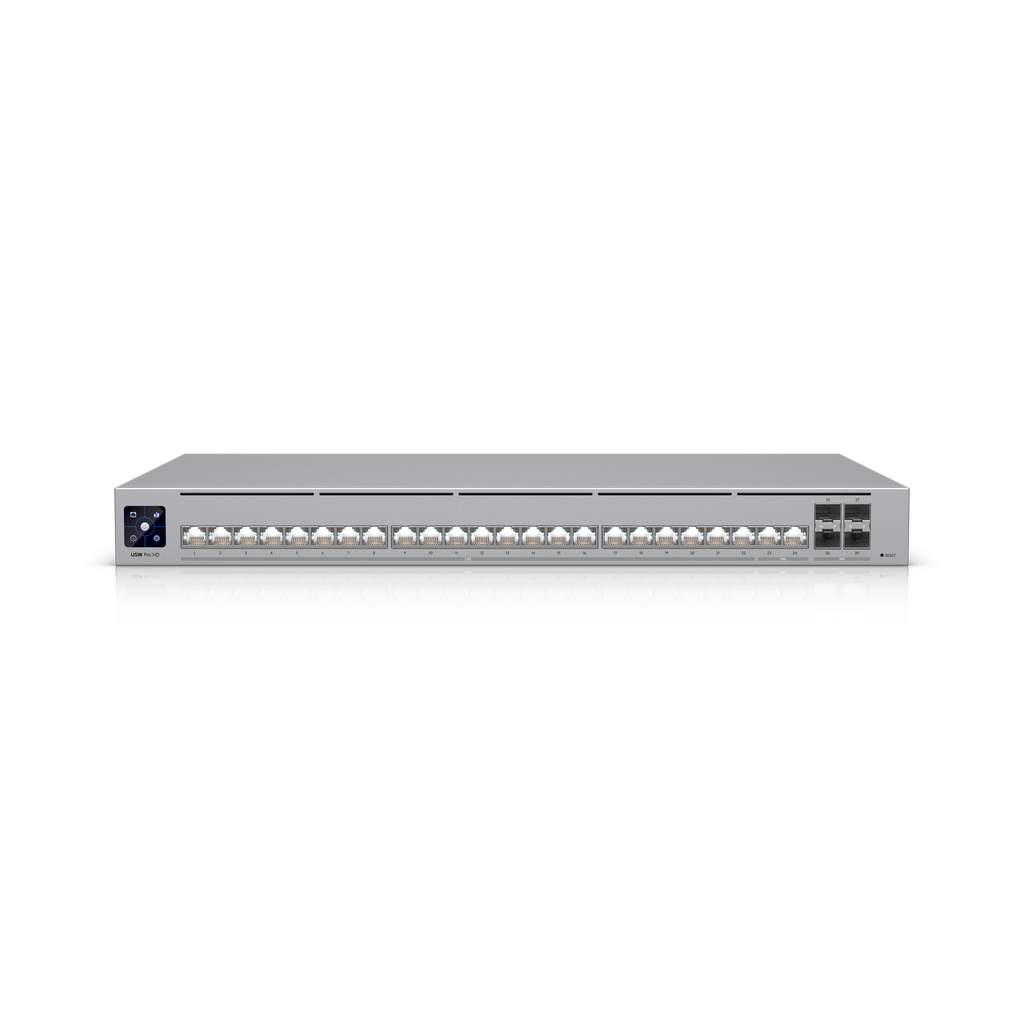

Ubiquiti USW-Pro-HD-24 UniFi Pro HD 24 Professional-grade, Layer 3 Etherlighting™ Switch 2x 10 GbE, 22x 2.5 GbE, 4x 10G SFP+

Price:

1,164.35


Ubiquiti UniFi Pro Aggregation Switch 4 x 25G SFP28 Ports & 28 x 10G SFP+ Ports
Ubiquiti UniFi Pro Aggregation Switch 4 x 25G SFP28 Ports & 28 x 10G SFP+ Ports
1,512.51
1,540.55 (2% OFF)
Ubiquiti USW-Pro-HD-24-PoE UniFi Professional-grade, Layer 3 Etherlighting™ Switch 2x 10 GbE PoE++, 22x 2.5 GbE PoE++, 4x 10G SFP+
Ubiquiti USW-Pro-HD-24-PoE UniFi Professional-grade, Layer 3 Etherlighting™ Switch 2x 10 GbE PoE++, 22x 2.5 GbE PoE++, 4x 10G SFP+
1,804.55
1,804.55

Ubiquiti USW-Pro-HD-24 UniFi Pro HD 24 Professional-grade, Layer 3 Etherlighting™ Switch 2x 10 GbE, 22x 2.5 GbE, 4x 10G SFP+

https://arcip.com.au/web/image/product.template/4043/image_1920?unique=da16858
The Ubiquiti USW-Pro-HD-24 is a Layer 2 managed switch with (22) 2.5 GbE + (2) 10G RJ45 + (4) 10G SFP+. Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.

1,164.35 1164.35 AUD 1,164.35 incl. GST

Not Available For Sale


  • Brand
  • Switching Capacity
  • Network Layer
  • Form Factor
  • Port Speed
  • Ports
  • Network Connectivity
  • Uplink
  • PoE Specification
  • Switch Features

This combination does not exist.

2.5GbE 10GbE UniFi Switch Rackmount SFP+ Managed Switch Ubiquiti Etherlighting 28-Port 230 Gbps
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout

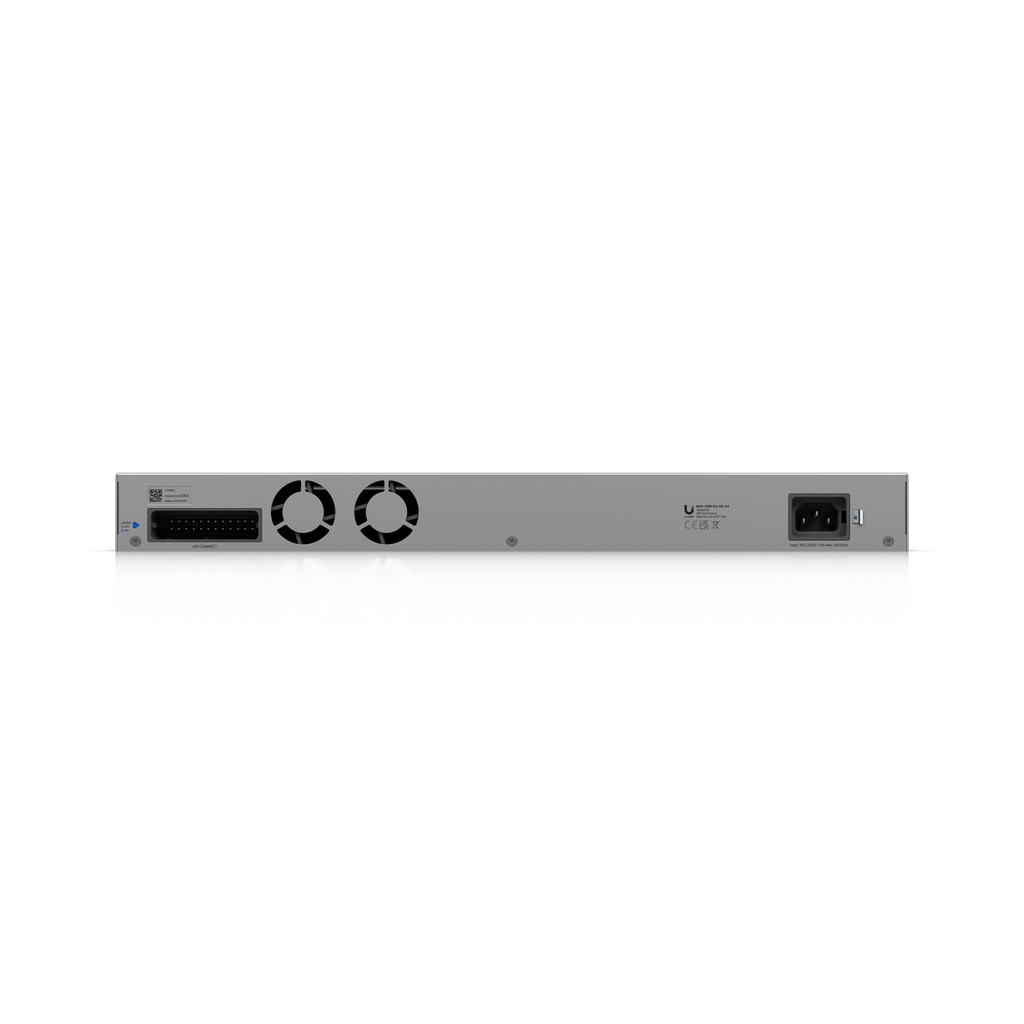

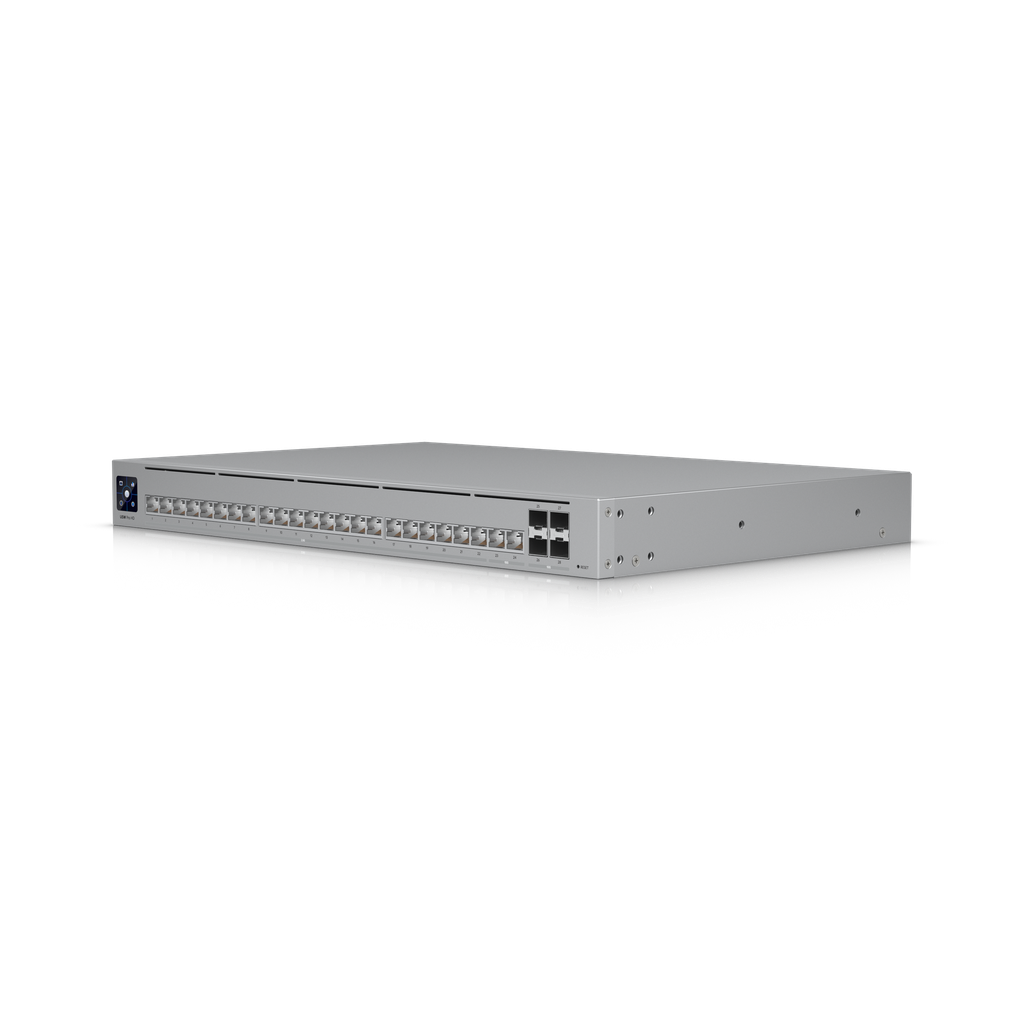

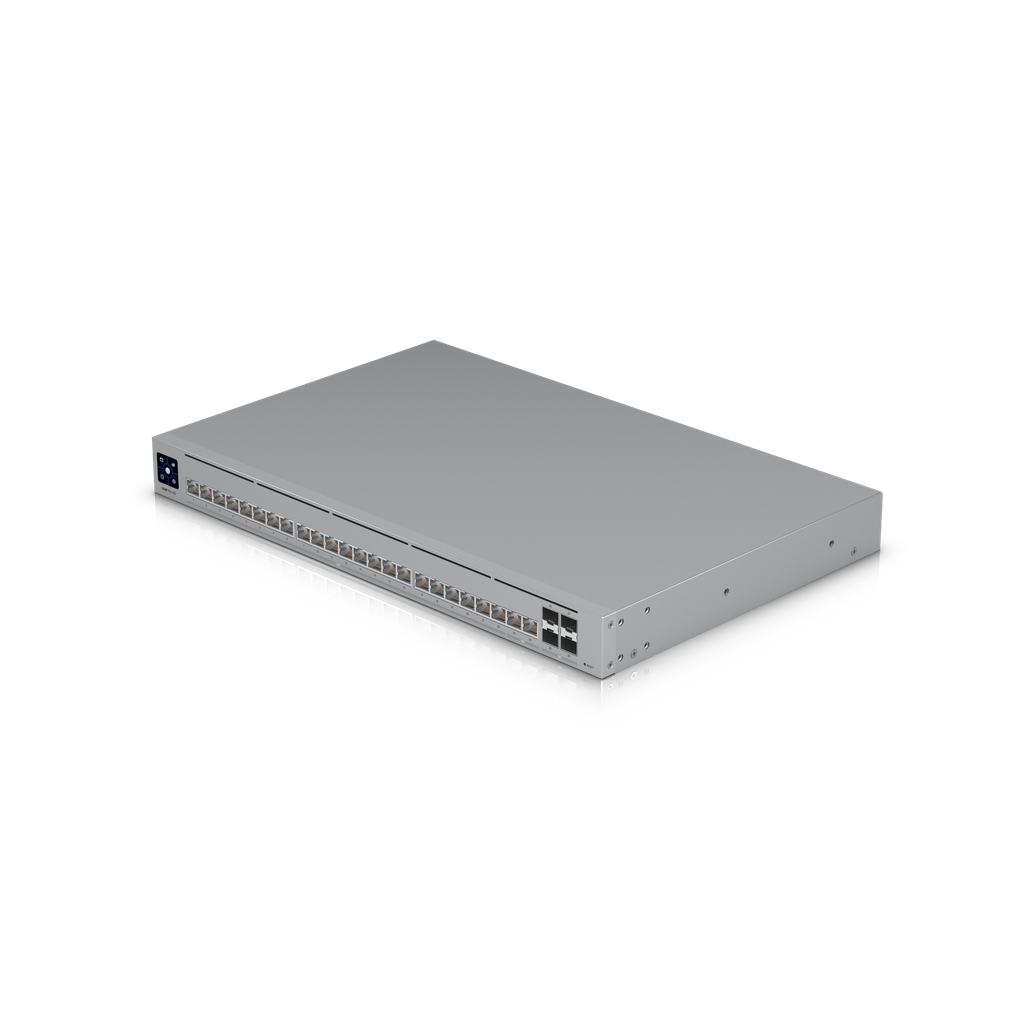

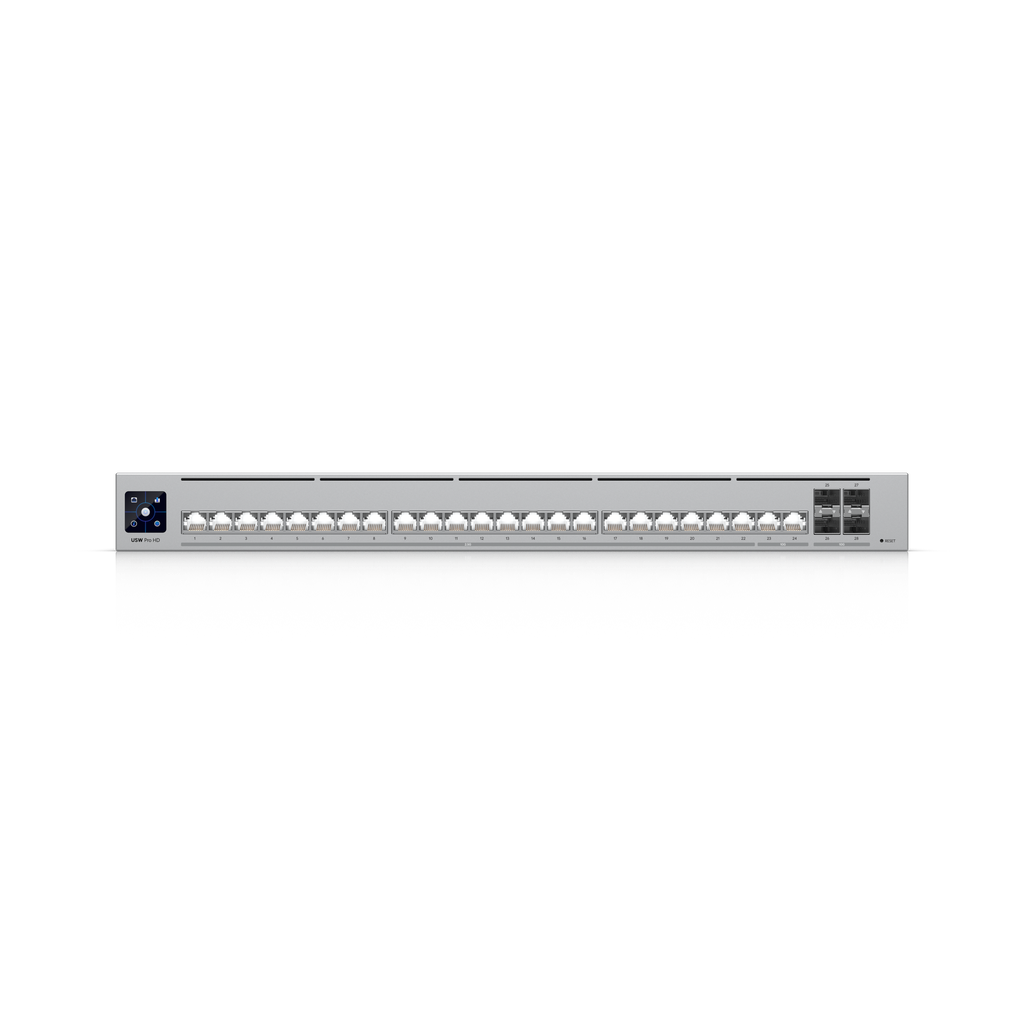

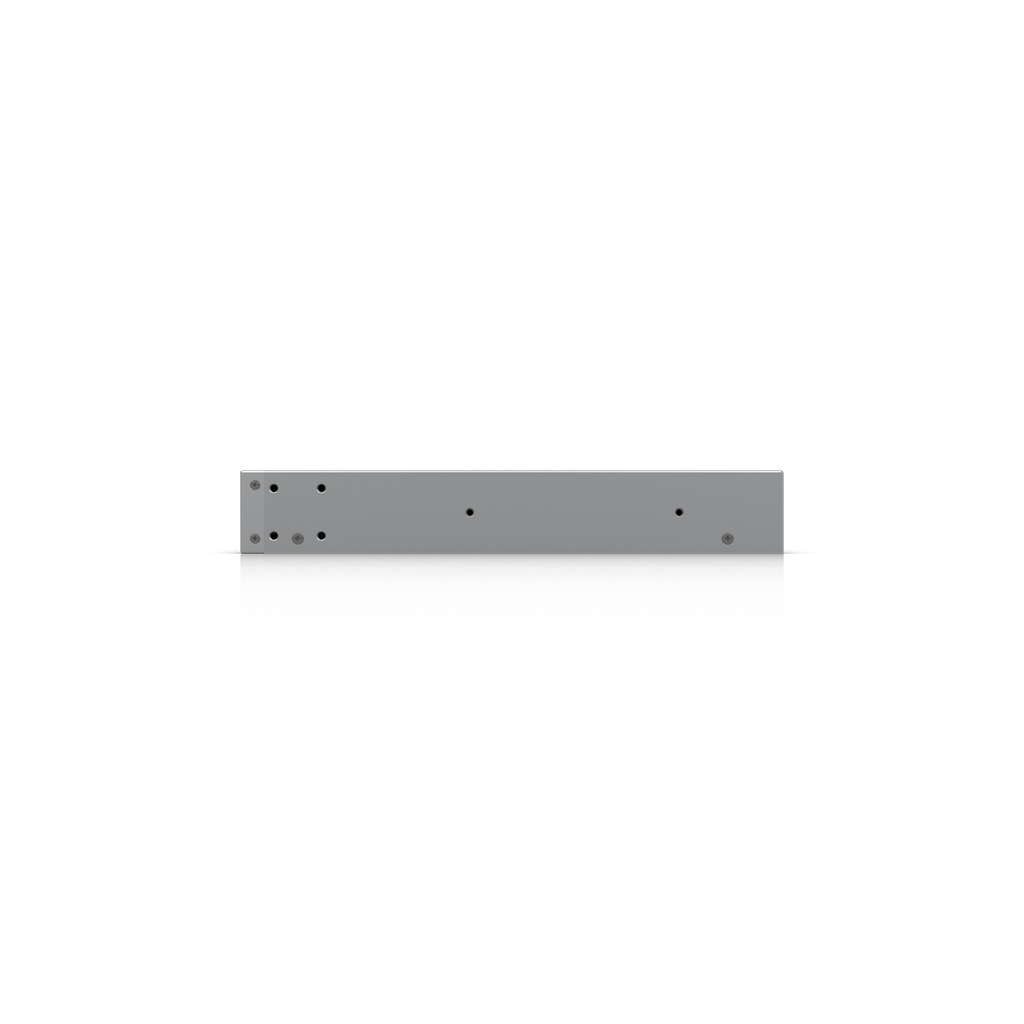

USW-Pro-HD-24
Ubiquiti UniFi Switch Pro HD 24 — 230 Gbps Switching
USW-Pro-HD-24
USW-Pro-HD-24

Features

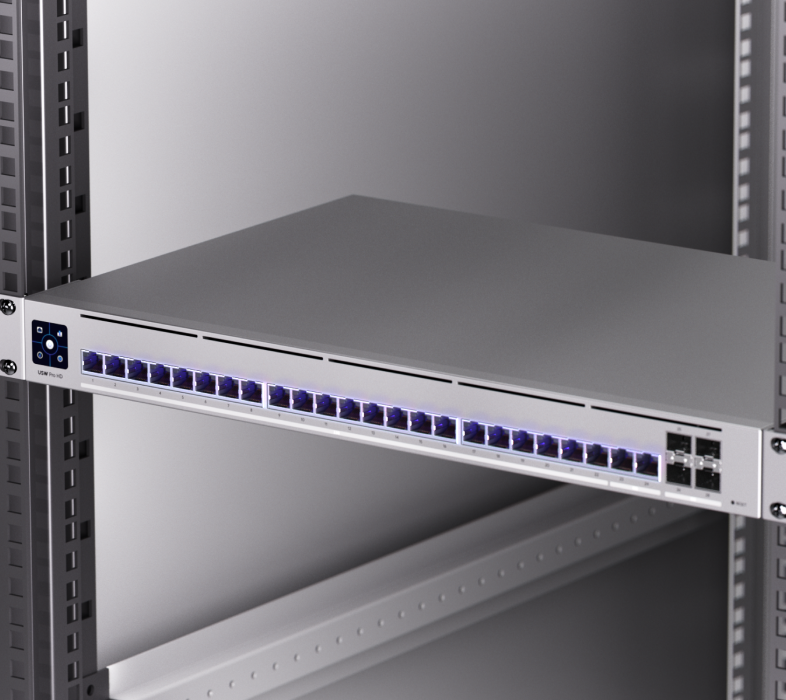

  • Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
  • (22) 2.5 GbE, (2) 10 GbE ports
  • (4) 10G SFP+ ports
  • DC power backup ready**
  • *Pair with UniFi Etherlighting Patch Cables for optimal brightness.**Requires UniFi RPS.

Specifications

Overview
Dimensions442 x 285 x 44 mm
2.5 GbE RJ4522 / (2.5G/1G/100M/10M)
10 GbE RJ452 / (10G/5G/2.5G/1G/100M)
10G SFP+4 / (10G/1G)
RedundancyDC Power Backup

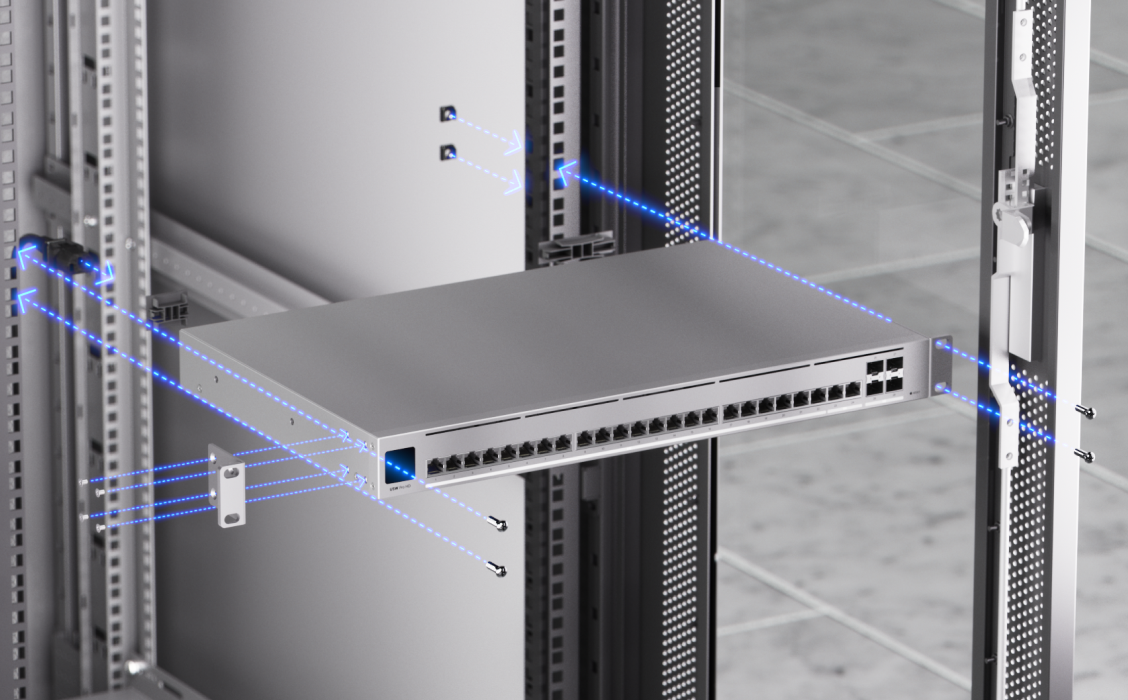

Form FactorRack mount (1U)
Performance
Switching Capacity230 Gbps
Total Non-Blocking Throughput115 Gbps
Forwarding Rate171.12 Mpps
Supported VLANs1,000
MAC Address Table Size32,000
ARP Entries12,000
IPv4 Routes12,000
IPv4 Static Routes256
Packet Buffer Size2 MB
IPv4128
MAC128
Hardware
Max. Power Consumption60W
Power Method(1) Universal input, 100–240V AC, 50/60 Hz / (1) USP RPS DC input
Power Input MethodAC input
Power SupplyAC/DC, internal, 60W
Supported Voltage Range100–240V AC
ManagementEthernet / AR
Heat Dissipation102 BTU/hr
WeightWithout mounting brackets: 4.2 kg / With mounting brackets: 4.3 kg
Enclosure MaterialSGCC steel
Mount MaterialSGCC steel
Supported Rack Depth400~1200 mm
LCM Display1.3" touchscreen
Ambient Operating Temperature-5 to 40° C (23 to 104° F)
Ambient Operating Humidity10 to 90% noncondensing
CertificationsCE, FCC, IC, Anatel: 03853-25-08356
Software
UniFi NetworkVersion 9.0.114 and later

Professional Overview

The Ubiquiti USW-Pro-HD-24 is a Layer 2 managed switch with (22) 2.5 GbE + (2) 10G RJ45 + (4) 10G SFP+. Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.

With 230 Gbps switching capacity and 115 Gbps non-blocking throughput at 171.12 Mpps forwarding rate, the switch delivers wire-speed performance for demanding network environments.

The USW-Pro-HD-24 features DC Power Backup redundancy, a Rack mount (1U) form factor measuring 442 x 285 x 44 mm. It integrates with the UniFi Network ecosystem for centralised management, VLAN configuration, and traffic monitoring.

Weighing Without mounting brackets: 4.2 kg / With mounting brackets: 4.3 kg, the USW-Pro-HD-24 is engineered for reliable 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Brand UBIQUITI
Switching Capacity 230 Gbps
Network Layer Layer 2
Form Factor Rack mount (1U)
Port Speed (22) 2.5 GbE + (2) 10G RJ45 + (4) 10G SFP+
Ports 28 Ports
Network Connectivity Wired
Uplink 4 10G SFP+
PoE Specification Non-PoE
Switch Features Etherlighting, DC Power Backup
