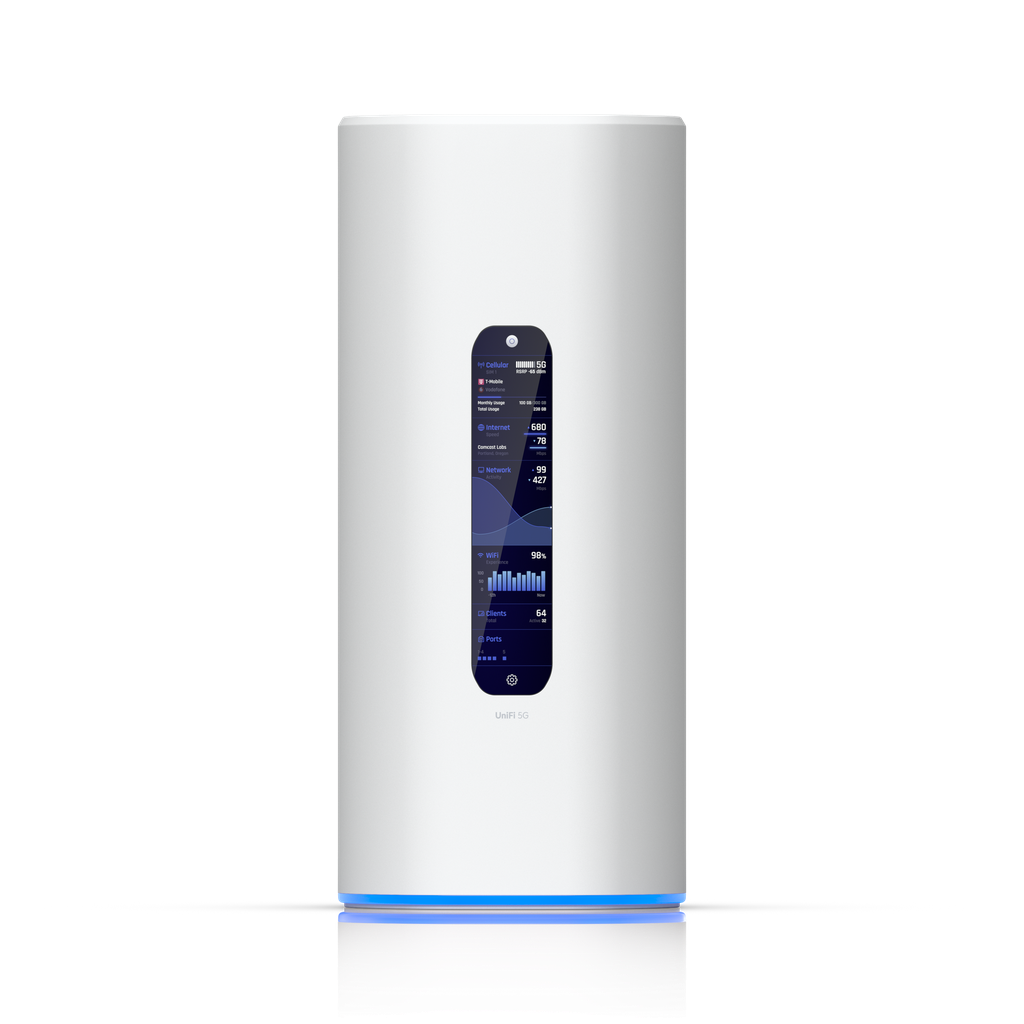

Ubiquiti UDR-5G-Max Dream Router 5G Max

https://arcip.com.au/web/image/product.template/7938/image_1920?unique=d0d4e07
Dream Router 5G Max. Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage. Australian stock. Available for store pickup or shipping.

915.75 915.75 AUD 915.75 incl. GST

Not Available For Sale


  • Brand
  • Ports
  • IDS/IPS Throughput
  • Built-in WiFi
  • WAN Ports

This combination does not exist.

UniFi Gateway Ubiquiti
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UDR-5G-Max
Barcode
810177162223
Tags
UDR-5G-Max
Dream Router 5G Max

UDR-5G-Max

UDR-5G-Max

UDR-5G-Max

UDR-5G-Max

Specifications

Grid overview
IDS/IPS2.3 Gbps
Max. Client Count300
Overview
Dimensions110 x 110 x 250 mm / (4.3 x 4.3 x 9.8")
Managed UniFi Devices30+
Managed Cameras(5) HD / (2) 2K / (1) 4K
Simultaneous Users Connected300+
Max. WAN Port Count4
Default WAN Ports(1) 10G SFP+ / (1) 2.5 GbE RJ45
2.5 GbE RJ454 (1 PoE) / (2.5G/1G/100M)
10G SFP+1 / (10G/1G)
IDS/IPS Throughput2.3 Gbps
Form FactorDesktop
Coverage Area160 m² (1,750 ft²)
Security
IDS/IPS Signatures20,000+ with CyberSecure
VPN & SD-WAN
Site Magic20
WireGuard8
OpenVPN8
Networking
MAC Address Table Size2,000
Integrated WiFi
WiFi Standard802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
6 GHz5.7 Gbps
5 GHz4.3 Gbps
2.4 GHz688 Mbps
6 GHz2 x 2 (DL/UL MU-MIMO)
5 GHz2 x 2 (DL/UL MU-MIMO)
2.4 GHz2 x 2 (DL/UL MU-MIMO)
6 GHz8 dBi
5 GHz5 dBi
2.4 GHz4 dBi
6 GHz22 dBm
5 GHz26 dBm
2.4 GHz23 dBm
Wireless SecurityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
Max. BSSIDs4 per Radio
802.11be (WiFi 7)7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
802.11ax (WiFi 6/6E)7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15 , HT 20/40)
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Cellular
Category5G NR Sub-6
Frequency Bandsn1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79
Max. TX PowerHPUE power class 2: 26 dBm
Frequency BandsB1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71
Max. TX PowerHPUE power class 2: 25 dBm
Frequency BandsB1, B2, B4, B5, B8, B19
5G NSADownlink 3.4 Gbps / Uplink 560 Mbps
5G SADownlink 1.8 Gbps / Uplink 650 Mbps
4G LTEDownlink 1.6 Gbps / Uplink 210 Mbps
Antenna Gain617-960 MHz: 3 dBi / 1710-2700 MHz: 7 dBi / 3300-5000 MHz: 8 dBi / 5150~5925 MHz: 8 dBi
SIM(2) Nano SIM / (1) Nano-SIM or eSIM
Hardware
NVR StoragePre-installed 64 GB microSD for NVR
Expansion SlotMicroSD Card
PoE Budget15.4W
PoE15.4W
Voltage Range PoE Mode44-57V
Max. Power Consumption34.5W (Excluding PoE output)
Power MethodDC jack (54V DC/1.1A)
Power Supply54V DC/1.1A / (Adapter included)
Supported Voltage Range100–240V AC
Heat Dissipation115 BTU/hr (Excluding PoE output)
ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory3 GB
Weight1.4 kg (3.1 lb)
Enclosure MaterialPolycarbonate
LCM Display4.7" touchscreen
ManagementEthernet / Bluetooth
Button(1) Factory reset
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity5 to 95% noncondensing
CertificationsFCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®
Software
Mobile AppUniFi iOS™: Version 10.33.0 and later / UniFi Android™: Version 10.36.1 and later

Professional Overview

The Ubiquiti UDR-5G-Max is Desktop Cloud Gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 4-port 2.5 GbE switch with (1) PoE port, and SD card storage..

Performance specifications include IDS/IPS throughput of 2.3 Gbps, support for 300 concurrent clients, ids/ips throughput of 2.3 Gbps, coverage of 160 m² (1,750 ft²), IDS/IPS throughput of 20,000+ with CyberSecure.

The UDR-5G-Max integrates seamlessly with the Ubiquiti UniFi ecosystem, enabling centralized management through the UniFi Network application.

Built to Ubiquiti's commercial-grade standards with a weight of 1.4 kg (3.1 lb), featuring operating temperature range of 0 to 40° C (32 to 104° F), FCC, IC, CE, GCF, PTCRB, AT&T, T-Mobile, Wi-Fi Alliance®. Australian stock from ARC IP Networks with fast nationwide shipping and local support.

Part of our Ubiquiti UniFi Routers range — browse and compare the full range of UniFi gateways, Dream Machines and routers.

Ubiquiti UDR-5G-Max: 5G Cloud Gateway for Australia

Want the deeper analysis? Read our in-depth UDR-5G-Max review covering Australian carrier bands, real-world 5G expectations and how it compares to the UDR7.

The UniFi Dream Router 5G Max is a desktop cloud gateway with a built-in full-performance 5G modem. It is a complete UniFi network in one box — router, firewall, WiFi 7 access point, 4-port 2.5 GbE switch, UniFi controller and a small Protect NVR — that can take its internet connection from fixed line, from 5G, or from both with automatic failover.

Where an ordinary router treats mobile as a slow backup, the UDR-5G-Max is built to run on 5G as a primary connection: up to 3.4 Gbps downlink on 5G NSA, dual nano-SIM with eSIM support, and HPUE power class 2 for better performance at the edge of coverage.

Will it work on Telstra, Optus and Vodafone?

This is the question that matters most for an Australian buyer, and the answer is yes on all three networks. The UDR-5G-Max supports every 5G and 4G band currently in commercial use in Australia.

BandUsed bySupported
n78 (3500 MHz) — primary 5GTelstra, Optus, VodafoneYes
n5 (850 MHz) — 5G DSSTelstraYes
n28 (700 MHz) — low-band 5GOptus, VodafoneYes
n1 (2100 MHz), n40 (2300 MHz)VariousYes
B28 (700 MHz) — 4GTelstra, Optus, VodafoneYes
B3 (1800 MHz) — 4GTelstra, Optus, VodafoneYes
B1 / B5 / B7 / B40 / B42 — 4GVariousYes

Full 5G NR band support is n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78 and n79.

One honest limitation: this is a Sub-6 device. It does not support mmWave (n258), so in the small number of Australian locations with mmWave 5G it will connect on Sub-6 instead. For the overwhelming majority of sites that is exactly what you want anyway — Sub-6 is what carriers actually deploy at scale.

What the UDR-5G-Max is good for

  • Sites with no fixed line. New premises, rural properties, or anywhere the NBN connection is months away. Run the whole site on 5G from day one.
  • Business-critical failover. Fixed line on the 10G SFP+ WAN, 5G as automatic backup. When the fibre is cut, the site stays up without anyone touching it.
  • Temporary and pop-up sites. Construction offices, events, retail pop-ups and display suites — full UniFi networking that packs down and moves.
  • Remote and regional offices. Managed centrally from the same UniFi console as the rest of your estate, with no truck roll to configure.
  • Replacing a carrier modem. Proper firewall, IDS/IPS, VLANs, VPN and WiFi 7 instead of an ISP-supplied box.

UDR-5G-Max vs other UniFi gateways

UDR-5G-MaxUDR7UCG-Max
Built-in 5GYes, up to 3.4 GbpsNoNo
Built-in WiFiWiFi 7WiFi 7No
IDS/IPS throughput2.3 Gbps2.3 Gbps2.3 Gbps
Client capacity300+300+300+
10G SFP+YesYesNo
Form factorDesktopDesktopDesktop
Best for5G primary or failoverFixed-line sitesFixed line, separate APs

All three run the same 2.3 Gbps IDS/IPS engine, so the real differences are cellular, built-in WiFi and the 10G SFP+ port. If you do not need cellular, the UDR7 gives you the same engine and WiFi 7 for less. If you want a rack-mount gateway with drive bays, look at the UDM Pro Max. Our UniFi cloud gateway comparison and Dream Machine comparison cover the full range.

What you need to get started

  • A data SIM from any Australian carrier or MVNO. Two nano-SIM slots plus eSIM means you can run two carriers and fail over between them.
  • Power. The included 54V DC adapter. Maximum draw is 34.5W excluding PoE output.
  • Nothing else. Routing, firewall, WiFi 7, a 4-port 2.5 GbE switch with one PoE port (15.4W budget), the UniFi controller and a 64 GB microSD for Protect recording are all built in.

Place it in the open rather than in a comms cupboard — it is relying on internal cellular antennas, and steel doors and concrete cost you signal. The 4.7-inch touchscreen shows connection status and signal strength, which makes finding a good spot straightforward.

Frequently Asked Questions

Does the UDR-5G-Max work on Telstra, Optus and Vodafone?

Yes. It supports n78 (3500 MHz), which all three Australian carriers use as their primary 5G band, plus n5 used by Telstra, n28 used by Optus and Vodafone, and the 4G bands B3 and B28 used by all three.

Does it support mmWave 5G?

No. The UDR-5G-Max is a Sub-6 device covering n1 through n79. It does not support mmWave (n258), so in the small number of Australian mmWave locations it will connect using Sub-6 instead.

How fast is the 5G connection?

Up to 3.4 Gbps downlink and 560 Mbps uplink on 5G NSA, 1.8 Gbps down and 650 Mbps up on 5G standalone, and 1.6 Gbps down on 4G LTE. Real-world speed depends on your carrier, signal and local congestion.

Can I use it as a backup connection rather than the main one?

Yes. Connect your fixed line to the 10G SFP+ or 2.5 GbE WAN port and the gateway will fail over to 5G automatically when the primary connection drops.

How many SIM cards does it take?

Ubiquiti lists (2) nano-SIM and (1) nano-SIM or eSIM, so you can run more than one carrier for redundancy.

Does it include WiFi?

Yes, WiFi 7 with 2x2 MU-MIMO on all three bands: up to 5.7 Gbps on 6 GHz, 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz, covering roughly 160 square metres.

How many devices can it handle?

300+ simultaneous clients and 30+ managed UniFi devices, with 2.3 Gbps IDS/IPS throughput.

Can it record security cameras?

Yes, on a small scale. It ships with a 64 GB microSD card and supports UniFi Protect for five HD, two 2K or one 4K camera. For more cameras you want a dedicated recorder.

Does it have PoE for cameras or access points?

One of the four 2.5 GbE ports supplies PoE with a 15.4W budget, which is enough for a single 802.3af device.

Is there a monthly fee for UniFi?

No. UniFi has no licensing or subscription fees. Your only ongoing cost is the mobile data plan for the SIM.

What is the difference between the UDR-5G-Max and the UDR7?

The UDR-5G-Max has a built-in 5G modem; the UDR7 does not. Otherwise they are closely matched, both offering WiFi 7, 2.3 Gbps IDS/IPS and 10G SFP+. If you do not need cellular, the UDR7 costs less.

Is the UDR-5G-Max available in Australia?

Yes. ARC IP Networks is an authorised Ubiquiti reseller holding Australian stock with full manufacturer warranty and fast domestic shipping.

ARC IP Networks, authorised Ubiquiti reseller in Australia — Australian stock, manufacturer warranty, fast shipping, trade pricing.
ARC IP Networks is an authorised Ubiquiti reseller in Australia — Australian stock, full manufacturer warranty, fast shipping and trade pricing. Call 1300 100 440 or read more about buying from an authorised reseller.

Buy the Ubiquiti UDR-5G-Max in Australia

ARC IP Networks is an authorised Ubiquiti reseller supplying the UDR-5G-Max from Australian stock, with full manufacturer warranty and fast shipping nationwide.

  • Authorised Ubiquiti reseller — genuine Australian stock, not grey import
  • Full manufacturer warranty with local RMA support
  • Competitive pricing, monitored against the Australian market daily
  • Fast dispatch Australia-wide, or collect from our warehouse
  • Trade and project pricing for installers, MSPs and multi-site rollouts

Deploying across several sites? Talk to our team about project pricing. Browse the full UniFi cloud gateway range, the UniFi router range and UniFi switches, or read more about buying from an authorised Ubiquiti reseller in Australia.

Brand UBIQUITI
Ports 4
IDS/IPS Throughput 2.3 Gbps
Built-in WiFi 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
WAN Ports 4
