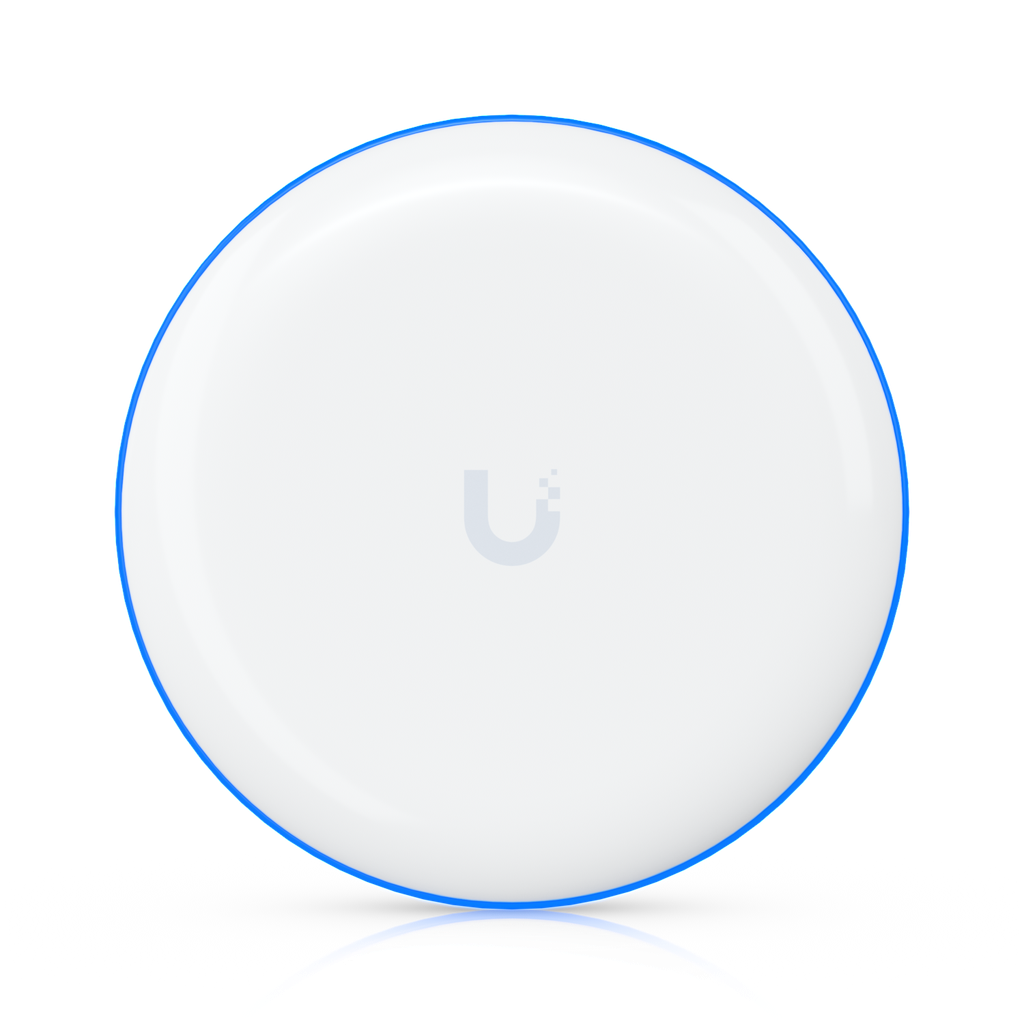

Ubiquiti UBB-Single UniFi Building-to-Building Bridge 60 GHz Single Unit

https://arcip.com.au/web/image/product.template/10081/image_1920?unique=c63ac26
The Ubiquiti UBB-Single is a single unit of the UniFi Building-to-Building Bridge, a 60 GHz wireless point-to-point bridge with a 5 GHz backup radio. It reaches a maximum data rate of 1.7 Gbps on the 60 GHz main radio and 866.6 Mbps on the 5 GHz backup, over a maximum range of 500 m. Antenna gain is 17.2 dBi at 60 GHz and 10 dBi at 5 GHz. It is a ⌀140 x 90 mm unit weighing 376 g in UV-resistant polycarbonate, rated IPX6, operating from -40 to 70°C, with one Gigabit RJ45 port and a maximum draw of 11W over PoE. A point-to-point link requires two units — this SKU is one; the two-unit kit is sold as UBB.

546.70 546.7 AUD 546.70 incl. GST

Not Available For Sale


  • Brand
  • Network Connectivity
  • Pack Option
  • Data Rate
  • Power Method
  • Weatherproofing

This combination does not exist.

Outdoor UniFi 60 GHz PoE Ubiquiti Point-to-Point Wireless Bridge
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UBB-Single
Tags
UBB-Single
Ubiquiti UniFi Building-to-Building Bridge — 60 GHz Point-to-Point Link with 5 GHz Backup Radio, 1.7 Gbps and 500 m Range — Single Unit

What the UBB-Single Is

The Ubiquiti UBB-Single is a single unit of the UniFi Building-to-Building Bridge, a 60 GHz wireless point-to-point bridge with a 5 GHz backup radio. It reaches a maximum data rate of 1.7 Gbps on the 60 GHz main radio and 866.6 Mbps on the 5 GHz backup, over a maximum range of 500 m. Antenna gain is 17.2 dBi at 60 GHz and 10 dBi at 5 GHz. It is a ⌀140 x 90 mm unit weighing 376 g in UV-resistant polycarbonate, rated IPX6, operating from -40 to 70°C, with one Gigabit RJ45 port and a maximum draw of 11W over PoE. A point-to-point link requires two units — this SKU is one; the two-unit kit is sold as UBB.

UBB-Single deployment

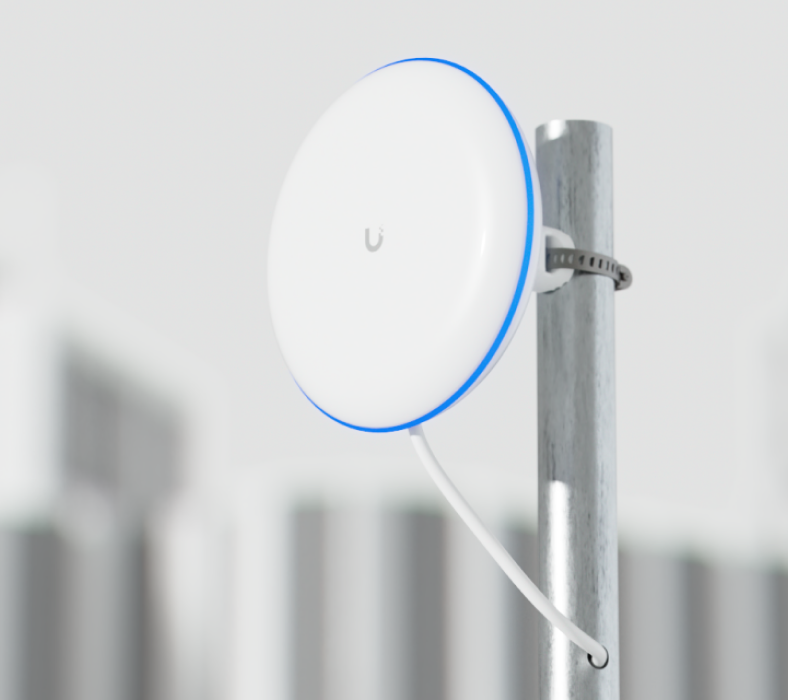

UBB-Single in-use

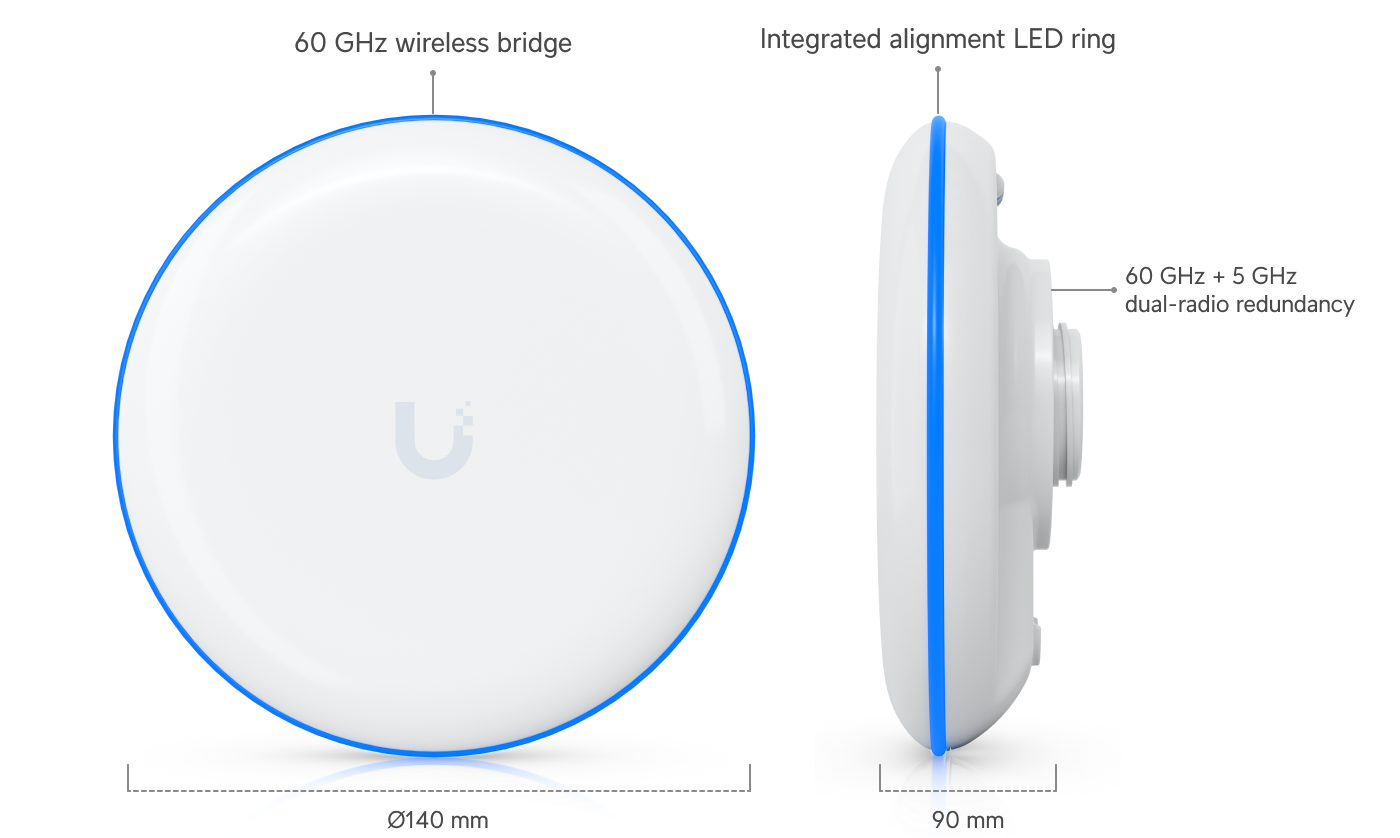

UBB-Single dimensions

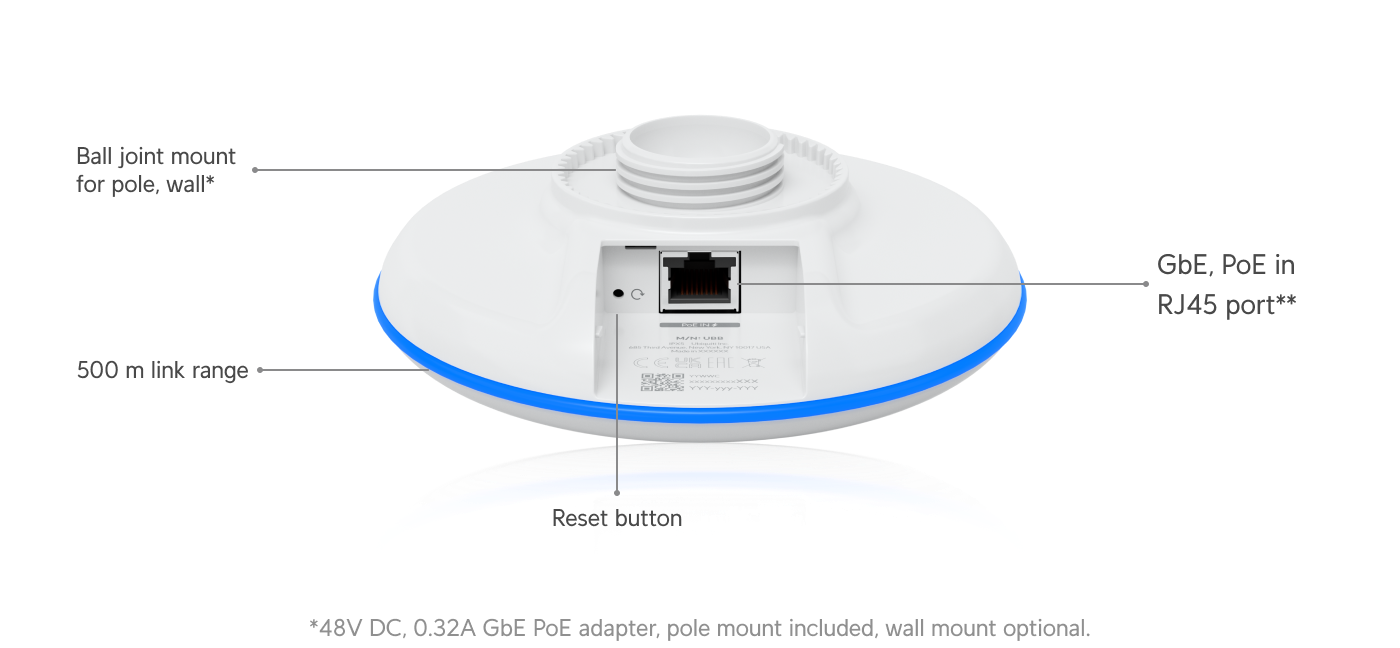

UBB-Single mounting

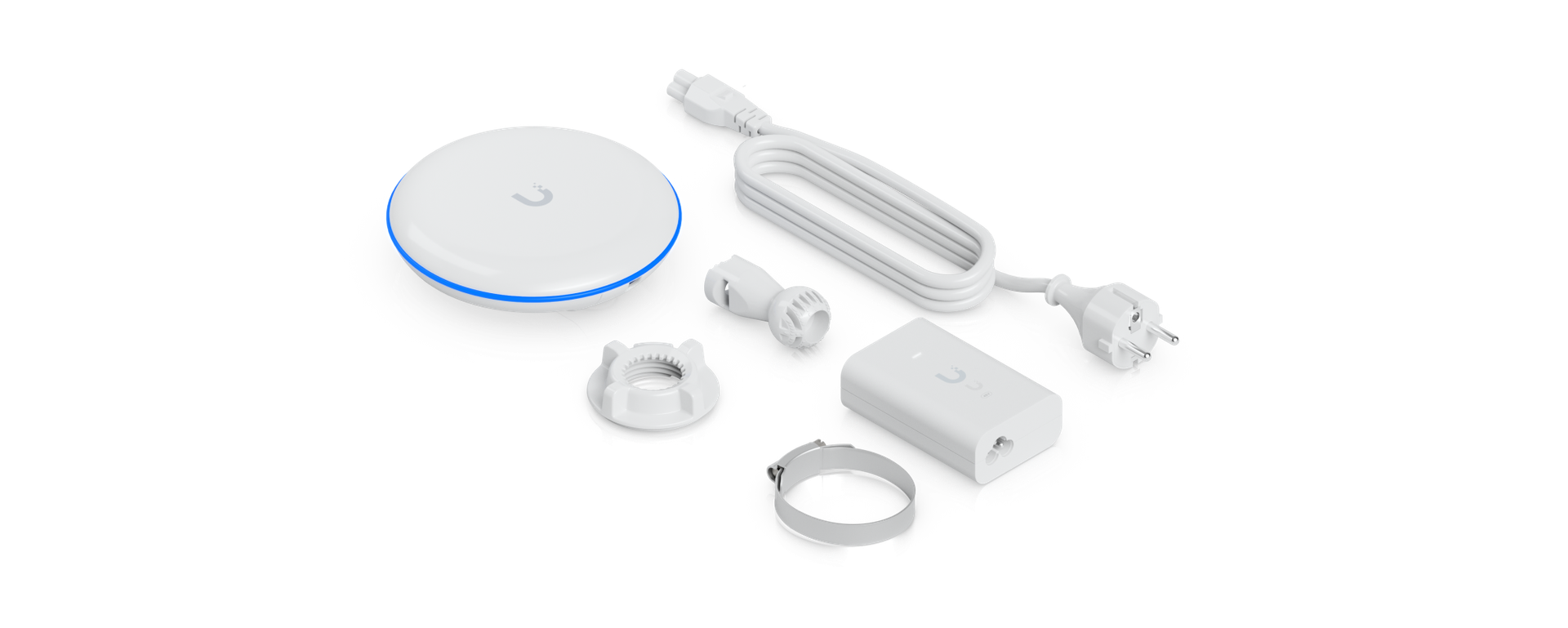

UBB-Single in-the-box

Key Features

  • 500 m (1,640 ft) maximum range
  • 60 GHz & 5 GHz dual-radio redundancy
  • Includes PoE power adapters
  • Built-in LED alignment indicators

Technical Specifications

Overview

Dimensions⌀140 x 90 mm
WiFi StandardWiFi 5
Spatial Streams2
Coverage Area500 m
Mounting LocationsWall, pole
WeatherproofingIPX6
Power MethodPoE

Performance

MIMO — 5 GHz2 x 2 (DL MU-MIMO)
Max. Data Rate — 60 GHz1.7 Gbps
Max. Data Rate — 5 GHz866.6 Mbps (BW80)
Antenna Gain — 60 GHz17.2 dBi
Antenna Gain — 5 GHz10 dBi
Antenna Gain — 2.4 GHz2 dBi (BLE)
Max. TX Power — 60 GHz19 dBm
Max. TX Power — 5 GHz25 dBm
Supported Data Rates — 802.11ac (WiFi 5)6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
Supported Data Rates — 802.11n6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Supported Data Rates — 802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
Supported Data Rates — 802.11b1, 2, 5.5, 11 Mbps
Supported Data Rates — 802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless SecurityWPA2 AES

Hardware

Max. Power Consumption11W
Supported Voltage Range44–57V DC
Networking Interface(1) GbE RJ45 port
Weight376 g
Operating ModesPtP
Wind Loading56 N at 200 km/h (12.6 lbf at 125 mph)
ManagementEthernet / Bluetooth
Channel BandwidthMain radio (60 GHz): 1,080/2,160 MHz / Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz
Enclosure MaterialUV-resistant polycarbonate
Button(1) Factory reset
LEDs — SystemR/G/B
Operating FrequencyMain radio (60 GHz): 57 - 66 GHz / Backup radio (5 GHz): / US/CA / U-NII-1: 5150 - 5250 MHz / U-NII-2A: 5250 - 5350 MHz / U-NII-2C: 5470 - 5725 MHz / U-NII-3: 5725 - 5850 MHz / / Worldwide / 5150 - 5850 MHz
Bluetooth (MHz)Worldwide: 2400 - 2483.5 MHz
Ambient Operating Temperature-40 to 70° C
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC

Professional Overview

A building-to-building bridge replaces a trench. Where two sites are within line of sight and running fibre between them is expensive or impossible, a pair of UBBs carries the link wirelessly. This SKU supplies a single unit, which is what you order to add a second link leg, replace a damaged unit, or extend an existing deployment — a new point-to-point link needs two.

The design is dual-radio, and that is the point. The main radio runs at 60 GHz across 57–66 GHz with 1,080 or 2,160 MHz channel bandwidth, delivering up to 1.7 Gbps through a 17.2 dBi antenna at up to 19 dBm. 60 GHz is fast and heavily reused because the band is short-range and absorbed by atmosphere, but that same absorption means heavy rain can attenuate the link. So a 5 GHz WiFi 5 backup radio is built in — 2x2 MIMO, 866.6 Mbps at BW80, 10 dBi gain, up to 25 dBm — and traffic fails over to it when 60 GHz degrades. The result is a link that keeps running through weather that would drop a 60 GHz-only bridge, at reduced throughput.

Maximum range is 500 m and the operating mode is point-to-point only. Alignment is helped by built-in LED indicators, so a single installer can aim the dish without a second person on a radio. Management is over Ethernet or Bluetooth, wireless security is WPA2 AES, and the unit ships with PoE power adapters.

The enclosure is UV-resistant polycarbonate, ⌀140 x 90 mm, 376 g, rated IPX6 with wind loading of 56 N at 200 km/h — worth checking against local wind ratings on tall or exposed mounts. It runs from -40 to 70°C at 5 to 95% non-condensing humidity, draws a maximum of 11W at 44–57V DC through one Gigabit RJ45 port, and mounts to a wall or pole. Certifications are CE, FCC and IC. Australian stock from ARC IP Networks.

Frequently Asked Questions

Do I need one UBB or two?

Two. A point-to-point link needs a unit at each end. This SKU is a single unit, sold for adding to or repairing an existing deployment. The two-unit kit is the UBB SKU.

What is the maximum range?

500 m, with clear line of sight between the two units.

How fast is the link?

Up to 1.7 Gbps on the 60 GHz main radio, and up to 866.6 Mbps on the 5 GHz backup radio at 80 MHz channel width.

Why does it have two radios?

60 GHz gives very high throughput but is attenuated by heavy rain. The 5 GHz WiFi 5 backup radio keeps the link alive at reduced speed when 60 GHz conditions degrade.

How is it powered?

PoE, through one Gigabit RJ45 port, at 44–57V DC with a maximum draw of 11W. PoE power adapters are included.

Is it suitable for exposed outdoor mounting?

Yes. It is IPX6 rated in a UV-resistant polycarbonate enclosure and operates from -40 to 70°C. Wind loading is specified at 56 N at 200 km/h.

How is the link aligned?

Built-in LED alignment indicators on the unit show signal quality during aiming, so one installer can align each end without assistance.

What security does the link use?

WPA2 AES. Management is available over Ethernet or Bluetooth.

Brand UBIQUITI
Network Connectivity Wireless PtP
Pack Option Single Unit
Data Rate 1.7 Gbps (60 GHz)
Power Method PoE (11W max)
Weatherproofing IPX6
