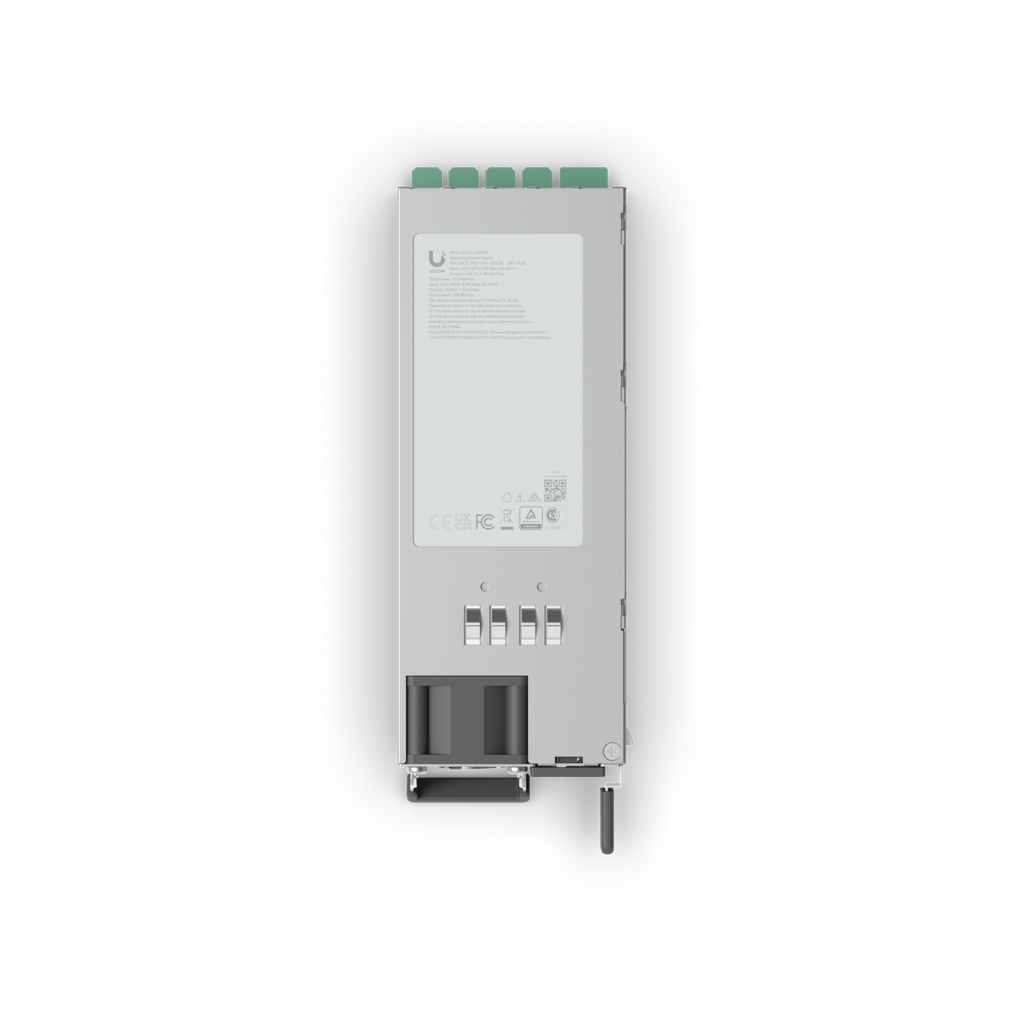

Ubiquiti UACC-PSU-54V-1200W Hot-Swappable Power Module 1200W 54V

https://arcip.com.au/web/image/product.template/10073/image_1920?unique=63fb83f
The Ubiquiti UACC-PSU-54V-1200W is a hot-swappable AC-to-DC power module that outputs 54V at up to 18.35A. It delivers 1,200W on a 200–240V AC supply and 1,000W on 100–120V AC, so on Australian mains it provides its full rated 1,200W. The module accepts 100–240V AC at 50/60 Hz through a C14 inlet and ships with a power cable. It measures 185 x 73.5 x 40 mm, weighs 750 g, and is built in SGCC steel. Being hot-swappable, it can be replaced in a redundant chassis without powering the host equipment down.

937.20 937.2 AUD 937.20 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Colour
  • Power Method

This combination does not exist.

UniFi PoE Ubiquiti Power Supply Redundant Power Hot-Swappable
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UACC-PSU-54V-1200W
Tags
UACC-PSU-54V-1200W
Ubiquiti Hot-Swappable Power Module 1,200W 54V — Redundant AC/DC Supply for UniFi Chassis Equipment

What the UACC-PSU-54V-1200W Is

The Ubiquiti UACC-PSU-54V-1200W is a hot-swappable AC-to-DC power module that outputs 54V at up to 18.35A. It delivers 1,200W on a 200–240V AC supply and 1,000W on 100–120V AC, so on Australian mains it provides its full rated 1,200W. The module accepts 100–240V AC at 50/60 Hz through a C14 inlet and ships with a power cable. It measures 185 x 73.5 x 40 mm, weighs 750 g, and is built in SGCC steel. Being hot-swappable, it can be replaced in a redundant chassis without powering the host equipment down.

Key Features

  • 1,200W (54V) AC-to-DC power supply
  • Included power cable

Technical Specifications

Overview

Dimensions185 x 73.5 x 40 mm
Weight750 g
Enclosure MaterialSGCC steel
Input ConnectorC14
Input Voltage Range100–240V AC
Input Frequency50/60 Hz
Output Voltage54V
Output Current18.35A
Total Output Power200–240V AC: 1,200W / 100–120V AC: 1,000W
CertificationsCE, FCC, IC

Professional Overview

The UACC-PSU-54V-1200W is a replacement and redundancy power module for UniFi equipment that takes modular supplies. Its value is in the hot-swap capability: in a chassis fitted with two modules, a failed supply can be pulled and replaced while the device keeps running, which turns a power supply failure from an outage into a maintenance task. Buying a spare to sit on the shelf is the usual reason to order one separately.

The important number for Australian installations is the input-dependent output. The module is rated 1,200W on a 200–240V AC input and 1,000W on 100–120V AC. Australian mains is nominally 230V, so the full 1,200W is available here — but the distinction matters when reading a US power budget for the same hardware, where the lower figure applies. Output is 54V at up to 18.35A, which is the standard rail for PoE++ switching equipment.

Input is universal 100–240V AC at 50/60 Hz through a C14 inlet, with a power cable included in the box. The enclosure is SGCC steel at 185 x 73.5 x 40 mm and 750 g — a standard module footprint that slides into the supply bay rather than mounting separately. Certifications are CE, FCC and IC.

When specifying, confirm the host device actually takes this 54V module rather than the 12V or 27V variants in the same family, as the connector is common but the rail is not. Australian stock from ARC IP Networks.

Frequently Asked Questions

What is the output of the UACC-PSU-54V-1200W?

54V DC at up to 18.35A. Total output power is 1,200W on a 200–240V AC input, or 1,000W on a 100–120V AC input.

Does it deliver the full 1,200W in Australia?

Yes. Australian mains is nominally 230V, which is within the 200–240V band where the module is rated for its full 1,200W. The reduced 1,000W figure applies only to 100–120V supplies.

Can it be replaced without shutting the equipment down?

Yes, it is hot-swappable. In a chassis with redundant supplies fitted, a module can be removed and replaced while the host device continues to run.

What input connector and cable does it use?

A C14 inlet, accepting 100–240V AC at 50/60 Hz. A power cable is included.

What are its dimensions and weight?

185 x 73.5 x 40 mm, 750 g, in an SGCC steel enclosure.

Is this the same as the 12V or 27V power modules?

No. Ubiquiti produces power modules on different output rails, including 12V and 27V versions in a similar form factor. Confirm your host equipment requires the 54V rail before ordering.

Brand UBIQUITI
Form Factor Plug-in Power Module
Colour Silver
Power Method 1,200W (54V) Hot-Swappable AC/DC
