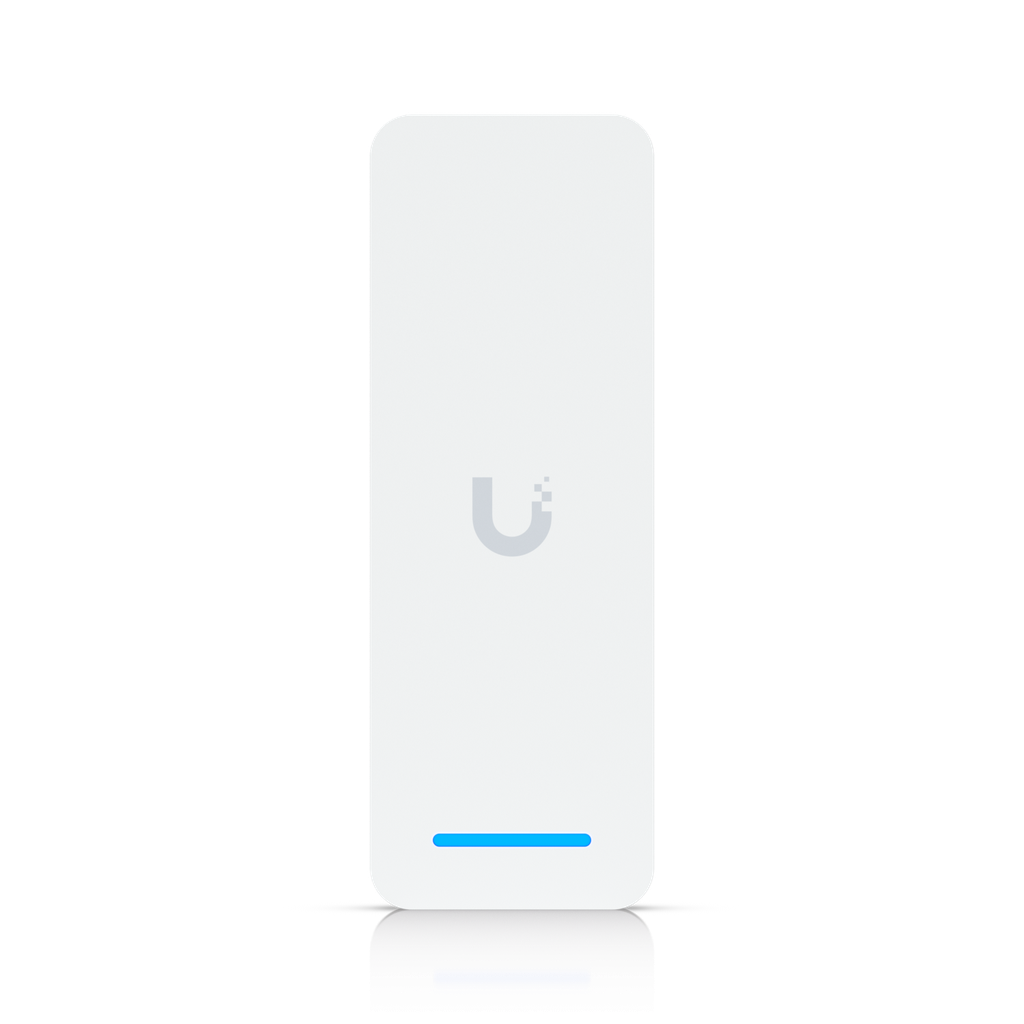

Ubiquiti UA-Ultra UniFi Access Reader Ultra

https://arcip.com.au/web/image/product.template/10131/image_1920?unique=fc8e6d7
The Ubiquiti UA-Ultra is a UniFi Access reader with a built-in hub, providing complete single-door entry control from one device. It has an integrated 12V DC 1A lock terminal and one exit request input, so no separate Access Hub is required — and Ubiquiti notes it is not compatible with standalone Access Hubs. It unlocks by NFC card or the UniFi Identity mobile app, reads NFC at 13.56 MHz within 50 mm, supports up to 3,000 users, and is rated IP55 for indoor and outdoor use from -30 to 40°C. It is 126 x 45 x 37.45 mm, weighs 140 g, and is powered by PoE+ at up to 18W. It carries UL 294 Level I and CAN/ULC-60839-11-1 Grade I.

182.11 182.11 AUD 200.20 incl. GST

Not Available For Sale


  • Brand
  • Door Access Form Factor
  • Colour
  • Power Method
  • Unlock Method
  • Weatherproofing

This combination does not exist.

UniFi PoE Ubiquiti Door Access UniFi Access Access Reader NFC
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UA-Ultra
Tags
UA-Ultra
Ubiquiti UniFi Access Ultra — All-In-One NFC Reader with Built-In Hub, Integrated Lock Terminal and IP55 Weather Resistance

What the UA-Ultra Is

The Ubiquiti UA-Ultra is a UniFi Access reader with a built-in hub, providing complete single-door entry control from one device. It has an integrated 12V DC 1A lock terminal and one exit request input, so no separate Access Hub is required — and Ubiquiti notes it is not compatible with standalone Access Hubs. It unlocks by NFC card or the UniFi Identity mobile app, reads NFC at 13.56 MHz within 50 mm, supports up to 3,000 users, and is rated IP55 for indoor and outdoor use from -30 to 40°C. It is 126 x 45 x 37.45 mm, weighs 140 g, and is powered by PoE+ at up to 18W. It carries UL 294 Level I and CAN/ULC-60839-11-1 Grade I.

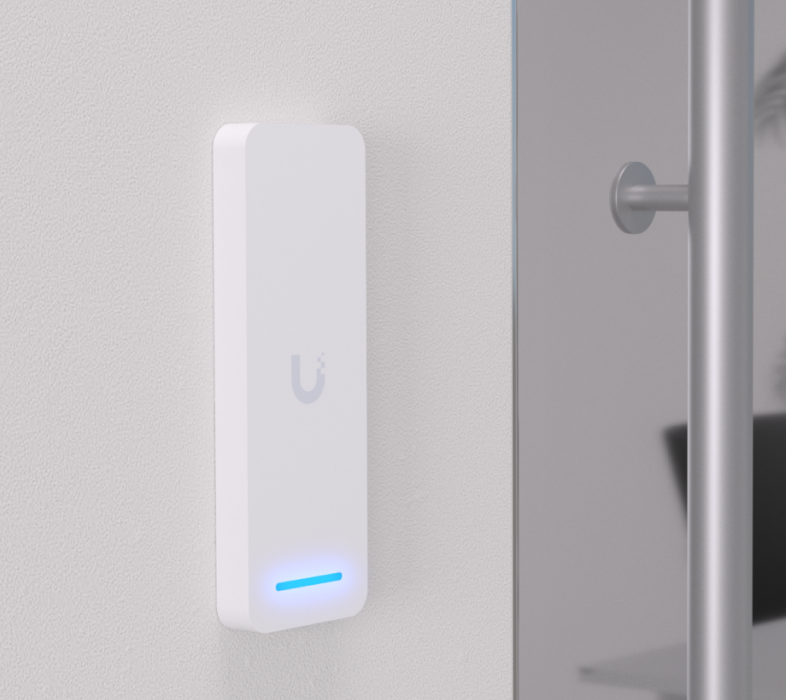

UA-Ultra deployment

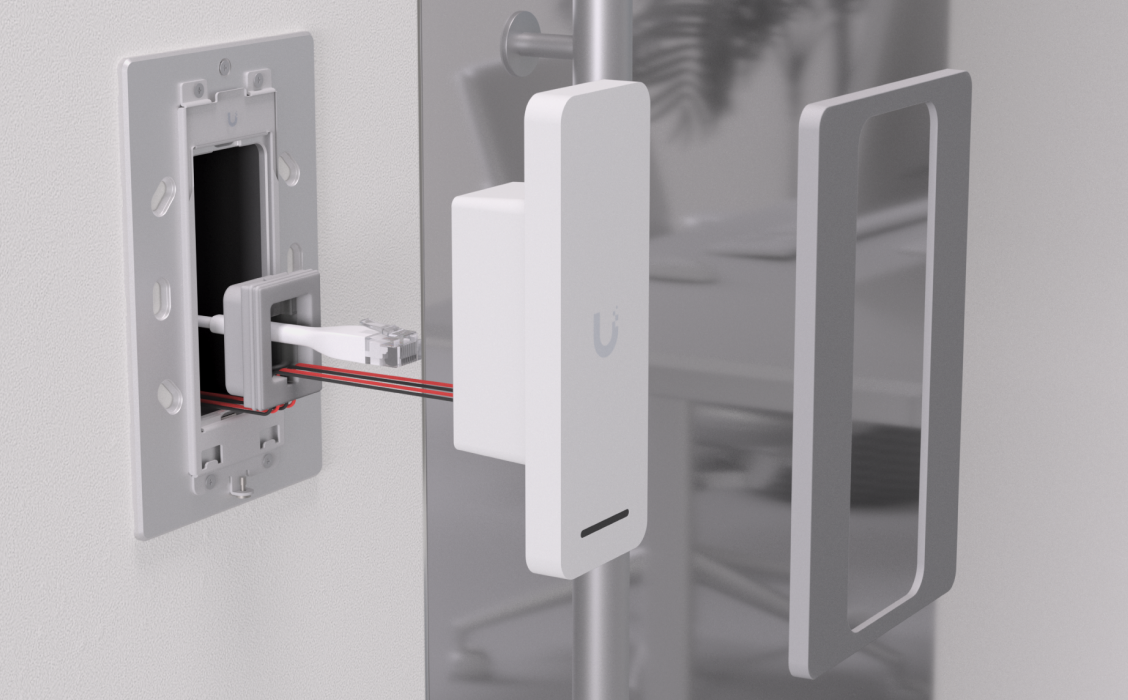

UA-Ultra in-use

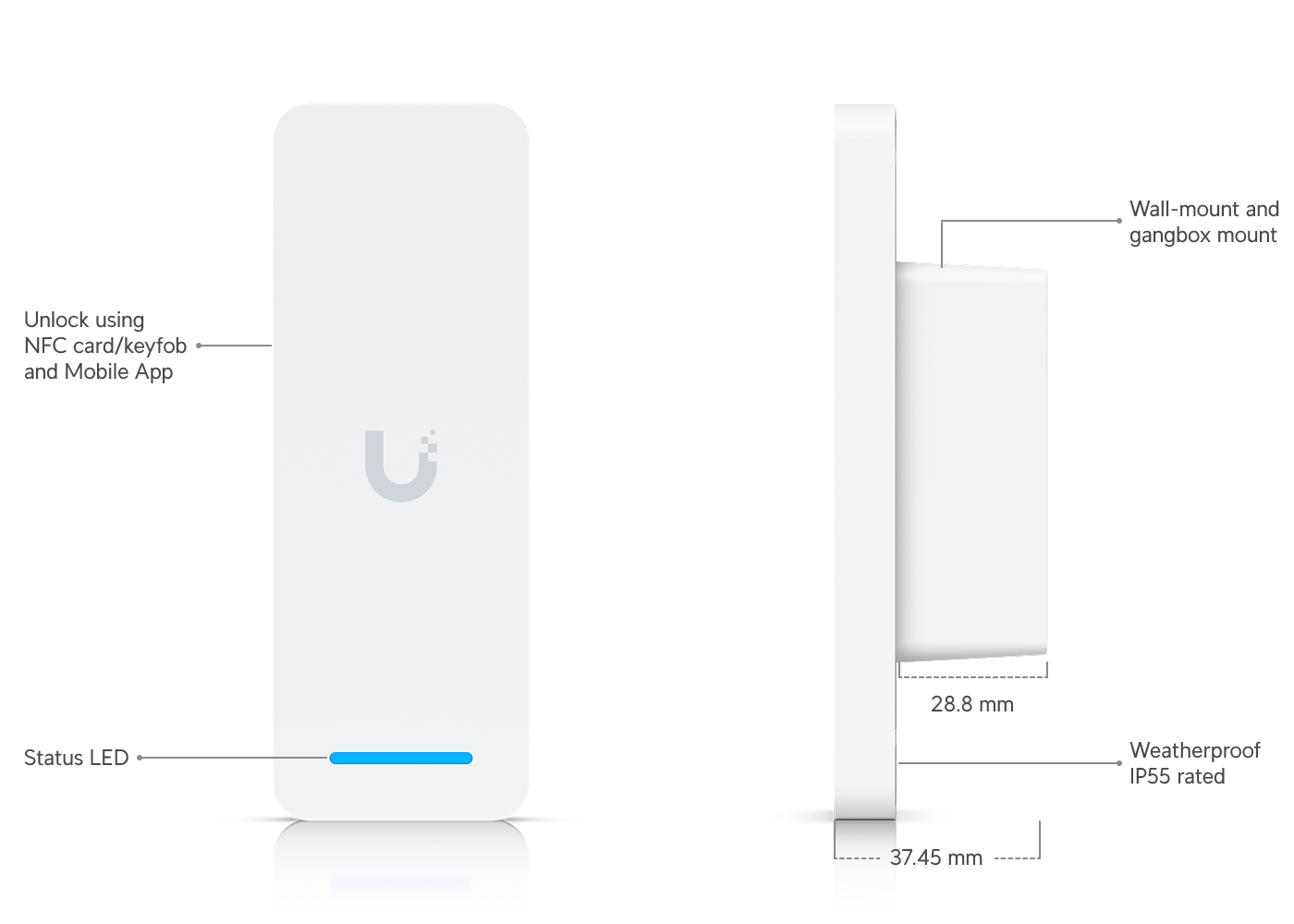

UA-Ultra dimensions

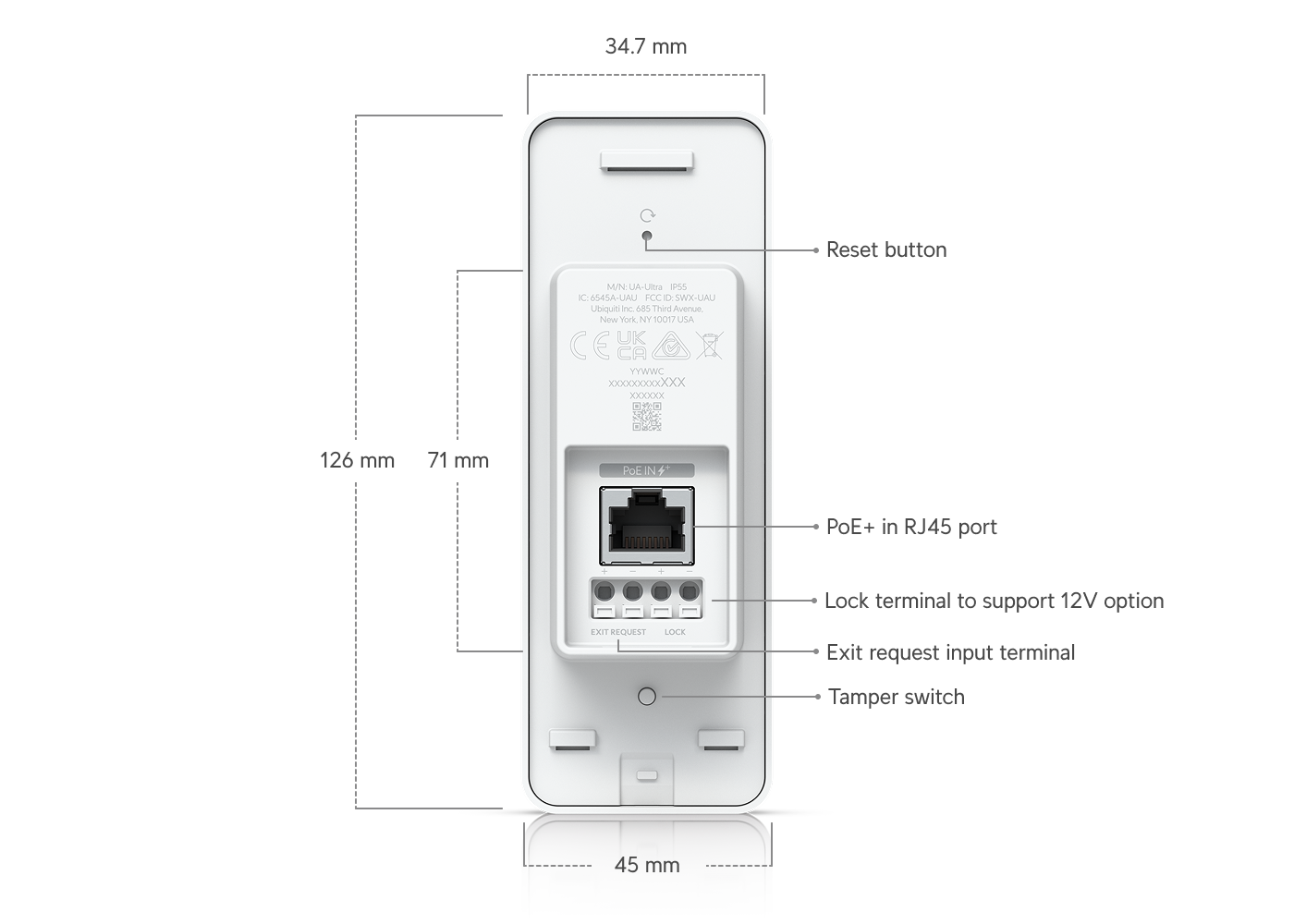

UA-Ultra mounting

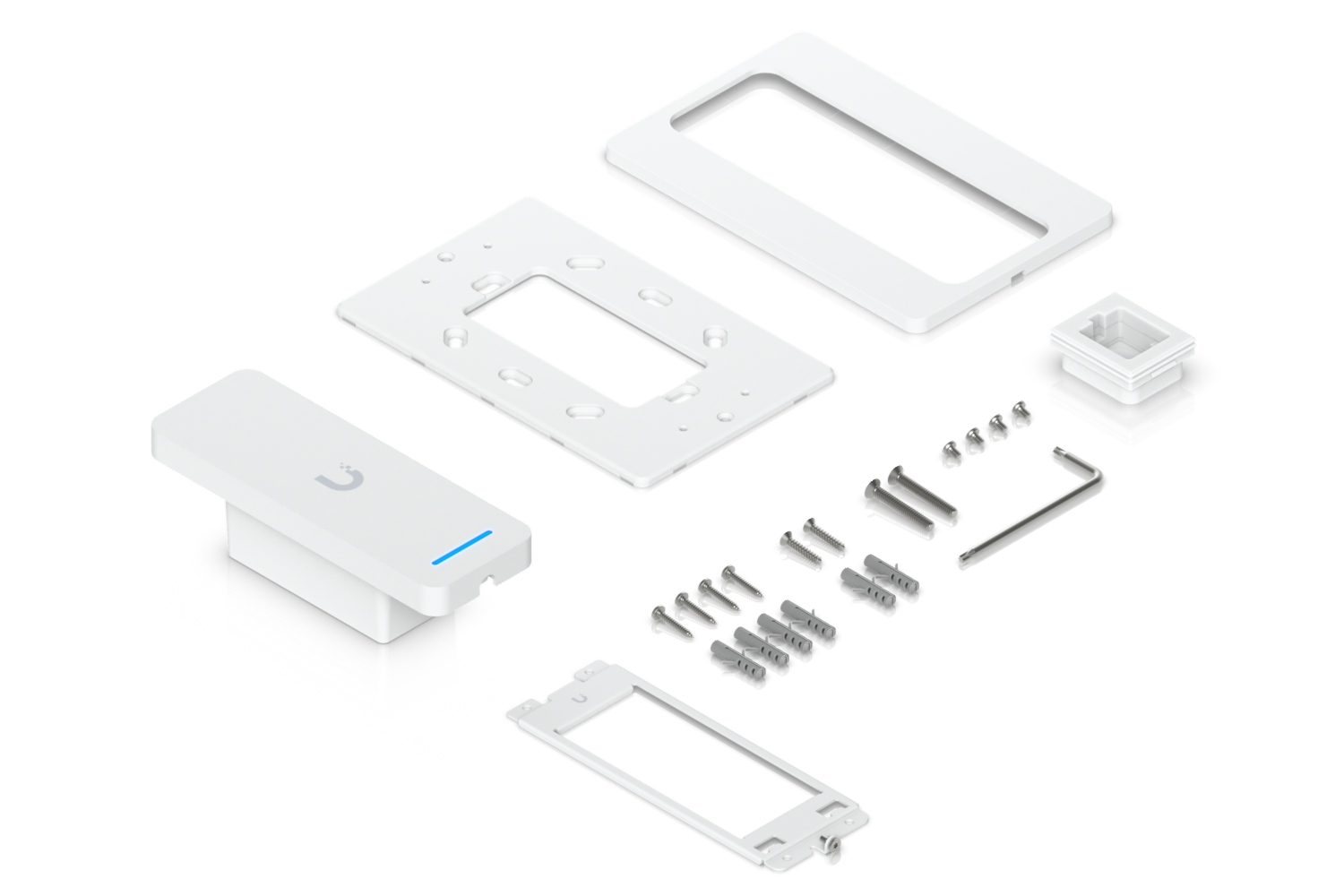

UA-Ultra in-the-box

Key Features

  • (1) Lock terminal (12V DC, 1A)
  • (1) Exit request input
  • Unlock using an NFC card or UniFi Identity mobile app
  • Connect and power using PoE+
  • IP55-rated weather resistance (-30 to 40° C)
  • Note. Not compatible with standalone Access Hubs.

Technical Specifications

Overview

Dimensions126 x 45 x 37.45 mm
WeatherproofingIP55
Maximum User Count3,000
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I

Mechanical

Weight140 g
Enclosure MaterialPolycarbonate, aluminum alloy
Mount MaterialStainless steel
MountingWall mount, gang box mount (Included) / Junction box (Optional)

Hardware

Indoor and Outdoor UseYes
Networking Interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.2 / Ethernet
Power MethodPoE+ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption18W
Supported Voltage Range44–57V DC
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
Powered Output RelayLock: 12V DC, 1A
LEDsR/G/B/W Learn More
Button(1) Factory reset
NFC Frequency13.56 Mhz
NFC Read Range< 50 mm
NFC TechnologyISO 14443A, 14443B, 15693 / NFC Tag 1,2,3,4,5 / MIFARE Classic / MIFARE Plus / Mifare Ultralight / MIFARE DESFire
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG for patch cords; 24 AWG for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, Anatel: 06371-24-08356, SRRC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Ultra, V01
Ambient Operating Temperature-30 to 40° C
Ambient Operating Humidity5 to 90% noncondensing

Software

Management ApplicationAccess
Software InformationThe software version can be checked at https://unifi.ui.com

Professional Overview

Every other reader in the UniFi Access range needs a hub behind it. The Ultra does not — the hub is inside the reader. That single design decision changes the installation: one device at the door, one PoE run, one lock cable, and no controller to find space for in a riser or cupboard. For a single door, particularly a retrofit, it removes most of the work.

The integrated lock terminal is rated 12V DC at 1A, with one exit request input alongside it. That is enough for a standard electric strike or a modest magnetic lock plus a request-to-exit button, which covers the large majority of single-door applications. Read the compatibility note carefully though: Ubiquiti states the Ultra is not compatible with standalone Access Hubs, so it cannot be retrofitted into an existing hub-based installation as an additional reader — it is a complete door solution or nothing.

Credentials are NFC card or the UniFi Identity mobile app, over BLE 4.2 and Ethernet. NFC runs at 13.56 MHz with a read range under 50 mm — notably longer than the 30 mm of the G2 readers — and supports ISO 14443A, 14443B and 15693, NFC tag types 1 to 5, and MIFARE Classic and DESFire. Capacity is 3,000 users, which is the figure that determines whether it suits a site or whether a hub-based design is needed.

It is built for outdoor mounting: IP55, polycarbonate and aluminium alloy on a stainless steel mount, operating from -30 to 40°C at 5 to 90% non-condensing humidity, with ESD protection of ±8 kV air and ±4 kV contact. Power is PoE+ at 44–57V DC drawing up to 18W — note PoE+ rather than standard PoE, because the reader is also driving the lock. Wall and gang box mounts are included, junction box optional. Certifications include UL 294 at Level I across all four categories, CAN/ULC-60839-11-1 Grade I, CE, FCC, IC, SRRC and Anatel. Australian stock from ARC IP Networks.

Frequently Asked Questions

Does the UA-Ultra need a separate Access Hub?

No. The hub is built in, with an integrated lock terminal and exit request input. Ubiquiti also notes it is not compatible with standalone Access Hubs.

Can I add it to an existing UniFi Access installation that uses hubs?

No. Because it is not compatible with standalone Access Hubs, it is a complete single-door solution rather than an additional reader for a hub-based system.

What lock can it drive?

Its integrated lock terminal is rated 12V DC at 1A, suitable for a standard electric strike or a modest magnetic lock.

How many users does it support?

Up to 3,000.

Does it need PoE or PoE+?

PoE+, at 44–57V DC drawing up to 18W. The higher class is required because the reader also powers the lock.

What unlock methods does it support?

NFC card and the UniFi Identity mobile app, over BLE 4.2. NFC runs at 13.56 MHz with a read range under 50 mm.

Can it be mounted outdoors?

Yes. It is IP55 rated for indoor and outdoor use, operating from -30 to 40°C at 5 to 90% non-condensing humidity.

Is it certified for access control?

Yes — UL 294 at Level I for destructive attack, line security, endurance and standby power, plus CAN/ULC-60839-11-1 Grade I, CE, FCC, IC, SRRC and Anatel.

Brand UBIQUITI
Door Access Form Factor All-In-One Reader with Built-In Hub
Colour White
Power Method PoE+ (18W max)
Unlock Method NFC / App
Weatherproofing IP55
