Ubiquiti UniFi UA-Retrofit-Hub-2 — UniFi Access 2-Door Retrofit Hub with Wiegand / OSDP Reader Support, 12/24V DC Lock Outputs, DIN Rail Mount (10,000 Users)

https://arcip.com.au/web/image/product.template/9732/image_1920?unique=4829406
UA-Retrofit-Hub-2 is Ubiquiti's 2-door UniFi Access controller designed to drop into an existing third-party door-access cabinet and convert it into a UniFi Access door pair. Supports both Wiegand and OSDP readers (third-party or UniFi Retrofit Reader), dry relay (30V DC, 1A) and powered relay outputs at 12V (1A) or 24V (0.5A), 2 inputs per door (REX + door position), 1 emergency input, up to 10,000 users. 12/24V DC powered (50W max), DIN rail mount included. Australian stock from ARC IP Networks.

419.00 419.0 AUD 419.00 incl. GST

Not Available For Sale


  • Connectivity
  • Door Access Form Factor
  • IP Rating
  • Display
  • Power Method
  • Reader Type
  • Intercom
  • Doors Supported
  • Max Users
  • Lock Output
  • Mount

This combination does not exist.

Indoor UniFi Ubiquiti Door Access UniFi Access DIN Rail 12V Hub Wiegand OSDP 2-Door 24V Retrofit 10000 Users
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UA-Retrofit-Hub-2
Tags
UA-Retrofit-Hub-2
Ubiquiti UniFi UA-Retrofit-Hub-2 — UniFi Access 2-Door Retrofit Hub with Wiegand / OSDP Reader Support, 12/24V DC Lock Outputs, DIN Rail Mount (10,000 Users)
💼

Deal Registration Required

The Ubiquiti Retrofit Hub (UA-Retrofit-Hub-2) ships under Ubiquiti’s deal-registration program for project pricing and deployment support. Please contact ARC IP Networks before ordering to register the deal, confirm lead time, and unlock project pricing.

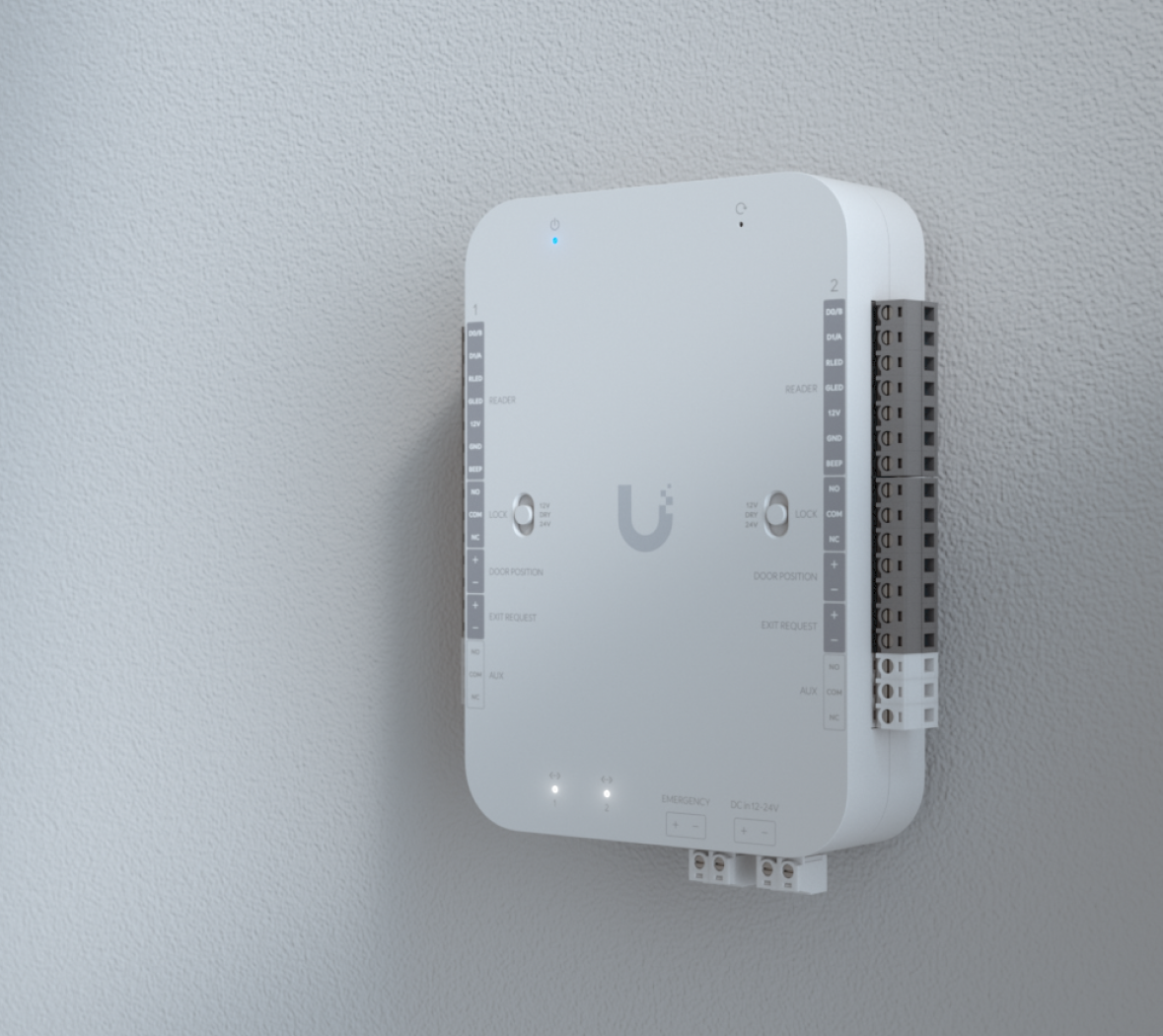

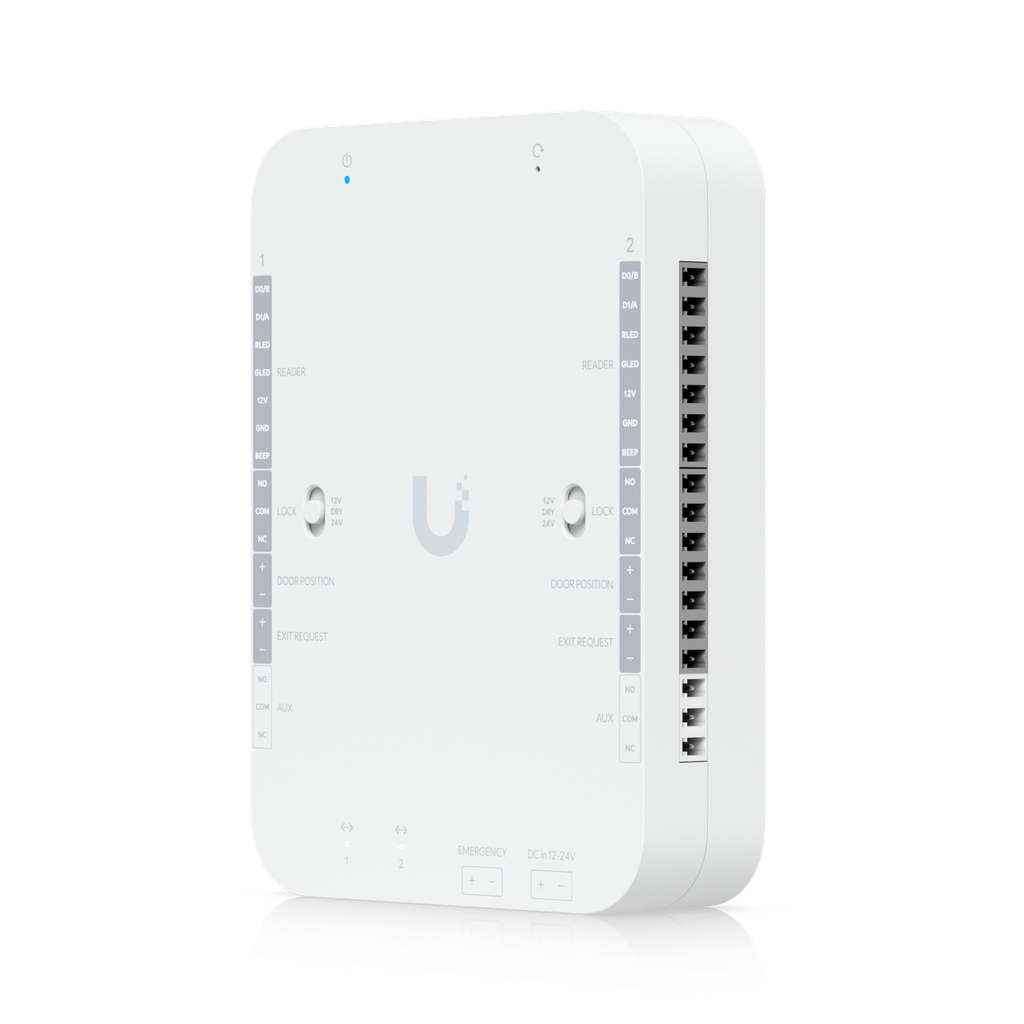

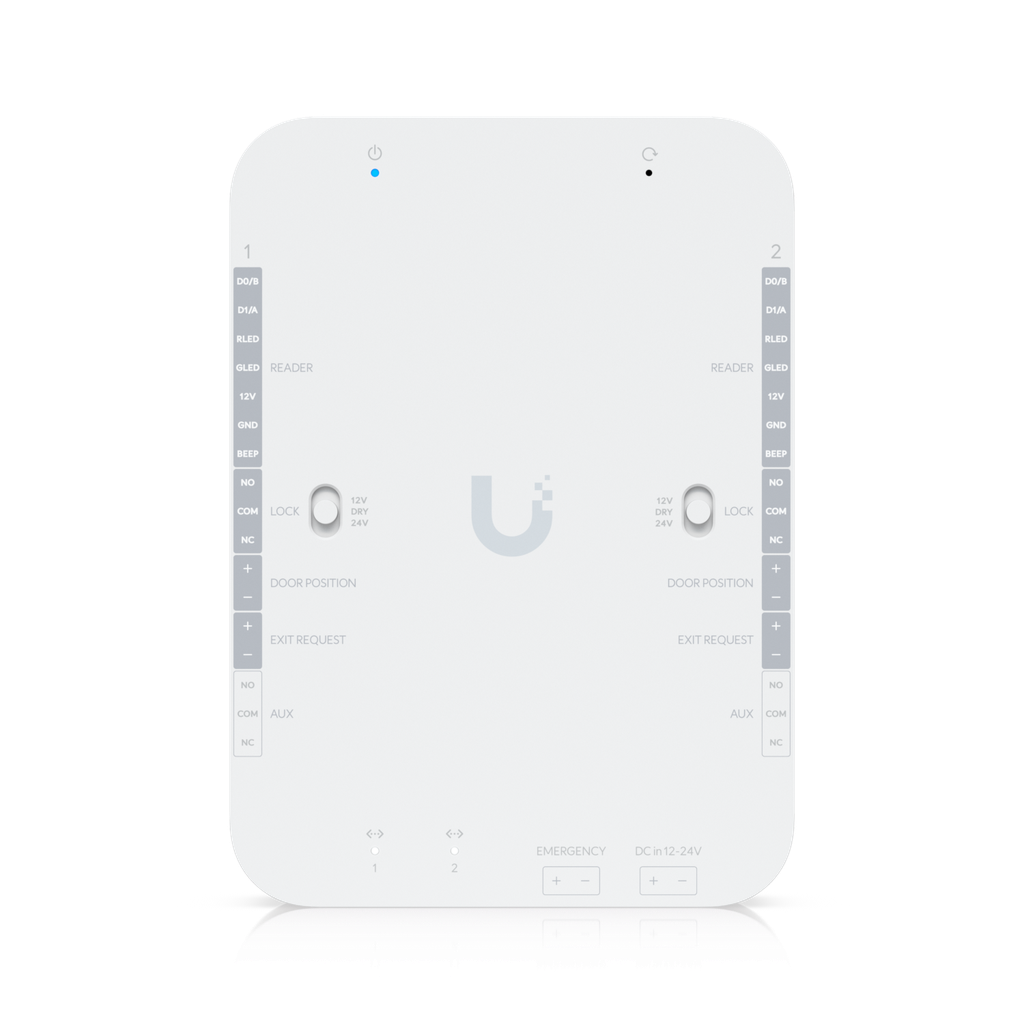

UA-Retrofit-Hub-2 Front + Terminals

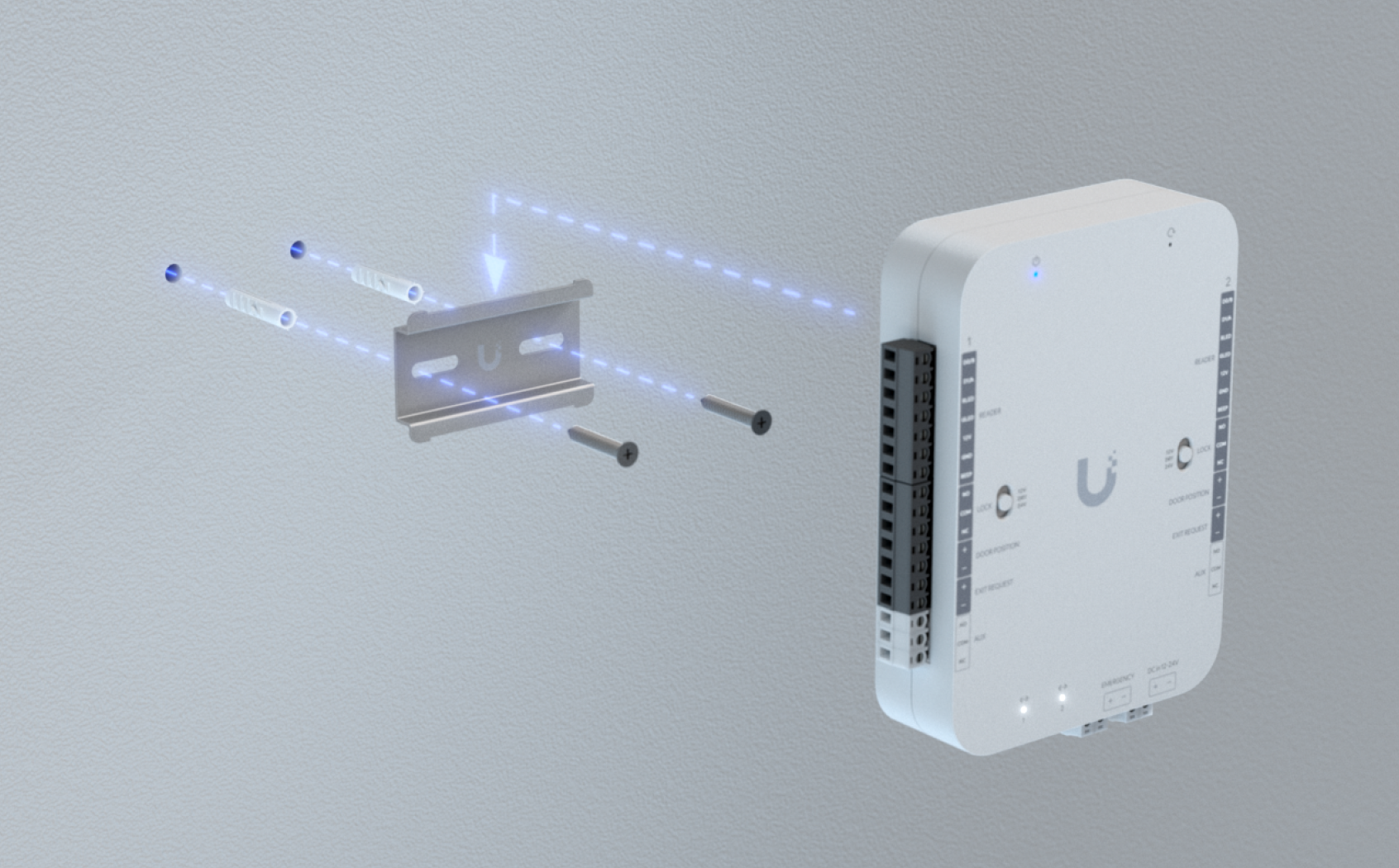

UA-Retrofit-Hub-2 Wiring Diagram

Features

  • UniFi Access 2-door retrofit hub — designed to drop into an existing third-party access-control enclosure and convert two doors into UniFi Access endpoints without re-pulling cables.
  • Supports both Wiegand and OSDP reader protocols — works with third-party readers already on site or with Ubiquiti's UniFi Retrofit Reader, so existing card readers and credentials don't have to be replaced on day one.
  • Two independent door channels, each with: 1 reader input (Wiegand or OSDP), 1 door exit request (REX), 1 door position sensor input, and lock relay output.
  • Plus a single Emergency input for fire/break-glass integration with site safety systems.
  • Lock outputs are flexible: dry relay (30V DC, up to 1A) for external-power configurations, or built-in powered relay outputs at 12V (up to 1A) or 24V (up to 0.5A) selectable via on-device switch.
  • Up to 10,000 users per hub — designed for medium-density commercial buildings, multi-tenant tenancies and small-to-mid campus deployments.
  • DC powered — 12/24V DC supply (e.g. UACC-Retrofit-PSU-12V), 50W max consumption.
  • Two 10/100 MbE RJ45 networking ports — chain-through wiring without needing a switch in the controller enclosure.
  • DIN rail mount included — slides straight into standard 35 mm DIN rails in existing access-control cabinets.
  • Polycarbonate enclosure with SGCC steel mount, 140 × 120 × 45 mm, 420 g; indoor only.
  • Centrally managed through UniFi Access alongside other UniFi Access readers, hubs, intercoms and the UniFi Network estate — no per-door licensing.
  • (1) factory reset button + (2) 12V/Dry/24V switches for lock voltage selection.
  • Operating range -10 to 40 °C, 5–90% non-condensing humidity.
  • Certifications: CE, FCC, IC.

Specifications

Overview
Dimensions140 × 120 × 45 mm
Supported Doors2
Maximum User Count10,000

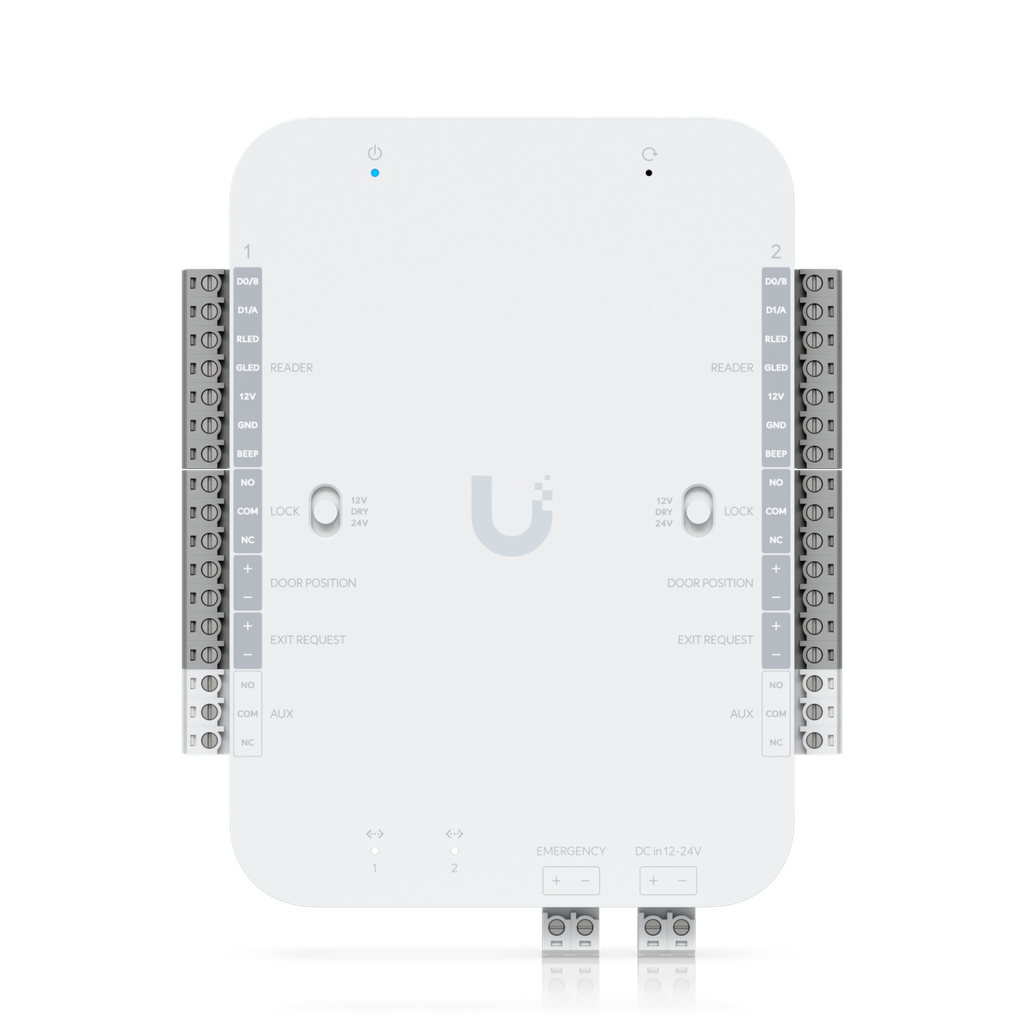

Input Terminals(2) Wiegand / OSDP reader + (2) door exit request + (2) door position + (1) emergency
Power Method12 / 24V DC
Mechanical
Weight420 g
Enclosure MaterialPolycarbonate
Mount MaterialSGCC steel

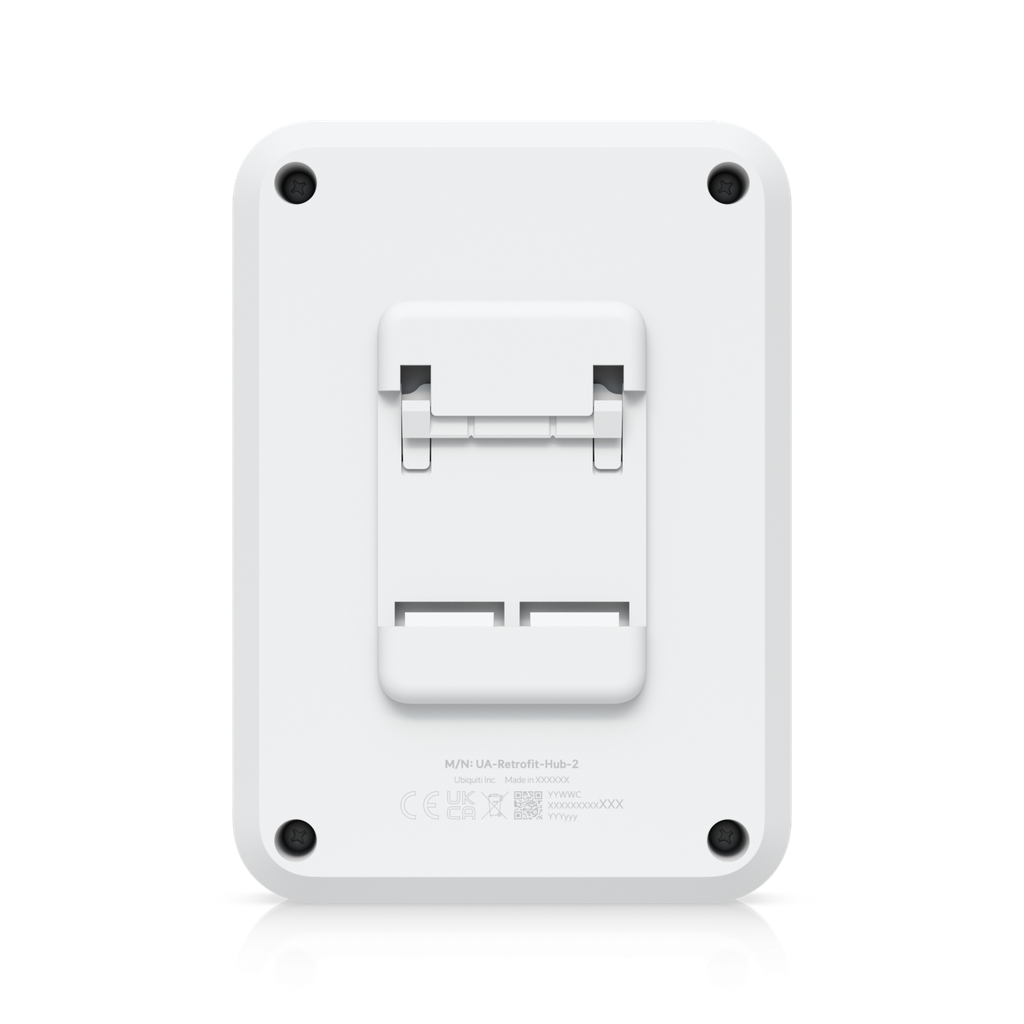

MountingDIN rail (included)
Hardware
Digital Inputs(2) third-party Wiegand / UniFi Retrofit Reader + (2) door exit request + (2) door position + (1) emergency
Dry Output RelayLock 30V DC / 1A; Aux 30V DC / 1A
Powered Output Relay12V lock at 1A; 24V lock at 0.5A
Indoor / Outdoor UseIndoor only

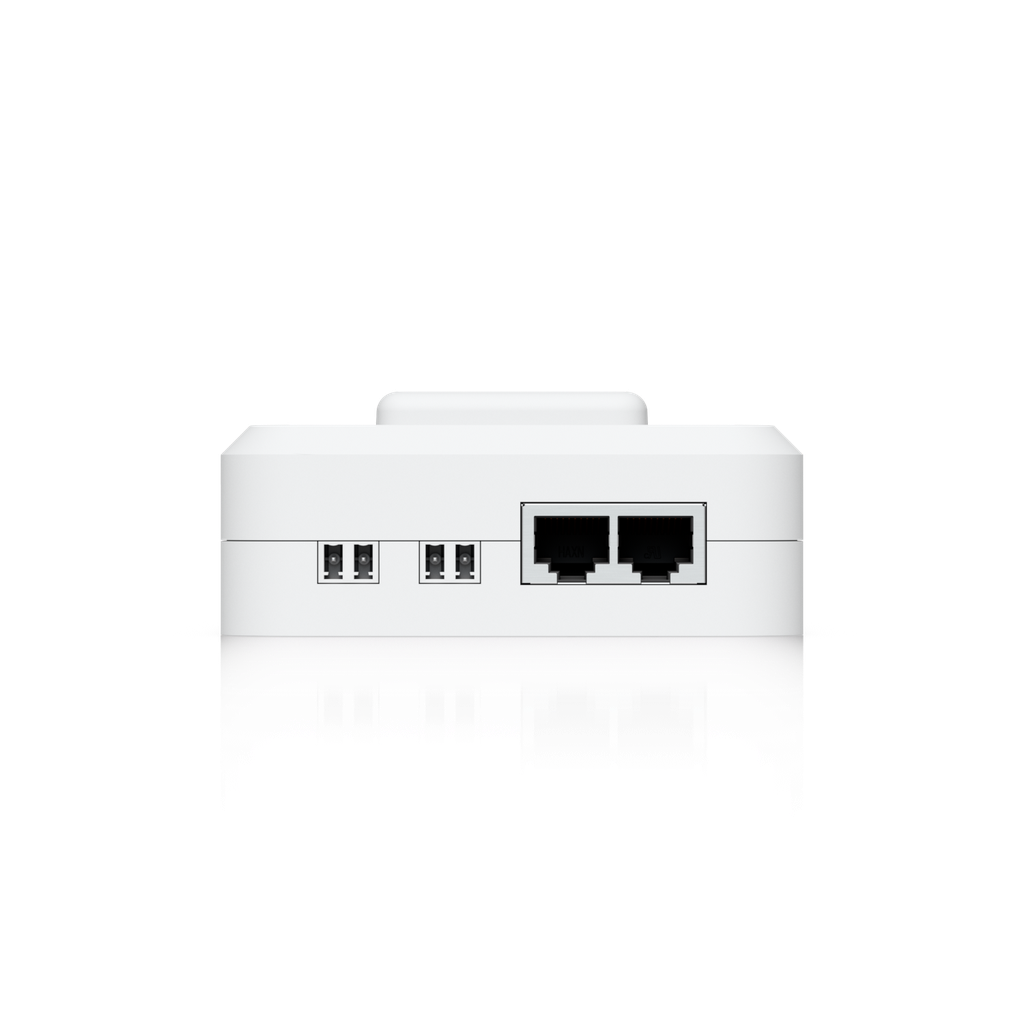

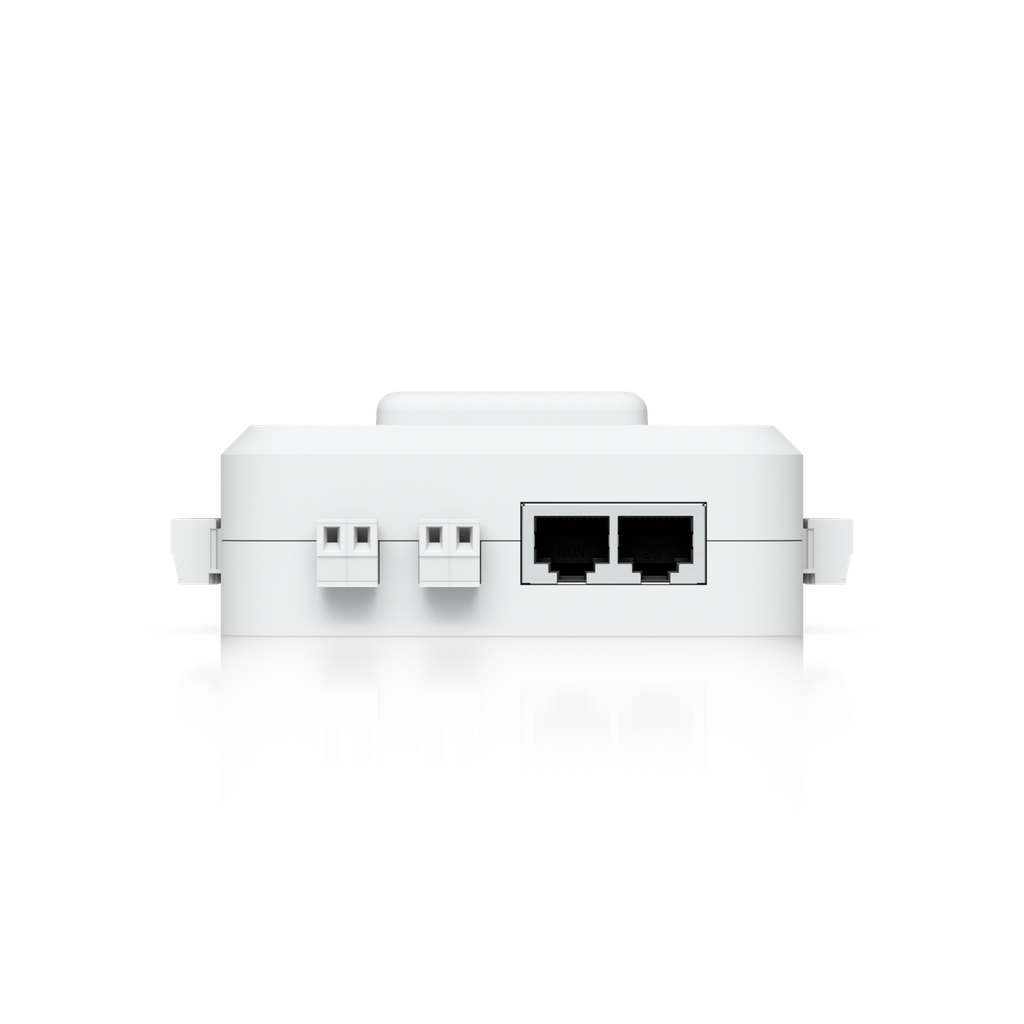

Networking Interface(2) 10/100 MbE RJ45
Power SupplyDC 12 / 24V
Max. Power Consumption50W
Buttons(1) Factory reset + (2) 12V / Dry / 24V lock-voltage selector
Ambient Operating Temperature-10 to 40 °C
Ambient Operating Humidity5 to 90% non-condensing
CertificationsCE, FCC, IC
Cable Distances (typical)
UA-Retrofit-Reader (250 mA)Up to 152.4 m on UACC-Cable-DoorLockRelay (18 AWG)
UA-Lock-Electric (400 mA)100 m on 18 AWG; 66 m on 20 AWG; 42 m on 22 AWG; 25 m on 24 AWG
UA-Lock-Magnetic 540 kg (500 mA)80 m on 18 AWG; 51 m on 20 AWG; 32 m on 22 AWG; 20 m on 24 AWG
UA-Lock-Magnetic 270 kg (800 mA)46 m on 18 AWG; 30 m on 20 AWG; 20 m on 22 AWG; 12 m on 24 AWG
Other locks (1 A)36 m on 18 AWG; 24 m on 20 AWG; 15 m on 22 AWG; 9 m on 24 AWG
Software
Management ApplicationUniFi Access

Professional Overview

The UniFi UA-Retrofit-Hub-2 is the second-generation UniFi Access controller designed specifically for retrofit deployments — sites where an existing third-party access-control system is in place, the cabling and reader hardware on the doors are still good, but the controller and management platform need to come into the UniFi Access ecosystem. Each hub takes over two doors and can drive either Wiegand or OSDP readers — covering essentially every reader brand sold over the last two decades.

The terminal layout is engineered for in-cabinet swap-out. Each of the two door channels carries one reader input (Wiegand or OSDP, software-selectable), one door exit request (REX) input, one door position sensor input, and one lock relay output, plus a single building-wide Emergency input for break-glass / fire-trigger integration with the site's safety system. Lock outputs are deliberately flexible: a dry relay rated 30V DC at 1A handles external-power lock topologies, and a built-in powered relay drives 12V locks at 1A or 24V locks at 0.5A — voltage is selected on-device via a physical switch, so a single hub SKU covers both common lock voltages.

Sizing is appropriate for medium-density commercial buildings: up to 10,000 users per hub, with two 10/100 MbE RJ45 ports that chain-through so multiple hubs can be wired in an enclosure without needing a separate switch port for each. Power is DC 12V or 24V (50W max) — the matching UACC-Retrofit-PSU-12V wall PSU provides clean 12V/5A with optional SLA backup-battery support, so the doors stay live during mains failure. DIN rail mount is included in the box, which means the hub slides straight into the standard 35 mm DIN rails already present in third-party access-control cabinets.

Mechanically the hub is a 140 × 120 × 45 mm polycarbonate device weighing 420 g, indoor-rated, operating from -10 to 40 °C and 5–90% non-condensing humidity. Configuration runs entirely through UniFi Access alongside other UniFi Access readers, hubs, intercoms and the broader UniFi Network estate — no per-door licensing, no separate access-control management platform. Certifications cover CE, FCC and IC. Australian stock from ARC IP Networks.

Connectivity (2) 10/100 MbE RJ45
Door Access Form Factor Hub (DIN Rail)
IP Rating Indoor only
Display None
Power Method 12 / 24V DC, 50W max
Reader Type Wiegand + OSDP (third-party readers supported)
Intercom No
Doors Supported 2
Max Users 10,000
Lock Output Dry relay 30V/1A; Powered 12V/1A or 24V/0.5A
Mount DIN Rail (included)
