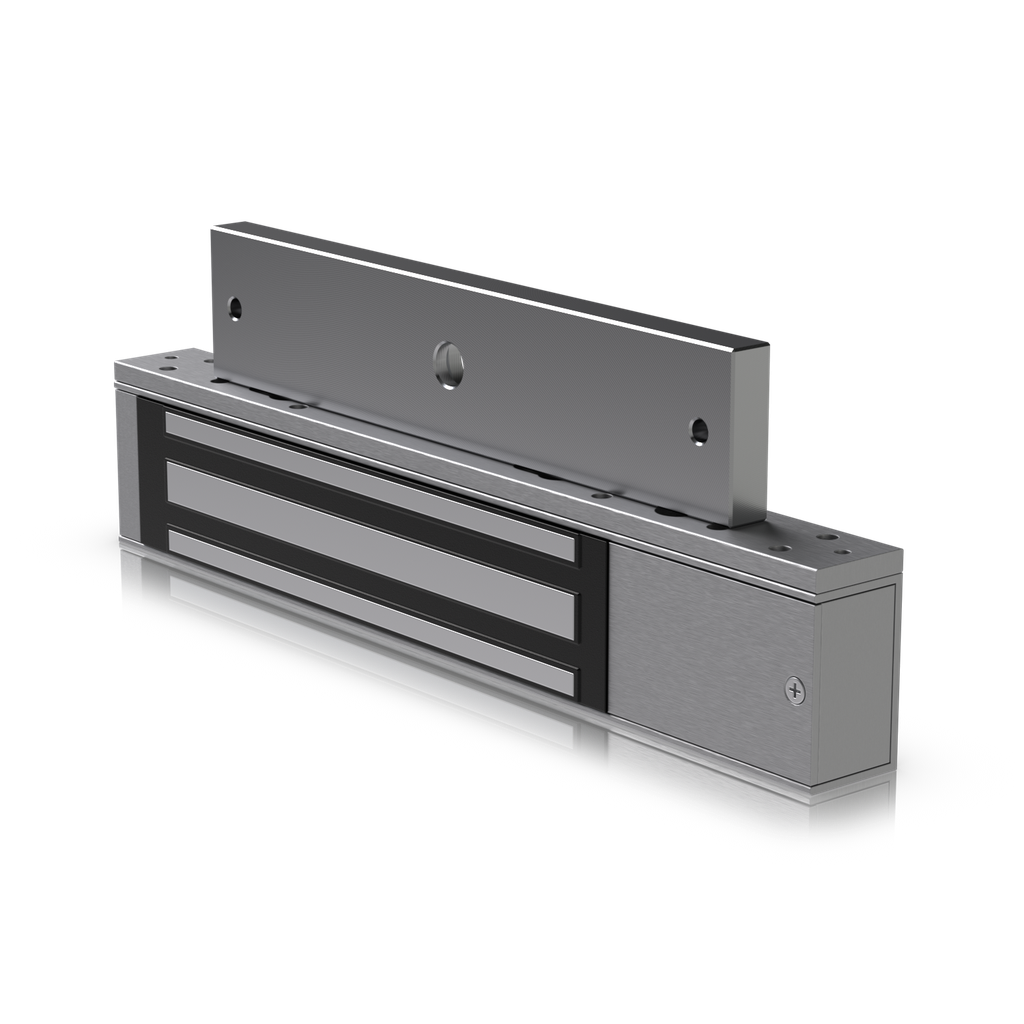

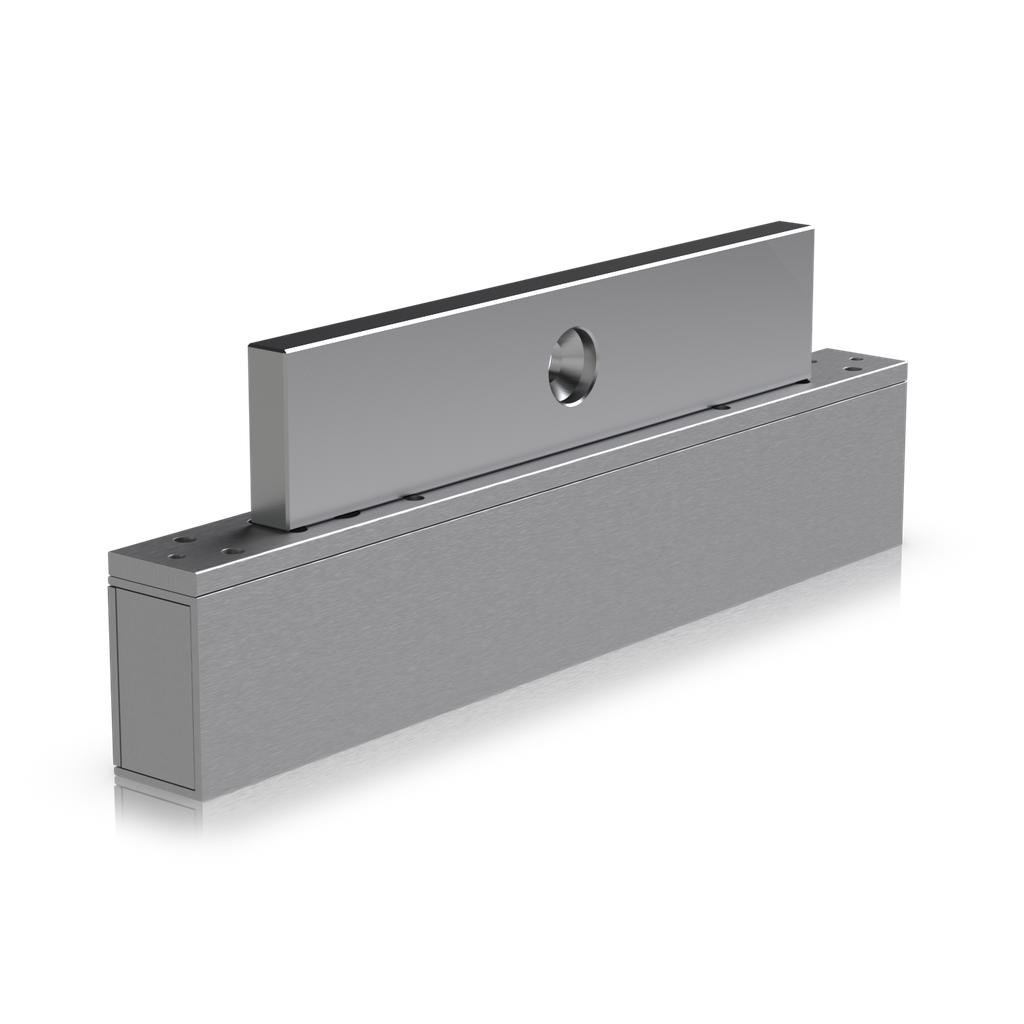

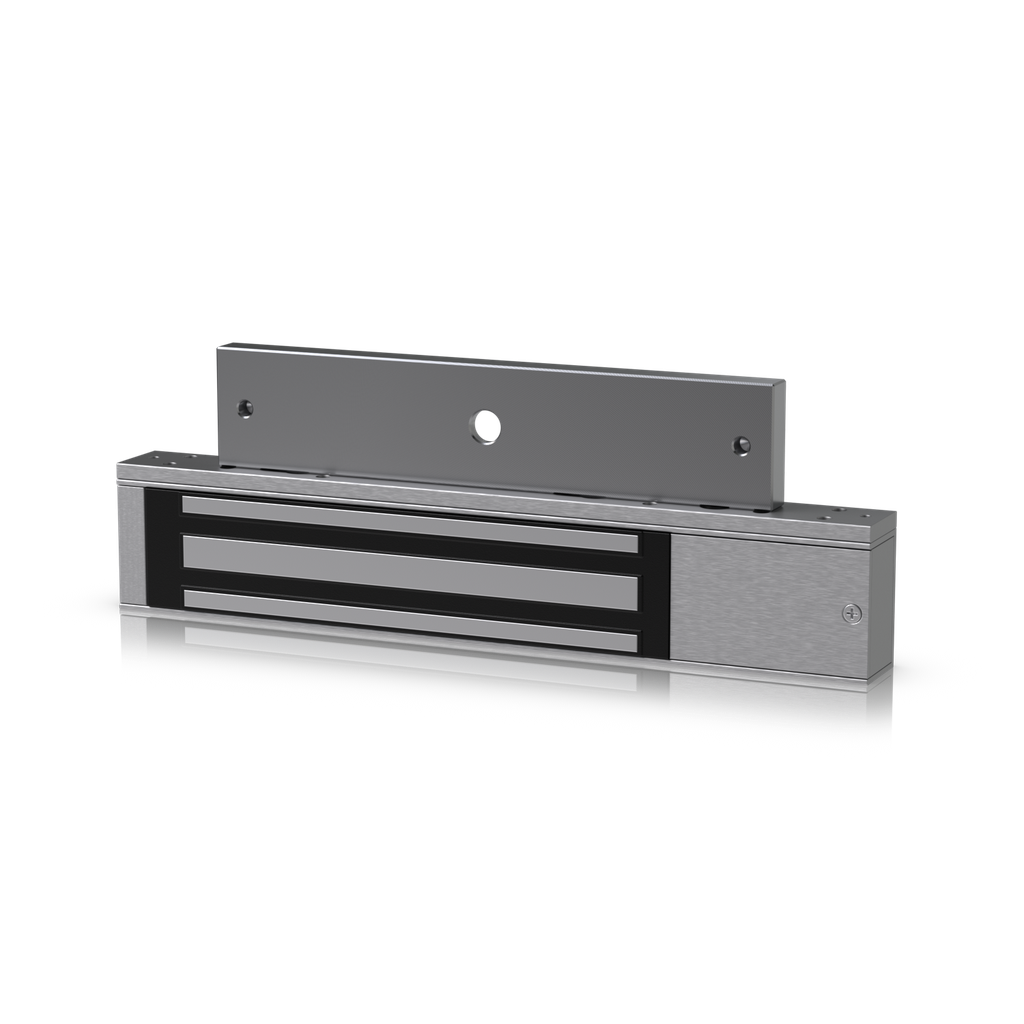

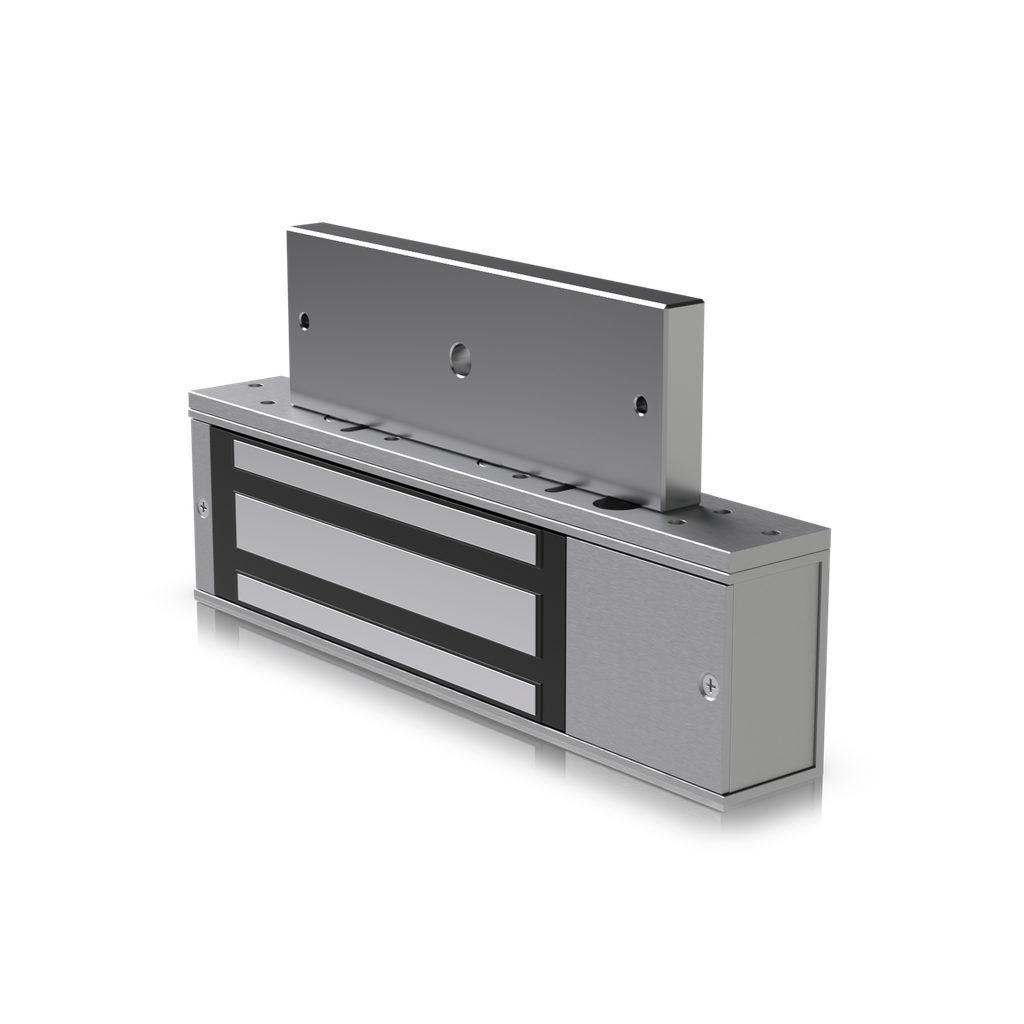

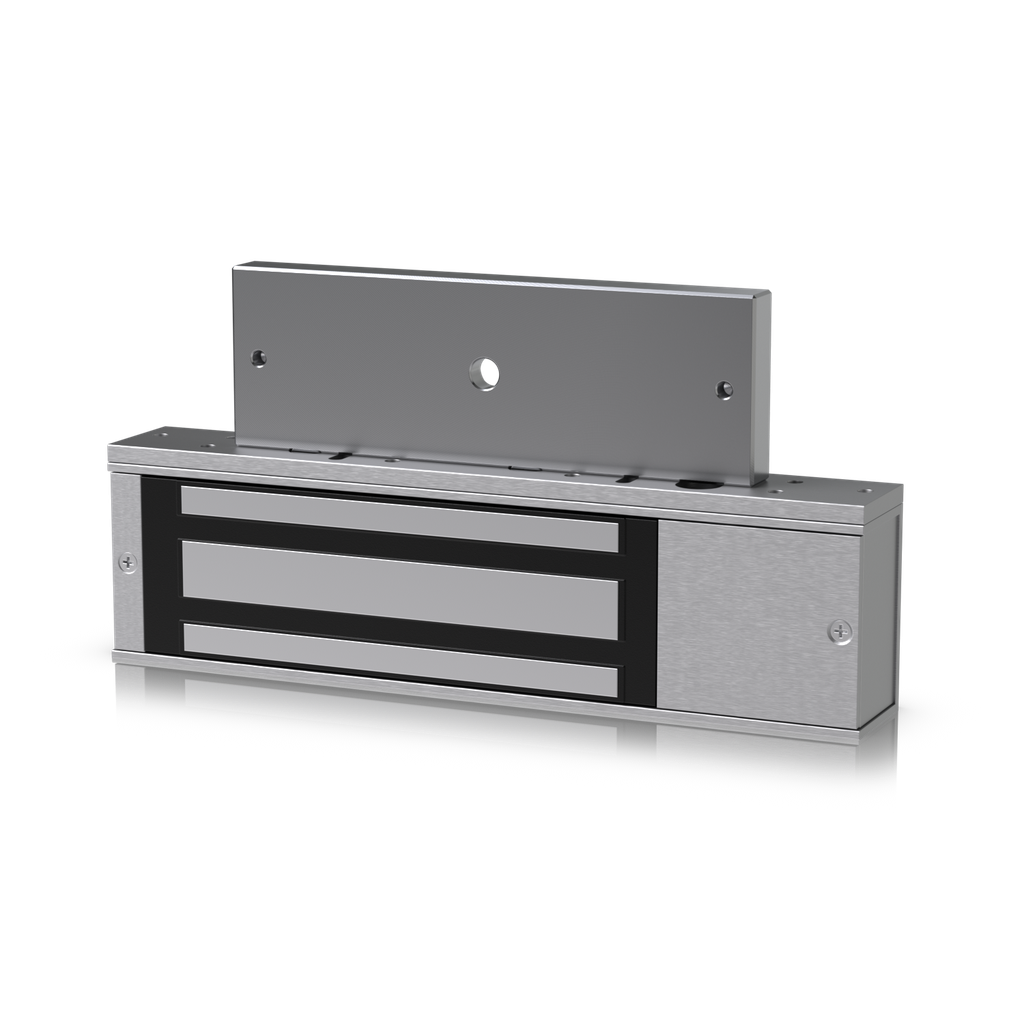

Ubiquiti UA-Lock-Magnetic-540kg UniFi Magnetic Lock 540 kg

Price:

371.25


Ubiquiti UA-Lock-Magnetic-270kg UniFi Magnetic Lock 270 kg
Ubiquiti UA-Lock-Magnetic-270kg UniFi Magnetic Lock 270 kg
298.10
298.10
Ubiquiti UA-Rescue UniFi Access Rescue KeySwitch
Ubiquiti UA-Rescue UniFi Access Rescue KeySwitch
145.75
145.75

Ubiquiti UA-Lock-Magnetic-540kg UniFi Magnetic Lock 540 kg

https://arcip.com.au/web/image/product.template/2825/image_1920?unique=7c82b42
The UA-Lock-Magnetic-540kg is a UniFi door access device. Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.

371.25 371.25 AUD 371.25 incl. GST

Not Available For Sale


  • Brand
  • Door Access Form Factor

This combination does not exist.

UniFi Ubiquiti Door Access UniFi Access
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UA-Lock-Magnetic-540kg
Tags
UA-Lock-Magnetic-540kg
Ubiquiti UniFi Access Magnetic Lock — Door Access Device

Features

  • Holds up to 270 kg or 540 kg
  • Can be installed on a wide variety of door types*
  • *— Access Lock Magnetic 270kg: All types including full glass
  • — Access Lock Magnetic 540kg: All types excluding full glass

Specifications

Overview
DimensionsUA-Lock-Magnetic-270kg / Lock body: 250 x 42.5 x 26 mm(9.8 x 1.7 x 1" ) / Install plate: 250 x 25x 5 mm (9.8 x 1 x 0.2" ) / Armature: 185.5 x 38.5 x 11 mm / / UA-Lock-Magnetic-540kg / Lock body: 266 x 67.5 x 40 mm / Install plate: 266 x 40 x 6 mm / Armature: 185 x 61 x 16 mm
WeightUA-Lock-Magnetic-270kg / Lock body: 1 kg / Install plate: 70 g / Armature: 600 g / / UA-Lock-Magnetic-540kg / Lock body: 2.9 kg / Install plate: 145 g / Armature: 1.4 kg
Enclosure MaterialDevice/brackets: aluminum / Armature: steel
Lock TypeFail safe
Support Door TypeUA-Lock-Magnetic-270kg: Single door / (Wooden/metal/glass) / / UA-Lock-Magnetic-540kg: Single door / (Wooden/metal)
DPSEmbedded
Holding ForceUA-Lock-Magnetic-270kg: 270 kg / / UA-Lock-Magnetic-540kg: 540 kg
Current Power500mA ±10%
Support Voltage Range12V DC ±10%
Wiring(1) Lock 12V/NC (red) / (1) Lock 12V/COM (black) / (1) DPS/+ (white) / (1) DPS/- (yellow)

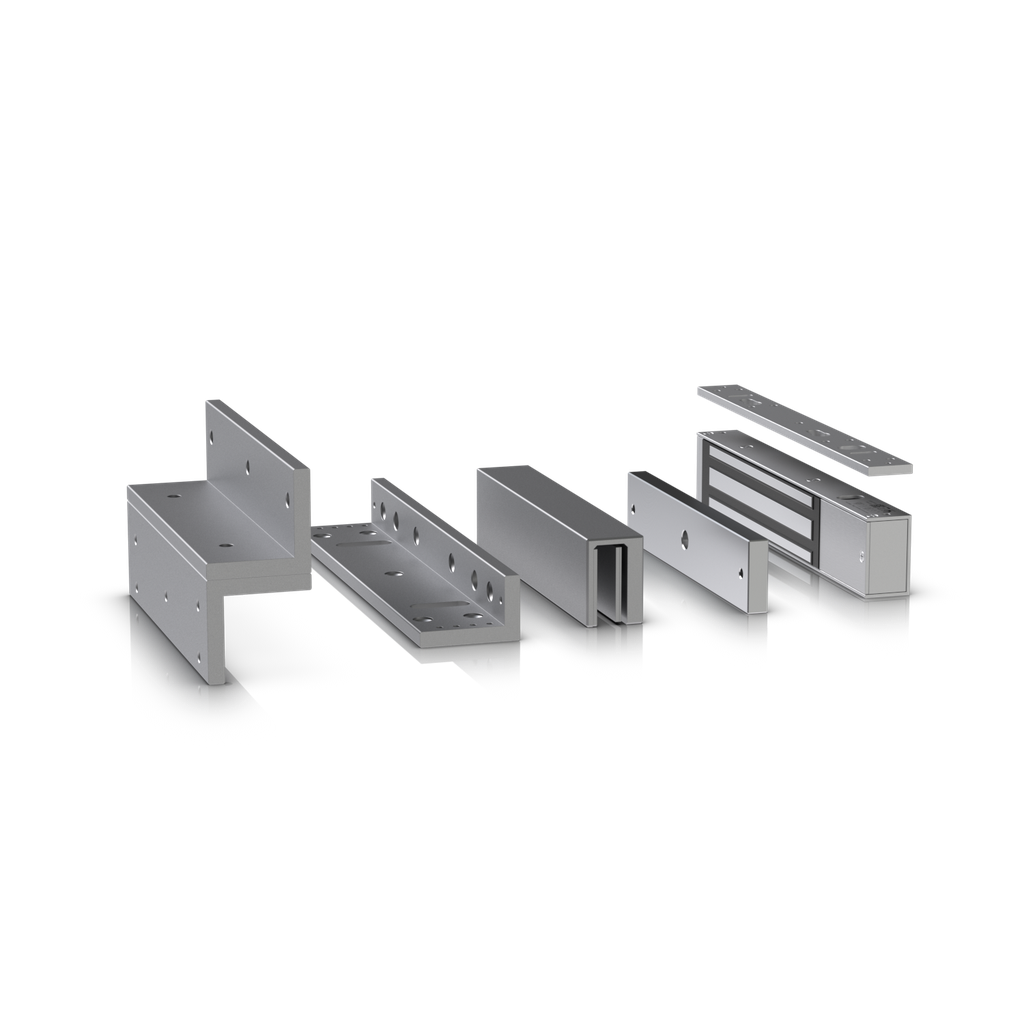

MountingUA-Lock-Magnetic-270kg / L bracket: for outward opening door thickness < 42 mm (< 1.7") / Z bracket: for inward opening door, used with L bracket / U bracket: for glass door thickness ≤ 17 mm (≤ 0.7") and door gap ≤ 5 mm (≤ 0.2") / / UA-Lock-Magnetic-540kg / L bracket: for outward opening door thickness < 42 mm (< 1.7") / Z bracket: for inward opening door, used with L bracket
LED IndicatorGreen: unlocked / Red: locked
Ambient Storage Temperature-20 to 70° C (-4 to 158° F)
Ambient Operating Temperature-10 to 60° C (14 to 140° F)
Ambient Operating Humidity5 to 90% noncondensing
CertificationsFCC, IC, CE

Professional Overview

The Ubiquiti UA-Lock-Magnetic-540kg is a UniFi door access device. Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub.

Integrates with the UniFi Access or Protect ecosystem for centralised management and smart automation.

Weighing UA-Lock-Magnetic-270kg / Lock body: 1 kg / Install plate: 70 g / Armature: 600 g / / UA-Lock-Magnetic-540kg / Lock body: 2.9 kg / Install plate: 145 g / Armature: 1.4 kg, the UA-Lock-Magnetic-540kg is built for 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Brand UBIQUITI
Door Access Form Factor Door Access Device
