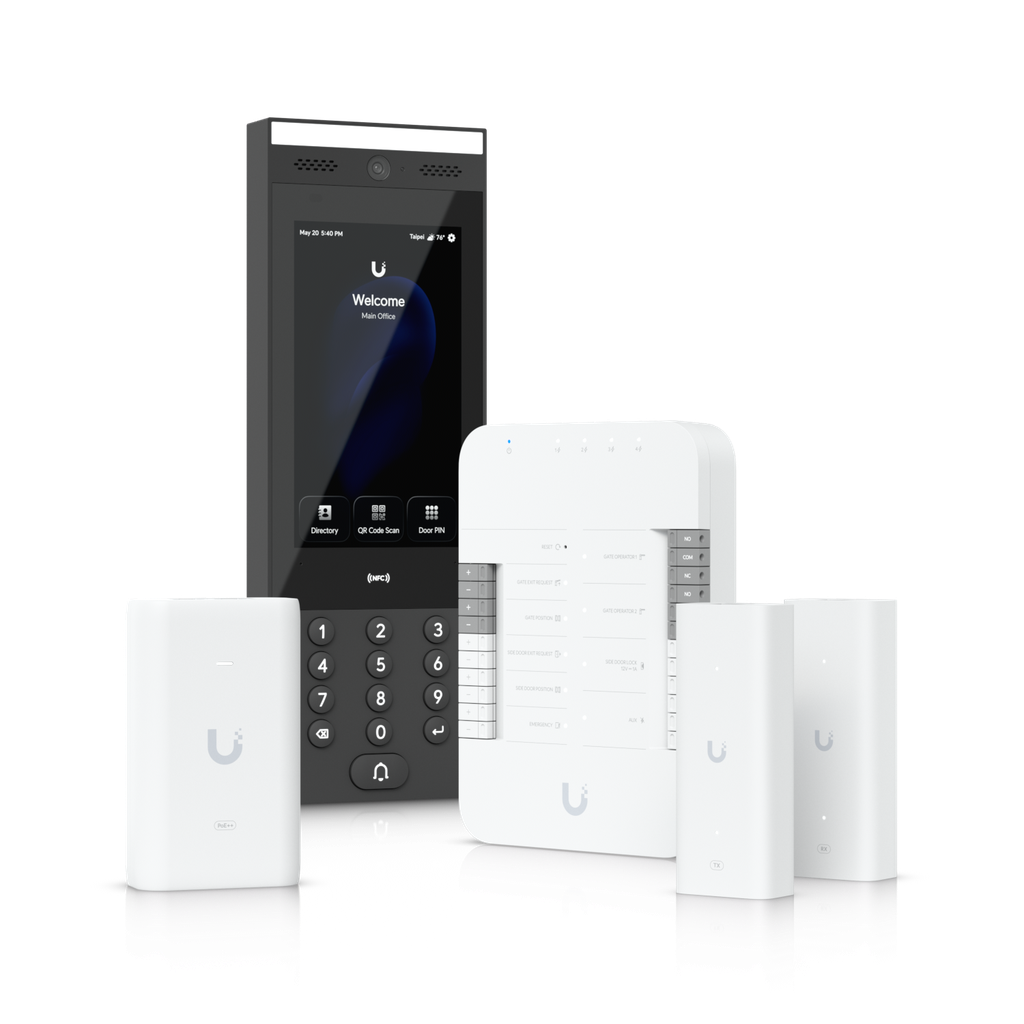

Ubiquiti UA-G3-SK-Gate Unifi G3 Gate Access Starter Kit

https://arcip.com.au/web/image/product.template/3826/image_1920?unique=3c5b6d7
The UA-G3-SK-Gate is a UniFi starter kit. Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.

1,342.00 1342.0 AUD 1,342.00 incl. GST

Not Available For Sale


  • Brand
  • Connectivity
  • Door Access Form Factor

This combination does not exist.

UniFi Ubiquiti Door Access UniFi Access Access Reader NFC Starter Kit
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
UA-G3-SK-Gate
Tags
UA-G3-SK-Gate
Ubiquiti UniFi G3 Gate Access Starter Kit — Starter Kit
UA-G3-SK-Gate
UA-G3-SK-Gate
UA-G3-SK-Gate
UA-G3-SK-Gate

Features

  • (1) Gate Hub
  • (1) G3 Intercom
  • (1) PoE++ adapter
  • (2) 2-wire PoE extenders
  • *
  • Note
  • . 10 free 1-year Touch Passes included.
  • Click to learn more
  • .

Specifications

Overview
In the Box(1) Gate Hub / (1) G3 Intercom / (1) PoE++ adapter / (2) 2-wire Retrofit Extenders
Touch Pass10 free 1-year Touch Passes included / Learn More
Gate Hub
Dimensions175 x 126 x 26 mm /
Supported Doors1 gate, 1 side door
Maximum User Count6,000
Input Terminals(1) Gate exit request / (1) Gate position / (1) Side door exit / (1) Side door position / (1) Emergency
Power MethodPoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
Enclosure MaterialPolycarbonate
MountingDIN-rail (Included)
Weight460 g
Indoor and Outdoor UseIndoor only: device itself / Outdoor: with waterproof junction box
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I
Ambient Operating Temperature-30 to 60° C (-22 to 104° F)
Ambient Operating Humidity5 to 90% noncondensing
Networking Interface(5) 10/100/1000 Base-T
PoE Interface(1) PoE++ input, 50V DC, 1A / (4) PoE outputs, 50V DC, 30W per port / (Max 55W aggregated)
Max. Power Consumption22W (Without PoE output) / 60W (With PoE output)
Digital InputGate exit request, gate position, side door exit request, side door position, emergency
Dry Output Relay(2) Operator: rated 30V DC, up to 1A / (1) Aux: rated 30V DC, up to 1A
Powered Output RelaySide door lock: 12V DC, up to 1A
LEDsW/B Learn More
Button(1) Factory reset
UA-Lock-Electric (400mA)24 AWG length: 25 m / 22 AWG length: 42 m / 20 AWG length: 66 m / 18 UACC-Cable-DoorLockRelay length: 100 m
UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m / 22 AWG length: 32 m / 20 AWG length: 51 m / 18 UACC-Cable-DoorLockRelay length: 80 m
UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m / 22 AWG length: 20 m / 20 AWG length: 30 m / 18 UACC-Cable-DoorLockRelay length: 46 m
Other locks (1A)24 AWG length: 9 m / 22 AWG length: 15 m / 20 AWG length: 24 m / 18 UACC-Cable-DoorLockRelay length: 36 m
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-Hub-Gate, V01
Software InformationThe software version can be checked at https://unifi.ui.com
G3 Intercom
Dimensions324.8 x 113.7 x 28.3 mm /
WeatherproofingIP65
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I
WeightDevice: 965 g / Bracket: 445 g
Enclosure MaterialAluminum alloy, UV-stabilized polycarbonate, glass
Mount MaterialPowder-coated stainless steel
MountingWall mount, adapter to the gooseneck pedestal (Included) / Surface angle, flush mount, sunshield kit (Optional)
Ambient Operating TemperatureDevice: -30 to 60° C (-22 to 140° F) / Display: -25 to 60° C (-13 to 140° F)
Ambient Operating Humidity5 to 90% noncondensing
Networking Interface(1) GbE RJ45 port
ConnectivityBLE 4.2 / NFC
Power MethodPoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption13W
Supported Voltage Range48V DC
Max. Frame Rate30 FPS
Resolution2MP 1200 x 1600 (3:4)
Resolution8 MP (2448 × 3264)
Field of ViewH: 79.4°, V: 97.5°, D: 118.2°
SensorsProximity sensor / ALS sensor
LuminanceMax. 1000 nits (Typical)
Resolution1024 x 600 px
Screen TechnologyCapacitive multi-touch
Size177 mm (7") diagonal
Speaker(1) Yes, 2W
NFC Frequency13.56 MHz
NFC Read Range< 30 mm (1.18'')
NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T / ECP 2.0
LEDsAmber Learn More
Buttons(1) Factory reset
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-G3-Intercom, V01
Software InformationThe software version can be checked at https://unifi.ui.com
Retrofit Extender
DimensionsPoE in/out: 40 x 105 x 25 mm / Adapter: 43.5 x 138 x 30 mm
WeightPoE in: 77 g (2.7 oz) / PoE out: 79 g (2.8 oz) / Adapter: 140 g (4.9 oz)
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate
Coaxial ConnectorBNC female
Networking Interface(1) 10/100 MbE / (1) Homeplug AV
Power MethodPoE++
PoE InterfacePoE in: (1) PoE++, 50V DC, 1.2A / PoE out: (1) PoE+, 48V DC, 0.6A
Max. Power Consumption3W (Without PoE output)
ESD/EMP ProtectionAir: ± 8kV, contact: ± 4kV
LEDsWhite
Ambient Operating Temperature-10 to 40° C (14 to 104° F)
Ambient Operating Humidity5 to 90% noncondensing
CertificationsCE, FCC, IC
PoE++ Adapter
ModelU-PoE++
Dimensions106 x 63 x 34 mm /
Weight210 g (7.4 oz)
Output Voltage48V DC @ 1.25A
Rated Voltage100–240V AC at 50/60Hz
Input Current1.3A @ 120V AC / 0.75A @ 230V AC
Inrush Current<100A peak @ 120V AC / <200A peak @ 230V AC
Efficiency85+%
Output Ripple1% max.
Switching Frequency65 kHz
Line Regulation≤ 1%
Load Regulation≤ 3%
4-pair PoweringPins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
AC ConnectorIEC-320 C6
Data In / PoERJ45 shielded socket
Surge ProtectionDifference and common mode
Clamping Protection11V data, 60V power
Max. Surge Discharge1500A (8/20 μs) power
Peak Pulse Current36A (10/1000 μs) data
Shunt Capacitance<5 pF data
Response Time<1 ns
Power MethodUniversal AC input, 100–240V AC, 50/60 Hz
Power SupplyAC/DC
Supported Voltage Range100–240V AC
Max. PoE+ Wattage per Port by PSE60W
Ambient Storage Temperature-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature0 to 40° C (32 to 104° F)
Ambient Operating Humidity10 to 95% noncondensing
CertificationsCE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS

Professional Overview

The Ubiquiti UA-G3-SK-Gate is a UniFi starter kit. Starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.

Powered via BLE 4.2 / NFC. Integrates with the UniFi Access or Protect ecosystem for centralised management and smart automation.

Weighing 460 g, the UA-G3-SK-Gate is built for 24/7 operation. Australian stock, fast shipping from ARC IP Networks.

Brand UBIQUITI
Connectivity BLE 4.2 / NFC
Door Access Form Factor Starter Kit
