UA-G2-SK
Ubiquiti UniFi Access G2 Starter Kit — Single-Door Kit with UA Hub Door, G2 Reader and 10 Access Cards

What the UA-G2-SK Is

The Ubiquiti UA-G2-SK is the UniFi Access G2 Starter Kit, an all-in-one kit for controlling one door. It contains one Door Hub, one G2 Reader and ten access cards. The Door Hub is a DIN-rail mounted controller with five 10/100/1000 Base-T ports, one PoE++ input and four PoE outputs at 30W per port up to a 45W aggregate, supporting one door with two exit-request inputs, a door position input and an emergency input. The G2 Reader is an IP55 in-wall NFC and Bluetooth reader drawing 5W over PoE. Both carry UL 294 Level I and CAN/ULC-60839-11-1 Grade I certification, and the system is managed from the UniFi Access application.

UA-G2-SK deployment

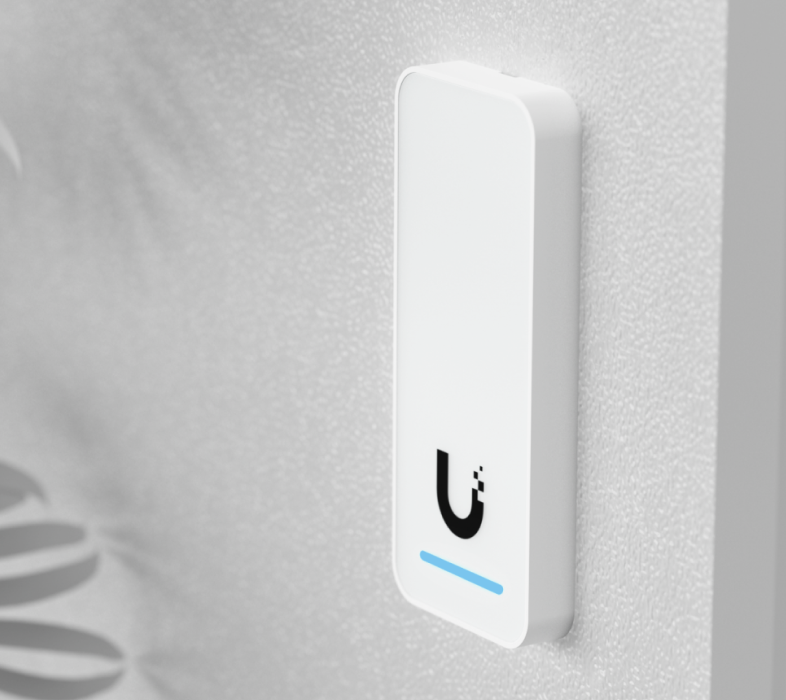

UA-G2-SK in-use

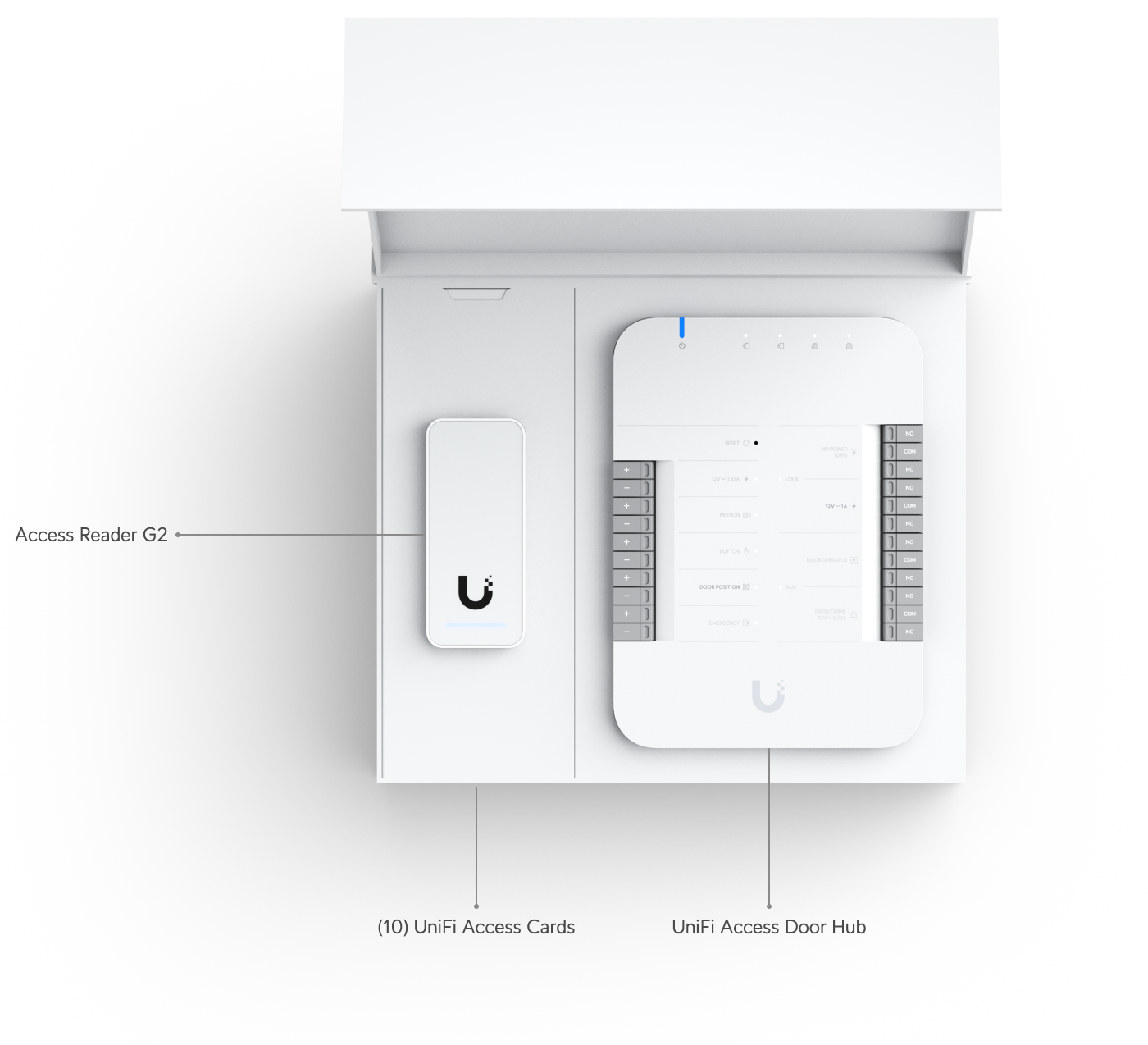

UA-G2-SK dimensions

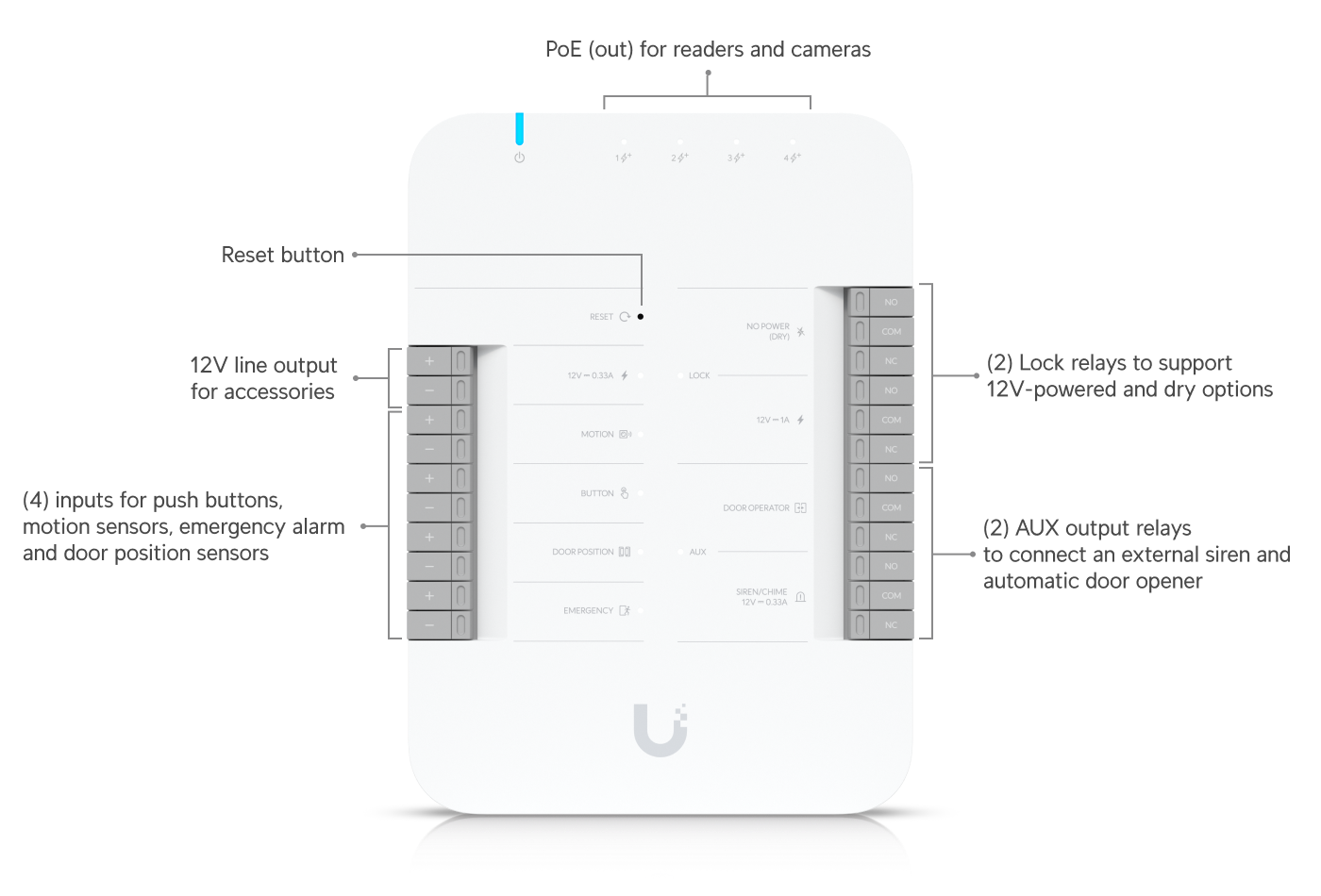

UA-G2-SK mounting

Key Features

  • (1) Door Hub
  • (1) G2 Reader
  • (10) Access Cards

Technical Specifications

Overview

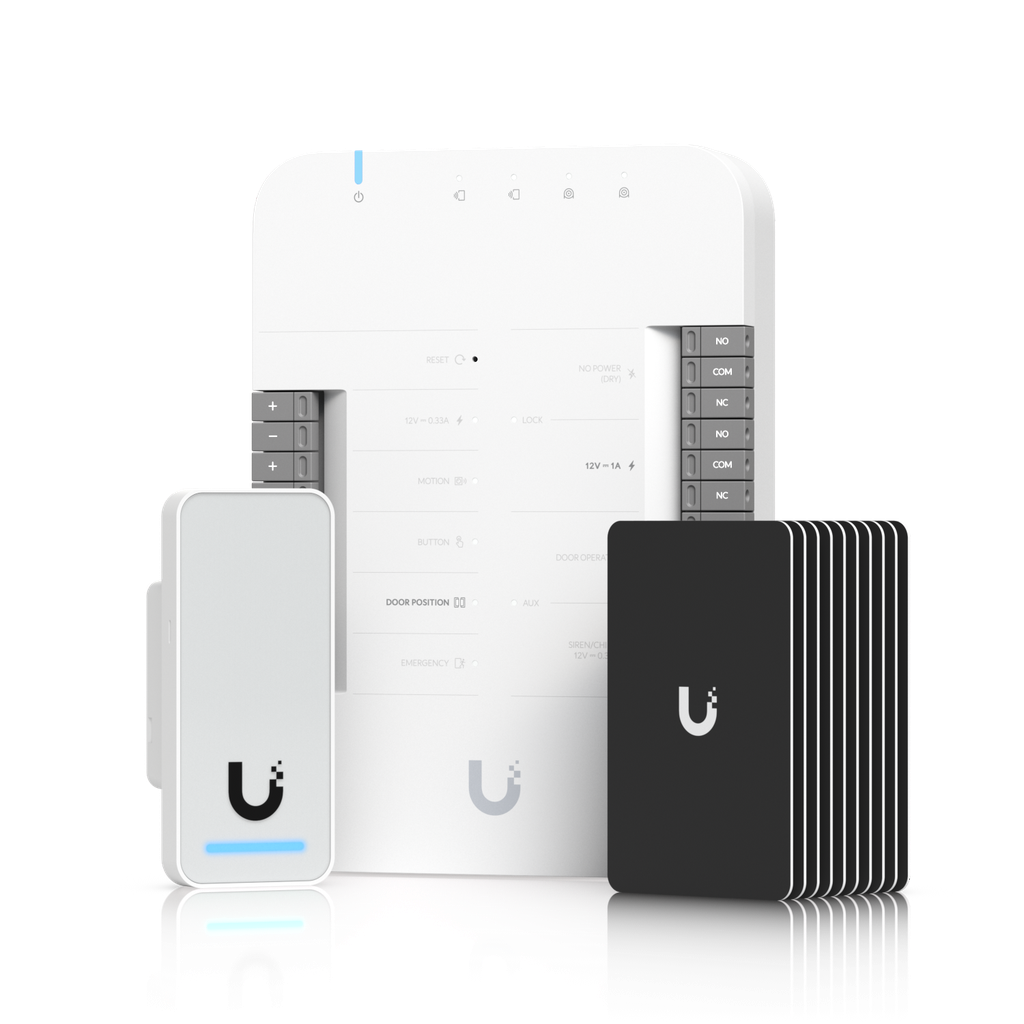

In the Box(1) Door Hub / (1) G2 Reader / (10) Access Cards

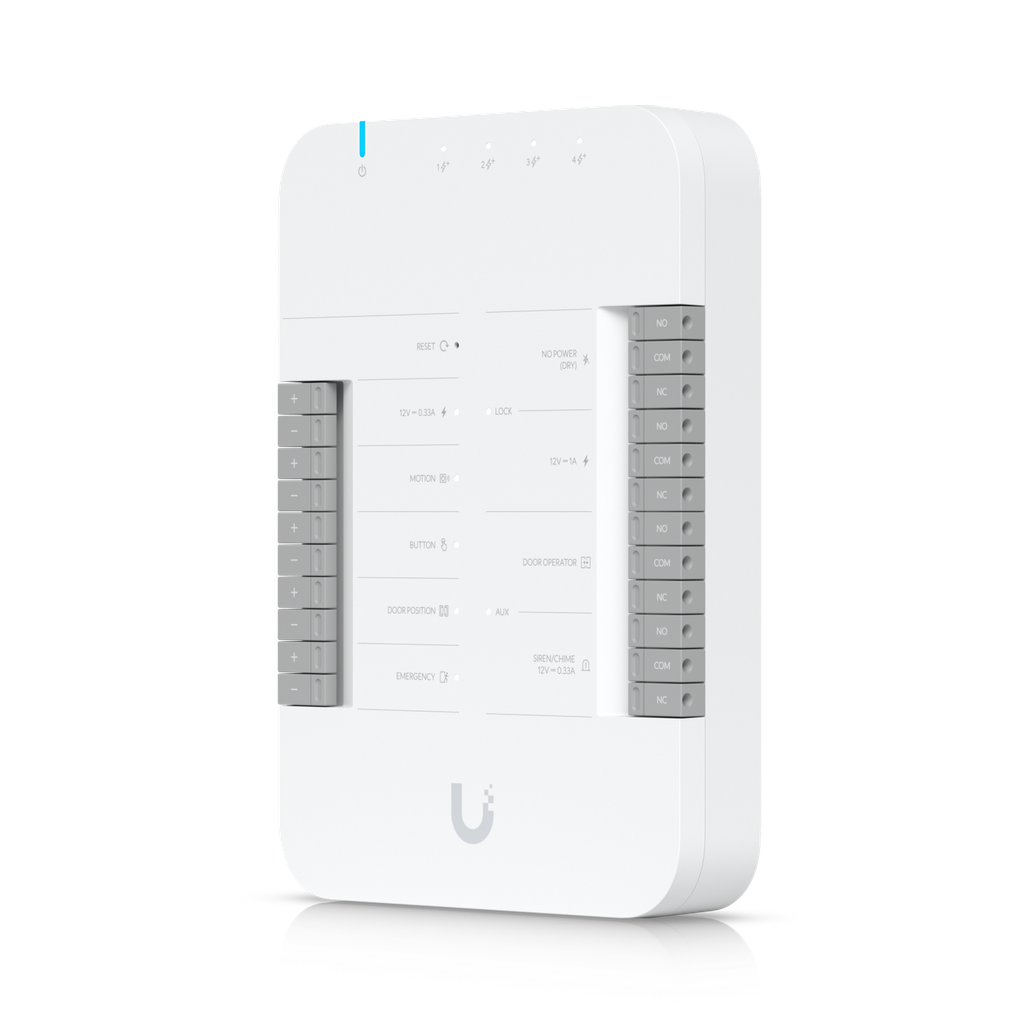

Door Hub

Dimensions174.9 x 126 x 32.9 mm
Supported Doors1
Input Terminals(2) Door exit request / (1) Door position / (1) Emergency
Power MethodPoE++ / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
Weight363 g
Enclosure MaterialPolycarbonate
Mount MaterialPolycarbonate

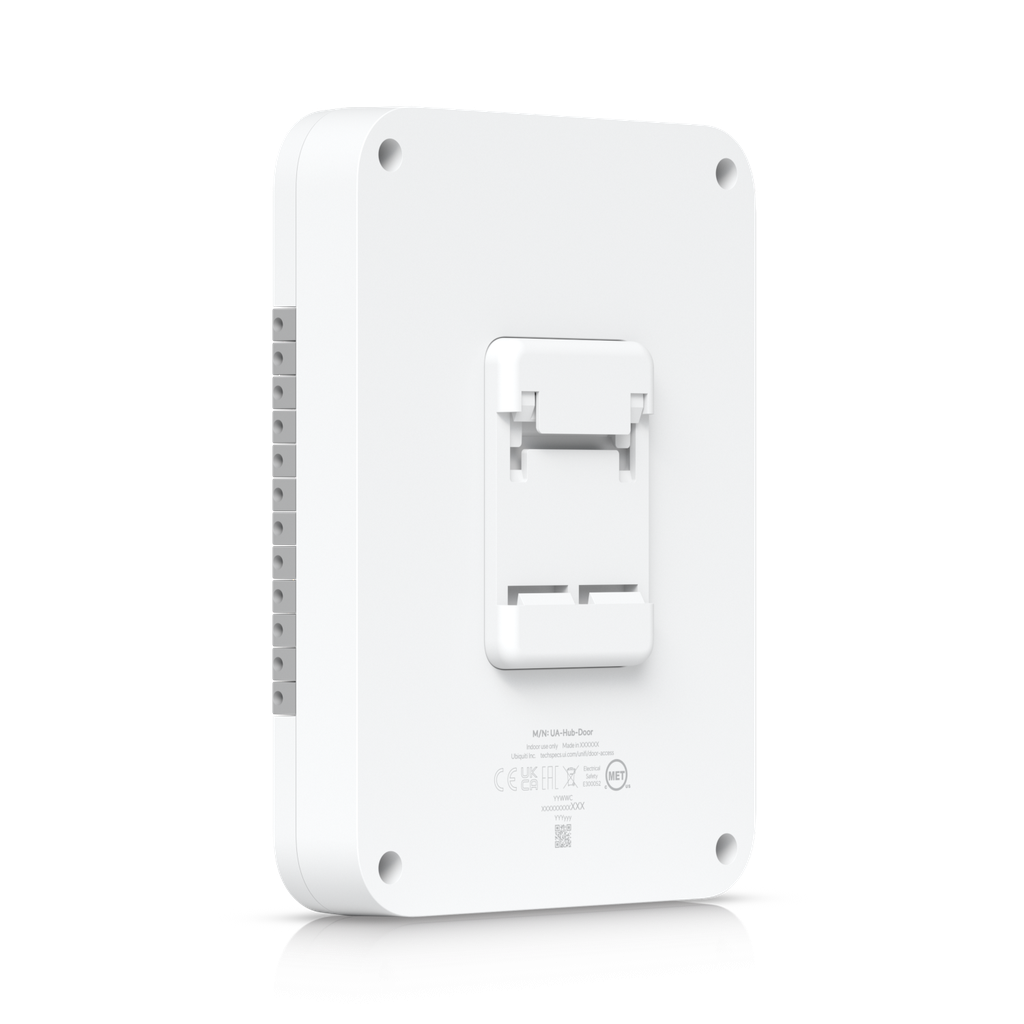

MountingDIN-rail (Included)

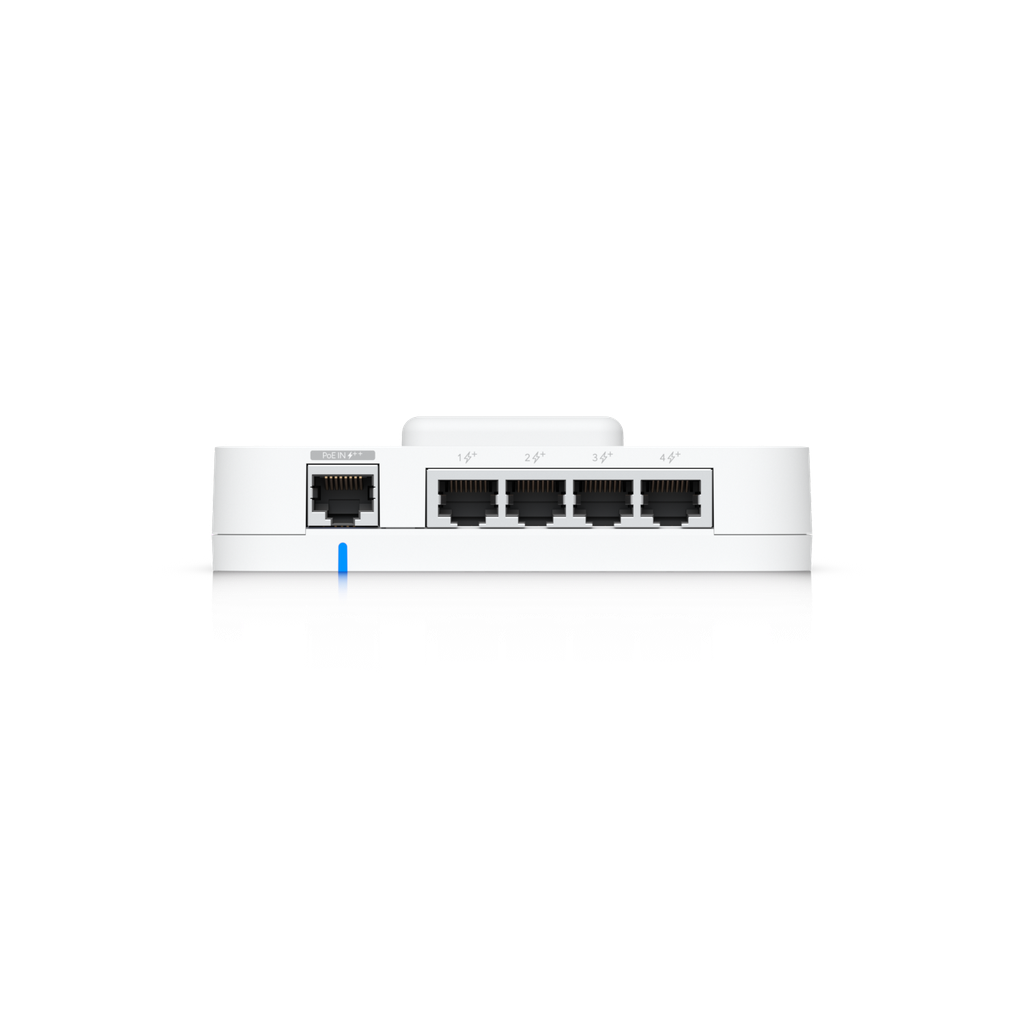

Networking Interface(5) 10/100/1000 Base-T
PoE Interface(1) PoE++ input, 50V DC, 1A / (4) PoE outputs, 50V DC, 30W per port / (Max 45W aggregated)
Max. Power Consumption30W (Without PoE output) / 50W (With PoE output)
Digital InputRequest to exit, request to enter, remote release, door position sensor
Dry Output RelayLock: 30V DC, 1A / Aux: 30V DC, 1A
Powered Output RelayLock: 12V DC, 1A / Aux: 12V DC, 0.33A / 12V DC, 0.33A
LEDsB/W Learn More
Button(1) Factory reset
Recommend Max. Cable Length — UA-Lock-Electric (400mA)24 AWG length: 25 m / 22 AWG length: 42 m / 20 AWG length: 66 m / 18 UACC-Cable-DoorLockRelay length: 100 m
Recommend Max. Cable Length — UA-Lock-Magnetic-540kg (500mA)24 AWG length: 20 m / 22 AWG length: 32 m / 20 AWG length: 51 m / 18 UACC-Cable-DoorLockRelay length: 80 m
Recommend Max. Cable Length — UA-Lock-Magnetic-270kg (800mA)24 AWG length: 12 m / 22 AWG length: 20 m / 20 AWG length: 30 m / 18 UACC-Cable-DoorLockRelay length: 46 m
Recommend Max. Cable Length — Other locks (1A)24 AWG length: 9 m / 22 AWG length: 15 m / 20 AWG length: 24 m / 18 UACC-Cable-DoorLockRelay length: 36 m
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG for patch cords; 24 AWG for horizontal or riser cable.
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I
UL 294 StatementCompliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: 1
Ambient Operating Temperature0 to 40° C
Ambient Operating Humidity5 to 95% noncondensing
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Management ApplicationUniFi Access
Software InformationThe software version can be checked at https://unifi.ui.com
Document number, and issue date and/or revision levelUA-Hub-Door002, V01

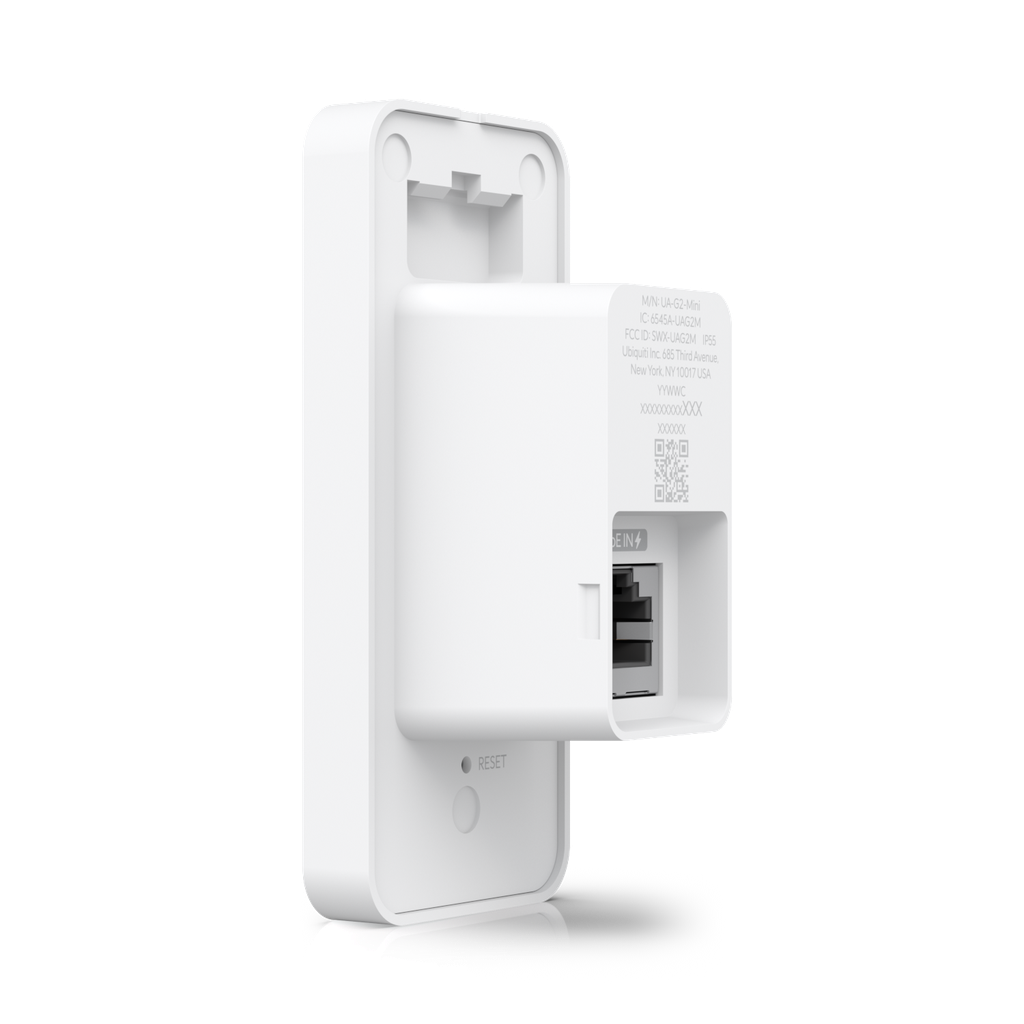

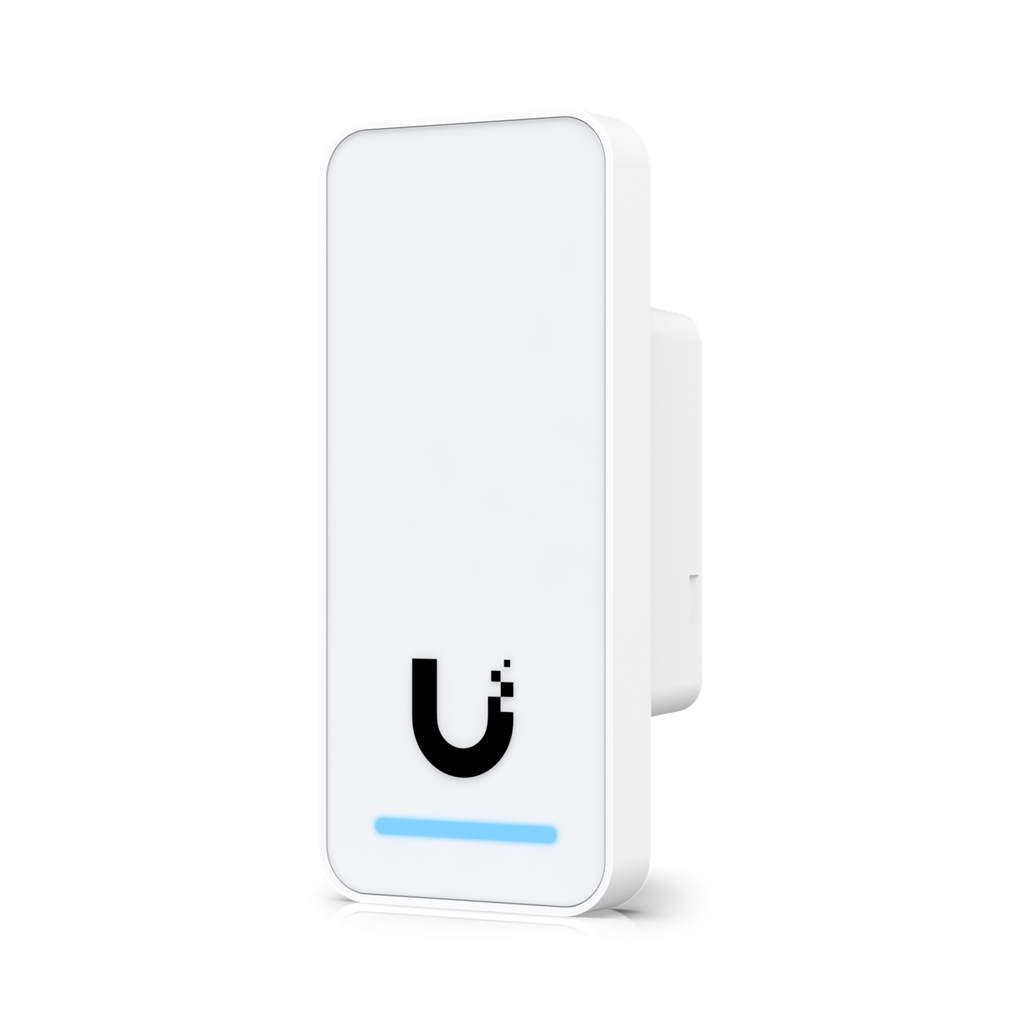

G2 Reader

Dimensions93 x 40 x 36.5 mm
WeatherproofingIP55
Weight82 g
Enclosure MaterialPolycarbonate, glass
Mount MaterialAluminum alloy
MountingIn-wall, gang box (Included) / Junction box (Optional)
Networking Interface(1) 10/100 MbE RJ45 port
ConnectivityBLE 4.1 / NFC
Power MethodPoE / UL 294 Power-limited Class 2 PSU / UL 60950-1/62368-1 LPS/PS2 PSU
Max. Power Consumption5W
Supported Voltage Range48V DC
ESD/EMP ProtectionAir: ± 15kV, contact: ± 8kV
SensorsProximity sensor
Speaker(1) Yes, 0.7W
LEDsR/G/B/W Learn More
Button(1) Factory reset
NFC Read Range< 30 mm
NFC Frequency13.56 MHz
NFC TechnologyISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) / MIFARE Classic / MIFARE DESFIRE / Sony FeliCa™ (ID only) / NFC Forum tags T1T, T2T, T3T, T4T and T5T
PoE Cabling RequirementsCat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. / The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG for patch cords; 24 AWG for horizontal or riser cable.
UL 294 LevelDestructive attack: Level I / Line security: Level I / Endurance: Level I / Standby power: Level I
UL 294 StatementCompliance with IEEE 802.3 specifications was not verified as part of UL 294. / The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.
CAN/ULC-60839-11-1 GradeGrade assignment: I
Ambient Operating Temperature-30 to 45° C
Ambient Operating Humidity5 to 90% noncondensing
CertificationsCE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Document number, and issue date and/or revision levelUA-G2/UA-G2-Black, V02
Management ApplicationUniFi Access
Software InformationThe software version can be checked at https://unifi.ui.com

Access Card

Dimensions85.6 x 53.98 x 0.84 mm
Weight5 g
FormatISO 7810 ID-1
NFC Frequency13.56 MHz
NFC TechnologyISO/IEC 14443 Type A / MIFARE DESFire / UniFi Access Proprietary Security Protocol

Professional Overview

The G2 Starter Kit is the least complicated way into UniFi Access: one box that controls one door, with the reader and credentials already in it. Everything needed to make a door work is present except the lock hardware itself and the cabling — which is exactly the right scope, because lock choice depends on the door.

The UA Hub Door is the part that does the work. It mounts on DIN rail, takes PoE++ input at 50V DC 1A, and re-distributes power through four PoE outputs at 30W per port with a 45W aggregate ceiling — so the reader and other devices at the door run from the hub rather than needing their own injectors. It supports one door, with two door-exit-request inputs, one door-position input and one emergency input, plus digital inputs for request-to-exit, request-to-enter, remote release and door position sensing. Relay outputs cover both dry (30V DC 1A for lock and aux) and powered (12V DC 1A lock, 12V DC 0.33A aux) wiring. Maximum draw is 30W without PoE output, or 50W with.

Ubiquiti publishes recommended maximum cable lengths per lock type, which is the specification most often overlooked at design time: for a 400 mA electric lock, 25 m at 24 AWG or 66 m at 20 AWG; for an 800 mA 270 kg magnetic lock, only 12 m at 24 AWG or 30 m at 20 AWG. Heavier locks need heavier cable or shorter runs, and getting this wrong produces a lock that chatters rather than one that plainly fails.

The G2 Reader is a 93 x 40 x 36.5 mm in-wall unit, 82 g, in polycarbonate and glass on an aluminium alloy mount, rated IP55 and running -30 to 45°C. It reads NFC at 13.56 MHz within 30 mm, supports ISO/IEC 14443A/14443B/15693/18092, MIFARE Classic and DESFire, and adds BLE 4.1, a proximity sensor and a 0.7W speaker, drawing 5W over PoE. The ten included cards are ISO 7810 ID-1 format using MIFARE DESFire with Ubiquiti's proprietary security protocol. The hub runs 0 to 40°C at 5 to 95% humidity; both devices carry CE, FCC, IC, UL 294 and CAN/ULC-60839-11-1. Australian stock from ARC IP Networks.

Frequently Asked Questions

What is included in the UA-G2-SK?

One UA Hub Door, one G2 Reader and ten access cards.

How many doors does this kit control?

One. The Door Hub supports a single door.

What is the difference between UA-G2-SK and UA-G2-SK-PRO?

This kit ships the standard G2 Reader. The Pro kit ships the G2 Reader Pro, which adds a touchscreen, camera and two-way intercom.

Does the kit include the lock?

No. Lock hardware is chosen to suit the door and is ordered separately. The hub provides both dry relay outputs (30V DC, 1A) and powered outputs (12V DC, 1A lock).

How is the hub powered and mounted?

PoE++ at 50V DC, 1A, on DIN rail. It also provides four PoE outputs at 30W per port, up to a 45W aggregate, to power the reader and other devices at the door.

What cable do I need between the hub and the lock?

It depends on lock current. Ubiquiti recommends up to 25 m at 24 AWG or 66 m at 20 AWG for a 400 mA electric lock, but only 12 m at 24 AWG or 30 m at 20 AWG for an 800 mA 270 kg magnetic lock.

What card technologies does the reader support?

NFC at 13.56 MHz with a read range under 30 mm, covering ISO/IEC 14443A, 14443B, 15693 and 18092, MIFARE Classic and MIFARE DESFire, plus BLE 4.1.

Is it certified for access control use?

Yes. Both the hub and reader carry UL 294 at Level I across destructive attack, line security, endurance and standby power, plus CAN/ULC-60839-11-1 Grade I, CE, FCC and IC.

Brand UBIQUITI
Door Access Form Factor Single-Door Starter Kit
Pack Option Kit: Hub + Reader + 10 Cards
Power Method PoE++ (50W max)
Unlock Method NFC / App
Weatherproofing IP55 (Reader)
