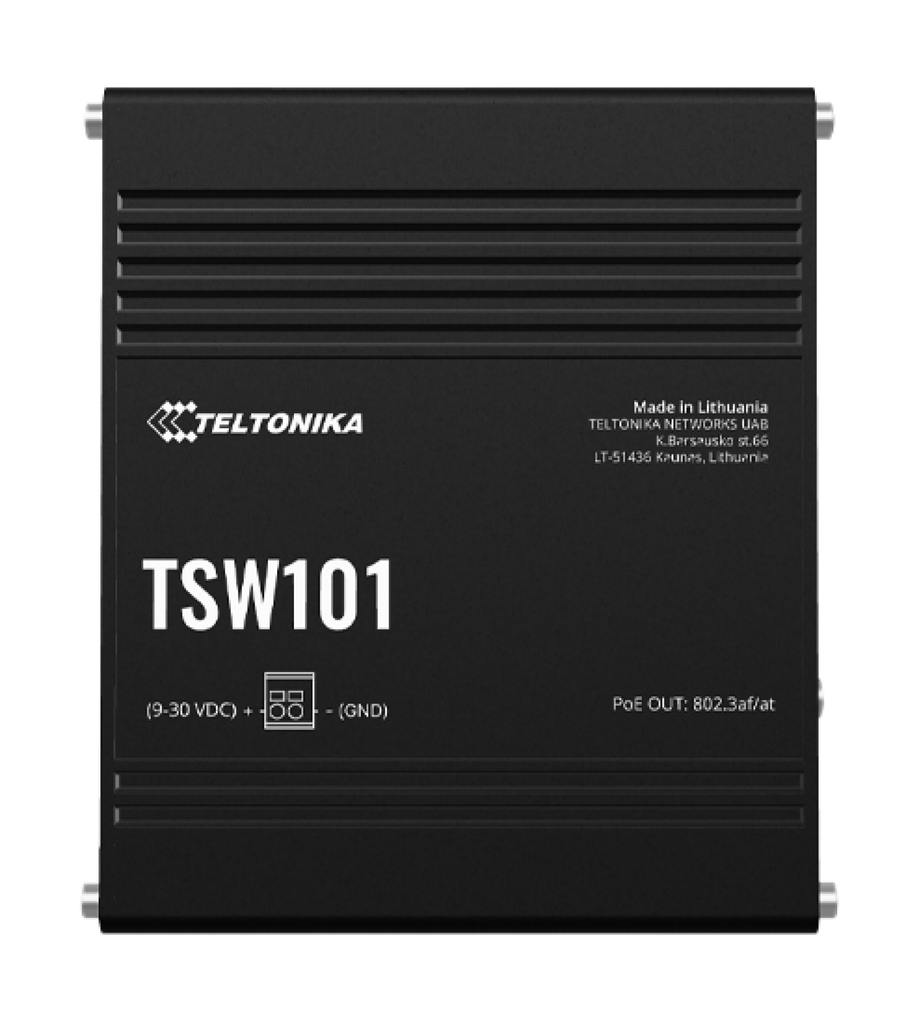

Teltonika TSW101 Unmanaged Automotive POE+ Switch DC input

https://arcip.com.au/web/image/product.template/3582/image_1920?unique=b1adda0

Teltonika TSW101 automotive PoE+ switch for in-vehicle applications. 5 x Gigabit Ethernet RJ45 ports; ports 1-4 provide 802.3af/at PoE+ at up to 30 W each, 30 W total at 12 VDC or 60 W total at 24 VDC. Powered from a 12 V or 24 V car battery via a 2-pin 9-30 VDC socket, no additional PSU required. Plug and play, 10 Gbps non-blocking, 9216-byte jumbo frames. Anodised aluminium IP30 housing, 115 x 32 x 95 mm, 384 g, -40 to 75 °C. Genuine Teltonika from ARC IP Networks, authorised Teltonika reseller with Australian stock.

$ 130.00 130.0 AUD $ 139.94 incl. GST

Not Available For Sale


  • Brand
  • Form Factor
  • Operating System

This combination does not exist.

In stock online
Switch PoE Teltonika Industrial RutOS DIN Rail
  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Accepted payments: Google Pay, Apple Pay, Visa, Mastercard and PayPal
SKU
TSW101
Barcode
4779051840113
Tags

Teltonika TSW101 at a glance

The Teltonika TSW101 is a plug-and-play automotive switch dedicated to in-vehicle applications, with five Gigabit Ethernet ports of which four supply IEEE 802.3af/at PoE+. It can be powered by a 12 V or 24 V car battery (9-30 VDC) with no additional PSU, delivering up to 30 W per port and a 60 W total PoE budget at 24 VDC.

ARC IP Networks is an authorised Teltonika reseller in Australia. We supply the Teltonika TSW101 from Australian stock.

Ports5 x Gigabit Ethernet
PoE+4 ports, up to 60 W total
Power input9-30 VDC (12 V / 24 V battery)
Operating temp.-40 °C to 75 °C

Best for

  • Powering end devices such as IP cameras inside vehicles
  • In-vehicle installs running from a 12 V or 24 V car battery
  • Plug-and-play PoE+ without an additional PSU

Key features

5 x Gigabit Ethernet ports (10/100/1000 Mbps) with auto MDI/MDIX crossover.

Ports 1-4 deliver PoE+ (IEEE 802.3af Type 1 and 802.3at Type 2, Alternative A), up to 30 W per port.

PoE budget depends on the source: 30 W total at 12 VDC, 60 W total at 24 VDC.

Powered by a 12 V or 24 V car battery via a 2-pin industrial DC power socket (9-30 VDC) - no additional PSU required.

Plug and play: no configuration needed.

10 Gbps non-blocking bandwidth, 128 KB packet buffer, 2K MAC table and 9216-byte jumbo frames.

Anodised aluminium housing and panels, IP30, -40 °C to 75 °C.

DIN rail, wall mount and flat surface mounting (all require an additional kit).

Profinet Class A conformance available with an optional order code.

Teltonika TSW101 specifications

Teltonika TSW101 technical specifications
SpecificationValue
Ethernet
Ethernet ports5 x RJ45, 10/100/1000 Mbps, auto MDI/MDIX
IEEE 802.3 standards802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Max Ethernet cable length100 m
ProfinetClass A conformance (optional order code)
PoE Out
PoE+ portsPorts 1-4
PoE standardsIEEE 802.3af (Type 1) and 802.3at (Type 2), Alternative A
Max power per port (at PSE)30 W
Total PoE budget (at PSE)60 W (30 W at 12 VDC, 60 W at 24 VDC)
Performance
Bandwidth (non-blocking)10 Gbps
Packet buffer128 KB
MAC address table2K entries
Jumbo frames9216 bytes
Power
Connector2-pin industrial DC power socket
Input voltage range9-30 VDC
PoE-Out input voltage range9-30 VDC
Power consumptionIdle 0.64 W / max 2.31 W / PoE max 62.3 W
PSU12 V or 24 V car battery-powered; no additional PSU required
Physical
Status LEDs1 x Power, 10 x ETH status
Other1 x grounding screw
CasingAnodised aluminium housing and panels
Dimensions (W x H x D)115 x 32 x 95 mm
Weight384 g
MountingDIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature-40 °C to 75 °C
Operating humidity5% to 95% non-condensing
Ingress ProtectionIP30

Figures from Teltonika's official product information.

What's in the box

  • TSW101
  • QSG (Quick Start Guide)
  • Packaging box

The Teltonika TSW101 in depth

A PoE+ switch for vehicles

The TSW101 is dedicated to in-vehicle applications. It connects five Gigabit Ethernet devices and powers up to four of them with PoE+, while running from a 12 V or 24 V car battery through its 2-pin 9-30 VDC socket - no additional PSU needed.

PoE budget by supply voltage

Each PoE+ port supplies up to 30 W. Total PoE output is 30 W when the switch is fed 12 VDC and 60 W at 24 VDC. Teltonika notes the TSW101 does not limit its output, so keep the combined PoE load within these figures.

Rugged and simple

The anodised aluminium IP30 housing (115 x 32 x 95 mm, 384 g) operates from -40 °C to 75 °C, and the switch is plug and play with no configuration. Connect the main router or modem to port 5 and powered devices to ports 1-4.

Frequently asked questions

Straight answers about the Teltonika TSW101 from the ARC IP Networks team. Last reviewed October 2026.

Yes. It is designed for in-vehicle use and can be powered by a 12 V or 24 V car battery (9-30 VDC) with no additional PSU.

Up to 30 W per port on ports 1-4, with a total of 30 W at 12 VDC or 60 W at 24 VDC.

No. The standard package contains the TSW101, Quick Start Guide and packaging box; it is wired to a 12 V or 24 V battery or other 9-30 VDC source via the 2-pin socket.

Teltonika's Quick Start Guide says to connect your main internet router or modem to port 5; ports 1-4 are the PoE ports.

No. The TSW101 is plug and play.

ARC IP Networks is an authorised Teltonika reseller and supplies the TSW101 from Australian stock.
