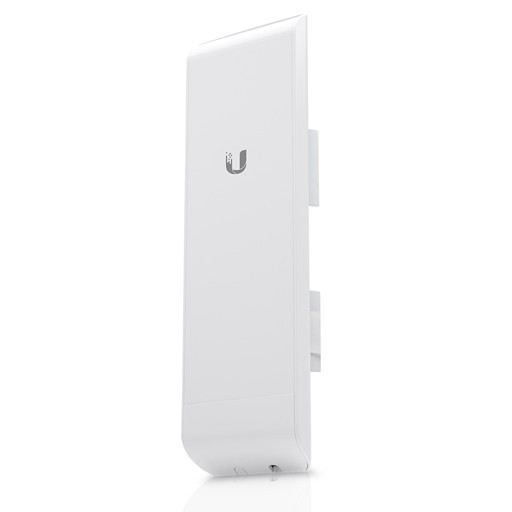

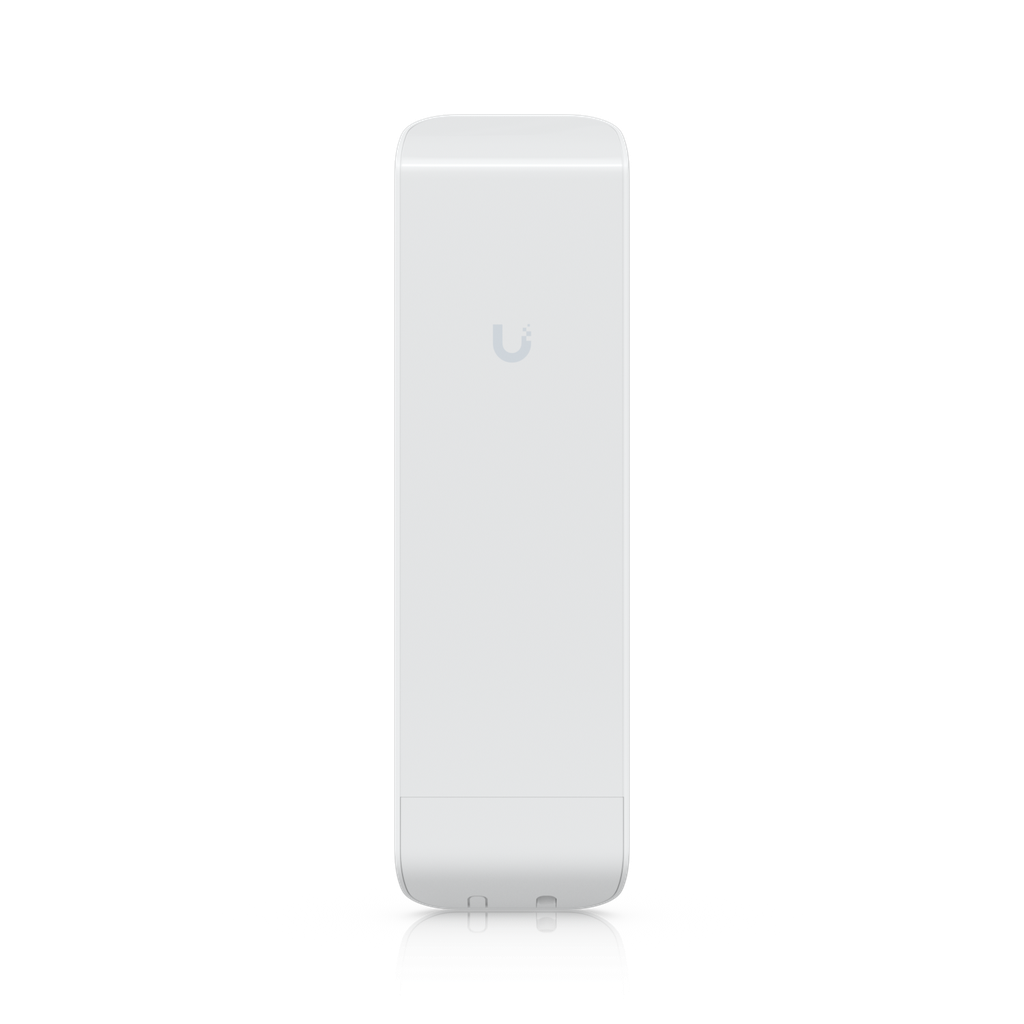

Ubiquiti NSM2 2.4GHz NanoStation MIMO, AIRMAX

https://arcip.com.au/web/image/product.template/2762/image_1920?unique=8867584
The Ubiquiti NSM2 is a compact and efficient 2.4GHz NanoStation, leveraging AirMAX MIMO technology for robust outdoor wireless links. It's ideal for WISP client devices or short-range Point-to-Point deployments requiring reliable connectivity.

151.25 151.25 AUD 151.25 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti airMAX
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
NSM2
Barcode
817882023269
Tags
NSM2
Ubiquiti NSM2 2.4GHz NanoStation MIMO, AIRMAX

Features

  • Integrated 11 dBi Dual-Polarity Directional Antenna
  • 2.4 GHz Frequency Band Operation for Versatile Deployment
  • AirMAX (TDMA Protocol) for Scalable PtMP Network Performance
  • 2x2 MIMO Technology for Enhanced Throughput and Range
  • Durable, Outdoor UV-Stabilized Enclosure
  • Supports Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) Client Modes
  • Passive 24V PoE Support for Simplified Installation (PoE Adapter Included)
  • Advanced airOS Software Suite for Robust Management

Specifications

Wireless
Frequency Band2.4 GHz
Wireless Standard802.11n (Proprietary airMAX)
Gain11 dBi
Max. Throughput150+ Mbps
Max. TX Power28 dBm
MIMO2x2
PolarizationDual-Linear
System
ProcessorAtheros MIPS 24KC, 400 MHz
Memory32 MB SDRAM
Networking Interface1x 10/100 Ethernet Port
Power
Power Method24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply24V, 0.5A PoE Adapter (Included)
Max. Power Consumption8W
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Physical/Environmental
Enclosure MaterialOutdoor UV Stabilized Plastic
MountingPole-Mount (Kit Included)
Wind Loading146.1 N @ 200 km/h (32.85 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
Operating Temperature-30 to 75° C (-22 to 167° F)
Operating Humidity5 to 95% Non-Condensing
Dimensions292 x 137 x 63 mm (11.5 x 5.39 x 2.48")
Weight400 g (14.11 oz)

Professional Overview

The Ubiquiti NSM2 2.4GHz NanoStation MIMO, AIRMAX is a highly versatile and robust outdoor wireless device, renowned for its compact design, powerful performance, and cost-effectiveness. Engineered as an integrated Customer Premises Equipment (CPE) or a short-range access point, the NSM2 leverages Ubiquiti's proven AirMAX (M-series) technology, combining a dual-polarity 2x2 MIMO radio with an integrated 11 dBi directional antenna. This combination ensures reliable and focused 2.4 GHz wireless links, making it an ideal choice for Wireless Internet Service Providers (WISPs) for last-mile client connectivity, as well as for businesses and residential users extending network coverage to outbuildings or for Point-to-Point (PtP) links.

Operating in the widely adopted 2.4 GHz band, the NSM2 offers broad compatibility while utilizing Ubiquiti’s proprietary AirMAX TDMA (Time Division Multiple Access) protocol to significantly enhance network scalability and throughput in Point-to-MultiPoint (PtMP) scenarios. This intelligent protocol efficiently manages client access to the airtime, minimizing collisions and dramatically improving overall network efficiency, especially in environments with numerous connected devices. The 2x2 MIMO architecture further boosts link stability and data rates, allowing the NSM2 to deliver real-world throughput exceeding 150+ Mbps, providing ample bandwidth for everyday internet activities.

The NSM2 is built to endure the rigors of outdoor deployment, featuring a durable, UV-stabilized plastic enclosure that protects its internal components from extreme temperatures, moisture, and prolonged sun exposure. Power is conveniently supplied via 24V Passive Power over Ethernet (PoE) through its 10/100 Ethernet port, simplifying cabling requirements and reducing installation complexity by delivering both power and data over a single Ethernet cable. An included PoE adapter facilitates immediate setup. Furthermore, integrated ESD/EMP protection safeguards the device against electrical surges, contributing to its long-term reliability and ensuring uninterrupted service in exposed installations.

For network professionals seeking a reliable, high-performance, and discreet outdoor wireless solution, the Ubiquiti NSM2 NanoStation MIMO remains an excellent choice. Its balance of advanced features, robust construction, and ease of deployment via the intuitive airOS software makes it an indispensable tool for building scalable WISP networks, extending corporate or home wireless infrastructure, or facilitating surveillance camera backhauls. The NSM2 provides a dependable foundation for essential wireless communications, delivering consistent performance and value in the 2.4 GHz spectrum.

Brand UBIQUITI
