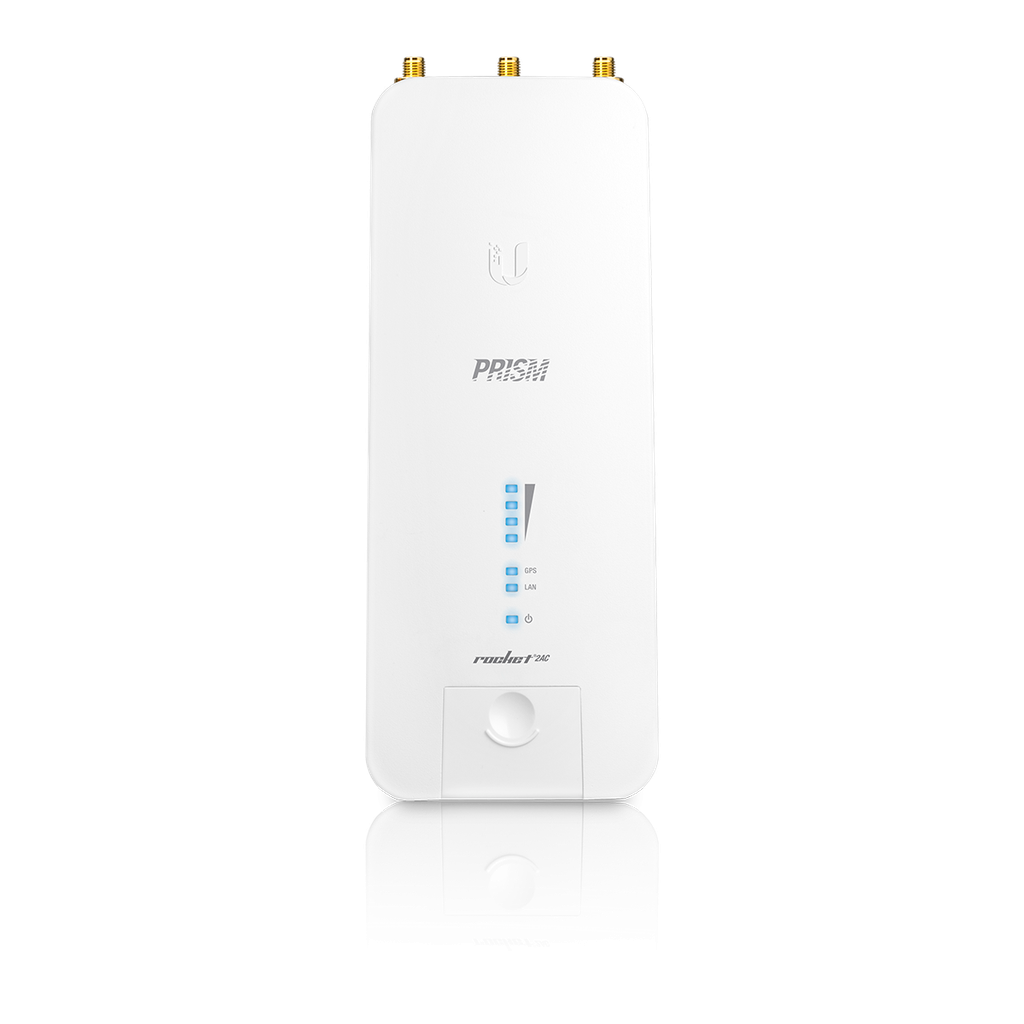

Ubiquiti R2AC-PRISM 2 GHz Rocket AC

https://arcip.com.au/web/image/product.template/2774/image_1920?unique=d491e4d
The Ubiquiti R2AC-PRISM 2 GHz Rocket AC is a high-performance airMAX ac base station radio designed for Point-to-MultiPoint (PtMP) deployments, offering unparalleled noise immunity and spectral efficiency. It's ideal for building scalable wireless networks in challenging 2 GHz environments.

345.95 345.95 AUD 345.95 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti airMAX
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
R2AC-PRISM
Barcode
817882027274
Tags
R2AC-PRISM
Ubiquiti R2AC-PRISM 2 GHz Rocket AC

Features

  • 2 GHz Frequency Band for Robust Penetration and Interference Mitigation
  • airMAX ac Technology for Superior Throughput (500+ Mbps)
  • Proprietary airPRISM Filtering Technology for Enhanced Noise Immunity
  • GPS Synchronization Support for Scalable PtMP Deployments
  • Dedicated Management Wi-Fi Radio for Easy Setup via UISP App
  • Gigabit Ethernet Port for High-Speed Data Transfer
  • Durable, Outdoor-Rated Aluminum Die-Cast Enclosure
  • Flexible Pole Mounting (Kit Included)
  • Advanced airOS ac Software Suite with Real-time Spectrum Analyzer

Specifications

Wireless
Frequency Band2.4 GHz (2.3 - 2.7 GHz for regional variations)
Wireless Standard802.11ac (airMAX ac)
Max. Throughput500+ Mbps
Max. TX Power28 dBm
MIMO2x2
GPS SynchronizationYes
DFS SupportYes (where applicable)
System
ProcessorMIPS 74Kc
Memory128 MB DDR2
Networking Interface1x 10/100/1000 Ethernet Port
Power
Power Method24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply24V, 1A Gigabit PoE Adapter (Included)
Max. Power Consumption8.5W
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Physical/Environmental
Enclosure MaterialDie-Cast Aluminum
MountingPole-Mount Kit (Included)
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Non-Condensing
Dimensions125 x 95 x 63 mm (4.92 x 3.74 x 2.48")
Weight0.5 kg (1.10 lb)

Professional Overview

The Ubiquiti R2AC-PRISM 2 GHz Rocket AC is an advanced airMAX ac base station radio, meticulously engineered to address the persistent challenges of spectrum congestion and interference in wireless Point-to-MultiPoint (PtMP) networks. Operating in the 2 GHz frequency band, this device offers superior penetration capabilities and often encounters less congestion than the 2.4 GHz ISM or 5 GHz bands in certain regions, making it ideal for deployments where line-of-sight may be partially obstructed or where a robust signal is required over diverse terrain.

At the heart of the R2AC-PRISM is Ubiquiti's groundbreaking airPRISM filtering technology. This proprietary innovation significantly enhances noise immunity by isolating signals within the operating channel and suppressing interference from adjacent channels and co-located radios. This critical feature allows for higher modulation rates, increased data capacity, and vastly improved spectral efficiency, which is paramount for Wireless Internet Service Providers (WISPs) looking to maximize network scalability and deliver consistent high-speed service to their subscribers. Combined with airMAX ac technology, the R2AC-PRISM delivers real-world throughput exceeding 500+ Mbps, providing ample bandwidth for demanding applications.

Further bolstering its capabilities, the R2AC-PRISM integrates GPS synchronization, a key feature for large-scale PtMP deployments. GPS Sync enables multiple Rocket AC radios on the same tower to transmit and receive in perfect coordination, dramatically reducing self-interference and improving overall network performance in dense co-location scenarios. The robust aluminum die-cast enclosure ensures exceptional durability and heat dissipation, allowing for reliable operation across extreme outdoor temperatures and harsh environmental conditions. Its Gigabit Ethernet port ensures that the wired backhaul can fully support the high wireless throughput.

Deployment and management are streamlined by the dedicated management Wi-Fi radio, allowing technicians to quickly configure and fine-tune the device using the intuitive Ubiquiti UISP mobile app. Running on the advanced airOS ac software, the R2AC-PRISM offers a comprehensive suite of features for spectrum analysis, link planning, and robust network management. For network professionals seeking a powerful, interference-resistant, and scalable base station solution in the 2 GHz band, the Ubiquiti R2AC-PRISM offers an unparalleled combination of performance, reliability, and advanced technology, making it an indispensable asset for building and maintaining a resilient wireless infrastructure.

Brand UBIQUITI
