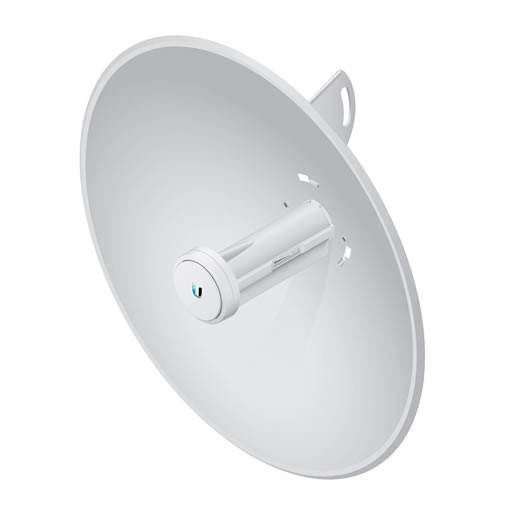

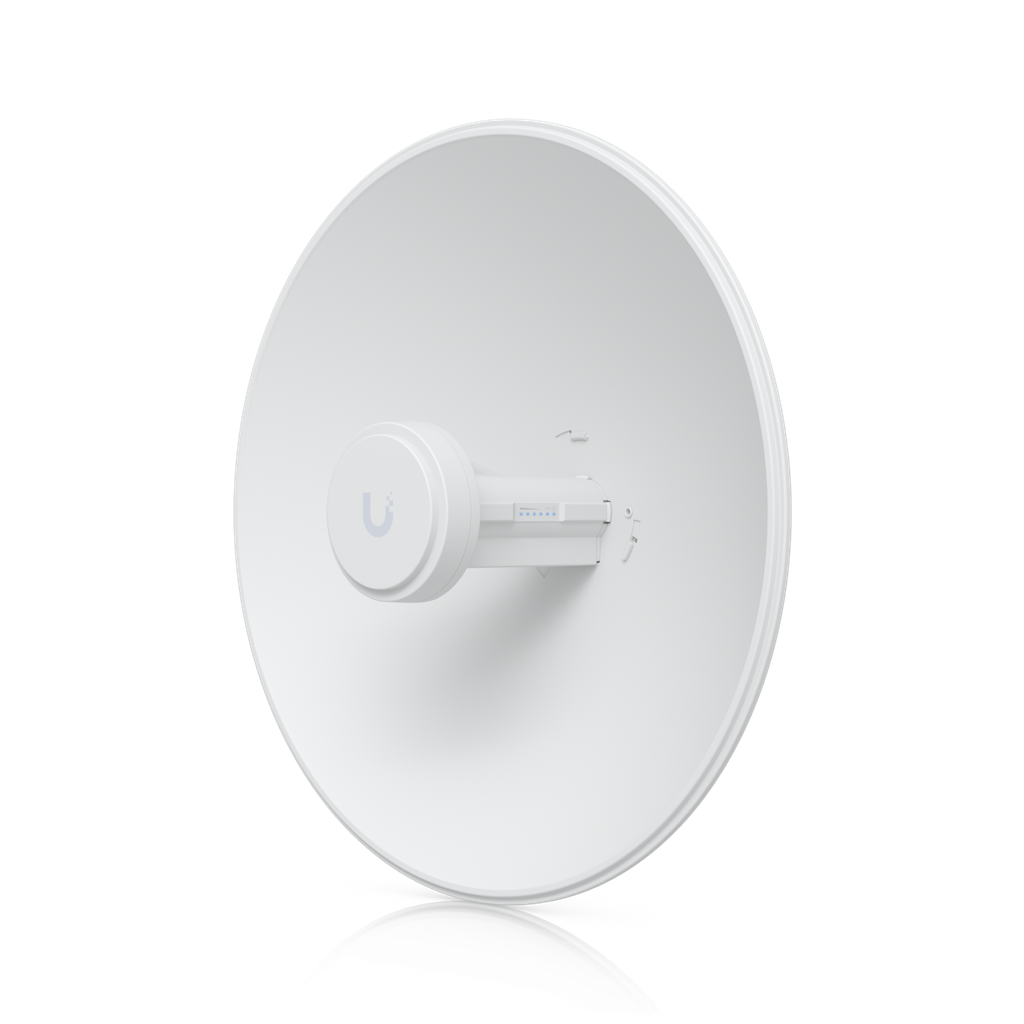

Ubiquiti PBE-2AC-400 2.4 GHz PowerBeam AC 400mm

https://arcip.com.au/web/image/product.template/2765/image_1920?unique=0db71fe
The Ubiquiti PBE-2AC-400 2.4 GHz PowerBeam AC is a high-performance integrated radio and antenna, designed for robust Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) links. It delivers superior throughput and enhanced noise immunity for reliable wireless connectivity in the 2.4 GHz band.

218.35 218.35 AUD 218.35 incl. GST

Not Available For Sale


  • Brand

This combination does not exist.

Ubiquiti airMAX
UBIQUITI
UBIQUITI

Ubiquiti Inc. offers a wide range of networking solutions for service providers and enterprises, including fixed wireless broadband, wireless backhaul, routing, LAN infrastructure, and video surveillance. The company stands out through its proprietary software, advanced firmware, and innovative hardware design.

  • Stock

    Authorised Australian Reseller | Australian Stock | Genuine Local Warranty

  • Instalment
    Buy Now, Pay Later
  • [Warranty Information] Warranty
    Manufacturer Warranty
Estimate delivery
Shipping calculated at checkout
Estimate delivery times: 3-7 business days
Guaranteed Safe Checkout
Guaranteed Safe Checkout
SKU
PBE-2AC-400
Barcode
810354024665
Tags
PBE-2AC-400
Ubiquiti PBE-2AC-400 2.4 GHz PowerBeam AC 400mm

Features

  • Integrated 400mm Reflector Dish for Focused 2.4 GHz Performance
  • airMAX ac Technology for High Throughput and Scalability
  • Improved Noise Immunity with InnerFeed Technology
  • Dedicated Management Wi-Fi Radio for Easy Setup via UMobile App
  • Robust Mechanical Design for Enhanced Wind Loading
  • Supports Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) Client Modes
  • Passive 24V PoE Support (PoE Adapter Included)

Specifications

Wireless
Frequency Band2.4 GHz
Wireless Standard802.11ac (airMAX ac)
Gain18 dBi
Max. Throughput330+ Mbps
Max. TX Power28 dBm
MIMO2x2
Beamwidth18° (Single Pol.)
System
ProcessorMIPS 74Kc
Memory64 MB DDR2
Networking Interface1x 10/100/1000 Ethernet Port
Power
Power Supply24V, 0.5A Gigabit PoE Adapter (Included)
Power MethodPassive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption6W
ESD/EMP ProtectionAir: ±24 kV, Contact: ±24 kV
Physical/Environmental
Enclosure MaterialOutdoor UV Stabilized Plastic, Powder Coated Steel (Reflector)
MountingPole-Mount (Included)
Wind Loading342.5 N @ 200 km/h (77 lbf @ 125 mph)
Wind Survivability200 km/h (125 mph)
Operating Temperature-40 to 70° C (-40 to 158° F)
Operating Humidity5 to 95% Non-Condensing
Dimensions⌀420 x 420 x 289 mm (⌀16.54 x 16.54 x 11.38")
Weight1.75 kg (3.86 lb)

Professional Overview

The Ubiquiti PBE-2AC-400 2.4 GHz PowerBeam AC is an integrated radio and antenna solution meticulously engineered for high-performance Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) client applications. Leveraging Ubiquiti's advanced airMAX ac technology, this device combines a powerful 2.4 GHz radio with a large 400mm reflector dish, resulting in a formidable 18 dBi directional gain. This focused beamwidth not only extends wireless link distances but also significantly enhances noise immunity, making it an indispensable tool for Wireless Internet Service Providers (WISPs) and network integrators operating in congested 2.4 GHz frequency environments.

The PowerBeam AC utilizes Ubiquiti's proprietary InnerFeed™ technology, which integrates the radio directly into the antenna's feedhorn. This design eliminates the need for RF cables, thereby reducing cable losses and improving overall system performance and efficiency. Coupled with the airMAX ac protocol, the PBE-2AC-400 delivers impressive real-world TCP/IP throughput exceeding 330 Mbps, ensuring ample bandwidth for demanding applications such as high-speed internet access, video surveillance backhauls, and other data-intensive services. Its advanced airOS ac software suite offers features like airView for spectrum analysis and airMagic for channel optimization, providing robust tools for network management and interference mitigation.

Designed for professional outdoor deployment, the PBE-2AC-400 features a robust mechanical design with an enhanced pole-mount system, ensuring resilience against high wind loading and harsh weather conditions. Its durable, UV-stabilized plastic and powder-coated steel construction protect internal components from extreme temperatures and prolonged environmental exposure, guaranteeing long-term reliability and consistent performance. Installation and alignment are streamlined by a dedicated management Wi-Fi radio, allowing technicians to quickly configure and fine-tune the device using the convenient UMobile app on a smartphone, drastically reducing setup time and complexity.

For network professionals seeking a reliable, high-performance, and cost-effective solution for extending their wireless infrastructure in the 2.4 GHz band, the Ubiquiti PBE-2AC-400 PowerBeam AC stands out. Its combination of advanced airMAX ac technology, high-gain directional antenna, and rugged outdoor design provides an optimal balance of reach, throughput, and durability. This device is a strategic investment for building scalable WISP networks, establishing critical long-distance links, or extending reliable wireless coverage in challenging industrial or commercial settings.

Brand UBIQUITI
